Sockets

1. Sockets The building blocks of Internet communications

2. Motivation • We need to present programs with an abstraction of the network • naming, rendezvous, service type and quality • The abstraction implies an API (Application Programming Interface) • What happens if we let everyone define their own API? • tower of Babel • Independently developed programs can’t talk to one another • Code can’t be shared • Models can’t be understood and developed upon

3. Overview • What is a socket • Sockets undressed • Writing a server • Writing a client • Problems with sockets • Sockets and Java

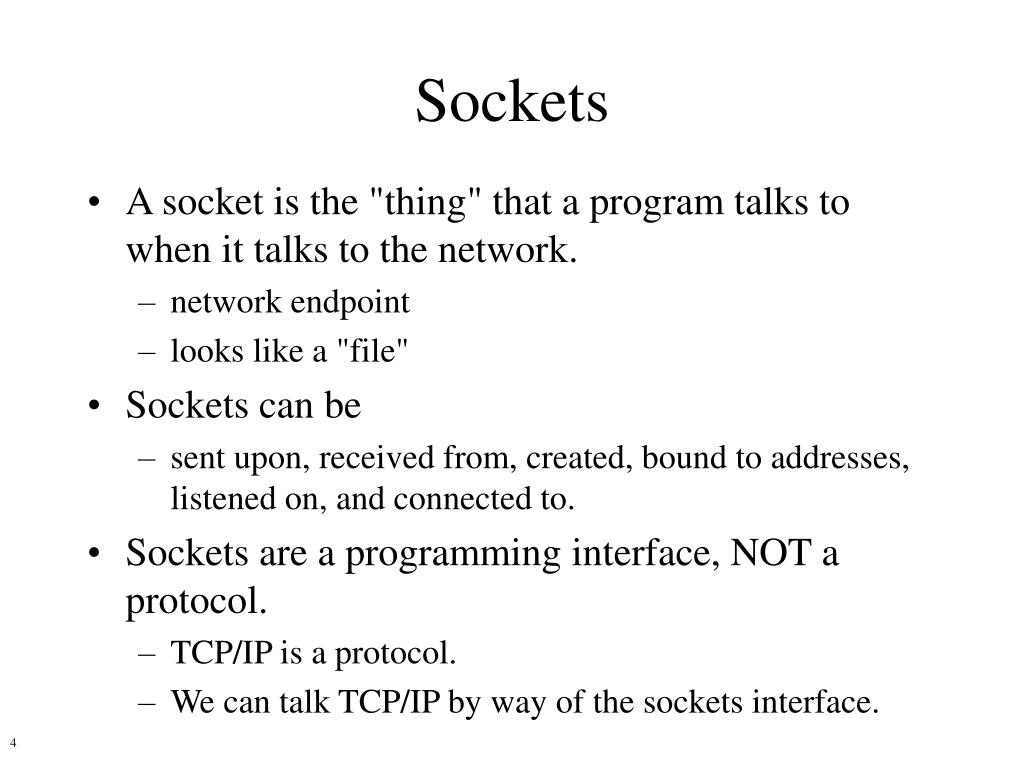

4. Sockets • A socket is the "thing" that a program talks to when it talks to the network. • network endpoint • looks like a "file" • Sockets can be • sent upon, received from, created, bound to addresses, listened on, and connected to. • Sockets are a programming interface, NOT a protocol. • TCP/IP is a protocol. • We can talk TCP/IP by way of the sockets interface.

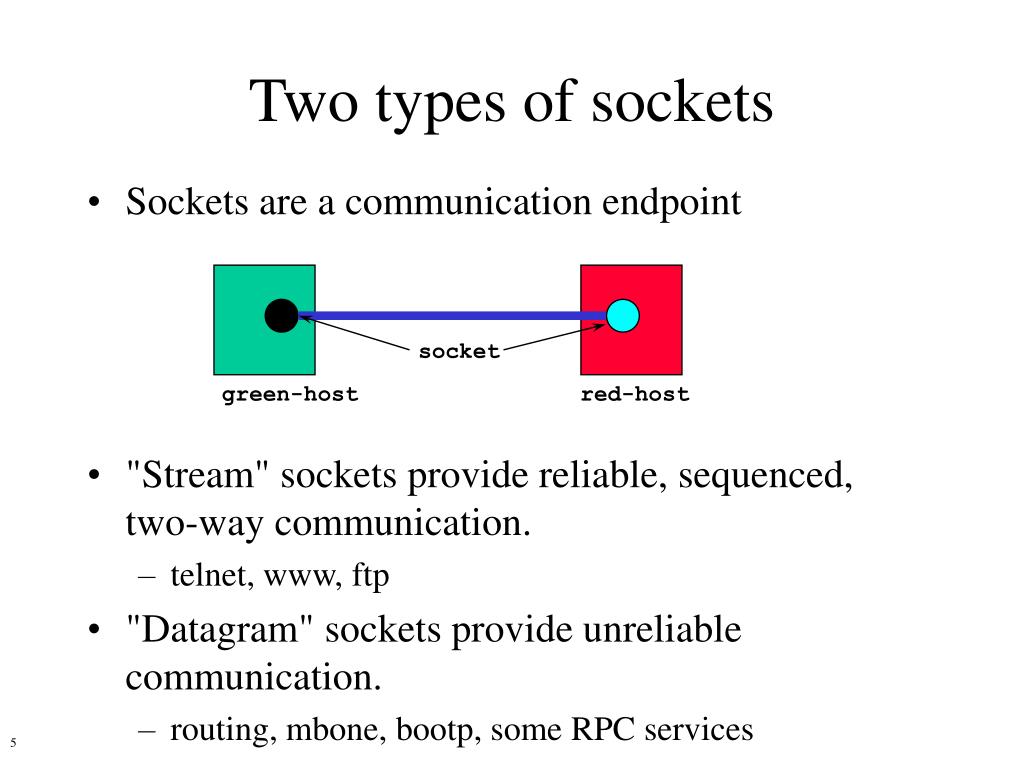

5. socket green-host red-host Two types of sockets • Sockets are a communication endpoint • "Stream" sockets provide reliable, sequenced, two-way communication. • telnet, www, ftp • "Datagram" sockets provide unreliable communication. • routing, mbone, bootp, some RPC services

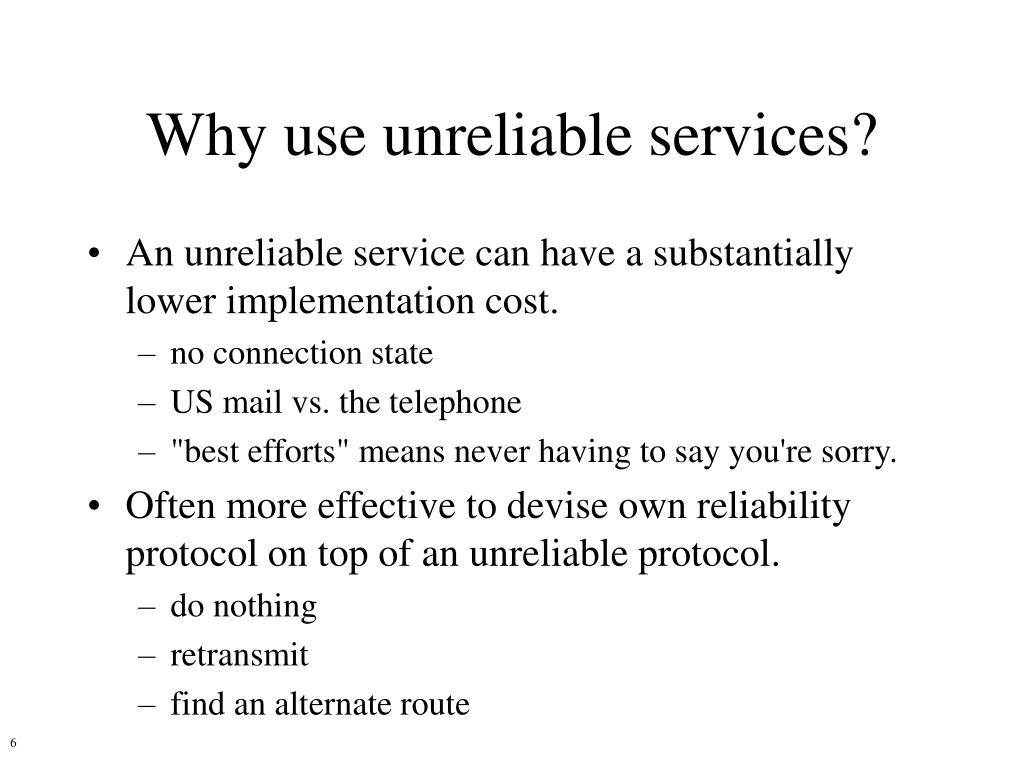

6. Why use unreliable services? • An unreliable service can have a substantially lower implementation cost. • no connection state • US mail vs. the telephone • "best efforts" means never having to say you're sorry. • Often more effective to devise own reliability protocol on top of an unreliable protocol. • do nothing • retransmit • find an alternate route

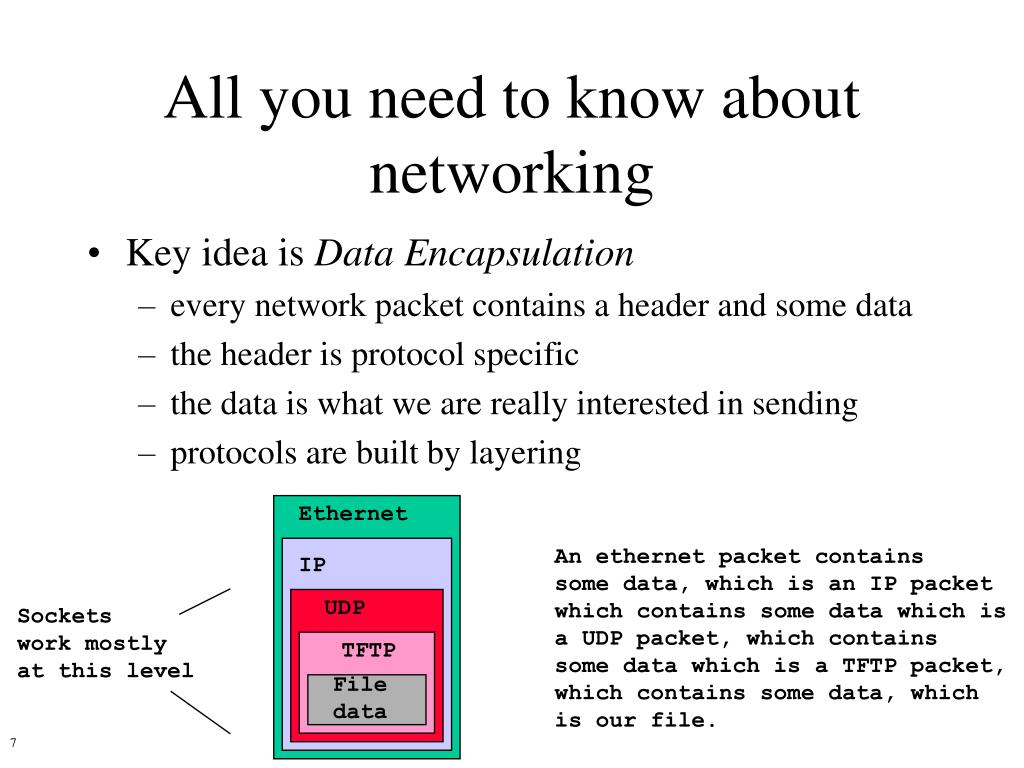

7. All you need to know about networking • Key idea is Data Encapsulation • every network packet contains a header and some data • the header is protocol specific • the data is what we are really interested in sending • protocols are built by layering Ethernet An ethernet packet contains some data, which is an IP packet which contains some data which is a UDP packet, which contains some data which is a TFTP packet, which contains some data, which is our file. IP UDP Sockets work mostly at this level TFTP File data

8. Why use sockets? • Sockets abstract the network into something easier to think about. • The OS provides a socket interface • API for passing data over a socket. • The socket implementation takes care to encapsulate our data inside the appropriate packets • The UDP or TCP layer sends data between socket endpoints. • The IP layer is responsible for routing the data to the appropriate machine

9. Sockets Undressed • Although sockets are easier to use than the network, they still have a lot of grunge inside them. • addresses, ports, byte ordering, synchronization, • For the most part, we'll ignore this grunge when we start looking at the network from a Java perspective. • But, to really understand how they work, we need to take a quick peek with our C hats on.

10. Addresses • Necessary to associate a socket with an internet address. struct in_addr { unsigned long s_addr; /* 4 bytes */ }; struct sockaddr_in { short sin_family; unsigned short int sin_port; struct in_addr sin_addr; unsigned char sin_zero[8]; } When we want to tell the socket API about network addresses (endpoints), we fill in one of these structures.

11. Byte Ordering • Different computers use different representations for basic data types • big endian or little endian • the issue is which byte in a word is the "high order" byte • totally arbitrary and uninteresting • When different machines communicate, different interpretations can cause real problems. • Solution is to legislate a standard network byte ordering.

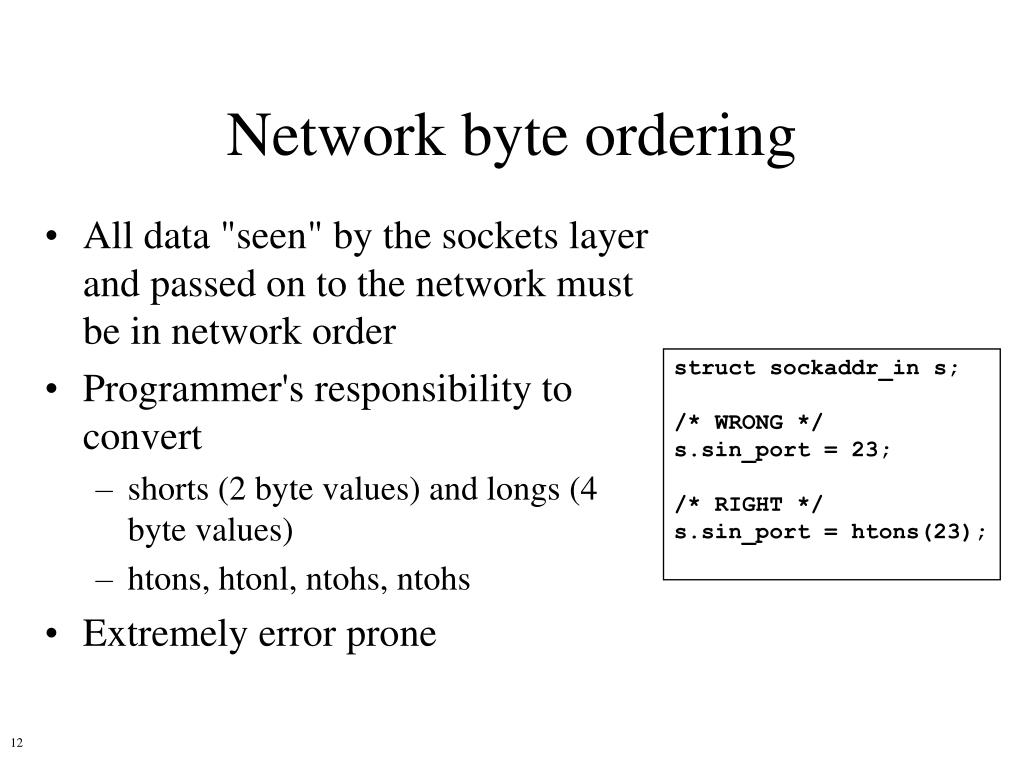

12. Network byte ordering • All data "seen" by the sockets layer and passed on to the network must be in network order • Programmer's responsibility to convert • shorts (2 byte values) and longs (4 byte values) • htons, htonl, ntohs, ntohs • Extremely error prone struct sockaddr_in s; /* WRONG */ s.sin_port = 23; /* RIGHT */ s.sin_port = htons(23);

13. Specifying Addresses • My machine is bershad-pc.cs.washington.edu • IP address is 128.95.4.109 • I want to talk to the ftp server there. • FTP listens at port 21 in the TCP domain. /* Pray that we get this right! */ struct sockaddr_in s; char bytes4[4]; s.sin_family = AF_INET; s.sin_port = htons(21); bytes4[0] = 128; bytes4[1] = 95; bytes4[2] = 4; bytes4[3] = 109; s.sin_addr.in_addr = htonl( *(unsigned long *)bytes4 ); bzero(&s.sin_zero, 8);

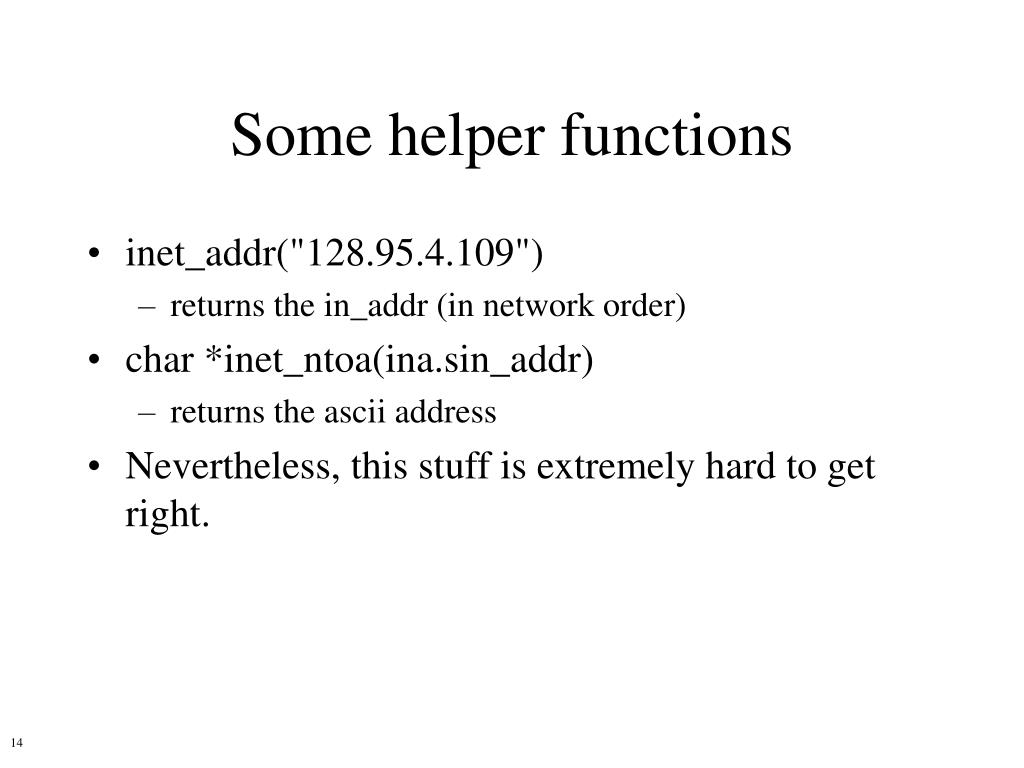

14. Some helper functions • inet_addr("128.95.4.109") • returns the in_addr (in network order) • char *inet_ntoa(ina.sin_addr) • returns the ascii address • Nevertheless, this stuff is extremely hard to get right.

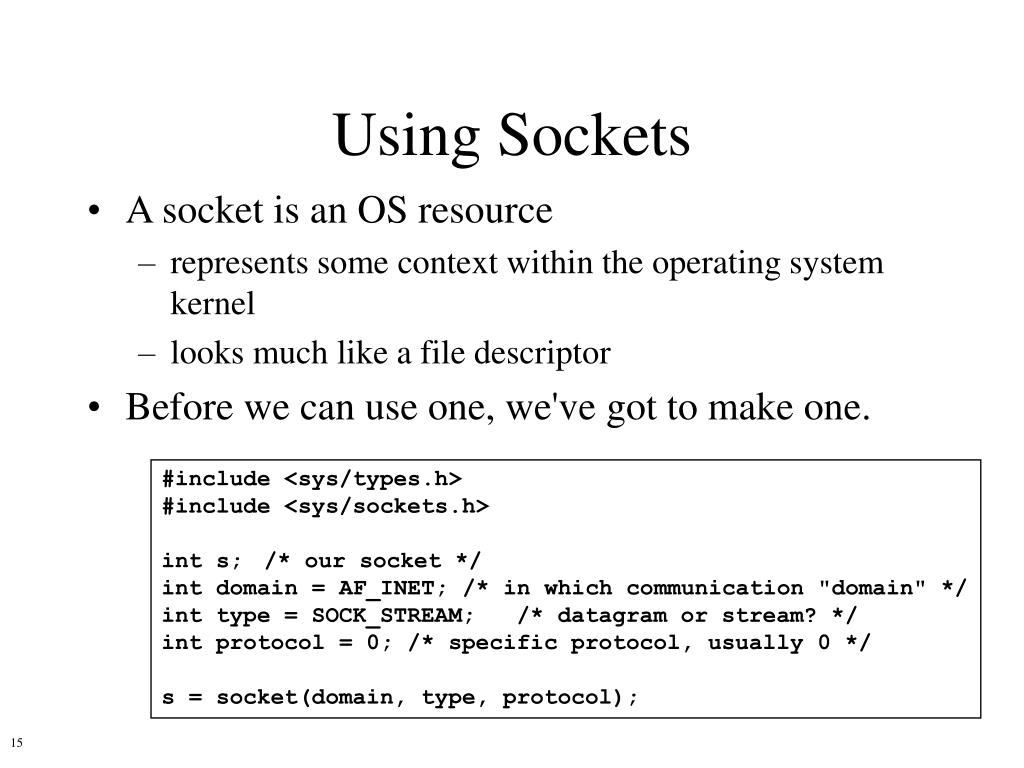

15. Using Sockets • A socket is an OS resource • represents some context within the operating system kernel • looks much like a file descriptor • Before we can use one, we've got to make one. #include <sys/types.h> #include <sys/sockets.h> int s; /* our socket */ int domain = AF_INET; /* in which communication "domain" */ int type = SOCK_STREAM; /* datagram or stream? */ int protocol = 0; /* specific protocol, usually 0 */ s = socket(domain, type, protocol);

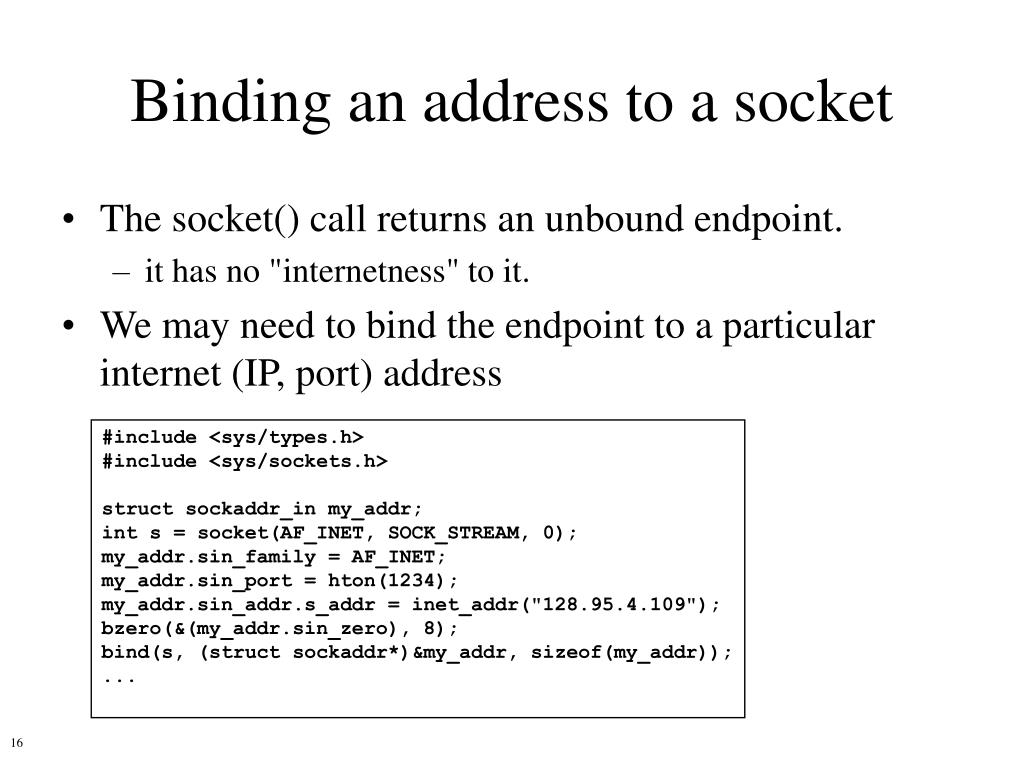

16. Binding an address to a socket • The socket() call returns an unbound endpoint. • it has no "internetness" to it. • We may need to bind the endpoint to a particular internet (IP, port) address #include <sys/types.h> #include <sys/sockets.h> struct sockaddr_in my_addr; int s = socket(AF_INET, SOCK_STREAM, 0); my_addr.sin_family = AF_INET; my_addr.sin_port = hton(1234); my_addr.sin_addr.s_addr = inet_addr("128.95.4.109"); bzero(&(my_addr.sin_zero), 8); bind(s, (struct sockaddr*)&my_addr, sizeof(my_addr)); ...

17. More on binding • We can let the OS decide where we really are • my_addr.sin_port = htons(0); • my_addr.sin_addr.s_addr = htonl(INADDR_ANY); • Ports below 1024 are "reserved" • must be a superuser in order to associate a local socket with a "small" port. • this is a very weak form of network security • assumption is that messages sent from a small port come from a privileged process • would you trust your bank account to this?? • Binding only necessary if you care about your address • OS can implicitly bind for you in some cases

18. Connecting to a socket • The connect(s, struct sockaddr *server, int addrlen) call lets us connect to a remote socket. #include <sys/types.h> #include <sys/socket.h> main() { int s = socket(AF_INET, SOCK_STREAM, 0); struct sockaddr_in dest; dest.sin_family = AF_INET; dest.sin_port = htons(789); dest.sin_addr.s_addr = inet_addr("128.95.4.109"); bzero(&dest.sin_addr.s_addr, 8); connect(s, (struct sockaddr*)&dest, sizeof(dest)); /* returns -1 if we fail */ }

19. Listening on a socket • A connect() request initiates communication with a peer. • We can only connect to a socket that someone is listening on. s = socket(...) bind(s, (struct sockaddr*)&my_addr)...); for (;;) { if (listen(s) == -1) error(); /* someone somewhere has "connected" to the address for s. */

20. Listening leads to acceptance • listen() tells us that there is someone calling. • But, we are under no obligation to accept • The accept() call says "ok, let's start talking." • communication happens over a NEW socket • the original socket is used for future connections s = socket(...) bind(s, (struct sockaddr*)&my_addr)...); for (;;) { struct sock_addr_in peer_addr; int peer_addrlen = sizeof(peer_addr); if (listen(s) == -1) error(); /* someone somewhere has "connected" to the address for s. */ int new_socket = accept(s, &peer_addr, &peer_addrlen); /* start communicating on peer_addr */ }

21. Stepping back s = socket(); bind(s, red_addr); listen(s); new_socket = accept(s, &peer); /* peer = blue_addr */ /* ready to xmit/recv over new_socket */ s = socket(); bind(s, blue_addr); connect(s, red_addr); /* ready to xmit/recv over s */

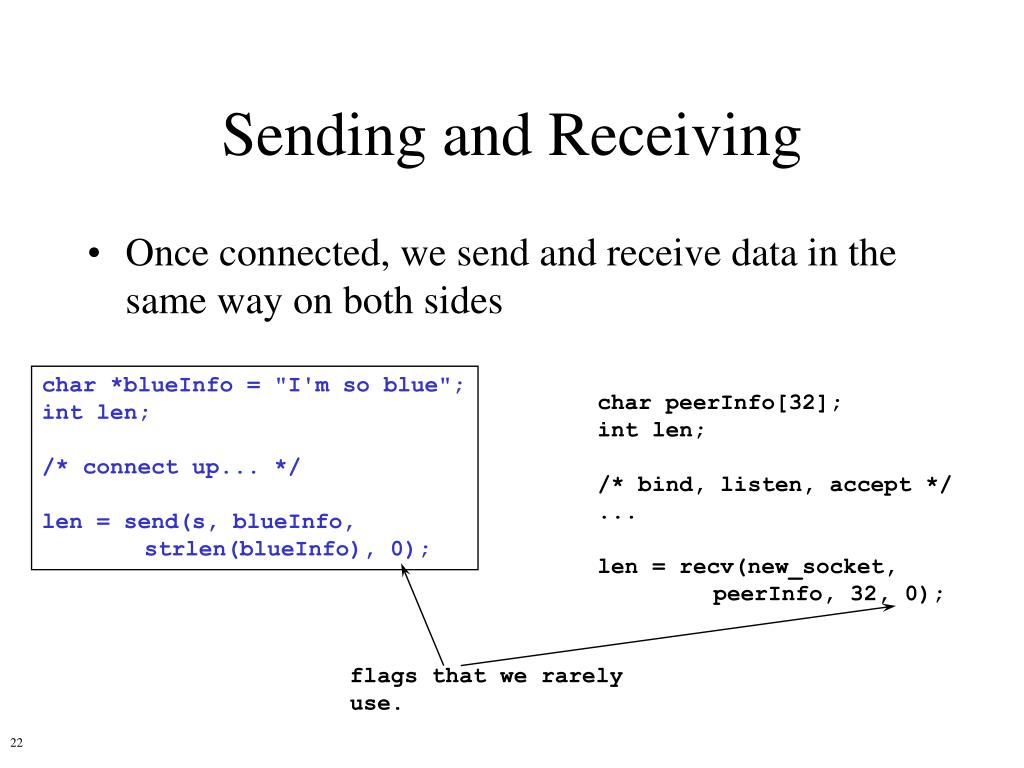

22. Sending and Receiving • Once connected, we send and receive data in the same way on both sides char *blueInfo = "I'm so blue"; int len; /* connect up... */ len = send(s, blueInfo, strlen(blueInfo), 0); char peerInfo[32]; int len; /* bind, listen, accept */ ... len = recv(new_socket, peerInfo, 32, 0); flags that we rarely use.

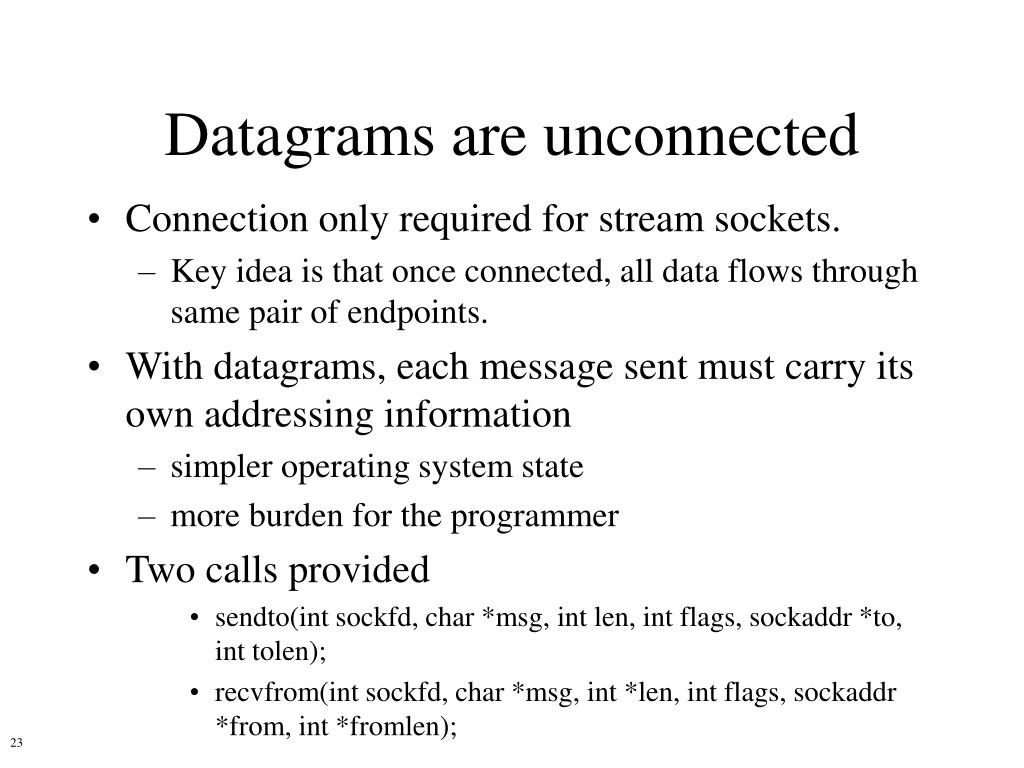

23. Datagrams are unconnected • Connection only required for stream sockets. • Key idea is that once connected, all data flows through same pair of endpoints. • With datagrams, each message sent must carry its own addressing information • simpler operating system state • more burden for the programmer • Two calls provided • sendto(int sockfd, char *msg, int len, int flags, sockaddr *to, int tolen); • recvfrom(int sockfd, char *msg, int *len, int flags, sockaddr *from, int *fromlen);

24. Shutting down • close(s) will shutdown a socket. • no more sends or receives • more graceful shutdown services are provided • shutdown(s, 0) • no more receives • shutdown(s, 1) • no more sends • shutdown(s, 2) • no more receives or sends (like close(s))

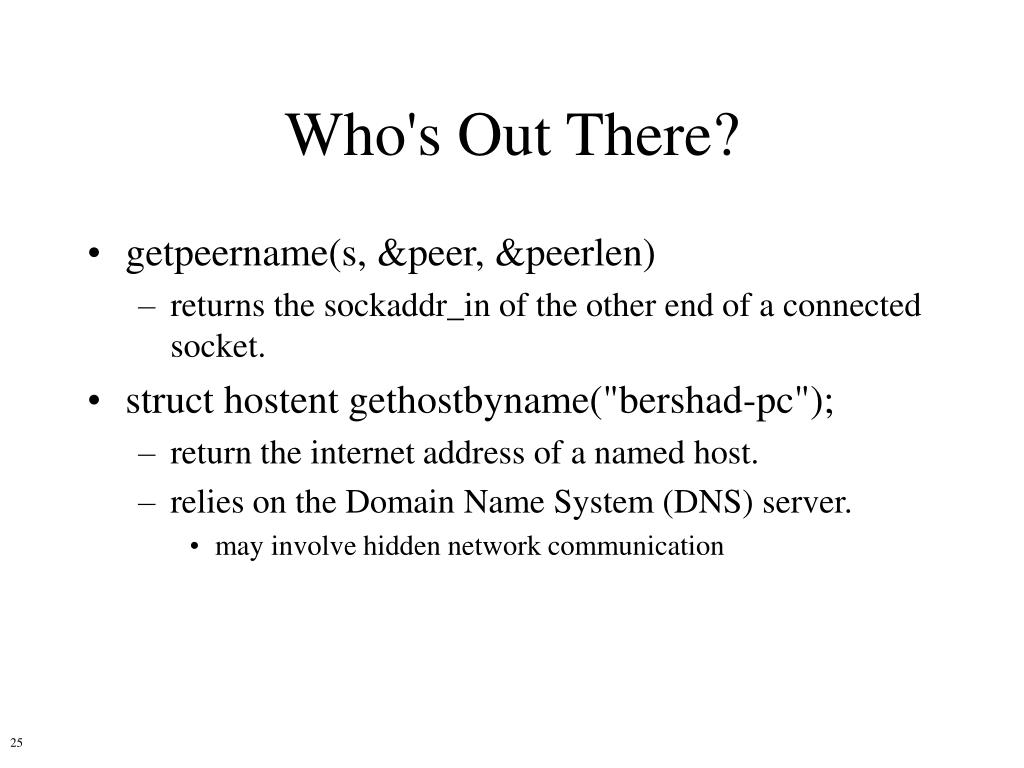

25. Who's Out There? • getpeername(s, &peer, &peerlen) • returns the sockaddr_in of the other end of a connected socket. • struct hostent gethostbyname("bershad-pc"); • return the internet address of a named host. • relies on the Domain Name System (DNS) server. • may involve hidden network communication

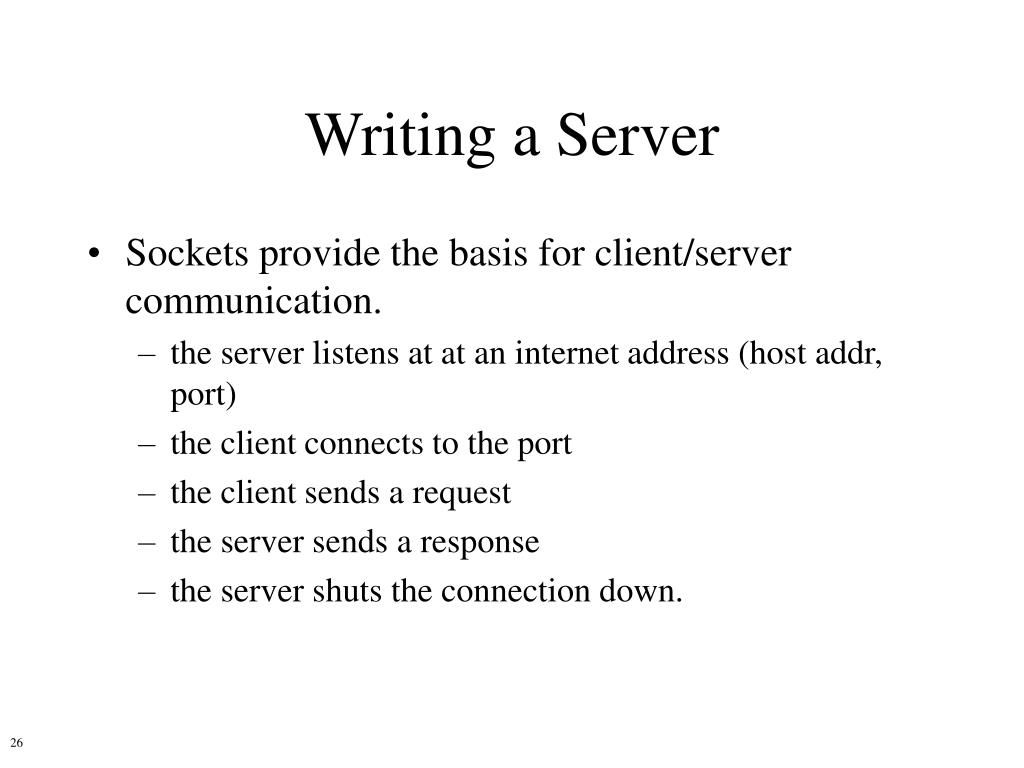

26. Writing a Server • Sockets provide the basis for client/server communication. • the server listens at at an internet address (host addr, port) • the client connects to the port • the client sends a request • the server sends a response • the server shuts the connection down.

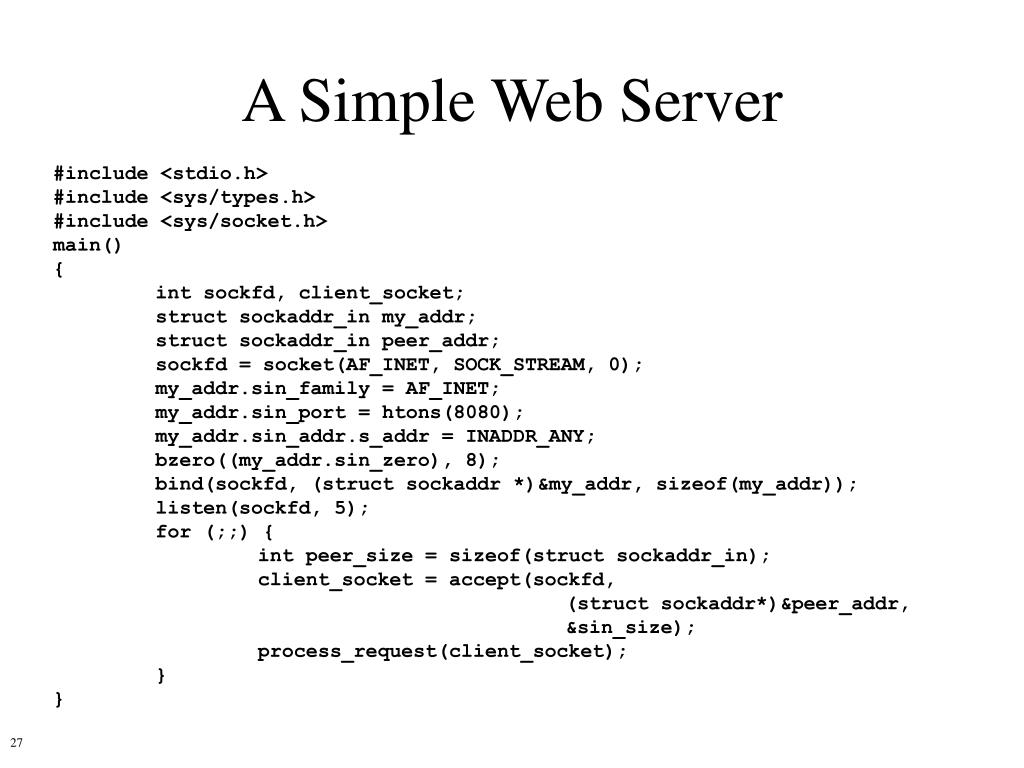

27. A Simple Web Server #include <stdio.h> #include <sys/types.h> #include <sys/socket.h> main() { int sockfd, client_socket; struct sockaddr_in my_addr; struct sockaddr_in peer_addr; sockfd = socket(AF_INET, SOCK_STREAM, 0); my_addr.sin_family = AF_INET; my_addr.sin_port = htons(8080); my_addr.sin_addr.s_addr = INADDR_ANY; bzero((my_addr.sin_zero), 8); bind(sockfd, (struct sockaddr *)&my_addr, sizeof(my_addr)); listen(sockfd, 5); for (;;) { int peer_size = sizeof(struct sockaddr_in); client_socket = accept(sockfd, (struct sockaddr*)&peer_addr, &sin_size); process_request(client_socket); } }

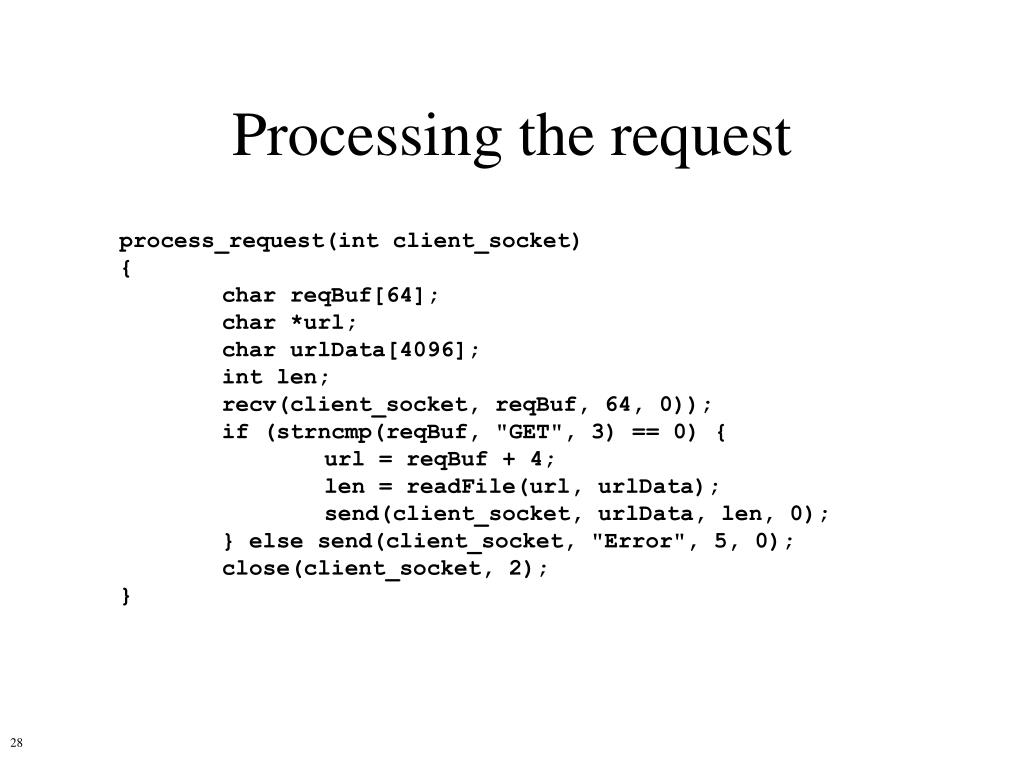

28. Processing the request process_request(int client_socket) { char reqBuf[64]; char *url; char urlData[4096]; int len; recv(client_socket, reqBuf, 64, 0)); if (strncmp(reqBuf, "GET", 3) == 0) { url = reqBuf + 4; len = readFile(url, urlData); send(client_socket, urlData, len, 0); } else send(client_socket, "Error", 5, 0); close(client_socket, 2); }

29. The Client Side #include <stdio.h> #include <sys/types.h> #include <sys/socket.h> #include <netinet/in.h> /* invoked as urlget host object */ main(char **argv, int argc) { int sockfd; struct sockaddr_in peer_addr; sockfd = socket(AF_INET, SOCK_STREAM, 0); char *msg = strcat("GET ", argv[2]); char urlData[4096]; int len; peer_addr.sin_family = AF_INET; peer_addr.sin_port = htons(8080); he = gethostbyname(argv[1]); peer_addr.sin_addr.s_addr = *((struct in_addr*)he->h_addr bzero((peer_addr.sin_zero), 8); connect(sockfd, (struct sockaddr*)&peer_addr, sizeof(peer_addr)); send(sockfd, msg, strlen(msg),0 ); len = recv(sockfd, urlData, 4096, 0); printf("Received %s\n", urlData); close(sockfd); }

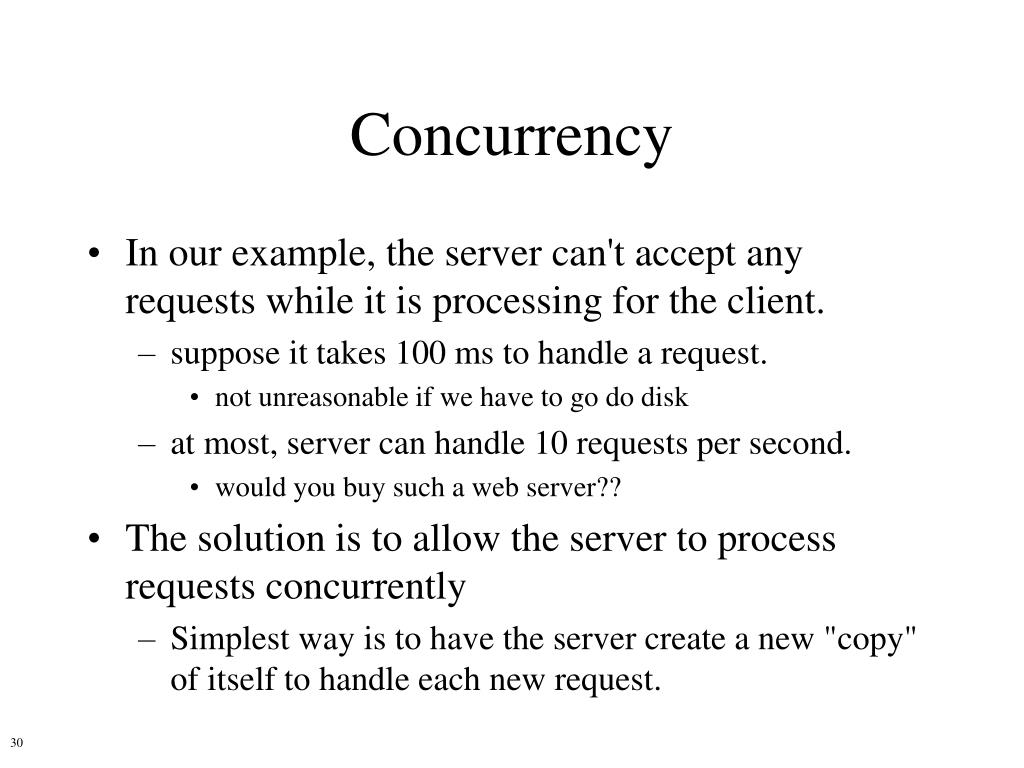

30. Concurrency • In our example, the server can't accept any requests while it is processing for the client. • suppose it takes 100 ms to handle a request. • not unreasonable if we have to go do disk • at most, server can handle 10 requests per second. • would you buy such a web server?? • The solution is to allow the server to process requests concurrently • Simplest way is to have the server create a new "copy" of itself to handle each new request.

31. Concurrent requests • The fork() system call duplicates the server process • what's the bet here? s = accept(); fork(); if parent continue s = accept(); fork(); if parent continue else processRequest(s) This process continues to accept new requests. While this process handles the specific request on s.

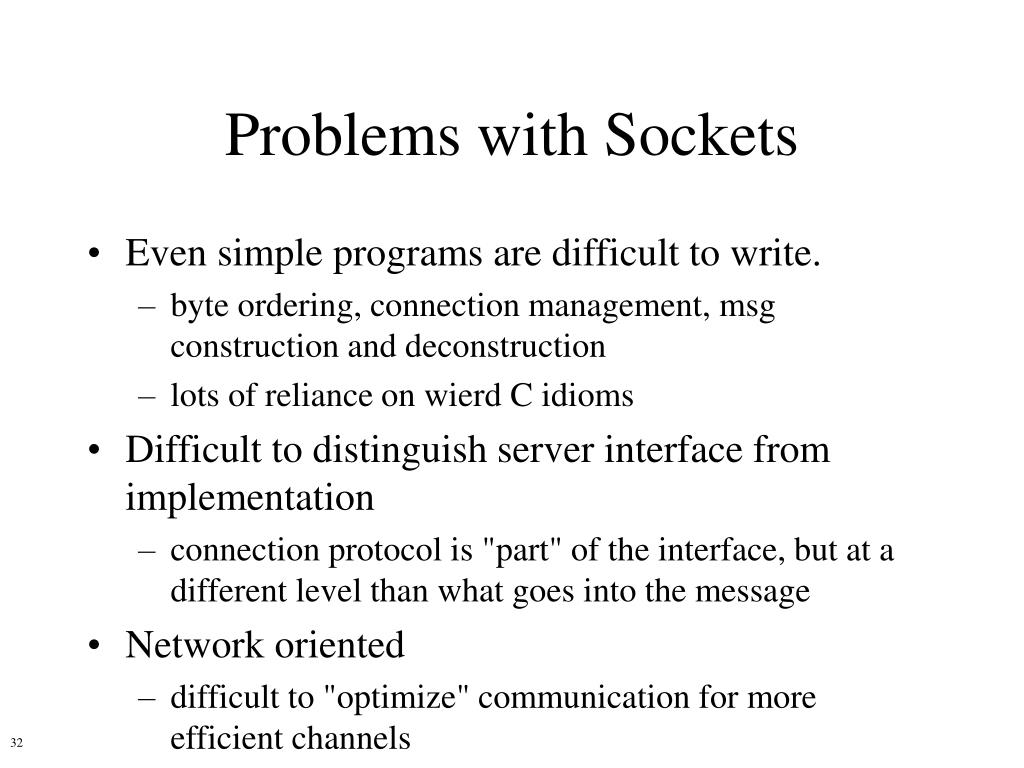

32. Problems with Sockets • Even simple programs are difficult to write. • byte ordering, connection management, msg construction and deconstruction • lots of reliance on wierd C idioms • Difficult to distinguish server interface from implementation • connection protocol is "part" of the interface, but at a different level than what goes into the message • Network oriented • difficult to "optimize" communication for more efficient channels

33. Summary • Sockets are the OS's way to present the network to applications. • They are powerful but clunky. • We will see ways to create even more powerful, but less clunky distributed programming interfaces.
