1 / 10

{ l }={ l 1, l 2,..., l N }

How large is a Polymer Blob?. Freely-Jointed-Chain Modell. { l }={ l 1, l 2,..., l N }. The average end to end distance:. Estimation: Size of a Viral dsDNA with ca 50kbp ?. with l≈3Å => approx. 70nm. With p≈50nm => ca 1,5 µm !. Random Walk. The simple model of a random walk resulted

jabari
Download Presentation

{ l }={ l 1, l 2,..., l N }

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

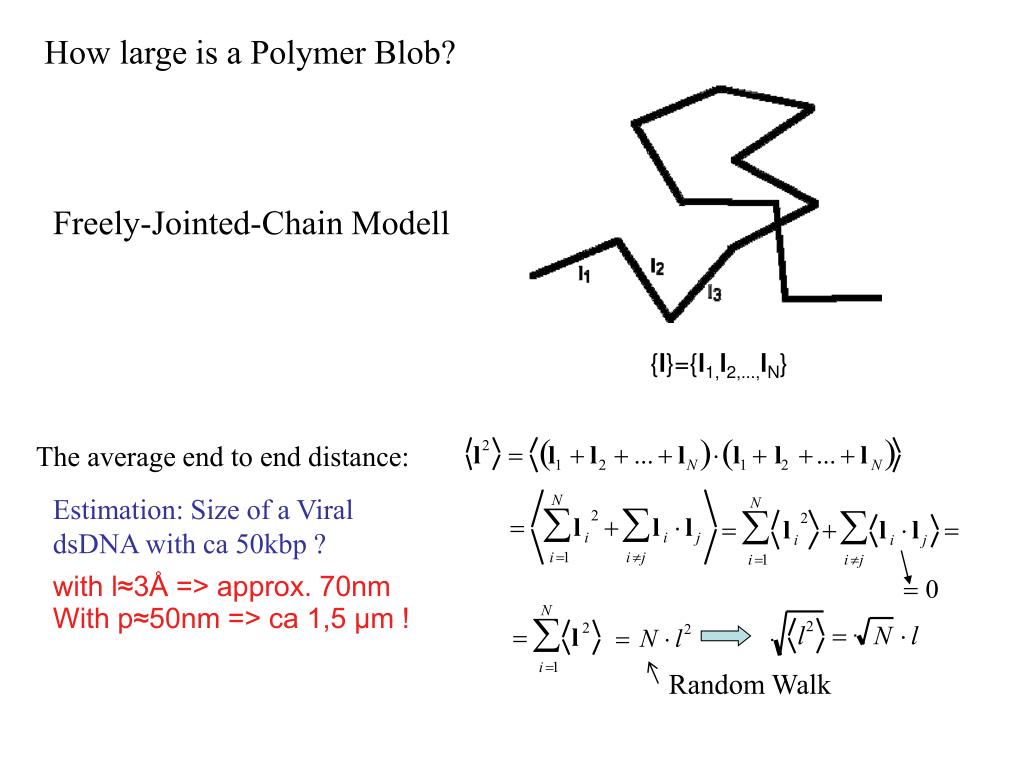

  1. How large is a Polymer Blob? Freely-Jointed-Chain Modell {l}={l1,l2,...,lN} The average end to end distance: Estimation: Size of a Viral dsDNA with ca 50kbp ? with l≈3Å => approx. 70nm With p≈50nm => ca 1,5 µm ! Random Walk

  2. The simple model of a random walk resulted • for the end to end distance oft the polymer blob: • Problem: The polymer cannot occupy the same space. Thus the average quadratic end to end distance should be bigger. Energy Density: The average end to end distance is used as measure for the radius of the polymers. The excluded Volume • Flory solved the problem with a simple heuristic argument: • If two monomers overlap, they repell each other. The Probability that 2 monomers occupy the same space increases with the concentration squared BPM §1.4.2

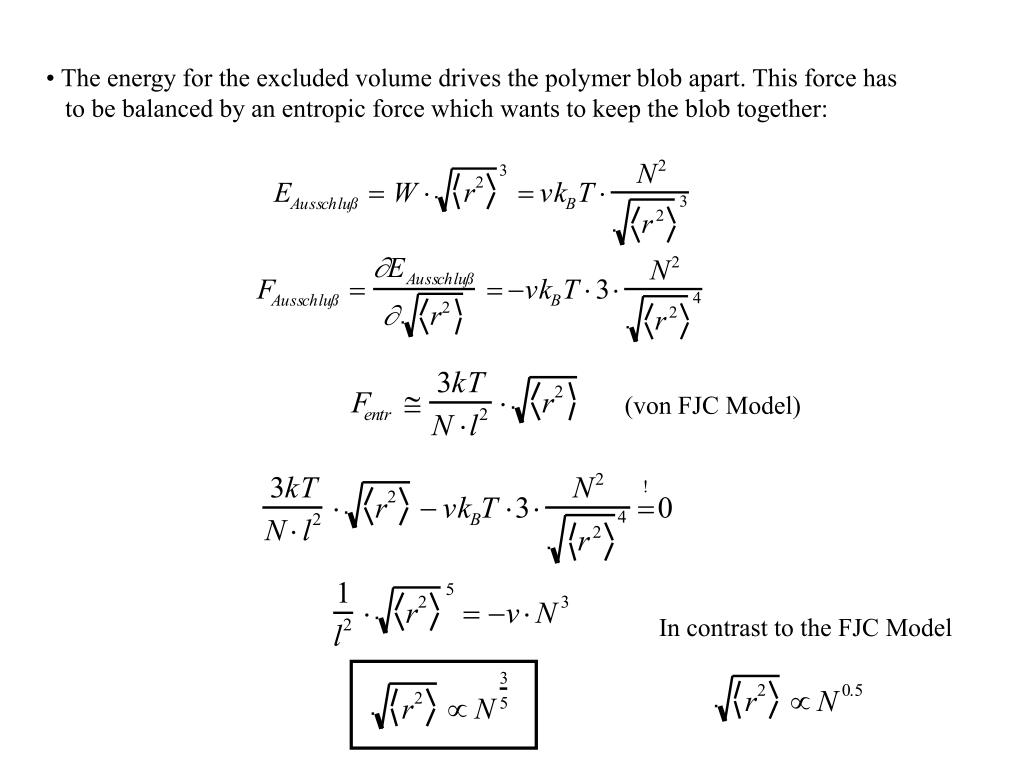

  3. In contrast to the FJC Model • The energy for the excluded volume drives the polymer blob apart. This force has to be balanced by an entropic force which wants to keep the blob together: (von FJC Model) BPM §1.4.2

  4. Java-Simulation Self-avoiding Random Walk http://polymer.bu.edu/java/java/saw/sawapplet.html

  5. s s  A measure for the stiffness of a polymer is the persistence length Lp, which measures at which length s=Lp the orientation and s are not correlated any more. oBdA The Worm-Like-Chain Model for semiflexible Polymers A measure for the correlation of the orientation is the following average value: =0 BPM §1.4.2

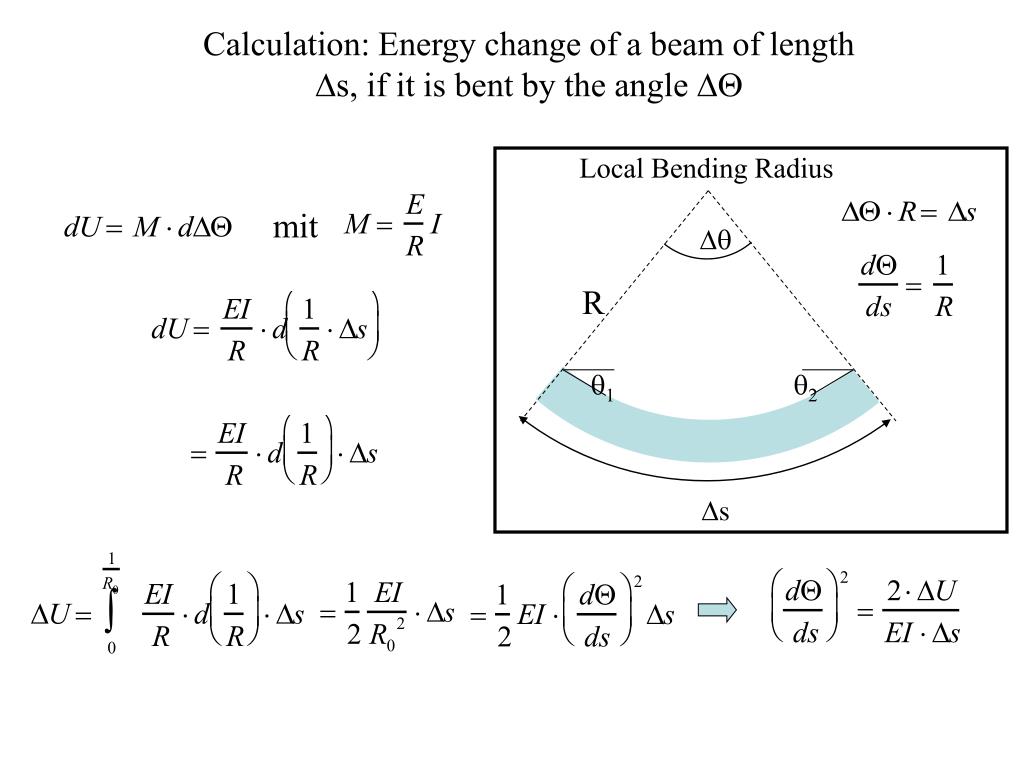

  6. mit Local Bending Radius  R   s Calculation: Energy change of a beam of lengths, if it is bent by the angle Q

  7. Bending is a thermodynamicdegree of freedom Äquipartition Theorem in 2-D in 3-D Persistence length in 3-D two angles can fluctuate, each containing the average energy kT/2. DNA Lp=53 nm Aktin Lp = 10 µm Mikrotubuli Lp =1 mm

  8. Connection between FJC und WLC-Modell s Both models yield the same average end to end distance when the chain of FJC coincides with twice the persistence length l=2Lp Comparison with FJC BPM §1.4.2

  9. Force Extension Curves: Comparison of Models Freely Jointed Chain (FJC) Worm-like Chain Model (WLC) With Stretch Modulus K0 of Monomer (e.g. stretching of DNA) For negligiblefluctuations

  10. Force Extension Curve of dsDNA

More Related
