NexStar High Speed Multiplexer

NexStar High Speed Multiplexer. New NexStar with S-NET, RS-485 and RS-232 capabilities. Handles Home-Run S-NET Reader wiring like conventional NexStar. Provides RS-232 to RS-485 conversion for Star Controller networking. Allows RS-232 multiplexing at the same time as RS-485.

jacob
Download Presentation

NexStar High Speed Multiplexer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

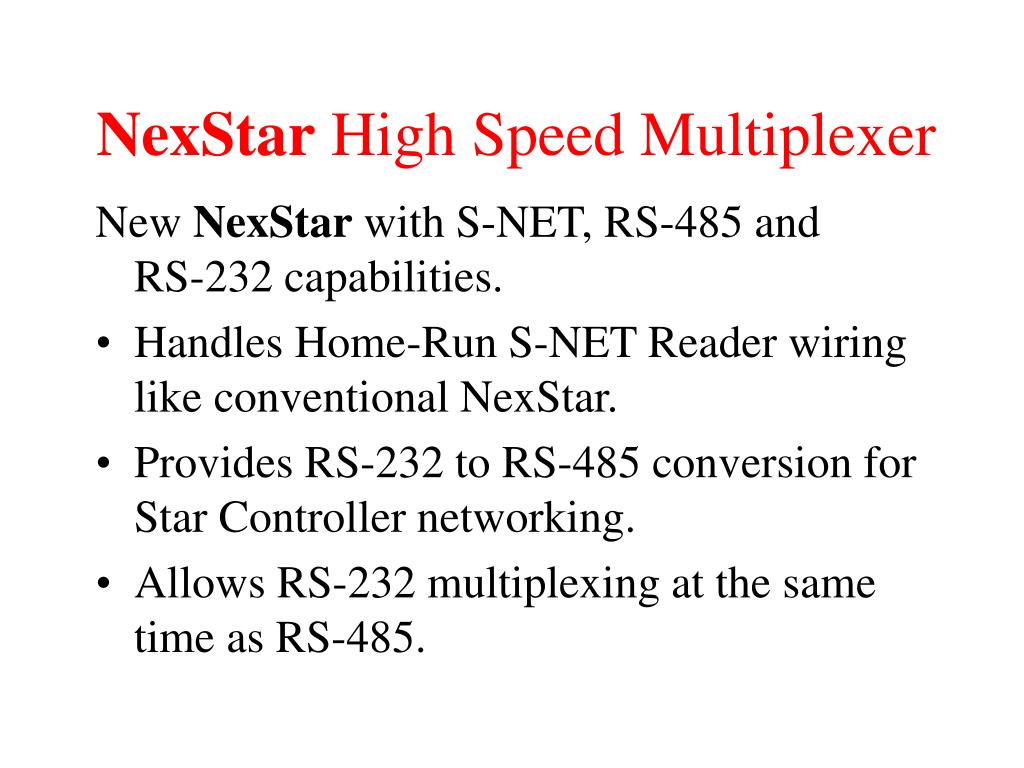

  1. NexStar High Speed Multiplexer New NexStar with S-NET, RS-485 and RS-232 capabilities. • Handles Home-Run S-NET Reader wiring like conventional NexStar. • Provides RS-232 to RS-485 conversion for Star Controller networking. • Allows RS-232 multiplexing at the same time as RS-485.

  2. The new High Speed NexStar is Baud rate transparent at up to 38,400 baud. It also supports optional RS-232 port converters for anywhere from one to all five ports. This allows it to be used for any combination of RS-485 and RS-232 networking from a Host system to legacy and new ACUs. It is particularly useful for connecting the new Star Controllers to a host via their RS-485 port.

  3. Example Drawings • S-NET Multiplexing for MIRO and Reader wiring. • RS-232 to RS-485 conversion for Host to Star Controller networking. • RS-232 to both RS-485 and RS-232 ACU Networking. • RS-232 to RS-485 ACUs, and RS-232 to CoBox Master Ethernet converter.

  4. The NexStar High Speed unit will support up to 8 Readers, 8 Keypads and 8 MIRO devices in an S-NET multiplexing application. (All S-NET ports must run at 9600 baud and are not user selectable.) It will support up to 16 ACUs in any combination of RS-485 and RS-232 wiring up to any limits supported by a specific Host system. NSM and StarGaze support up to 16 controllers on each poller port. NOTE: Each ACU needs its own Power Supply. The NexStar should NOT be used to distribute power. Current applications require 24-28VDC for all ACUs and peripheral components.
