Y + = ( Y T Y ) -1 Y T

= Y Y + c. Y + = ( Y T Y ) -1 Y T. Inversion is possible if:. ?. . Y T Y is non-singular and squared. (Full rank). rank( Y ) = 2 =min(#r,#c) => Y is full rank. Y ’* Y is (3 3) but: rank( Y ’* Y )=2 !. 1. Y should have: #rows > #col.s. Column are linearly dependent. 2.

jamuna
Download Presentation

Y + = ( Y T Y ) -1 Y T

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. =YY+c Y+= (YTY)-1 YT Inversion is possible if: ?  YTY isnon-singularandsquared (Full rank)

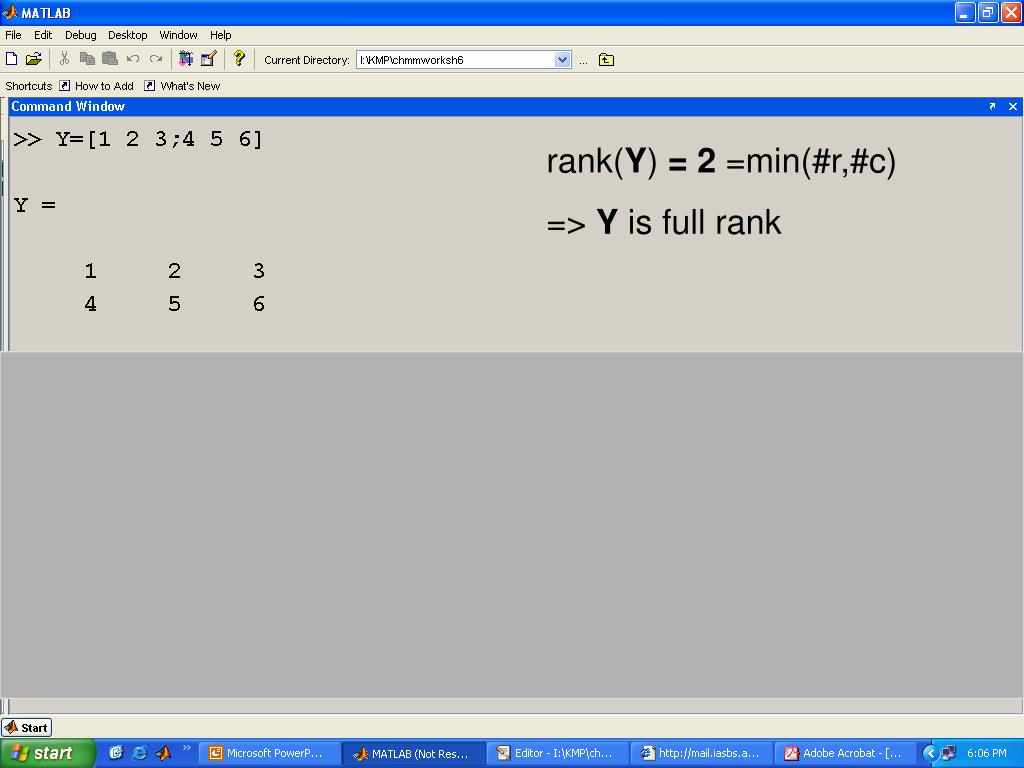

  2. rank(Y) = 2 =min(#r,#c) => Y is full rank Y’*Y is (33) but: rank(Y’*Y)=2 !

  3. 1 Y should have: #rows > #col.s

  4. Column are linearly dependent 2 Y should not be: Rank deficient

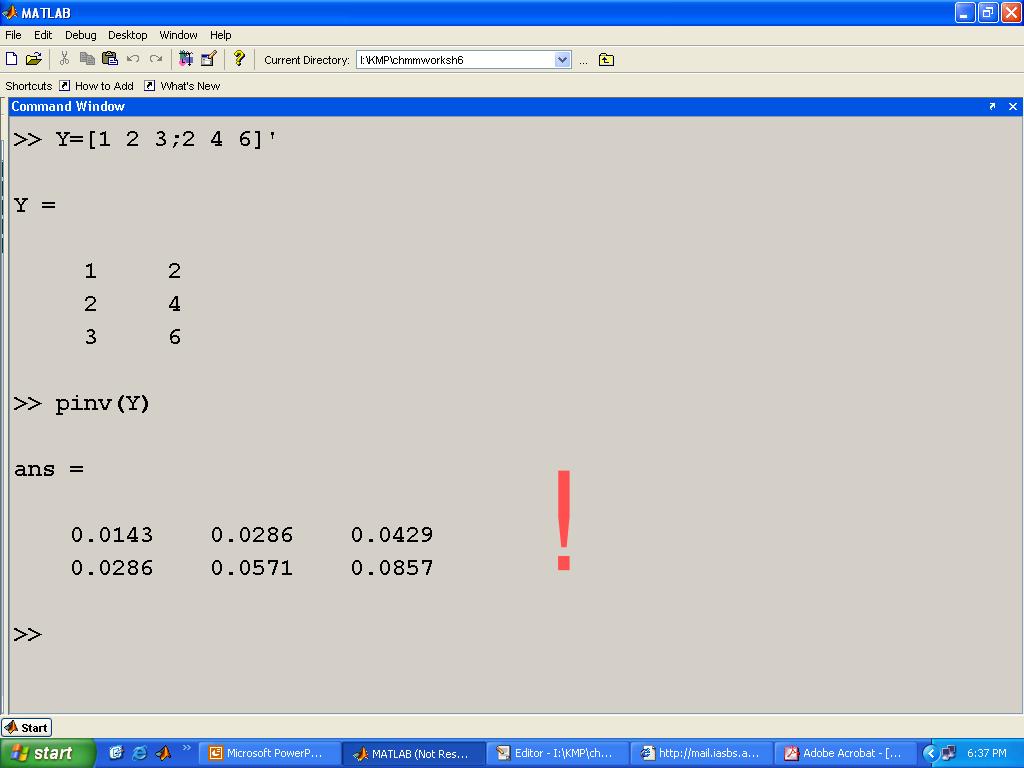

  5. !

  6. 3 compon.s, 4 samples 4 wavel.s, 4 samples rank(x)=min(r(c),r(s))=3 rank(x) < min(# r, #c) =4 => x is rank deficient

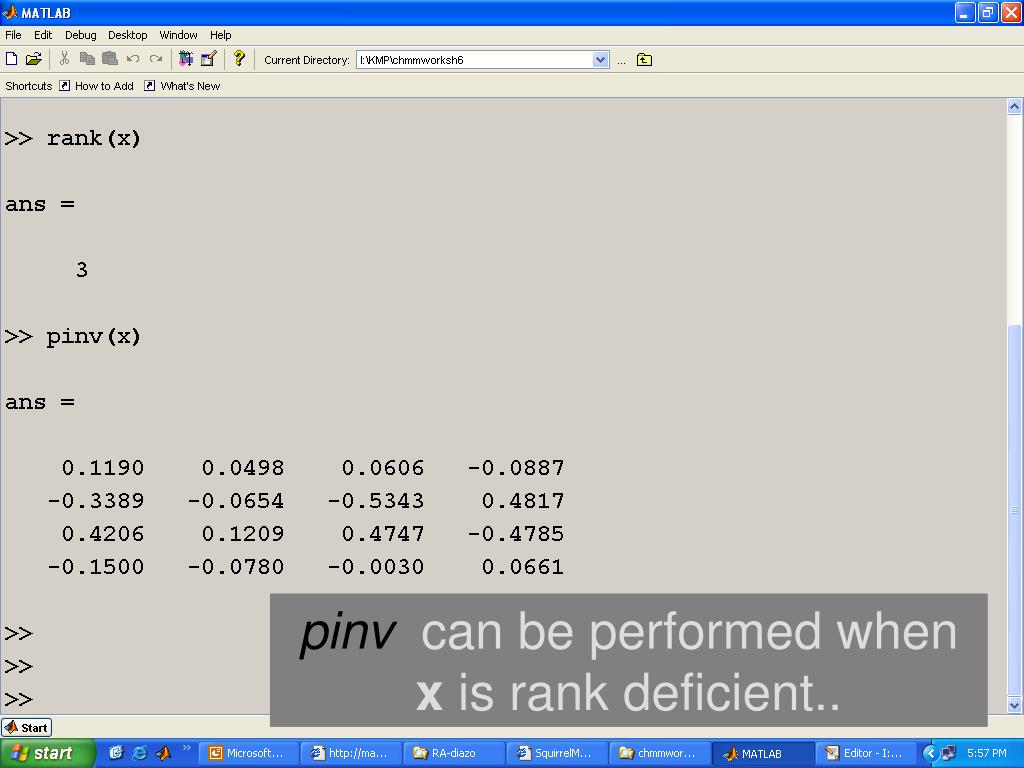

  7. pinvcan be performed when x is rank deficient..

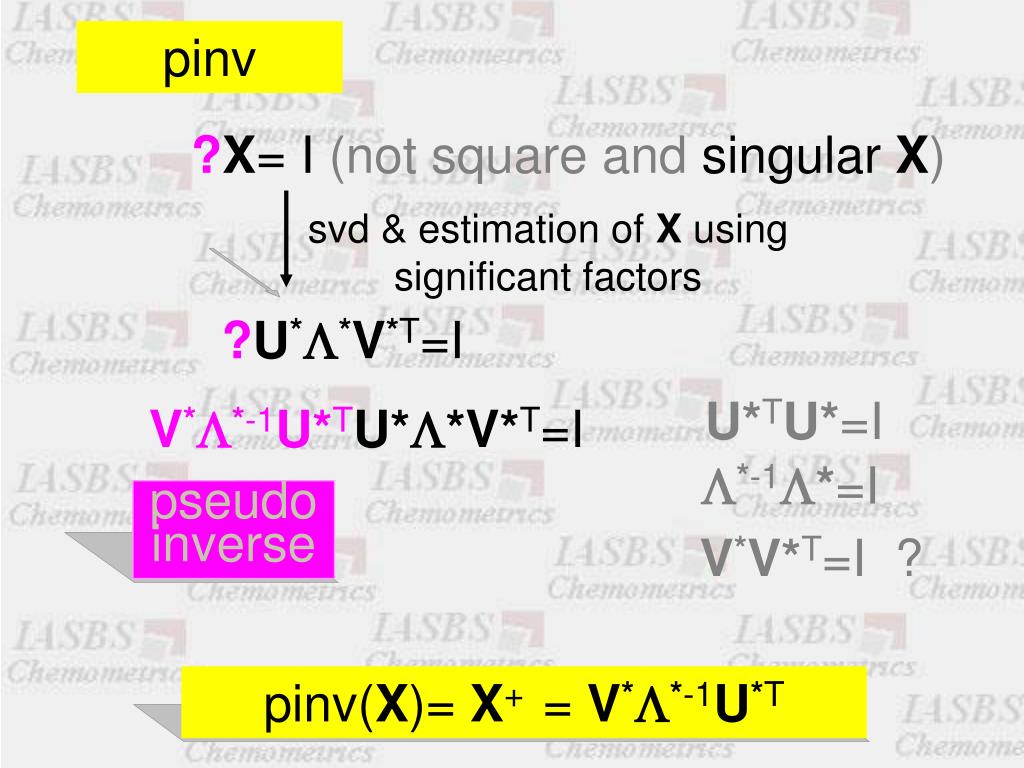

  8. pinv ?X= I (not square and singularX) svd & estimation of X using significant factors ?U**V*T=I U*TU*=I V**-1U*TU**V*T=I *-1*=I pseudo inverse V*V*T=I? pinv(X)= X+ = V**-1U*T

  9. || -X|| = CC+X X = C S classic Hard Model ks kC X Criterion for fitting ks 1. # samp.s≥ # compon.s 2. C : full rank (rank(C)= #compon.s) (lin indep conc profiles) Projection of X onto space of C

  10. || -C|| = XX+C C = X Z inverse Hard Model X ks kC Criterion for fitting ks ! 1. # samp.s ≥ # wavel.s 2. X: full rank (rank(X)= # wavel.s) - variab. Select. - Factor based methods ! Projection of X onto space of C

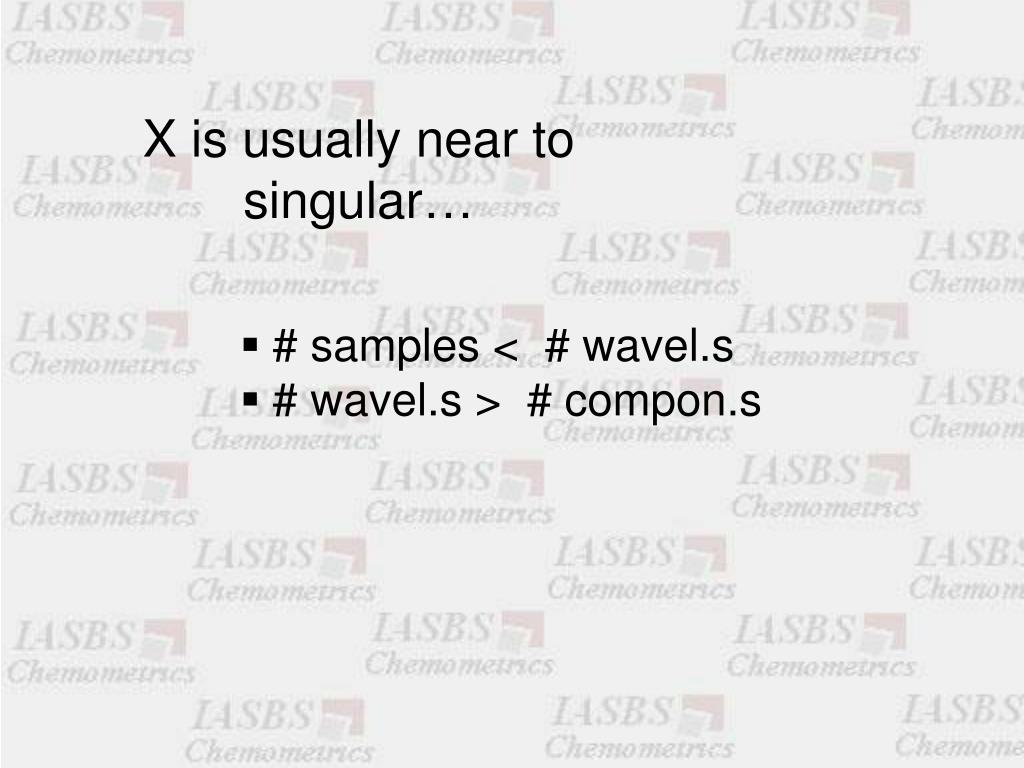

  11. X is usually near to singular… • # samples < # wavel.s • # wavel.s > # compon.s

  12. XX+ =U**V*TV**-1U*T (signif factors) =U***-1U*T =TT+

  13. || -C|| = TT+C C = T RZinverse X SVD Hard Model T ks kC Criterion for fitting ks  1. # samp.s ≥ # PCs 2. T: full rank (lin indep col.s)   Projection of C onto space of T

  14. || -T|| = CC+T T = C R classic Hard Model ks kC X T SVD Criterion for fitting k 1. # samp.s≥ # compon.s 2. C : full rank (lin indep. conc prof.s) Projection of T onto space of C

  15. = CC+X = XX+C = CC+T = TT+C ccrX (classical curve resolution) ccrC pcrT pcrC (Target Transform) T J Thurston, R G Brereton Analyst 127, 2002, 659.

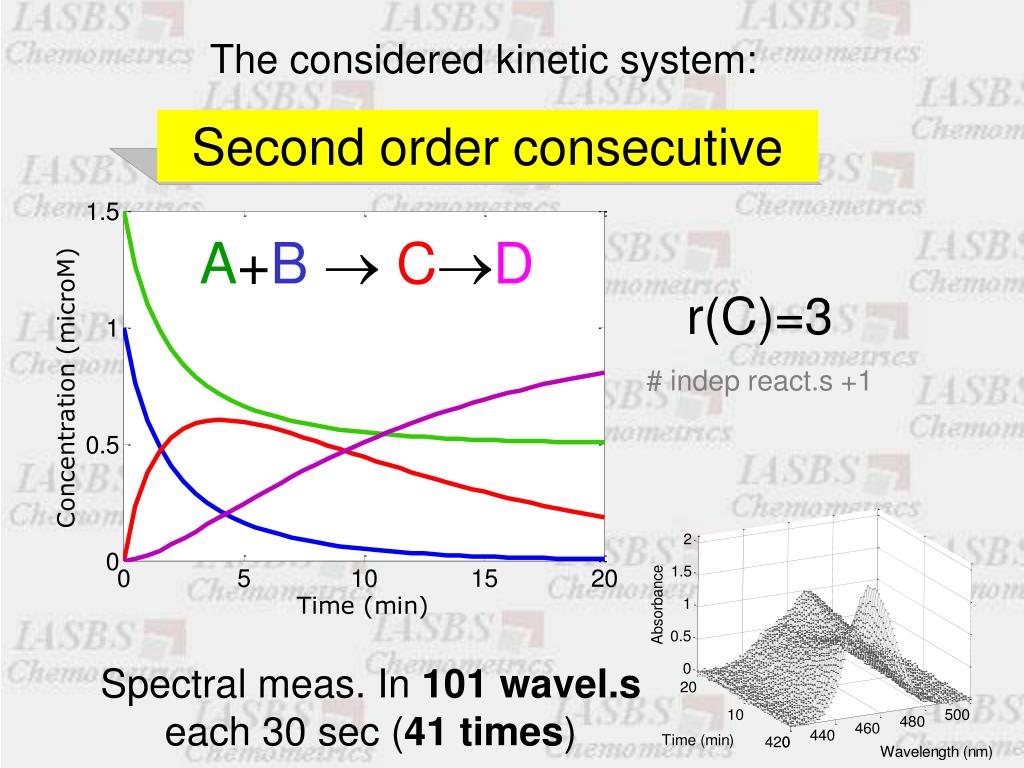

  16. The considered kinetic system: Second order consecutive A+BCD r(C)=3 # indep react.s +1 Spectral meas. In 101 wavel.s each 30 sec (41 times)

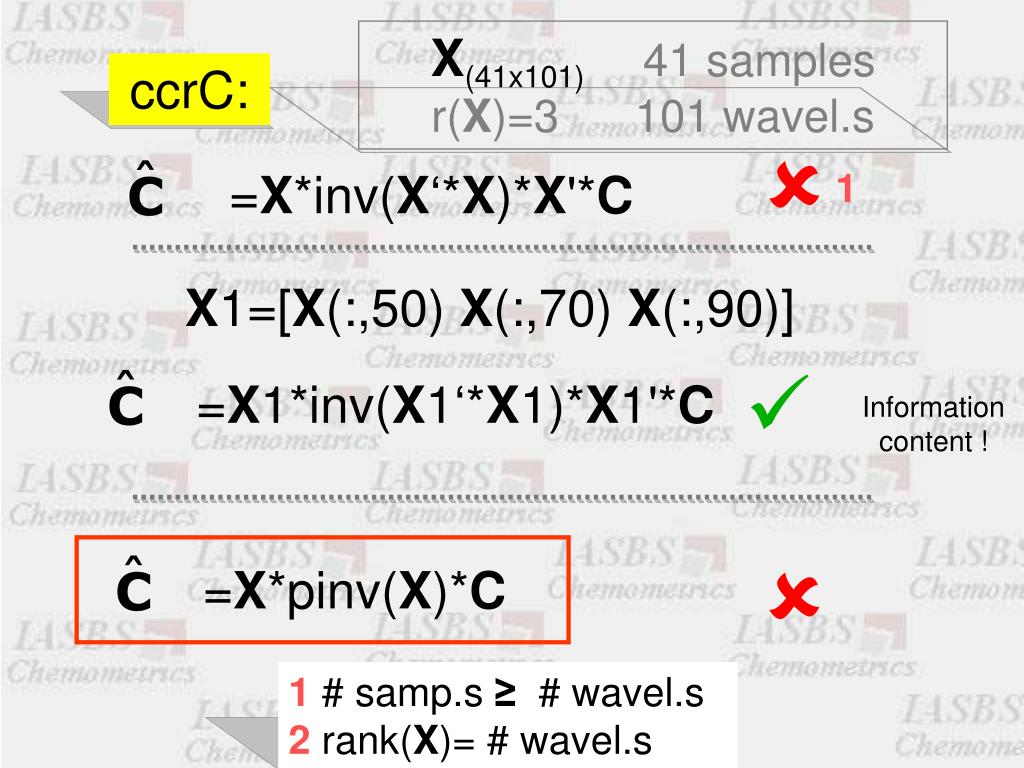

  17. X(41x101) 41 samples r(X)=3 101 wavel.s ccrC:  =X*inv(X‘*X)*X'*C 1 X1=[X(:,50) X(:,70) X(:,90)]  =X1*inv(X1‘*X1)*X1'*C Information content !  =X*pinv(X)*C 1 # samp.s ≥ # wavel.s 2 rank(X)= # wavel.s

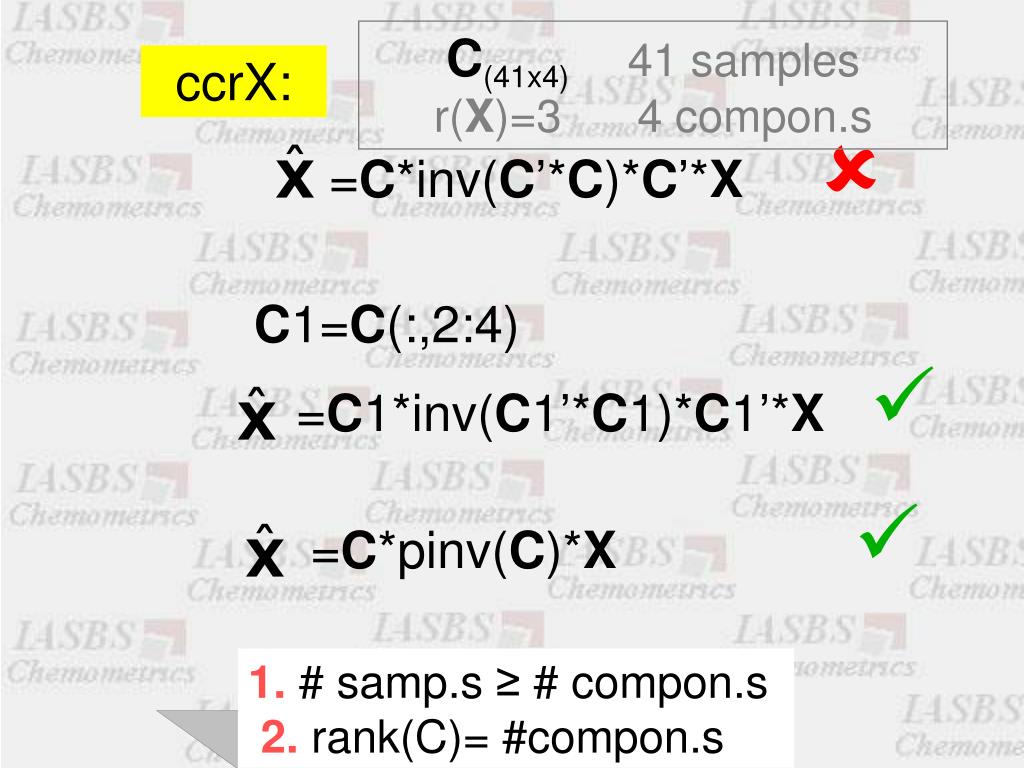

  18. C(41x4) 41 samples r(X)=3 4 compon.s ccrX:  =C*inv(C’*C)*C’*X C1=C(:,2:4)  =C1*inv(C1’*C1)*C1’*X  =C*pinv(C)*X 1. # samp.s≥ # compon.s 2. rank(C)= #compon.s

  19. pcrT:  =C*inv(C’*C)*C’*T C1=C(:,2:4)  =C1*inv(C1’*C1)*C1’*T  =C*pinv(C)*T

  20. pcrC:  =T*T’*C 1. # samp.s ≥ # PCs 2. rank(T)= # col.s (always it is so…)

  21. Overlap effect

  22. +Rand noise

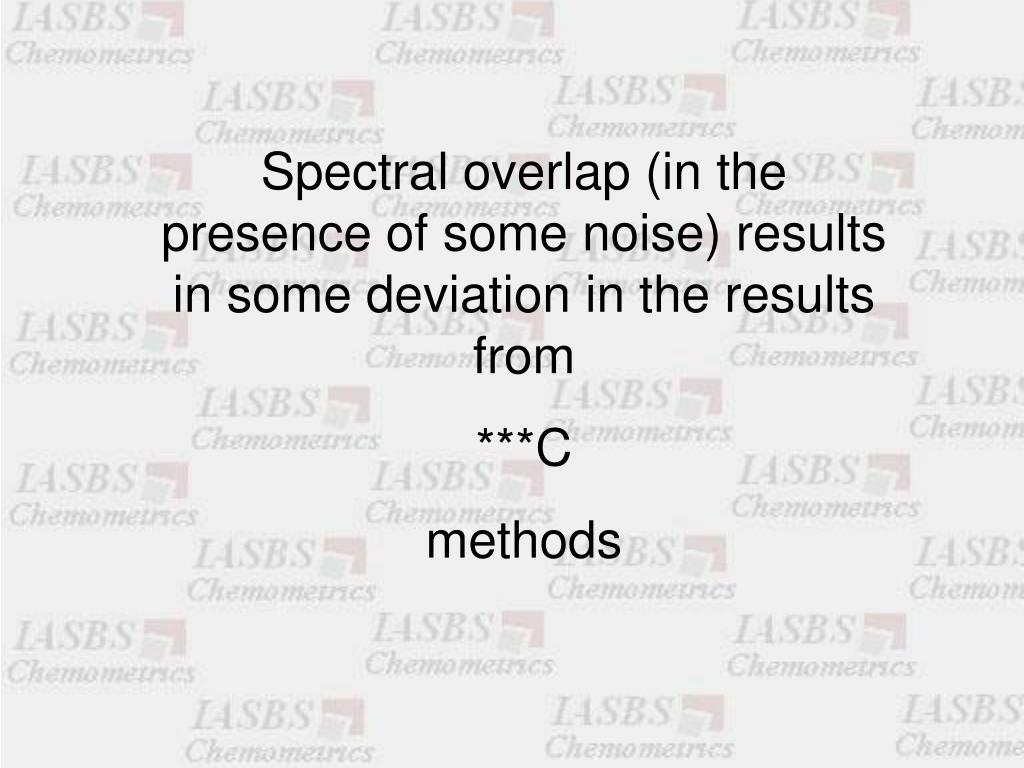

  23. Spectral overlap (in the presence of some noise) results in some deviation in the results from ***C methods

  24. Results from application of ***C and ***X methods are different … One way to obtain more similar results from ***C and ***X methods are application of constraints

  25. Presence of heteroscedastic noise

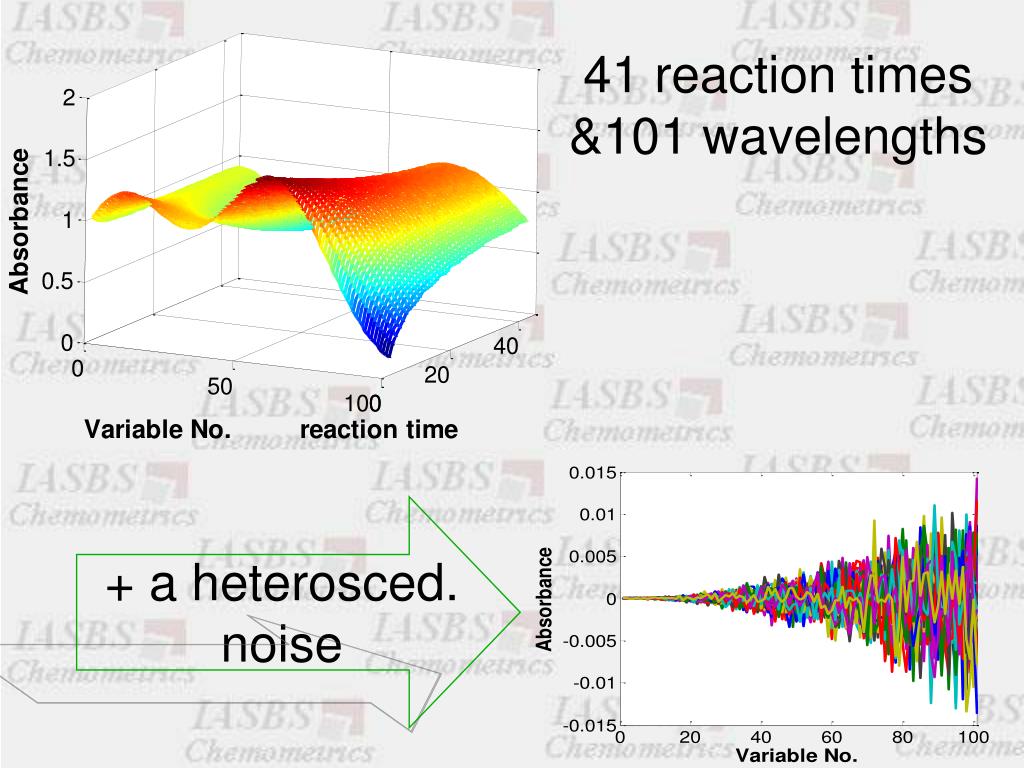

  26. 41 reaction times &101 wavelengths + a heterosced. noise

  27. Inaccurate results from ccrX !

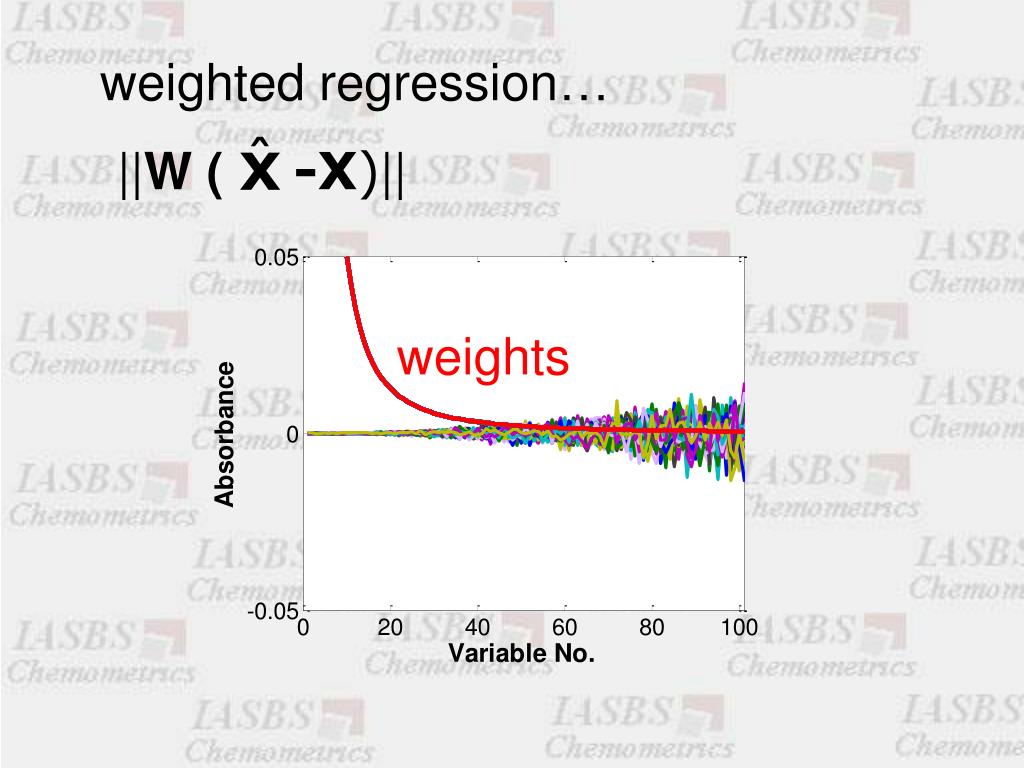

  28. ||W ( -X)|| weighted regression… weights

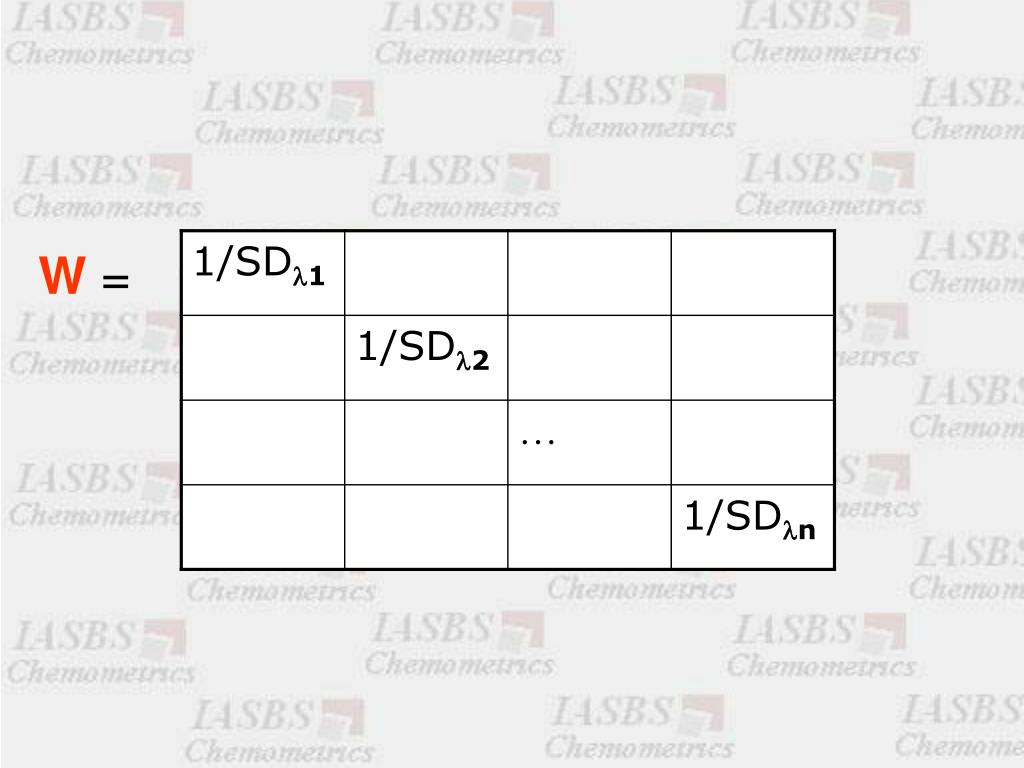

  29. W=

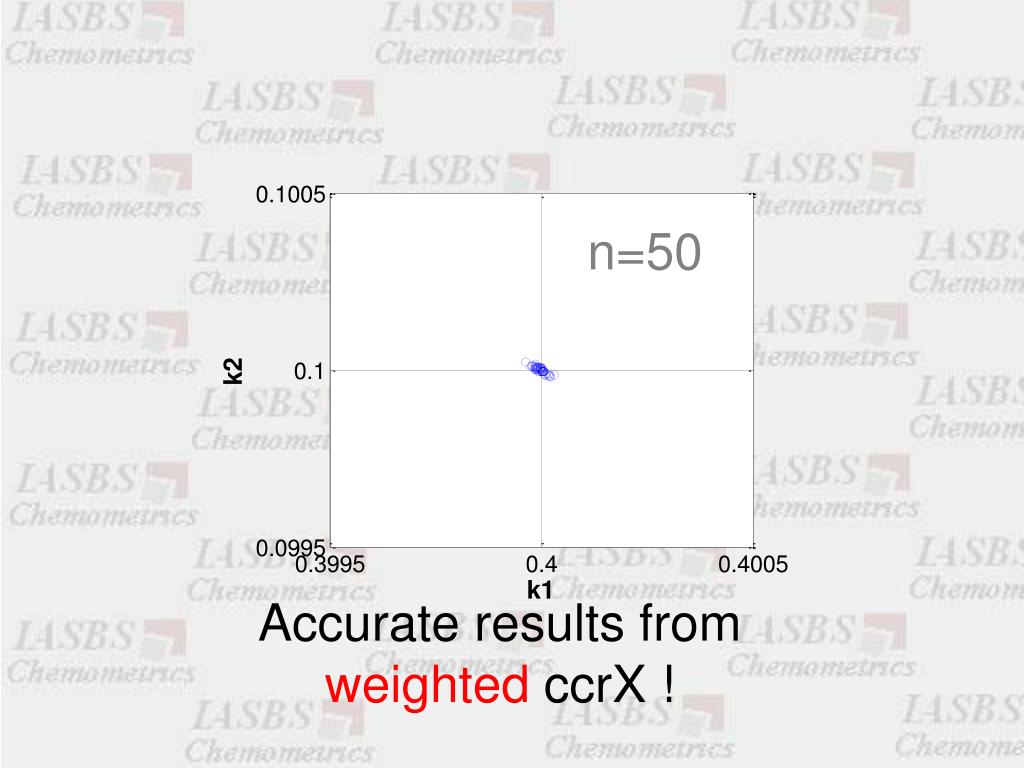

  30. n=50 Accurate results from weighted ccrX !

  31. FSMWFA Recognition of the presence of heterosc. noise

  32. A more serious source of error Non-random sampling error

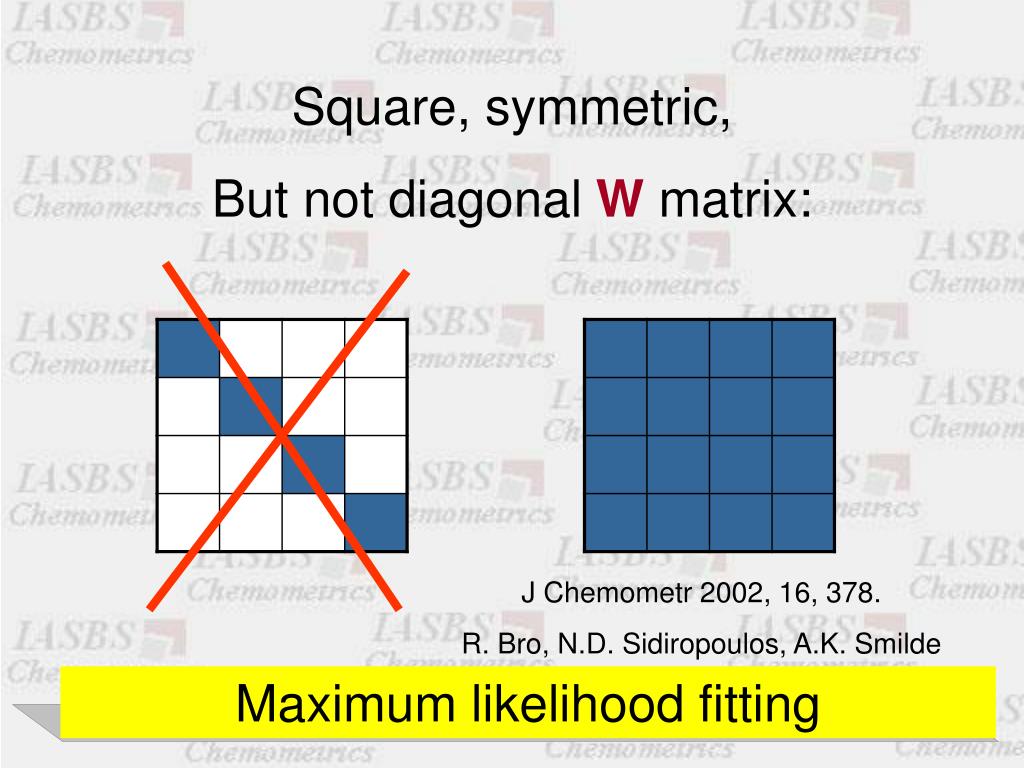

  33. Square, symmetric, But not diagonal Wmatrix: J Chemometr 2002, 16, 378. R. Bro, N.D. Sidiropoulos, A.K. Smilde Maximum likelihood fitting

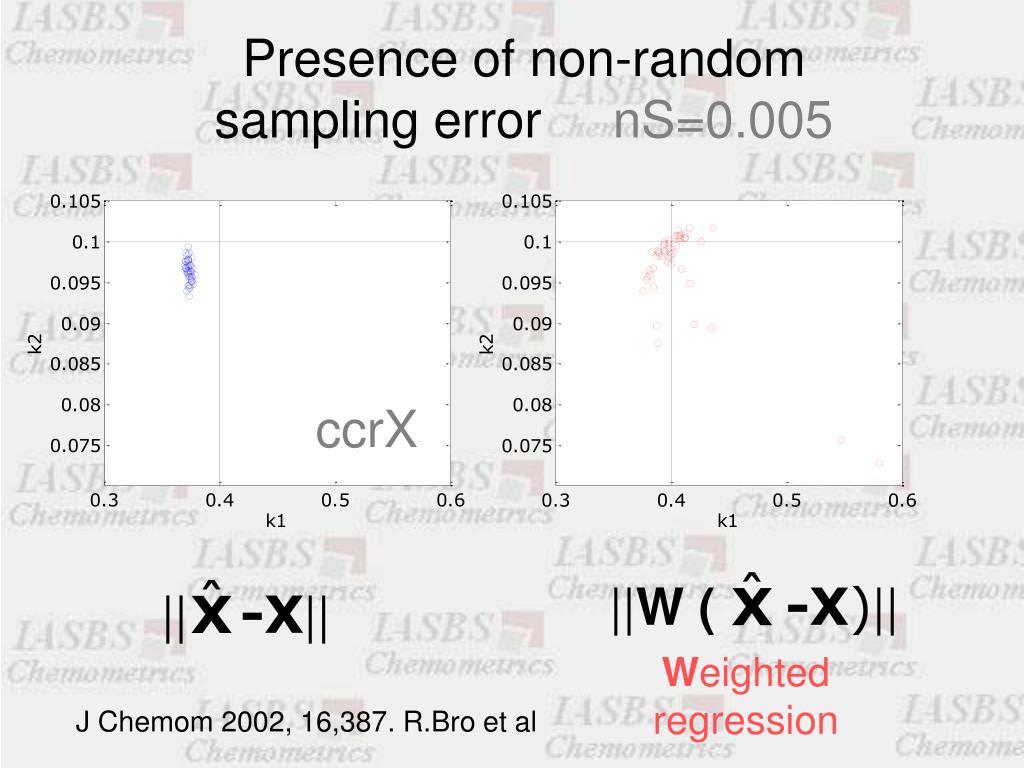

  34. || -X|| ||W ( -X)|| Presence of non-random sampling error nS=0.005 ccrX Weighted regression J Chemom 2002, 16,387. R.Bro et al

  35. Presence of unknown interference

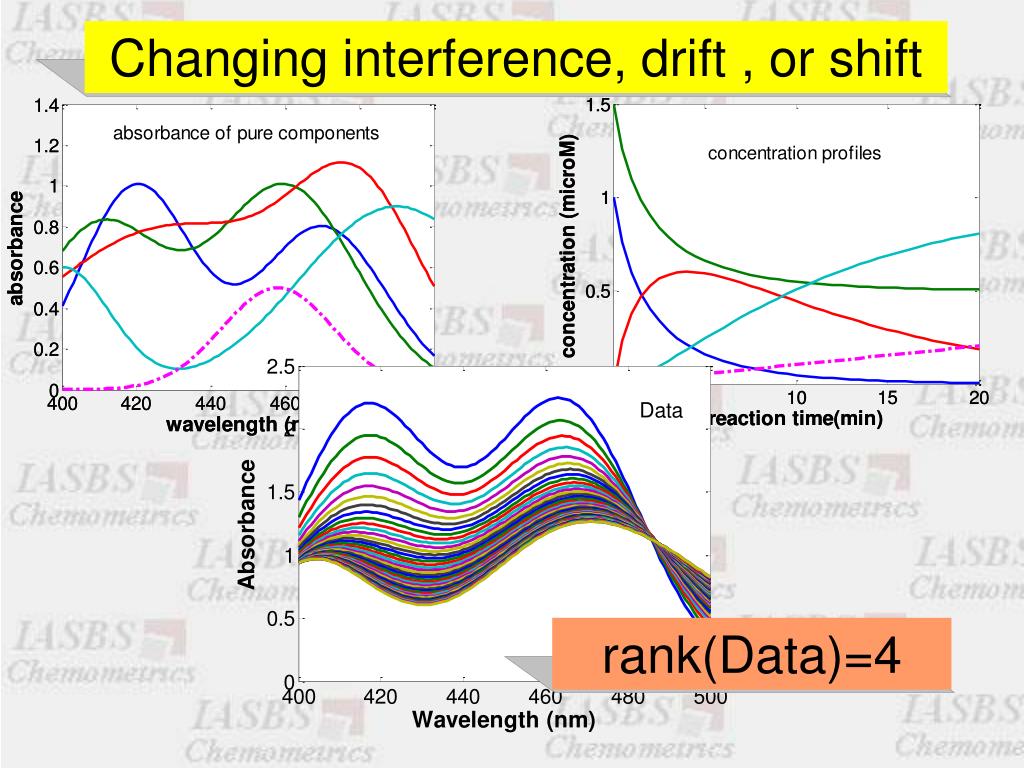

  36. Changing interference, drift , or shift rank(Data)=4

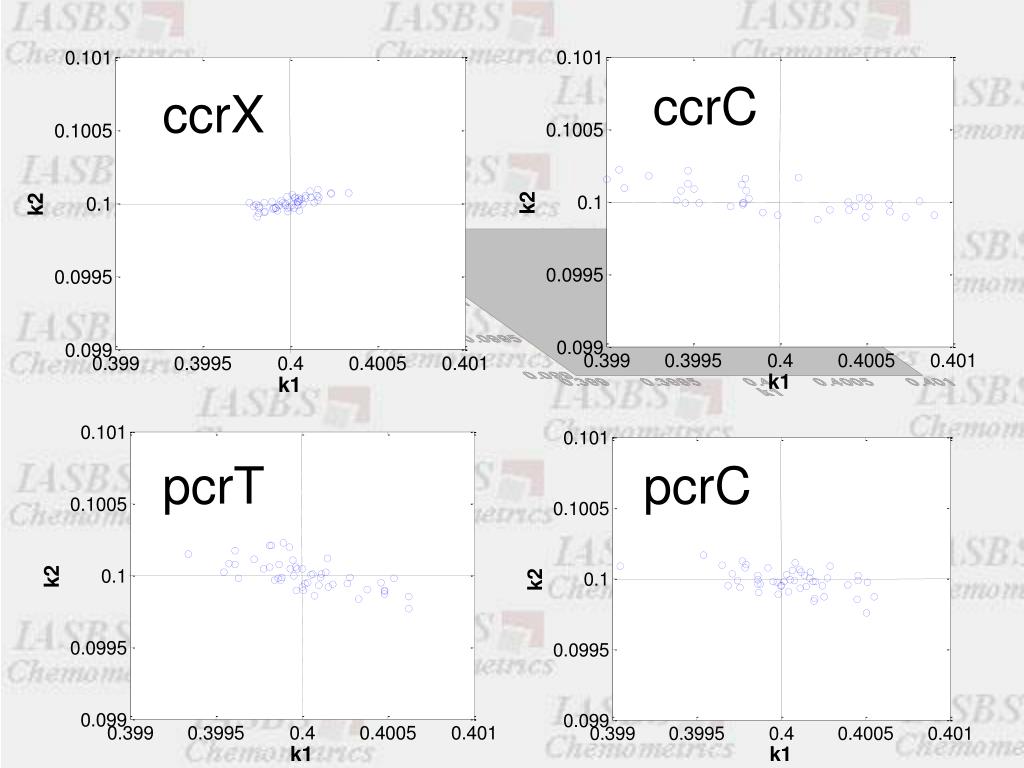

  37. ccrX ccrC pcrC pcrT

  38. Presence of shift or drift (a changing interference) results in serious deviations in ***X Methods (but not in ***C methods) Why?

  39. = CC+X = XX+C = CC+T = TT+C In the presence of shift, drift or changing interferences: T or X space includes 1. the concentration changes according to the model 2. variations from shift, drift or changing interference C space includes only the concentration changes according to the model   Projection of a smaller space to a larger one Projection of a larger space to a smaller one

  40. = TT+C in the presence of unknown interference, drift or shift. Target Transform (pcrC) is the most preferred method

  41. Constant interference A+BCD rank(Data)=3 !

  42. ccrC ccrX pcrT pcrC

  43. A constant interference does not show any significant effect the accuracy of ***X and ***C methods.

  44. Target test fitting From: J Chemometr. 2001, 15, 511. P.Jandanklang, M. Maeder, A. C. whitson

  45. Differential pulse Voltammetry Each voltammog. depends only on its own E1/2

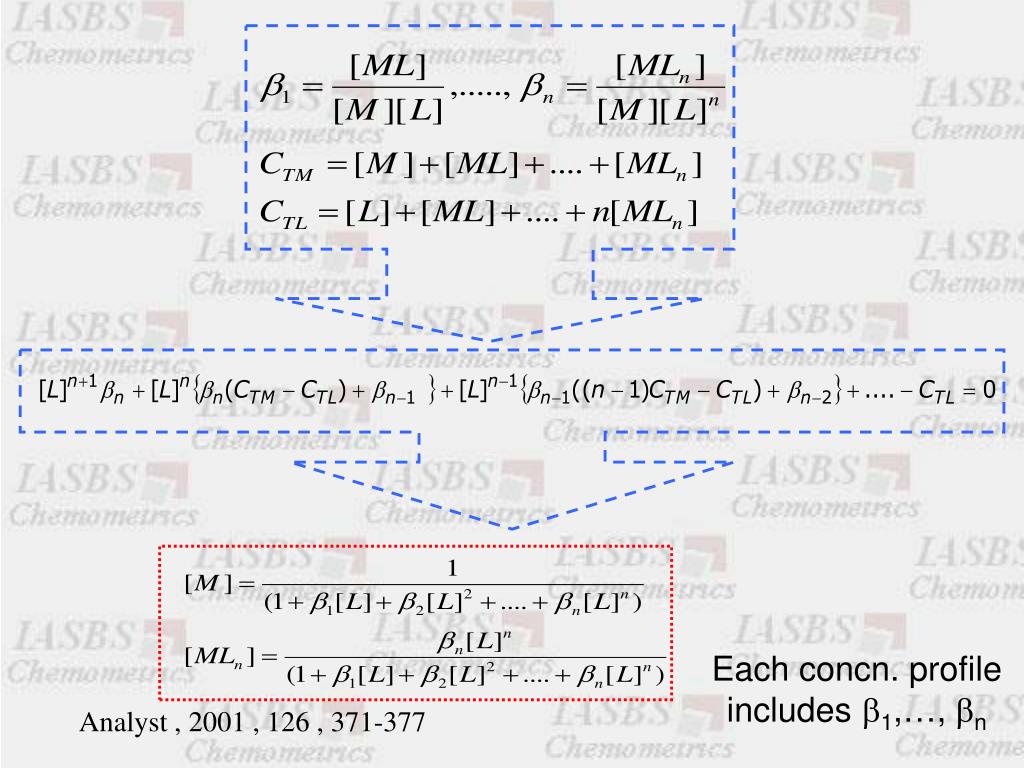

  46. Successive complexation:

  47. Each concn. profile includes 1,…, n Analyst , 2001 , 126 , 371-377
