  1. Lantech Surveillance Applications -Pioneering Industrial and IP Network- Presented by Marketing Dept. April, 2011

  2. Agenda Overview and Challenge Case Studies Lantech PoE Products

  3. Overview & Challenge

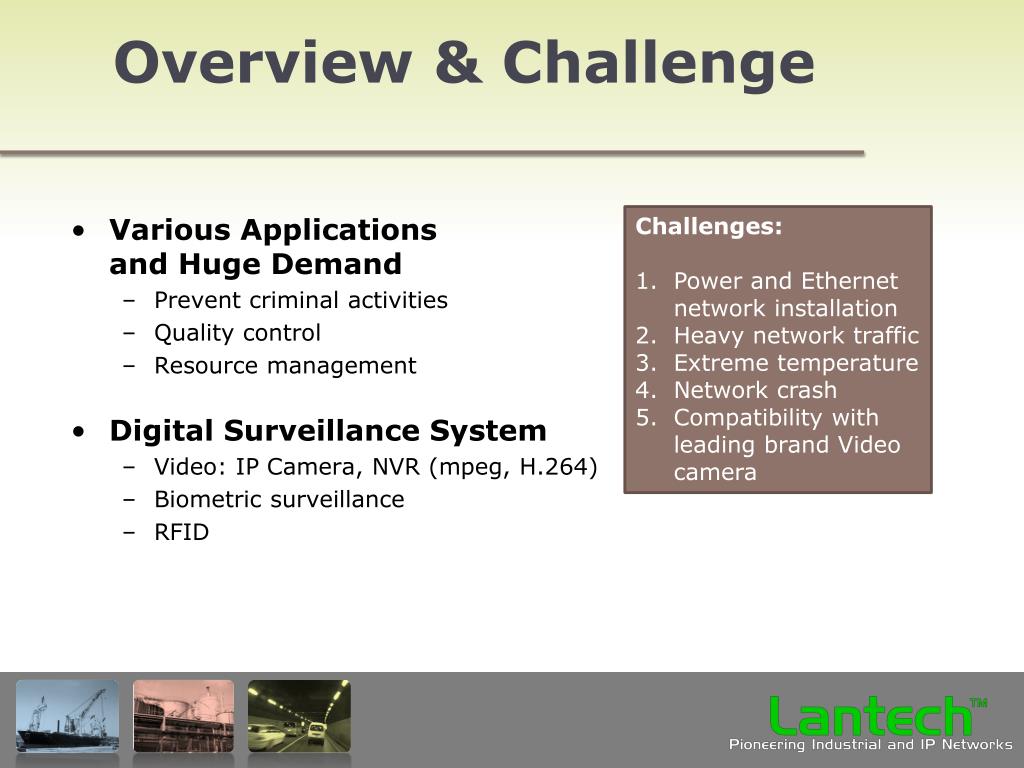

  4. Overview & Challenge • Various Applications and Huge Demand • Prevent criminal activities • Quality control • Resource management • Digital Surveillance System • Video: IP Camera, NVR (mpeg, H.264) • Biometric surveillance • RFID • Challenges: • Power and Ethernet network installation • Heavy network traffic • Extreme temperature • Network crash • Compatibility with leading brand Video camera

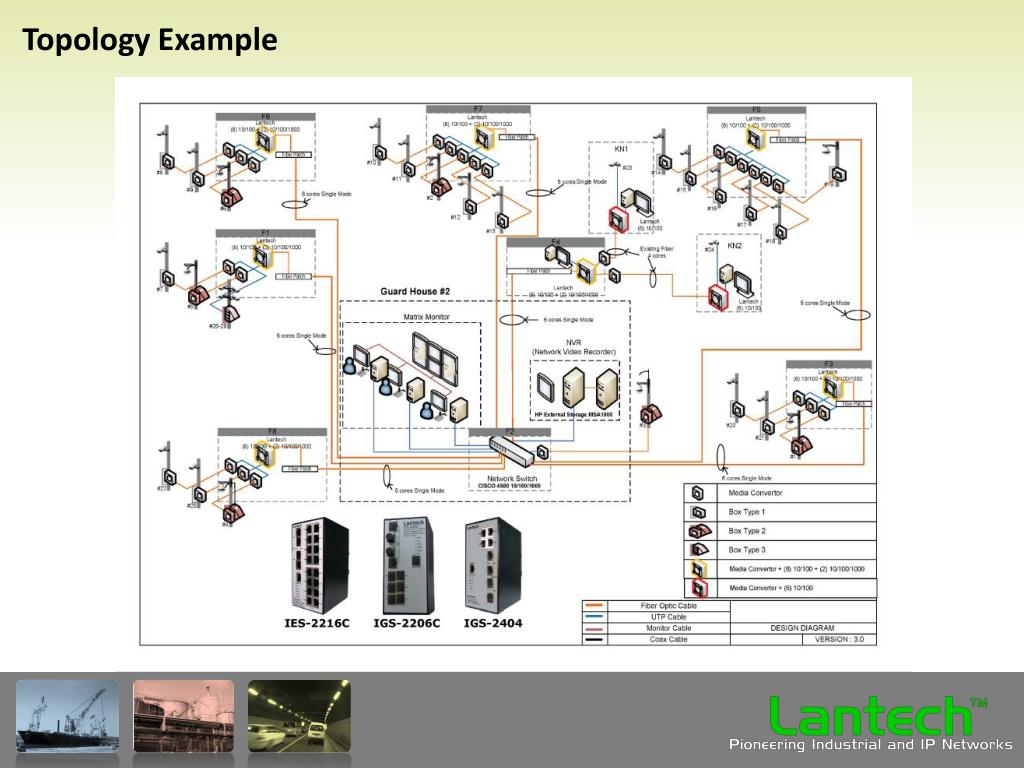

  5. Topology Example

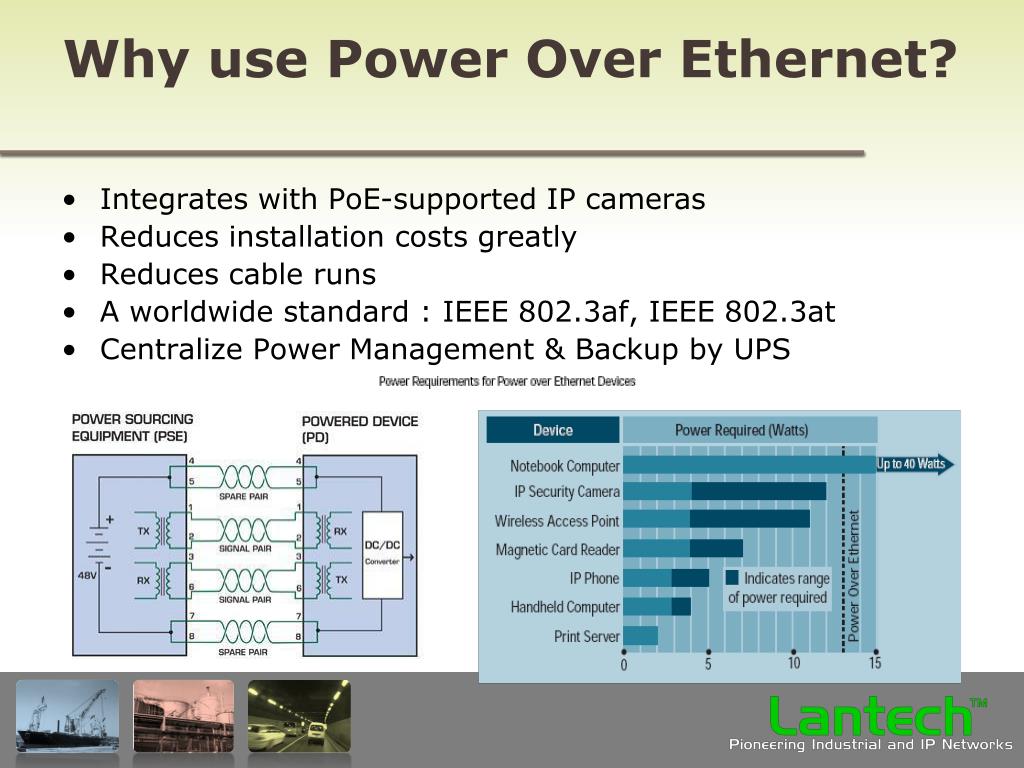

  6. Why use Power Over Ethernet? • Integrates with PoE-supported IP cameras • Reduces installation costs greatly • Reduces cable runs • A worldwide standard : IEEE 802.3af, IEEE 802.3at • Centralize Power Management & Backup by UPS

  7. PoE 802.3af Satndard

  8. IEEE 802.3af vs. IEEE802.3at Type2

  9. PD power consumption Table

  10. Case Studies

  11. Railway System:Japan • Client: Japan Railways, one of the most famous railway transportation company • Require extremely high quality • Integrated perfectly with NEC’s IP cameras • Consist of signal control, railway security and train monitor • Harsh outdoor environment • Adopted 100 units of IPES-2208C

  12. Subway Stations:Thailand • Integrated perfectly with AXIS’s IP cameras • Consist of signal control, platform/ railway security and train monitor • Extreme environment (Humid and hot in Bangkok) • Adopted IES-2208C, IES-2307C, IES-2206F-II, IES-2216C, Over 300units • Project manager is very satisfied with Lantech’stotal solution

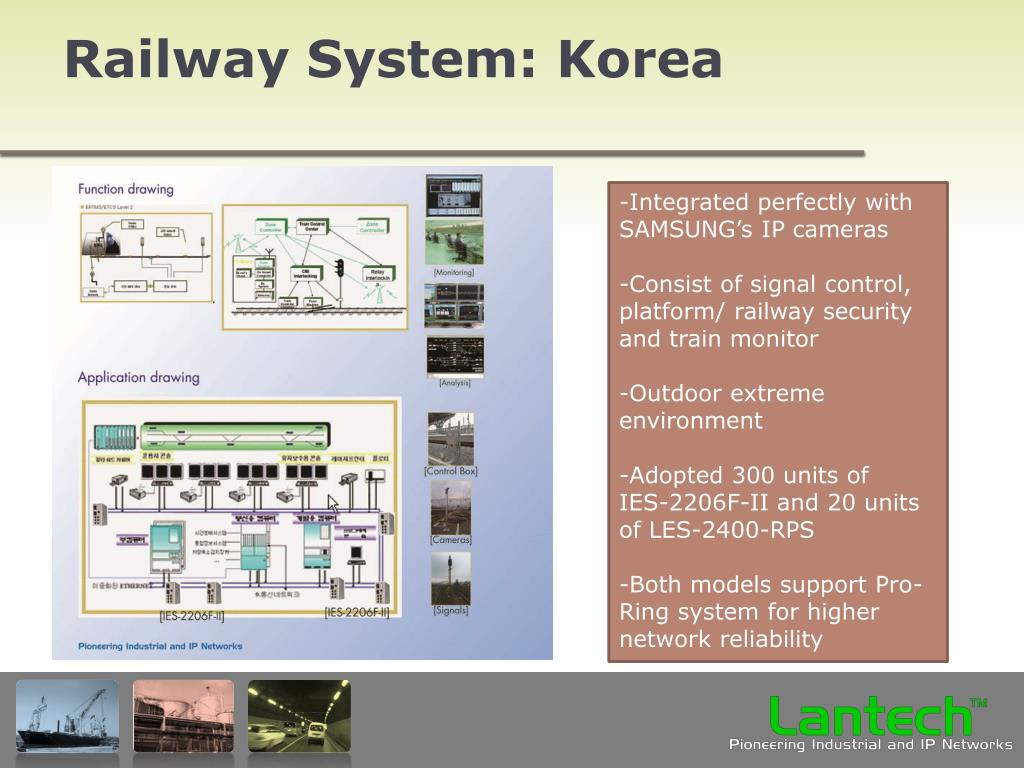

  13. Railway System:Korea • Integrated perfectly with SAMSUNG’s IP cameras • Consist of signal control, platform/ railway security and train monitor • Outdoor extreme environment • Adopted 300units ofIES-2206F-IIand 20units of LES-2400-RPS • Both models support Pro-Ring system for higher network reliability

  14. Tunnel Surveillance:Germany • A tunnel renew project • Humid environment with high temperature • -Integrated perfectly with MOBOTIX’s HD IP camera”M22-SEC” • HD IP cameras requirehuge network bandwidth • Adopted 150units of IES-0204FTand 150 units of POA-100A

  15. Tunnel Surveillance:UK • A tunnel extension project • Humid environment with high temperature • -Integrated with IP cams, IP phones, signs, fans controller, etc. • Overcame the bandwidth requirement, providing ring protection, and connected to upper layer Cisco switches via Dual Homing • Adopted 50units of IES-2206F-II-Eand 50units of IES-2216C-E

  16. Police Security: East Europe IES-2307C • -Integrated perfectly with Nice’s IP cameras • -Complieswith Cisco PVST • -Pro-Ring System • DIDO • Adopted 220units of IES-2307C

  17. Prison Security:Western Europe • Watch tower security project • 7/24nonstop monitoring • -IPES-2208C provides up to 16Wper PoE port • Supports multicast for huge bandwidth requirement • Adopted 80units of IPES-2208C • The European leading SI companyis very satisfied with the quality

  18. Substation Monitoring:Thailand • Client: MEA • -Humid environment with high temperature in Thailand • -Lantech provides total solution, integrated our industrial and business models • Adopted more than 200 units of LPES-2224CA, 100 units of IEC-0101FT, 50 units of IPES-0005T-4, and 100 units of IPES-2208C

  19. Bus Security: Spain • Lantech industrial PoE switch IPES-0008-4 can up-convert 24VDC power input to 15.4W /port at 48VDC • Enables operation from lower voltage supply such as bus • -The IPES-0008-4 connected with IP cams, NVR, and ticket system • Adopted 200 units of IPES-0008-4

  20. Military Security:South Korea • -Lantech industrial switches installed at the military base of South Korea • -Integrated with SAMSUNG’s PoE IP cameras • -Lantech industrial switches provided total network solution with Pro-Ring protection • Adoptedaround 250 units of IES-2206F

  21. Neighborhood Security:Southeast Europe • The climate has huge variety from summer to winter, ranges from -20 °C to 35 °C • Connected with five mega pixel IP cams and normal IP cams • -Will extend the network into traffic management, public transport management, and variable message signs in the future • Adopted 100 units of IPES-2208C-E, connecting into two rings

  22. Lantech PoEProducts

  23. Industrial PoE Series • Comply with IEEE802.3afPower over Ethernetstandard • Each PoE port is able to provide up to 15.4Watts • Wide range redundant power design:45~56VDC(IPES-0008-4 & IPES-0008-4-M12: 24~48VDC) • Polarity protection with overload current protection • Various models provide high flexibility

  24. PoE Series IEEE 802.3at IPGS-0204G 4 10/100/1000T + 2 Giga SFP Industrial Switch w/4 PoE 802.3at Injectors • Comply with IEEE802.3atPower over Ethernetstandard • Able to highly integrate with Lantech industrial switches • Over voltage protection • Overload protection • Output short protection

  25. PoE Series IEEE 802.3af • Comply with IEEE802.3afPower over Ethernetstandard • PoE splitter and PoE injector provide the flexibility for PoE network • Able to highly integrate with Lantech industrial switches • Over voltage protection • Overload protection • Output short protection

  26. Thank you
