  1. An Overview of Some Recent Results in the Galactic Centre Frederick K. Baganoff MIT Kavli Institute for Astrophysics and Space Research The X-ray Universe 2014 Trinity College, Dublin 2014 June 16-19

  2. Outline • Traces of past Sgr A* activity • Current Sgr A* activity • Sgr A* flares • Sgr A*/G2 interaction monitoring • Magnetar SGR J1745-2900

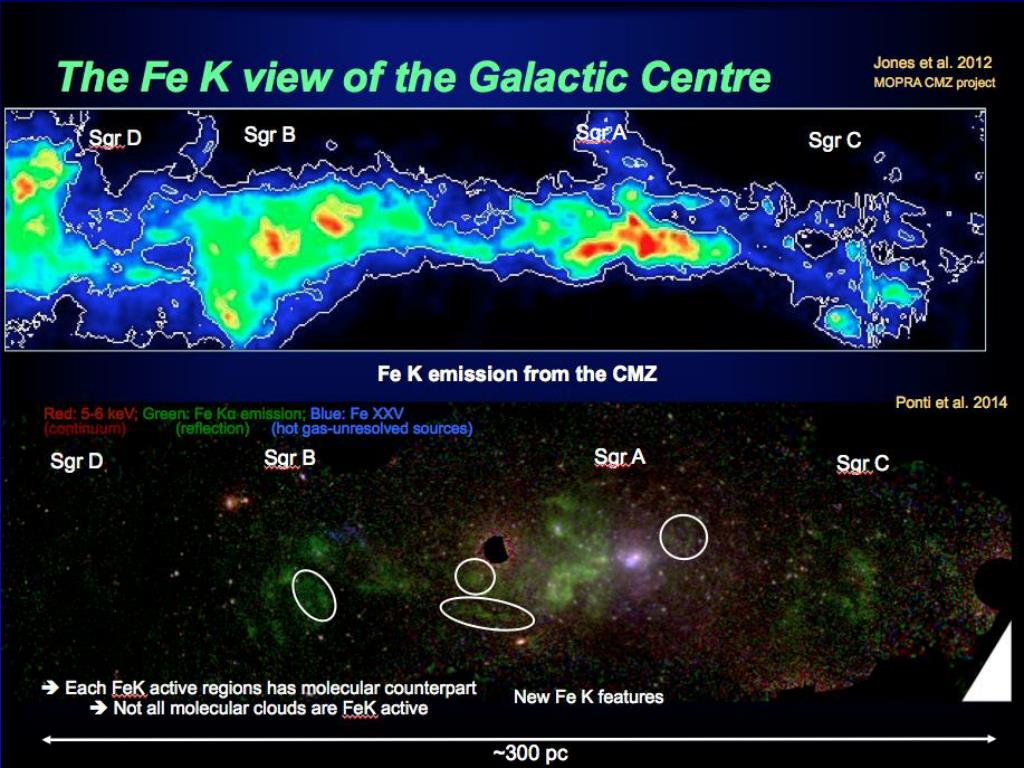

  3. NuSTAR Detects Sgr A* Flares

  4. NuSTAR Detects Sgr A* Flares

  5. Sgr A* X-ray Visionary Project Frederick K. Baganoff, Michael A. Nowak (MIT Kavli Institute), Sera Markoff (API, University of Amsterdam) and Sgr A* XVP Collaboration www.sgra-star.com

  6. Science Goals • Obtain first high-resolution X-ray spectra of SgrA* and diffuse emission in the central pc • Spatially and spectrally resolve accretion flow within Sgr A*’s Bondi radius (~3”) • Measure energy and width of known Fe Kalpha line(s) at ~6.6 keV in ACIS-I Spectrum • Detect optically thin plasma emission lines, (e.g., Si, S, Fe), if present at levels predicted by RIAF models • Measure relative abundances of emitting plasmas and absorbing column along LOS

  7. Science Goals • Radio polarization measurements indicate most accreting matter does not reach Sgr A*’s event horizon --- dynamics and thermal structure of plasma will tell us how matter flows in and how much and where some of it flows out • Monitor X-ray flares of Sgr A* with increased cadence and minimal pile-up • Perform coordinated multi-wavelength monitoring of flares from radio up to gamma-rays, including mm VLBI • Constrain 3D GRMHD simulations of Sgr A* accretion flow using MW properties of flares and 1mm VLBI imaging

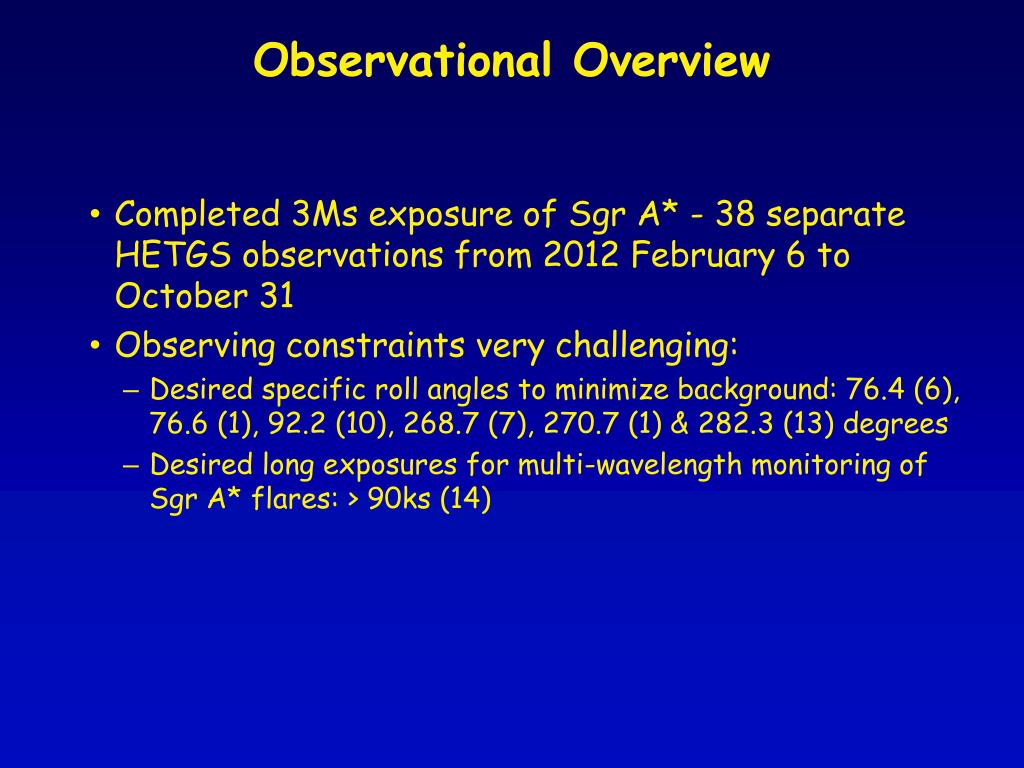

  8. Observational Overview • Completed 3Ms exposure of Sgr A* - 38 separate HETGS observations from 2012 February 6 to October 31 • Observing constraints very challenging: • Desired specific roll angles to minimize background: 76.4 (6), 76.6 (1), 92.2 (10), 268.7 (7), 270.7 (1) & 282.3 (13) degrees • Desired long exposures for multi-wavelength monitoring of Sgr A* flares: > 90ks (14)

  9. Brightest flare ~140x quiescence • LX ~ 2 x 1035 erg/s (2-8 keV) • Nowak et al. (2012) Sgr A* XVP Cumulative Light Curve

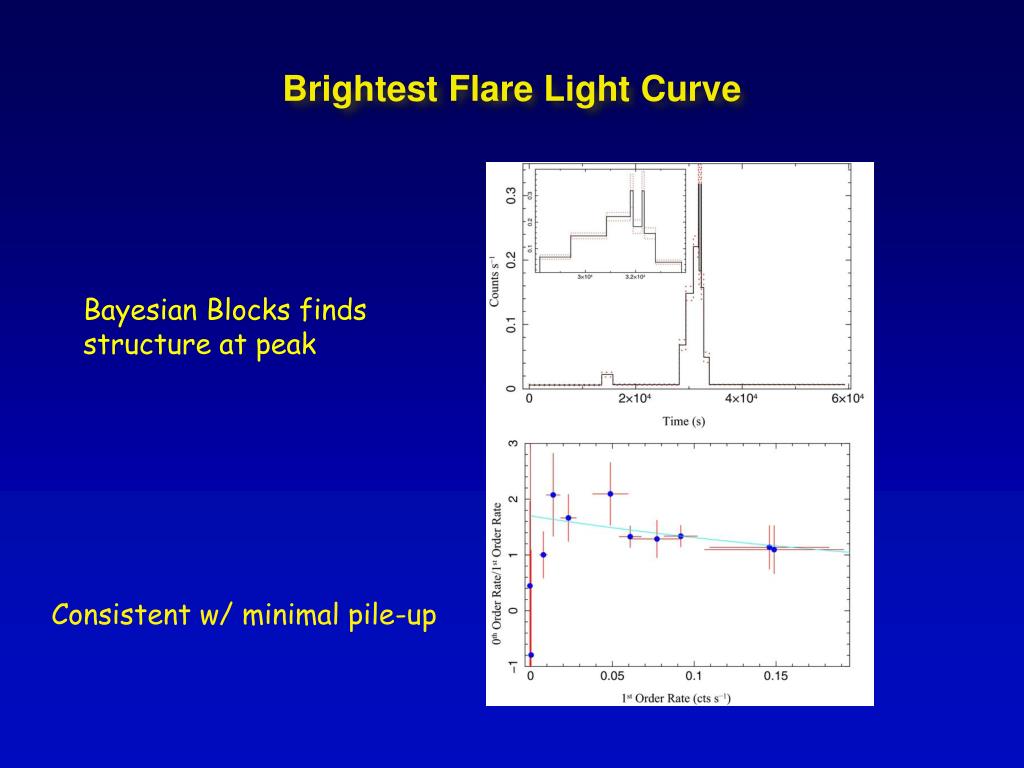

  10. Brightest Flare Light Curve Bayesian Blocks finds structure at peak Consistent w/ minimal pile-up

  11. Sgr A* Flare and Quiescent Spectra -- ACIS-I & HETGS • HETGS 1st Order • HETGS 0th + 1st Order • HETGS 1st Order • HETG 0th Order • HETGS 0th Order • ACIS-I Wang+2013: He-like Fe Kalpha line at 6.7 keV; No 6.4 keV line predicted by Sazonov+2012; but see Warwick talk

  12. Consistent Flare Properties for Brightest Chandra & XMM Flares ACIS-I Quies. HETGS Flare XMM 2002 F XMM 2007 F Photon index ~ 2 and NH ~ 15 x 1022 cm-2

  13. Properties of Brightest X-ray Flare Good agreement with two brightest XMM flares (Nowak et al. 2012, ApJ, 759, 95)

  14. 39 X-ray Flares in 3Ms Exposure: 1.12 +/- 0.18 flares/day Neilsen+2013

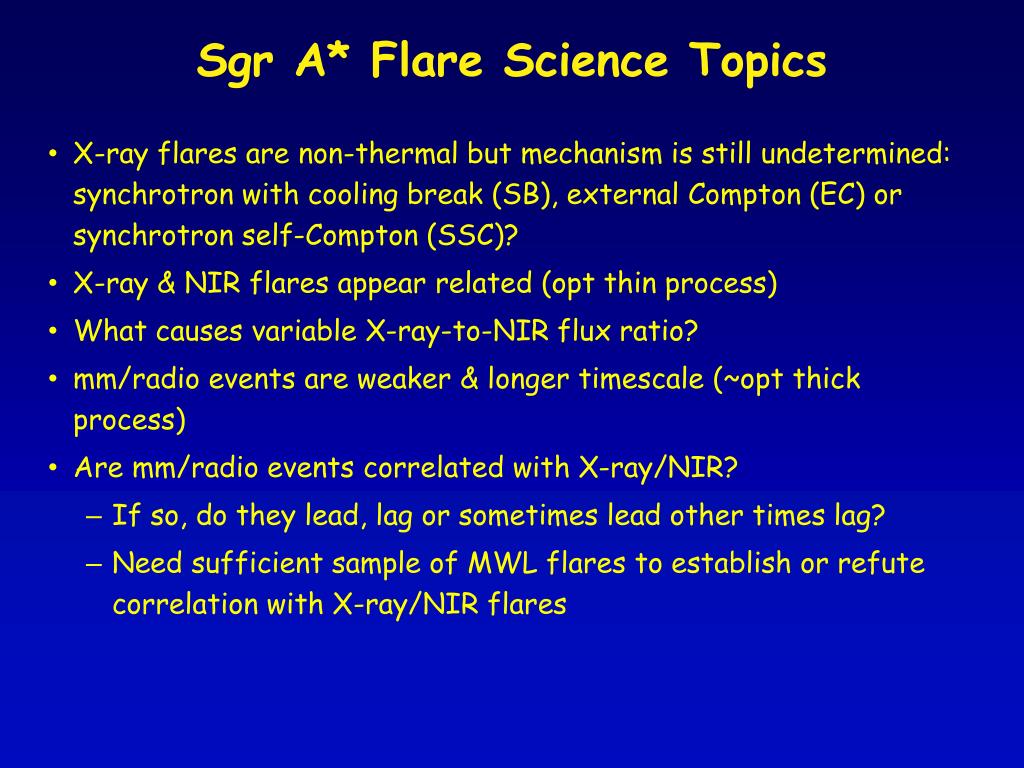

  15. Sgr A* Flare Science Topics • X-ray flares are non-thermal but mechanism is still undetermined: synchrotron with cooling break (SB), external Compton (EC) or synchrotron self-Compton (SSC)? • X-ray & NIR flares appear related (opt thin process) • What causes variable X-ray-to-NIR flux ratio? • mm/radio events are weaker & longer timescale (~opt thick process) • Are mm/radio events correlated with X-ray/NIR? • If so, do they lead, lag or sometimes lead other times lag? • Need sufficient sample of MWL flares to establish or refute correlation with X-ray/NIR flares

  16. Sgr A* Flare Science Topics • Origin(s) of flares undetermined: • magnetic reconnection? • shock in jet or inner accretion flow? • stochastic acceleration? • magnetic excitation by infalling asteroids? • What determines flare duty cycle and energy budgets? • Need broad-band flare spectra and time evolution observations to understand flares • What do flares tell us about innermost environment of Sgr A*’s accretion flow? • Does this phenomenon scale to other LLAGN? • Will G2 or similar events change Sgr A*’s rate of flaring and its accretion state?

  17. NuSTAR Detects Sgr A* Flare! Barriere+2014 NuSTAR PI: F. Harrison (Caltech)

  18. NuSTAR Detects Sgr A* Flares

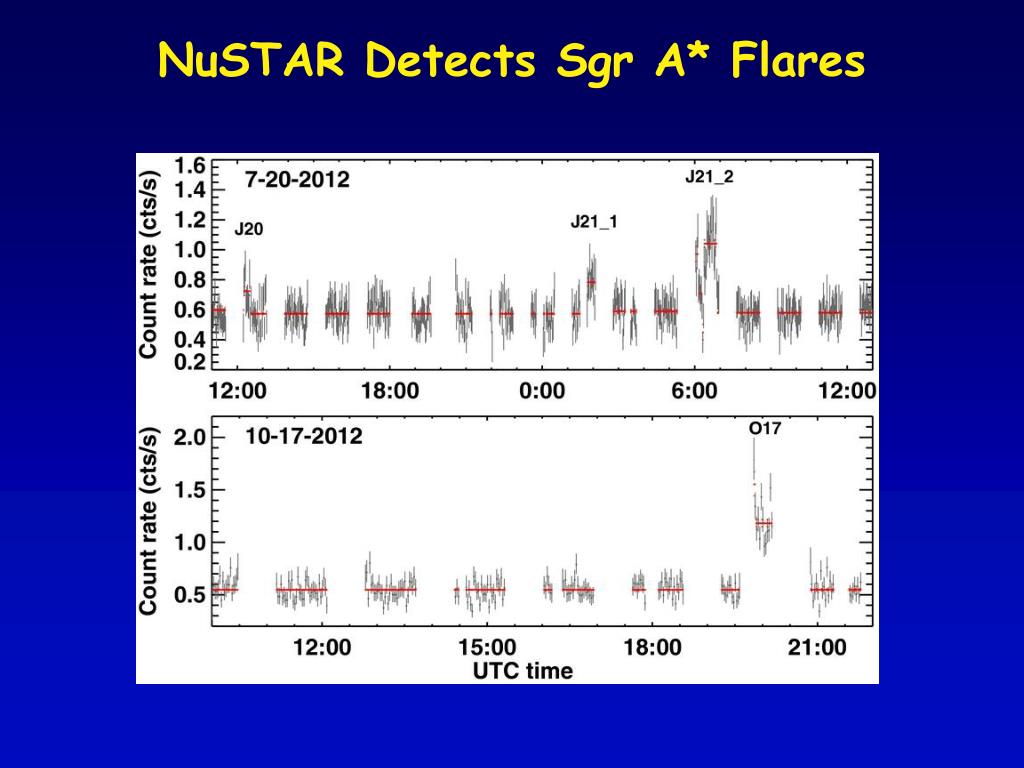

  19. NuSTAR Detects Sgr A* Flares

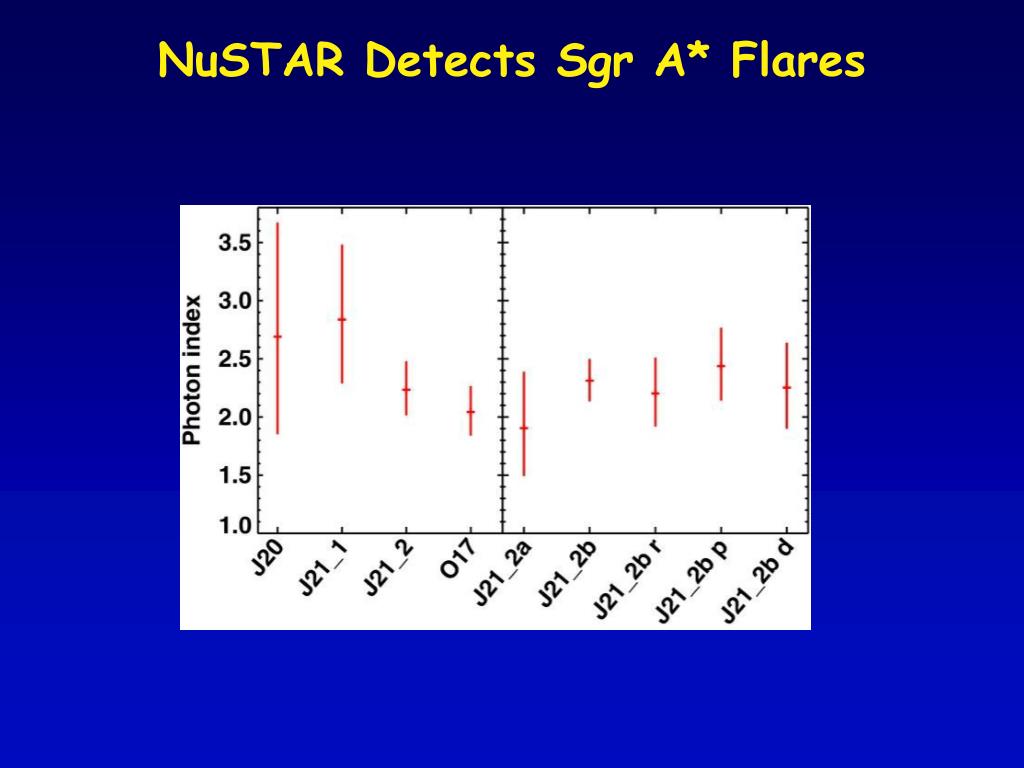

  20. NuSTAR Detects Sgr A* Flares

  21. NuSTAR Spectra

  22. Flare Model Fits To NuSTAR Spectrum

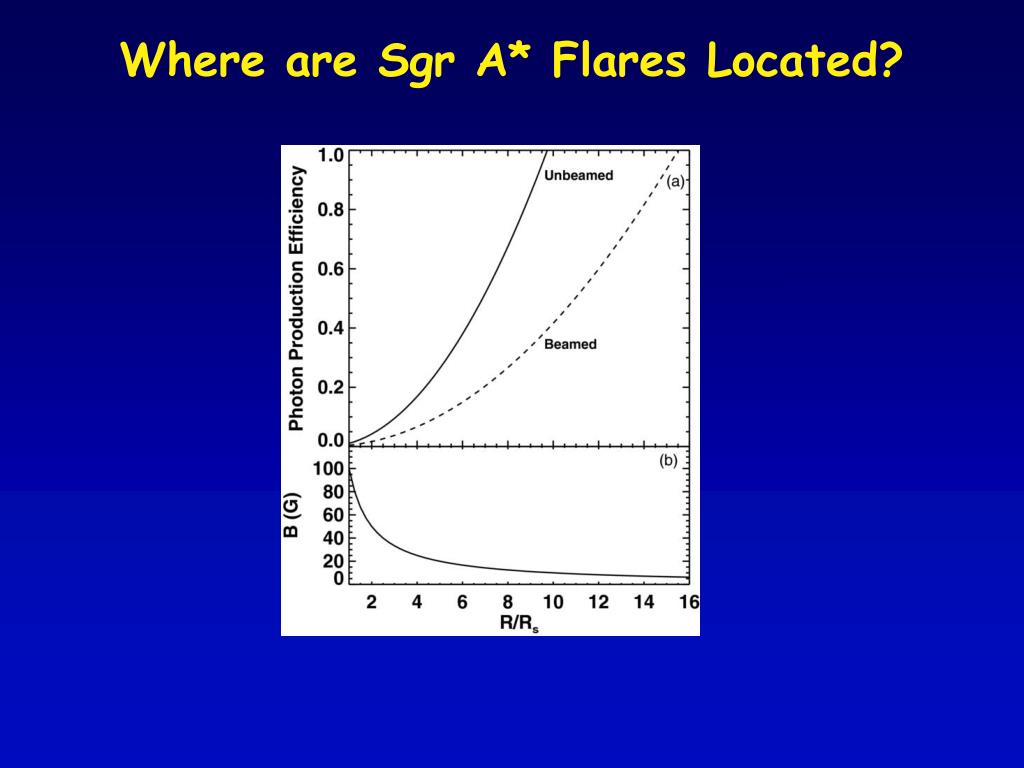

  23. Where are Sgr A* Flares Located?

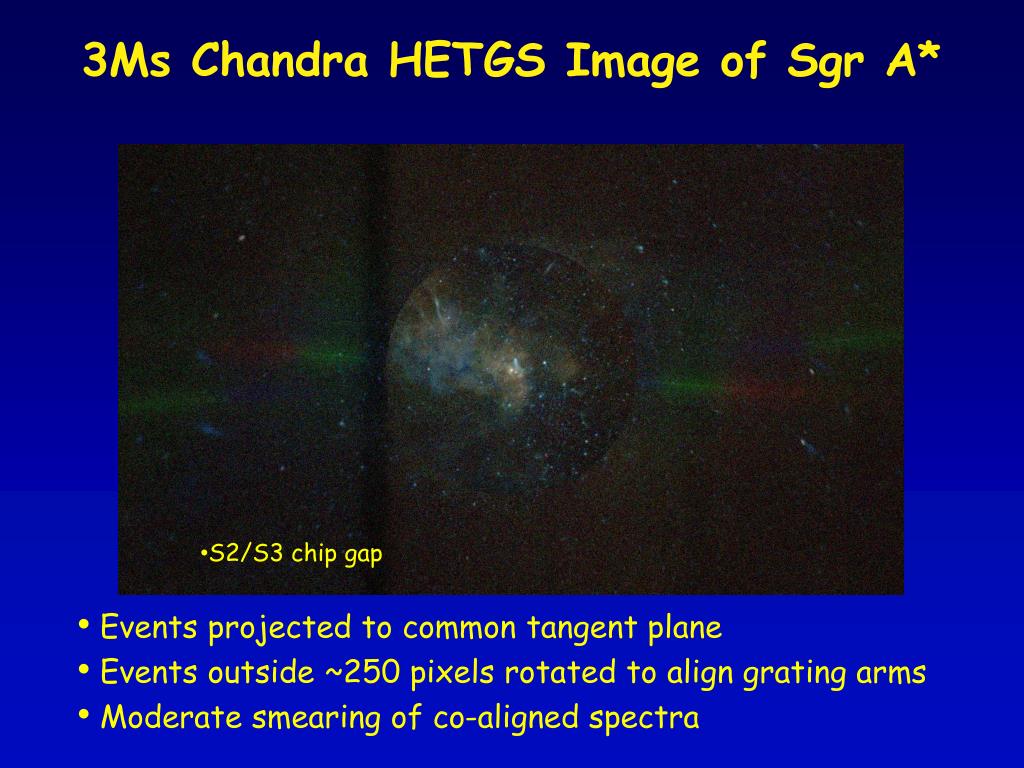

  24. 3Ms Chandra HETGS Image of Sgr A* • S2/S3 chip gap • Events projected to common tangent plane • Events outside ~250 pixels rotated to align grating arms • Moderate smearing of co-aligned spectra

  25. Ar XVII /S XVI • Fe XXV • S XVI • S XV • Ca XIX

  26. Fe XXV 1.8505 Angstroms

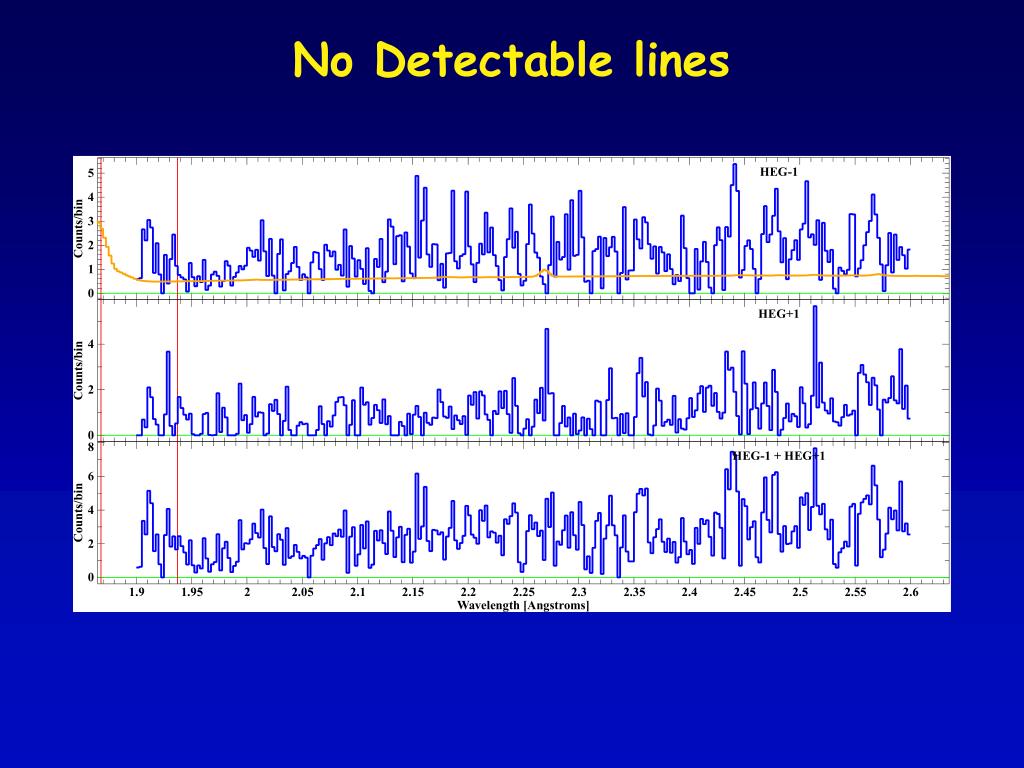

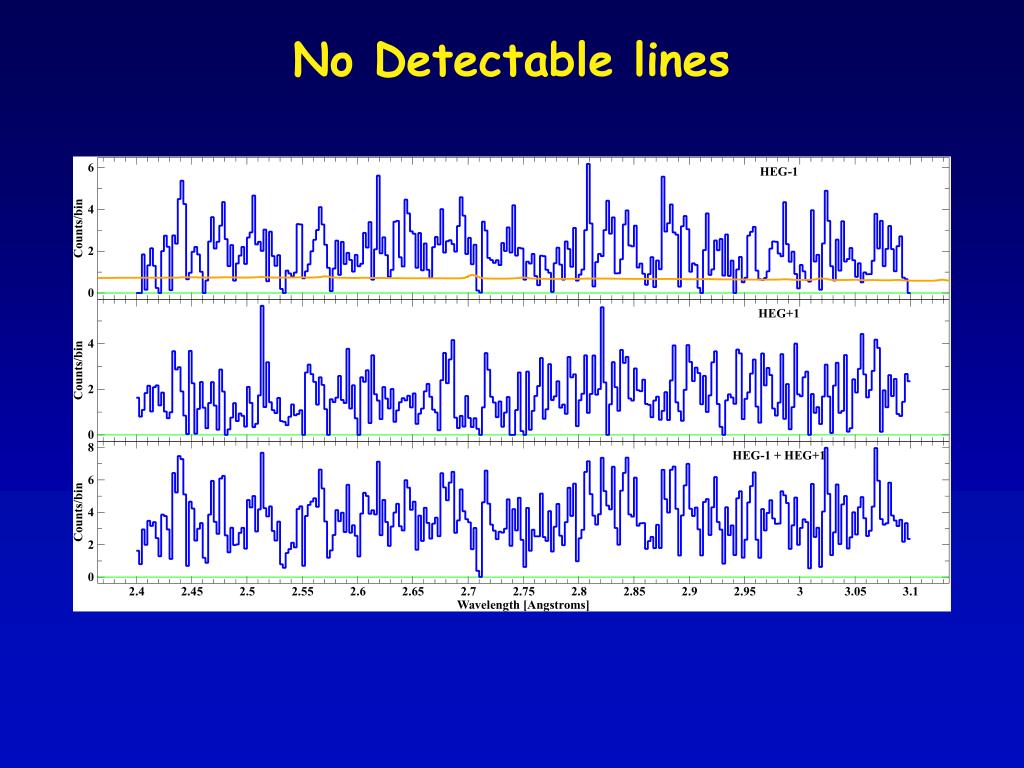

  27. No Detectable lines

  28. No Detectable lines

  29. Ca XIX 3.177 & 3.211 Angstroms

  30. Ar XVII 3.95 & Ar XVII/S XVI 3.995 Angstroms

  31. Ar XVII 3.95 & Ar XVII/S XVI 3.995 Angstroms

  32. S XVI 4.727 & 4.733 S XV 5.039 Angstroms

  33. S XV 5.039 & 5.101 Angstroms

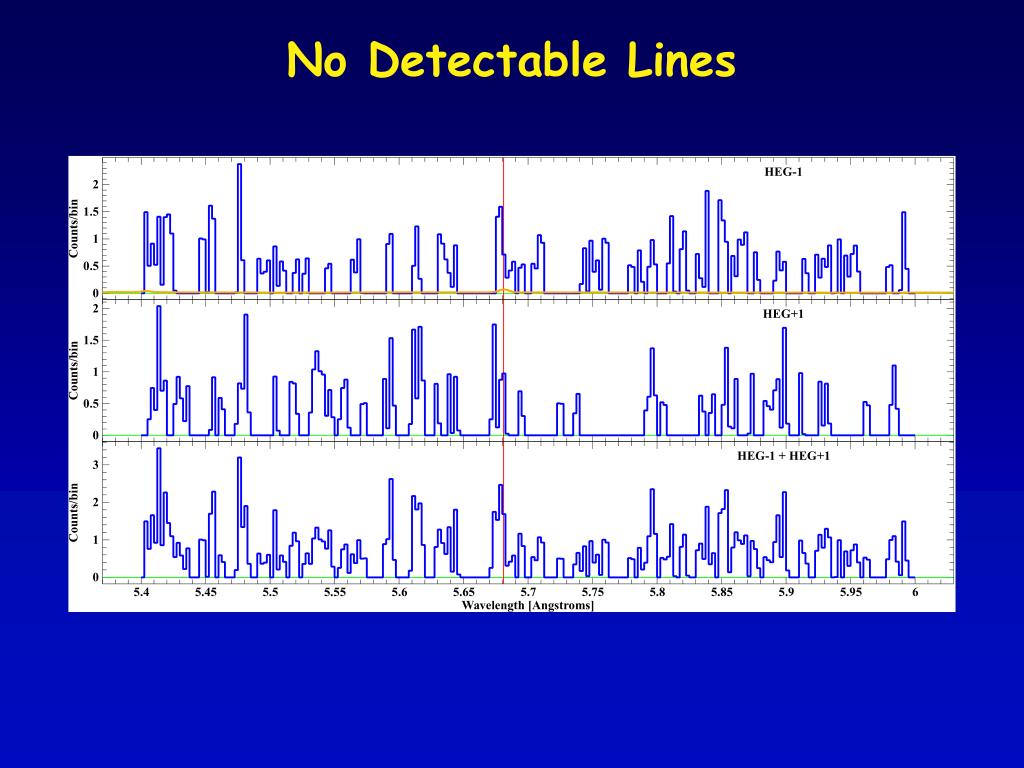

  34. No Detectable Lines

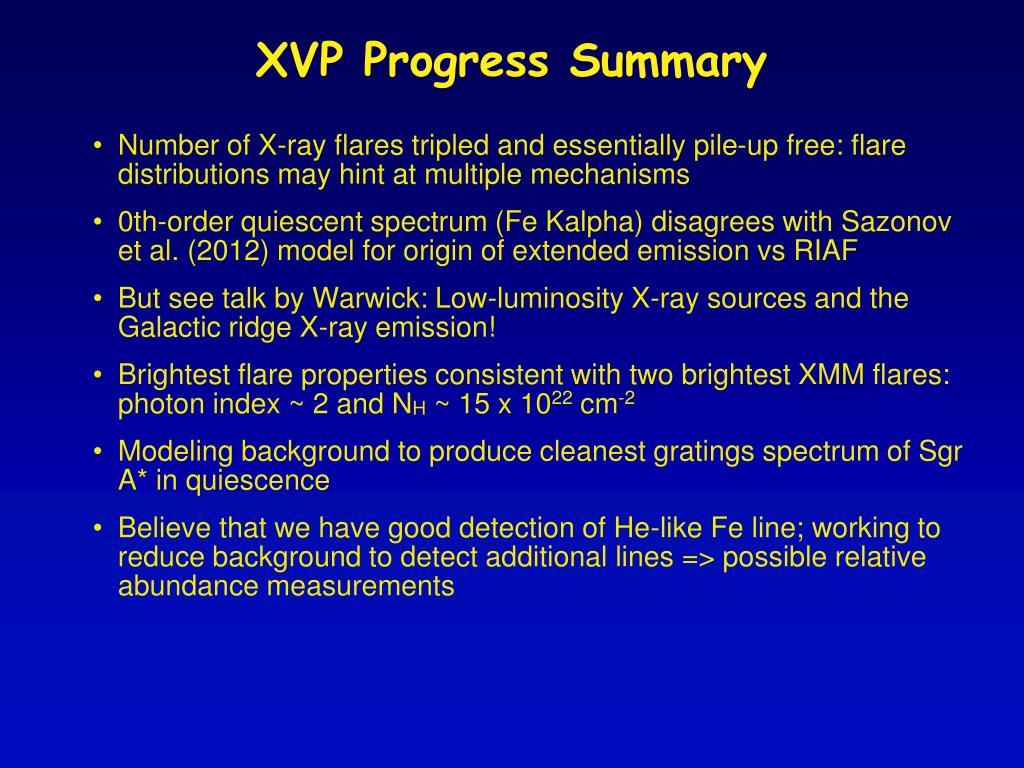

  35. XVP Progress Summary • Number of X-ray flares tripled and essentially pile-up free: flare distributions may hint at multiple mechanisms • 0th-order quiescent spectrum (Fe Kalpha) disagrees with Sazonov et al. (2012) model for origin of extended emission vs RIAF • But see talk by Warwick: Low-luminosity X-ray sources and the Galactic ridge X-ray emission! • Brightest flare properties consistent with two brightest XMM flares: photon index ~ 2 and NH ~ 15 x 1022 cm-2 • Modeling background to produce cleanest gratings spectrum of Sgr A* in quiescence • Believe that we have good detection of He-like Fe line; working to reduce background to detect additional lines => possible relative abundance measurements

  36. Is G2 a Gas Cloud on Its Way Towards the Supermassive Black Hole at the Galactic Centre?

  37. Gillessen+2012 • ~3 earth-mass gas cloud approaching Sagittarius A* on a nearly radial orbit • Pericenter ~3100 RS, ~0.03” or ~36 light hr at 2013.5 • Cloud has begun to disrupt over past 3 yr, probably due to tidal shearing • Dynamical evolution and radiation of cloud will probe properties of accretion flow and feeding processes of Sgr A* • keV emission of Sgr A* may brighten significantly at closest approach • Hydrodynamic simulation predicts increased feeding of Sgr A* in a few years

  38. Infalling Dusty Gas Cloud in Galactic Center • Cloud detected at M and L’, not Ks or H • Dusty cloud Td ~ 550 K • Proper motion ~42 mas/yr or 1670 km/s • Br g radial velocity ~1650 km/s • e ~ 0.94 bound orbit • Orbital period ~137 (11) yr • Panel d shows orbits of cloud and star S2

  39. Velocity Shear in Gas Cloud • Integrated Br g maps vs stellar PSF ~21 mas E-W • Position-velocity maps of Br g emission show head-tail structure; ~62 mas for head • Tail spread ~200 mas downstream of head • Velocity gradient ~2 km/s/mas • 89 (30) km/s in 2003 increased to 350 (40) km/s in 2011

  40. Cloud Properties • LIR ~ 5 Lsun; LBr g ~ 2 x 10-3 Lsun • Case B recombination: ne ~ 2.6 x 105 fv-½cm-3 • Specific angular momentum ~50x less than other clouds • Current density ~300fv-½x greater than surrounding hot accretion flow; decrease to ~60fv-½x at peribothron
