  1. iCafe Group I Renjith Deepesh Praveesh P Varun V Subramanian Halesh P K

  2. Introduction • Windows Application • Two Applications • Server • Client • Server • For Local User of Internet Café • Client • For Customers

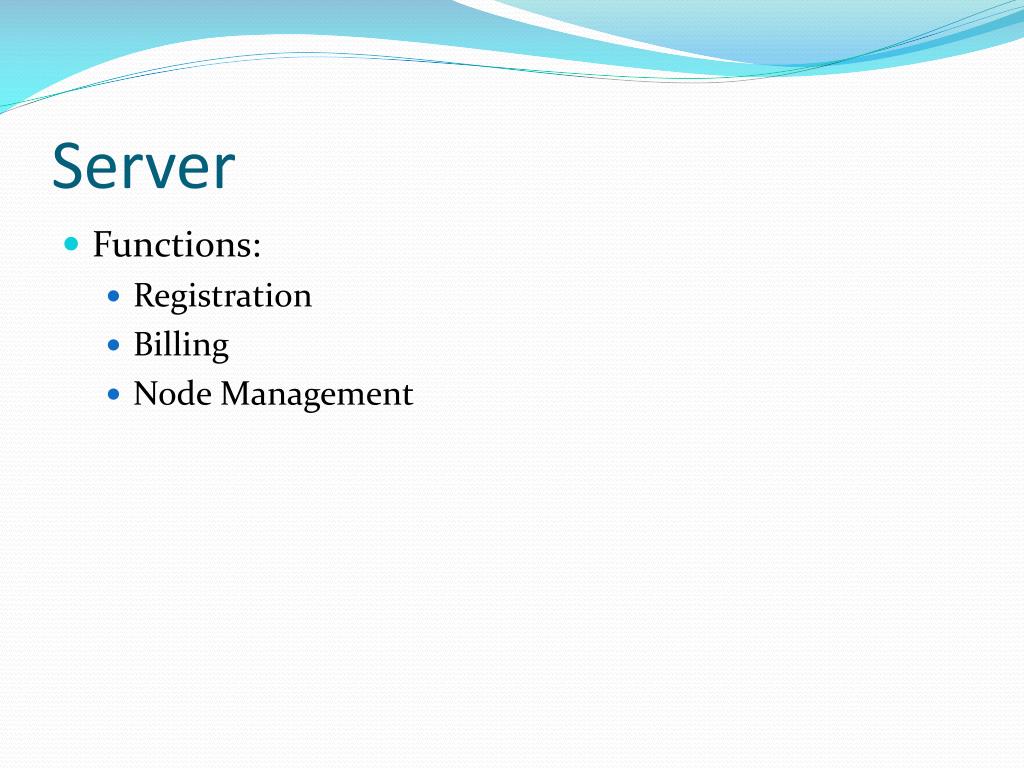

  3. Server • Functions: • Registration • Billing • Node Management

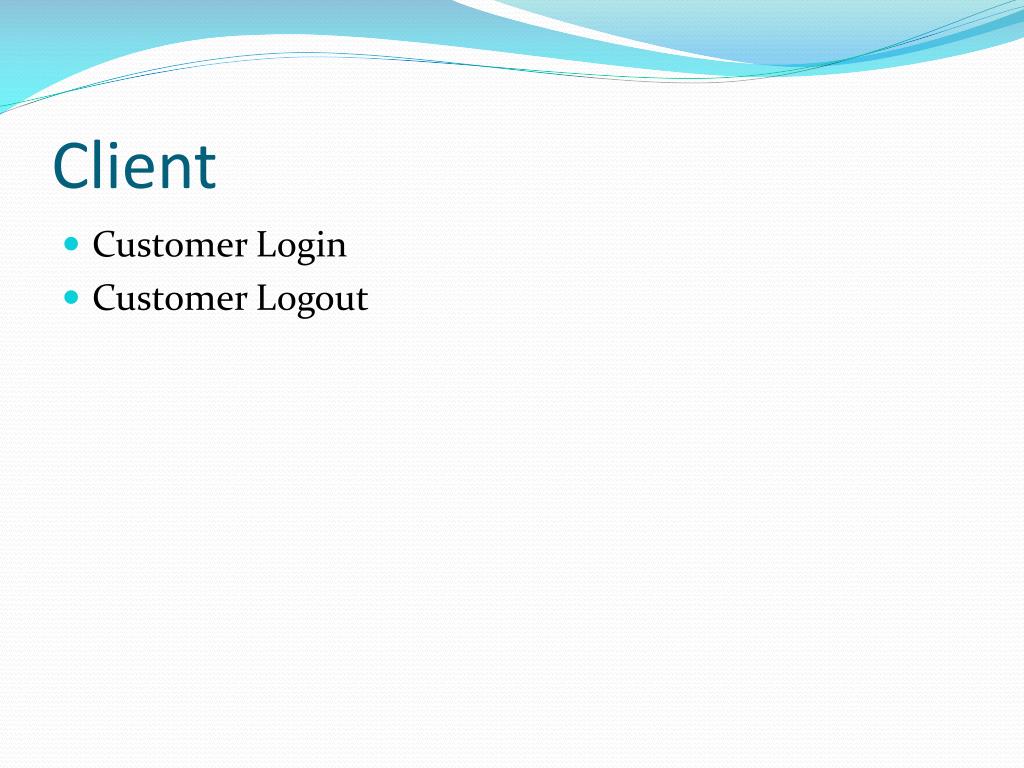

  4. Client • Customer Login • Customer Logout

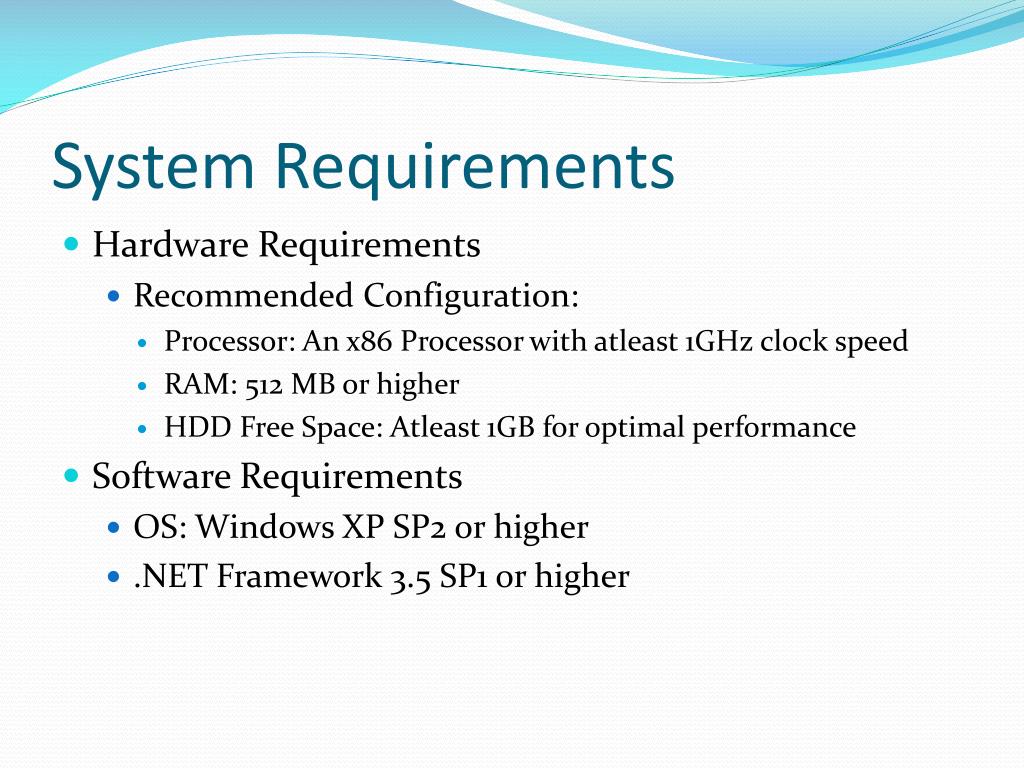

  5. System Requirements • Hardware Requirements • Recommended Configuration: • Processor: An x86 Processor with atleast 1GHz clock speed • RAM: 512 MB or higher • HDD Free Space: Atleast 1GB for optimal performance • Software Requirements • OS: Windows XP SP2 or higher • .NET Framework 3.5 SP1 or higher

  6. System Design • Data Flow Diagram (DFD) • Database Design • User Interface Design

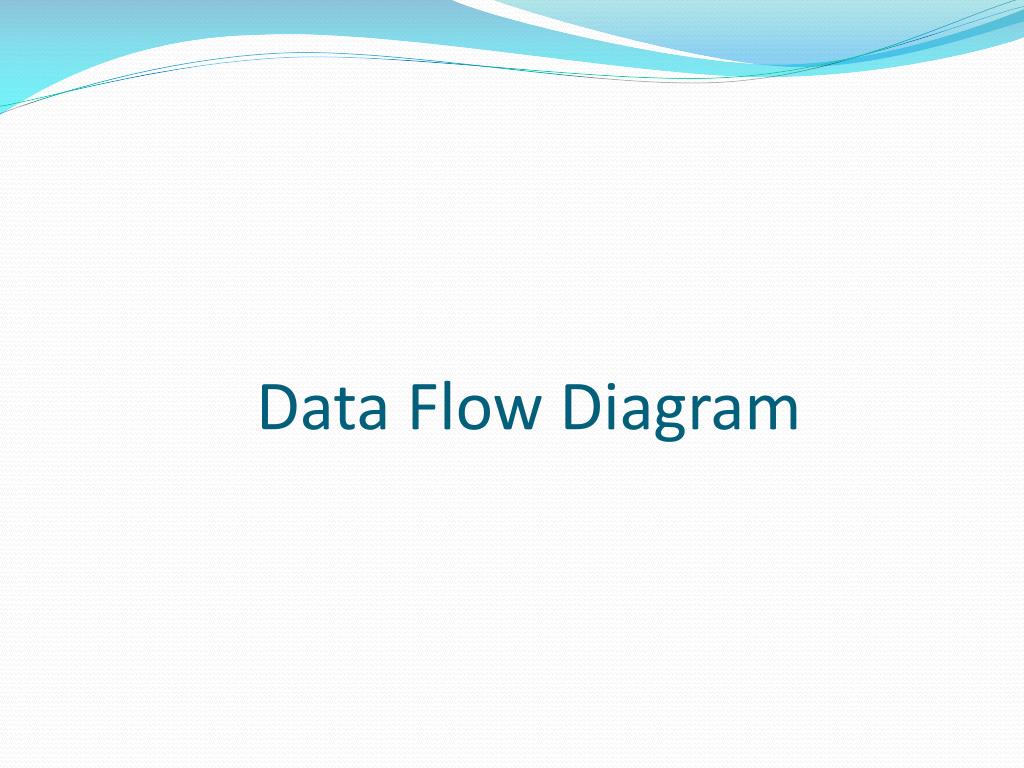

  7. Data Flow Diagram

  8. Server

  9. Client Side

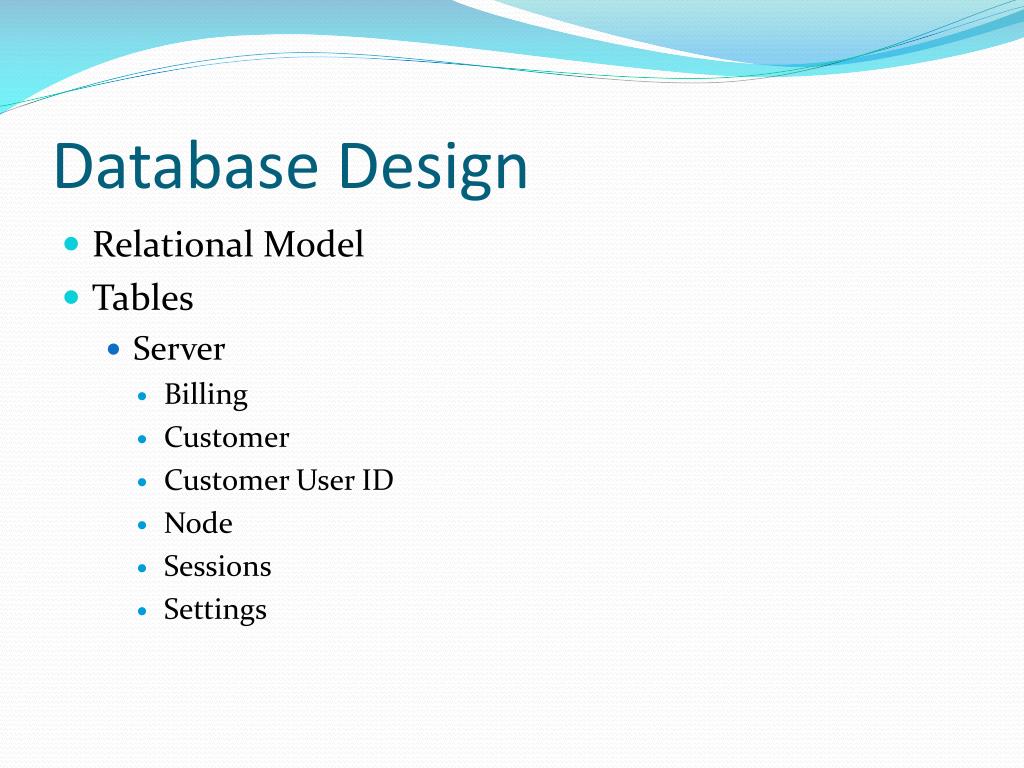

  10. Database Design • Relational Model • Tables • Server • Billing • Customer • Customer User ID • Node • Sessions • Settings

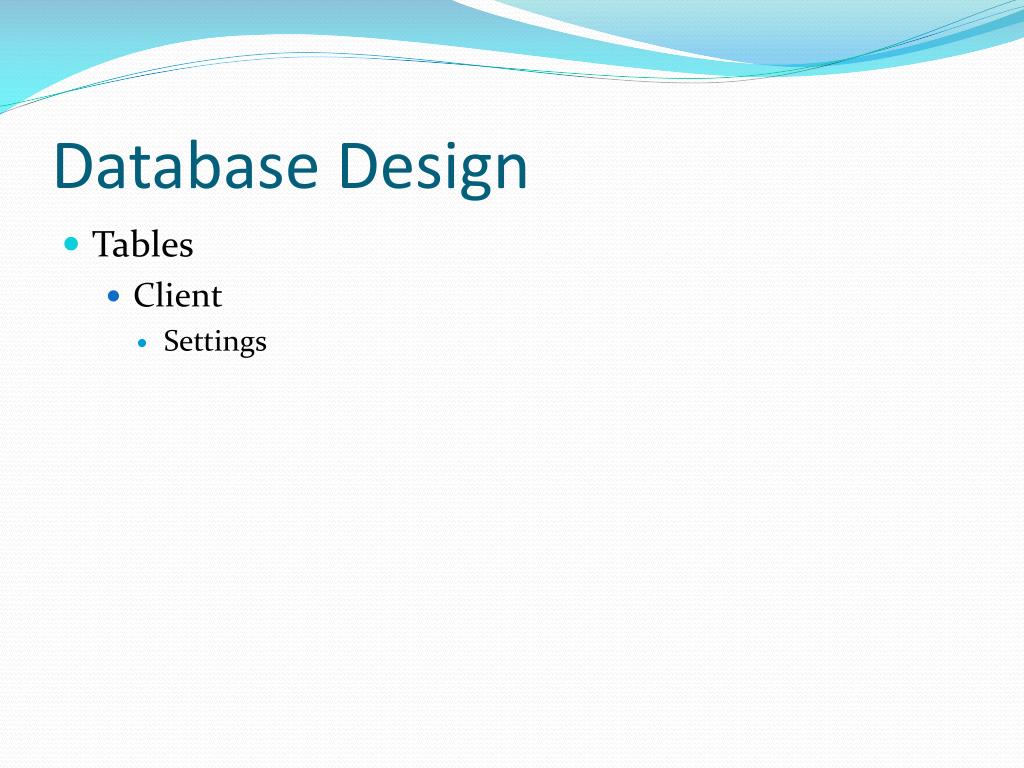

  11. Database Design • Tables • Client • Settings

  12. User Interface • User friendly • Web Style • WPF (Windows Presentation Foundation

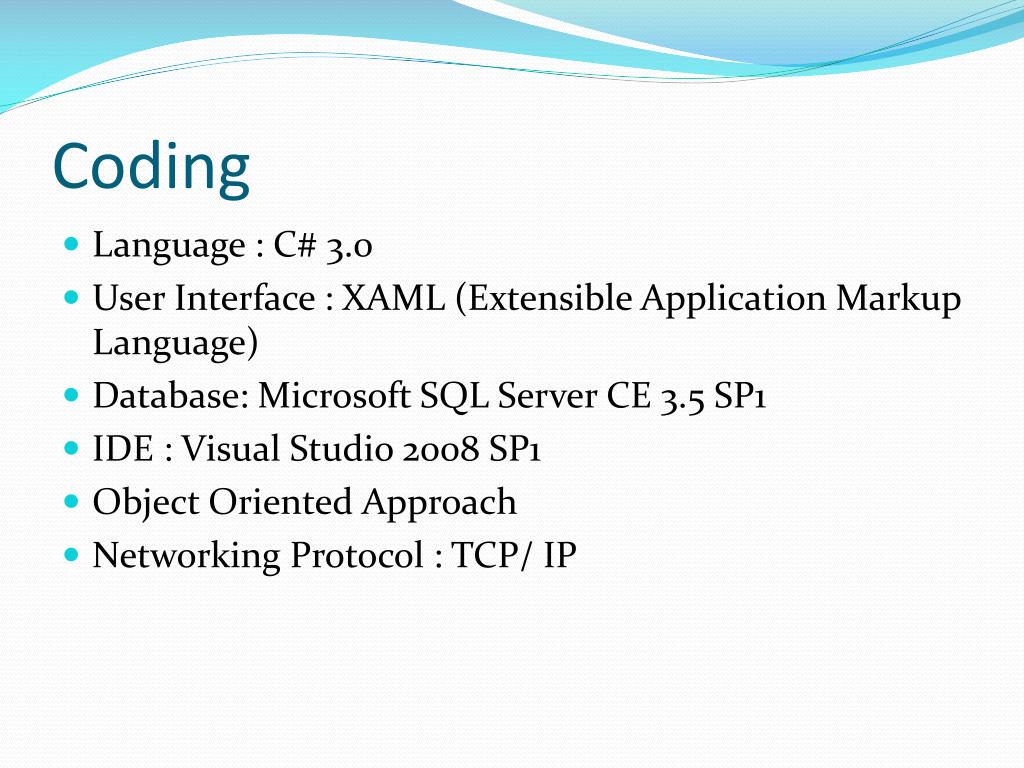

  13. Coding • Language : C# 3.0 • User Interface : XAML (Extensible Application Markup Language) • Database: Microsoft SQL Server CE 3.5 SP1 • IDE : Visual Studio 2008 SP1 • Object Oriented Approach • Networking Protocol : TCP/ IP

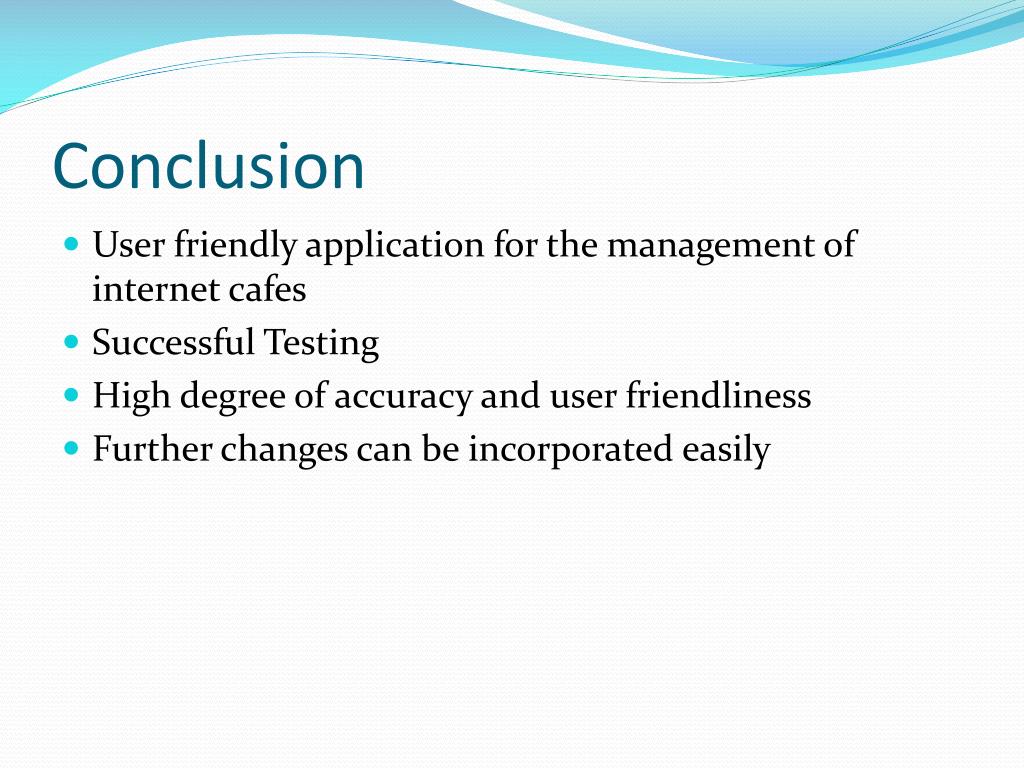

  14. Conclusion • User friendly application for the management of internet cafes • Successful Testing • High degree of accuracy and user friendliness • Further changes can be incorporated easily
