  1. SIMULASI EKOSISTEM AKUATIK Aquatic Ecosystem Simulation Modeling Don DeAngelisU.S. Geological Survey, Florida Integrated Science CentersMiami, Florida Interdisciplinary Modeling for Aquatic EcosystemsLake Tahoe, July 17-22, 2005 SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  2. Ecosystem Modeling and Hydrologic Modeling Like hydrologic modeling, ecosystem modeling is primarily a matter of keeping track of a balance of flows. However, it is important to recognize some basic differences in practice. Ecosystem modeling is not as far along in having easily used ‘off the shelf’ generic models (though some exist). SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  3. Ecosystem Modeling and Hydrologic Modeling Some problems relate to the uniqueness of individual ecosystems: Each ecosystem consists of its own suite of species populations, environmental conditions, spatial complexity, disturbance history, etc., that are unknown. In particular, the existence of thousands of poorly-understood species (with even less well known interactions) in an aquatic system always has the capacity to provide surprises. Others relate to problems of complexity Population interactions (predator-prey, competition, mutualism) are highly nonlinear (density dependent). We are not close to comprehending mathematically the complex dynamics that result from highly non-linear, multi-variable systems. Together these create difficulty for predictive ecosystem modeling. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

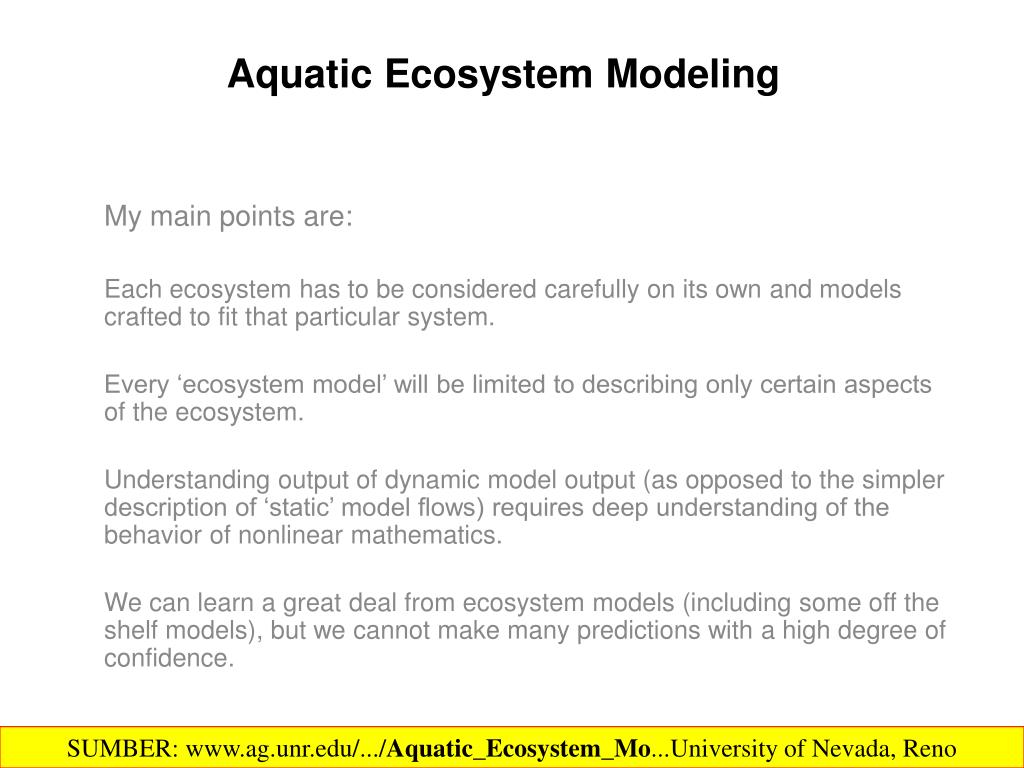

  4. Aquatic Ecosystem Modeling My main points are: Each ecosystem has to be considered carefully on its own and models crafted to fit that particular system. Every ‘ecosystem model’ will be limited to describing only certain aspects of the ecosystem. Understanding output of dynamic model output (as opposed to the simpler description of ‘static’ model flows) requires deep understanding of the behavior of nonlinear mathematics. We can learn a great deal from ecosystem models (including some off the shelf models), but we cannot make many predictions with a high degree of confidence. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

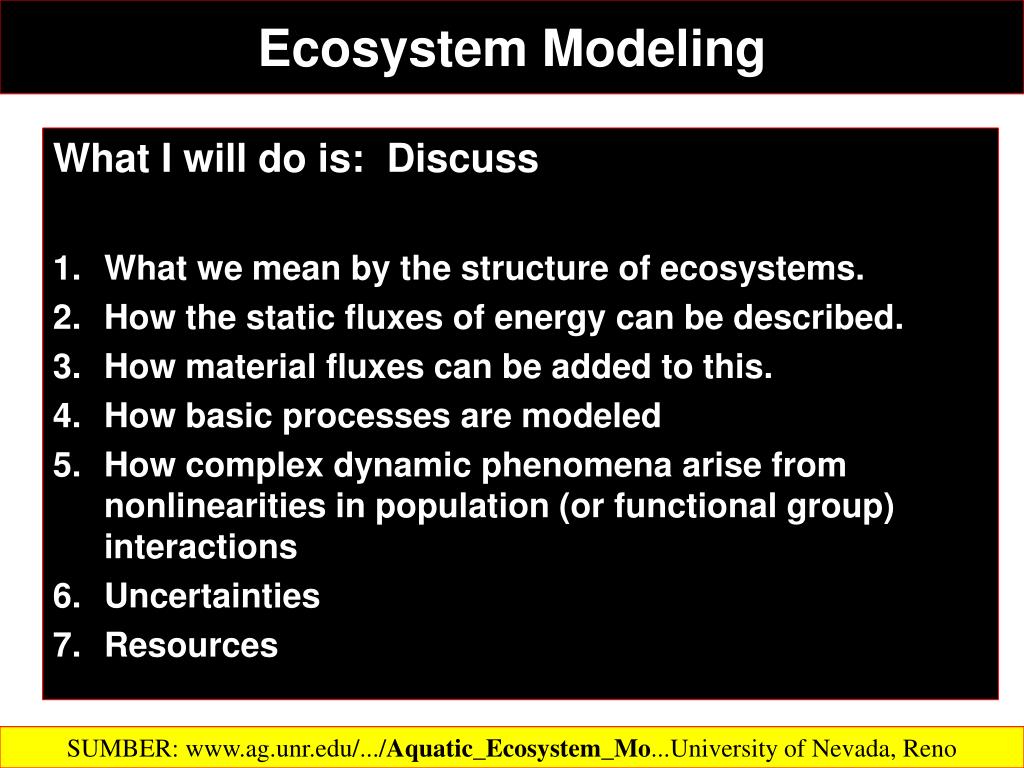

  5. Ecosystem Modeling What I will do is: Discuss What we mean by the structure of ecosystems. How the static fluxes of energy can be described. How material fluxes can be added to this. How basic processes are modeled How complex dynamic phenomena arise from nonlinearities in population (or functional group) interactions Uncertainties Resources SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  6. Energy Flows Nutrient Flows Atmosphere Storage Herbivores Carnivores Production Bacteria Available Nutrient Detritus DOM Biota Lithosphere Ecosystem Structure The overall generic conceptual model of an ecosystem SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

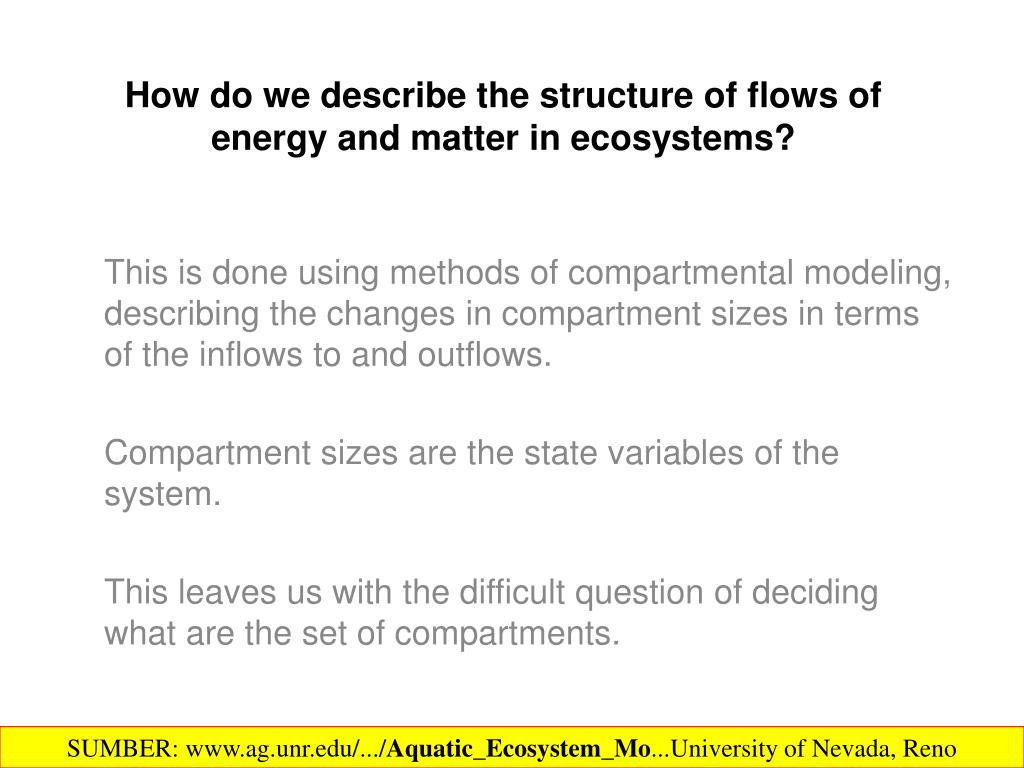

  7. How do we describe the structure of flows of energy and matter in ecosystems? This is done using methods of compartmental modeling, describing the changes in compartment sizes in terms of the inflows to and outflows. Compartment sizes are the state variables of the system. This leaves us with the difficult question of deciding what are the set of compartments. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

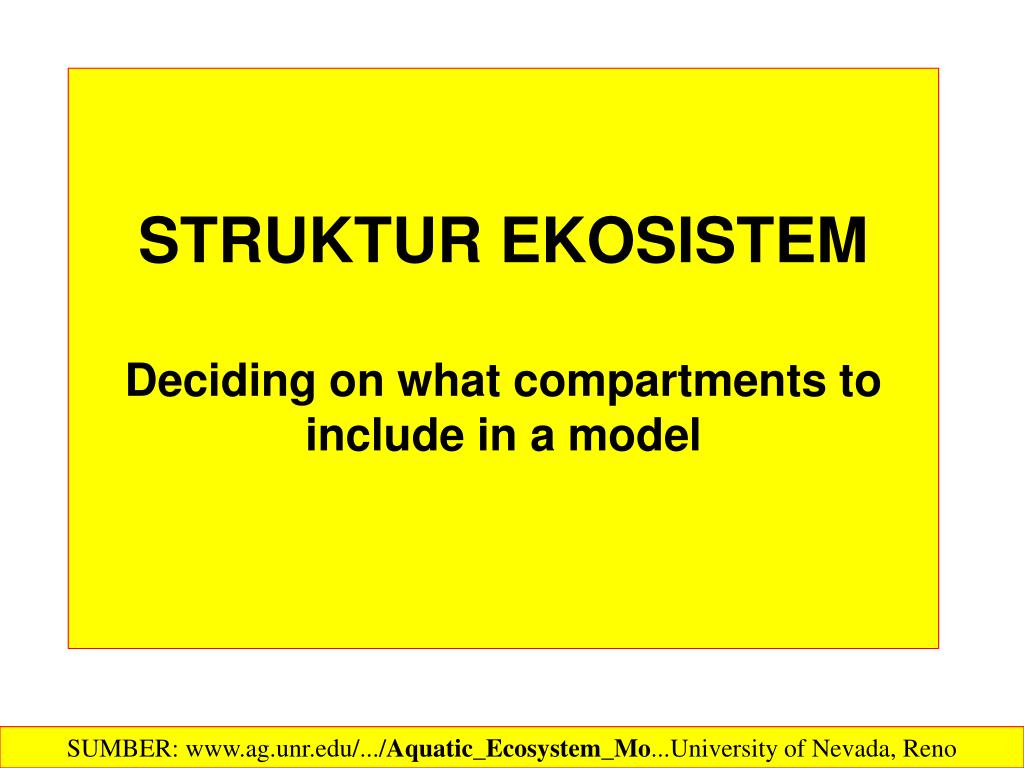

  8. STRUKTUR EKOSISTEMDeciding on what compartments to include in a model SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  9. This is perhaps the simplest conceptual model that we can imagine SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

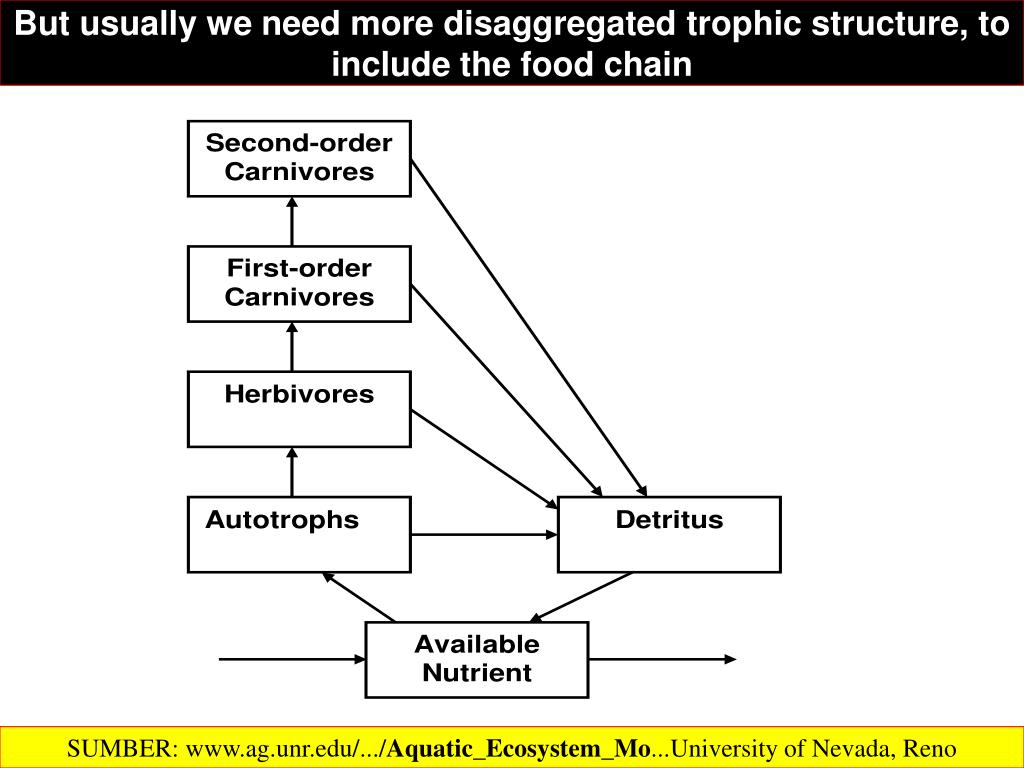

  10. But usually we need more disaggregated trophic structure, to include the food chain SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  11. A further conceptualization includes both ‘herbivore’ and ‘detrital’ food chains Another proposed representation would be to divide the ecosystem into separate herbivore and decomposer food chains, in view of the fact that these often are distinct, though they may share higher trophic levels. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  12. Piscivore Invertebrate Planktivore Vertebrate Planktivore Small Crustacean Zooplankton Large Crustacean Zooplankton Rotifer Nannoplankton Edible Net Phytoplankton Inedible Phytoplankton PO4, NH4 A more disaggregated aquatic system, which starts to have relevance to a specific class of ecosystem types (Carpenter and Kitchell 1986). Now we have a ‘food web’. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  13. A model for a specific aquatic ecosystem (stream) from Meyer and Poepperl (CJFAS 2005) SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  14. Ecosystems Structure Unfortunately, very few ecosystem models have been developed for ecosystems with this high a degree of resolution, and they each represent collective research done over decades. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  15. Ecosystem Bioenergetics Describing the static energy flows SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  16. How do we determine the fluxes of energy through an ecosystem? We start with the bioenergetics model of a single population (or functional group). (BA means biomass accumulation.) SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  17. How do we determine the static flows of energy through the ecosystem? Now we must also keep track of the gains and losses of each of these trophic levels. We can write an equation for the rate of change in each trophic level; d(Biomassn)/dt = Instantaneous gross production (or assimilation of biomass consumed from lower trophic level) - Losses (to respiration, natural mortality, predation) = Gross Production - Respiration - Natural Mortality – Predation Mortality = GP - R - NM - PM 'Biomass' and 'energy' or ‘carbon’ are often used interchangeably, since biomass of organisms (e.g., in grams) can be converted to energy (e.g., in calories) by a simple conversion. (Integration over time gives us biomass changes, BA, shown in preceding slide) SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  18. How do we determine the static flows of energy through the ecosystem? Raymond Lindeman (1941) applied this approach to aquatic ecosystems; Cedar Bog Lake and Lake Mendota. Problem: It is really difficult to estimate most of the fluxes of the the individual functional groups. The genius of Raymond Lindeman was to make useful simplifications. First, he used a simple trophic level conceptualization of the aquatic ecosystem; I.e., aggregation of autotrophs, herbivores, primary and secondarycarnivores. Second, he ignored natural mortality and assumed that all mortality was due to predation, also that the highest trophic level suffered no predation. Third, he assumed a steady state (no net biomass accumulation in any trophic level through time) on a time scale from year to year. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  19. Lindeman’s conceptualization of compartments of an ecosystem as being a series of trophic levels SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

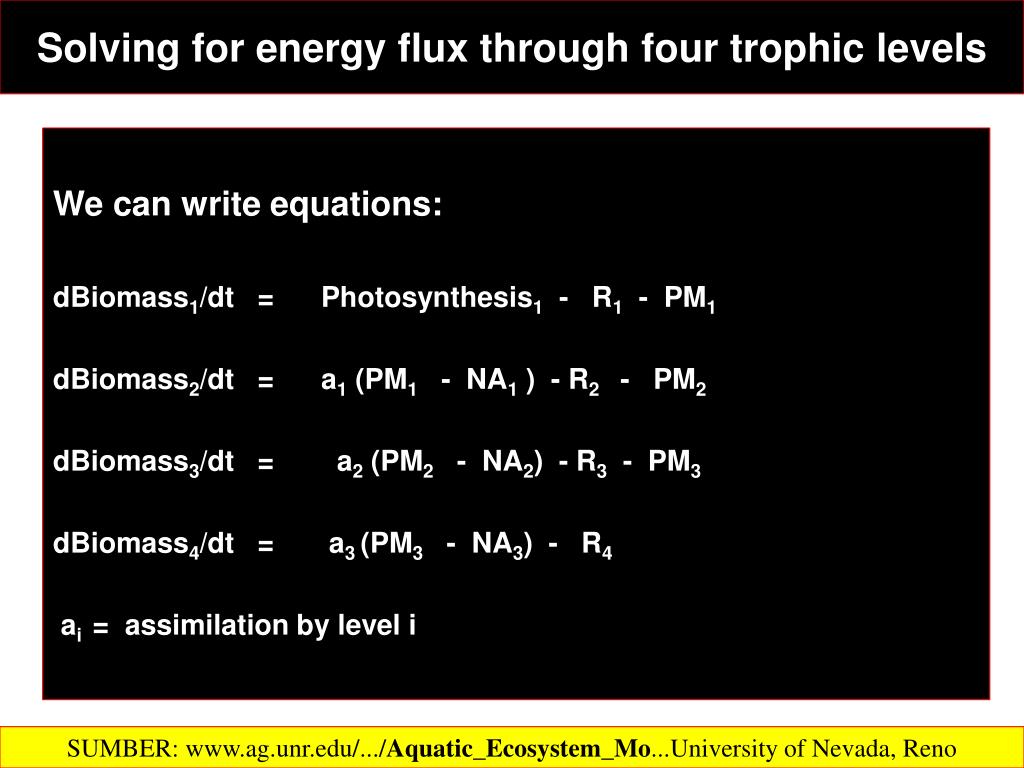

  20. Solving for energy flux through four trophic levels We can write equations: dBiomass1/dt = Photosynthesis1 - R1 - PM1 dBiomass2/dt = a1 (PM1 - NA1 ) - R2 - PM2 dBiomass3/dt = a2 (PM2 - NA2) - R3 - PM3 dBiomass4/dt = a3 (PM3 - NA3) - R4 ai= assimilation by level i SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

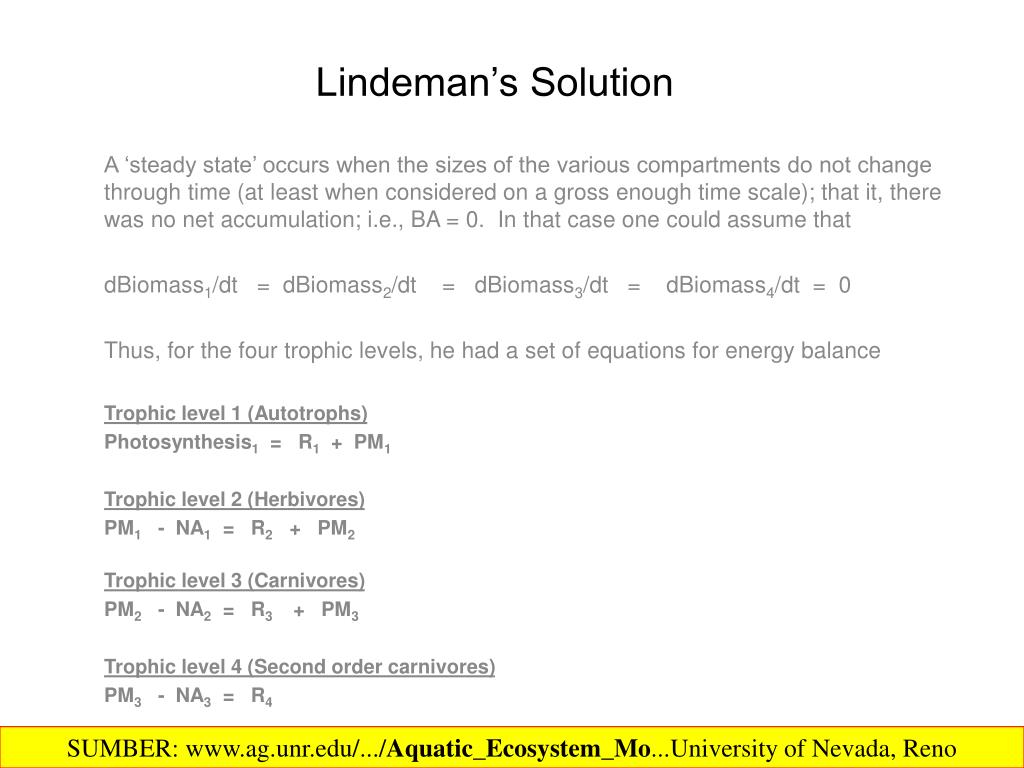

  21. Lindeman’s Solution A ‘steady state’ occurs when the sizes of the various compartments do not change through time (at least when considered on a gross enough time scale); that it, there was no net accumulation; i.e., BA = 0. In that case one could assume that dBiomass1/dt = dBiomass2/dt = dBiomass3/dt = dBiomass4/dt = 0 Thus, for the four trophic levels, he had a set of equations for energy balance Trophic level 1 (Autotrophs) Photosynthesis1 = R1 + PM1 Trophic level 2 (Herbivores) PM1 - NA1 = R2 + PM2 Trophic level 3 (Carnivores) PM2 - NA2 = R3 + PM3 Trophic level 4 (Second order carnivores) PM3 - NA3 = R4 SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  22. Lindeman’s Solution Lindeman was able to obtain estimates of the fraction of consumed energy that is lost to egestion, NA, and the fraction of assimilated energy that is respired, R. That enabled him to determine the unknowns, PMi ‘s and Photosynthesis1 PM3 = NA3 + R4 PM2 = NA2 + R3 + PM3 PM1 = NA1 + R2 + PM2 Photosynthesis1 = R1 + PM1 SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

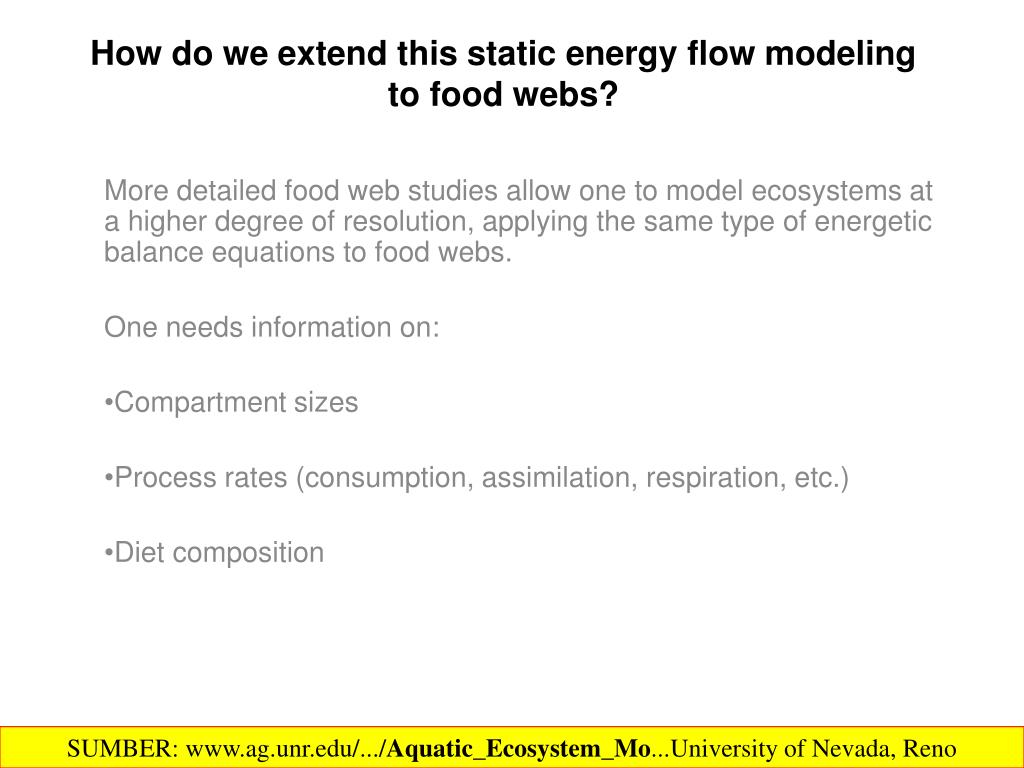

  23. How do we extend this static energy flow modeling to food webs? More detailed food web studies allow one to model ecosystems at a higher degree of resolution, applying the same type of energetic balance equations to food webs. One needs information on: Compartment sizes Process rates (consumption, assimilation, respiration, etc.) Diet composition SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

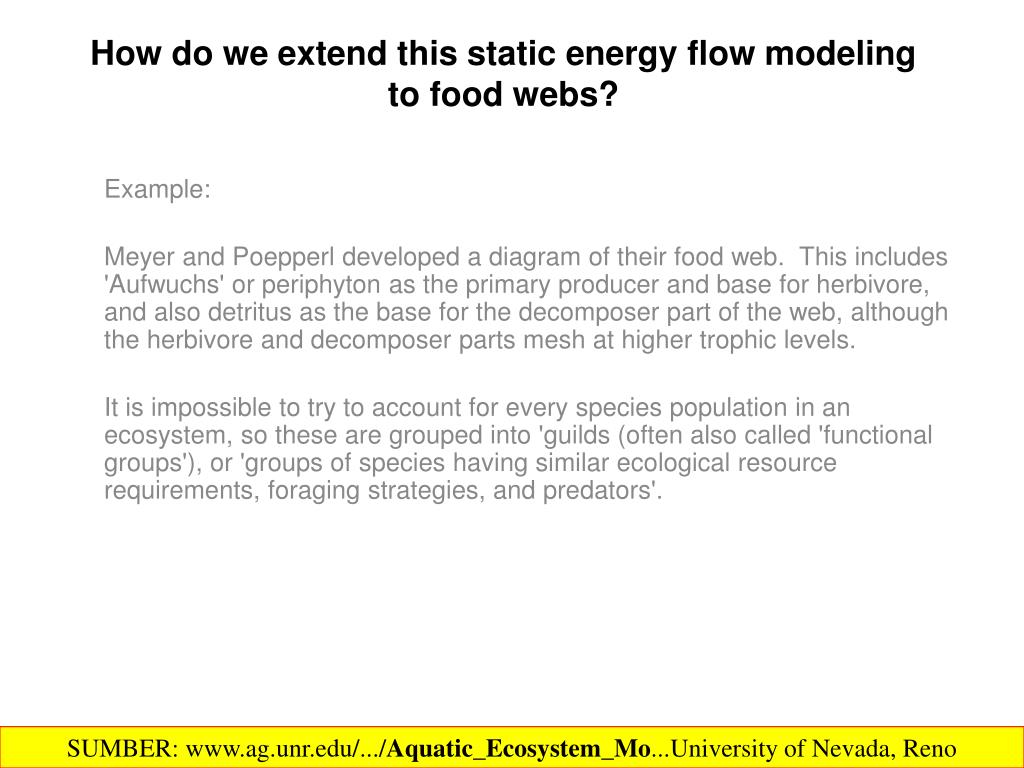

  24. How do we extend this static energy flow modeling to food webs? Example: Meyer and Poepperl developed a diagram of their food web. This includes 'Aufwuchs' or periphyton as the primary producer and base for herbivore, and also detritus as the base for the decomposer part of the web, although the herbivore and decomposer parts mesh at higher trophic levels. It is impossible to try to account for every species population in an ecosystem, so these are grouped into 'guilds (often also called 'functional groups'), or 'groups of species having similar ecological resource requirements, foraging strategies, and predators'. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  25. A model for a specific aquatic ecosystem (stream) from Meyer and Poepperl (CJFAS 2005) SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

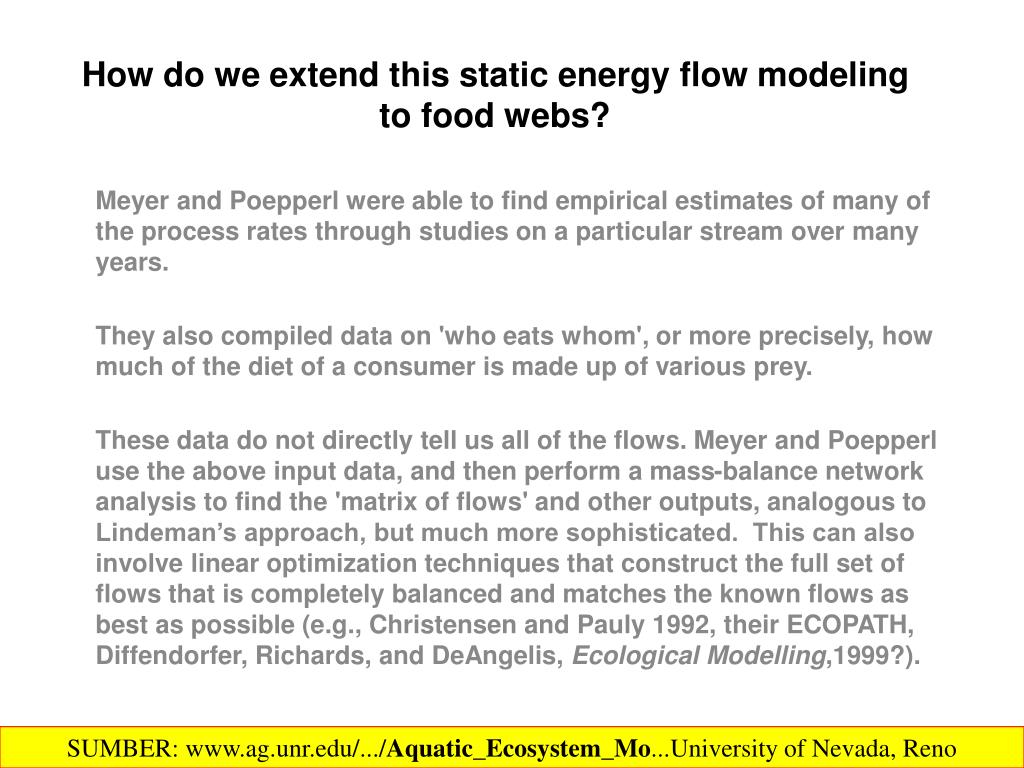

  26. How do we extend this static energy flow modeling to food webs? Meyer and Poepperl were able to find empirical estimates of many of the process rates through studies on a particular stream over many years. They also compiled data on 'who eats whom', or more precisely, how much of the diet of a consumer is made up of various prey. These data do not directly tell us all of the flows. Meyer and Poepperl use the above input data, and then perform a mass-balance network analysis to find the 'matrix of flows' and other outputs, analogous to Lindeman’s approach, but much more sophisticated. This can also involve linear optimization techniques that construct the full set of flows that is completely balanced and matches the known flows as best as possible (e.g., Christensen and Pauly 1992, their ECOPATH, Diffendorfer, Richards, and DeAngelis, Ecological Modelling,1999?). SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  27. Ecosystem Material Fluxes Describing the static nutrient flows SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  28. Now we must explicitly take into account a pool or pools of nutrient, perhaps in different states SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  29. How do we extend such static models t mass (nutrients) flow? Stoichiometry Integrating nutrient cycling into models also requires inclusion of concepts of stoichiometry. Organisms tend to require internal concentrations of nutrients in particular ratios. For example, the ratios of C to N to P tend to be around 106:16:1 in algae (Redfield ratio). But different species tend to have different ratios. Consider predator-prey interaction in which we are taking into account nutrients; nitrogen (N) and phosphorus (P), in which the predator and prey have different N:P ratios. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

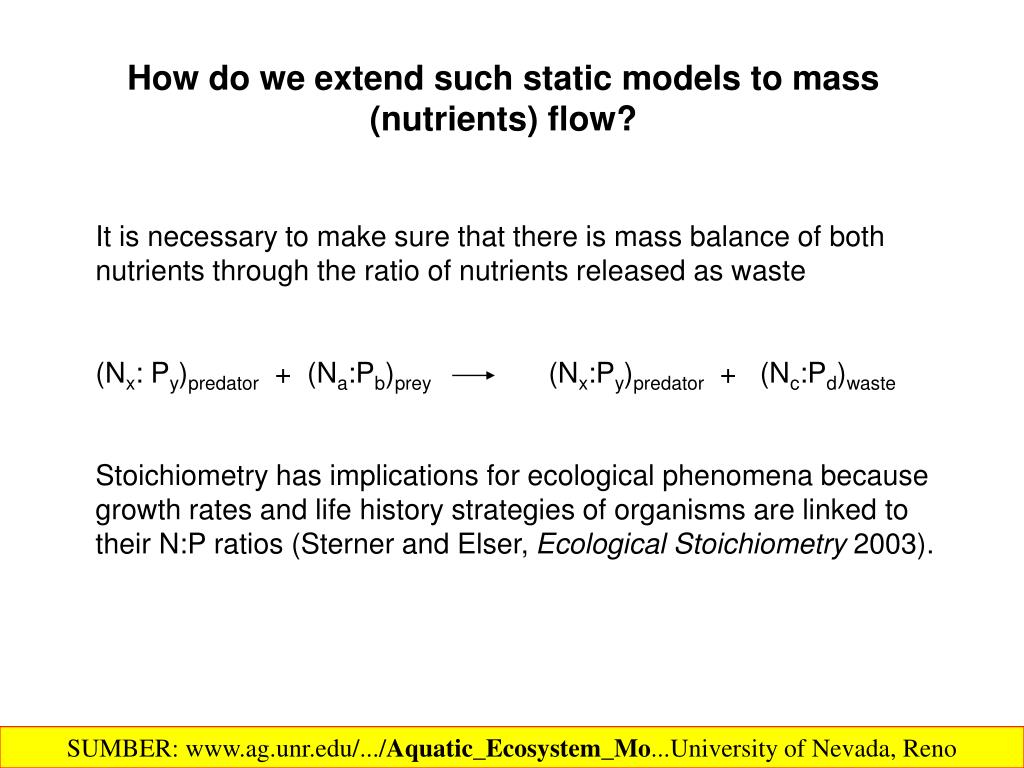

  30. How do we extend such static models to mass (nutrients) flow? It is necessary to make sure that there is mass balance of both nutrients through the ratio of nutrients released as waste (Nx: Py)predator + (Na:Pb)prey (Nx:Py)predator + (Nc:Pd)waste Stoichiometry has implications for ecological phenomena because growth rates and life history strategies of organisms are linked to their N:P ratios (Sterner and Elser, Ecological Stoichiometry 2003). SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  31. Ecosystem Processes Describing the processes that drive flows SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  32. What are the ecosystem processes that drive fluxes of matter and energy? Fluxes of energy and nutrients through ecosystems depend on processes of energy and material conversion. The flows of energy and nutrients in ecosystems are governed by processes; primarily photosynthesis, respiration, consumption (herbivory and carnivory), and decomposition. (But there are actually many more, including spatial movement, that must often be taken into account.) These are all complex and depend on densities of organisms, their physiology and behaviors, and environmental factors.. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

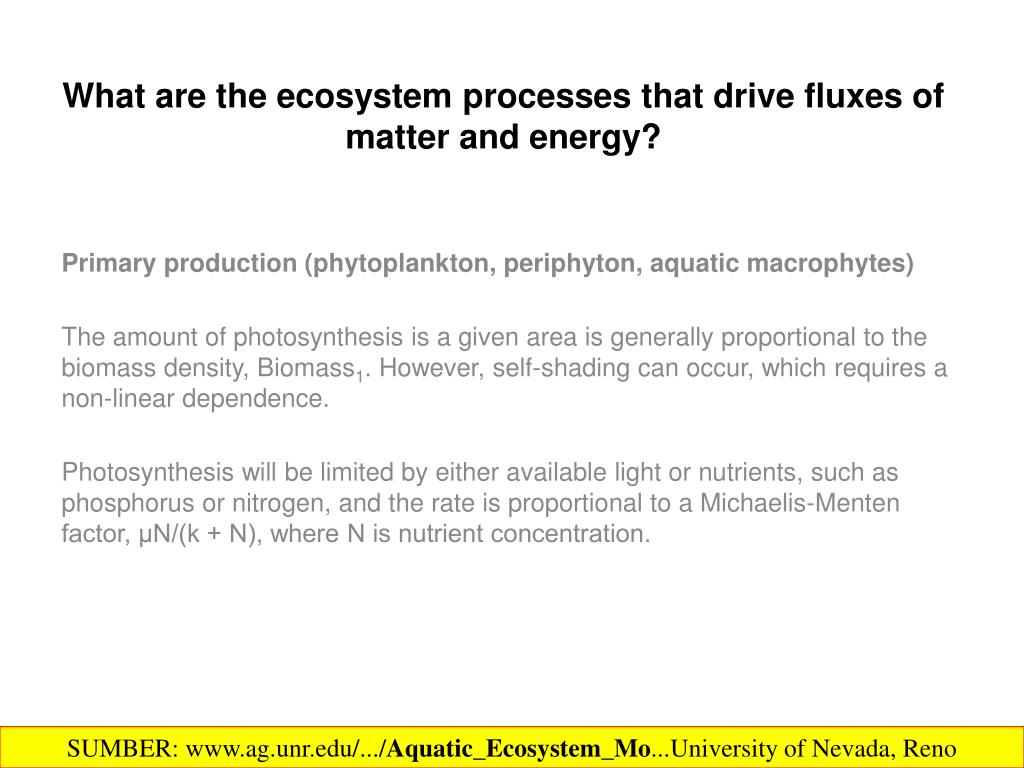

  33. What are the ecosystem processes that drive fluxes of matter and energy? Primary production (phytoplankton, periphyton, aquatic macrophytes) The amount of photosynthesis is a given area is generally proportional to the biomass density, Biomass1. However, self-shading can occur, which requires a non-linear dependence. Photosynthesis will be limited by either available light or nutrients, such as phosphorus or nitrogen, and the rate is proportional to a Michaelis-Menten factor, μN/(k + N), where N is nutrient concentration. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

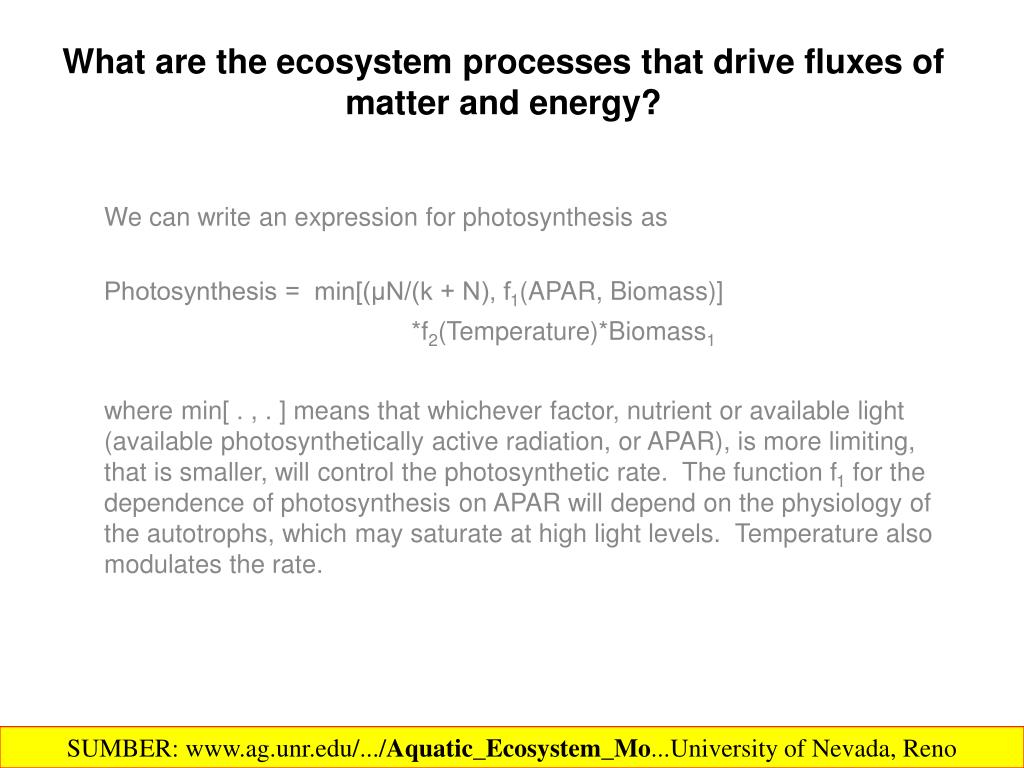

  34. What are the ecosystem processes that drive fluxes of matter and energy? We can write an expression for photosynthesis as Photosynthesis = min[(μN/(k + N), f1(APAR, Biomass)] *f2(Temperature)*Biomass1 where min[ . , . ] means that whichever factor, nutrient or available light (available photosynthetically active radiation, or APAR), is more limiting, that is smaller, will control the photosynthetic rate. The function f1 for the dependence of photosynthesis on APAR will depend on the physiology of the autotrophs, which may saturate at high light levels. Temperature also modulates the rate. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  35. What are the ecosystem processes that drive fluxes of matter and energy? Heterotrophy and the functional response: The rate of consumption of prey biomass by the consumer is usually modeled a linear function of consumer biomass (Biomassn) and a saturating function of prey biomass (Biomassn-1); Consumption = a Biomassn-1 Biomassn /(1 + h Biomassn-1) where a and h are constant parameters. The factor in the above equation multiplying Biomassn on the right hand side is called the functional response. So the loss of biomass from a prey compartment will increase linearly with consumer biomass, but not with prey biomass. High levels of prey biomass (1 < h Biomassn-1 ), will saturate the consumer’s ability to consume it. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

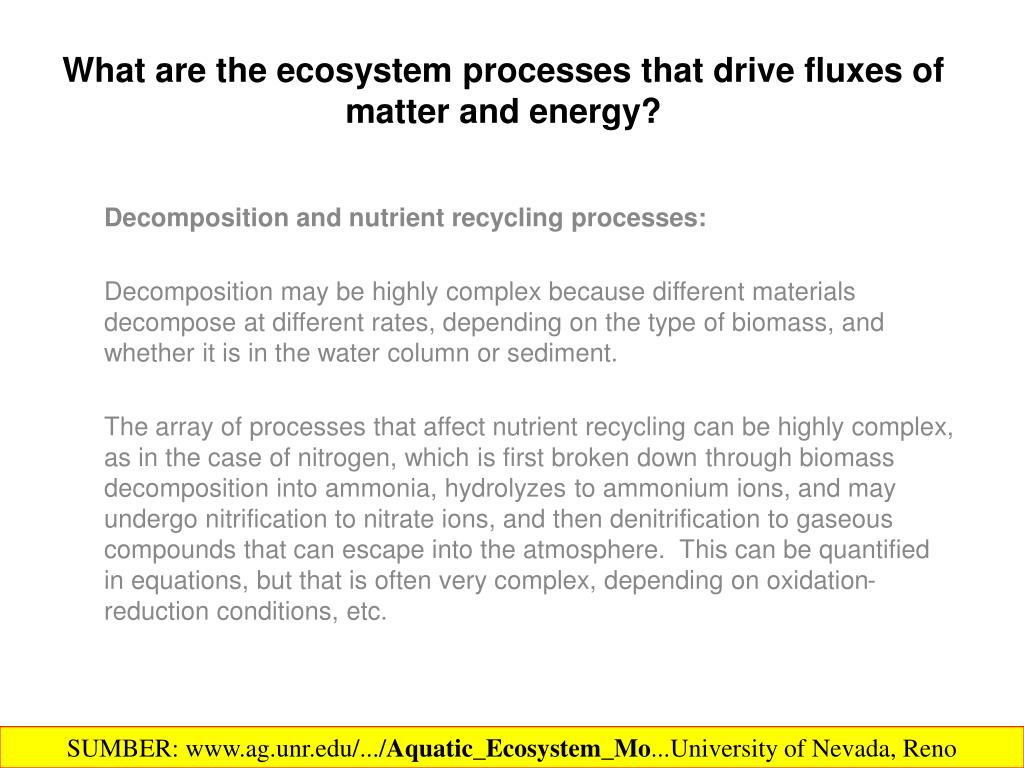

  36. What are the ecosystem processes that drive fluxes of matter and energy? Decomposition and nutrient recycling processes: Decomposition may be highly complex because different materials decompose at different rates, depending on the type of biomass, and whether it is in the water column or sediment. The array of processes that affect nutrient recycling can be highly complex, as in the case of nitrogen, which is first broken down through biomass decomposition into ammonia, hydrolyzes to ammonium ions, and may undergo nitrification to nitrate ions, and then denitrification to gaseous compounds that can escape into the atmosphere. This can be quantified in equations, but that is often very complex, depending on oxidation-reduction conditions, etc. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

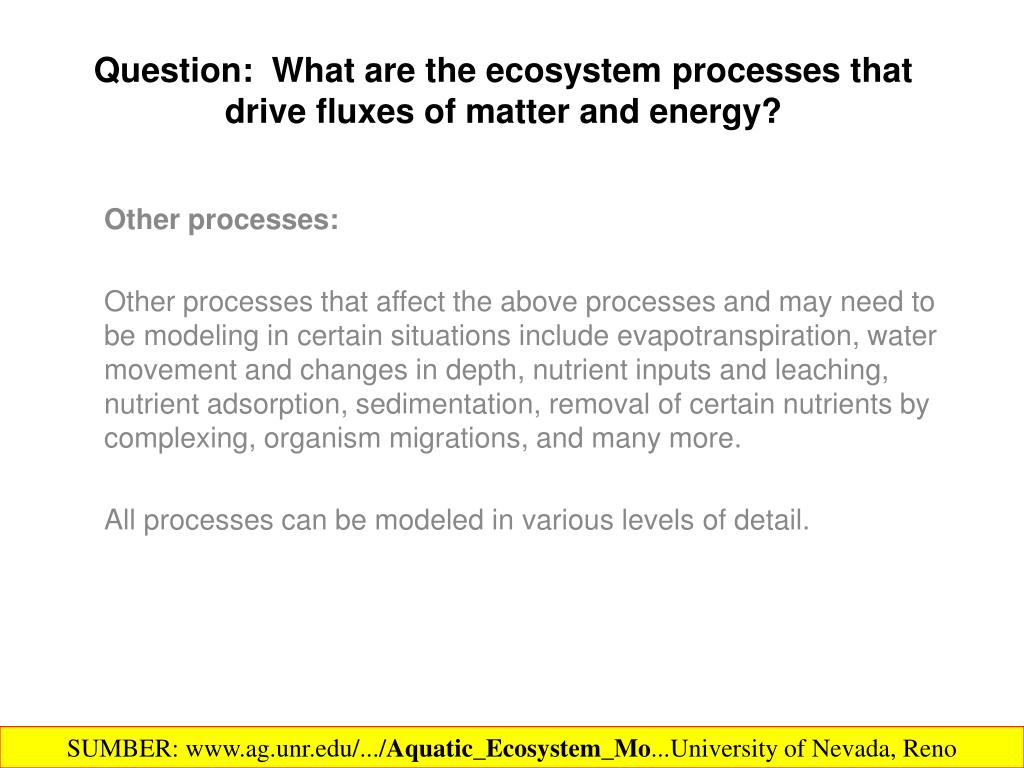

  37. Question: What are the ecosystem processes that drive fluxes of matter and energy? Other processes: Other processes that affect the above processes and may need to be modeling in certain situations include evapotranspiration, water movement and changes in depth, nutrient inputs and leaching, nutrient adsorption, sedimentation, removal of certain nutrients by complexing, organism migrations, and many more. All processes can be modeled in various levels of detail. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

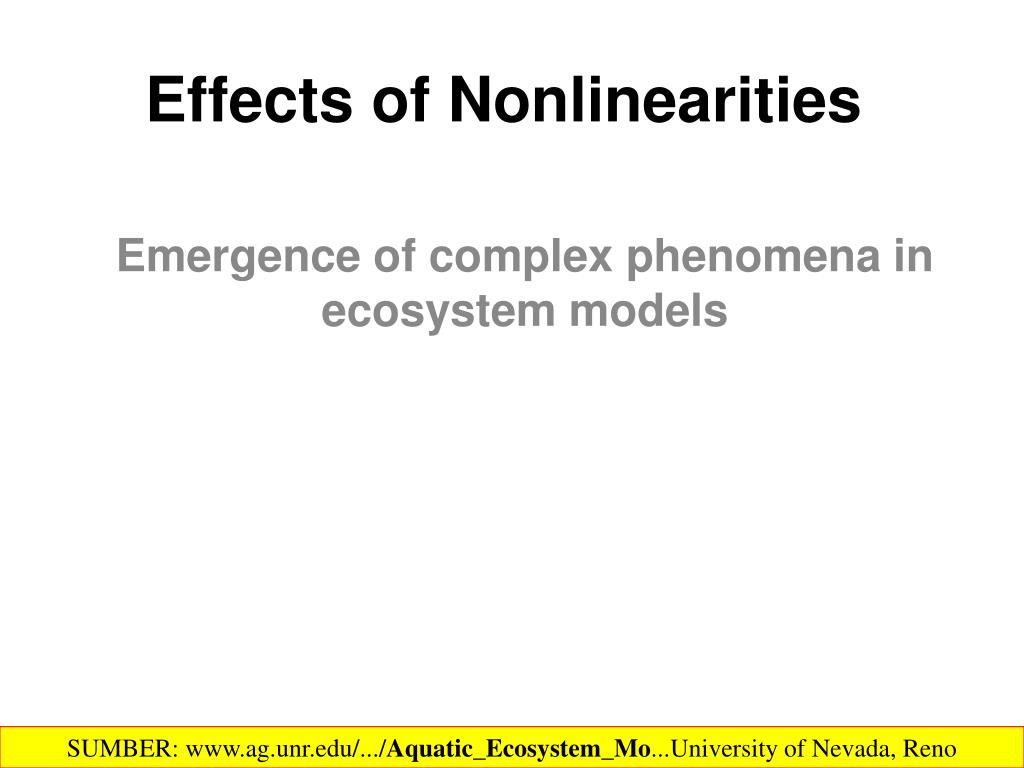

  38. Effects of Nonlinearities Emergence of complex phenomena in ecosystem models SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

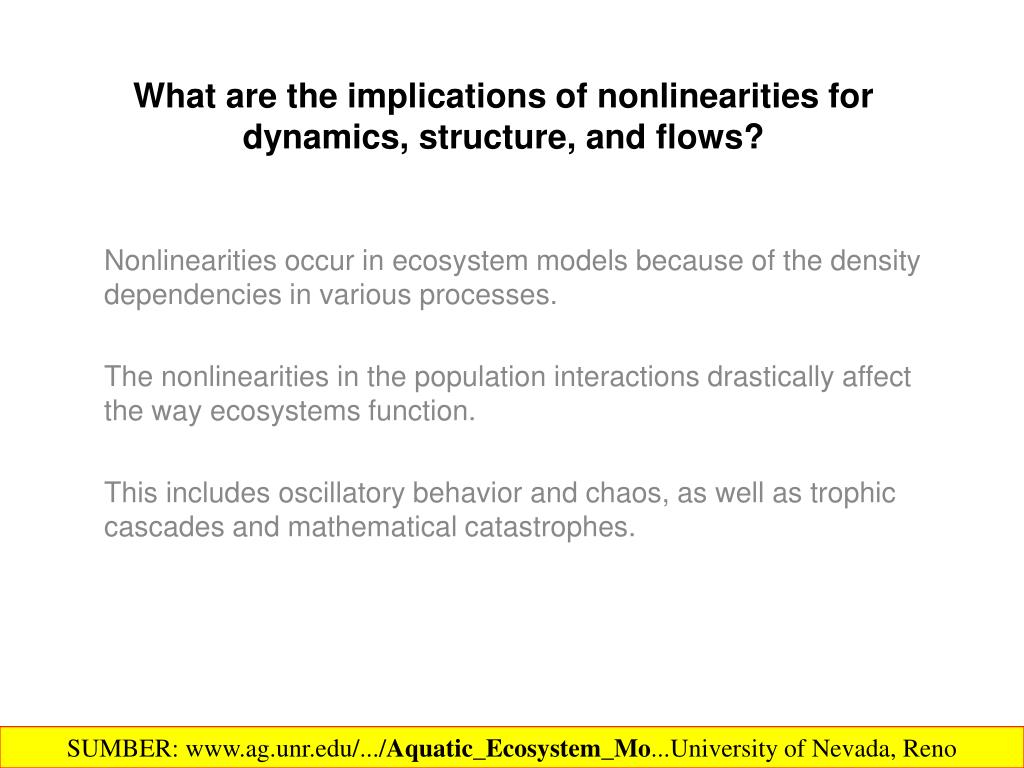

  39. What are the implications of nonlinearities for dynamics, structure, and flows? Nonlinearities occur in ecosystem models because of the density dependencies in various processes. The nonlinearities in the population interactions drastically affect the way ecosystems function. This includes oscillatory behavior and chaos, as well as trophic cascades and mathematical catastrophes. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  40. Trophic Cascades The earlier point of view was that the direction of effects in food chains was solely from bottom to top. However, the nonlinear nature of interactions between trophic levels leads to a more complex situation. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  41. Because of the nonlinear interactions, trophic cascades propagate down food chains starting from the highest carnivores, the piscivores. An increase in piscivore biomass causes a decrease in planktivore biomass, increasing herbivore biomass (as well as allowing the herbivore community to shift towards larger zooplankters), decreasing phytoplankton biomass. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  42. These trophic cascades occur in nature. The ability of predatory fish to control prey populations is well-documented. This can cause suppression of the forage species, which affects species composition and size structure of the zooplankton community, and in turn influence the phytoplankton community (Carpenter and others). SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  43. Mathematical catastrophes in ecosystems Top-down effects can also lead to what are known as mathematical "catastrophes" in ecological systems. Such “catastrophes” are sudden changes that can occur in an ecosystem as the result of slow, gradual changes in an environmental parameter. These catastrophes involve shifts in which there is a change from one state of an ecosystem to another, usually with a change in dominance of the species community. These are of interest mathematically as well as ecologically, because they involve certain types of nonlinearities. (see especially, papers and book by Marten Scheffer.) SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  44. Consider a shallow lake that is relatively clear and has a lot of aquatic macrophytes on the bottom. Suppose there is a slow buildup of nutrients in the lake. For many years there is no discernible change in the lake’s biotic community. But suddenly, one summer, there is a big phytoplankton bloom. The bloom is there next year too, and soon the aquatic macrophytes die off. To make matters worse, once the shallow lake has "tipped" from a clear, "macrophyte-dominated" lake to a turbid "algal-dominated" lake, it is not easy to change it back. Even if you are able to drastically reduce the nutrient input, the lake may not change back to its former clear self. The above scenario has occurred very often in lakes. Theoretical ecologists have examined this phenomenon in terms of "mathematical catastrophe" theory, which is describes how a system may undergo major changes due to small changes in some environmental parameter. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  45. The reason that such a dramatic change in the ecosystem can occur is that there are "self-reinforcing" processes occurring within a lake system (or any other ecosystem) that tend to maintain it in a stable state. But if you push the system too far, those self-reinforcing processes break down and turn against the original system. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  46. Uncertainties Error propagation in complex ecosystem models SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  47. Yodzis’s Result Peter Yodzis (Ecology 1988) studied the propagation of uncertainty in large nonlinear food web models (> 12 or so species or functional groups). He found that even if parameter values are known to within 15% or so, the propagation of uncertainty is such that, for a particular choice of parameters within the range of uncertainty, a perturbation in one functional group is equally likely to affect another given functional group positively or negatively. . SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

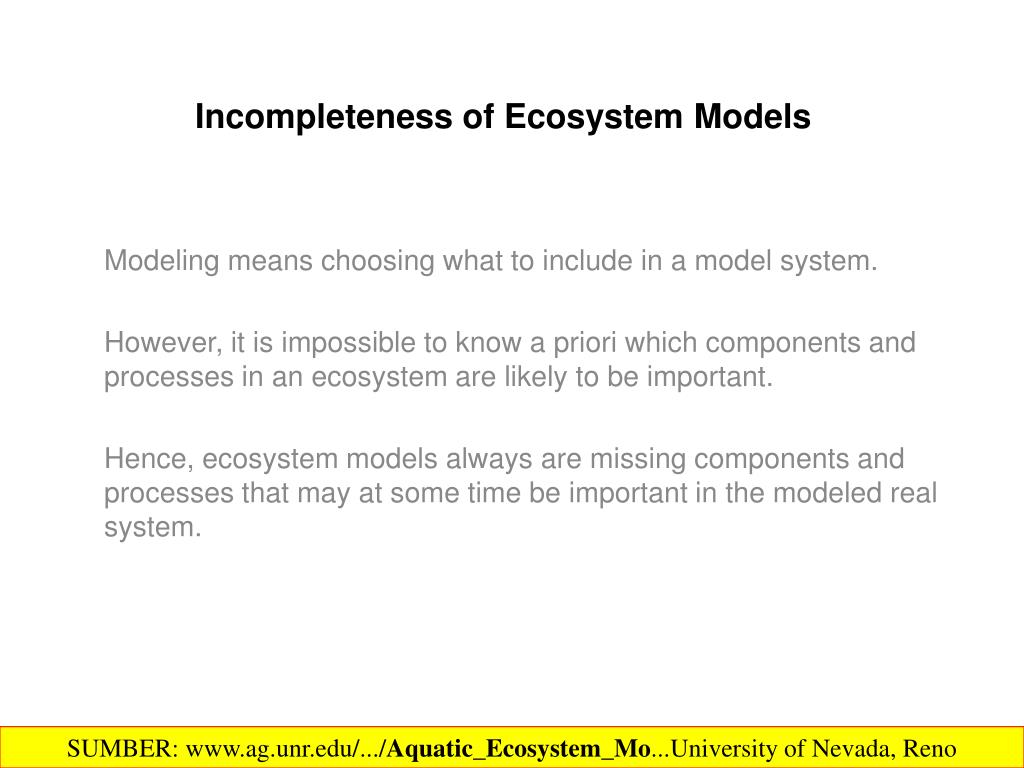

  48. Incompleteness of Ecosystem Models Modeling means choosing what to include in a model system. However, it is impossible to know a priori which components and processes in an ecosystem are likely to be important. Hence, ecosystem models always are missing components and processes that may at some time be important in the modeled real system. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  49. Lack of Analytic Understanding Mathematical ecology has not supplied an understanding of the behavior of complex ecological systems; that is, nonlinear systems with more than two or three species. Thus, analytic solutions cannot help us evaluate the output of model simulations. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno

  50. Resources Packaged modeling platforms such as AQUATOX and EcoSim exist. These should by all means be exercised as a part of experiencing the complexity of ecosystem behavior. However, one should be aware of assumptions in these models, including ad hoc assumptions to maintain stability. SUMBER: www.ag.unr.edu/.../Aquatic_Ecosystem_Mo...‎University of Nevada, Reno
