  1. Validation & Verification Chapter 10

  2. VALIDATION & VERIFICATION • Very Difficult • Very Important • Conceptually distinct, but performed simultaneously • You must be sure your model is correct • Your client must be confident that your model is correct • Should be an integral part of model building

  3. VALIDATION • Goals • Produce a model that represents system behavior closely enough to be a substitute for the system for experimentation • Analyzing & predicting performance • Increase credibility of model to managers & decision makers

  4. DEFINITIONS • Verification • Ensures that the model developed is correctly implemented in the software • Validation • Ensures that the model accurately represents the real-world system

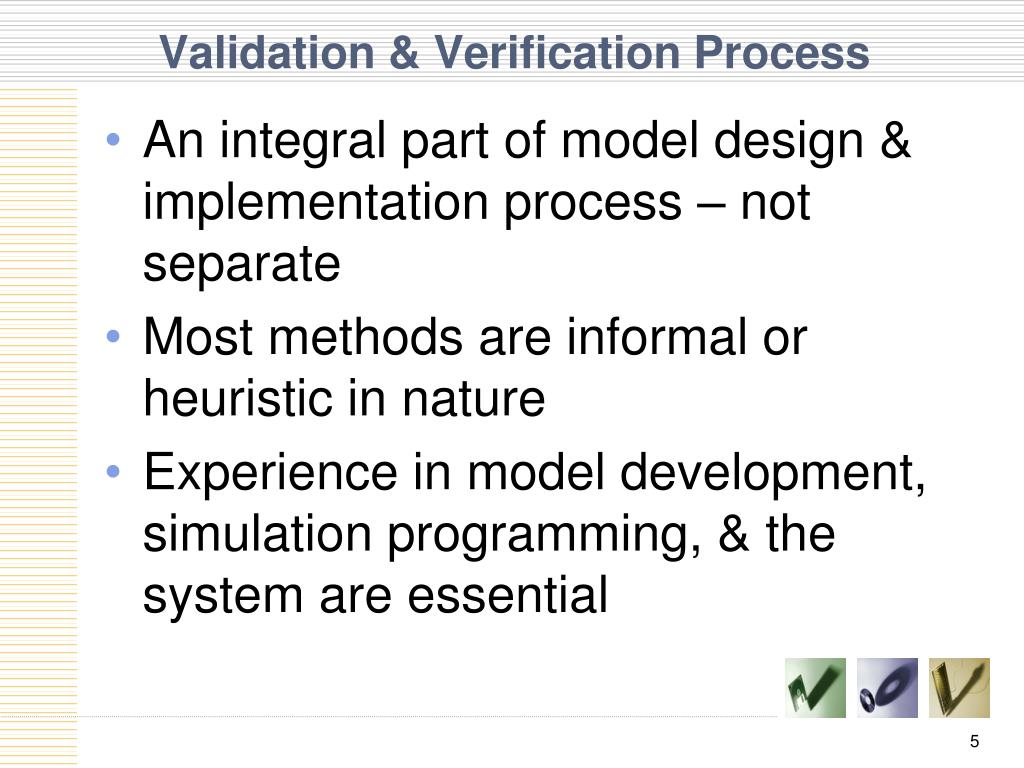

  5. Validation & Verification Process • An integral part of model design & implementation process – not separate • Most methods are informal or heuristic in nature • Experience in model development, simulation programming, & the system are essential

  6. MODEL BUILDING • Observation of real system • Collect data • Talk to members of system • Construct conceptual model • Assumptions about components & structure of system • Hypothesis – values of input parameters • Implement operational model • Usually using simulation software **Not linear process, iterative!!

  7. SUGGESTIONS FOR VERIFICATION • Operational model checked by simulation software expert – not developer • Flow diagram for each possible action • Examine output for reasonableness under various inputs – use wide variety of output statistics • Print input at end of run to ensure stability • DOCUMENTATION!!! • Ensure animation of model is correct

  8. SUGGESTIONS FOR VERIFICATION • Use debugger of interactive run controller (IRC) – advantages • Can monitor simulation progress & display results • Can focus on single line or process • Can observe model components & variables • Can pause; reassign values • GUI – always recommended ** Basic Software Engineering Principles

  9. Suggestion 3 • Examine output for reasonableness • Calculate expected results • Vary input • Ask users to review • Examples Suppose multiple servers & only look at throughput. Maybe too many went to one server & too few to the other. If priority queue, are they actually processed in correct order.

  10. Suggestion 3 (cont’d.) • Utilize standard output from simulation environments • Current Count & Total Count are important variables • Consider predictions • Mathematical (e.g. Utilization) • Experts • Perform a Trace • Snapshots • By hand

  11. CALIBRATION & VALIDATION • Validation – comparing model to system • Calibration – iterative process of comparing model to real system & adjusting the model – repeat! • Comparisons • Subjective – experts review • Objective – use of data & results

  12. VALIDATION • Never truly completely validated • Model never totally represents the real system • Be sure model is not “fit” to one set of data

  13. 3-Step Approach to Validation Naylor & Finger [1967] • Build a model with high face validity • Validate model assumptions • Compare model I/O transformations to corresponding I/O transformations for the real system

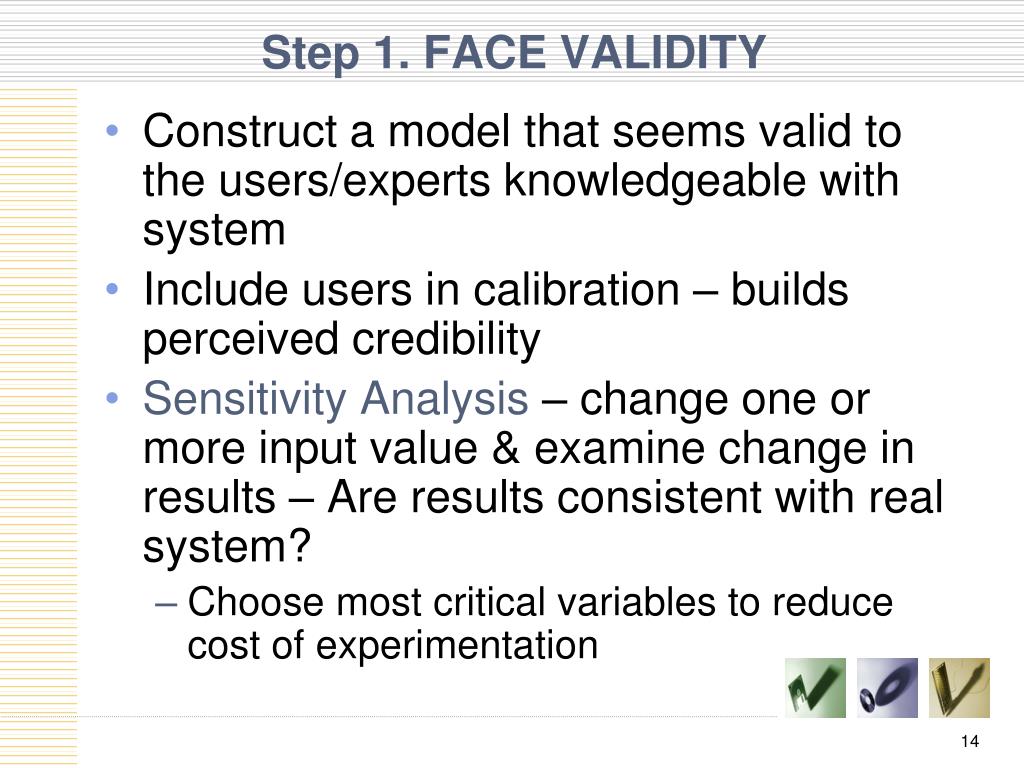

  14. Step 1. FACE VALIDITY • Construct a model that seems valid to the users/experts knowledgeable with system • Include users in calibration – builds perceived credibility • Sensitivity Analysis – change one or more input value & examine change in results – Are results consistent with real system? • Choose most critical variables to reduce cost of experimentation

  15. Step 2. Validation of Assumptions • 2 categories of assumptions • Structural assumptions • Data Assumptions • Structural Assumptions • Involves how system operates • Includes simplifications & abstractions of reality • Data Assumptions • Based on data collection & statistical analysis

  16. Step 2. Validation of Assumptions (contd) • Review – Analysis of Data • Identify probability distribution • Estimate parameters of distribution • Perform goodness-of-fit test • Chi Square, Kolmogorov-Smirnov tests • Test homogeneity of data • Are two independently collected sets of data come from the same parent population?

  17. Step3. Validating I/O Transformations • Ultimate Test of a Model • Ability to predict the future behavior of the real system • Model viewed as an I/O Transformation • Can also us historical data to test prediction ability • Note: If main purpose of simulation changes, model should be revalidated

  18. Step 3. Validating (cont’d) • Models are often used for comparing alternate system designs • Minor changes in parameters • IA rate, # servers • Minor change in statistical distribution • Major change in logical structure of subsystem • Queue discipline • Major design change • Manual to automated system

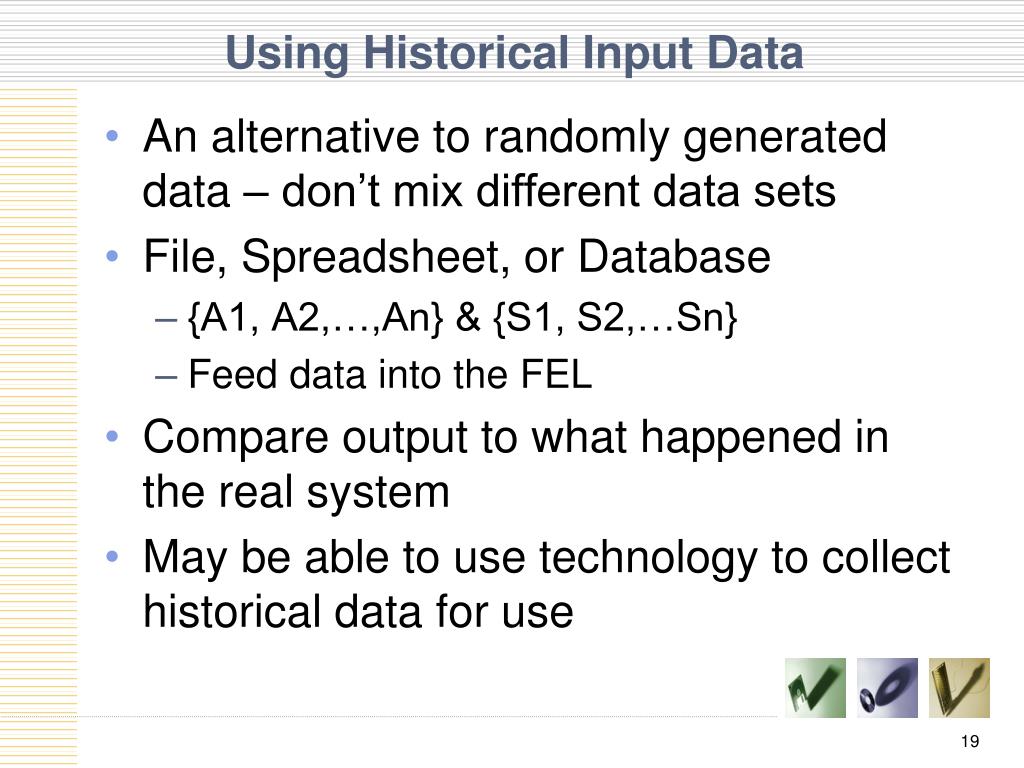

  19. Using Historical Input Data • An alternative to randomly generated data – don’t mix different data sets • File, Spreadsheet, or Database • {A1, A2,…,An} & {S1, S2,…Sn} • Feed data into the FEL • Compare output to what happened in the real system • May be able to use technology to collect historical data for use

  20. I/O Validation – Turing Test • What is the Turing Test? • Generate 5 “fake” reports from simulation & mix with 5 real reports; ask experts if they can distinguish fake from real • If cannot, then pass Turing Test!

  21. Validation Techniques In order of cost-to-value ratio – Van Horn (1969, 1971) 1. Develop model with high face validity by including experts, previous research, studies, observation, experience 2. Test input data for homogeneity, randomness, goodness-of-fit 3. Turing test – use knowledgeable people

  22. Validation Techniques (cont’d) 4. Compare model & system output using statistical tests 5. After model development, collect new data & repeat steps 2 to 4 6. Build new system or redesign old one, collect data on new system & use to validate model (not recommended) 7. Do little or no validation. Implement. (not recommended)

  23. Conclusion • Do not become obsessed with validation & verification to the detriment of progress; causing excessive cost • Modeler should select techniques most valuable and appropriate to the particular system being modeled and the goals of the project • Validate & Verify to assure Accuracy & Credibility
