Presentation Transcript


  1. Cover page

  2. What is the device manager? What is the interface configuration? What is the project configuration?  How to setup a project? General purpose

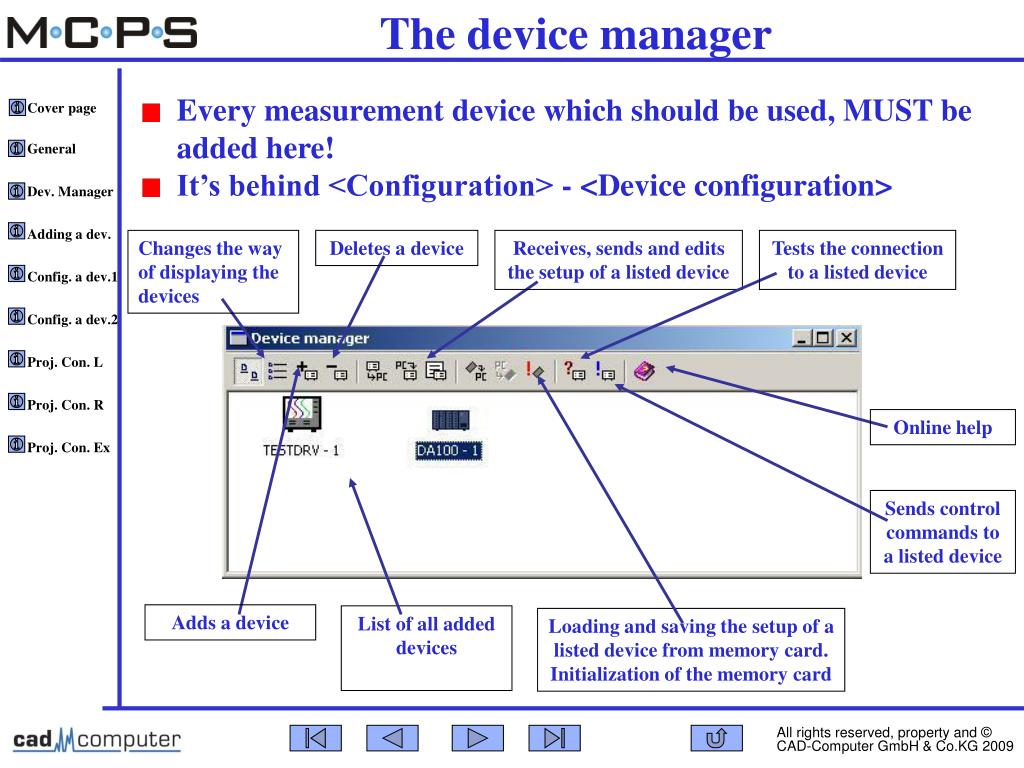

  3. Every measurement device which should be used, MUST be added here! It’s behind <Configuration> - <Device configuration> The device manager Changes the way of displaying the devices Deletes a device Receives, sends and edits the setup of a listed device Tests the connection to a listed device Online help Sends control commands to a listed device Adds a device List of all added devices Loading and saving the setup of a listed device from memory card. Initialization of the memory card

  4. Click and select the desired device. Adding a device

  5. Configuring a device 1 If ethernet as interface, setting the IP-address is possible Select specifier in case of more than one of the same device Select interface Setup the DA-module configuration Autodetect the module configuration Test the connection to the device

  6. Configuring a device 2 Select interface Select specifier in case of more than one of the same device Select the used slot-cards Configure the used slot-cards Autodetect the used slot-cards with configuration Test the connection to the device

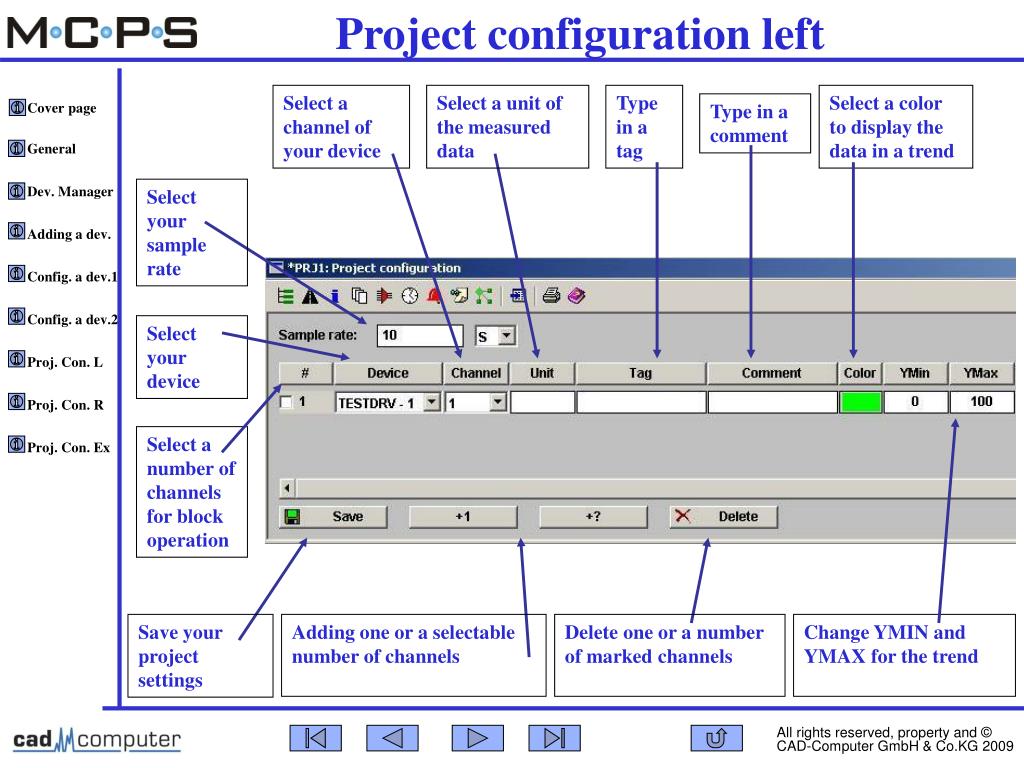

  7. Project configuration left Select a channel of your device Select a unit of the measured data Type in a tag Select a color to display the data in a trend Type in a comment Select your sample rate Select your device Select a number of channels for block operation Save your project settings Adding one or a selectable number of channels Delete one or a number of marked channels Change YMIN and YMAX for the trend

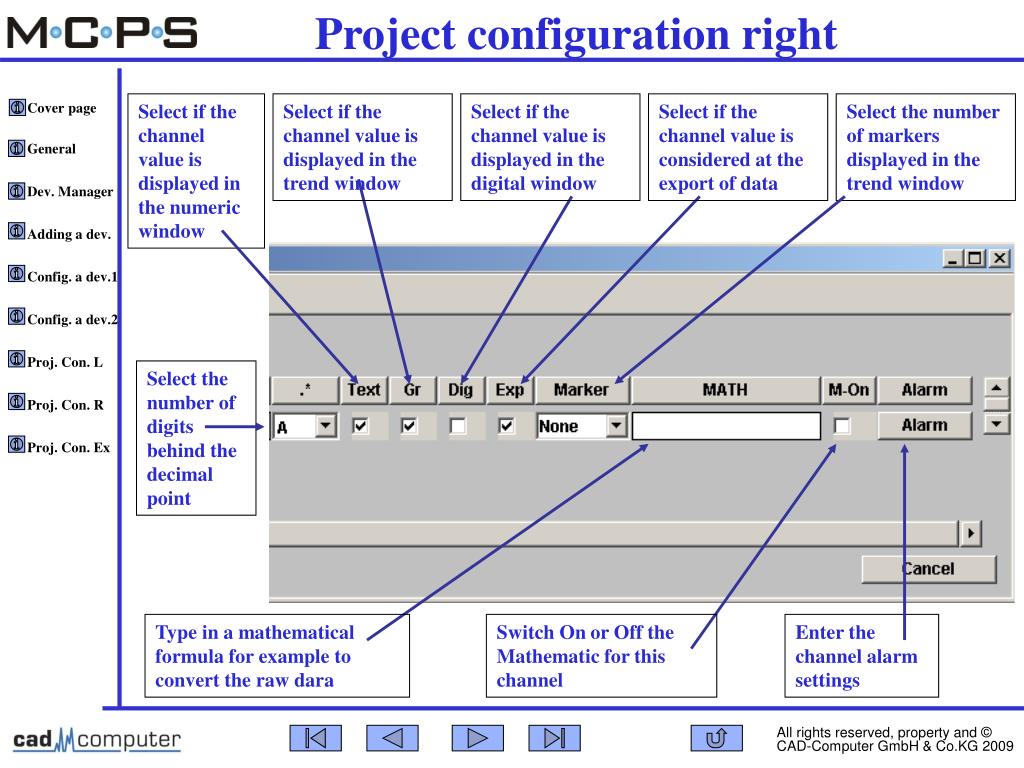

  8. Project configuration right Select if the channel value is displayed in the numeric window Select if the channel value is displayed in the trend window Select if the channel value is displayed in the digital window Select if the channel value is considered at the export of data Select the number of markers displayed in the trend window Select the number of digits behind the decimal point Type in a mathematical formula for example to convert the raw dara Switch On or Off the Mathematic for this channel Enter the channel alarm settings

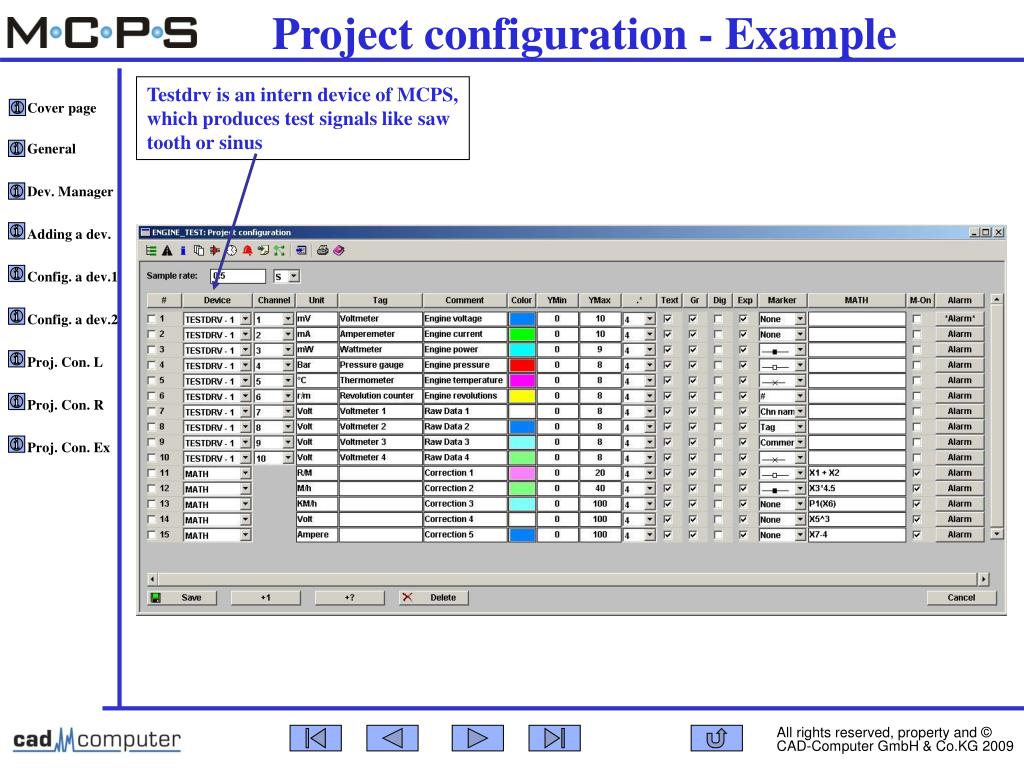

  9. Project configuration - Example Testdrv is an intern device of MCPS, which produces test signals like saw tooth or sinus
