Communicating with the Outside. Overview. Package several SQL statements within one call to the database server. Embedded procedural language (Transact SQL) with control flow facilities. Use User Defined Functions (UDFs) when they select out a high number of records.
E N D

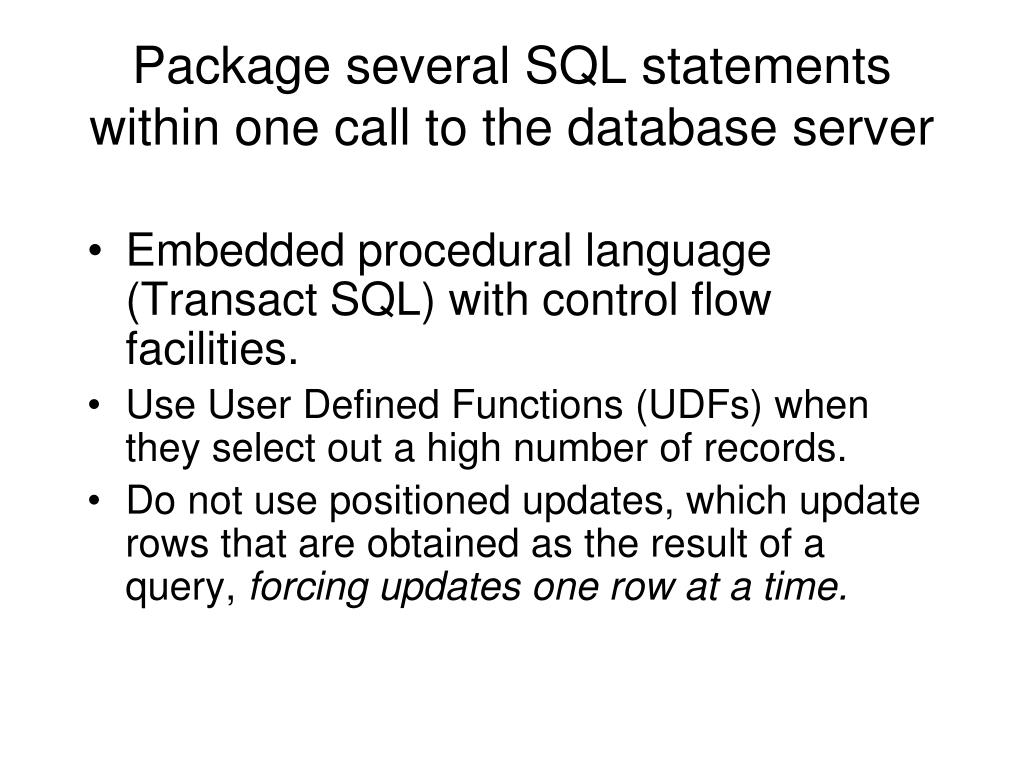

Package several SQL statements within one call to the database server • Embedded procedural language (Transact SQL) with control flow facilities. • Use User Defined Functions (UDFs) when they select out a high number of records. • Do not use positioned updates, which update rows that are obtained as the result of a query, forcing updates one row at a time.

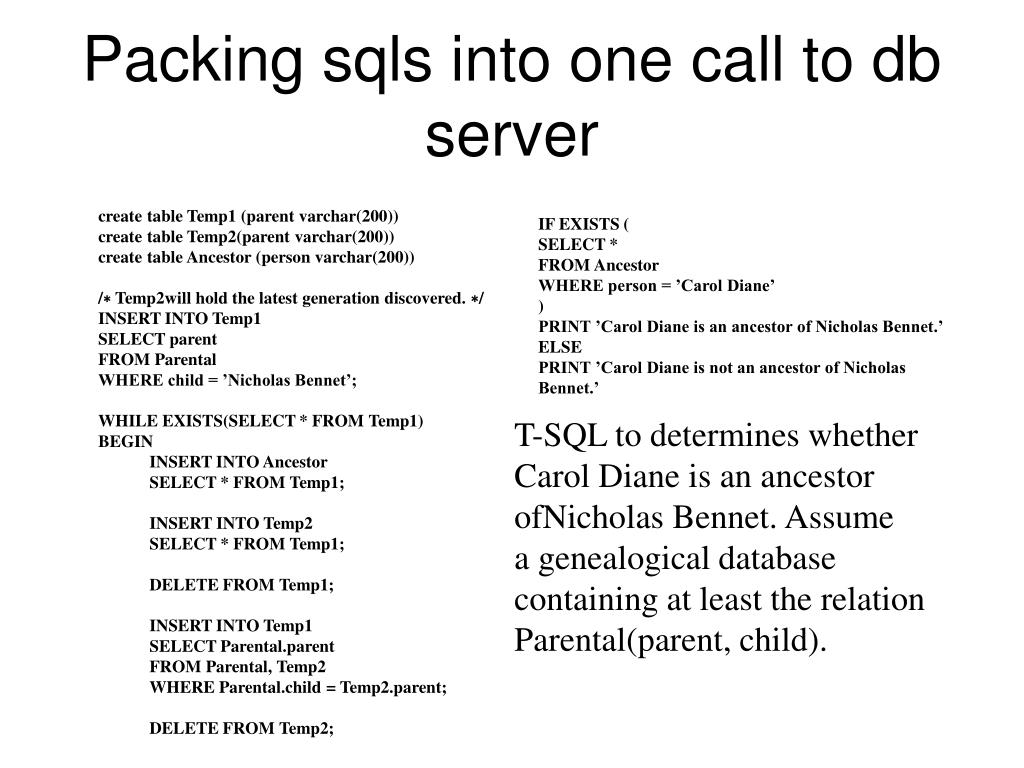

Packing sqls into one call to db server • create table Temp1 (parent varchar(200)) • create table Temp2(parent varchar(200)) • create table Ancestor (person varchar(200)) • /∗ Temp2will hold the latest generation discovered. ∗/ • INSERT INTO Temp1 • SELECT parent • FROM Parental • WHERE child = ’Nicholas Bennet’; • WHILE EXISTS(SELECT * FROM Temp1) • BEGIN • INSERT INTO Ancestor • SELECT * FROM Temp1; • INSERT INTO Temp2 • SELECT * FROM Temp1; • DELETE FROM Temp1; • INSERT INTO Temp1 • SELECT Parental.parent • FROM Parental, Temp2 • WHERE Parental.child = Temp2.parent; • DELETE FROM Temp2; IF EXISTS ( SELECT * FROM Ancestor WHERE person = ’Carol Diane’ ) PRINT ’Carol Diane is an ancestor of Nicholas Bennet.’ ELSE PRINT ’Carol Diane is not an ancestor of Nicholas Bennet.’ T-SQL to determines whether Carol Diane is an ancestor ofNicholas Bennet. Assume a genealogical database containing at least the relation Parental(parent, child).
Function computes the number of working days between two dates. Function executed either on the database site (UDF) or on the application site Applying the UDF yields good performances when it helps reduce significantly the amount of data sent back to the application. User Defined Functions

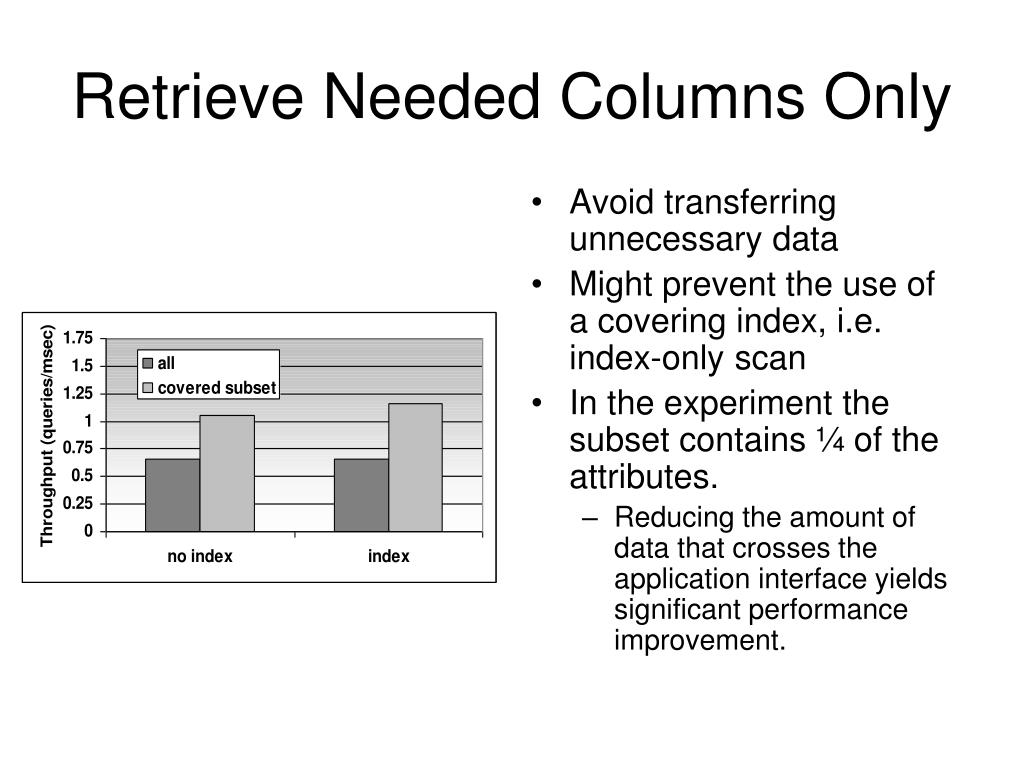

Avoid transferring unnecessary data Might prevent the use of a covering index, i.e. index-only scan In the experiment the subset contains ¼ of the attributes. Reducing the amount of data that crosses the application interface yields significant performance improvement. Retrieve Needed Columns Only

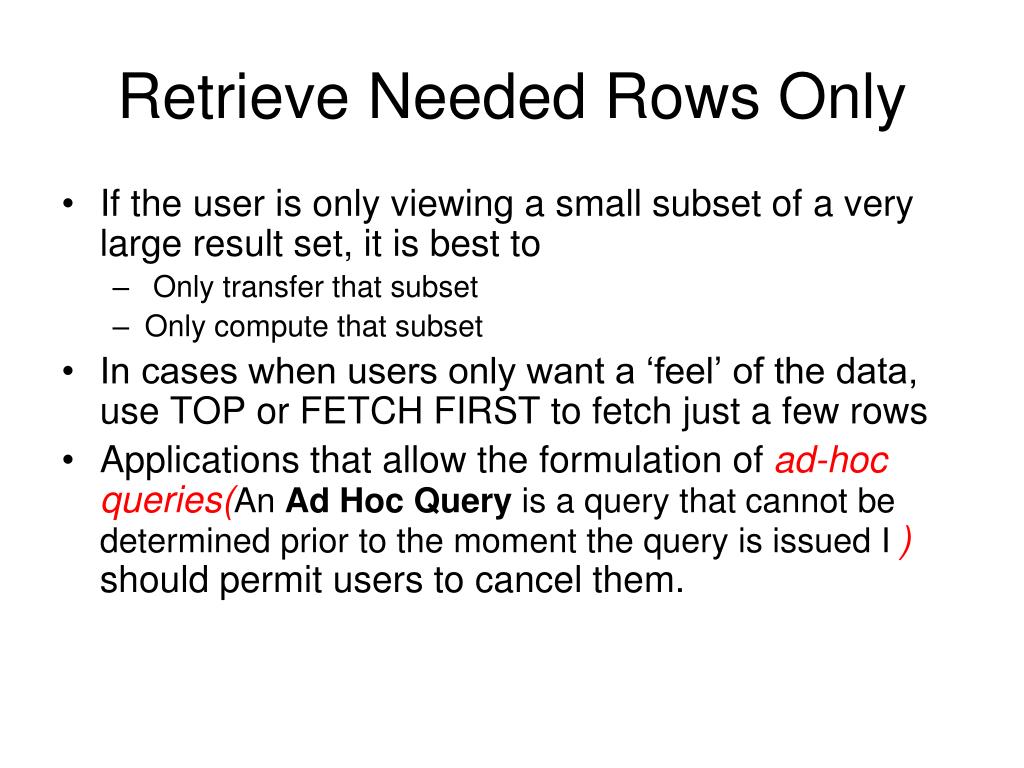

Retrieve Needed Rows Only • If the user is only viewing a small subset of a very large result set, it is best to • Only transfer that subset • Only compute that subset • In cases when users only want a ‘feel’ of the data, use TOP or FETCH FIRST to fetch just a few rows • Applications that allow the formulation of ad-hoc queries(An Ad Hoc Query is a query that cannot be determined prior to the moment the query is issued I ) should permit users to cancel them.

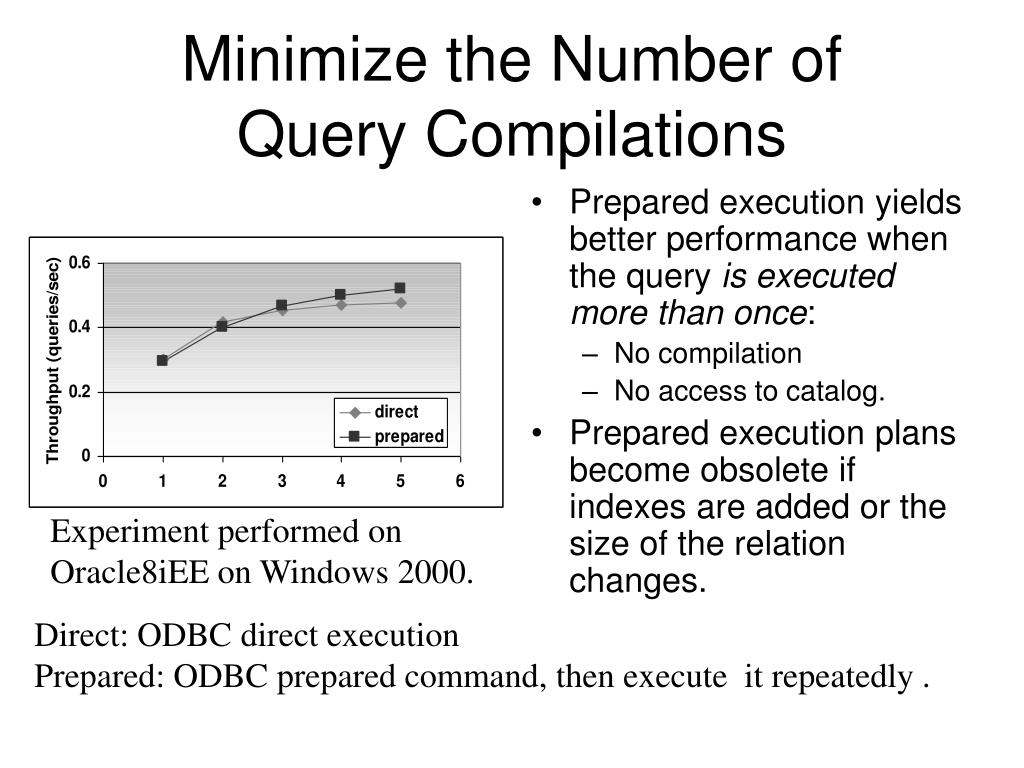

Prepared execution yields better performance when the query is executed more than once: No compilation No access to catalog. Prepared execution plans become obsolete if indexes are added or the size of the relation changes. Minimize the Number of Query Compilations Experiment performed on Oracle8iEE on Windows 2000. Direct: ODBC direct execution Prepared: ODBC prepared command, then execute it repeatedly .

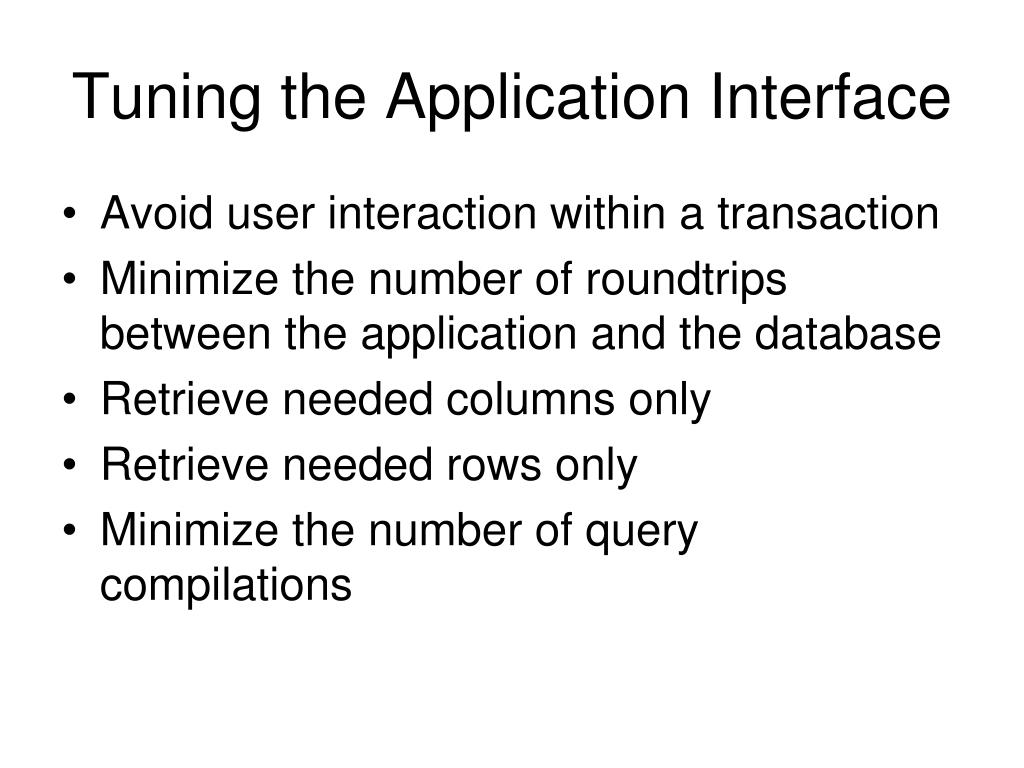

Tuning the Application Interface • Avoid user interaction within a transaction • Minimize the number of roundtrips between the application and the database • Retrieve needed columns only • Retrieve needed rows only • Minimize the number of query compilations

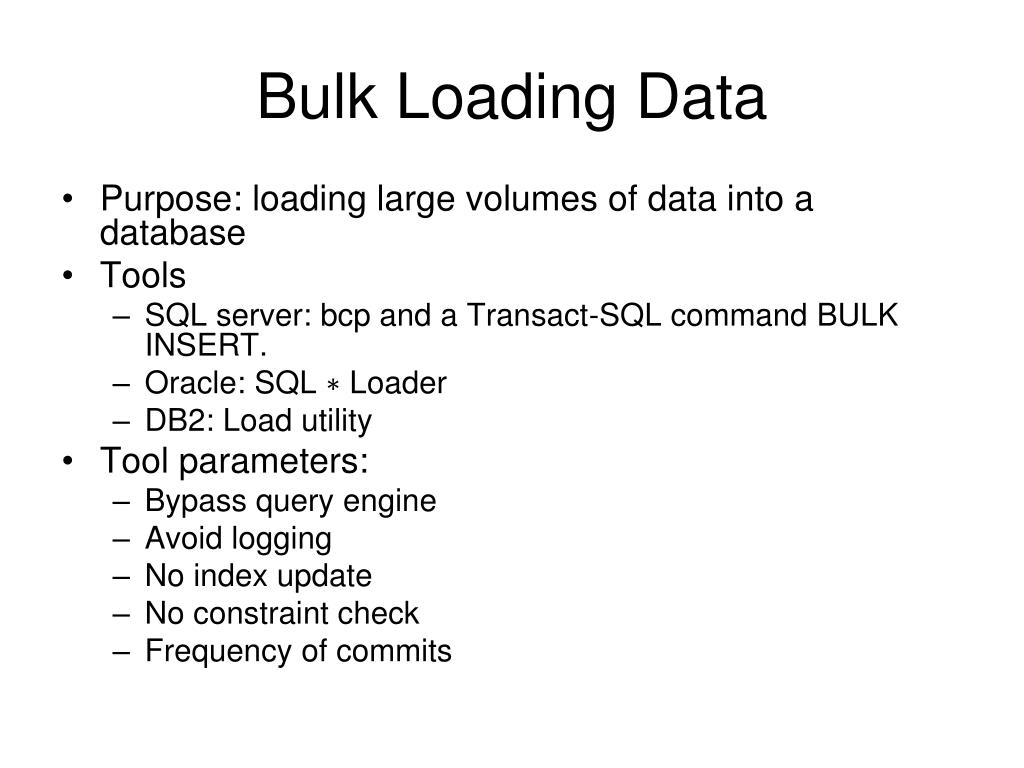

Bulk Loading Data • Purpose: loading large volumes of data into a database • Tools • SQL server: bcp and a Transact-SQL command BULK INSERT. • Oracle: SQL ∗ Loader • DB2: Load utility • Tool parameters: • Bypass query engine • Avoid logging • No index update • No constraint check • Frequency of commits

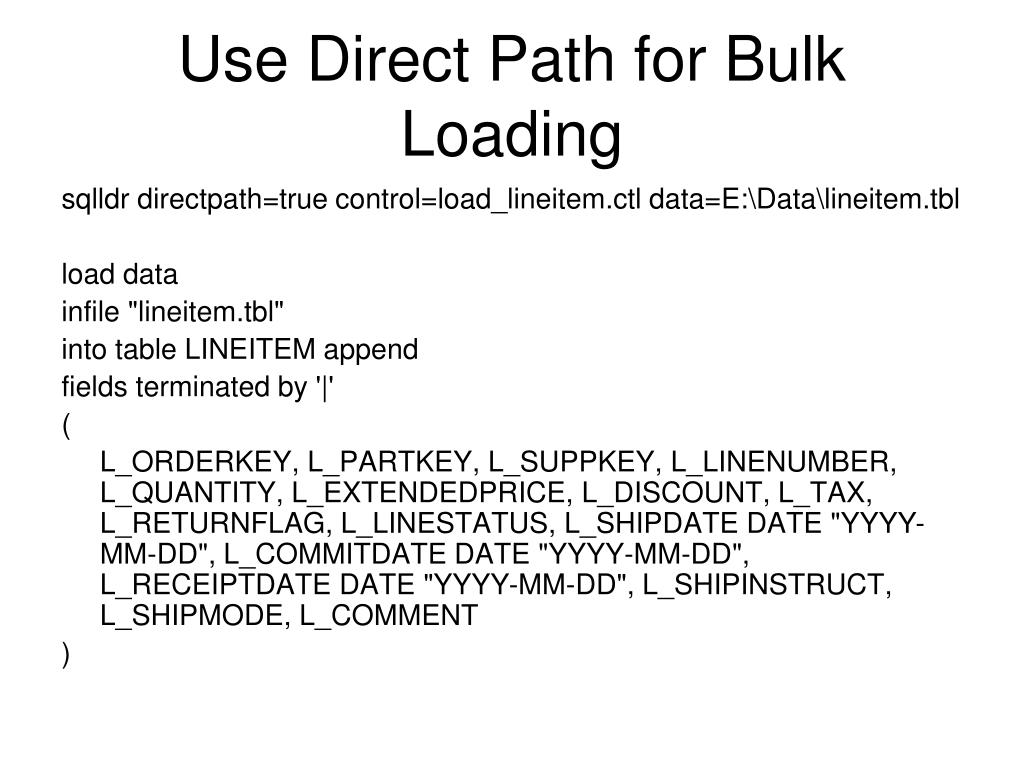

Use Direct Path for Bulk Loading sqlldr directpath=true control=load_lineitem.ctl data=E:\Data\lineitem.tbl load data infile "lineitem.tbl" into table LINEITEM append fields terminated by '|' ( L_ORDERKEY, L_PARTKEY, L_SUPPKEY, L_LINENUMBER, L_QUANTITY, L_EXTENDEDPRICE, L_DISCOUNT, L_TAX, L_RETURNFLAG, L_LINESTATUS, L_SHIPDATE DATE "YYYY-MM-DD", L_COMMITDATE DATE "YYYY-MM-DD", L_RECEIPTDATE DATE "YYYY-MM-DD", L_SHIPINSTRUCT, L_SHIPMODE, L_COMMENT )

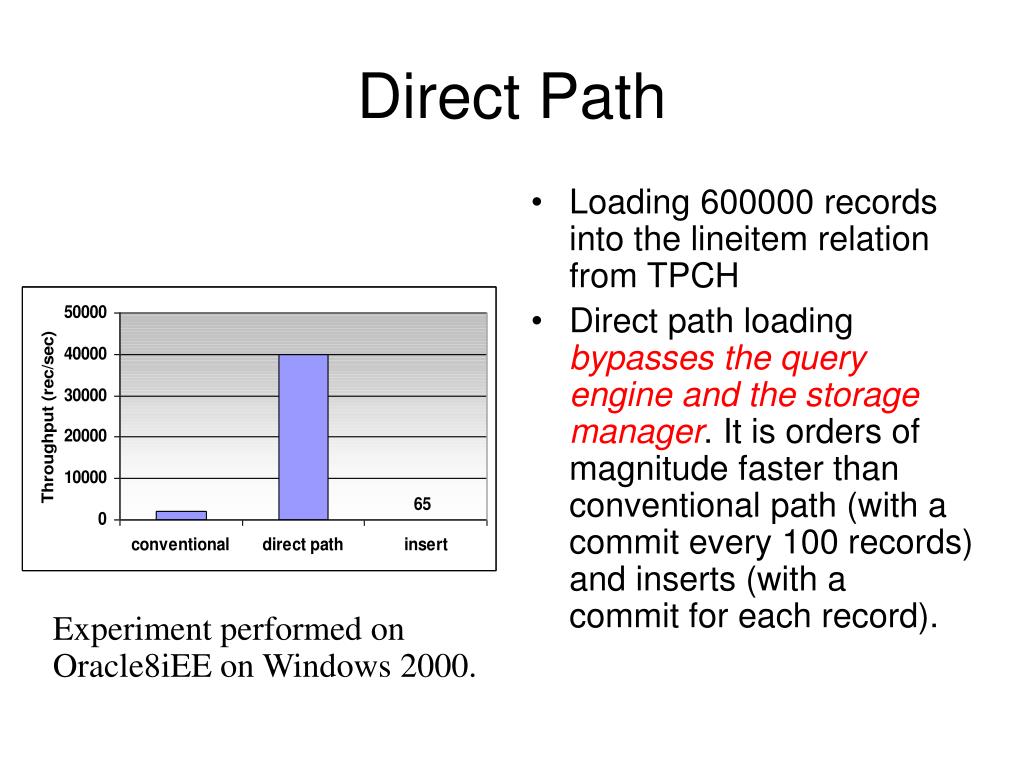

Loading 600000 records into the lineitem relation from TPCH Direct path loading bypasses the query engine and the storage manager. It is orders of magnitude faster than conventional path (with a commit every 100 records) and inserts (with a commit for each record). Direct Path Experiment performed on Oracle8iEE on Windows 2000.
Bulk load of 600000 records. Throughput increases steadily when the batch size increases to 100000 records.Throughput remains constant afterwards. Trade-off between performance and amount of data that has to be reloaded in case of problem. Batch Size Experiment performed on SQL Server 2000 on Windows 2000.

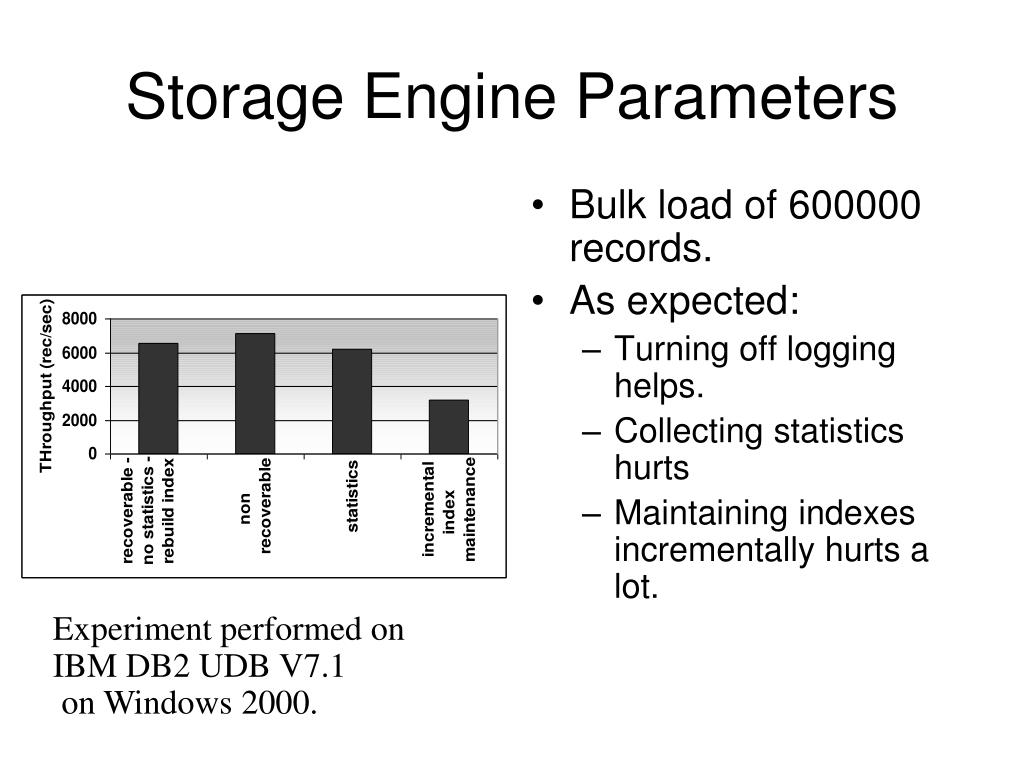

Bulk load of 600000 records. As expected: Turning off logging helps. Collecting statistics hurts Maintaining indexes incrementally hurts a lot. Storage Engine Parameters Experiment performed on IBM DB2 UDB V7.1 on Windows 2000.

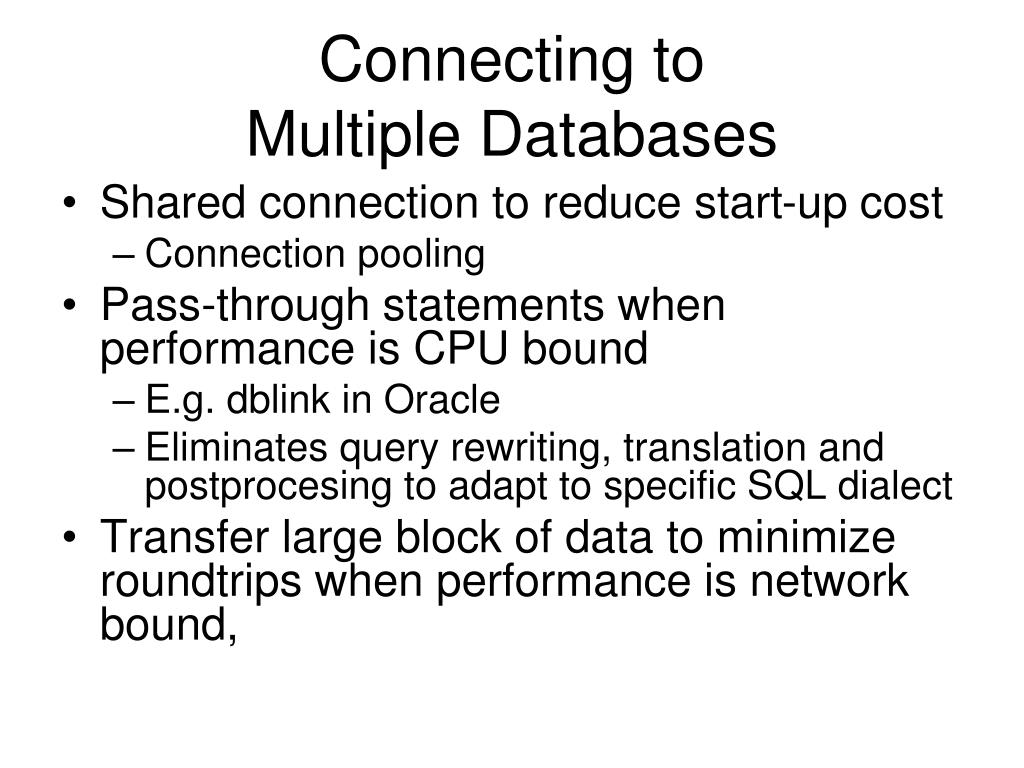

Connecting to Multiple Databases • Shared connection to reduce start-up cost • Connection pooling • Pass-through statements when performance is CPU bound • E.g. dblink in Oracle • Eliminates query rewriting, translation and postprocesing to adapt to specific SQL dialect • Transfer large block of data to minimize roundtrips when performance is network bound,
