  1. Sanders and Sanding Safety

  2. Belt Sander

  3. Belt Tracking If the sanding belt starts to move over to the edge of the sanding surface, turn the sander off and contact your teacher.

  4. Belt Sander On and Off Switch On and Off Switch

  5. Vacuum System To use the belt sander, the vacuum system has to be turned on. At the end of class make sure the vacuum system is turned off.

  6. Belt Sander Safety When turning the Belt Sander on and off, make sure to keep your hair and clothing away from the sanding surface. Jewelry can be a big problem.

  7. Using the Belt Sander Incorrect Correct Always keep your work piece flat on the sanding table. The sanding belt will grab the edge of the work piece and pull your hand onto the sanding surface.

  8. Clean Up Sweep these areas off with a hand broom from the top down. Use a big broom to sweep the floor.

  9. Disc Sander

  10. On and Off Switch Disc Sander On and Off Switch

  11. Vacuum System To use the Disc sander, the vacuum system has to be turned on. At the end of class make sure the vacuum system is turned off.

  12. Using the Disc Sander The Disc Sander turns clockwise. Sand on the right side of the sanding surface. Sanding Area

  13. Using The Disc Sander Incorrect Correct The sanding Disc will grab the edge of the work piece and pull your hand onto the sanding surface Always keep your work piece flat on the sanding table.

  14. Stopping the Disc Sander When the Disc Sander is turned off, the sanding disc will keep spinning for about 10 min. At the end of class the sanding Disc needs to be stopped for cleaning. Use the wood from the shelf belowto stop the sanding disc. Push the edge of the wood on the edge of the sanding disc softly to stop the sanding disk

  15. Cleaning the Disc Sander Areas to clean with the hand brooms. Clean from the top down.

  16. Using Sanders Video

  17. Oscillating Sanders On and off switches

  18. How to sand Correct Incorrect The sanding Disc will grab the edge of the work piece and pull your hand onto the sanding surface Always keep your work piece flat on the sanding table.

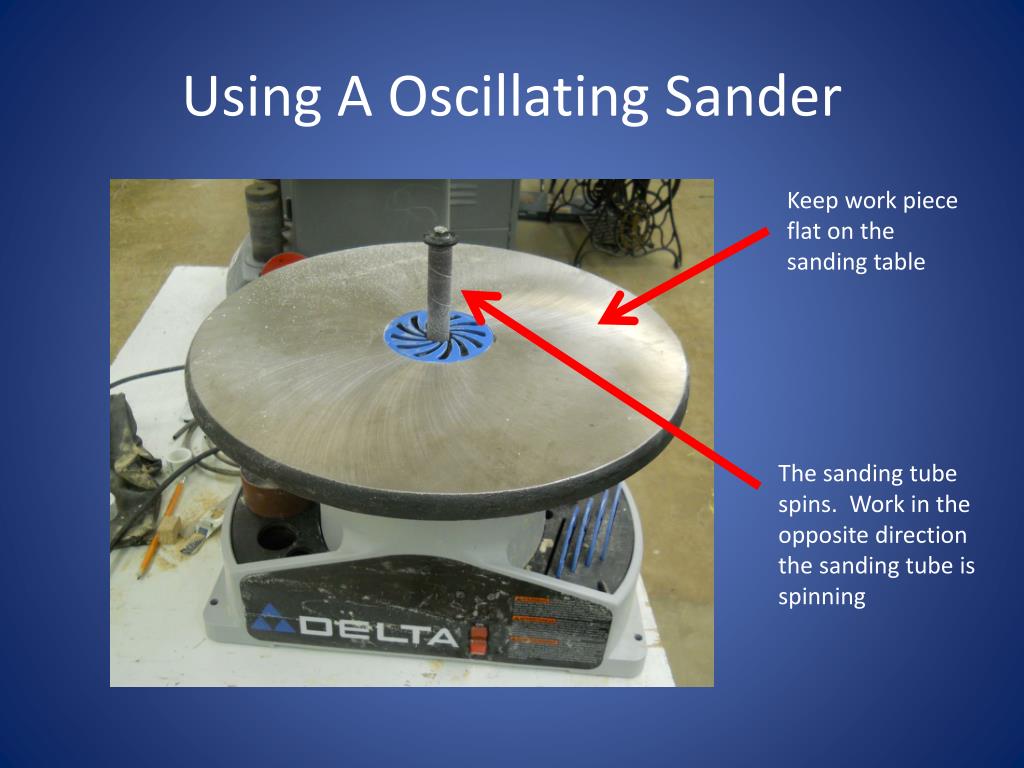

  19. Using A Oscillating Sander Keep work piece flat on the sanding table The sanding tube spins. Work in the opposite direction the sanding tube is spinning

  20. Cleaning The Oscillating Sander Using a hand broom to sweep the sanding table. The sides of the sander. The table the sanders are on, and the floor around the table. The sawdust from the sanders are very fine and light. Never blow the sawdust.

  21. Hand sander Power Switch Lock Power Switch To keep the hand sander running with out holding the power switch, hold the power switch on and push the power switch lock in, then release the power switch

  22. Using the Hand Sander Sanding Surface. Never Touch the sanding surface while the sander is on

  23. Cleaning the Hand Sander Use a hand broom to sweep the table top, the sander and the floor under the sander. Sweep from the top down. Watch where your head is when sweeping the floor under the sander.

  24. Hand Sanding When using sand paper, make sure to keep your knuckle away from the surface. Sweep the table top with a hand broom
