  1. SVMs:Linear and Beyond Advanced Statistical Methods in NLP Ling 572 February 21, 2012

  2. SVM Training • Goal: Maximum margin, consistent w/training data Fig. from F. Xia

  3. SVM Training • Goal: Maximum margin, consistent w/training data • Margin = 2d = 2/||w|| Fig. from F. Xia

  4. SVM Training • Goal: Maximum margin, consistent w/training data • Margin = 2d = 2/||w|| • How can we maximize? Fig. from F. Xia

  5. SVM Training • Goal: Maximum margin, consistent w/training data • Margin = 2d = 2/||w|| • How can we maximize? • Max d  Fig. from F. Xia

  6. SVM Training • Goal: Maximum margin, consistent w/training data • Margin = 2d = 2/||w|| • How can we maximize? • Max d  Min ||w|| Fig. from F. Xia

  7. SVM Training • Goal: Maximum margin, consistent w/training data • So we will: • Minimize ||w||2 • subject to Fig. from F. Xia

  8. SVM Training • Goal: Maximum margin, consistent w/training data • So we will: • Minimize ||w||2 • subject to • yi(<w,xi>+b) >= 1 Fig. from F. Xia

  9. SVM Training • Goal: Maximum margin, consistent w/training data • So we will: • Minimize ||w||2 • subject to • yi(<w,xi>+b) >= 1 •  • yi(<w,xi>+b)-1 >=0 Fig. from F. Xia

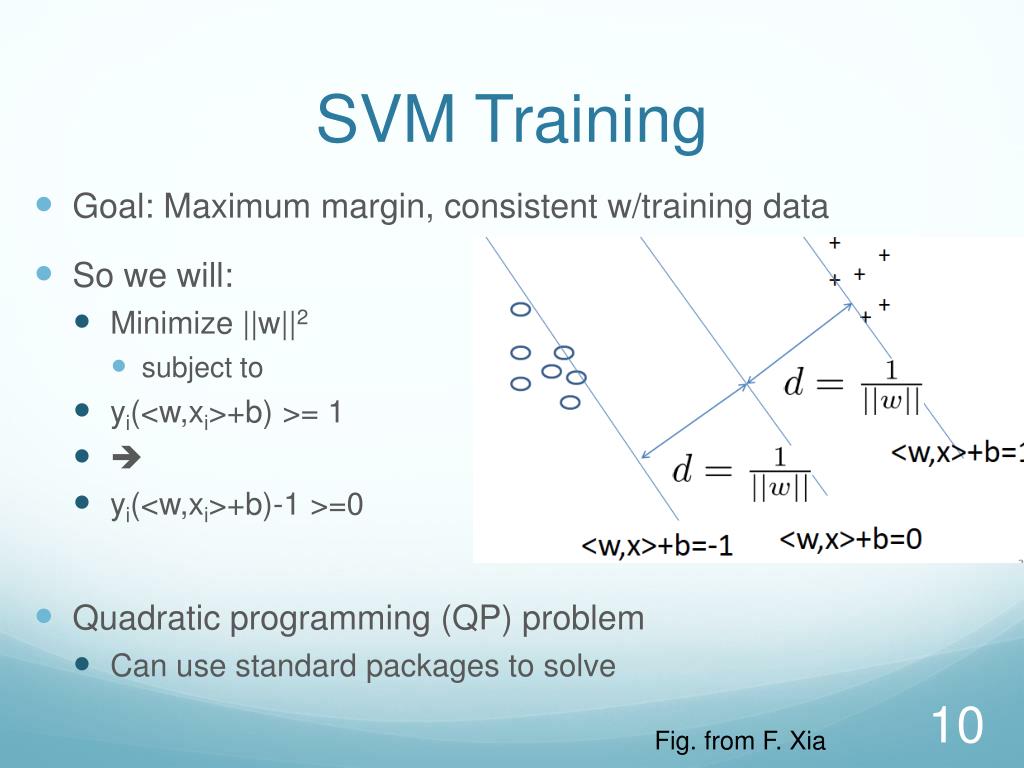

  10. SVM Training • Goal: Maximum margin, consistent w/training data • So we will: • Minimize ||w||2 • subject to • yi(<w,xi>+b) >= 1 •  • yi(<w,xi>+b)-1 >=0 • Quadratic programming (QP) problem • Can use standard packages to solve Fig. from F. Xia

  11. Lagrangian Conversion • Have constrained optimization problem • Convert to unconstrained optimization • Using Lagrange multipliers

  12. Lagrangian Conversion • Have constrained optimization problem • Convert to unconstrained optimization • Using Lagrange multipliers • Minimize ||w||2 subject to yi(<w,xi>+b)-1 >=0 • 

  13. Lagrangian Conversion • Have constrained optimization problem • Convert to unconstrained optimization • Using Lagrange multipliers • Minimize ||w||2 subject to yi(<w,xi>+b)-1 >=0 •  • 

  14. Lagrangian Conversion • Have constrained optimization problem • Convert to unconstrained optimization • Using Lagrange multipliers • Minimize ||w||2 subject to yi(<w,xi>+b)-1 >=0 •  •  and

  15. Decoding • Given w,b, predict label

  16. Decoding • Given w,b, predict label • Prediction: • f(x) = sign (<w,x>+b)

  17. Decoding • Given w,b, predict label • Prediction: • f(x) = sign (<w,x>+b) • Suppose w=(2,-3), b=3 • x=(3,1)

  18. Decoding • Given w,b, predict label • Prediction: • f(x) = sign (<w,x>+b) • Suppose w=(2,-3), b=3 • x=(3,1)  (6+(-3))+3=6  + • x=(-1,1)

  19. Decoding • Given w,b, predict label • Prediction: • f(x) = sign (<w,x>+b) • Suppose w=(2,-3), b=3 • x=(3,1)  (6+(-3))+3=6  + • x=(-1,1) (-2-3)+3 = -2  _

  20. Decoding • Given w,b, predict label • Prediction: • f(x) = sign (<w,x>+b) • What if the point is ‘in the margin’? • Just classify by sign regardless • Return “don’t know”

  21. Using the Trained Values • Training: Learns αi • Use those to compute w

  22. Using the Trained Values • Training: Learns αi • Use those to compute w x1=(3,0,-1); y1=1; α1=3 x2=(-1,2,0); y2=-1; α2 =1 x3=(-5,4,-7); y3=-1; α3 =0

  23. Using the Trained Values • Training: Learns αi • Use those to compute w x1=(3,0,-1); y1=1; α1=3 x2=(-1,2,0); y2=-1; α2 =1 x3=(-5,4,-7); y3=-1; α3 =0 • w= (9,0,-3)+(1,-2,0) • = (10,-2,-3)

  24. Using Trained Values • Decoding: • f(x) = sign(<w,x>+b)

  25. Using Trained Values • Decoding: • f(x) = sign(<w,x>+b)

  26. Using Trained Values • Decoding: • f(x) = sign(<w,x>+b)

  27. Trained Values • Training learns αi • For support vectors,

  28. Trained Values • Training learns αi • For support vectors, αi> 0 • For all other training instances

  29. Trained Values • Training learns αi • For support vectors, αi> 0 • For all other training instances, αi= 0 • Non-support vectors ignored

  30. Trained Values • Training learns αi • For support vectors, αi> 0 • For all other training instances, αi= 0 • Non-support vectors ignored • Training learns: • To identify support vectors and set αivalues • Equivalent to computing weights • Avoids computing weights which can be problematic

  31. Basic SVMs • Training: • Minimize ||w||2 subject to <w,x>+b>=1

  32. Basic SVMs • Training: • Minimize ||w||2 subject to <w,x>+b>=1 • Decoding: • Compute f(x)=sign (<w,x>+b)

  33. Basic SVMs (Lagrangian) • Training:

  34. Basic SVMs (Lagrangian) • Training: • Minimize: • w.r.t. w, b • Decoding:

  35. Basic SVMs (Lagrangian) • Training: • Minimize: • w.r.t. w, b • Decoding: • Compute

  36. kNNvs SVM • Voting in kNN: • Majority vote: c*=argmaxc g(c) Due to F. Xia

  37. kNNvs SVM • Voting in kNN: • Majority vote: c*=argmaxc g(c) • Weighted voting: c*= argmaxcΣiwiδ(c,fi(x)) Due to F. Xia

  38. kNNvs SVM • Voting in kNN: • Majority vote: c*=argmaxc g(c) • Weighted voting: c*= argmaxcΣiwiδ(c,fi(x)) • Weighted voting allows use of many training examples • wi= 1/dist(x,xi) • Could use all training examples Due to F. Xia

  39. kNNvs SVM • Voting in kNN: • Majority vote: c*=argmaxc g(c) • Weighted voting: c*= argmaxcΣiwiδ(c,fi(x)) • Weighted voting allows use of many training examples • wi= 1/dist(x,xi) • Could use all training examples • binary case Due to F. Xia

  40. kNNvs SVM • Voting in kNN: • Majority vote: c*=argmaxc g(c) • Weighted voting: c*= argmaxcΣiwiδ(c,fi(x)) • Weighted voting allows use of many training examples • wi= 1/dist(x,xi) • Could use all training examples • binary case • SVM Due to F. Xia

  41. Summary • Support Vector Machines: • Find decision hyperplane <w,x>+b=0 • Among possible hyperplanes, select one that maximizes margin • Maximizing margin equivalent to minimizing ||w|| • Solve by learning alphas for each training instance • Non-zero only for support vectors

  42. Beyond Linear SVMs • So far, we’ve assumed data is linearly separable • Some margin exists b/t samples of different classes

  43. Beyond Linear SVMs • So far, we’ve assumed data is linearly separable • Some margin exists b/t samples of different classes • Problem: • Not all data/problems are linearly separable

  44. Beyond Linear SVMs • So far, we’ve assumed data is linearly separable • Some margin exists b/t samples of different classes • Problem: • Not all data/problems are linearly separable • Two variants: • Data intrinsically linearly separable • But noisy data points appear in margin or misclassified •  Soft-margins

  45. Beyond Linear SVMs • So far, we’ve assumed data is linearly separable • Some margin exists b/t samples of different classes • Problem: • Not all data/problems are linearly separable • Two variants: • Data intrinsically linearly separable • But noisy data points appear in margin or misclassified •  Soft-margins • Data really isn’t linearly separable • Non-linear SVMs

  46. Soft–Margin Intuition • High dimensional data (i.e. text classification docs)

  47. Soft–Margin Intuition • High dimensional data (i.e. text classification docs) • Often not linearly separable • E.g. due to noise or data

  48. Soft–Margin Intuition • High dimensional data (i.e. text classification docs) • Often not linearly separable • E.g. due to noise or data • Prefer simpler linear model

  49. Soft–Margin Intuition • High dimensional data (i.e. text classification docs) • Often not linearly separable • E.g. due to noise or data • Prefer simpler linear model • Allow soft-margin classification • Margin decision boundary can make some mistakes • Points inside margin or wrong side of boundary

  50. Soft–Margin Intuition • High dimensional data (i.e. text classification docs) • Often not linearly separable • E.g. due to noise or data • Prefer simpler linear model • Allow soft-margin classification • Margin decision boundary can make some mistakes • Points inside margin or wrong side of boundary • Pay a penalty for each such item • Dependent on how far it is from required margin
