  1. CSC461: Lecture 18 Classical Viewing Objectives • Introduce the classical views • Compare and contrast image formation by computer with how images have been formed by architects, artists, and engineers • Learn the benefits and drawbacks of each type of view

  2. Classical Viewing • Viewing requires three basic elements • One or more objects • A viewer with a projection surface • Projectors that go from the object(s) to the projection surface • Classical views are based on the relationship among these elements • The viewer picks up the object and orients it how she would like to see it • Each object is assumed to be constructed from flat principal faces • Buildings, polyhedra, manufactured objects

  3. Planar Geometric Projections • Standard projections project onto a plane • Projectors are lines that either • converge at a center of projection • are parallel • Such projections preserve lines • but not necessarily angles • Non-planar projections are needed for applications such as map construction

  4. Classical Projections

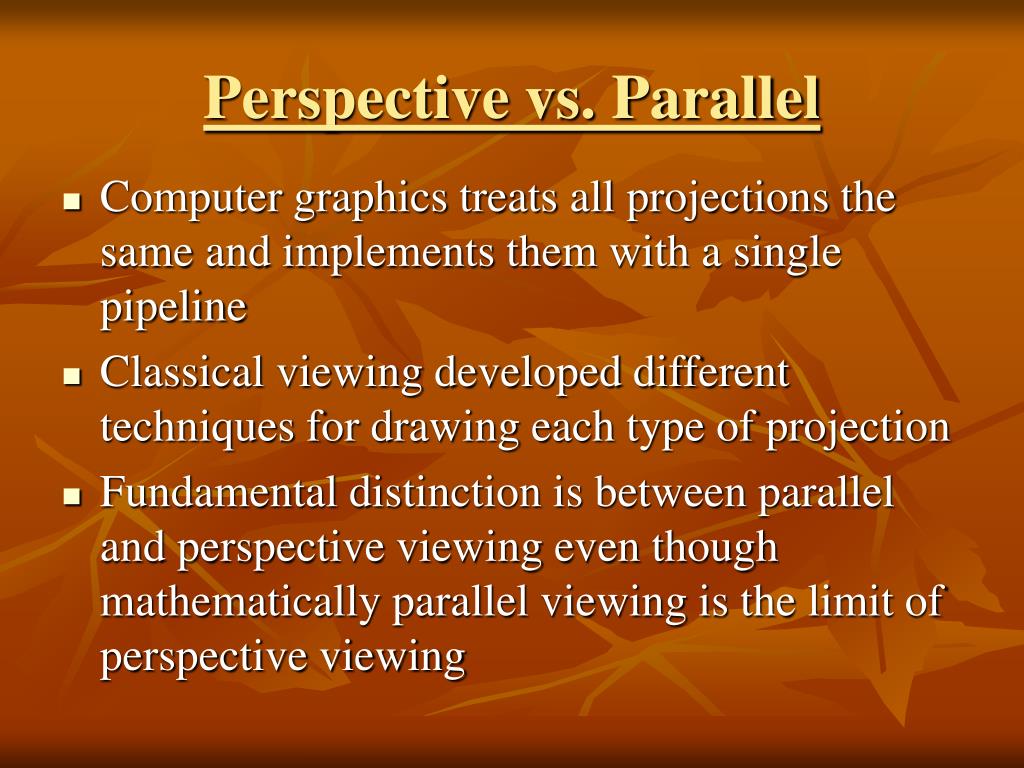

  5. Perspective vs. Parallel • Computer graphics treats all projections the same and implements them with a single pipeline • Classical viewing developed different techniques for drawing each type of projection • Fundamental distinction is between parallel and perspective viewing even though mathematically parallel viewing is the limit of perspective viewing

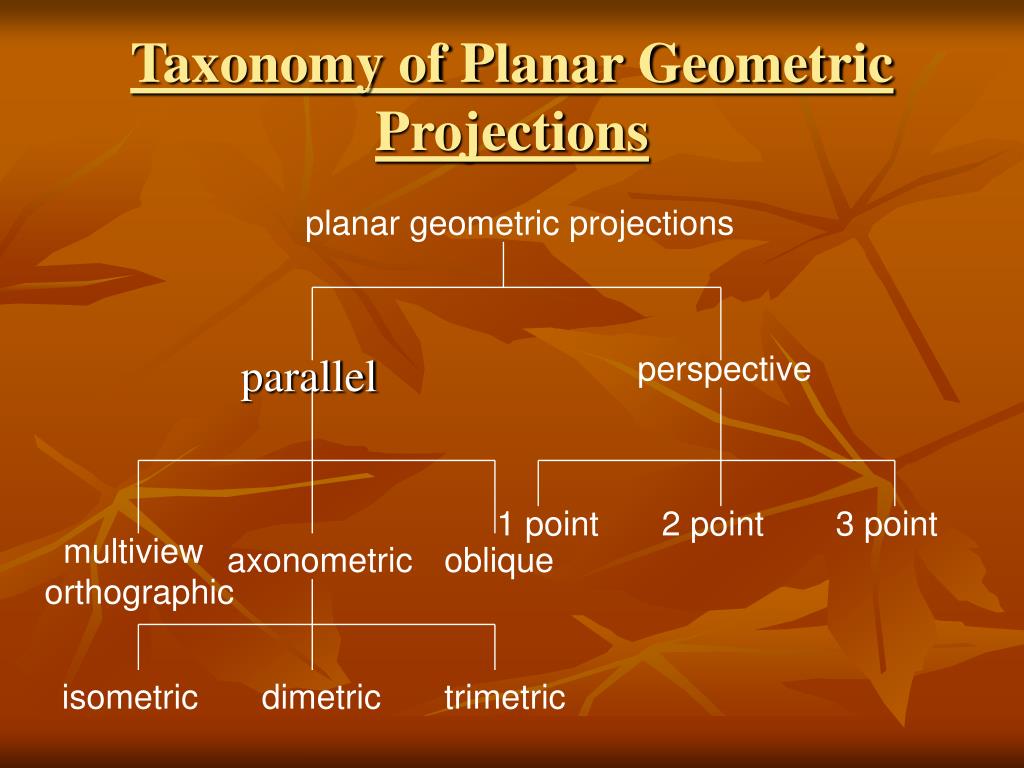

  6. planar geometric projections parallel perspective 1 point 2 point 3 point multiview orthographic axonometric oblique isometric dimetric trimetric Taxonomy of Planar Geometric Projections

  7. Perspective Projection Parallel Projection

  8. Orthographic Projection Projectors are orthogonal to projection surface Advantages Disadvantages • Preserves both distances and angles • Shapes preserved • Can be used for measurements • Building plans • Manuals • Cannot see what object really looks like because many surfaces hidden from view • Often we add the isometric

  9. Multiview Orthographic Projection • Projection plane parallel to principal face • Usually form front, top, side views isometric (not multiview orthographic view) front In CAD and architecture, we often display three multiviews plus isometric top side

  10. q 1 q 2 q 3 Axonometric Projections Allow projection plane to move relative to object classify by how many angles of a corner of a projected cube are the same: none: trimetric two: dimetric three: isometric

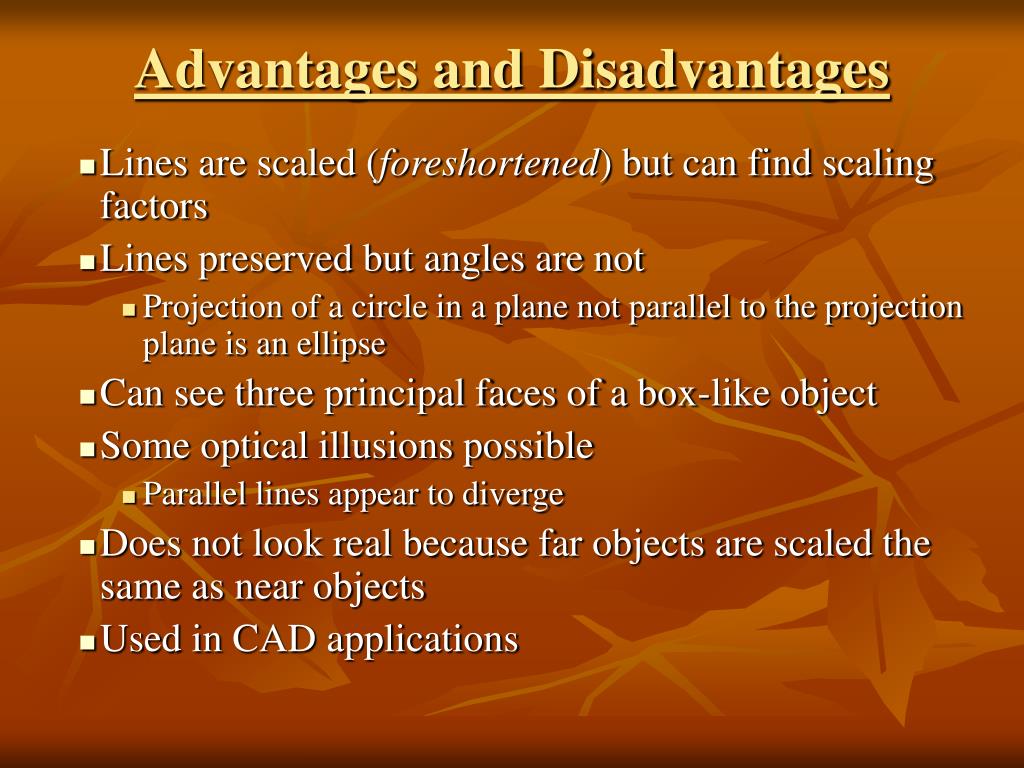

  11. Advantages and Disadvantages • Lines are scaled (foreshortened) but can find scaling factors • Lines preserved but angles are not • Projection of a circle in a plane not parallel to the projection plane is an ellipse • Can see three principal faces of a box-like object • Some optical illusions possible • Parallel lines appear to diverge • Does not look real because far objects are scaled the same as near objects • Used in CAD applications

  12. Oblique Projection Arbitrary relationship between projectors and projection plane

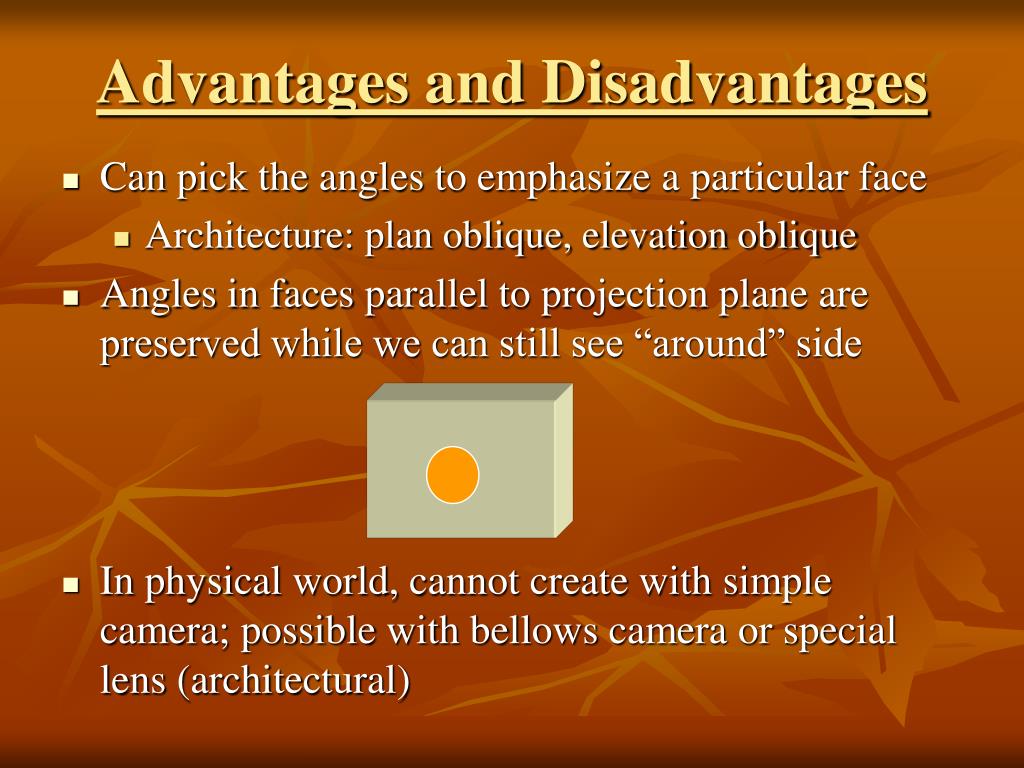

  13. Advantages and Disadvantages • Can pick the angles to emphasize a particular face • Architecture: plan oblique, elevation oblique • Angles in faces parallel to projection plane are preserved while we can still see “around” side • In physical world, cannot create with simple camera; possible with bellows camera or special lens (architectural)

  14. vanishing point Perspective Projection • Projectors converge at center of projection • Parallel lines (not parallel to the projection plan) on the object converge at a single point in the projection (the vanishing point) • Drawing simple perspectives by hand uses these vanishing point(s)

  15. Perspectives • Three-Point Perspective • No principal face parallel to projection plane • Three vanishing points for cube • Two-Point Perspective • On principal direction parallel to projection plane • Two vanishing points for cube • One-Point Perspective • One principal face parallel to projection plane • One vanishing point for cube

  16. Advantages and Disadvantages • Objects further from viewer are projected smaller than the same sized objects closer to the viewer (diminuition) • Looks realistic • Equal distances along a line are not projected into equal distances (non-uniform foreshortening) • Angles preserved only in planes parallel to the projection plane • More difficult to construct by hand than parallel projections (but not more difficult by computer)
