  1. NESL~UCLAZafeiriaAnagnostopoulou Data-Flow Architecture For extracting health information using smartphone

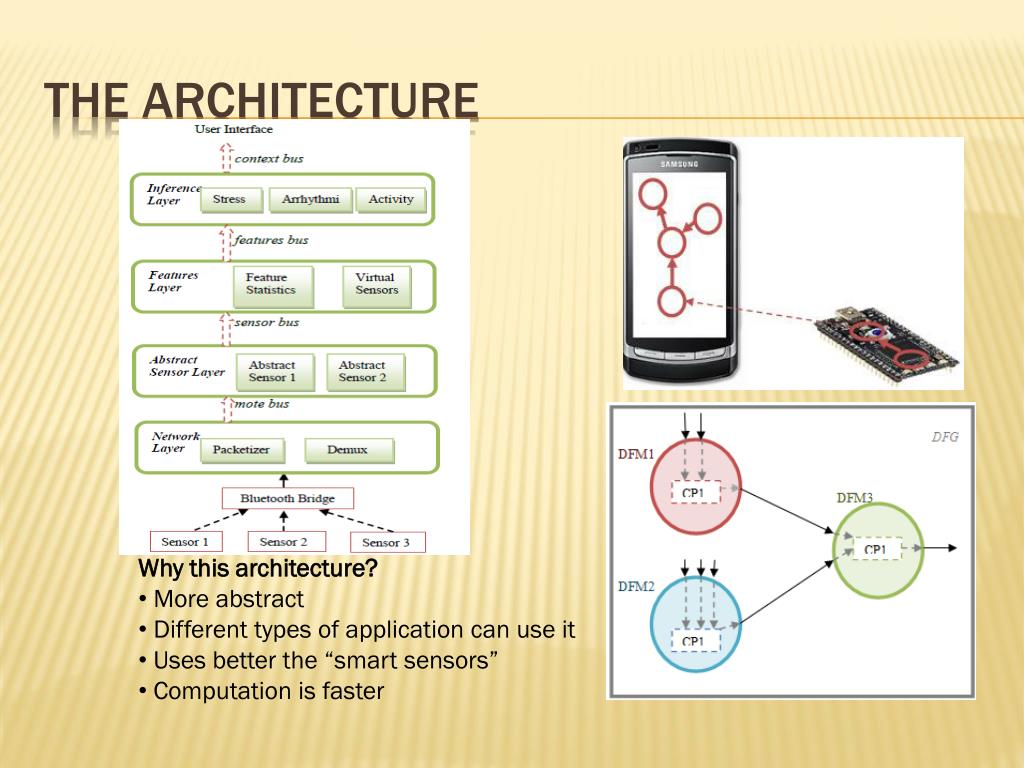

  2. The architecture • Why this architecture? • More abstract • Different types of application can use it • Uses better the “smart sensors” • Computation is faster

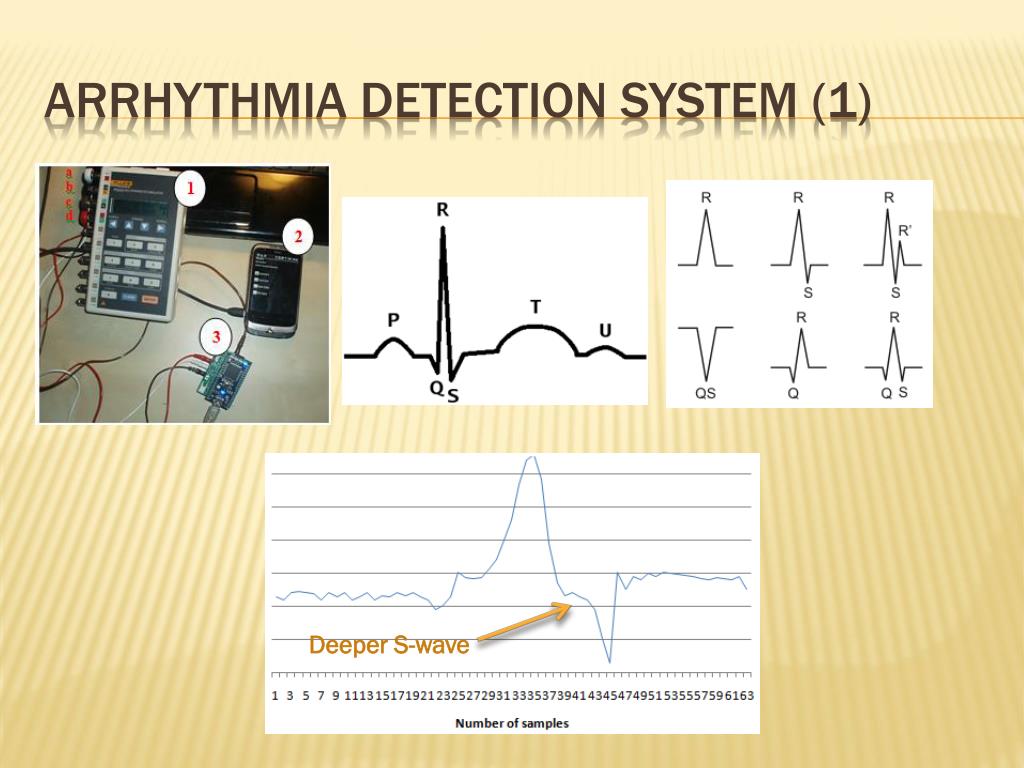

  3. Arrhythmia Detection System (1) Deeper S-wave

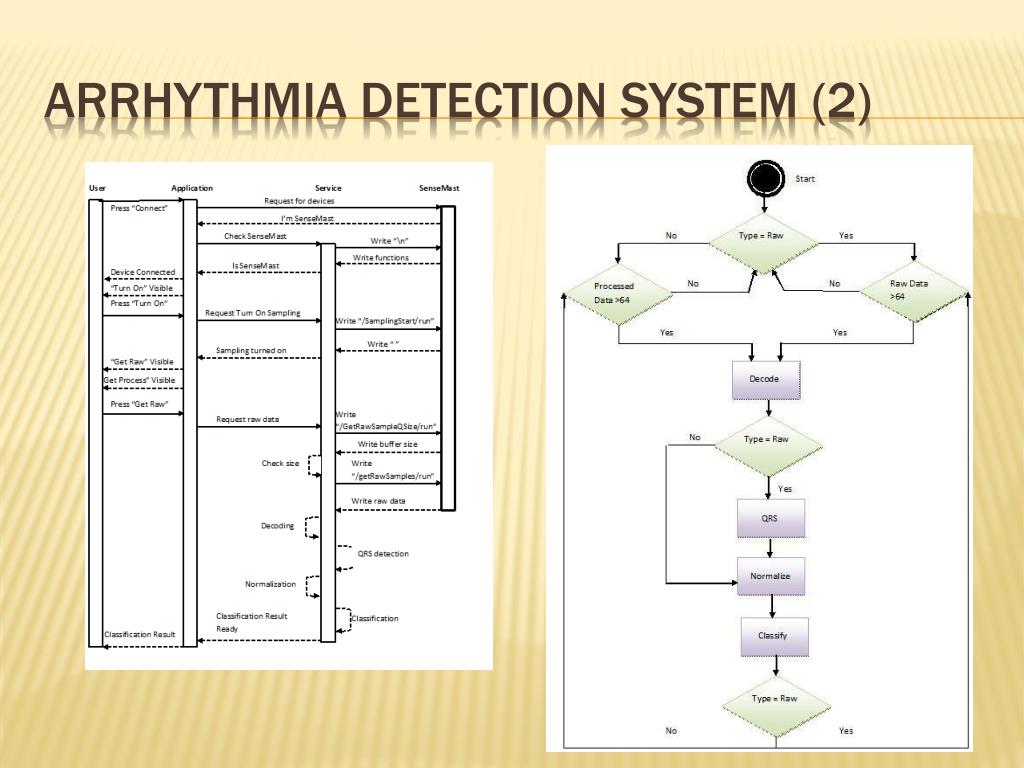

  4. Arrhythmia Detection System (2)

  5. Results (1) Normal Arrhythmia Arrhythmia Normal

  6. Results (2) • Valid Read = 320 msec • Sample Rate = 200 samples/sec • Buffer Size = 1024 • Classifier Accuracy = 92.5% • Normal Heart Beat = 100% • Arrhythmia Heart Beat = 91% • (still some false positives)

  7. Extend the architecture: Implement the classification on the sensor-side Test the architecture with other types of applications Future Work
