Energized Electrical Work Request: Safety Assessment

Assessing the safety of energized electrical work requests. Identify potential hazards, exposure levels, establish safe work conditions, and follow lockout/tagout procedures to ensure worker safety. Determine if live work is justified based on established criteria.

jin
Download Presentation

Energized Electrical Work Request: Safety Assessment

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

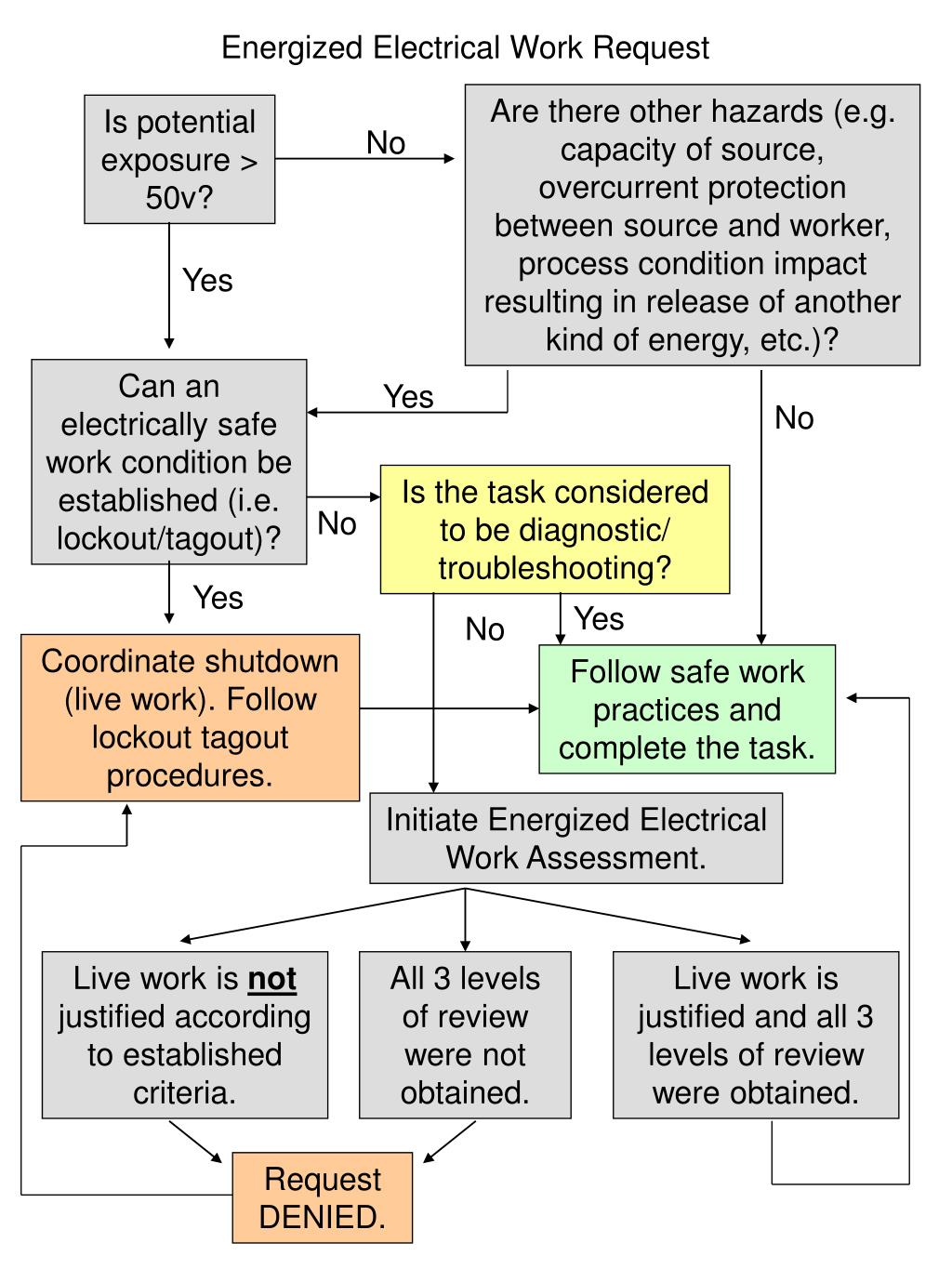

  1. Energized Electrical Work Request Are there other hazards (e.g. capacity of source, overcurrent protection between source and worker, process condition impact resulting in release of another kind of energy, etc.)? Is potential exposure > 50v? No Yes Can an electrically safe work condition be established (i.e. lockout/tagout)? Yes No Is the task considered to be diagnostic/ troubleshooting? No Yes Yes No Coordinate shutdown (live work). Follow lockout tagout procedures. Follow safe work practices and complete the task. Initiate Energized Electrical Work Assessment. Live work is not justified according to established criteria. All 3 levels of review were not obtained. Live work is justified and all 3 levels of review were obtained. Request DENIED.
