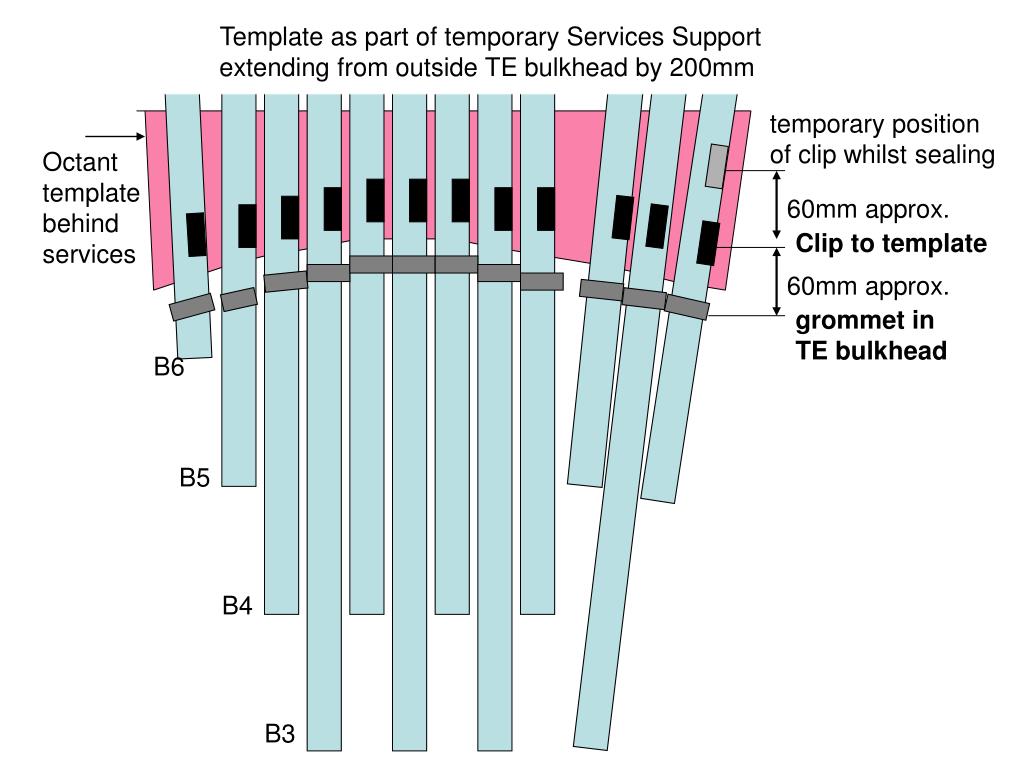

Template as part of temporary Services Support extending from outside TE bulkhead by 200mm. temporary position of clip whilst sealing. Octant template behind services. 60mm approx. Clip to template. 60mm approx. grommet in TE bulkhead. B6. B5. B4. B3. A template is needed in
