Our Galaxy; Photo of portion of milky way Chapter Twenty-Three Guiding Questions What is our Galaxy? How do astronomers know where we are located within it? What is the shape and size of our Galaxy? How do we know that our Galaxy has spiral arms?

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Our Galaxy; Photo of portion of milky way' - johana


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

Guiding questions l.jpg

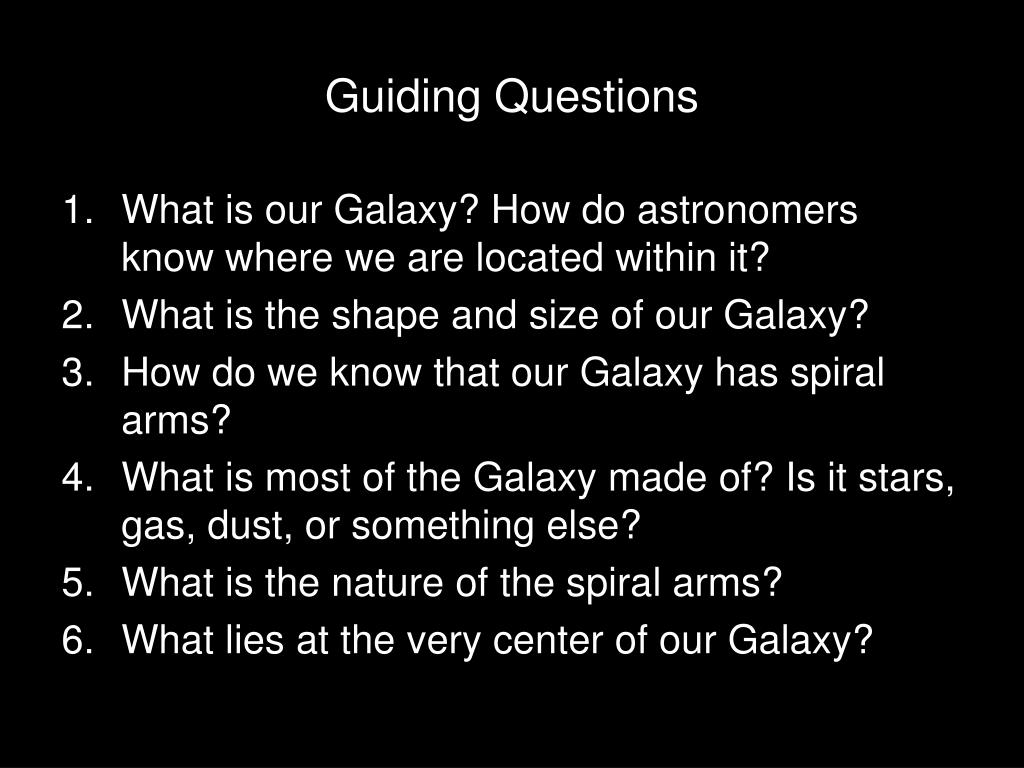

Guiding Questions

  • What is our Galaxy? How do astronomers know where we are located within it?

  • What is the shape and size of our Galaxy?

  • How do we know that our Galaxy has spiral arms?

  • What is most of the Galaxy made of? Is it stars, gas, dust, or something else?

  • What is the nature of the spiral arms?

  • What lies at the very center of our Galaxy?


Slide3 l.jpg

Wide angle view of the Milky Way, centered at Sagittarius show how Iinterstellar dust obscures our view at visible wavelengths along lines of sight that lie in the plane of the galactic disk


As a result the sun s location in the galaxy was unknown for many years l.jpg

William Herschel (1785) map of Milky Way galaxy show how Iinterstellar dust obscures our view at visible wavelengths along lines of sight that lie in the plane of the galactic disk

As a result, the Sun’s location in the Galaxy was unknown for many years




Determining the distance and direction of the globular clusters gave us the sun s location l.jpg
Determining the distance and direction of the globular clusters gave us the Sun’s location

Our Sun lies within the galactic disk, some 8000 pc (26,000 ly) from the center of the Galaxy


Observations at infrared wavelengths reveal the shape of the galaxy l.jpg
Observations at infrared wavelengths reveal clusters gave us the Sun’s locationthe shape of the Galaxy


Slide10 l.jpg
There are about 200 billion stars in the Galaxy; globular clustersare very old groups of stars resident primarily in the Halo

  • The halo forms a spherical distribution centered at the Galaxy’s center.

  • 1920 Shapely observed center in the constellation Sagittarius.

  • Our Galaxy has a disk about 50 kpc (160,000 ly) in diameter and about 600 pc (2000 ly) thick, with a high concentration of interstellar dust and gas in the disk

  • The Sun orbits around the center of the Galaxy at a speed of about 790,000 km/h

  • It takes about 220 million years to complete one orbit


Slide11 l.jpg



Slide13 l.jpg




Star birth can begin in giant molecular clouds l.jpg
Star birth can begin in giant molecular clouds atomic hydrogen

The spiral arms of our Galaxy are laced with giant molecular clouds, immense nebulae so cold that their constituent atoms can form into molecules


Ob associations h ii regions and molecular clouds in the galactic disk outline huge spiral arms l.jpg
OB associations, H II regions, and molecular clouds in the galactic disk outline huge spiral arms

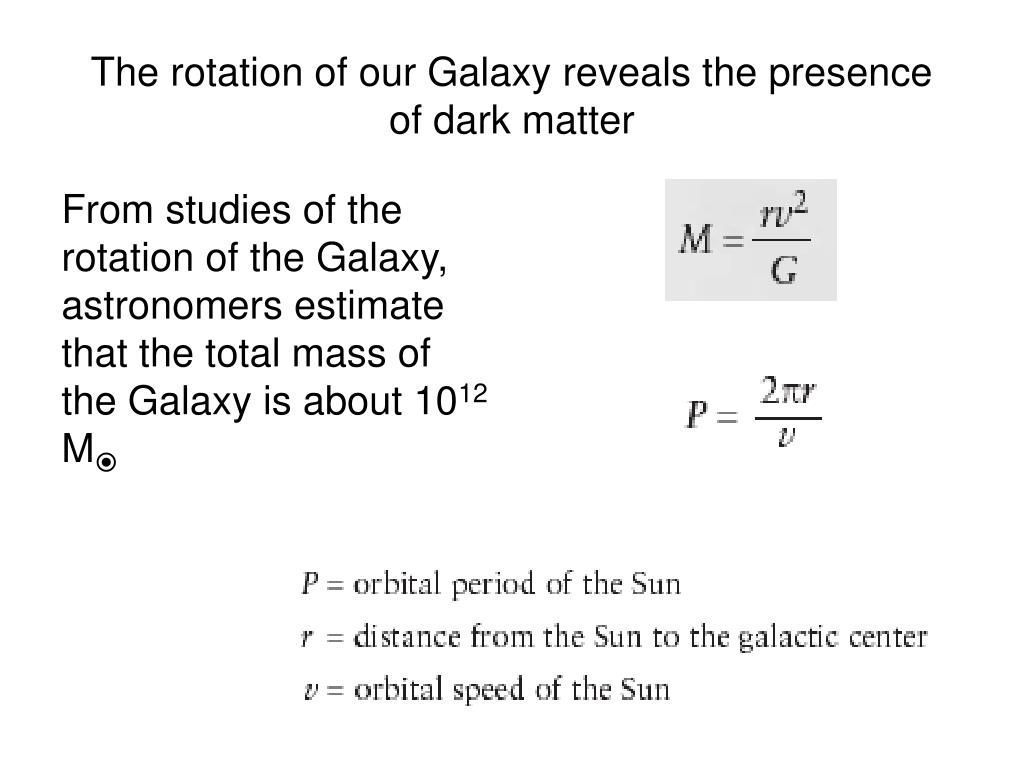

The rotation of our galaxy reveals the presence of dark matter l.jpg
The rotation of our Galaxy reveals the presence galactic disk outline huge spiral armsof dark matter

From studies of the rotation of the Galaxy, astronomers estimate that the total mass of the Galaxy is about 1012 M


Only about 10 of this mass is in the form of visible stars gas and dust l.jpg
Only about 10% of this mass is in the form of visible stars, gas, and dust

  • The remaining 90% is in some nonvisible form, called dark matter, that extends beyond the edge of the luminous material in the Galaxy

  • Our Galaxy’s dark matter may be a combination of MACHOs (dim, star-sized objects), massive neutrinos, and WIMPs (relatively massive subatomic particles)


Spiral arms are caused by density waves that sweep around the galaxy l.jpg
Spiral arms are caused by density waves that sweep around the Galaxy

  • There are two leading theories of spiral structure in galaxies

  • According to the density-wave theory, spiral arms are created by density waves that sweep around the Galaxy

  • The gravitational field of this spiral pattern compresses the interstellar clouds through which it passes, thereby triggering the formation of the OB associations and H II regions that illuminate the spiral arms


Slide34 l.jpg


Slide37 l.jpg

The innermost part of the Galaxy, or galactic nucleus, has been studied through its radio, infrared, and X-ray emissions (which are able to pass through interstellar dust)


A strong radio source called sagittarius a is located at the galactic center l.jpg
A strong radio source called Sagittarius A* is located at the galactic center

This marks the position of a supermassive black hole with a mass of about 3.7 × 106 M


Key words l.jpg

central bulge (of a galaxy) the galactic center

dark matter

density wave

disk (of a galaxy)

far-infrared

flocculent spiral galaxy

galactic nucleus

galaxy

globular cluster

grand-design spiral galaxy

H I

halo (of a galaxy)

high-velocity star

interstellar extinction

Local Bubble

magnetic resonance imaging (MRI)

massive compact halo object (MACHO)

microlensing

Milky Way Galaxy

near-infrared

rotation curve

RR Lyrae variable

Sagittarius A*

self-propagating star formation

spin (of a particle)

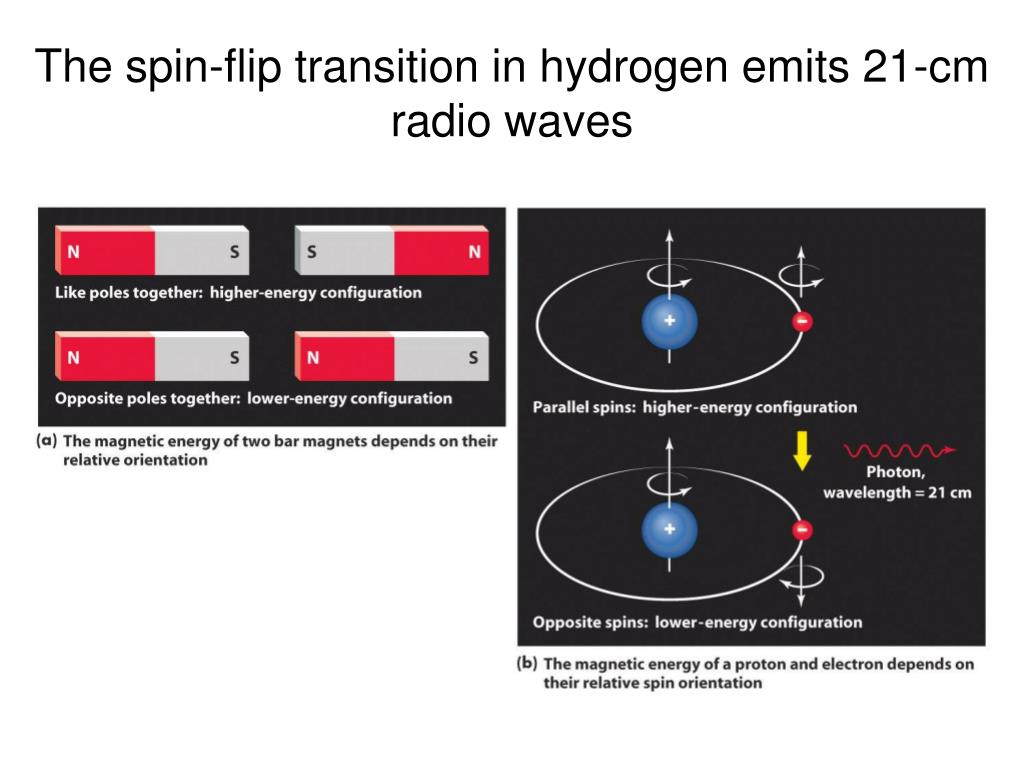

spin-flip transition

spiral arm

21-cm radio emission

weakly interacting massive particle (WIMP)

winding dilemma

Key Words
