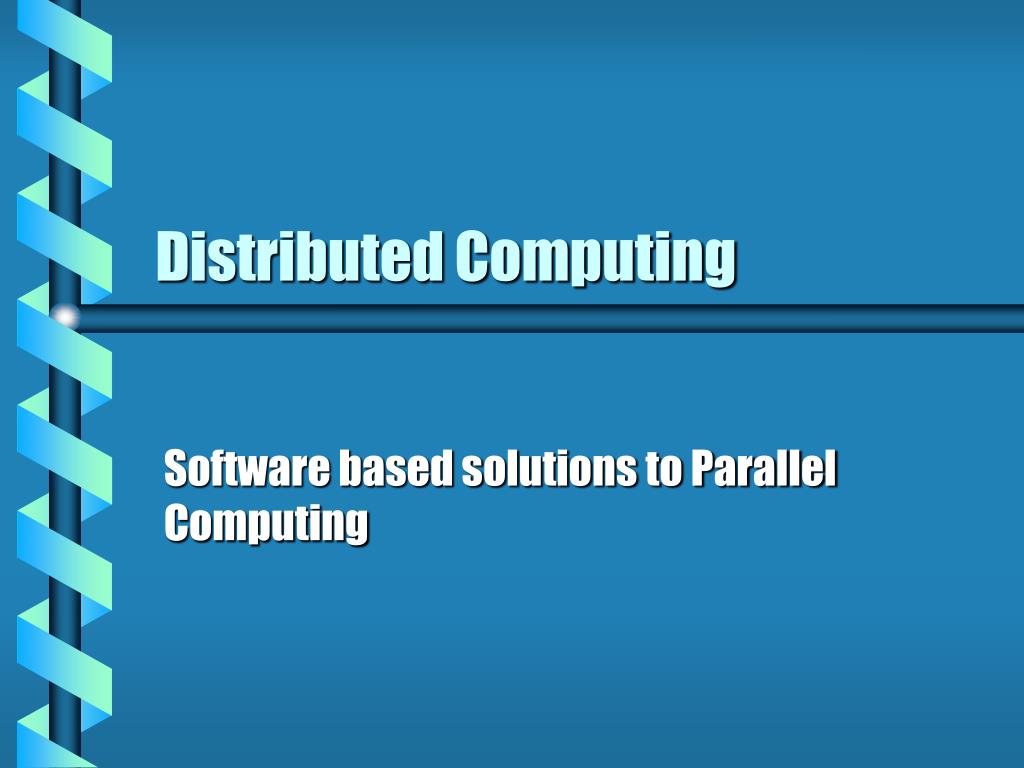

  1. Distributed Computing Software based solutions to Parallel Computing

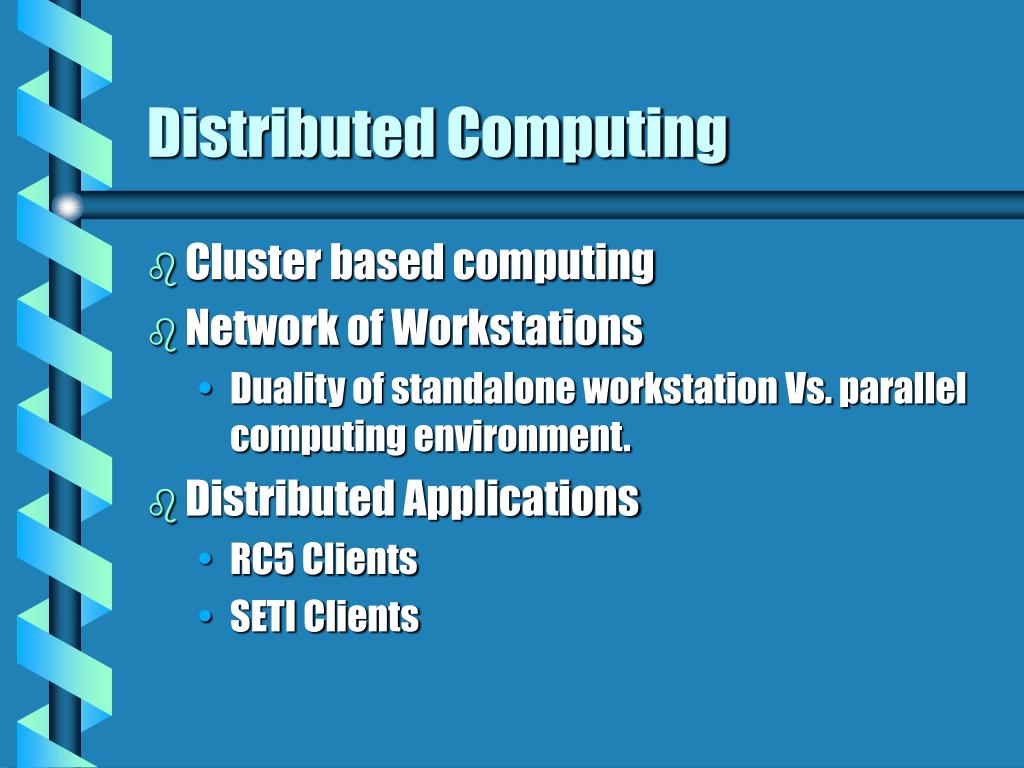

  2. Distributed Computing • Cluster based computing • Network of Workstations • Duality of standalone workstation Vs. parallel computing environment. • Distributed Applications • RC5 Clients • SETI Clients

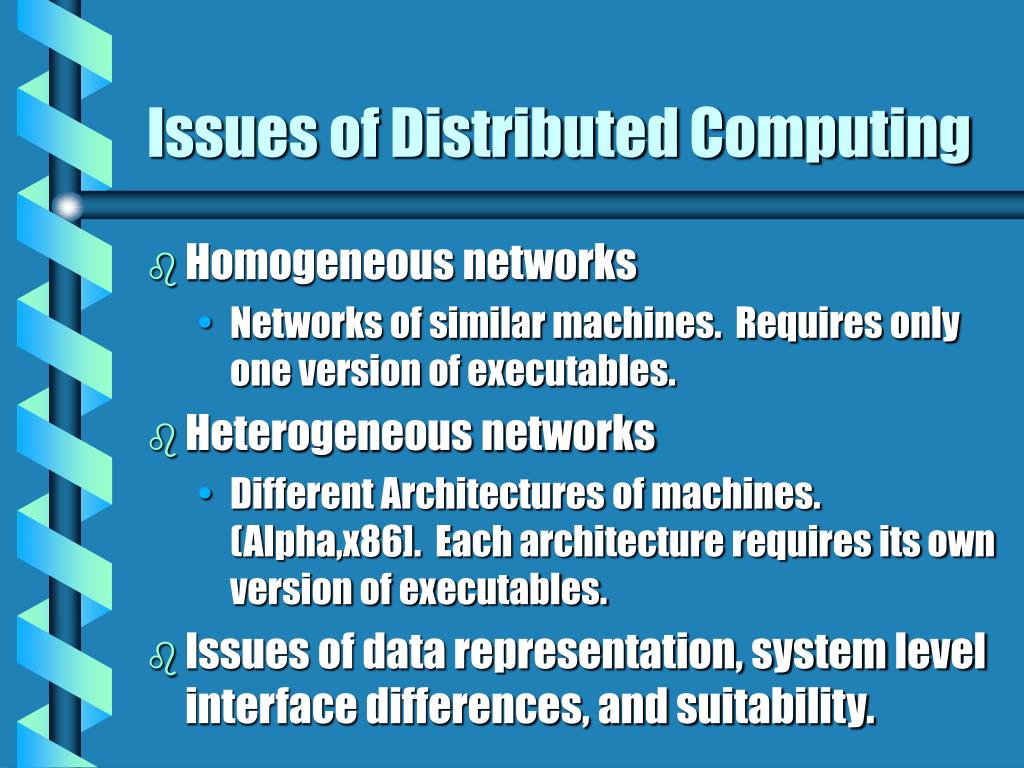

  3. Issues of Distributed Computing • Homogeneous networks • Networks of similar machines. Requires only one version of executables. • Heterogeneous networks • Different Architectures of machines. (Alpha,x86]. Each architecture requires its own version of executables. • Issues of data representation, system level interface differences, and suitability.

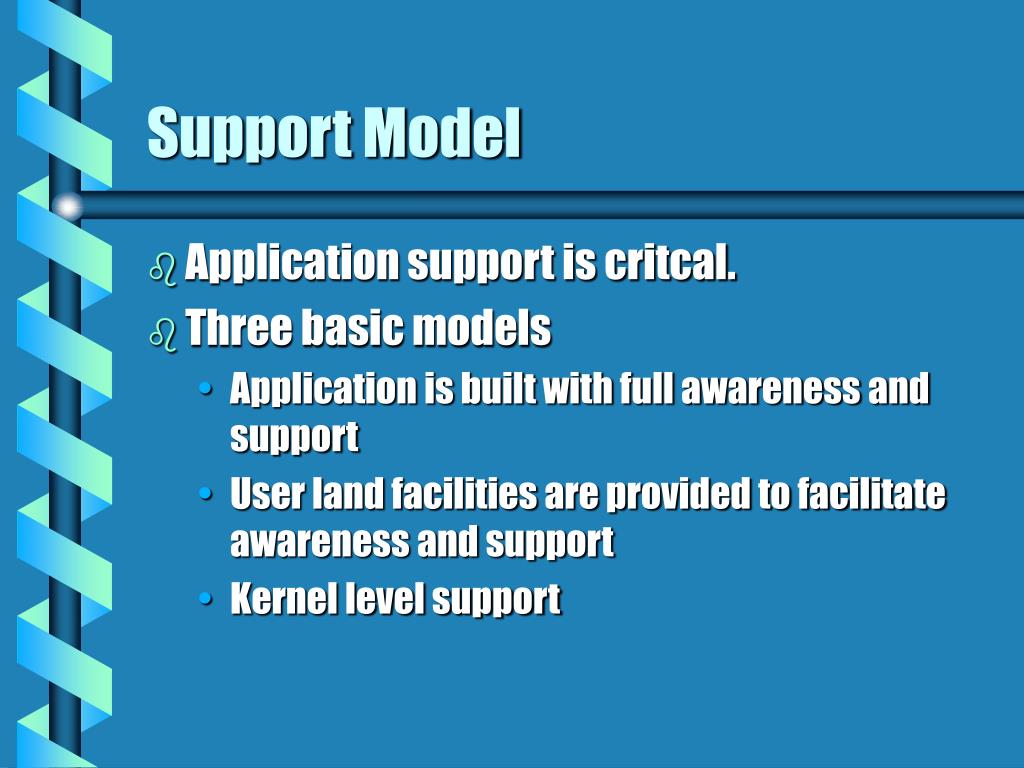

  4. Support Model • Application support is critcal. • Three basic models • Application is built with full awareness and support • User land facilities are provided to facilitate awareness and support • Kernel level support

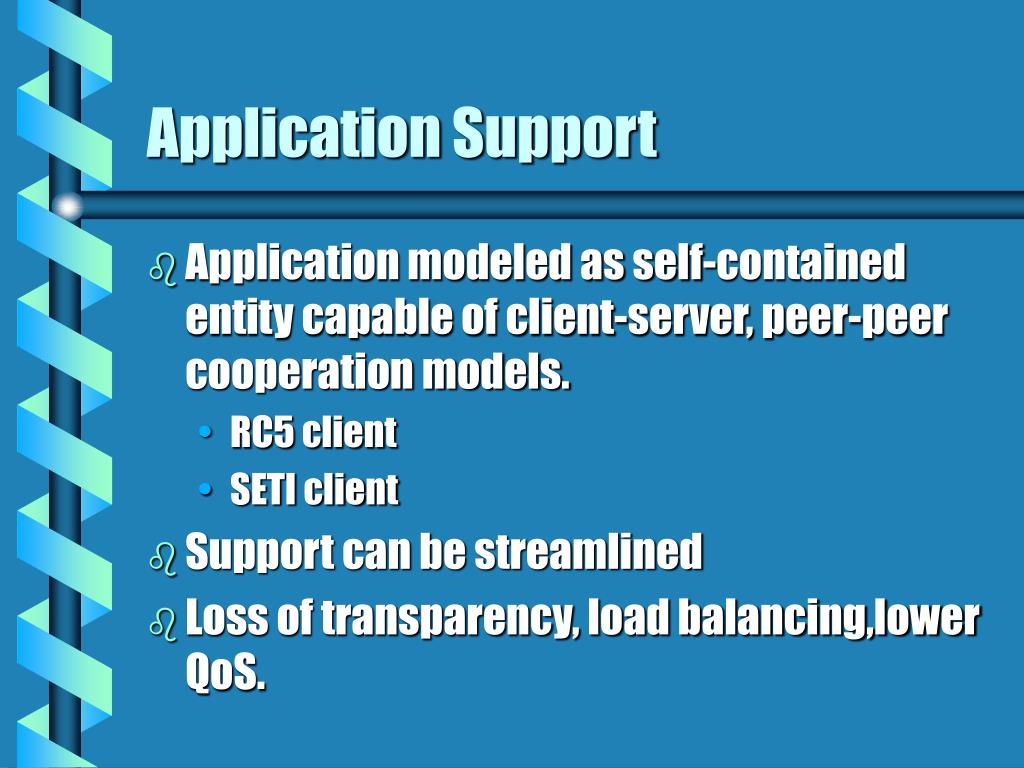

  5. Application Support • Application modeled as self-contained entity capable of client-server, peer-peer cooperation models. • RC5 client • SETI client • Support can be streamlined • Loss of transparency, load balancing,lower QoS.

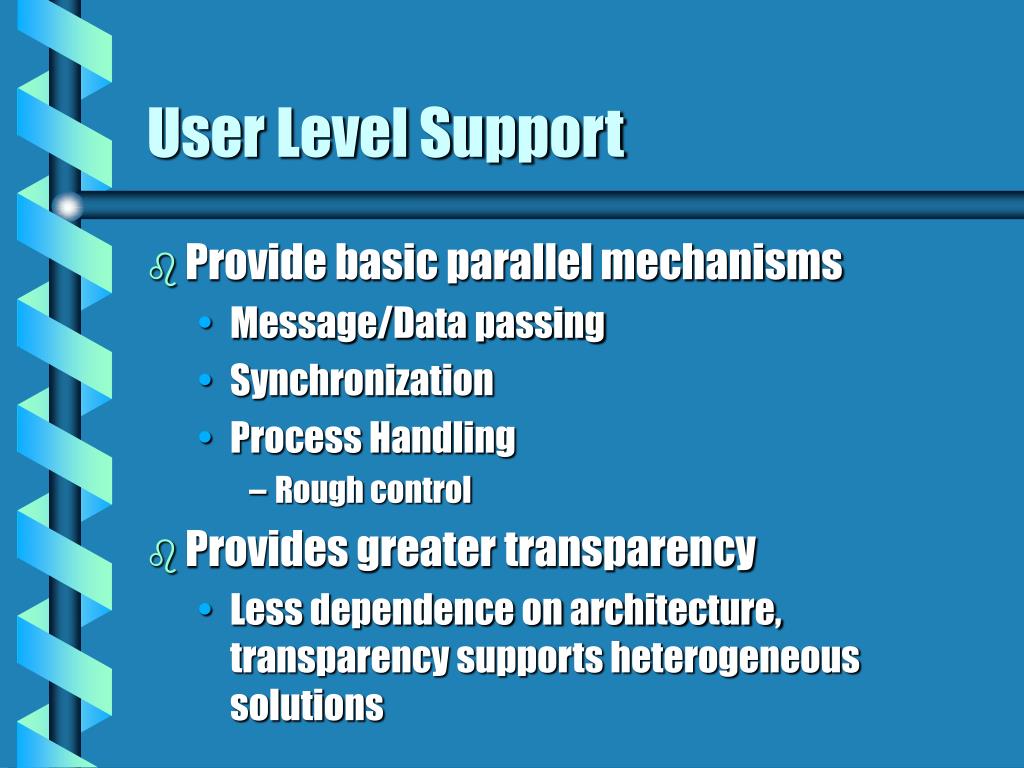

  6. User Level Support • Provide basic parallel mechanisms • Message/Data passing • Synchronization • Process Handling • Rough control • Provides greater transparency • Less dependence on architecture, transparency supports heterogeneous solutions

  7. Kernel Support • Provides system level support • Scheduling • Load Balancing • Process Migration • Resource Allocation • Doesn’t work well in heterogeneous configurations. • Process Migration increases communication costs

  8. Three Solutions • PVM - Parallel Virtual Machine • User Land Parallel Solution • Message Passing • MPI - Message Passing Interface • Standard • Several Implementations • User Land Support

  9. Three Solutions - continued • MOSIX - Linux Kernel Extensions • Provide dynamic scheduling • process migration • system level integration

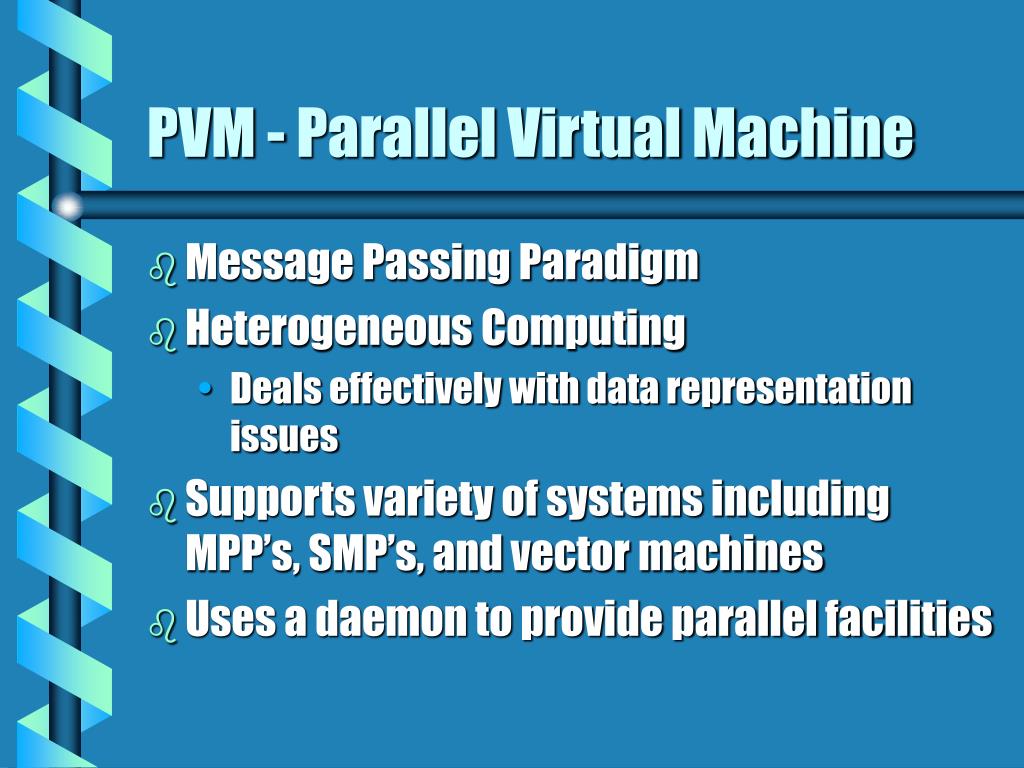

  10. PVM - Parallel Virtual Machine • Message Passing Paradigm • Heterogeneous Computing • Deals effectively with data representation issues • Supports variety of systems including MPP’s, SMP’s, and vector machines • Uses a daemon to provide parallel facilities

  11. PVM - continued • Tracks tasks using a unique system assigned ID called a TID • Supports grouping, and group level activities.

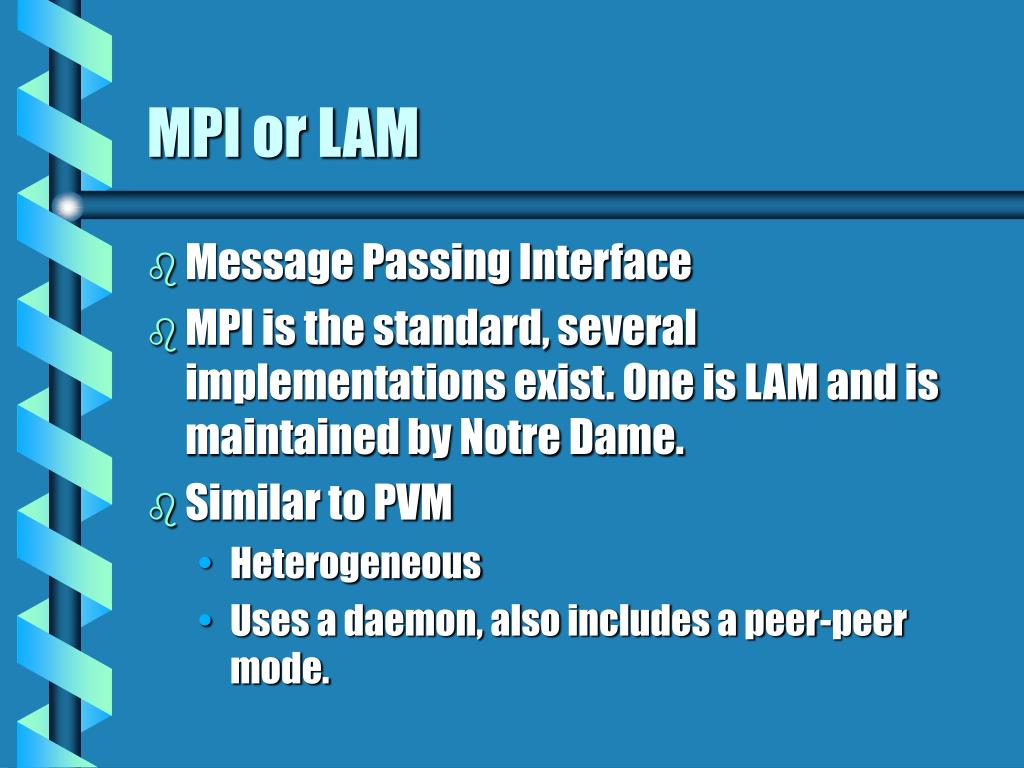

  12. MPI or LAM • Message Passing Interface • MPI is the standard, several implementations exist. One is LAM and is maintained by Notre Dame. • Similar to PVM • Heterogeneous • Uses a daemon, also includes a peer-peer mode.

  13. MPI - LAM - continued • LAM environment must be started explicitly • Provides compiler shells to handle program compilation • Nodes are dynamic • Suite of utilities to maintain the message passing virtual machine. • The parallelism is explicitly programmed

  14. MPI - LAM - continued • MPI addresses resource limitations. Uses a property called Guaranteed Envelope Resources to maintain integrity of processes.

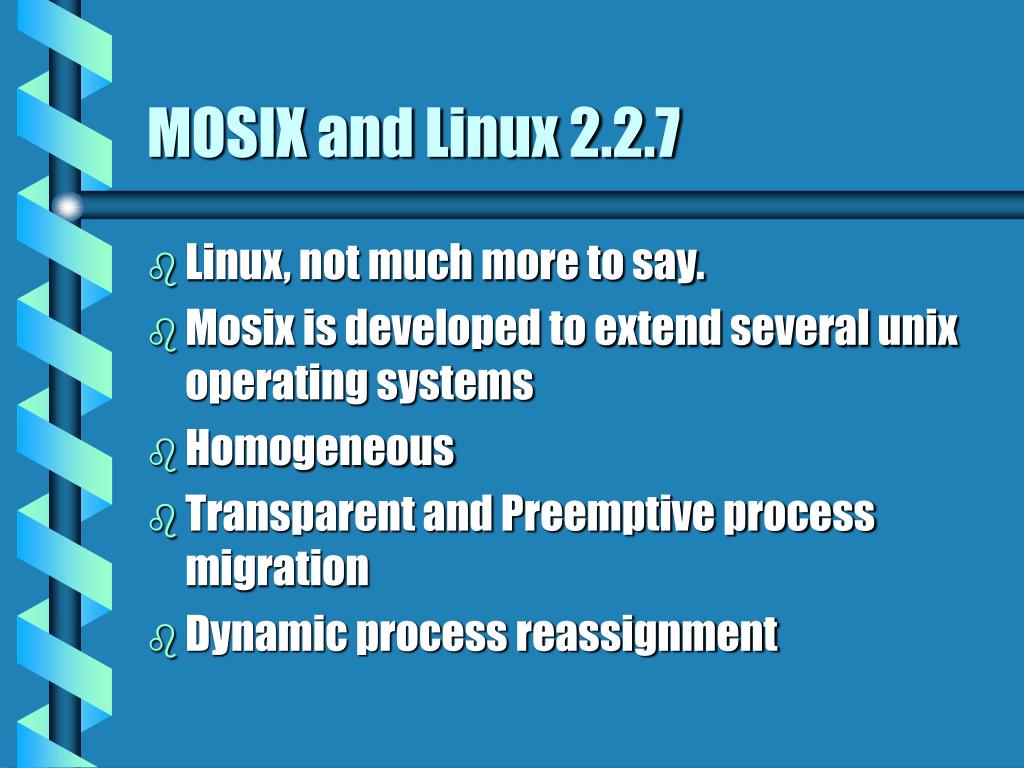

  15. MOSIX and Linux 2.2.7 • Linux, not much more to say. • Mosix is developed to extend several unix operating systems • Homogeneous • Transparent and Preemptive process migration • Dynamic process reassignment

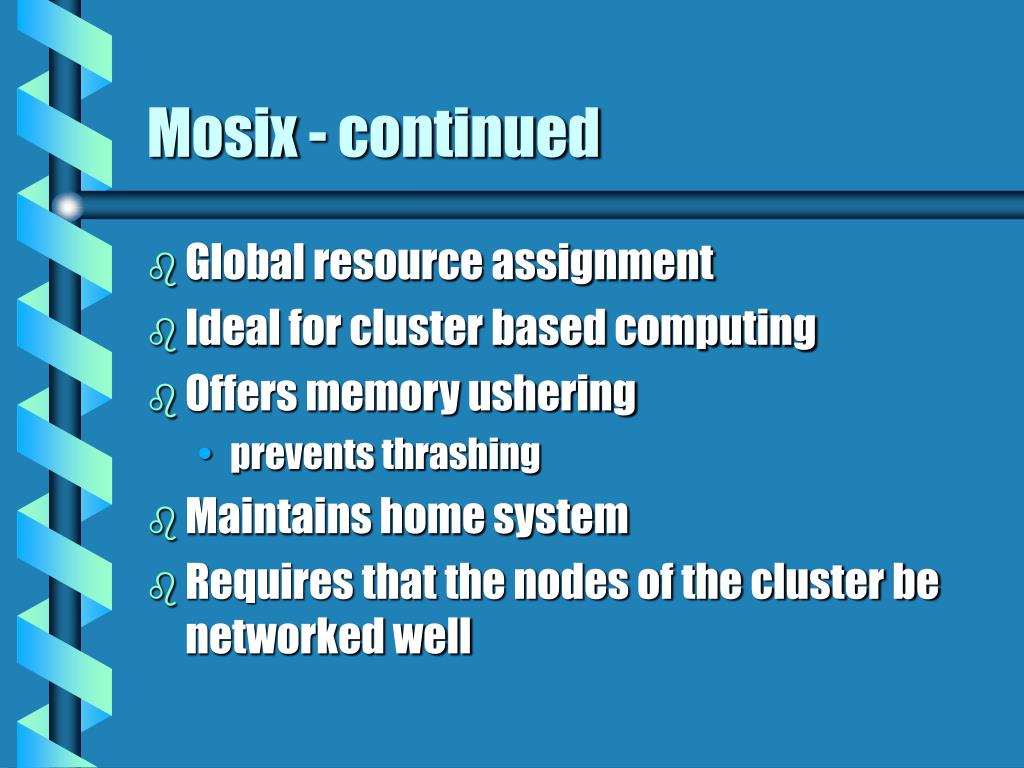

  16. Mosix - continued • Global resource assignment • Ideal for cluster based computing • Offers memory ushering • prevents thrashing • Maintains home system • Requires that the nodes of the cluster be networked well

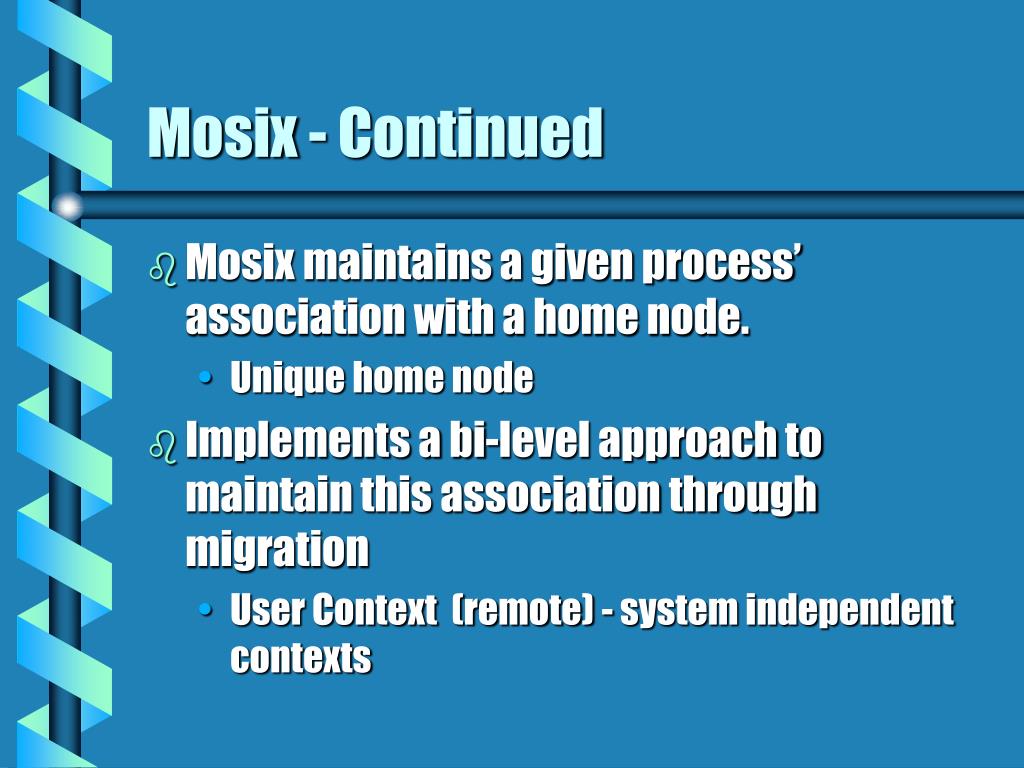

  17. Mosix - Continued • Mosix maintains a given process’ association with a home node. • Unique home node • Implements a bi-level approach to maintain this association through migration • User Context (remote) - system independent contexts

  18. Mosix - continued • Deputy - node dependent interface. Remains when process migrates from home node. • All system dependent calls are routed through remote to deputy at home system • gettimeofday • Initial assignment needs to be done by PVM or MPI. Mosix doesn’t handle this aspect.

  19. MOSIX - Migrated Process

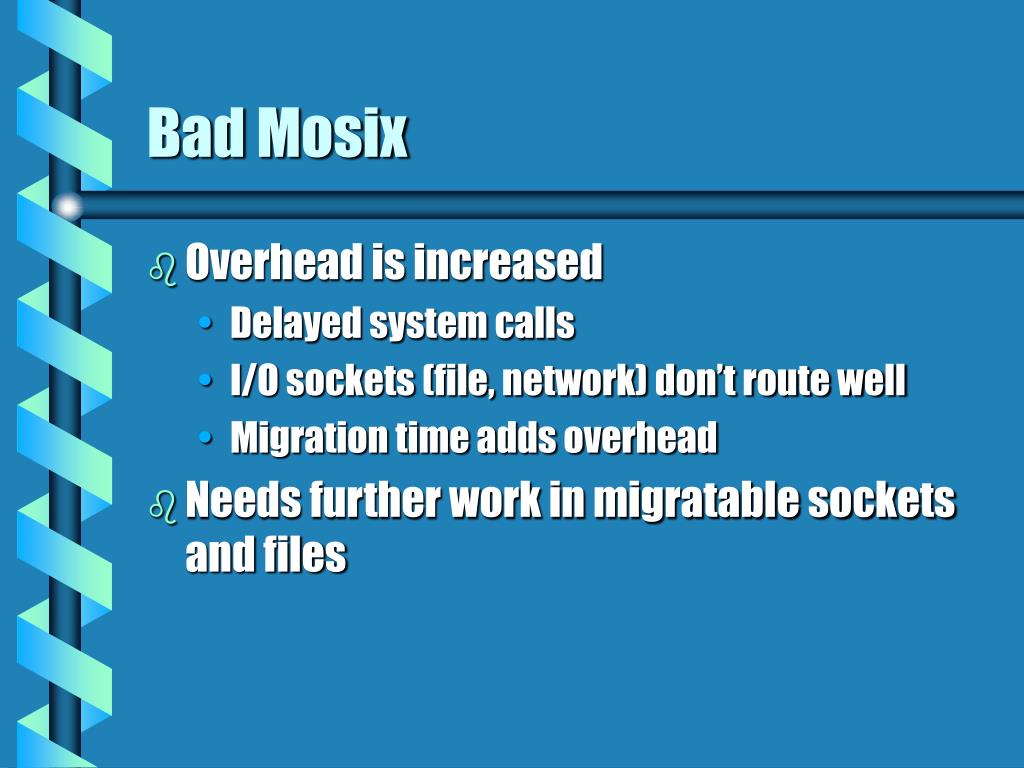

  20. Bad Mosix • Overhead is increased • Delayed system calls • I/O sockets (file, network) don’t route well • Migration time adds overhead • Needs further work in migratable sockets and files

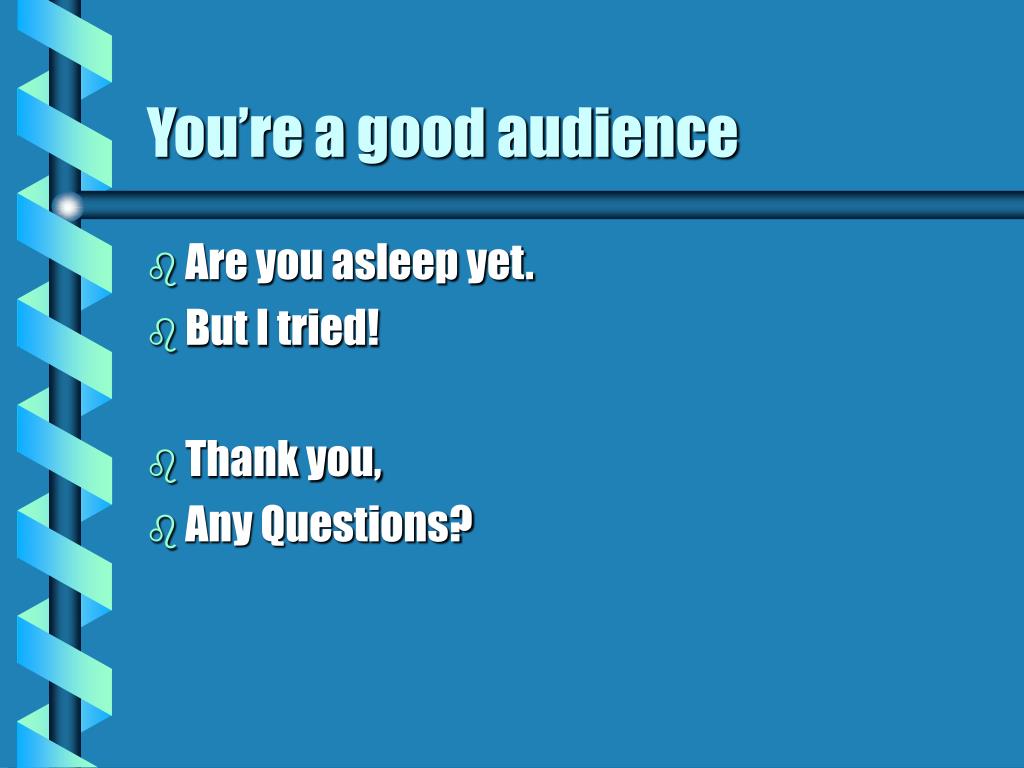

  21. You’re a good audience • Are you asleep yet. • But I tried! • Thank you, • Any Questions?
