SSL certs for server VMs

SSL certs for server VMs. Dave Funk EITC, October 2011. VMs are great, but…. Easy to create, too easy to recreate. VMs are great but …. Easy to create, too easy to recreate When recreating a VM need to remember to save previous configs, including SSL keys/csrs

Download Presentation

SSL certs for server VMs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

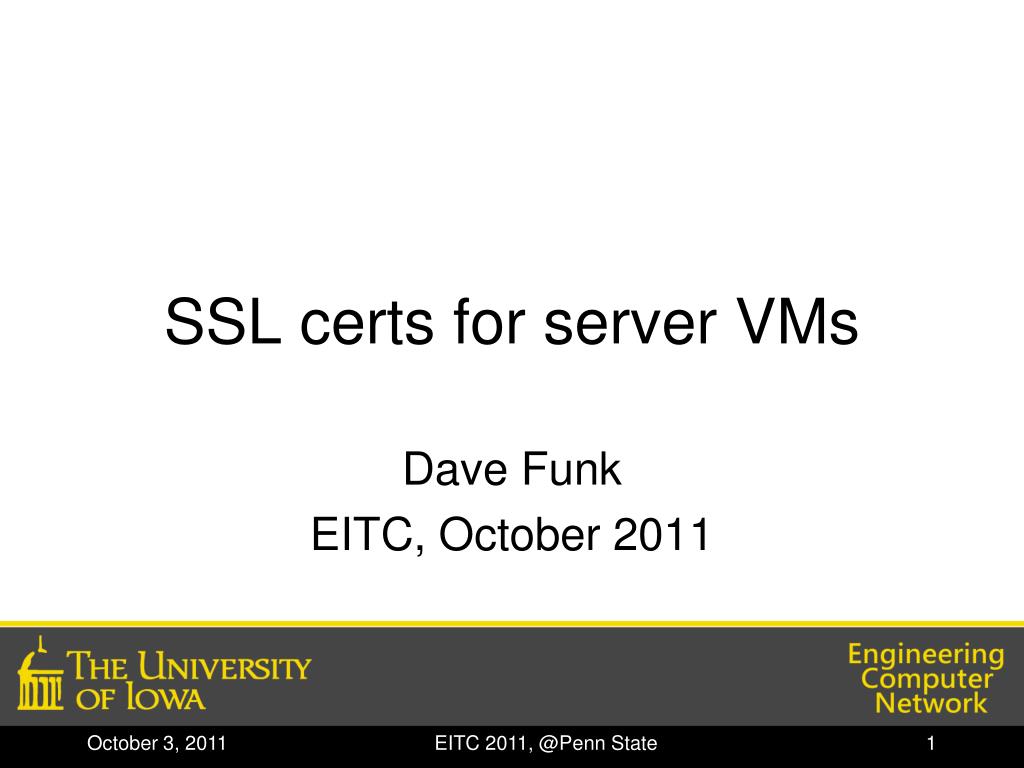

  1. SSL certs for server VMs Dave Funk EITC, October 2011 EITC 2011, @Penn State

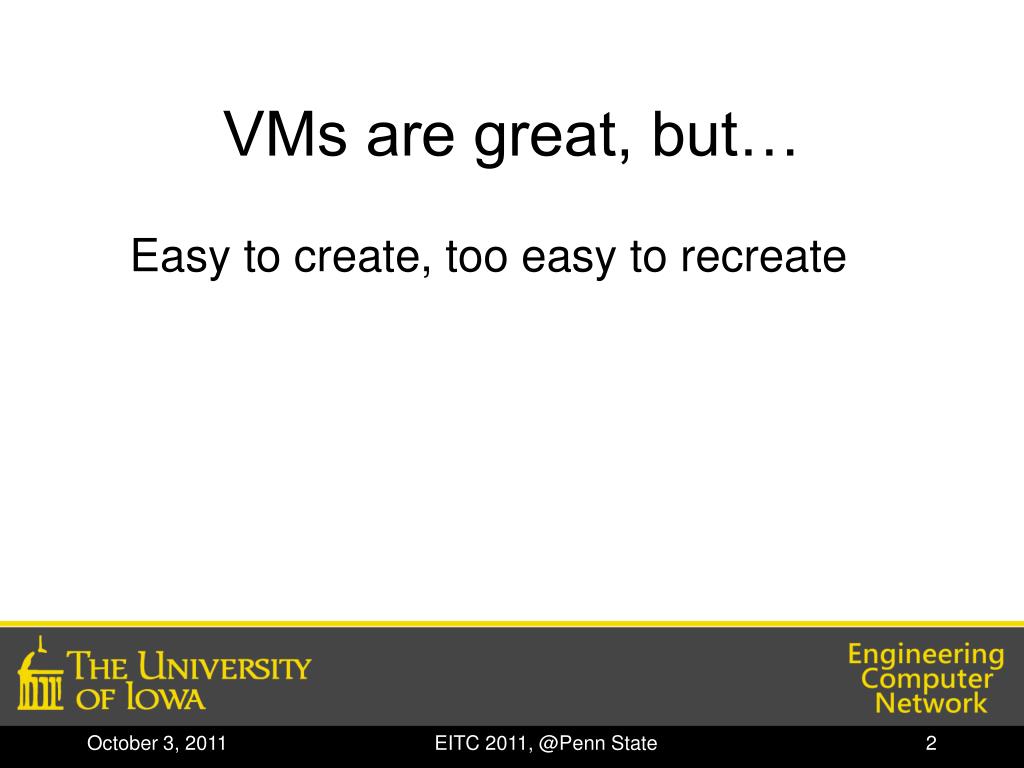

  2. VMs are great, but… Easy to create, too easy to recreate EITC 2011, @Penn State

  3. VMs are great but … • Easy to create, too easy to recreate • When recreating a VM need to remember to save previous configs, including SSL keys/csrs • Wouldn’t it be nice to be able to manage SSL keys/certs/csrs outside VMs EITC 2011, @Penn State

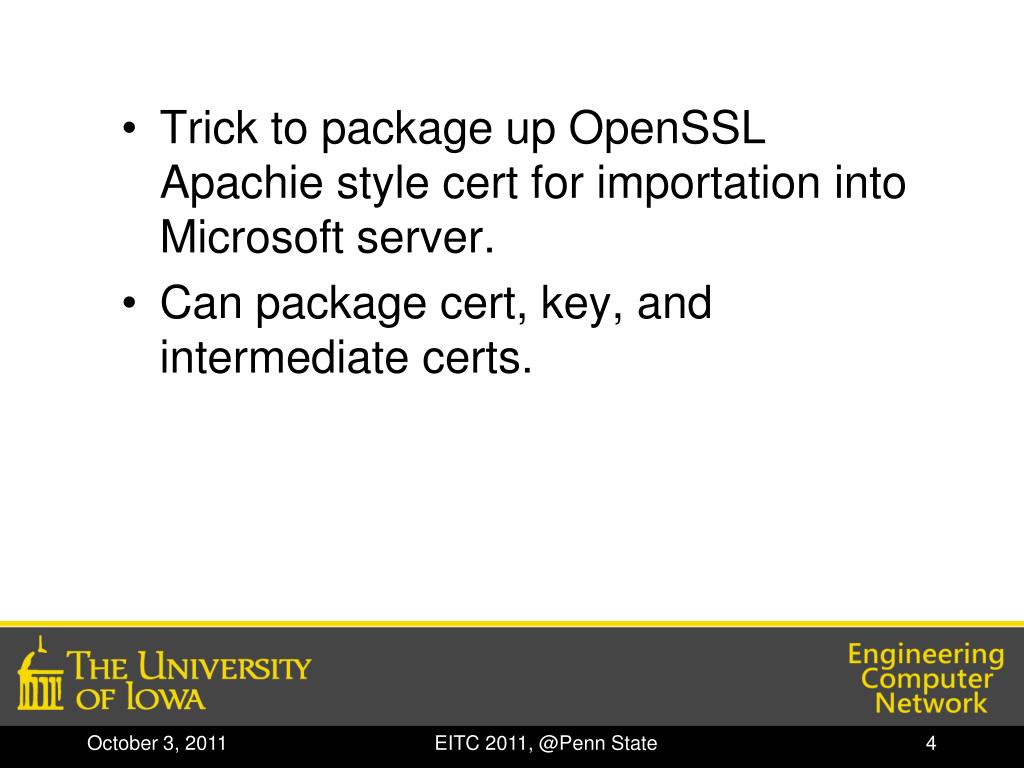

  4. Trick to package up OpenSSL Apachie style cert for importation into Microsoft server. • Can package cert, key, and intermediate certs. EITC 2011, @Penn State

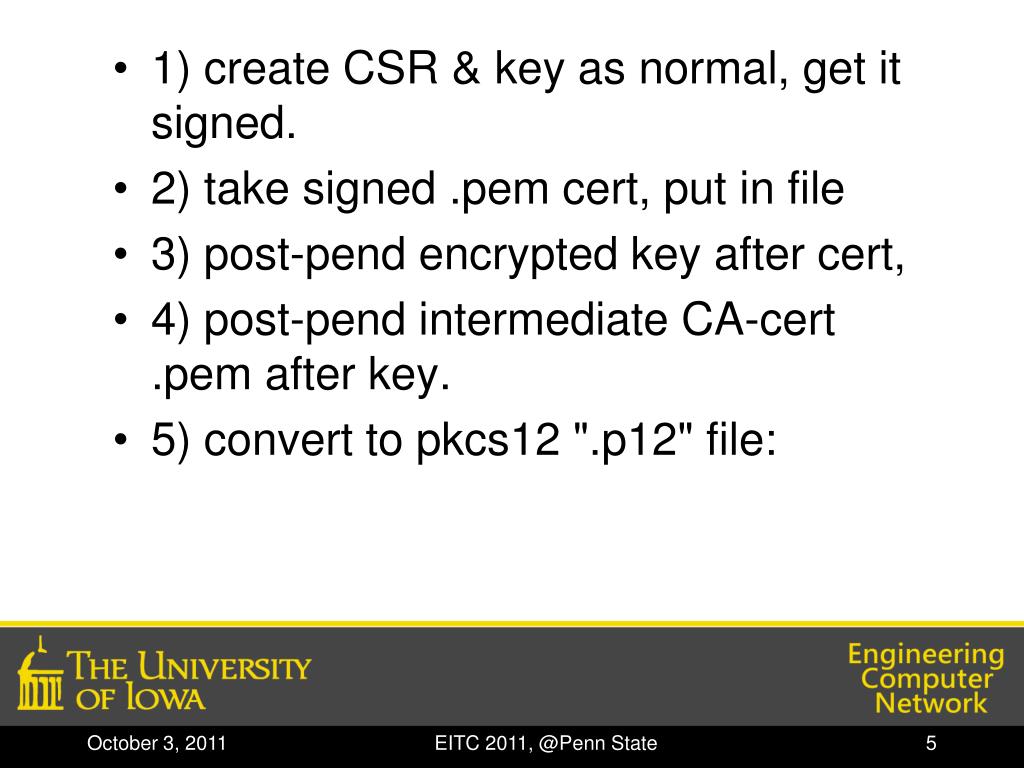

  5. 1) create CSR & key as normal, get it signed. • 2) take signed .pem cert, put in file • 3) post-pend encrypted key after cert, • 4) post-pend intermediate CA-cert .pem after key. • 5) convert to pkcs12 ".p12" file: EITC 2011, @Penn State

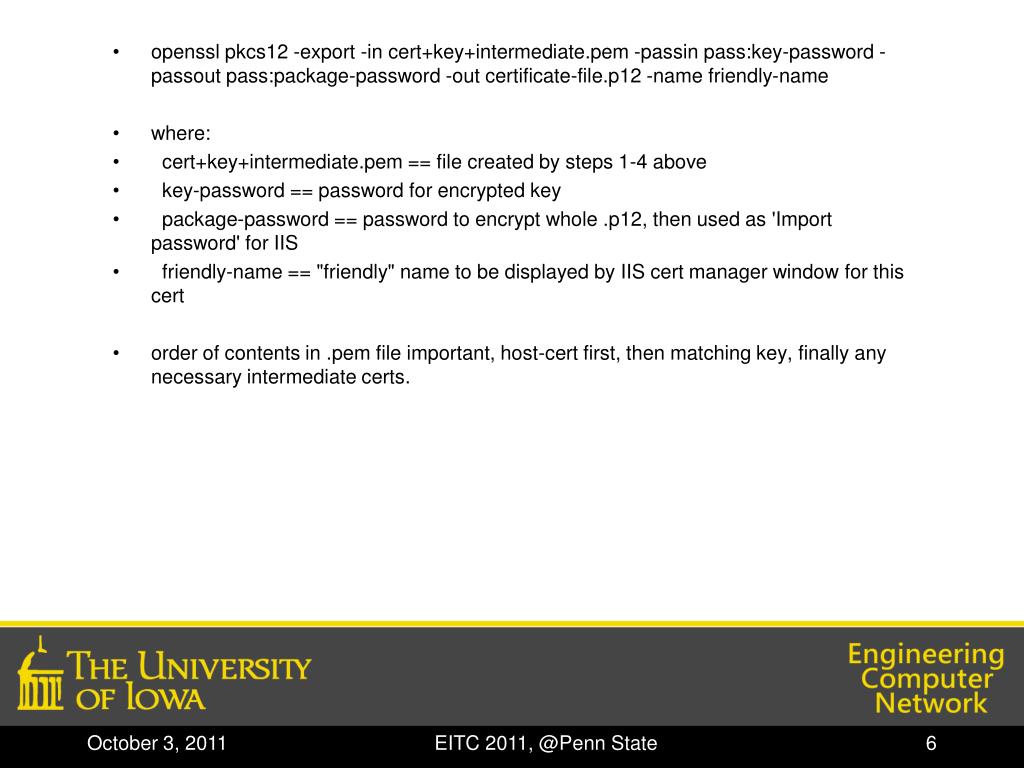

  6. openssl pkcs12 -export -in cert+key+intermediate.pem -passin pass:key-password -passout pass:package-password -out certificate-file.p12 -name friendly-name • where: • cert+key+intermediate.pem == file created by steps 1-4 above • key-password == password for encrypted key • package-password == password to encrypt whole .p12, then used as 'Import password' for IIS • friendly-name == "friendly" name to be displayed by IIS cert manager window for this cert • order of contents in .pem file important, host-cert first, then matching key, finally any necessary intermediate certs. EITC 2011, @Penn State
