  1. ---VLAN Trunk CCNA (640-802)

  2. 多个交换机上的VLAN应用 工程VLAN 市场VLAN 会计VLAN 1楼 Fast Ethernet 2楼 3楼

  3. 交换机之间的VLAN通信3-1 如何实现交换机之间的VLAN通信? 每个VLAN一条链路? 如果有100个VLAN怎么办呢? VLAN 1 VLAN 1 VLAN 2 VLAN 2 VLAN 3 VLAN 3

  4. 交换机之间的VLAN通信3-2 如何实现交换机之间的VLAN通信? 只使用一条链路,那么来自多个VLAN的数据如何标识? VLAN 1 VLAN 1 VLAN 2 VLAN 2 VLAN 3 VLAN 3

  5. 交换机之间的VLAN通信3-3 例如:三个分别来自1、2、3班级的学生,到另一个学校去,分别要参观1、2、3班的上课情况,对方的学校怎么识别他们分别应该去哪个班级? 出发前加个标识,再把标识的方法告诉对方! ③ ② ①

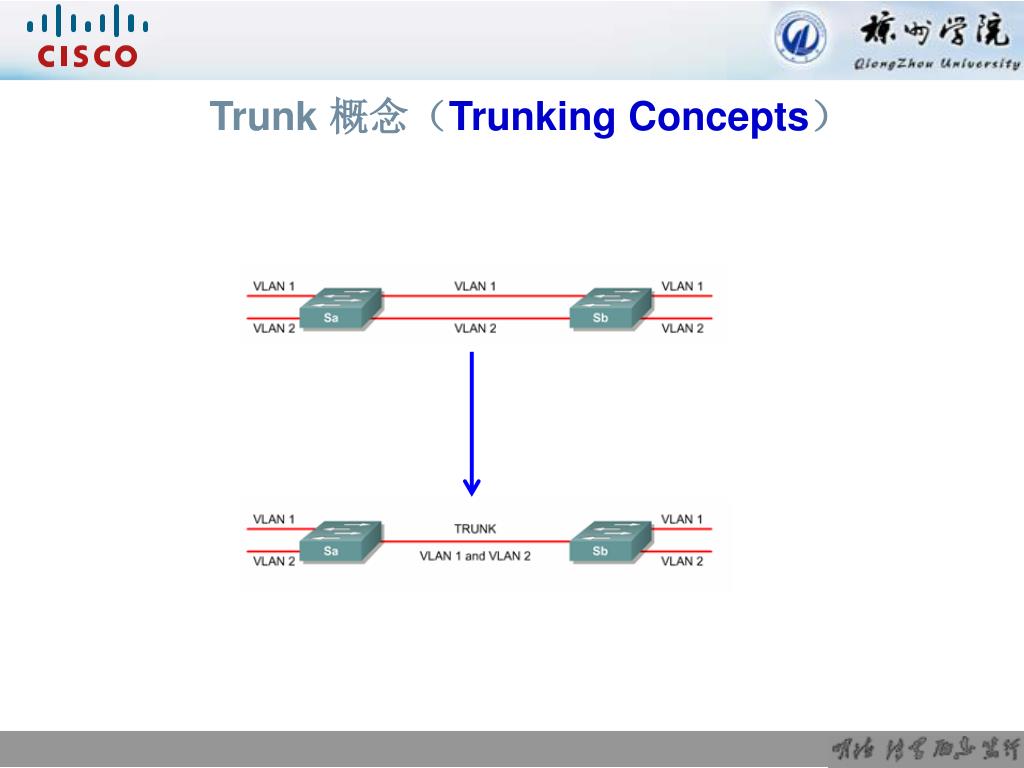

  6. Trunk 概念(Trunking Concepts)

  7. Trunk 概念(Trunking Concepts) • 1.Trunk是两个交换机之间网络信息传递的物理和逻辑的连接 • A trunk is a physical and logical connection between two switches across which network traffic travels. • 2.一个Trunk就是支持传递多个VLAN信息的点到点的链路 • A trunk is a point-to-point link that supports several VLANs. • 3.Trunk的目的是保留端口。 • The purpose of a trunk is to conserve ports. • 4.Trunk将在一个物理链路上绑定多个虚链路,从而在两台交换机之间允许在单一物理链路上传输多个VLAN的信息Trunking will bundle multiple virtual links over one physical link by allowing the traffic for several VLANs to travel over a single cable between the switches.

  8. Trunk 操作(Trunking Operation) • 1.Trunk机制有两种,帧过滤和帧标记,帧标记被IEEE标准化 • Currently two types of trunking mechanisms exist, frame filtering and frame tagging. Frame tagging has been adopted as the standard trunking mechanism by IEEE. • 2.帧标记在帧中插入标识符,这样可以更容易管理 • Trunking protocols that use a frame tagging mechanism assign an identifier to the frames to make their management easier. • 3.在以太网中,帧标记有两种方案 • Tagging schemes for Ethernet segments : • ISL – Cisco私有(Cisco proprietary Inter-Switch Link protocol) • 802.1Q – IEEE标准(IEEE standard )

  9. 定义Trunk(Defining a Trunk) sw2(config)#int f0/12 sw2(config-if)#switchport mode trunk sw2(config-if)#switchport trunk encapsulation dot1q

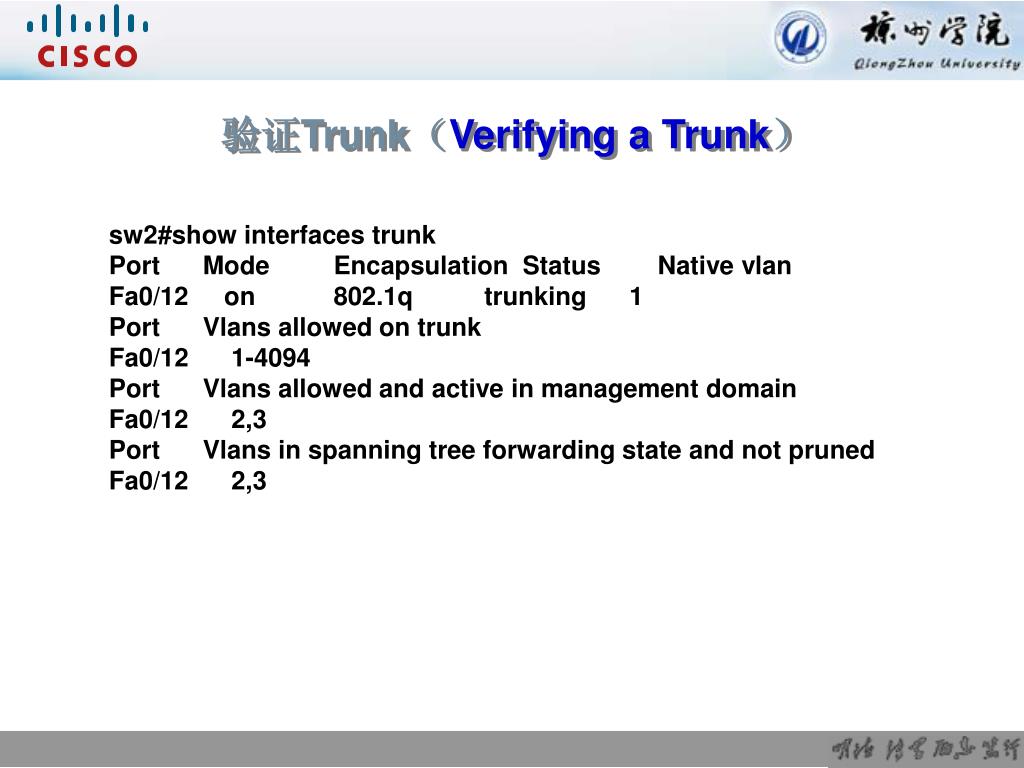

  10. 验证Trunk(Verifying a Trunk) sw2#show interfaces trunk Port Mode Encapsulation Status Native vlan Fa0/12 on 802.1q trunking 1 Port Vlans allowed on trunk Fa0/12 1-4094 Port Vlans allowed and active in management domain Fa0/12 2,3 Port Vlans in spanning tree forwarding state and not pruned Fa0/12 2,3

  11. VLANs and Trunking Trunk 提供了在一个网络内的交换机之间高效的通信

  12. VLAN Trunk 协议(VLAN Trunking Protocol) • 1.VTP是一个通告VLAN信息的信息系统 • A messaging system that advertises VLAN configuration information • 2.VTP维护整个管理域VLAN信息的一致性 • Maintains VLAN configuration consistency throughout a common administrative domain • 3.VTP仅在Trunk端口上发送通告 • VTP sends advertisements on trunk ports only VTP Domain “szpt” 3.同步到最新的VLAN信息(Sync to the latest vlan information) 2 1.有新VLAN加入(“new vlan added”)

  13. VLAN标识 交换机给每个去往其他交换机的数据帧打上VLAN标识 VLAN 1 VLAN 1 VLAN 1标记 接入链路(Access) 中继链路(Trunk) VLAN 2 VLAN 2 VLAN 3 VLAN 3 VLAN 3标记

  14. VLAN标识的种类 以太网上实现中继可用两种封装类型 ISL(Cisco私有协议) IEEE 802.1Q

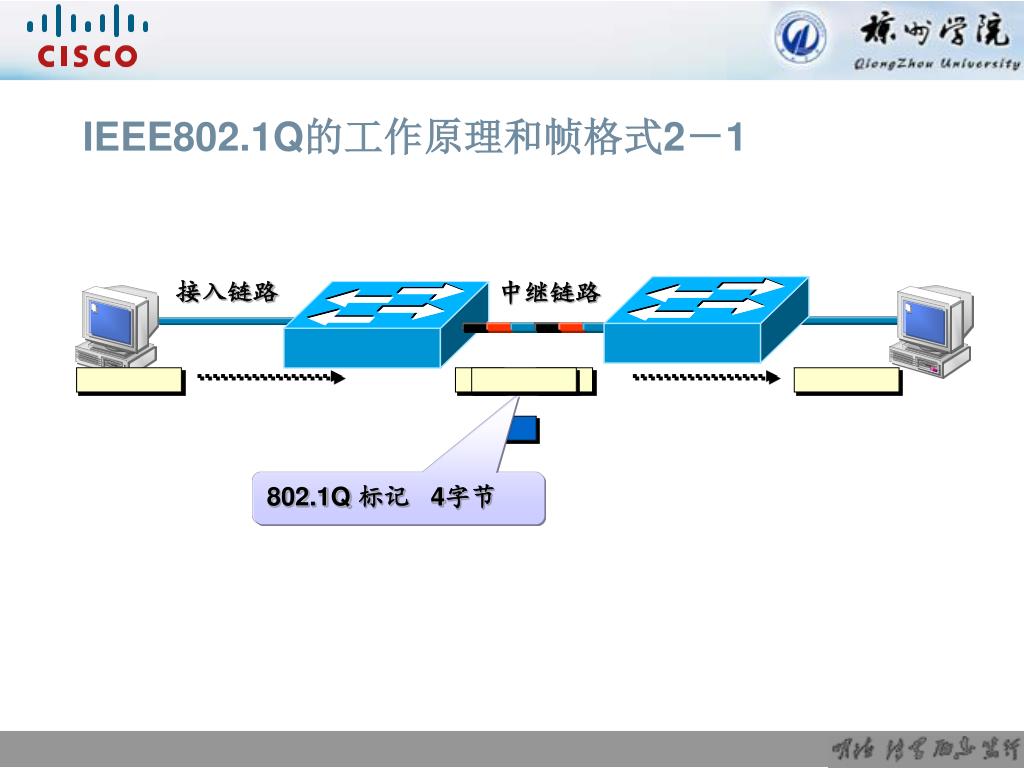

  15. IEEE802.1Q的工作原理和帧格式2-1 接入链路 中继链路 802.1Q 标记 4字节

  16. IEEE802.1Q的工作原理和帧格式2-2 DA SA Type CRC Data DA SA Tag Type CRC Data CFI VLANID TPID Priority 带有IEEE802.1Q标记的以太网帧 标准以太网帧 12bit,可标识的VLAN ID为4096个 TCI

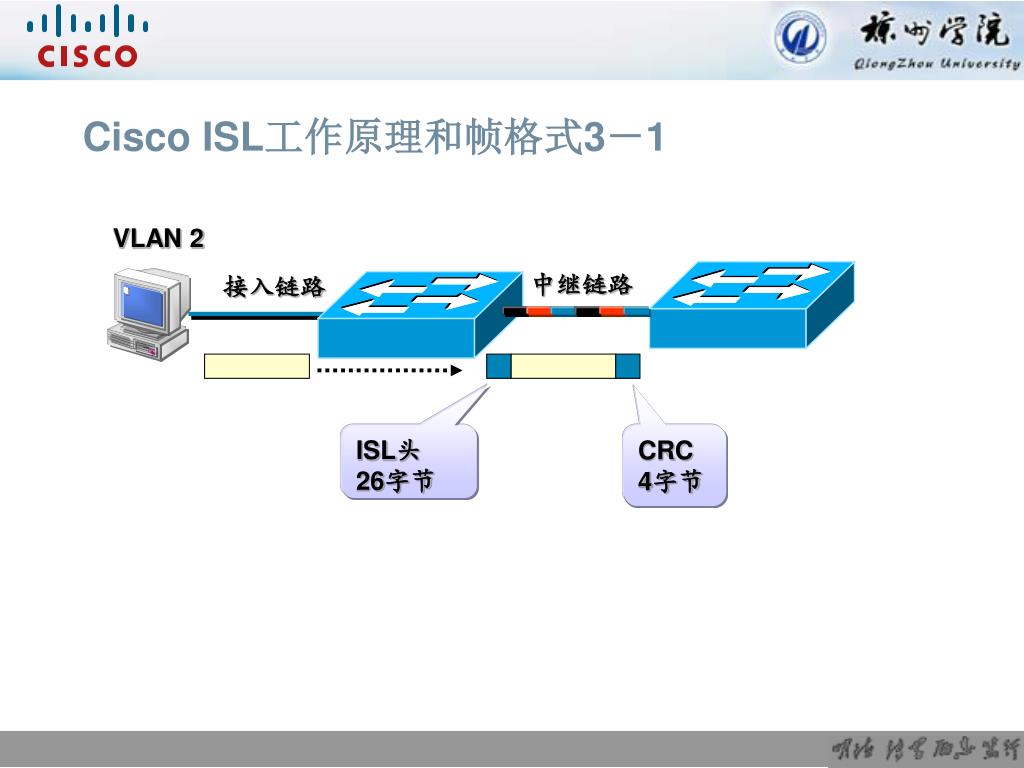

  17. Cisco ISL工作原理和帧格式3-1 VLAN 2 中继链路 接入链路 ISL头 26字节 CRC 4字节

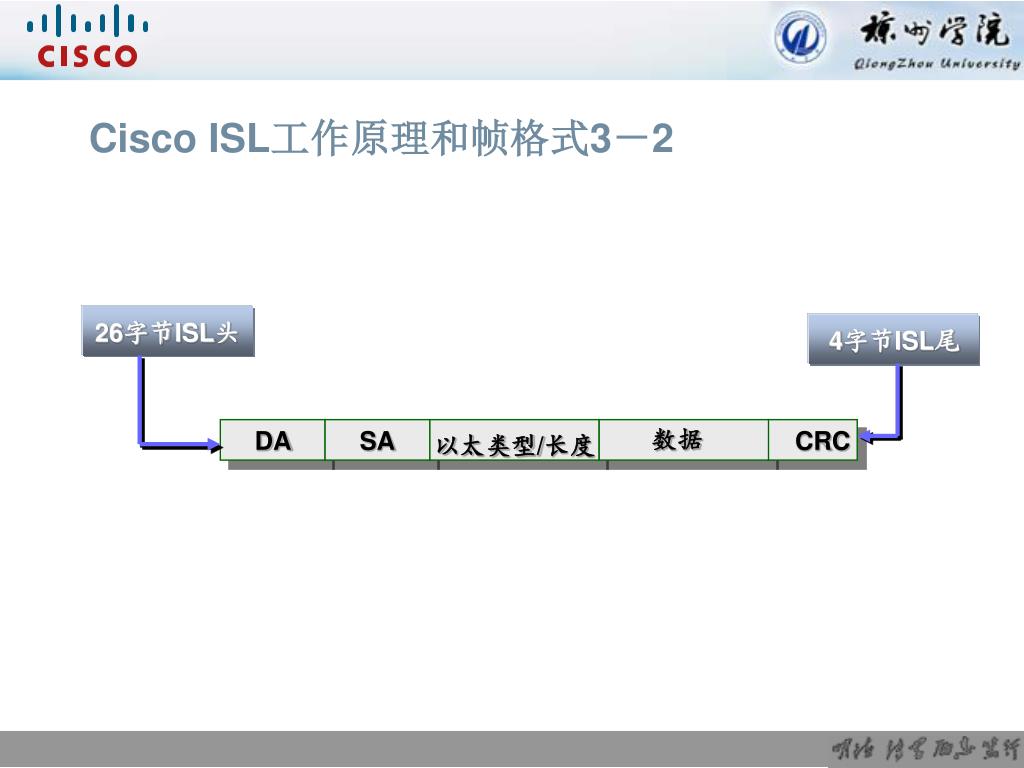

  18. Cisco ISL工作原理和帧格式3-2 数据 DA SA CRC 以太类型/长度 26字节ISL头 4字节ISL尾

  19. Cisco ISL工作原理和帧格式3-3

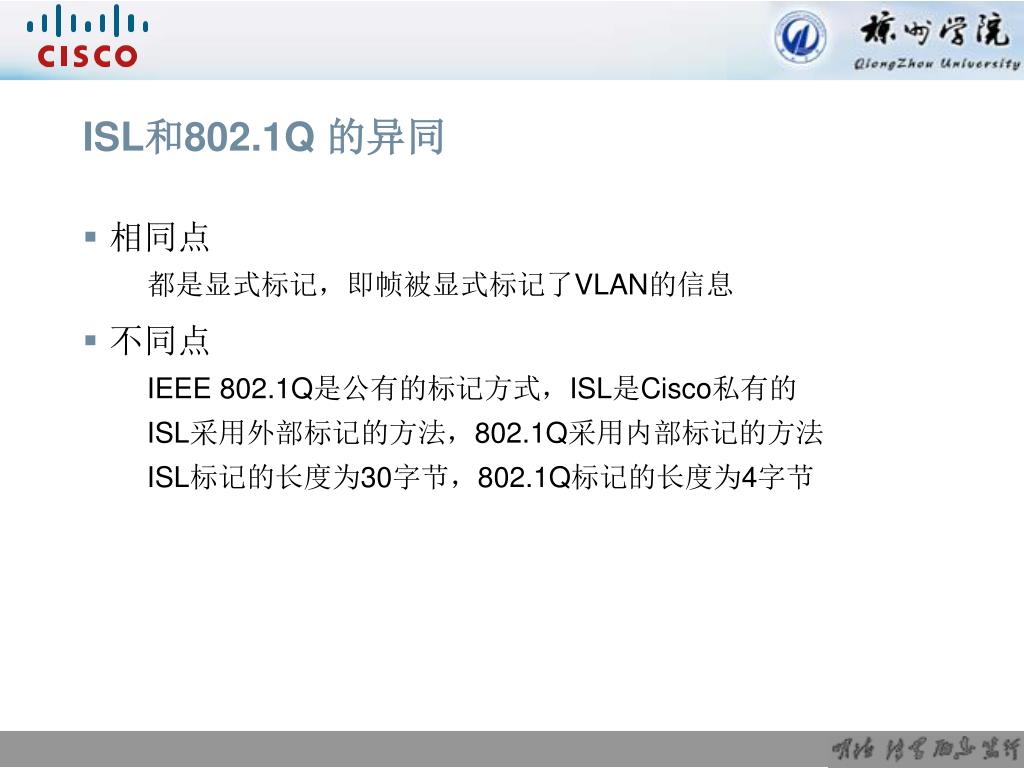

  20. ISL和802.1Q 的异同 相同点 都是显式标记,即帧被显式标记了VLAN的信息 不同点 IEEE 802.1Q是公有的标记方式,ISL是Cisco私有的 ISL采用外部标记的方法,802.1Q采用内部标记的方法 ISL标记的长度为30字节,802.1Q标记的长度为4字节

  21. 中继的几种模式和协商2-1 VLAN 1 模式为Access 动态:希望成为Trunk 动态:可以成为Trunk 模式为Trunk VLAN 2 VLAN 3

  22. 中继的几种模式和协商2-2 模式

  23. 配置接口为Trunk模式 Switch(config)# interface interface-id Switch(config-if)#switchport mode ? access Set trunking mode to ACCESS unconditionally dynamic Set trunking mode to dynamically negotiate access or trunk mode trunk Set trunking mode to TRUNK unconditionally Switch(config-if)#switchport mode trunk 接口为接入模式 接口为动态协商模式 接口为中继模式

  24. 配置接口为动态协商模式 Switch(config-if)#switchport mode dynamic ? auto Set trunking mode dynamic negotiation parameter to AUTO desirable Set trunking mode dynamic negotiation parameter to DESIRABLE 自动 企望

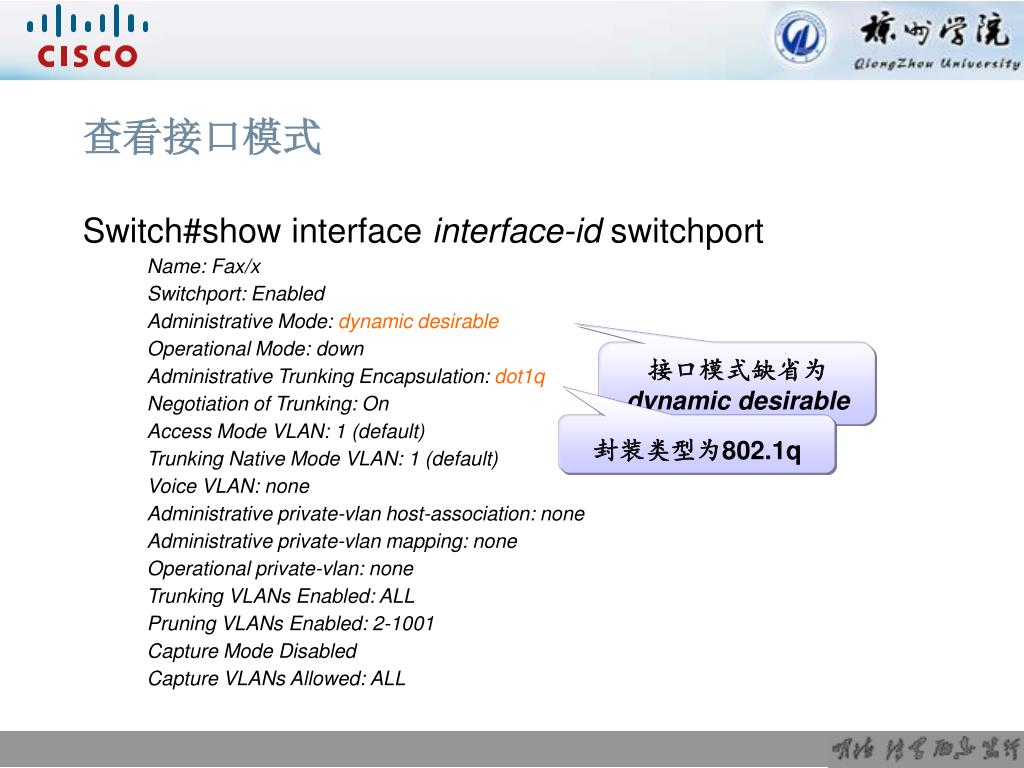

  25. 查看接口模式 Switch#show interface interface-id switchport Name: Fax/x Switchport: Enabled Administrative Mode: dynamic desirable Operational Mode: down Administrative Trunking Encapsulation: dot1q Negotiation of Trunking: On Access Mode VLAN: 1 (default) Trunking Native Mode VLAN: 1 (default) Voice VLAN: none Administrative private-vlan host-association: none Administrative private-vlan mapping: none Operational private-vlan: none Trunking VLANs Enabled: ALL Pruning VLANs Enabled: 2-1001 Capture Mode Disabled Capture VLANs Allowed: ALL 接口模式缺省为 dynamic desirable 封装类型为802.1q

  26. 配置VLAN Trunk实例 VLAN 1 VLAN 1 Port 1-3 Port 24 Port 24 VLAN 2 VLAN 2 Port 4-10 SW1 VLAN 3 Port 11-23 VLAN 3

  27. 配置VLAN Trunk 4-1 第一步:在交换机上添加VLAN SW1#vlan database SW1(vlan)#vlan 2 VLAN 2 added: Name: VLAN0002 SW1(vlan)#vlan 3 VLAN 3 added: Name: VLAN0003 SW1(vlan)#exit APPLY completed. Exiting....

  28. 配置VLAN Trunk4-2 第二步:将接口添加到相应的VLAN中 SW1#config terminal SW1(config)#interface range f0/4 - 10 SW1(config-if-range)#switchport access vlan 2 SW1(config)#interface range f0/11 - 23 SW1(config-if-range)#switchport access vlan 3

  29. 配置VLAN Trunk4-3 第三步:配置交换机之间互联的端口为Trunk SW1(config)#interface f0/24 SW1(config-if)#switchport mode trunk

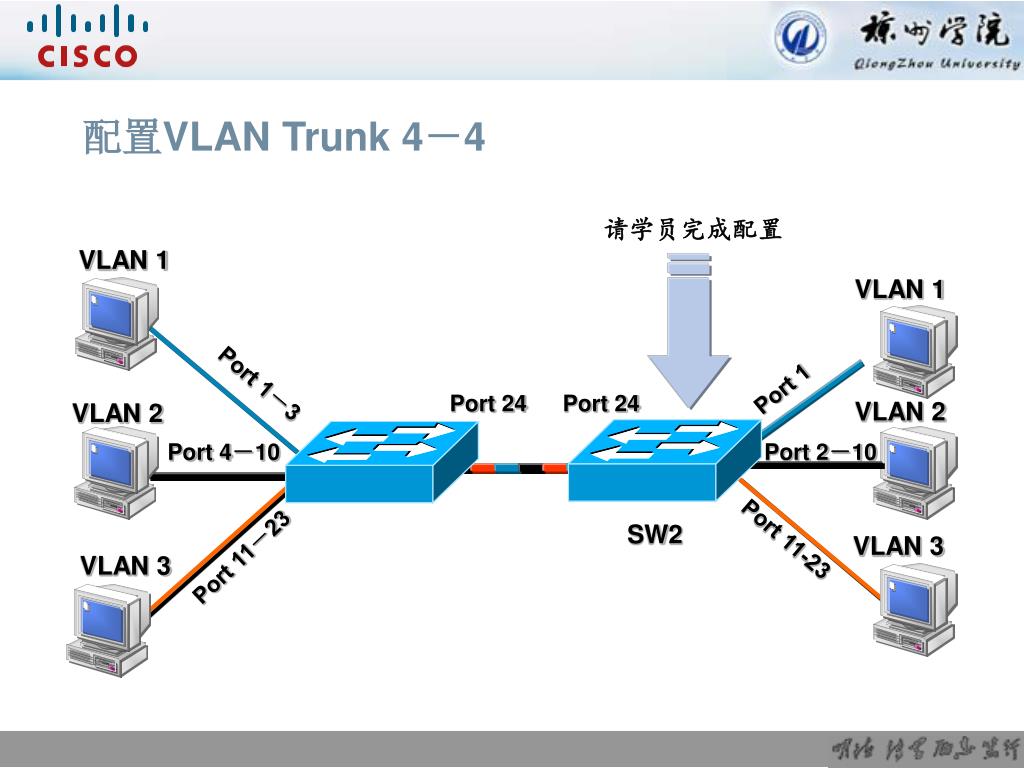

  30. 配置VLAN Trunk4-4 请学员完成配置 VLAN 1 VLAN 1 Port 1 Port 1-3 Port 24 Port 24 VLAN 2 VLAN 2 Port 4-10 Port 2-10 SW2 Port 11-23 VLAN 3 Port 11-23 VLAN 3

  31. 查看端口状态 SW1#show interface f0/24 switchport Name: Fa0/24 Switchport: Enabled Administrative Mode: trunk Operational Mode: trunk Administrative Trunking Encapsulation: dot1q Operational Trunking Encapsulation: dot1q Negotiation of Trunking: On Access Mode VLAN: 1 (default) Trunking Native Mode VLAN: 1 (default) Voice VLAN: none Administrative private-vlan host-association: none Administrative private-vlan mapping: none Operational private-vlan: none Trunking VLANs Enabled: ALL Pruning VLANs Enabled: 2-1001 Capture Mode Disabled Capture VLANs Allowed: ALL 接口模式配置为Trunk 接口工作模式为Trunk Trunk协议类型为802.1q Trunk可以承载所有的VLAN

  32. 从Trunk中添加、删除Vlan 去除VLAN Switch (config-if )# switchport trunk allowed vlan removevlan-list 添加VLAN Switch (config-if)# switchport trunk allowed vlan add vlan-list 检查中继端口允许VLAN的列表 Switch # show interface interface-id switchport

  33. 从Trunk中删除Vlan配置实例 SW1(config-if)#switchport trunk allowed vlan remove 2 SW1(config-if)#end SW1#show interface f0/24 switchport Name: Fa0/24 Switchport: Enabled Administrative Mode: trunk Operational Mode: trunk Administrative Trunking Encapsulation: dot1q Operational Trunking Encapsulation: dot1q Negotiation of Trunking: On Access Mode VLAN: 1 (default) Trunking Native Mode VLAN: 1 (default) Voice VLAN: none Administrative private-vlan host-association: none Administrative private-vlan mapping: none Operational private-vlan: none Trunking VLANs Enabled: 1,3-1005 Pruning VLANs Enabled: 2-1001 Capture Mode Disabled VALN 2已经被移除,此时,连接在SW1上的VLAN 2的主机与连接在SW2上的VLAN 2的主机之间不能通

  34. 排除故障 排除故障的步骤 了解故障情况 分析故障可能的原因 通过检测定位故障 分段检测 分层检测 不断缩小故障范围 排除故障

  35. 使用show命令检查配置 查看端口状态 SW1#show interface interface-id switchport 查看VLAN信息 SW1#show vlan brief 查看配置 SW1#show run
