  1. Ontology materialization from relational database sources using D2RQ Rajashree Deka Tetherless World Constellation Rensselaer Polytechnic Institute

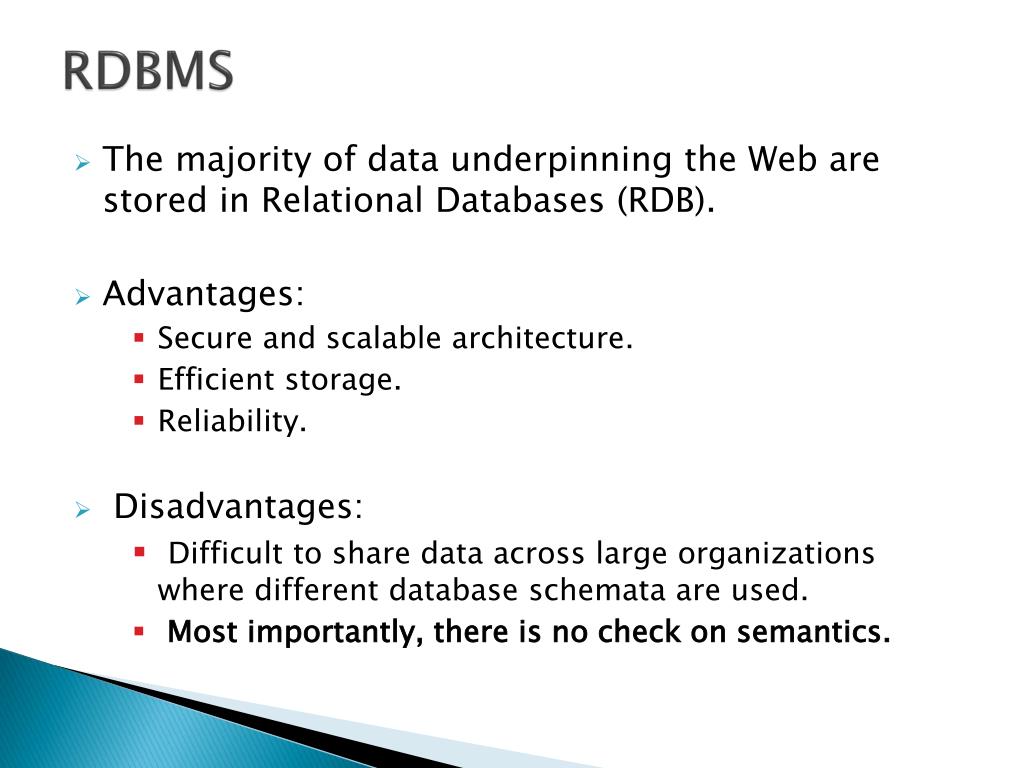

  2. RDBMS • The majority of data underpinning the Web are stored in Relational Databases (RDB). • Advantages: • Secure and scalable architecture. • Efficient storage. • Reliability. • Disadvantages: • Difficult to share data across large organizations where different database schemata are used. • Most importantly, there is no check on semantics.

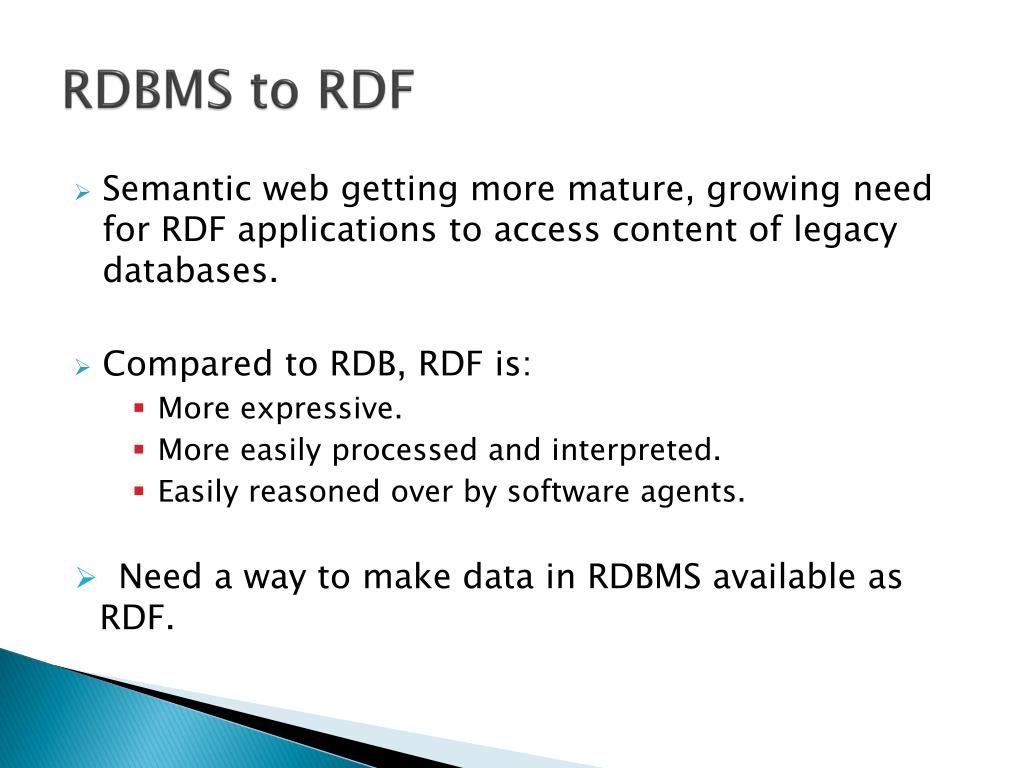

  3. RDBMS to RDF • Semantic web getting more mature, growing need for RDF applications to access content of legacy databases. • Compared to RDB, RDF is: • More expressive. • More easily processed and interpreted. • Easily reasoned over by software agents. • Need a way to make data in RDBMS available as RDF.

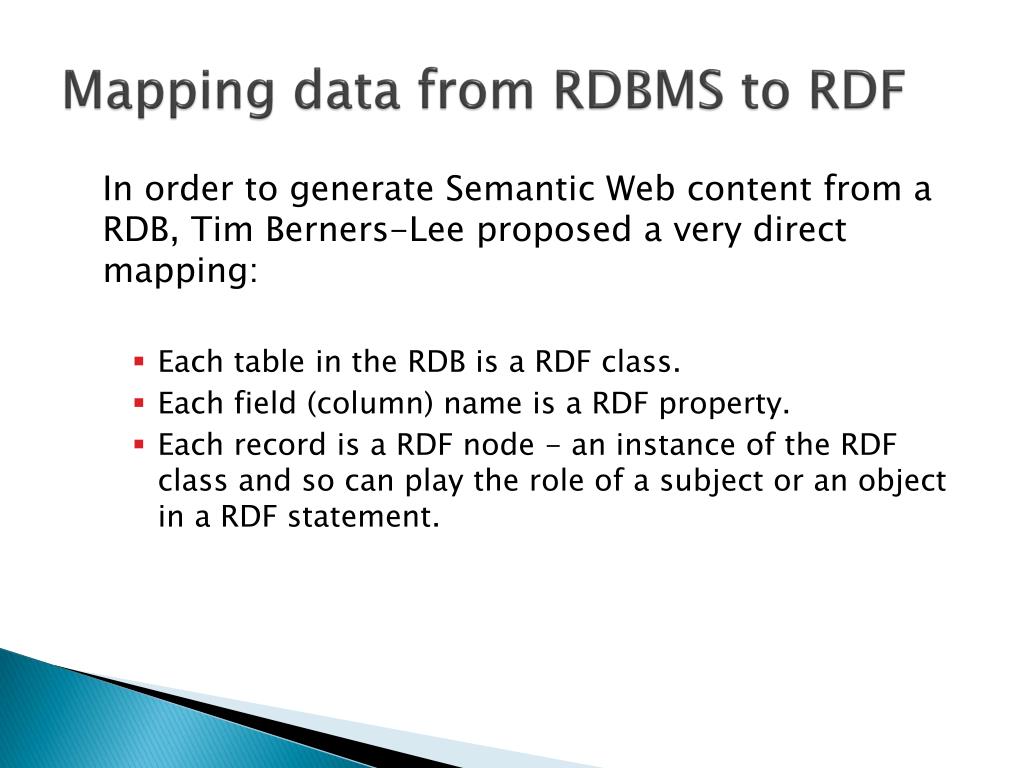

  4. Mapping data from RDBMS to RDF In order to generate Semantic Web content from a RDB, Tim Berners-Lee proposed a very direct mapping: • Each table in the RDB is a RDF class. • Each field (column) name is a RDF property. • Each record is a RDF node - an instance of the RDF class and so can play the role of a subject or an object in a RDF statement.

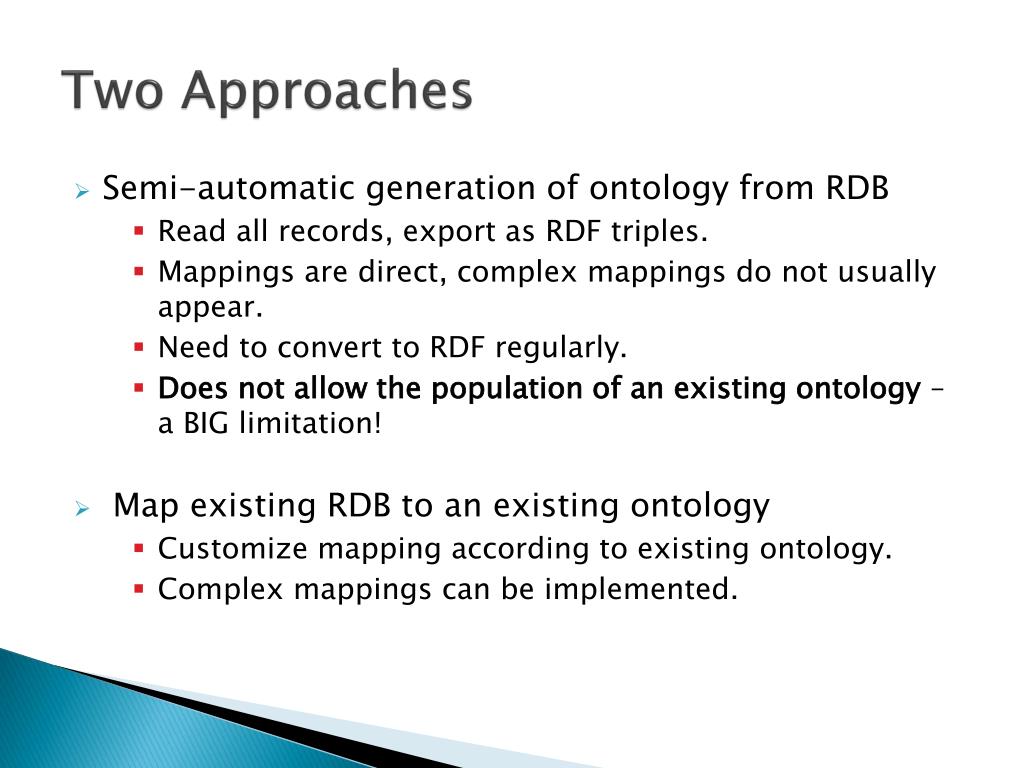

  5. Two Approaches • Semi-automatic generation of ontology from RDB • Read all records, export as RDF triples. • Mappings are direct, complex mappings do not usually appear. • Need to convert to RDF regularly. • Does not allow the population of an existing ontology – a BIG limitation! • Map existing RDB to an existing ontology • Customize mapping according to existing ontology. • Complex mappings can be implemented.

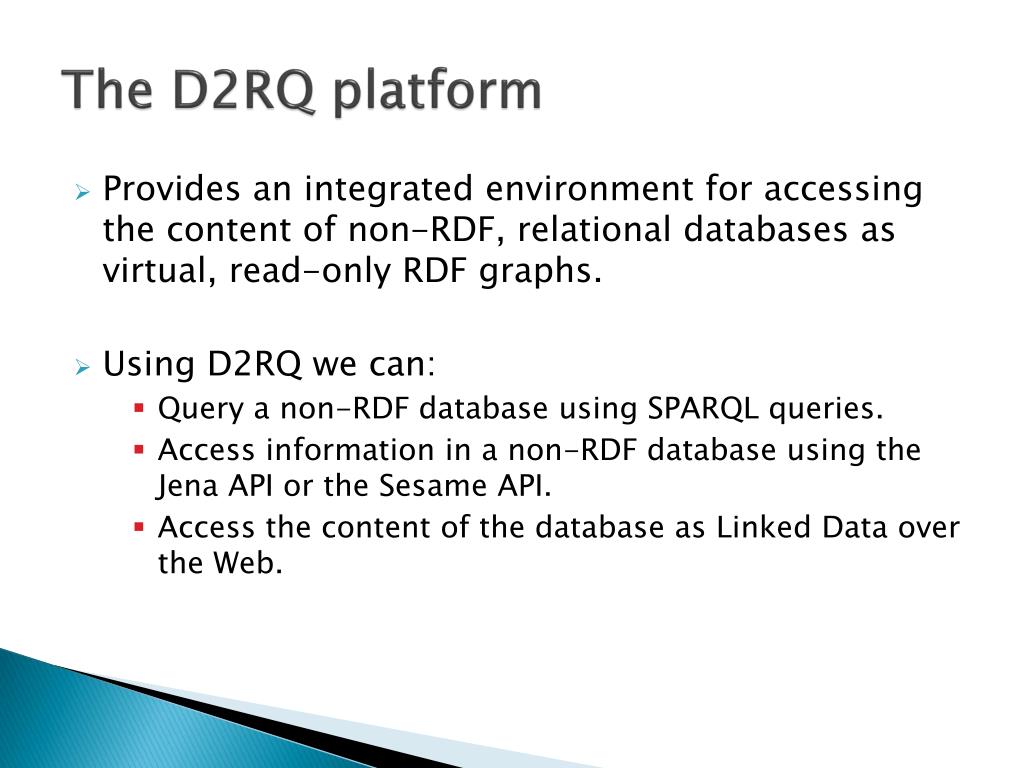

  6. The D2RQ platform • Provides an integrated environment for accessing the content of non-RDF, relational databases as virtual, read-only RDF graphs. • Using D2RQ we can: • Query a non-RDF database using SPARQL queries. • Access information in a non-RDF database using the Jena API or the Sesame API. • Access the content of the database as Linked Data over the Web.

  7. The D2RQ platform • D2RQ mapping language – describes the relation between ontology and RDB • D2RQ engine – uses mappings to rewrite Jena and Sesame API calls to SQL queries. • D2R server - provides a Linked Data view, a HTML view for debugging and a SPARQL Protocol endpoint over the database.

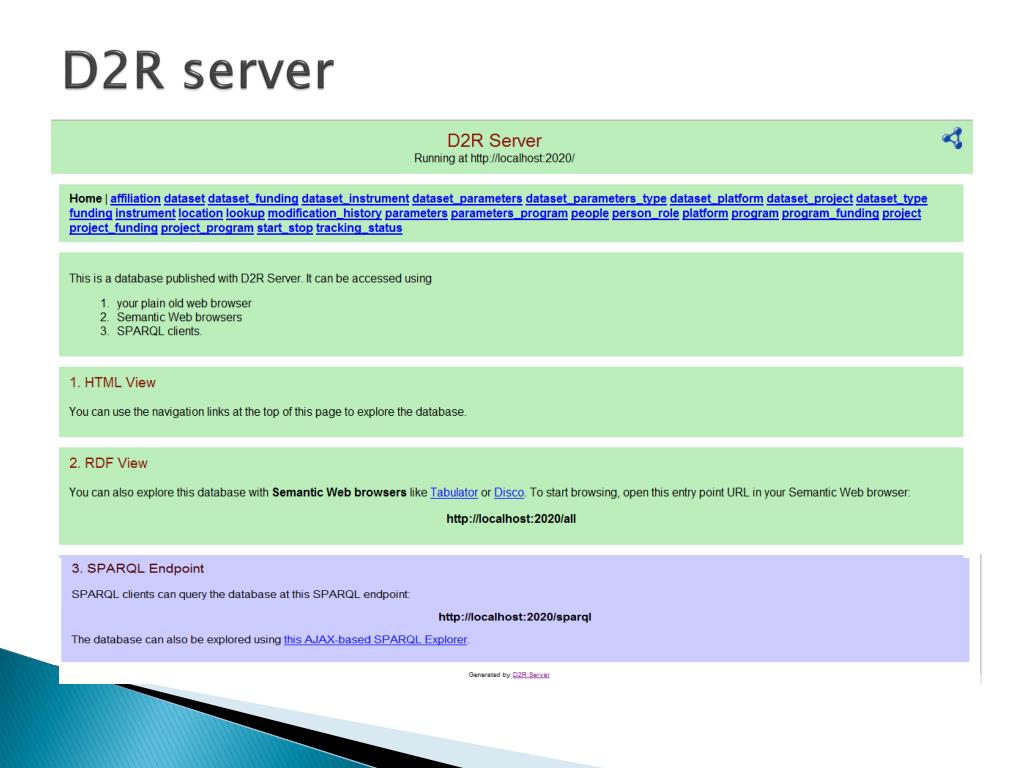

  8. D2R server

  9. More about D2RQ • D2RQ mapping language formally defined by http://www4.wiwiss.fu-berlin.de/bizer/d2rq/0.1/ • D2RQ namespace is defined by http://www.wiwiss.fu-berlin.de/suhl/bizer/D2RQ/0.1# • Database compatibility: • Oracle • MySQL • PostgreSQL • Microsoft SQL Server • ODBC data sources (e.g. Microsoft Access) - mapping generator and automatic detection of column types do not work.

  10. Command line tools Two command line tools (only on Windows and Unix systems ): • Mapping generator: • Analyzes database schema. • Generates a default mapping file. • Resultant D2RQ map is an RDF document in N3 format. • Mapping can be used as-is or can be customized. • Dump script: • Writes the content of the RDB into a single RDF file. • Supported syntaxes are "RDF/XML" (the default), "RDF/XML-ABBREV", "N3", "N-TRIPLE".

  11. D2RQ mapping – how it works Ontology is mapped to a database schema using: • d2rq:ClassMaps – Represents a class or a group of similar classes in the ontology. Specifies how instances of the class are identified. • d2rq:PropertyBridges – A ClassMap has a set of PropertyBridges which specify how the properties of an instance are created.

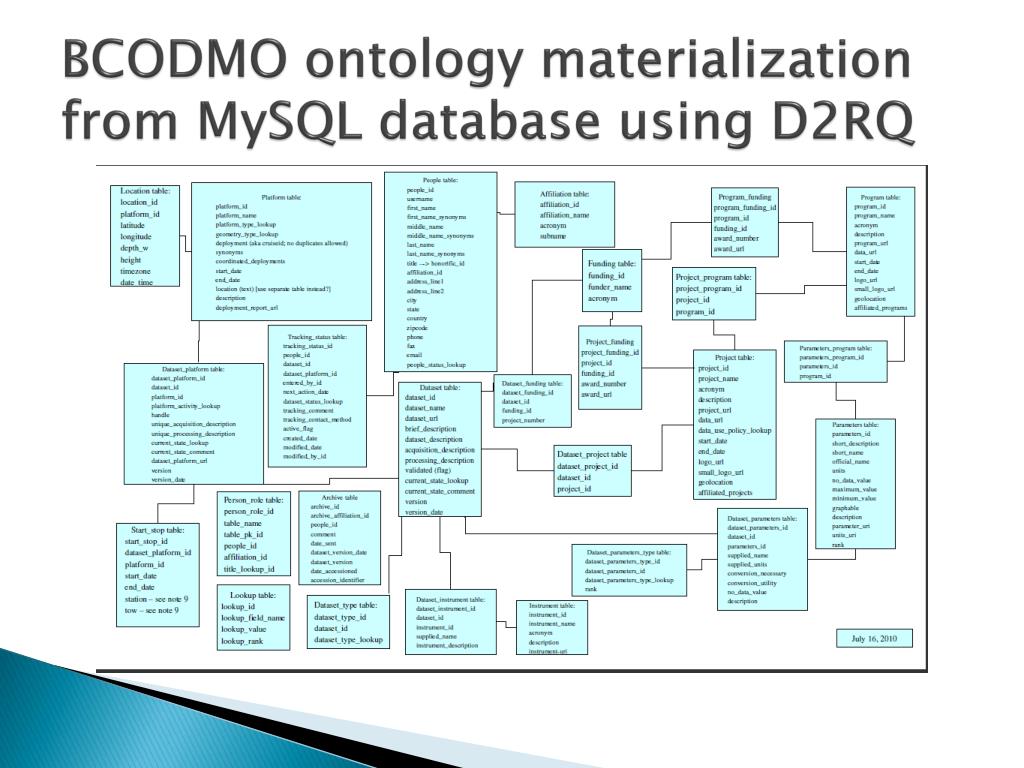

  12. BCODMO ontology materialization from MySQL database using D2RQ

  13. BCODMO - D2RQ map

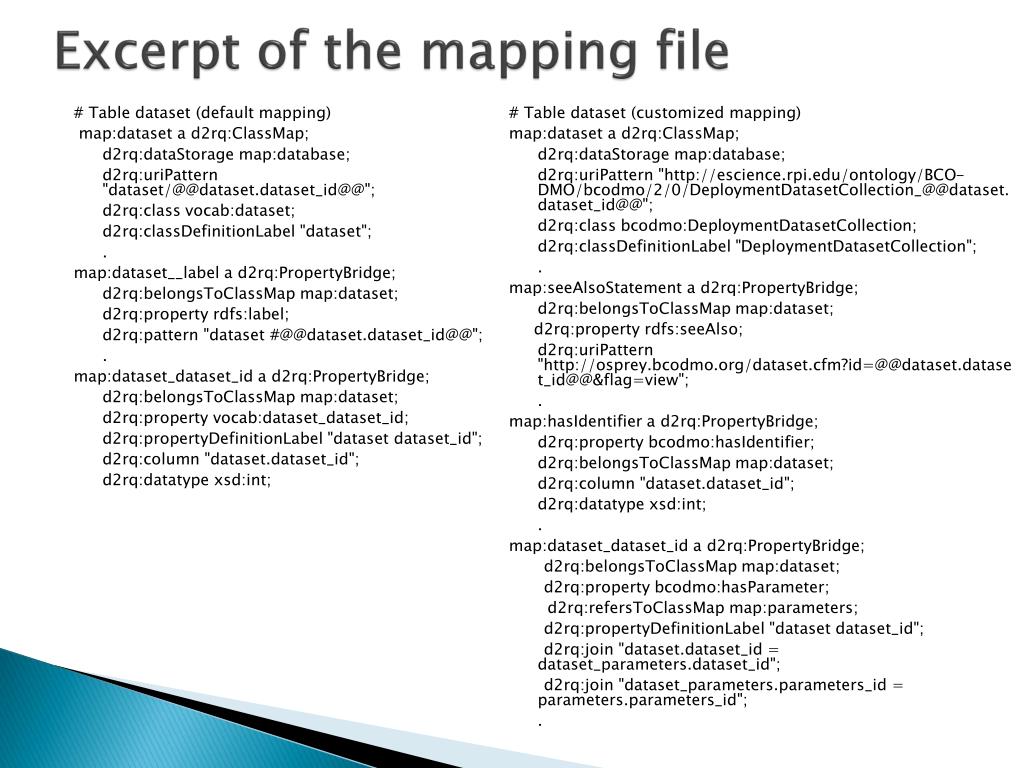

  14. Excerpt of the mapping file # Table dataset (customized mapping) map:dataset a d2rq:ClassMap; d2rq:dataStorage map:database; d2rq:uriPattern "http://escience.rpi.edu/ontology/BCO-DMO/bcodmo/2/0/DeploymentDatasetCollection_@@dataset.dataset_id@@"; d2rq:class bcodmo:DeploymentDatasetCollection; d2rq:classDefinitionLabel "DeploymentDatasetCollection"; . map:seeAlsoStatement a d2rq:PropertyBridge; d2rq:belongsToClassMap map:dataset; d2rq:property rdfs:seeAlso; d2rq:uriPattern "http://osprey.bcodmo.org/dataset.cfm?id=@@dataset.dataset_id@@&flag=view"; . map:hasIdentifier a d2rq:PropertyBridge; d2rq:property bcodmo:hasIdentifier; d2rq:belongsToClassMap map:dataset; d2rq:column "dataset.dataset_id"; d2rq:datatype xsd:int; . map:dataset_dataset_id a d2rq:PropertyBridge; d2rq:belongsToClassMap map:dataset; d2rq:property bcodmo:hasParameter; d2rq:refersToClassMap map:parameters; d2rq:propertyDefinitionLabel "dataset dataset_id"; d2rq:join "dataset.dataset_id = dataset_parameters.dataset_id"; d2rq:join "dataset_parameters.parameters_id = parameters.parameters_id"; . # Table dataset (default mapping) map:dataset a d2rq:ClassMap; d2rq:dataStorage map:database; d2rq:uriPattern "dataset/@@dataset.dataset_id@@"; d2rq:class vocab:dataset; d2rq:classDefinitionLabel "dataset"; . map:dataset__label a d2rq:PropertyBridge; d2rq:belongsToClassMap map:dataset; d2rq:property rdfs:label; d2rq:pattern "dataset #@@dataset.dataset_id@@"; . map:dataset_dataset_id a d2rq:PropertyBridge; d2rq:belongsToClassMap map:dataset; d2rq:property vocab:dataset_dataset_id; d2rq:propertyDefinitionLabel "dataset dataset_id"; d2rq:column "dataset.dataset_id"; d2rq:datatype xsd:int;

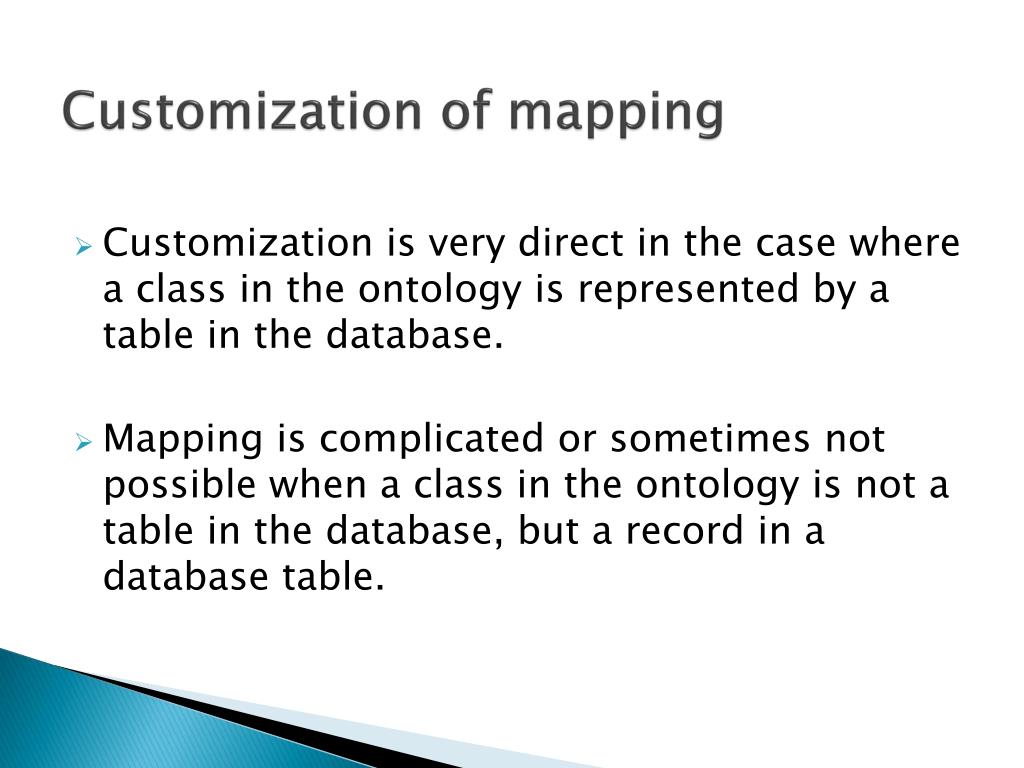

  15. Customization of mapping • Customization is very direct in the case where a class in the ontology is represented by a table in the database. • Mapping is complicated or sometimes not possible when a class in the ontology is not a table in the database, but a record in a database table.

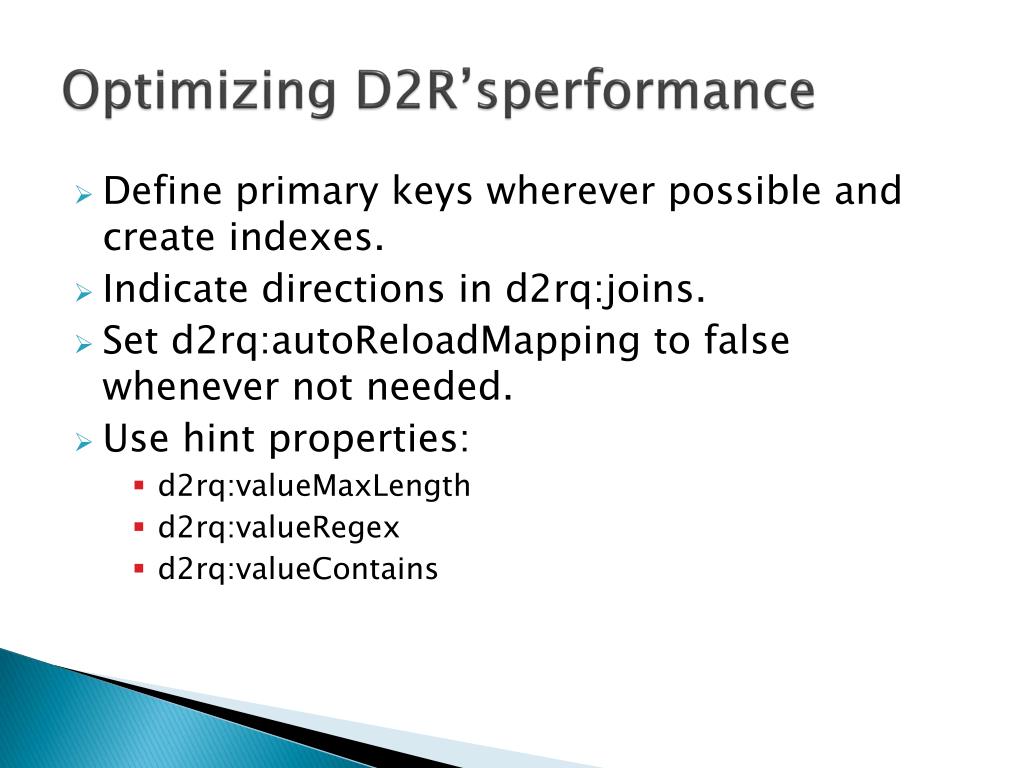

  16. Optimizing D2R’sperformance • Define primary keys wherever possible and create indexes. • Indicate directions in d2rq:joins. • Set d2rq:autoReloadMapping to false whenever not needed. • Use hint properties: • d2rq:valueMaxLength • d2rq:valueRegex • d2rq:valueContains

  17. Limitations • Performs reasonably well with basic triple patterns, performance deteriorates when SPARQL features such as OPTIONAL, FILTER and LIMIT are used. • Does not have reasoning capability. Reasoning can be added by using the D2RQ engine within Jena. • Integration of multiple databases or other data sources using D2RQ alone is not possible. • Read-only, cannot perform INSERT, DELETE or UPDATE operations. • Cannot handle complicated database structures like VIEWS.

  18. Other tools/applications for publishing databases on Semantic Web • Virtuoso RDF View: • Uses table to class and column to predicate approach. • RDB data are represented as virtual RDF graphs. • Customization of mapping possible. • Triplify: • Maps HTTP-URI requests to relational database queries expressed in SQL. • No SPARQL support.

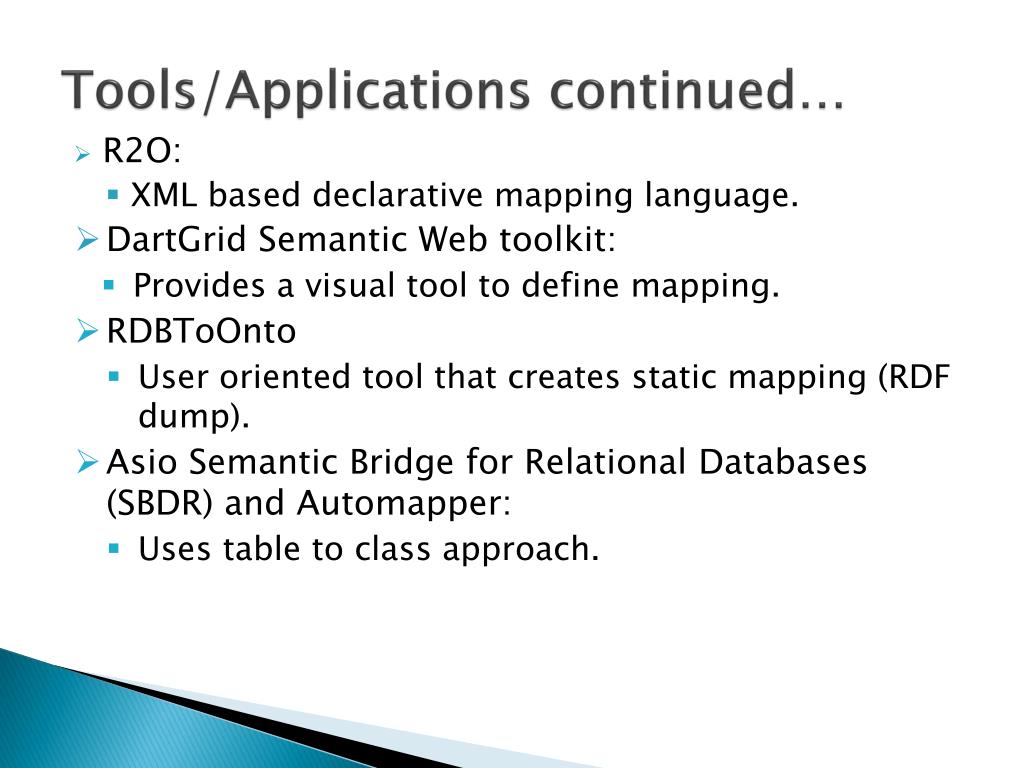

  19. Tools/Applications continued… • R2O: • XML based declarative mapping language. • DartGrid Semantic Web toolkit: • Provides a visual tool to define mapping. • RDBToOnto • User oriented tool that creates static mapping (RDF dump). • Asio Semantic Bridge for Relational Databases (SBDR) and Automapper: • Uses table to class approach.

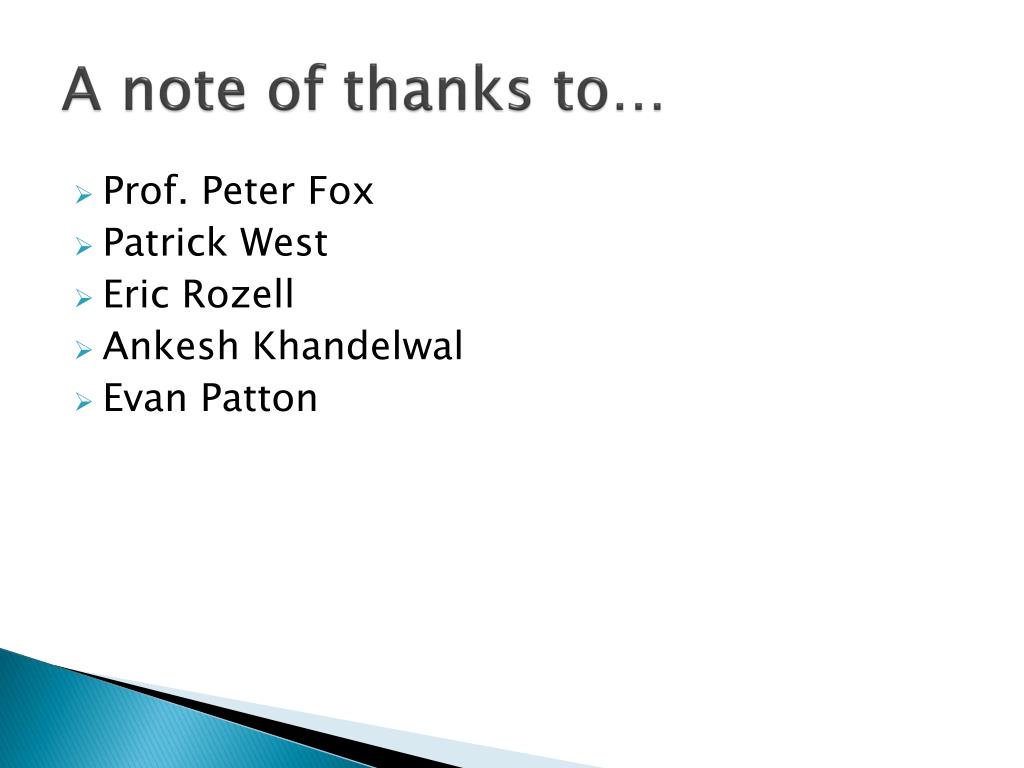

  20. A note of thanks to… • Prof. Peter Fox • Patrick West • Eric Rozell • AnkeshKhandelwal • Evan Patton
