Parabolas

Parabolas. p = a number that tells you where the focus and directrix are ( h.k ) = coordinates of the vertex Focus= point inside the parabola (add p to one coordinate of the vertex) Directrix = line behind the parabola The focus and directrix are equidistant from the vertex.

kail
Download Presentation

Parabolas

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Parabolas p = a number that tells you where the focus and directrix are (h.k) = coordinates of the vertex Focus= point inside the parabola (add p to one coordinate of the vertex) Directrix = line behind the parabola The focus and directrix are equidistant from the vertex If p is positive it opens up If p is negative it opens down If p is positive it opens right If p is negative it opens left

  2. To Graph Parabolas • Put it in standard form (Same variables on the same side. Factor and complete the square, if needed) • Decide whether it opens up/down/left/right • Plot vertex • Find focus (add p to vertex) and directrix • Use t-chart to find and plot 2 additional points • Graph

  3. Write the equation of the parabola in standard form. vertical, up Parabolas Vertex: (0, 0)

  4. GRAPH vertex: (0, 0) focus:(0, 2 ) di rectrix: y = - 2 X Y -4 2 4 2

  5. horizontal , left Vertex: (0, 0)

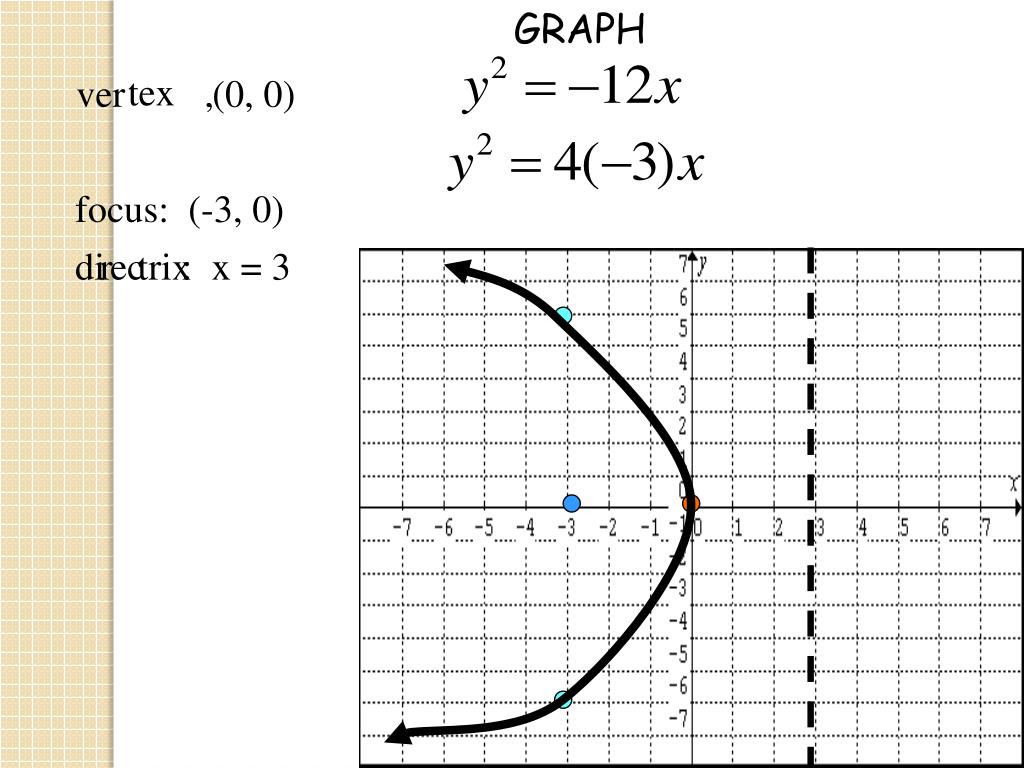

  6. GRAPH tex ver , (0, 0) focus: (-3, 0) di r ec trix : x = 3

  7. Graph. vertical, down h = 1 k = 2 p =? vertex: (1, 2) -4 = 4p p = -1

  8. Graph. vertex: (1, 2) directrix: y = 3 focus: (1, 1)

  9. Graph. horizontal, right 3 = -2 p =? h = k 8 = 4p vertex: (3, -2) 2 = p

  10. Graph. vertex: (3, -2) directrix: x = 1 latus: 8 focus: (5, -2)

  11. Graph. vertical, up h = -1 k p =? = -1 12 = 4p vertex: (-1, -1) 3 = p

  12. Graph. vertex: (-1, -1) directrix: y = -4 latus: 12 focus: (-1, 2)

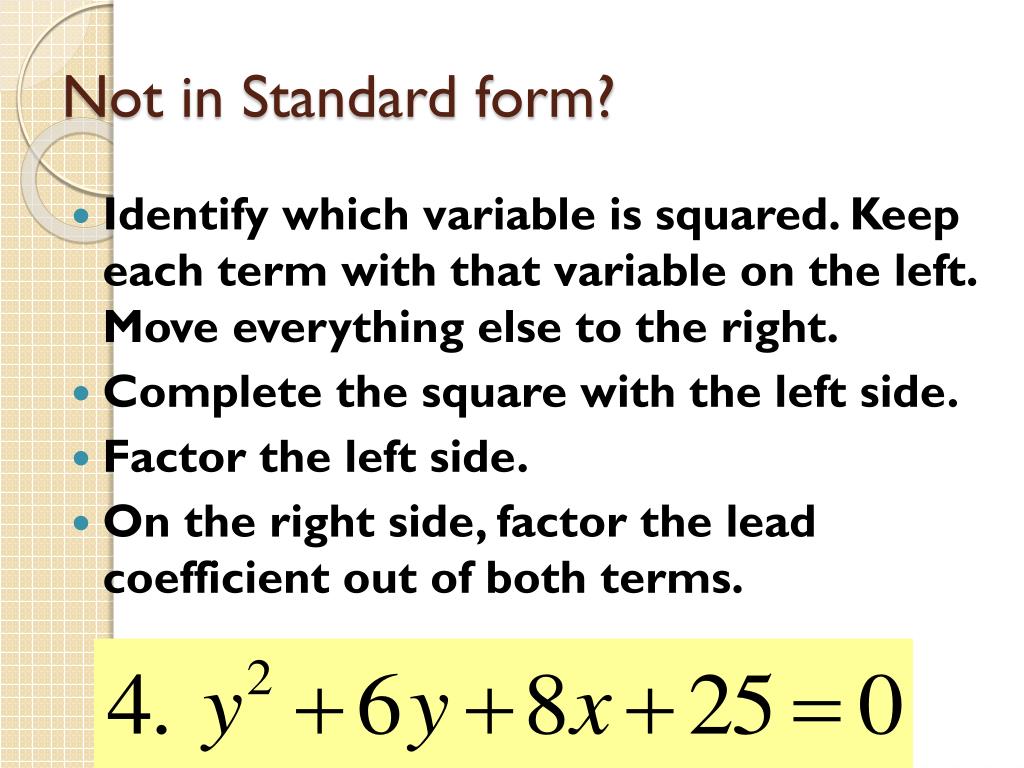

  13. Not in Standard form? • Identify which variable is squared. Keep each term with that variable on the left. Move everything else to the right. • Complete the square with the left side. • Factor the left side. • On the right side, factor the lead coefficient out of both terms.

  14. Graph. complete the square factor vertical, down h = 1 k = 1 p = -1 vertex: (1, 1) directrix: y = 2 focus: (1, 0)

  15. Graph. vertex: (1, 1) directrix: y = 2 focus: (1, 0)

  16. Homework Page 178: 2 – 22 Even
