  1. Louis J. Circeo, Ph.D. Director, Plasma Applications Research Program Robert C. Martin, Jr. Michael E. Smith Achieving “Zero Waste”withPlasma Arc Technology Electro-Optics, Environment and Materials Laboratory

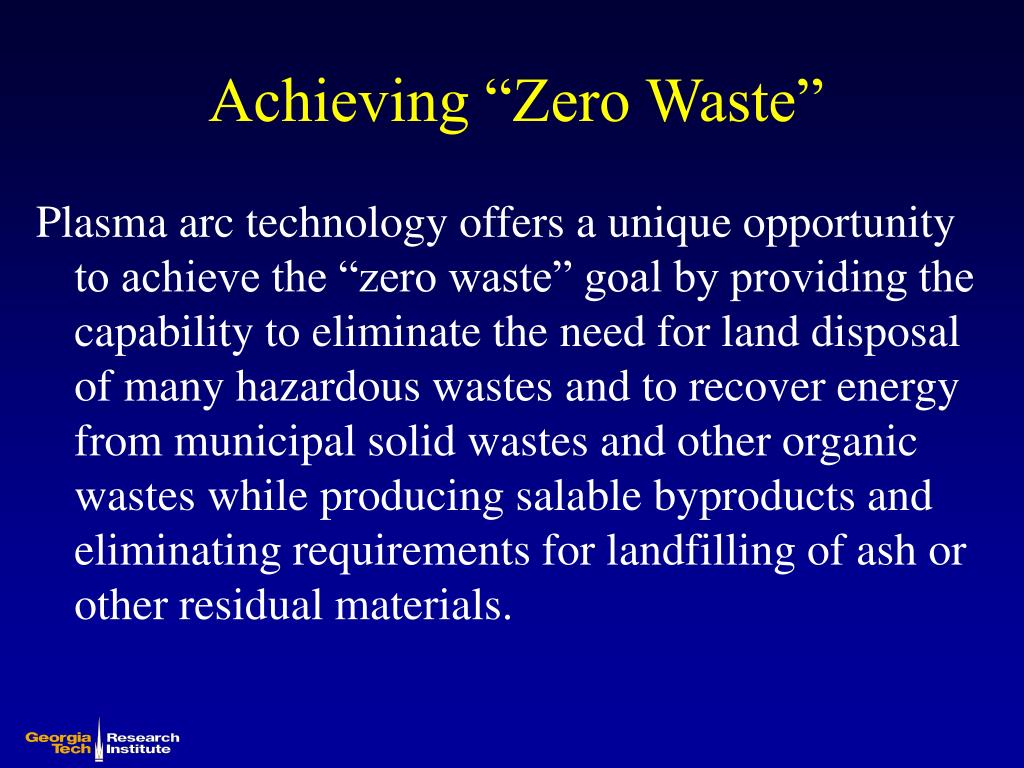

  2. Achieving “Zero Waste” Plasma arc technology offers a unique opportunity to achieve the “zero waste” goal by providing the capability to eliminate the need for land disposal of many hazardous wastes and to recover energy from municipal solid wastes and other organic wastes while producing salable byproducts and eliminating requirements for landfilling of ash or other residual materials.

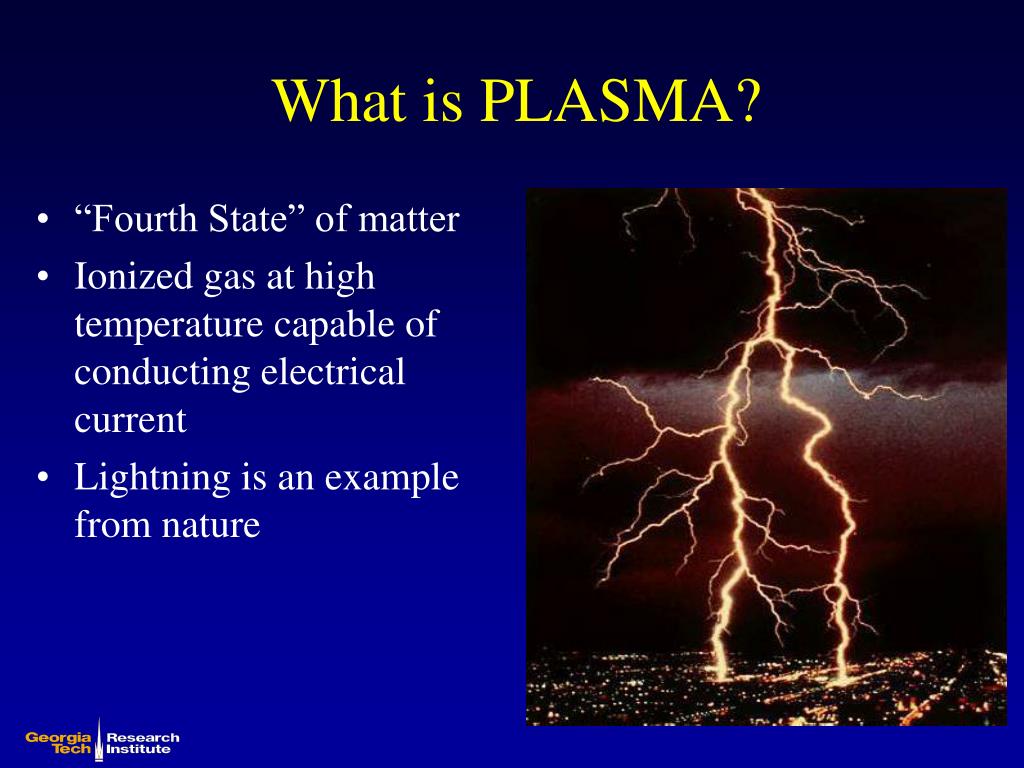

  3. What is PLASMA? • “Fourth State” of matter • Ionized gas at high temperature capable of conducting electrical current • Lightning is an example from nature

  4. Non-transferred arc plasma torch In a plasma arc torch, the plasma gas serves as a resistive heating element to convert electricity into heat. Because it is a gas and cannot melt, temperatures in excess of 7000°C can be produced.

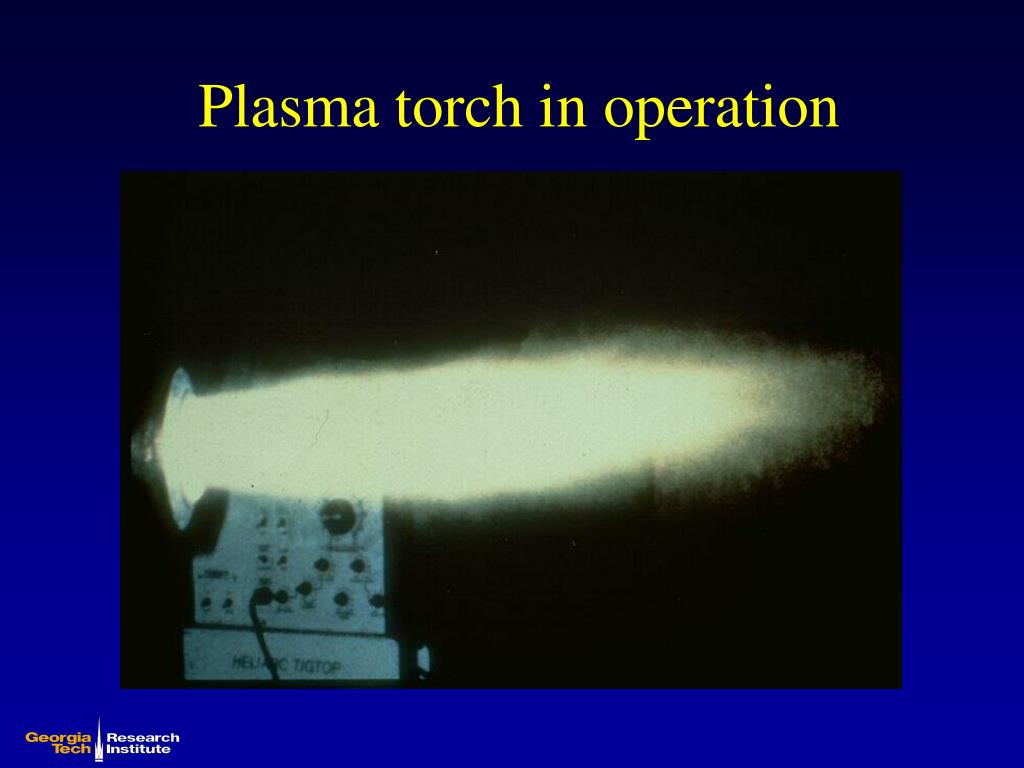

  5. Plasma torch in operation

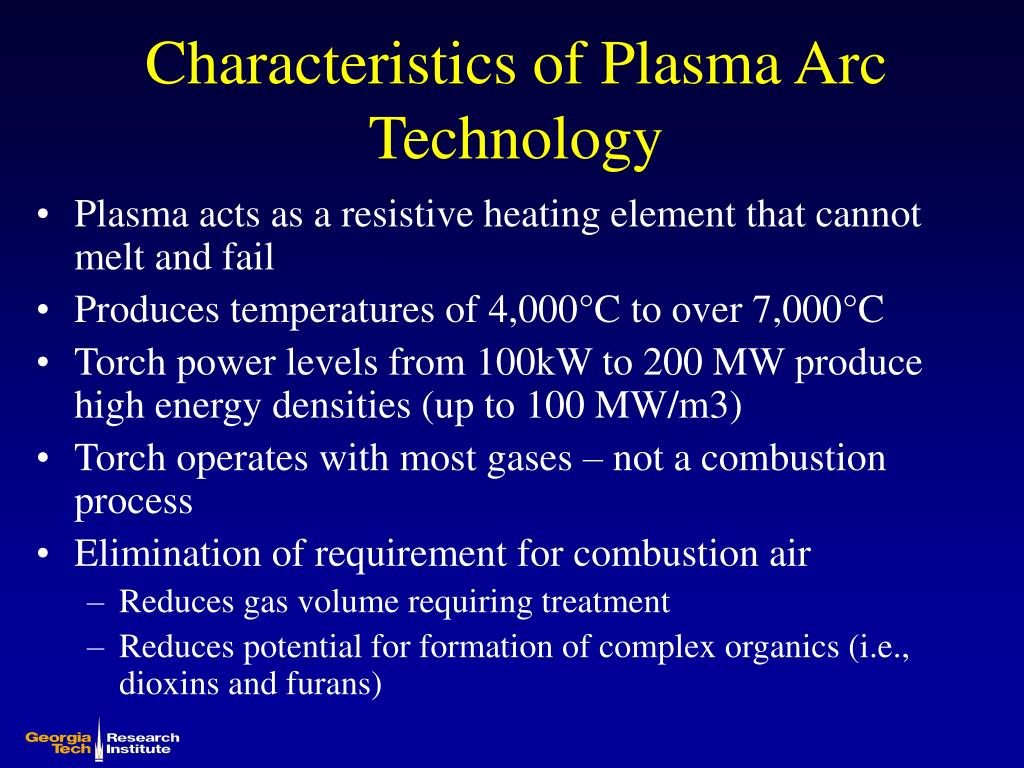

  6. Characteristics of Plasma Arc Technology • Plasma acts as a resistive heating element that cannot melt and fail • Produces temperatures of 4,000°C to over 7,000°C • Torch power levels from 100kW to 200 MW produce high energy densities (up to 100 MW/m3) • Torch operates with most gases – not a combustion process • Elimination of requirement for combustion air • Reduces gas volume requiring treatment • Reduces potential for formation of complex organics (i.e., dioxins and furans)

  7. Plasma arc technology is ideally suited for waste treatment • Hazardous & toxic compounds broken down to elemental constituents by high temperatures • Organic materials • Pyrolyzed or volatilized • May be converted to fuel gases • Amenable to conventional off-gas treatment • Residual materials (radionuclides, heavy metals, etc.) immobilized in a rock-like vitrified mass which is highly resistant to leaching

  8. Heavy metals Radioactive wastes Industrial sludges Municipal solid waste Electric arc furnace dust Liquid/solid organic wastes PCB’s Asbestos Chemical wastes Medical wastes Plastics Used tires Plasma arc technology remediation experience

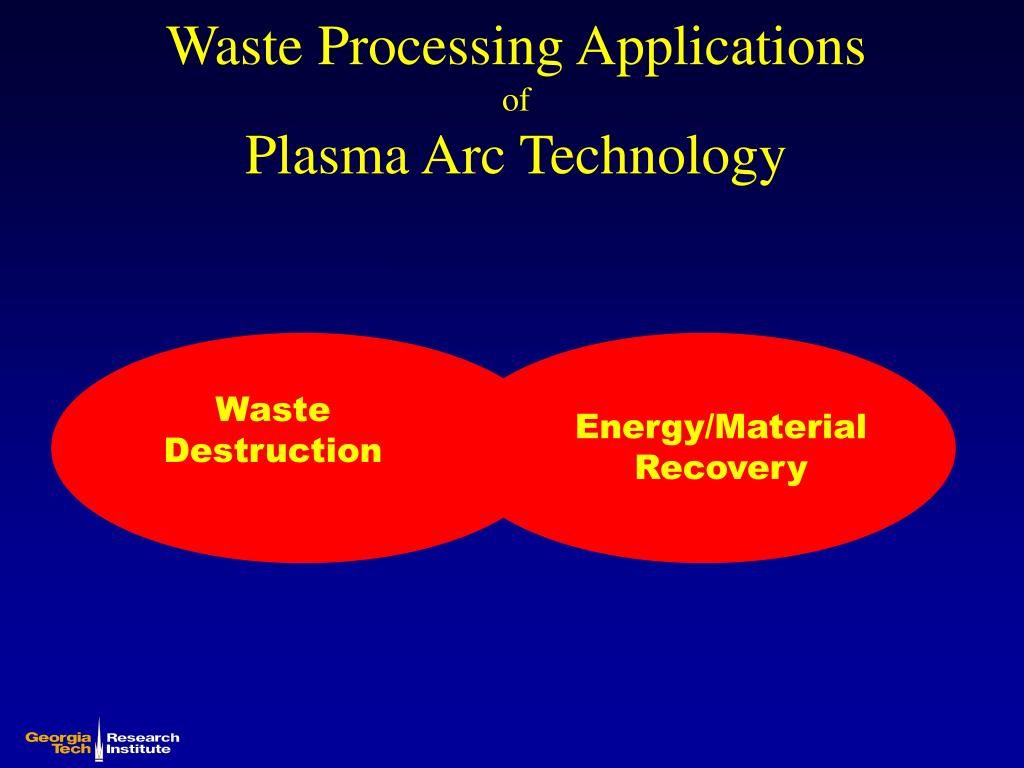

  9. Waste Processing ApplicationsofPlasma Arc Technology Waste Destruction Energy/Material Recovery

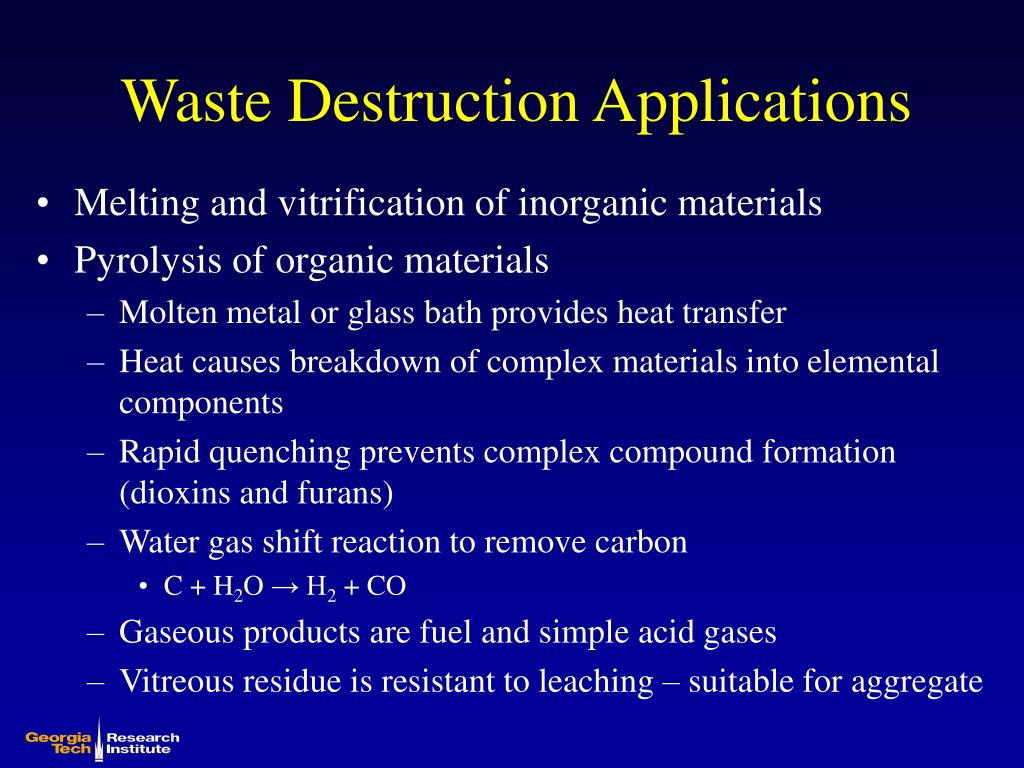

  10. Waste Destruction Applications • Melting and vitrification of inorganic materials • Pyrolysis of organic materials • Molten metal or glass bath provides heat transfer • Heat causes breakdown of complex materials into elemental components • Rapid quenching prevents complex compound formation (dioxins and furans) • Water gas shift reaction to remove carbon • C + H2O → H2 + CO • Gaseous products are fuel and simple acid gases • Vitreous residue is resistant to leaching – suitable for aggregate

  11. U.S. asbestos stockpile disposal

  12. French Asbestos-Containing Materials (ACM) disposal system

  13. Incinerator ash disposal

  14. Navy shipboard system

  15. Navy Shipboard System – cont’d

  16. Recent Commercial Applications • Mixed waste treatment facility-Richland, WA • Allied Technology Group (ATG) • Medical waste vitrification facility-Honolulu, HI • Asia Pacific Environmental Technologies (APET) • Incinerator ash vitrification facilities – Europe and Japan • Europlasma • IHI Inc./Westinghouse Plasma

  17. Recent DoD Plasma Furnace Applications • Plasma Arc Shipboard Waste Destruction System (PAWDS) • U.S. Navy Warships (NSWCCD) • Plasma Arc Hazardous Waste Treatment System (PAHWTS) • U.S. Naval Base, Norfolk, VA (Office of Naval Research, Environmentally Sound Ships Program) • Plasma Ordnance Demilitarization System (PODS) • Naval Surface Warfare Center, Crane, IN (Defense Ammunition Center)

  18. Recent DoD Plasma Furnace Applications – cont’d • Plasma Waste Treatment System (Pyrotechnics and Energetics) • Hawthorne Army Ammunition Plant, NV (Armament Research and Development Engineering Center) • Plasma Energy Pyrolysis System (PEPS) Demonstration Facility (Medical Waste and Blast Media), Lorton, VA • U.S. Army Construction Engineering Research Laboratories (CERL) • Mobile PEPS Demonstration System, U. S. Army CERL

  19. Mobile Plasma Energy Pyrolysis System (PEPS)

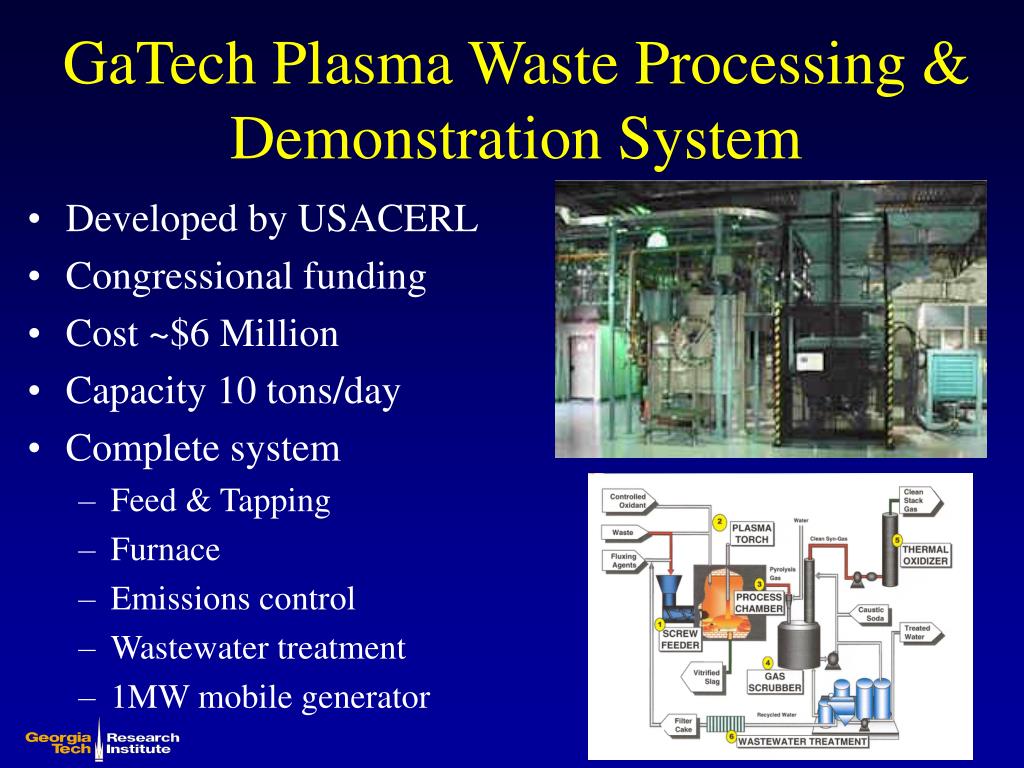

  20. GaTech Plasma Waste Processing & Demonstration System • Developed by USACERL • Congressional funding • Cost ~$6 Million • Capacity 10 tons/day • Complete system • Feed & Tapping • Furnace • Emissions control • Wastewater treatment • 1MW mobile generator

  21. Georgia Tech Plasma Waste Processing and Demonstration System

  22. Plasma Processing for Energy and Materials Recovery • Research on waste destruction noted that pyrolysis produced useful fuel gases and inert residuals from organic wastes including MSW • Relatively high plasma energy requirements (~600 kWh/ton) and capital cost of complex molten bath reactors limited economic feasibility of pyrolysis processes • Use of gasification technology has made plasma a more economically attractive alternative

  23. SteamNegligible Gas Heat Energy1.05 MBtu Losses1.77 MBtu PLASMA GASIFIER MSW1 Ton – 9.39 Mbtu33% Moisture Electricity0.56 MWHr – 1.90 MBtu Plasma Pyrolysis of MSW Gas Heating Value OutputElectricity Input = 4.30 Product Gas30,300 SCFHeating Value = 8.16 MBTU Based on data from Resorption Canada, Ltd. 1995(Summarized and converted to English units)

  24. CokeandLimestone Excess Heat Utilization & Power Generation Plasma Torch Metal Slag Hitachi Metals Plasma MSW System – Japan

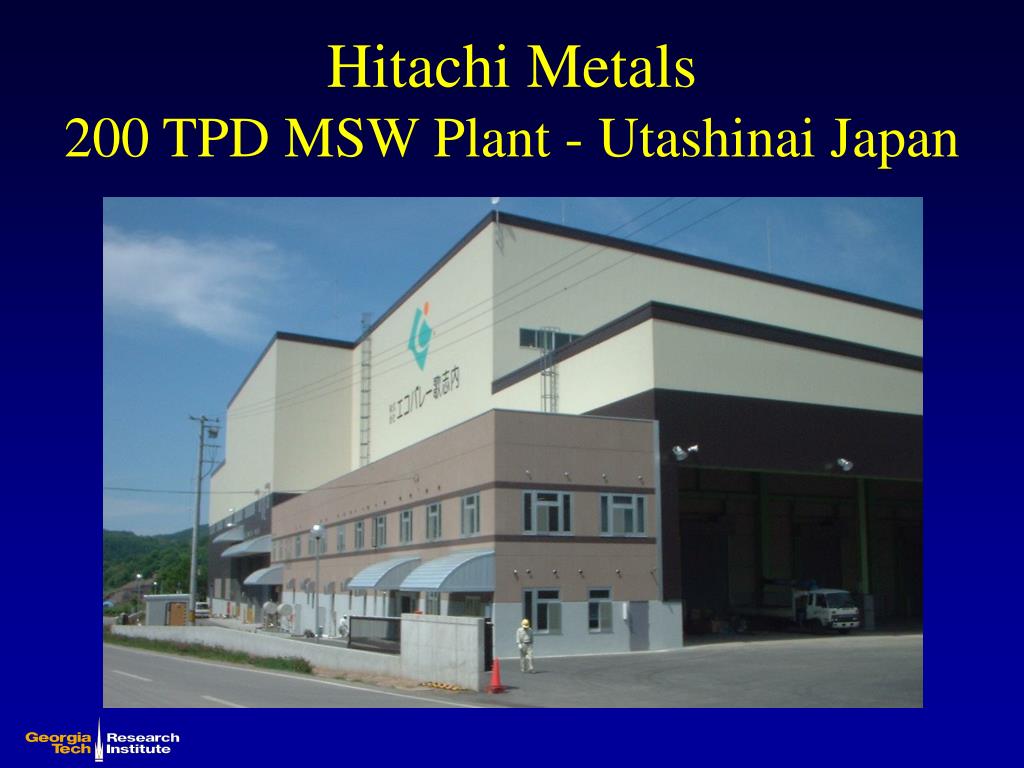

  25. Hitachi Metals200 TPD MSW Plant - Utashinai Japan

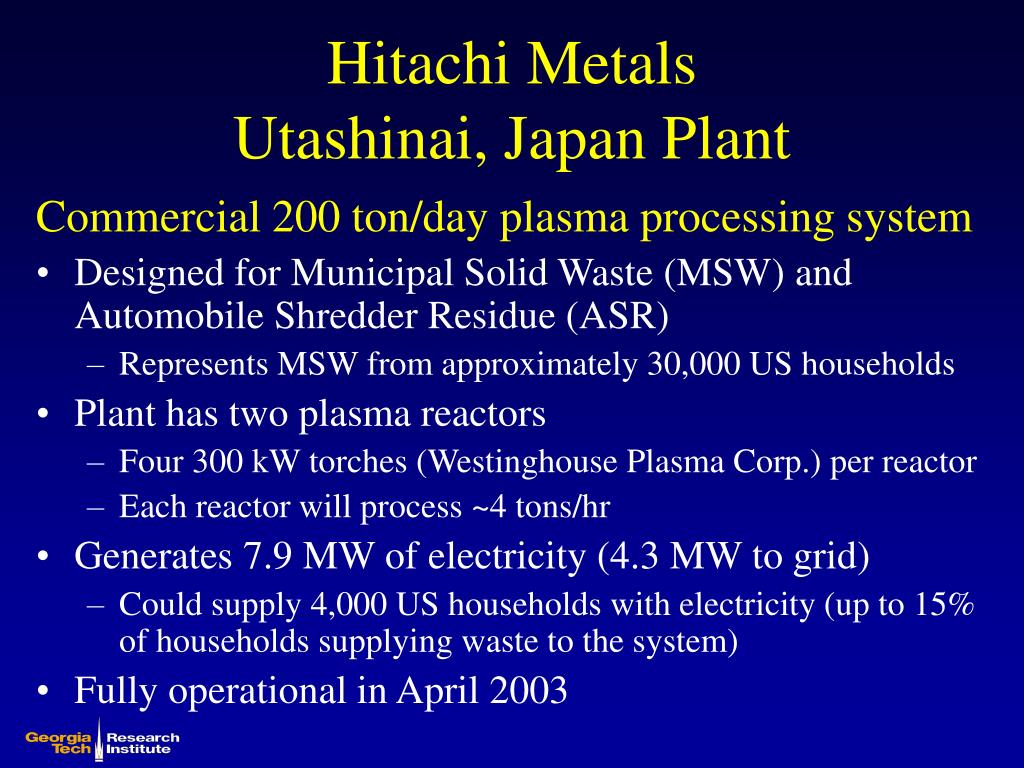

  26. Hitachi MetalsUtashinai, Japan Plant Commercial 200 ton/day plasma processing system • Designed for Municipal Solid Waste (MSW) and Automobile Shredder Residue (ASR) • Represents MSW from approximately 30,000 US households • Plant has two plasma reactors • Four 300 kW torches (Westinghouse Plasma Corp.) per reactor • Each reactor will process ~4 tons/hr • Generates 7.9 MW of electricity (4.3 MW to grid) • Could supply 4,000 US households with electricity (up to 15% of households supplying waste to the system) • Fully operational in April 2003

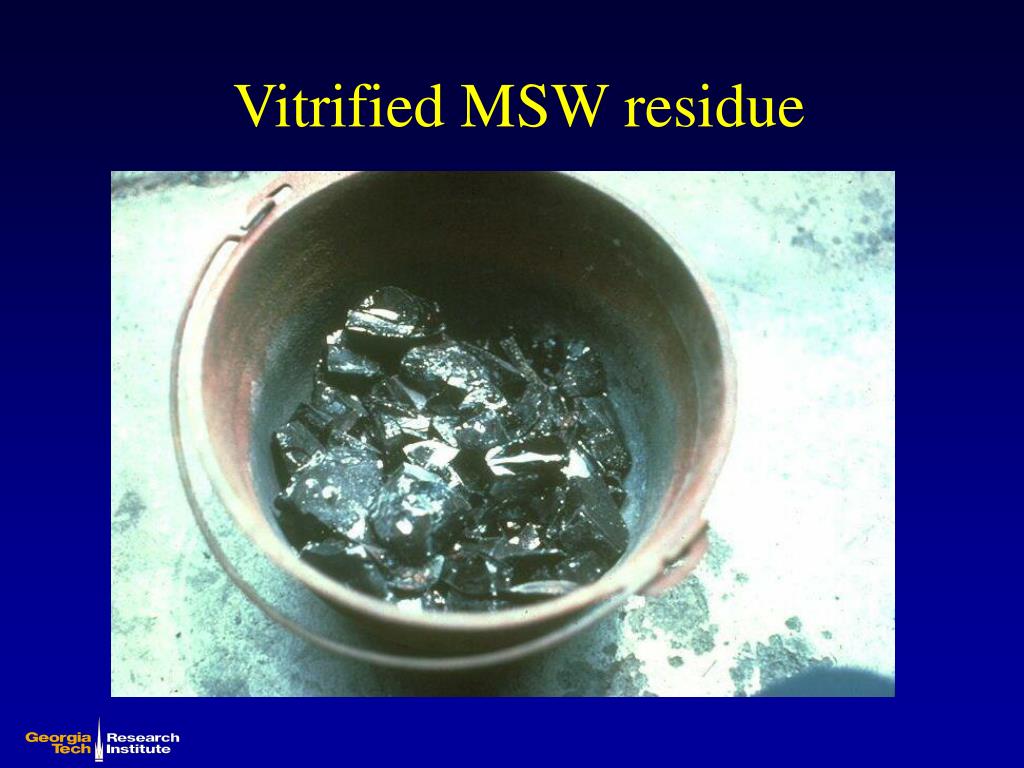

  27. Vitrified MSW residue

  28. Leachability of Vitrified MSW Residue (TCLP)

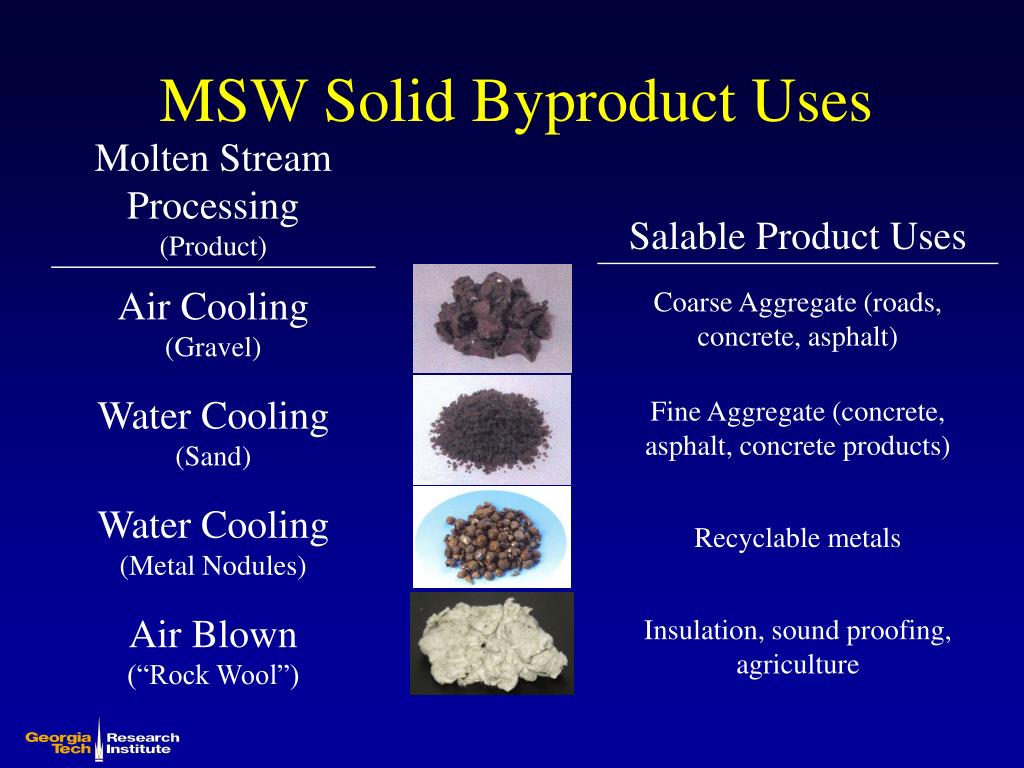

  29. MSW Solid Byproduct Uses

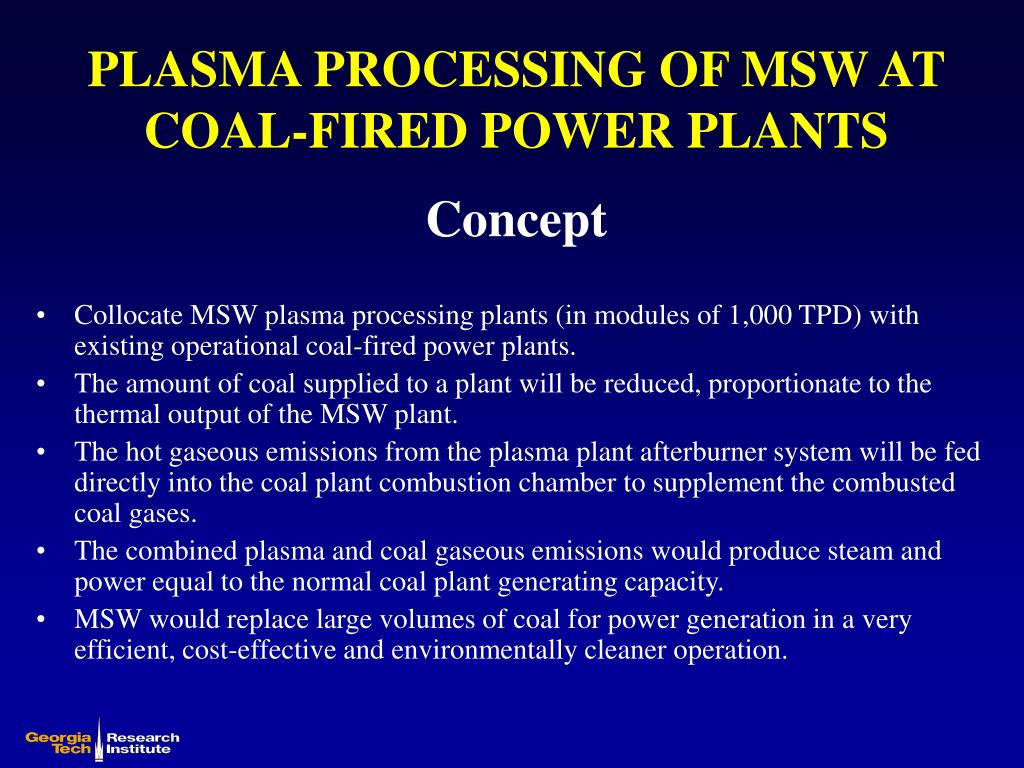

  30. PLASMA PROCESSING OF MSW AT COAL-FIRED POWER PLANTS Concept • Collocate MSW plasma processing plants (in modules of 1,000 TPD) with existing operational coal-fired power plants. • The amount of coal supplied to a plant will be reduced, proportionate to the thermal output of the MSW plant. • The hot gaseous emissions from the plasma plant afterburner system will be fed directly into the coal plant combustion chamber to supplement the combusted coal gases. • The combined plasma and coal gaseous emissions would produce steam and power equal to the normal coal plant generating capacity. • MSW would replace large volumes of coal for power generation in a very efficient, cost-effective and environmentally cleaner operation.

  31. PLASMA PROCESSING OF MSW AT COAL-FIRED POWER PLANTS Reduced Capital Costs of MSW Plant(1) • Use existing power plant facilities – Steam generation system – Off gas treatment system – Electrical generating system • Use existing transportation network • Build on power plant land, if feasible (1) Geoplasma, LLC estimated costs

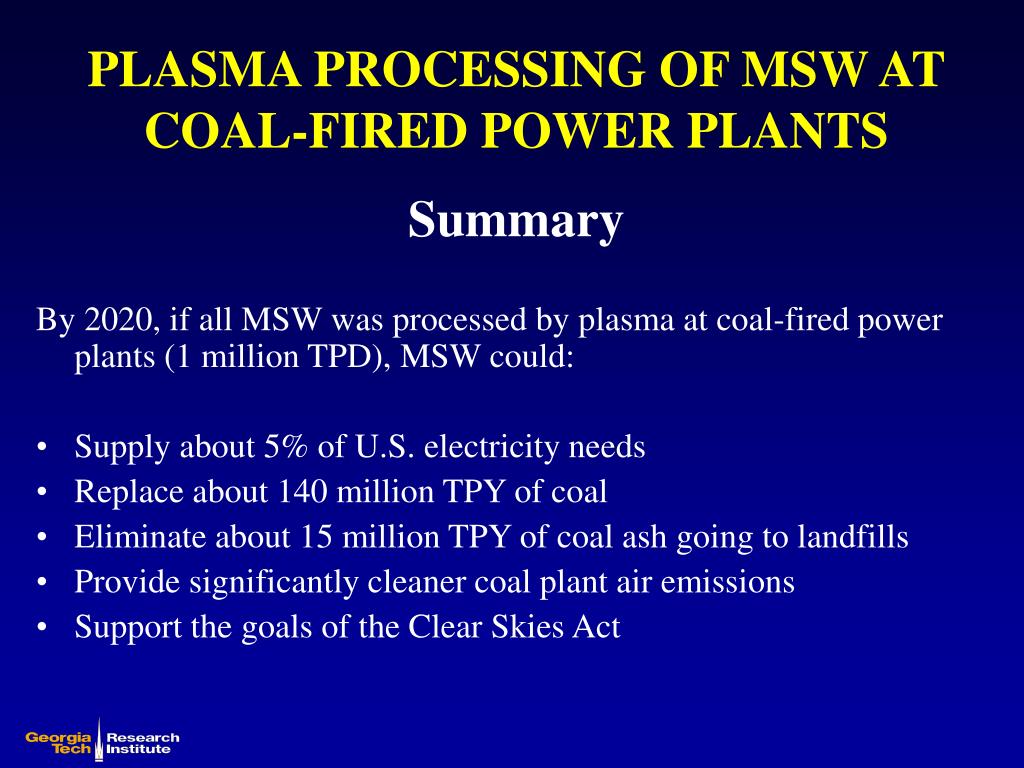

  32. PLASMA PROCESSING OF MSW AT COAL-FIRED POWER PLANTS Summary By 2020, if all MSW was processed by plasma at coal-fired power plants (1 million TPD), MSW could: • Supply about 5% of U.S. electricity needs • Replace about 140 million TPY of coal • Eliminate about 15 million TPY of coal ash going to landfills • Provide significantly cleaner coal plant air emissions • Support the goals of the Clear Skies Act

  33. YEAR 2020SELECTED RENEWABLE ENERGY SOURCES Source Quads (1015 BTU) Plasma Processed MSW(1) 0.90 Geothermal(2) 0.47 Landfill Gas(2) 0.12 Solar(2) 0.09 Wind(2) 0.04 _____________________ • Assumes 1 million TPD • Extrapolated from 1999 statistics

  34. Capital Costs: Incineration vs Plasma Gasification Facilities (Note: Plasma Costs are Geoplasma LLC Estimates)

  35. Potential DoD Applications • Processing of hazardous wastes • Major installations • Industrial activities (depots, Air Force Plants) • “Bare Base” and “Zero Footprint” Operations • Process solid and sanitary wastes • Eliminate landfill or shipping of residuals • Recovery of energy as steam or hot water

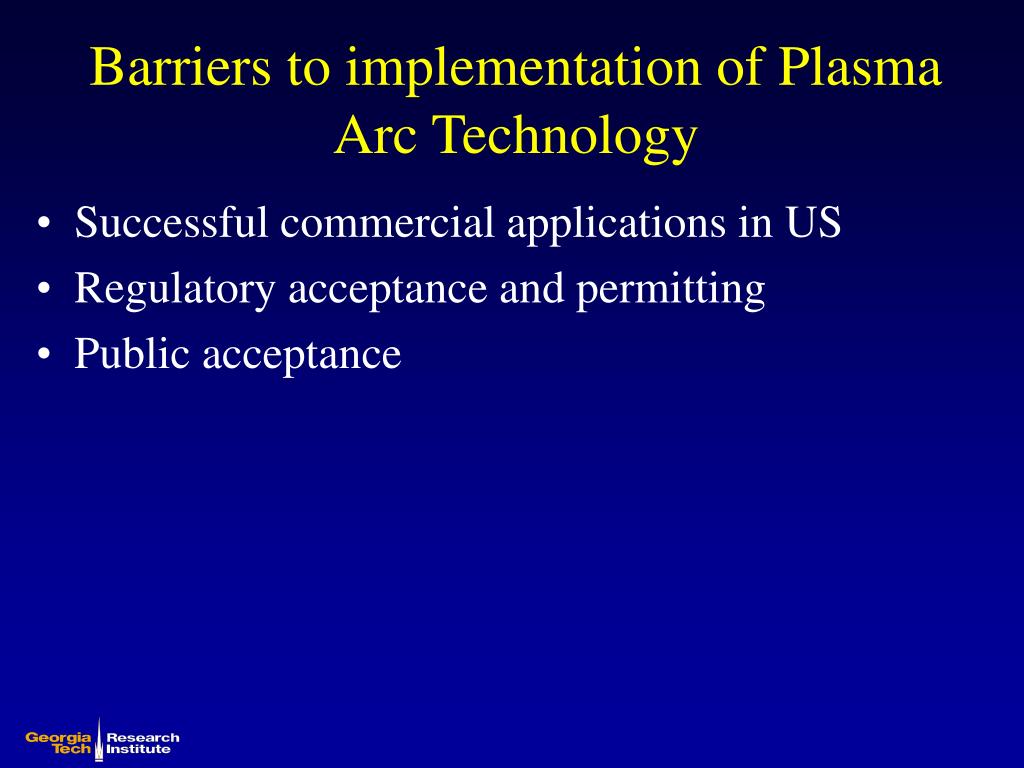

  36. Barriers to implementation of Plasma Arc Technology • Successful commercial applications in US • Regulatory acceptance and permitting • Public acceptance

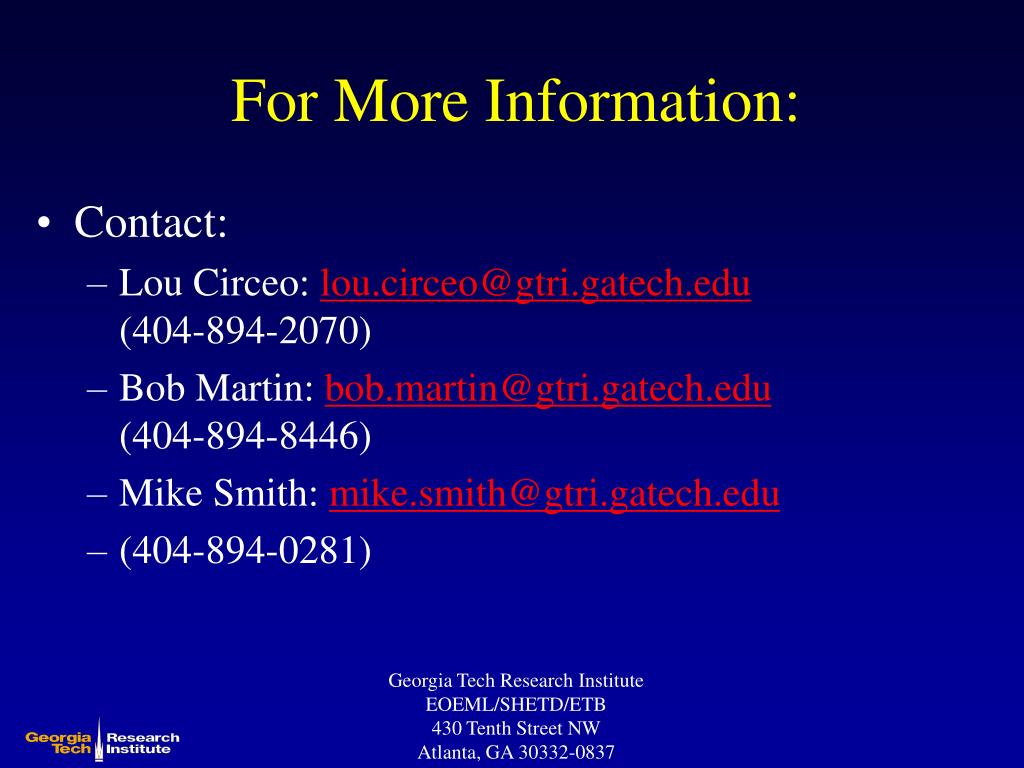

  37. For More Information: • Contact: • Lou Circeo: lou.circeo@gtri.gatech.edu(404-894-2070) • Bob Martin: bob.martin@gtri.gatech.edu(404-894-8446) • Mike Smith: mike.smith@gtri.gatech.edu • (404-894-0281) Georgia Tech Research Institute EOEML/SHETD/ETB 430 Tenth Street NW Atlanta, GA 30332-0837
