  1. Rookverspreiding Introductie in de stromingsleer Martin Eimermann Smits van Burgst Conferentie (Brand) Simulatie NIFV 2007

  2. Luchtstroming Conferentie (Brand) Simulatie NIFV 2007

  3. Voorspelbaar C. Navier: 1785-1836, G. Stokes: 1819-1903 Conferentie (Brand) Simulatie NIFV 2007

  4. Voorspelbaar Conferentie (Brand) Simulatie NIFV 2007

  5. Rekenkundig • Continuïteitsvergelijking • 3 momentum vergelijkingen (u, v, w) • Energievergelijking • Transportvergelijking • 2 turbulentie vergelijkingen Conferentie (Brand) Simulatie NIFV 2007

  6. Rekenkundig Conferentie (Brand) Simulatie NIFV 2007

  7. 8 differentiaal vergelijking • Circa 1.000.000 rekencellen • 100 – 500 ittereraties • 0.8 mljrd. – 4 mljrd. berekeningen Conferentie (Brand) Simulatie NIFV 2007

  8. Patronen Conferentie (Brand) Simulatie NIFV 2007

  9. Contractie Conferentie (Brand) Simulatie NIFV 2007

  10. Contractie Conferentie (Brand) Simulatie NIFV 2007

  11. Coanda effect Conferentie (Brand) Simulatie NIFV 2007

  12. Loslating Conferentie (Brand) Simulatie NIFV 2007

  13. Loslating Conferentie (Brand) Simulatie NIFV 2007

  14. Versnelling Conferentie (Brand) Simulatie NIFV 2007

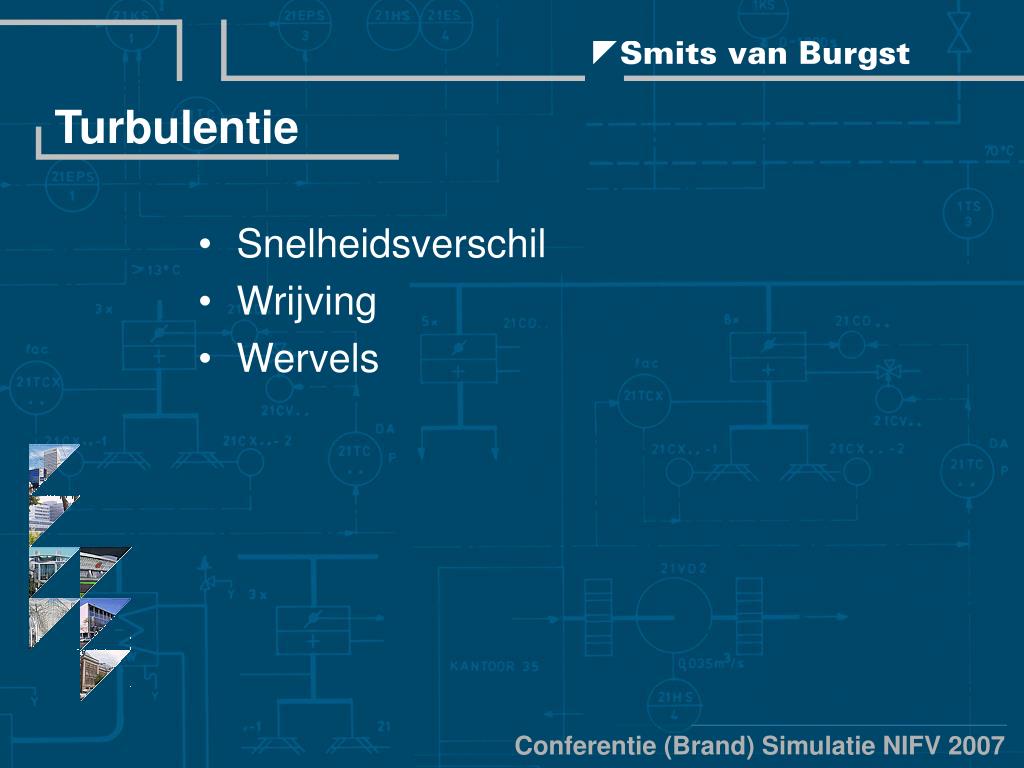

  15. Turbulentie • Snelheidsverschil • Wrijving • Wervels Conferentie (Brand) Simulatie NIFV 2007

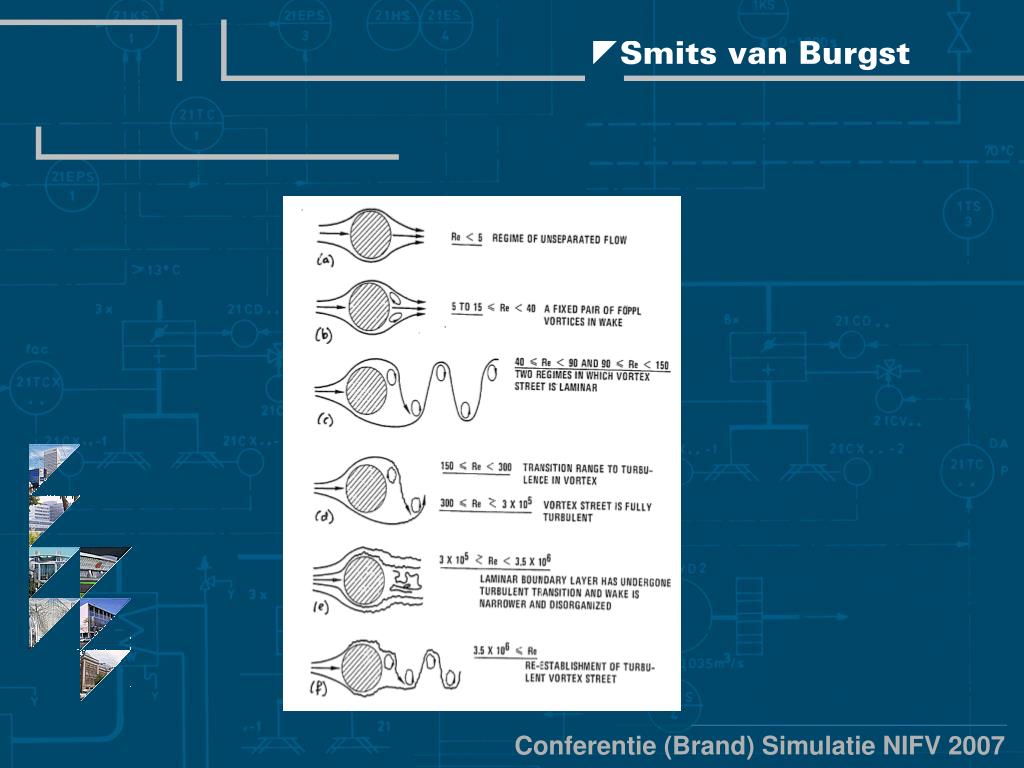

  16. Conferentie (Brand) Simulatie NIFV 2007

  17. Omstroming cilinder Conferentie (Brand) Simulatie NIFV 2007

  18. Omstroming balk Conferentie (Brand) Simulatie NIFV 2007

  19. Omstroming balk Conferentie (Brand) Simulatie NIFV 2007

  20. Stroming in garage • Contractie • Turbulent / laminair • Omstroming Conferentie (Brand) Simulatie NIFV 2007

  21. Vraag Is op locatie A of op locatie B de snelheid het hoogst? Conferentie (Brand) Simulatie NIFV 2007

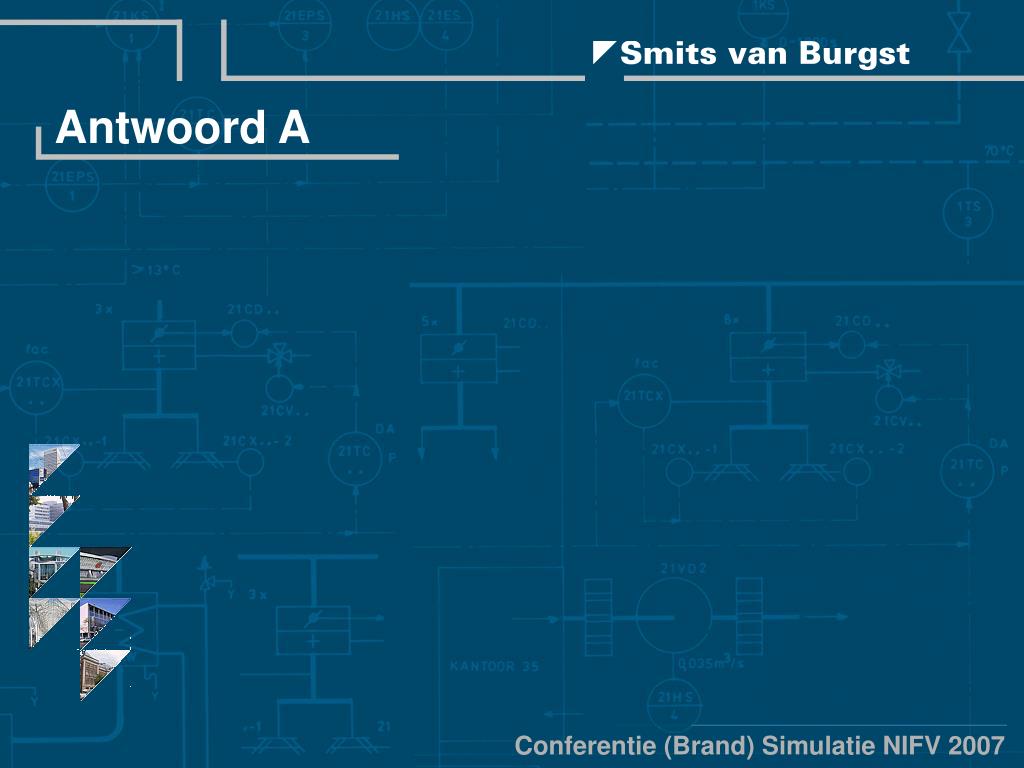

  22. Antwoord A Conferentie (Brand) Simulatie NIFV 2007

  23. Antwoord B Conferentie (Brand) Simulatie NIFV 2007

  24. Antwoord B Conferentie (Brand) Simulatie NIFV 2007

  25. Brand • Energie • Rook Conferentie (Brand) Simulatie NIFV 2007

  26. Rook • Residu van verbrandingsproces • Gasvormige bestandsdelen • Vaste bestandsdelen (ca. 14%) • Zwaarder dan lucht Conferentie (Brand) Simulatie NIFV 2007

  27. Energie • Temperatuur • Versnelling • Dichtheid • Turbulentie Conferentie (Brand) Simulatie NIFV 2007

  28. = Massa debiet roet [kg/s] = Energie productie [MW] = Roet factor [kg/kg] = Eff. verbrandingswaarde [MW/kg] Verband Conferentie (Brand) Simulatie NIFV 2007

  29. Brandverloop Conferentie (Brand) Simulatie NIFV 2007

  30. Brandverloop LNB • dHc,eff = [25 MJ/kg] • Y roet = 0.121 [g/g] (RP = 400 [m2/kg]) • 3 auto’s • Brand na 20 minuten geblust Conferentie (Brand) Simulatie NIFV 2007

  31. Brandverloop LNB • Productie = 22,2 kg roet • Verbrand = 183,4 kg materiaal Conferentie (Brand) Simulatie NIFV 2007

  32. Eis LNB Ten behoeve van de nacontrole dient het ventilatiesysteem ten minste 30 meter zichtlengte ten opzichte van licht reflecterende objecten te presteren binnen 45 minuten. Conferentie (Brand) Simulatie NIFV 2007

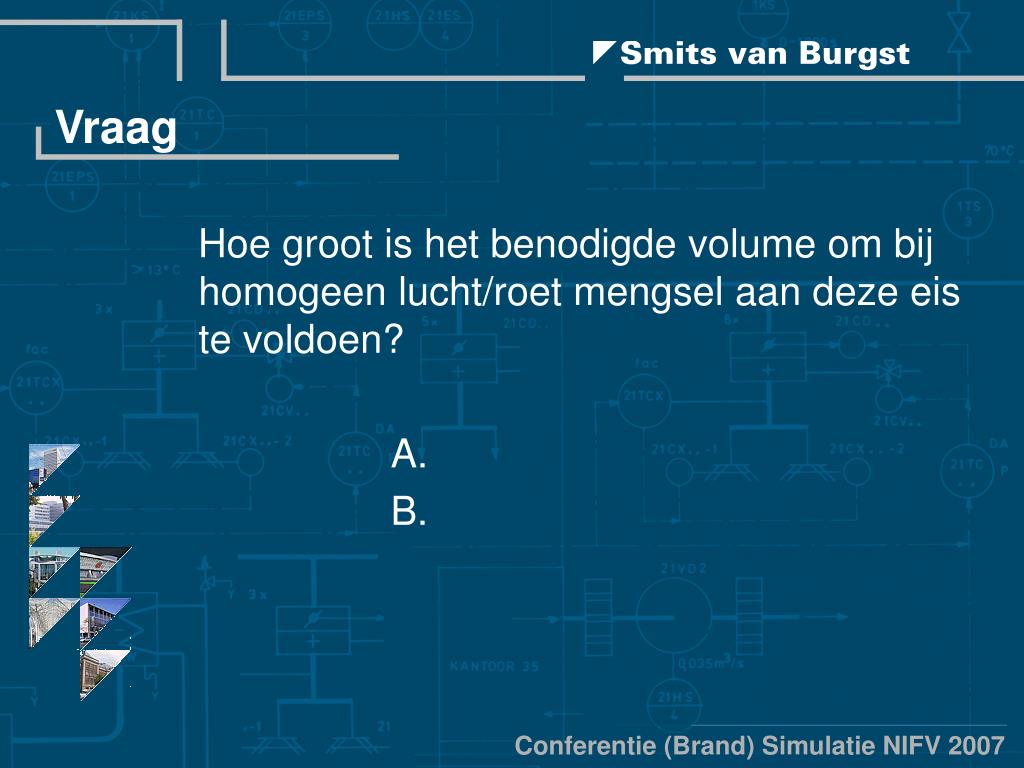

  33. Vraag Hoe groot is het benodigde volume om bij homogeen lucht/roet mengsel aan deze eis te voldoen? A. B. Conferentie (Brand) Simulatie NIFV 2007

  34. Antwoord • K m = 7.600,00 [m2 /kg] • S = 30,00 [m] • C = 3,00 [-] • m roet = …..,…. [kg] Result: • V = …..,00 [m3] Conferentie (Brand) Simulatie NIFV 2007

  35. Ventilatievoud • Opp. = 10.000 m2 • H= 2.4 m • Inh. 24.000 m3 • VV = … 1/h Conferentie (Brand) Simulatie NIFV 2007

  36. Gevoeligheid Hc,eff Conferentie (Brand) Simulatie NIFV 2007

  37. Gevoeligheid soot yield Conferentie (Brand) Simulatie NIFV 2007

  38. Range roet productie Conferentie (Brand) Simulatie NIFV 2007

  39. Ventilatievoud • Ventilatievoud minimaal (5,8 kg roet) • Ventilatievoud maximaal (23,2 kg roet) Conferentie (Brand) Simulatie NIFV 2007

  40. Rookverspreiding Conferentie (Brand) Simulatie NIFV 2007

  41. Rookverspreiding Conferentie (Brand) Simulatie NIFV 2007

  42. Rookverspreiding Conferentie (Brand) Simulatie NIFV 2007

  43. Rookverspreiding Conferentie (Brand) Simulatie NIFV 2007

  44. Vraag 3 • Welk van onderstaande brandlocaties is het meest ongunstig? Conferentie (Brand) Simulatie NIFV 2007

  45. Aandachtspunten • CFD is een simulatie • Keuze brandlocatie • Gewenste prestatie • Haalbaarheid eisen • Uitgangspunten Conferentie (Brand) Simulatie NIFV 2007
