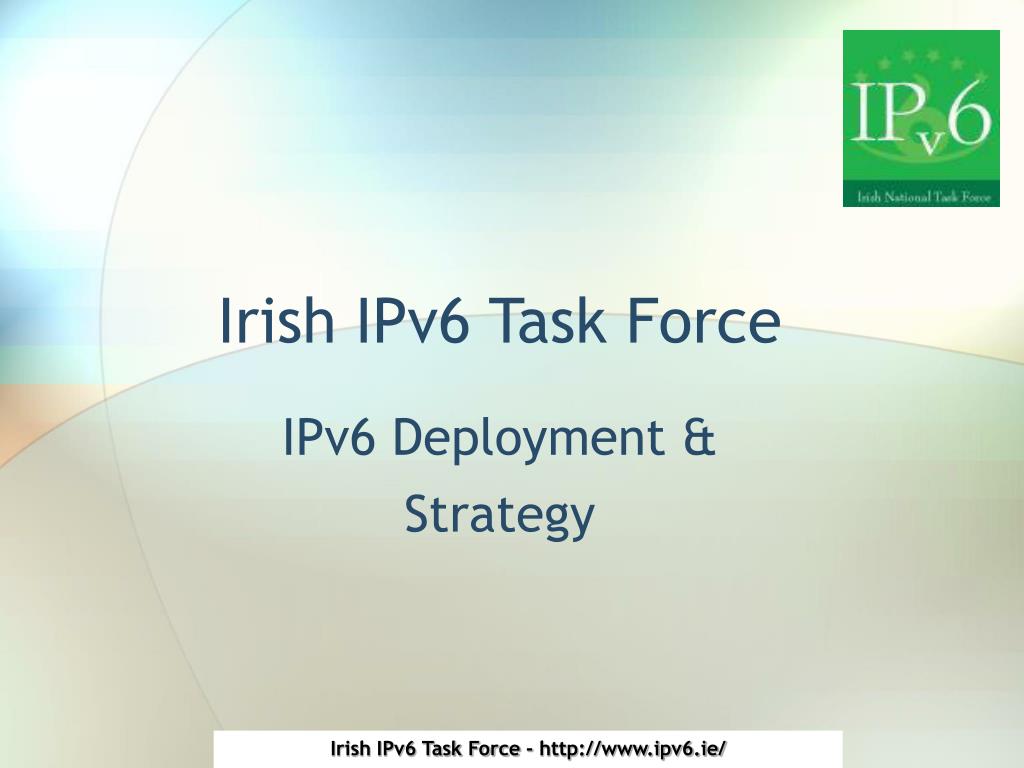

  1. Irish IPv6 Task Force IPv6 Deployment & Strategy Irish IPv6 Task Force - http://www.ipv6.ie/

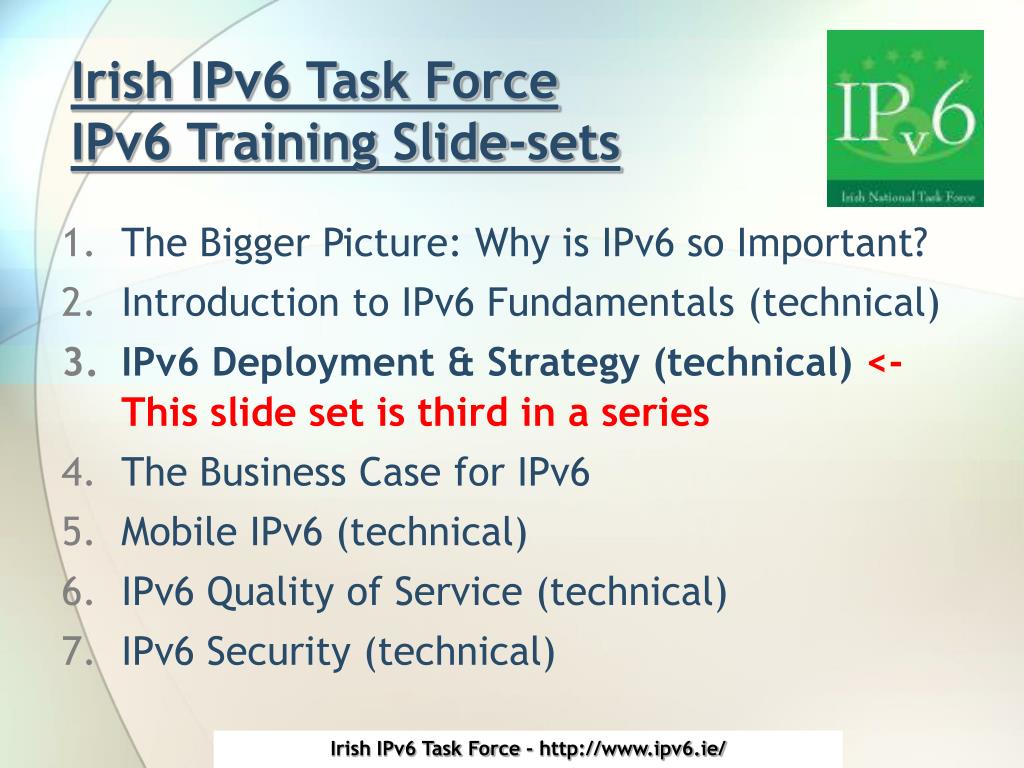

  2. Irish IPv6 Task ForceIPv6 Training Slide-sets • The Bigger Picture: Why is IPv6 so Important? • Introduction to IPv6 Fundamentals (technical) • IPv6 Deployment & Strategy (technical)<- This slide set is third in a series • The Business Case for IPv6 • Mobile IPv6 (technical) • IPv6 Quality of Service (technical) • IPv6 Security (technical)

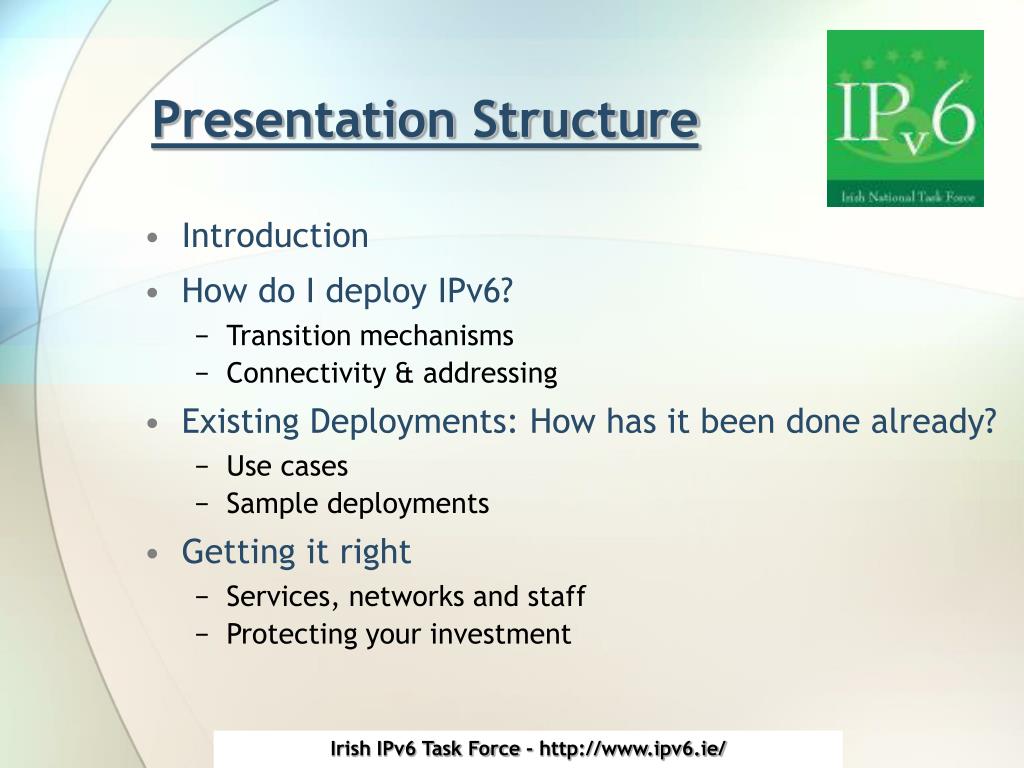

  3. Presentation Structure • Introduction • How do I deploy IPv6? • Transition mechanisms • Connectivity & addressing • Existing Deployments: How has it been done already? • Use cases • Sample deployments • Getting it right • Services, networks and staff • Protecting your investment

  4. Introduction

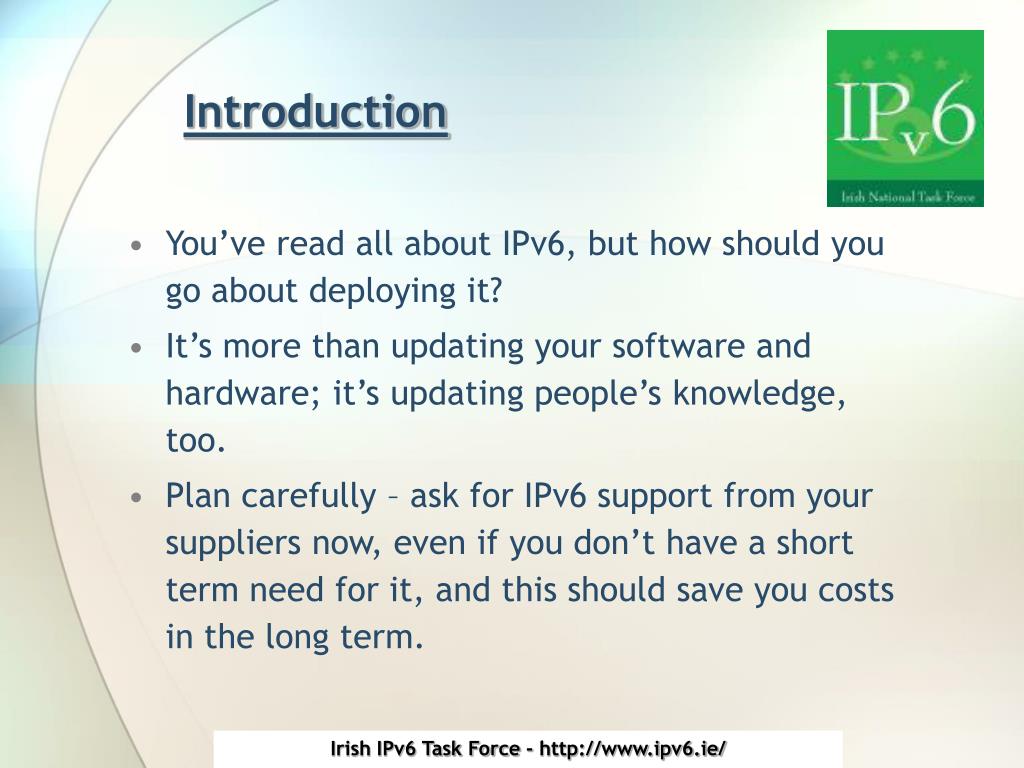

  5. Introduction • You’ve read all about IPv6, but how should you go about deploying it? • It’s more than updating your software and hardware; it’s updating people’s knowledge, too. • Plan carefully – ask for IPv6 support from your suppliers now, even if you don’t have a short term need for it, and this should save you costs in the long term.

  6. How do I deploy IPv6?

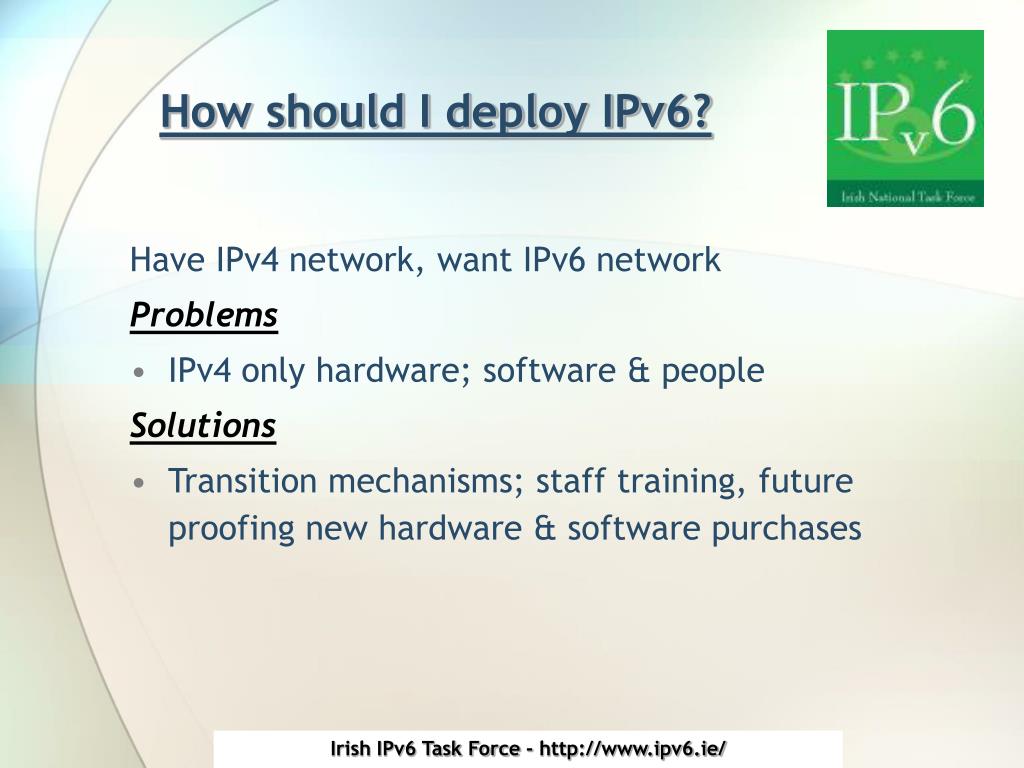

  7. How should I deploy IPv6? Have IPv4 network, want IPv6 network Problems • IPv4 only hardware; software & people Solutions • Transition mechanisms; staff training, future proofing new hardware & software purchases

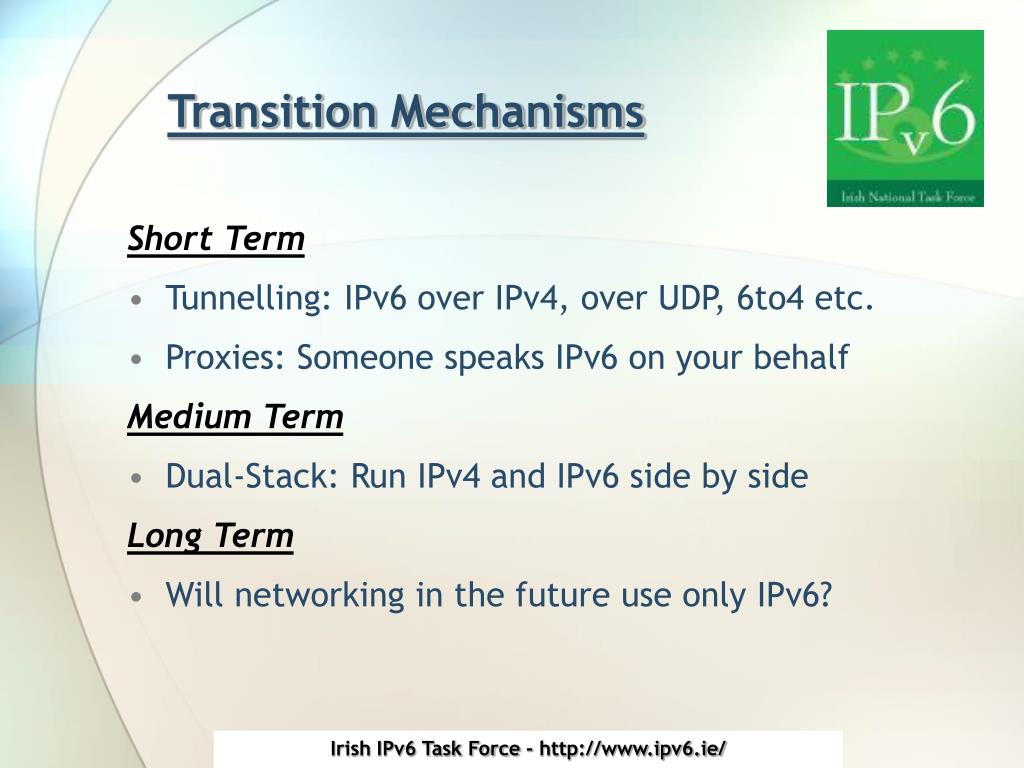

  8. Transition Mechanisms Short Term • Tunnelling: IPv6 over IPv4, over UDP, 6to4 etc. • Proxies: Someone speaks IPv6 on your behalf Medium Term • Dual-Stack: Run IPv4 and IPv6 side by side Long Term • Will networking in the future use only IPv6?

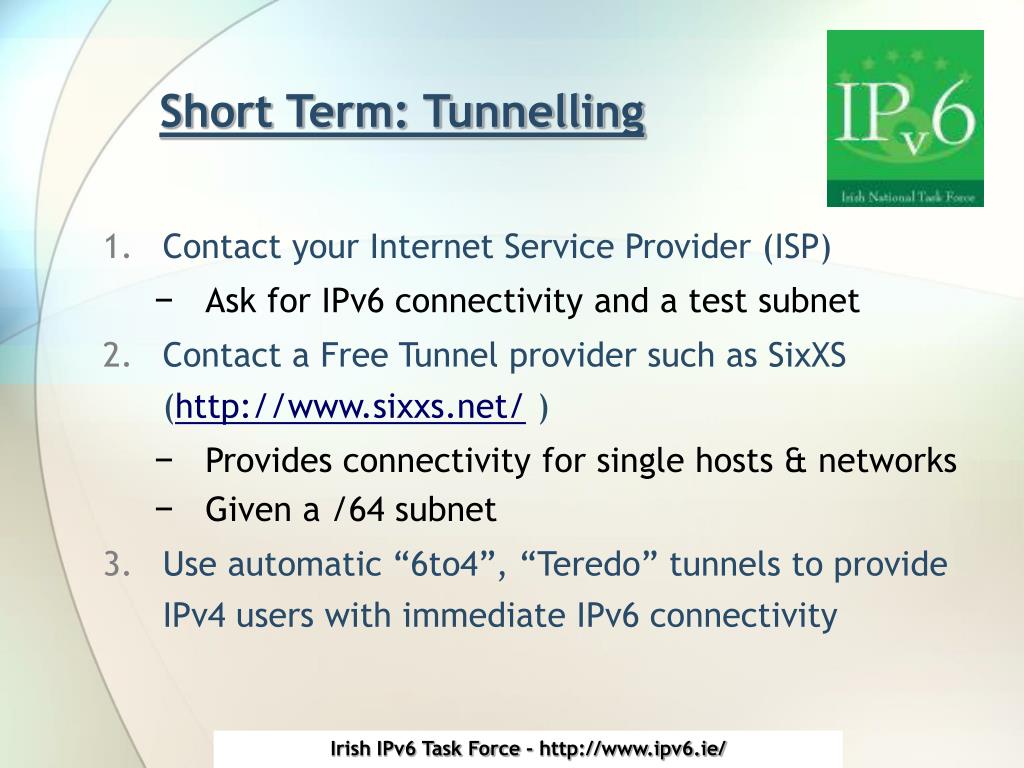

  9. Short Term: Tunnelling • Contact your Internet Service Provider (ISP) • Ask for IPv6 connectivity and a test subnet • Contact a Free Tunnel provider such as SixXS (http://www.sixxs.net/ ) • Provides connectivity for single hosts & networks • Given a /64 subnet • Use automatic “6to4”, “Teredo” tunnels to provide IPv4 users with immediate IPv6 connectivity

  10. Medium Term: Dual Stack • Getting IPv6 Addresses of your own • Different to IPv4. Instead of applying to your Regional Internet Registry (i.e. RIPE, ARIN, APNIC) directly, address blocks are allocated by your ISP. • Most ISPs will offer you a minimum /48 network. That’s more than 65000 (216) subnets! • You can get a larger allocation if your two year deployment plan can justify it (as per current allocation rules from RIPE).

  11. Devising an Addressing Plan • More concerned with functional address allocation than conserving IPv6 address space. • Don’t think of addressing plans in IPv4 terms • Minimum network assignment recommended is a /64. • This is to facilitate auto configured addressing • And to allow for the growth of subnets without needing further address allocations • Remember that the first address on every subnet is reserved (e.g. 2001:db8:100::0/64)

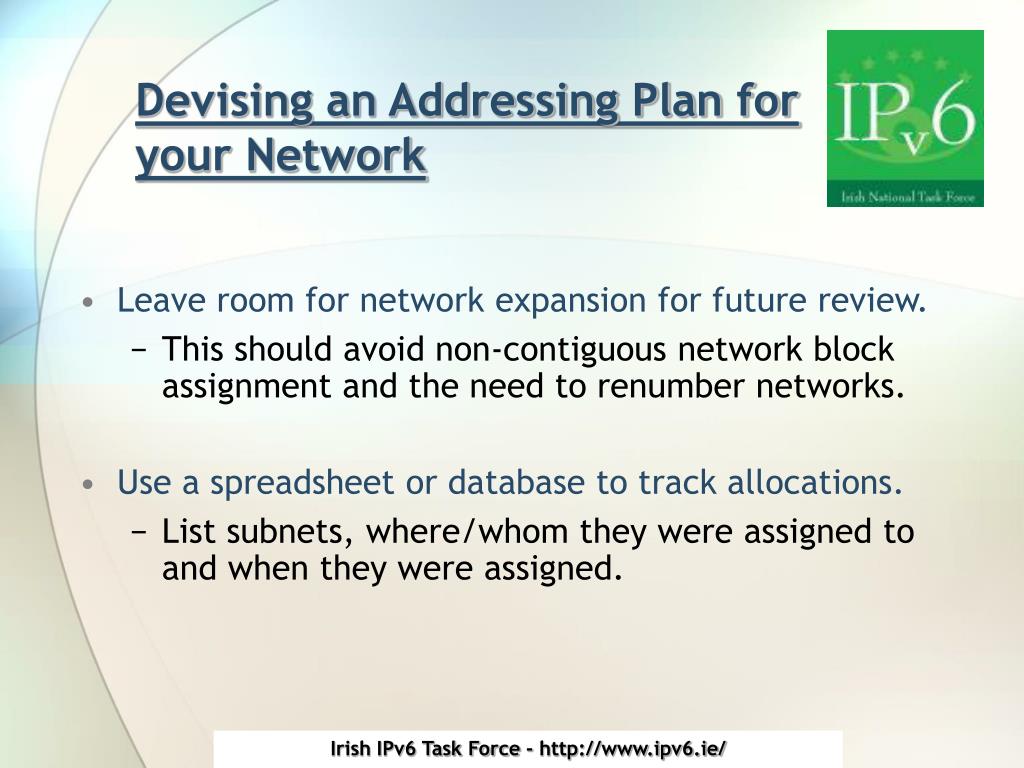

  12. Devising an Addressing Plan for your Network • Leave room for network expansion for future review. • This should avoid non-contiguous network block assignment and the need to renumber networks. • Use a spreadsheet or database to track allocations. • List subnets, where/whom they were assigned to and when they were assigned.

  13. Addressing Plan Guidelines Allocated2001:db8:100::/48 • This means that the first 48 bits (the first three colon’s worth) of the address are fixed and you have the remaining 80 bits to use. • Assign a /64 address block per network - i.e. per department; school; section etc. • Leave the next 7 * /64 subnets free for future expansion. • Keep records up to date to track properly (spreadsheet, database or reverse DNS)

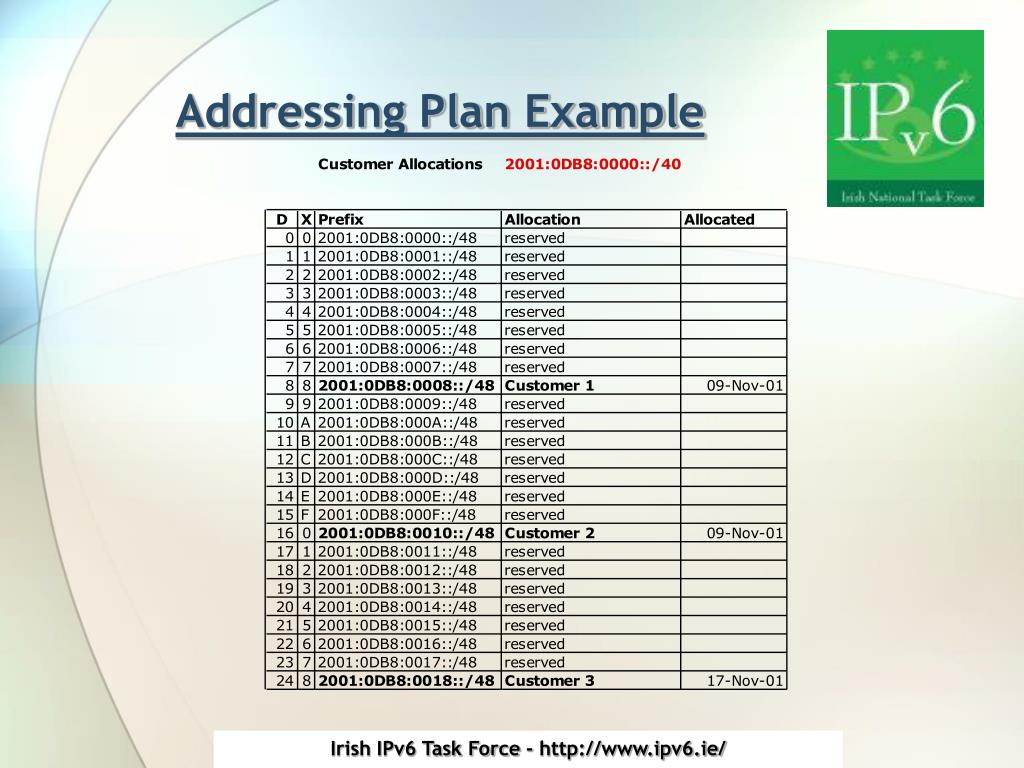

  14. Addressing Plan Example

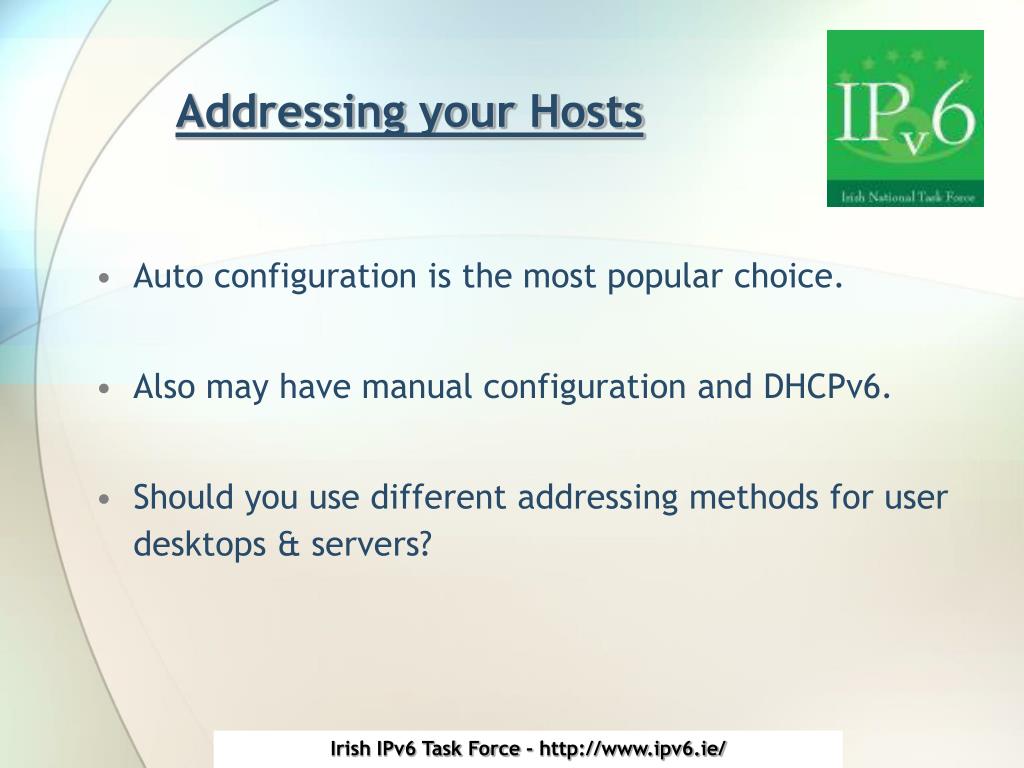

  15. Addressing your Hosts • Auto configuration is the most popular choice. • Also may have manual configuration and DHCPv6. • Should you use different addressing methods for user desktops & servers?

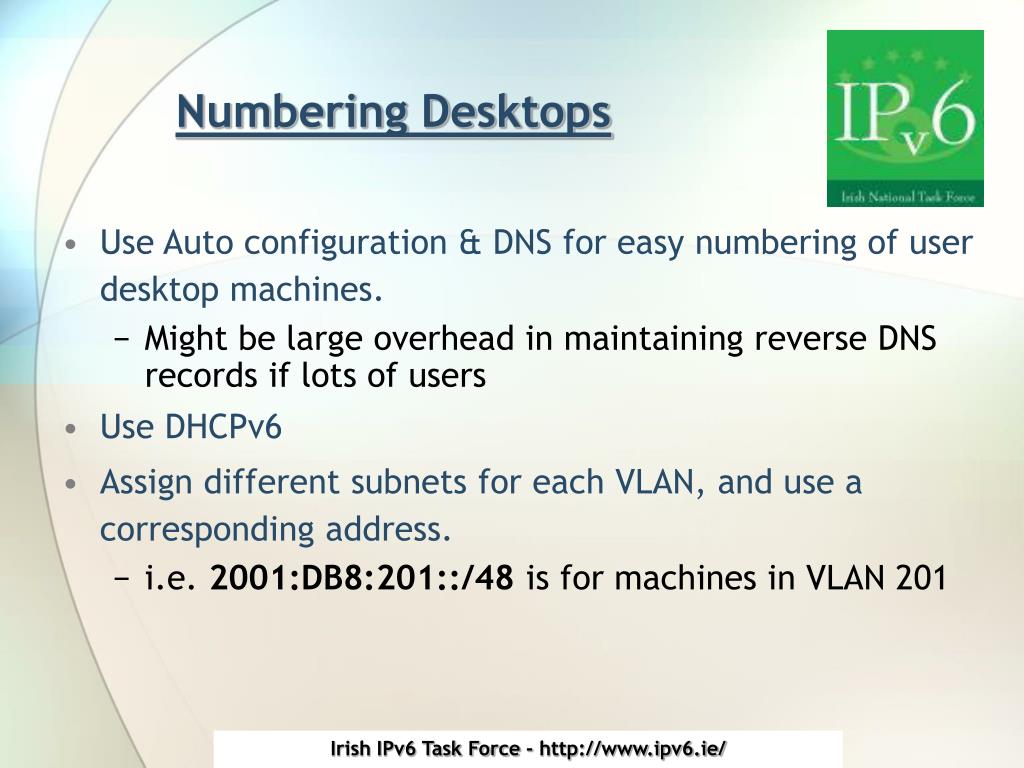

  16. Numbering Desktops • Use Auto configuration & DNS for easy numbering of user desktop machines. • Might be large overhead in maintaining reverse DNS records if lots of users • Use DHCPv6 • Assign different subnets for each VLAN, and use a corresponding address. • i.e. 2001:DB8:201::/48 is for machines in VLAN 201

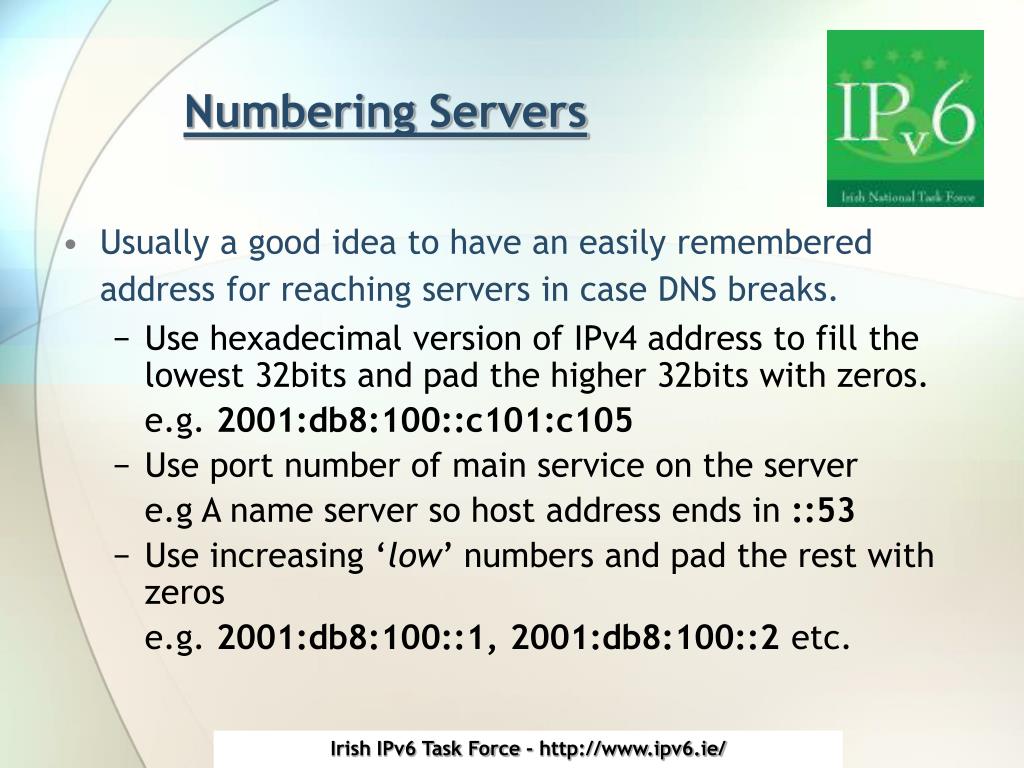

  17. Numbering Servers • Usually a good idea to have an easily remembered address for reaching servers in case DNS breaks. • Use hexadecimal version of IPv4 address to fill the lowest 32bits and pad the higher 32bits with zeros. e.g. 2001:db8:100::c101:c105 • Use port number of main service on the server e.g A name server so host address ends in ::53 • Use increasing ‘low’ numbers and pad the rest with zeros e.g. 2001:db8:100::1, 2001:db8:100::2 etc.

  18. Existing DeploymentsHow has it been done already? Irish IPv6 Task Force - http://www.ipv6.ie/

  19. Use cases Let's cover some use cases: • Single machine in IPv4-only land • Single network similarly isolated • Full dual-stacked network with native connectivity

  20. Single machine This is a good way to get to grips with IPv6 Usual dual stacking procedure applies: • Enable support in the Operating System • If necessary; MS Vista & Debian Linux IPv6 is enabled by default • Enable some sort of 6-over-4 connection • Enable the applications We will concentrate here on connectivity.

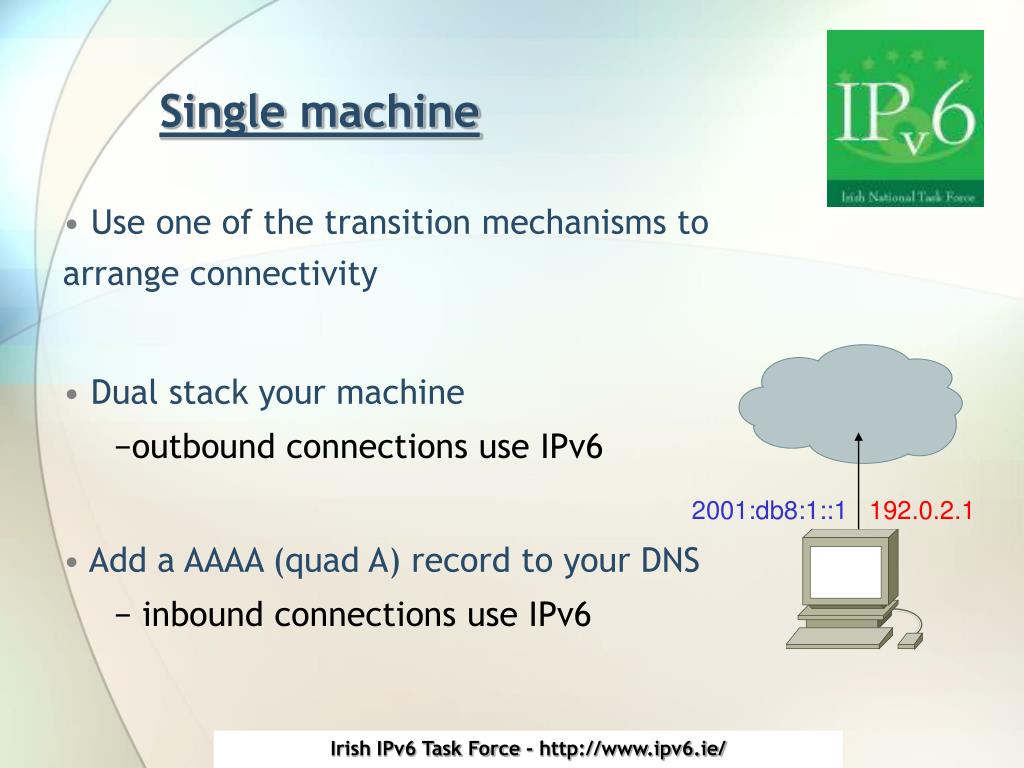

  21. Single machine • Use one of the transition mechanisms to arrange connectivity • Dual stack your machine • outbound connections use IPv6 • Add a AAAA (quad A) record to your DNS • inbound connections use IPv6 2001:db8:1::1 192.0.2.1

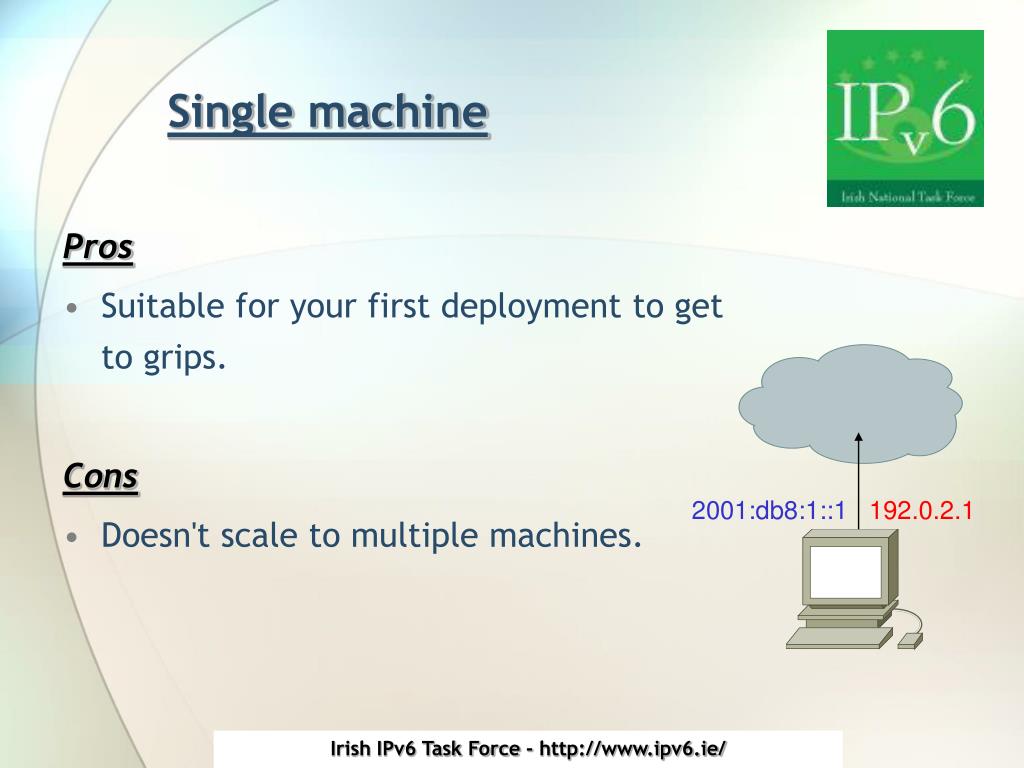

  22. Single machine Pros • Suitable for your first deployment to get to grips. Cons • Doesn't scale to multiple machines. 2001:db8:1::1 192.0.2.1

  23. Single network + tunnel • Your IPv6 router doesn't need to be the same as your IPv4 router • it can even be a PC! • Again, start with some sort of tunnel. • A configured tunnel gives best persistence

  24. Single network + tunnel Pros • Good initial deployment, without major initial investment. • Can migrate to single dual-stacked topology over time Cons • Effectively gives you two separate network topologies to manage.

  25. Native Dual Stacked • All your equipment and services support IPv6. • IPv4 and IPv6 on your router, and your ISP transit connection(s). • Management systems, servers, and clients dual stacked.

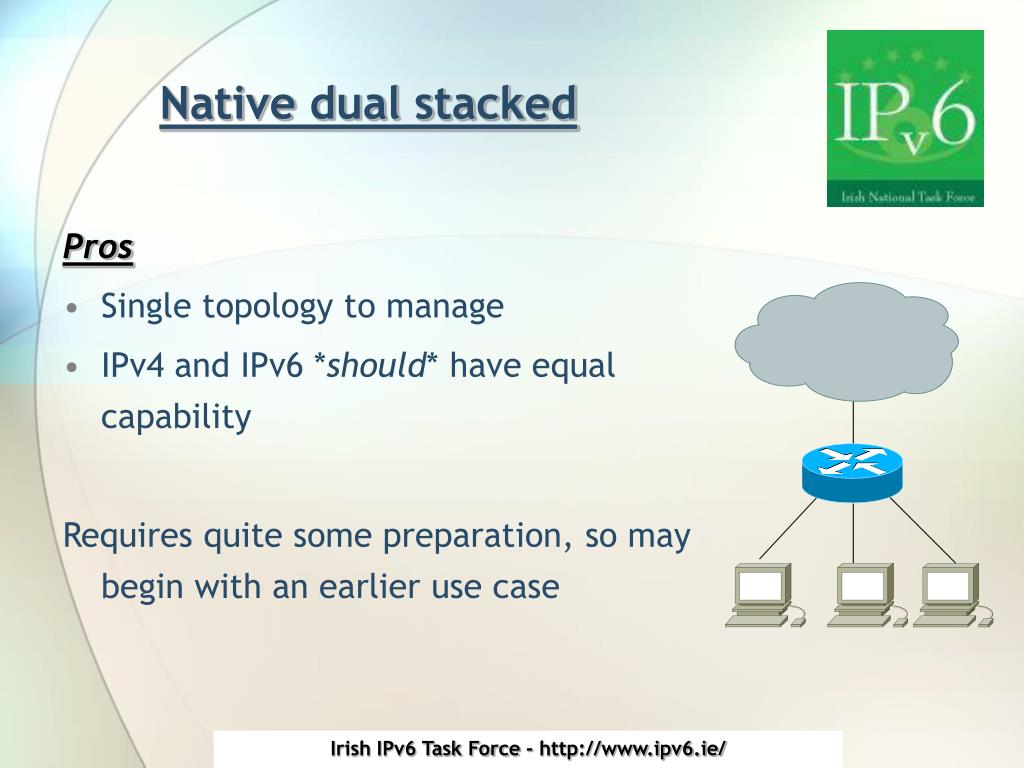

  26. Native dual stacked Pros • Single topology to manage • IPv4 and IPv6 *should* have equal capability Requires quite some preparation, so may begin with an earlier use case

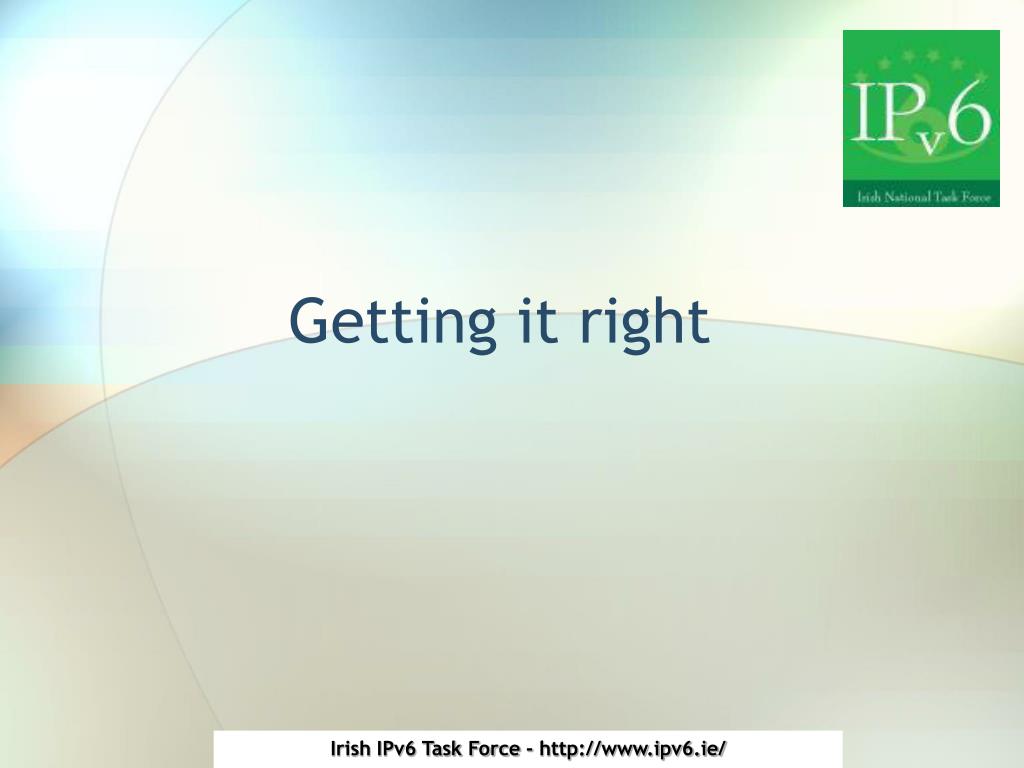

  27. Getting it right Irish IPv6 Task Force - http://www.ipv6.ie/

  28. Ancillary services • There is, of course, more to a network than the network itself: • Network management systems, • NOC & helpdesk staff, • Customers and users.

  29. Network management • If you're not monitoring a service, you don't have a service. • Updating management kit can be harder than upgrading the network itself.

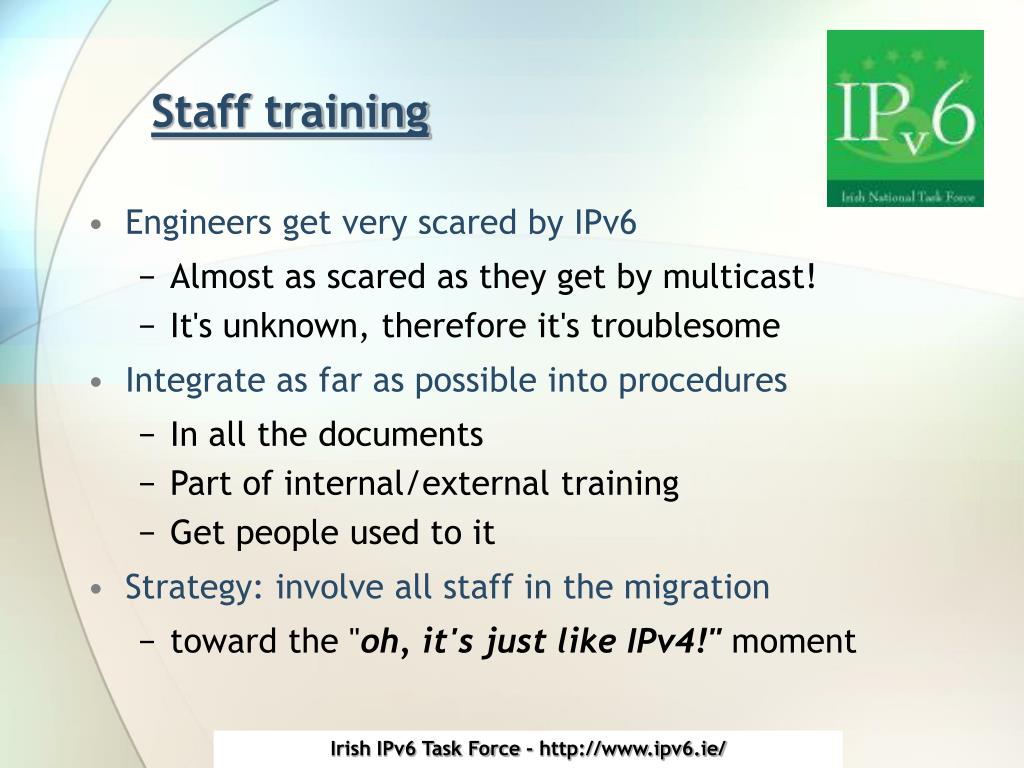

  30. Staff training • Engineers get very scared by IPv6 • Almost as scared as they get by multicast! • It's unknown, therefore it's troublesome • Integrate as far as possible into procedures • In all the documents • Part of internal/external training • Get people used to it • Strategy: involve all staff in the migration • toward the "oh, it's just like IPv4!" moment

  31. Future Proofing Purchases • Important in both Hardware & Software • Even if you don’t plan on deploying IPv6 as a production service in the short term, insist on the functionality now. It will save you money in the long term! • If IPv6 is not supported currently: • Ask for a timeline for deployment • Impose penalties if not delivered (in Tender documents, Service Level Agreements etc.)

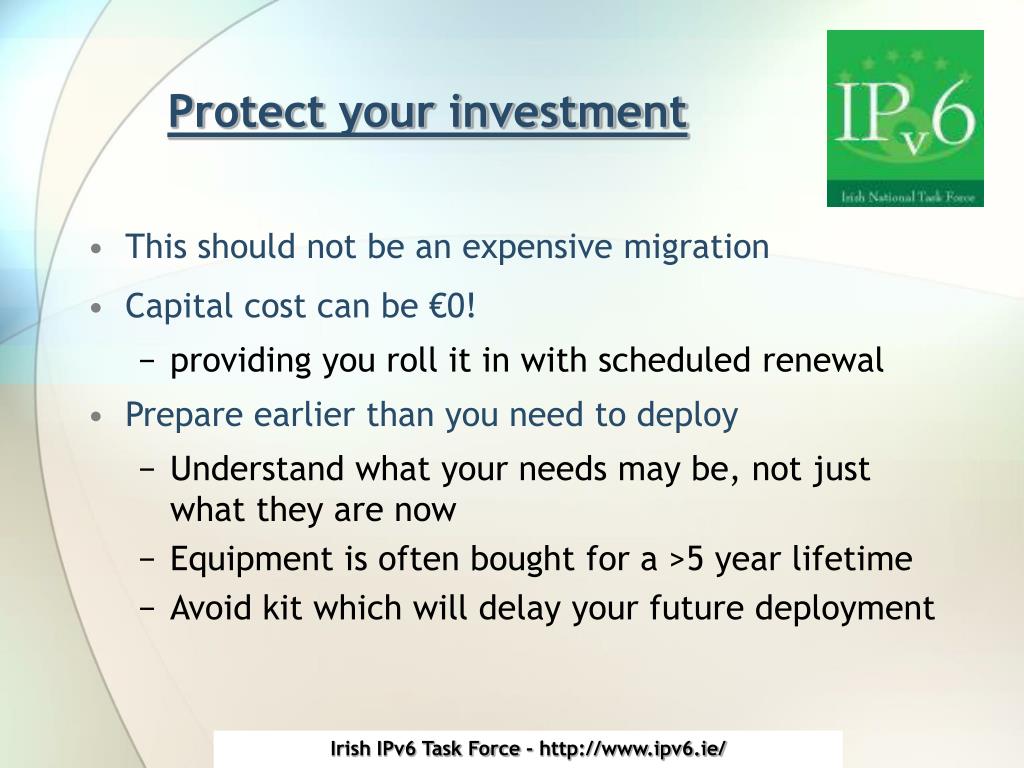

  32. Protect your investment • This should not be an expensive migration • Capital cost can be €0! • providing you roll it in with scheduled renewal • Prepare earlier than you need to deploy • Understand what your needs may be, not just what they are now • Equipment is often bought for a >5 year lifetime • Avoid kit which will delay your future deployment

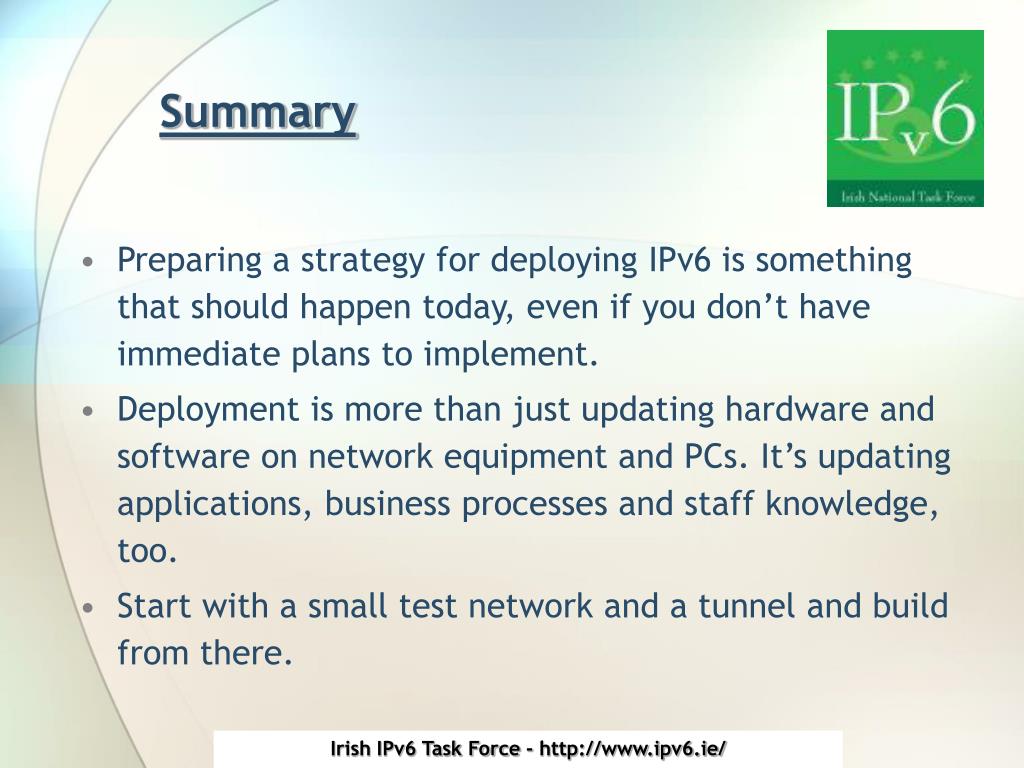

  33. Summary • Preparing a strategy for deploying IPv6 is something that should happen today, even if you don’t have immediate plans to implement. • Deployment is more than just updating hardware and software on network equipment and PCs. It’s updating applications, business processes and staff knowledge, too. • Start with a small test network and a tunnel and build from there.

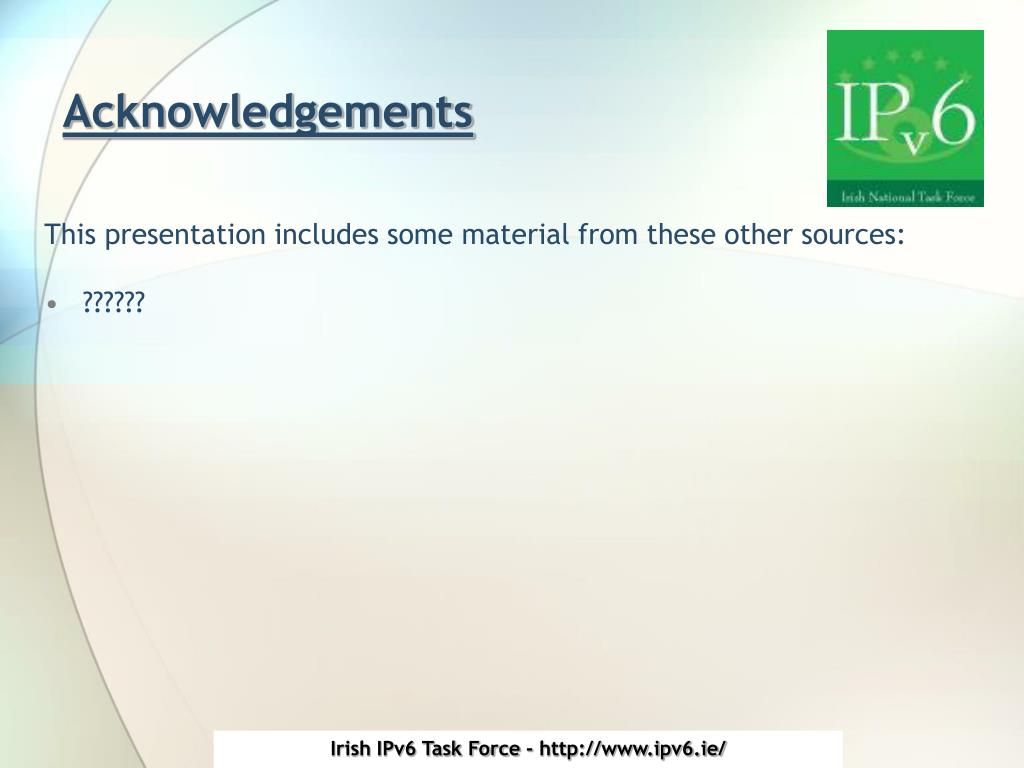

  34. Acknowledgements This presentation includes some material from these other sources: • ??????

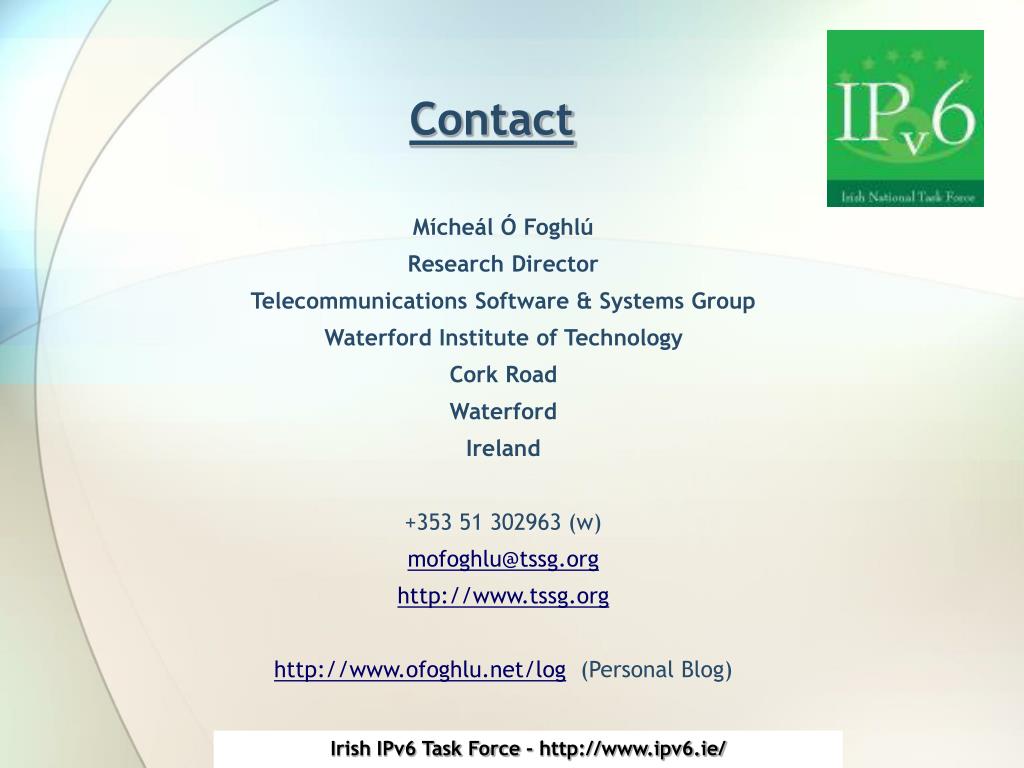

  35. Contact Mícheál Ó Foghlú Research Director Telecommunications Software & Systems Group Waterford Institute of Technology Cork Road Waterford Ireland +353 51 302963 (w) mofoghlu@tssg.org http://www.tssg.org http://www.ofoghlu.net/log (Personal Blog)

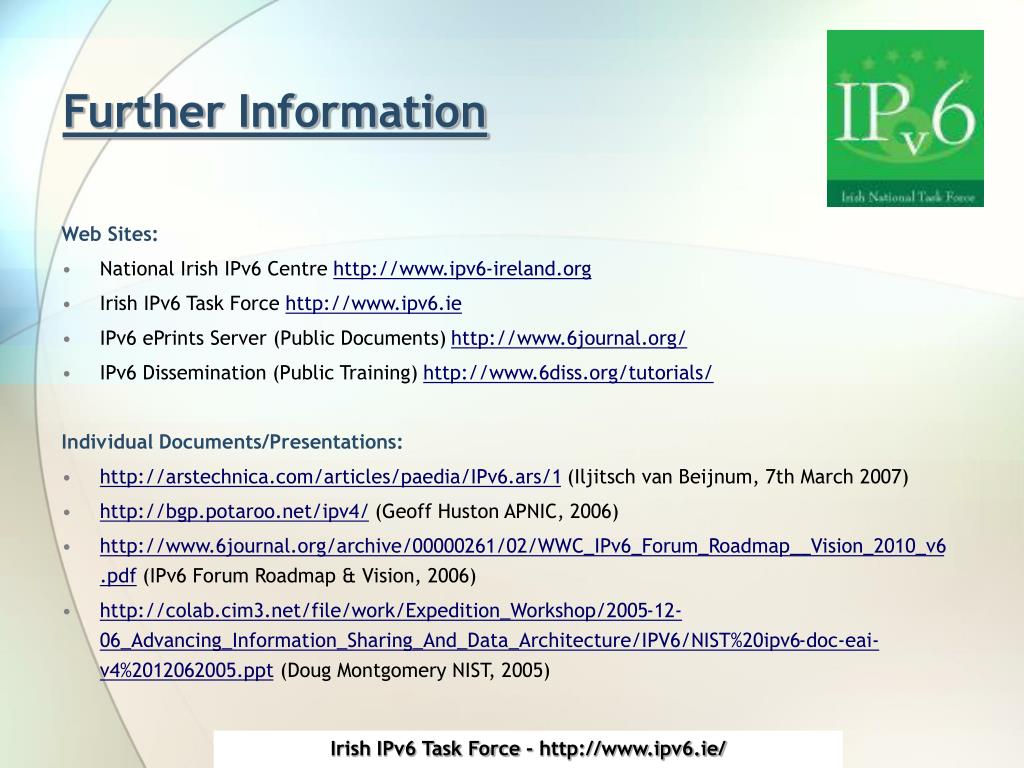

  36. Further Information Web Sites: • National Irish IPv6 Centre http://www.ipv6-ireland.org • Irish IPv6 Task Force http://www.ipv6.ie • IPv6 ePrints Server (Public Documents) http://www.6journal.org/ • IPv6 Dissemination (Public Training) http://www.6diss.org/tutorials/ Individual Documents/Presentations: • http://arstechnica.com/articles/paedia/IPv6.ars/1 (Iljitsch van Beijnum, 7th March 2007) • http://bgp.potaroo.net/ipv4/ (Geoff Huston APNIC, 2006) • http://www.6journal.org/archive/00000261/02/WWC_IPv6_Forum_Roadmap__Vision_2010_v6.pdf (IPv6 Forum Roadmap & Vision, 2006) • http://colab.cim3.net/file/work/Expedition_Workshop/2005-12-06_Advancing_Information_Sharing_And_Data_Architecture/IPV6/NIST%20ipv6-doc-eai-v4%2012062005.ppt (Doug Montgomery NIST, 2005)

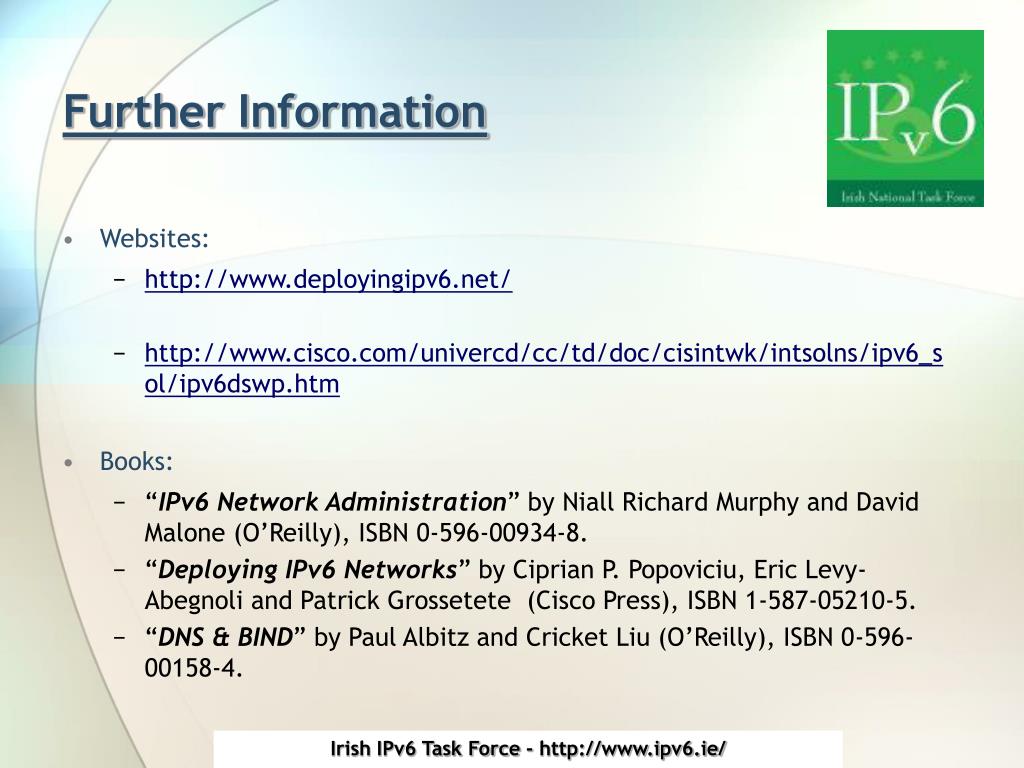

  37. Further Information • Websites: • http://www.deployingipv6.net/ • http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/ipv6_sol/ipv6dswp.htm • Books: • “IPv6 Network Administration” by Niall Richard Murphy and David Malone (O’Reilly), ISBN 0-596-00934-8. • “Deploying IPv6 Networks” by Ciprian P. Popoviciu, Eric Levy-Abegnoli and Patrick Grossetete (Cisco Press), ISBN 1-587-05210-5. • “DNS & BIND” by Paul Albitz and Cricket Liu (O’Reilly), ISBN 0-596-00158-4.

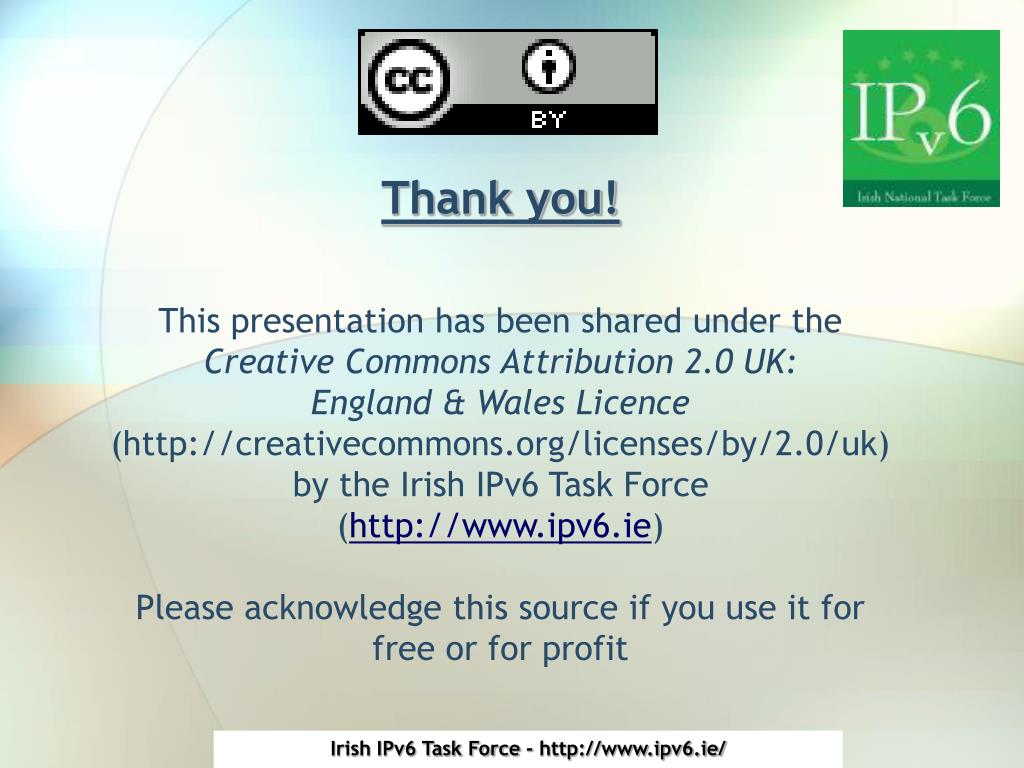

  38. Thank you!This presentation has been shared under the Creative Commons Attribution 2.0 UK: England & Wales Licence(http://creativecommons.org/licenses/by/2.0/uk)by the Irish IPv6 Task Force(http://www.ipv6.ie)Please acknowledge this source if you use it for free or for profit Irish IPv6 Task Force - http://www.ipv6.ie/
