Ohm’s Law

Ohm’s Law. The most important fundamental law in electronics is Ohm’s law, which relates voltage, current, and resistance. Georg Simon Ohm (1787-1854) studied the relationship between voltage, current, and resistance and formulated the equation that bears his name.

karan
Download Presentation

Ohm’s Law

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

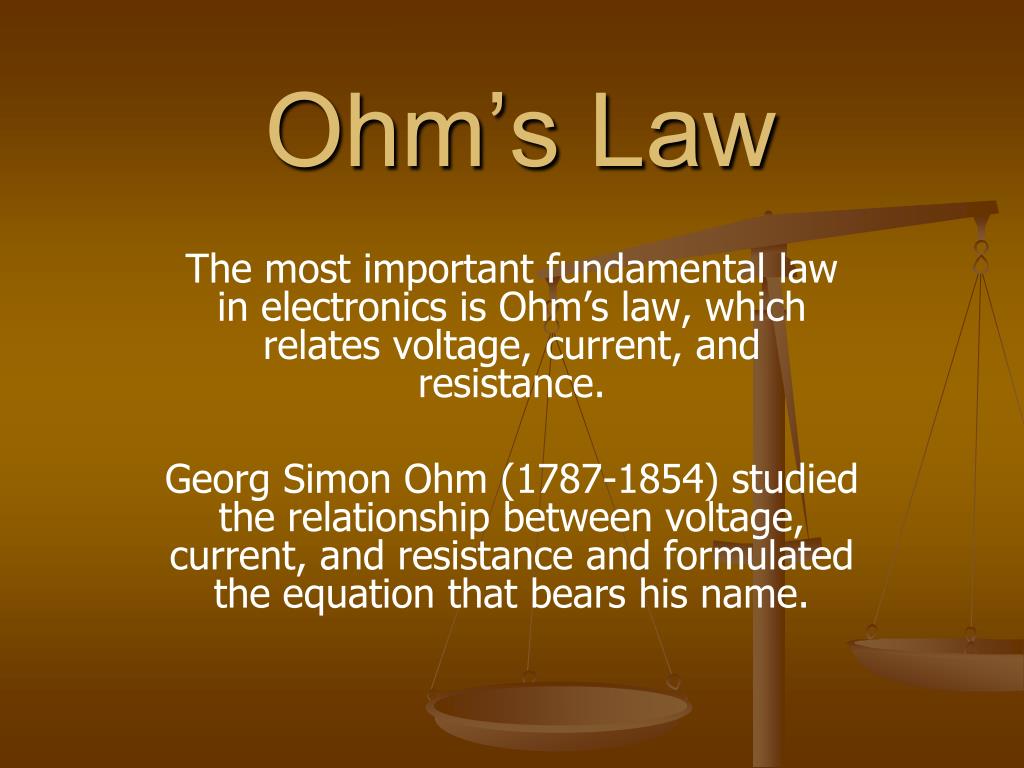

  1. Ohm’s Law The most important fundamental law in electronics is Ohm’s law, which relates voltage, current, and resistance. Georg Simon Ohm (1787-1854) studied the relationship between voltage, current, and resistance and formulated the equation that bears his name.

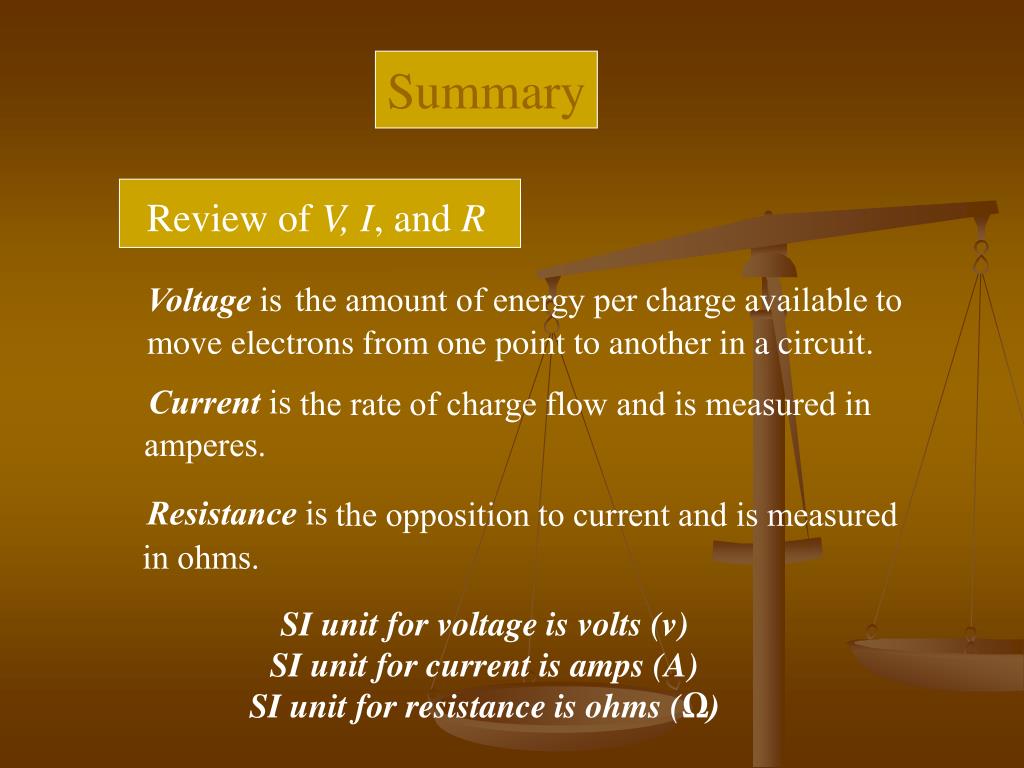

  2. the amount of energy per charge available to move electrons from one point to another in a circuit. the rate of charge flow and is measured in amperes. the opposition to current and is measured in ohms. Summary Review of V, I, and R Voltage is Current is Resistanceis SI unit for voltage is volts (v) SI unit for current is amps (A) SI unit for resistance is ohms (Ω)

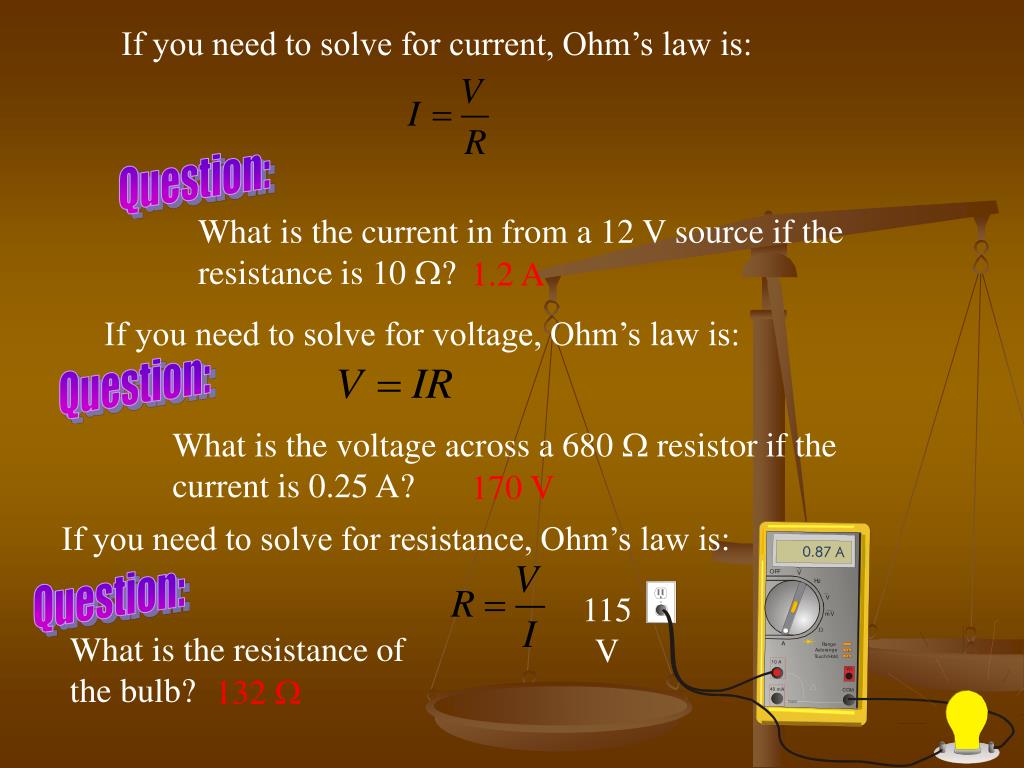

  3. Question: What is the resistance of the bulb? 115 V If you need to solve for current, Ohm’s law is: Question: What is the current in from a 12 V source if the resistance is 10 W? 1.2 A If you need to solve for voltage, Ohm’s law is: Question: What is the voltage across a 680 W resistor if the current is 0.25 A? 170 V If you need to solve for resistance, Ohm’s law is: 132 W

  4. Practice • What value of resistor would be used to permit a current of 0.2 A to flow using a 6V supply? • Calculate the voltage across a 300 ohm resistor when a current of 0.004 A flows through it. • A resistor allows a current of 0.6 A to flow when connected to a 9.6 volt supply.What current would flow if the same resistor was connected to a 12.8 V supply? R=V/I R=6/0.2 R=30Ω V=IR V=(0.004)(300) V=1.2V R=V/I I=V/R R=9.6/0.6 R=16Ω I=12.8/16 I=0.8 A
