  1. Element Abundance Results from CDS Dr Peter Young SOHO/CDS Project Scientist CCLRC Rutherford Appleton Laboratory Dr Peter Young, CCLRC/RAL

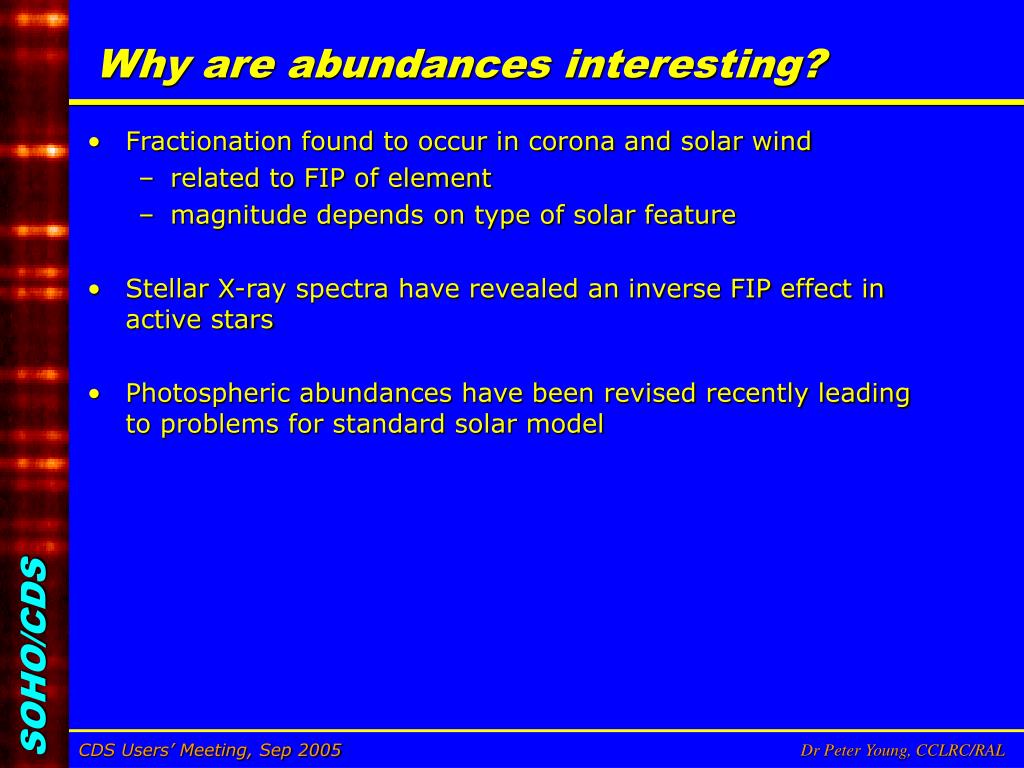

  2. Why are abundances interesting? • Fractionation found to occur in corona and solar wind • related to FIP of element • magnitude depends on type of solar feature • Stellar X-ray spectra have revealed an inverse FIP effect in active stars • Photospheric abundances have been revised recently leading to problems for standard solar model Dr Peter Young, CCLRC/RAL

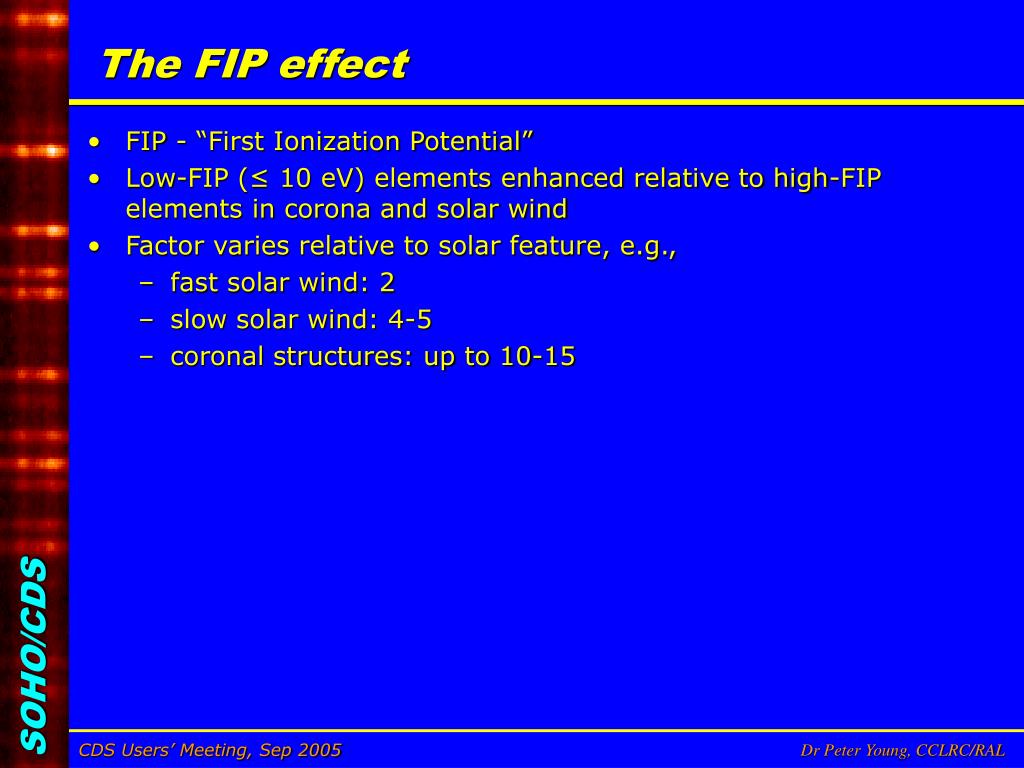

  3. The FIP effect • FIP - “First Ionization Potential” • Low-FIP (≤ 10 eV) elements enhanced relative to high-FIP elements in corona and solar wind • Factor varies relative to solar feature, e.g., • fast solar wind: 2 • slow solar wind: 4-5 • coronal structures: up to 10-15 Dr Peter Young, CCLRC/RAL

  4. Abundances with CDS • NIS covers two wide wavelength bands covering consecutive ion stages for several elements Dr Peter Young, CCLRC/RAL

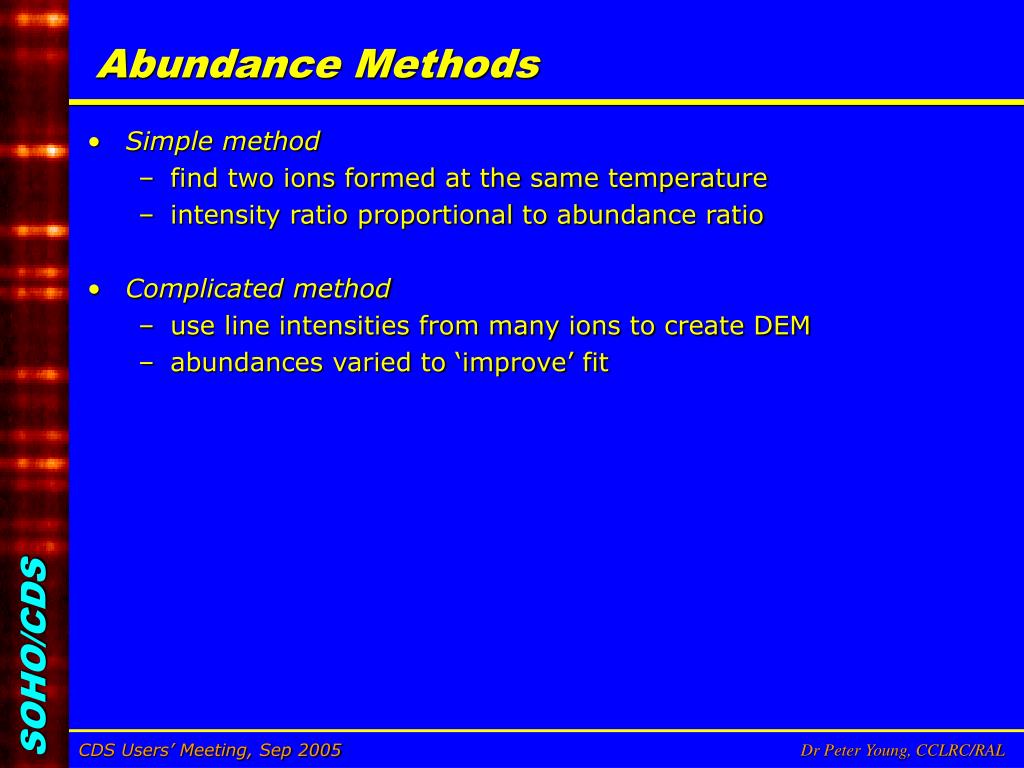

  5. Abundance Methods • Simple method • find two ions formed at the same temperature • intensity ratio proportional to abundance ratio • Complicated method • use line intensities from many ions to create DEM • abundances varied to ‘improve’ fit Dr Peter Young, CCLRC/RAL

  6. Mg/Ne Abundance in Quiet Sun • Measurements of the FIP effect in the quiet Sun were difficult with previous instrumentation (Skylab) and SUMER • Isolated measurements using CDS performed by Del Zanna, Landi, MacPherson, Young • suggest FIP enhancement of 1 – 2 • AIM: perform definitive measurements of Mg/Ne ratio in quiet Sun regions over a 2 year period Dr Peter Young, CCLRC/RAL

  7. CDS observations • Quiet Sun spectral atlas (NISAT) every week of mission • 20” x 240” spatial area • Only consider regions away from bright points and ARs • Data from 1996 March to 1998 June Dr Peter Young, CCLRC/RAL

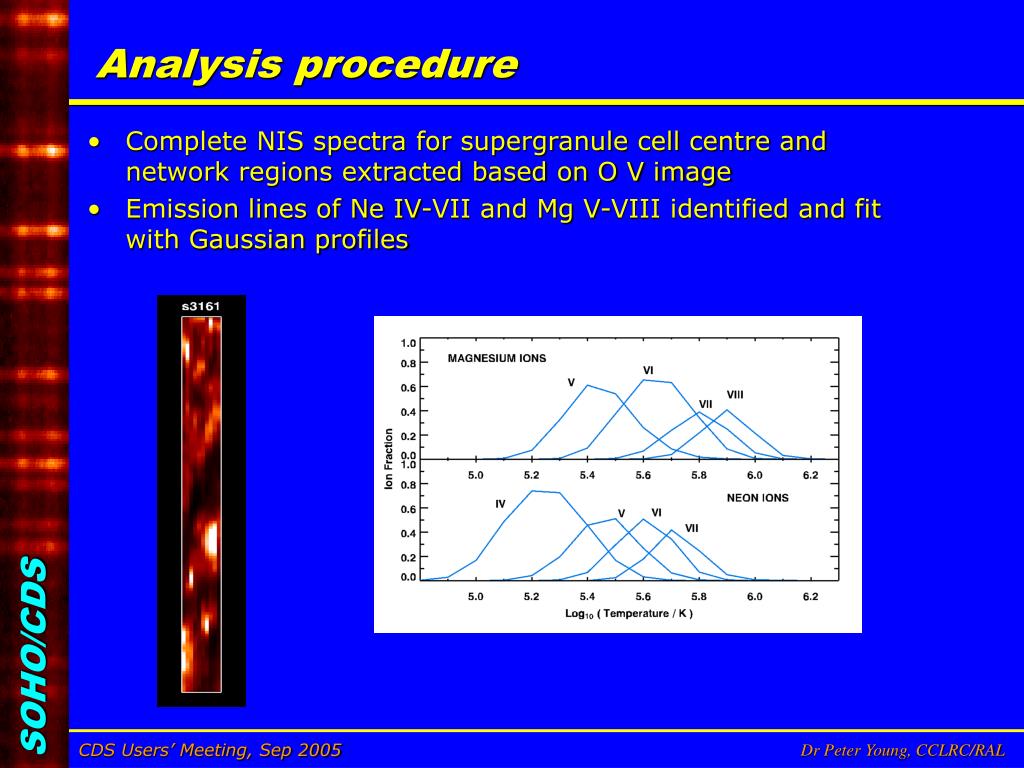

  8. Analysis procedure • Complete NIS spectra for supergranule cell centre and network regions extracted based on O V image • Emission lines of Ne IV-VII and Mg V-VIII identified and fit with Gaussian profiles Dr Peter Young, CCLRC/RAL

  9. Analysis procedure • Minimization procedure applied by specifying plasma column depths, d, over log T = [5.0,6.1], 0.1 intervals • d1, d2,d3 values at log T = 5.0, 5.6, 6.1 • Other values obtained by linear interpolation • CHIANTI/v4.2 used to compute line emissivities • Ab(Mg)/Ab(Ne), d1, d2,d3 are the 4 free parameters Dr Peter Young, CCLRC/RAL

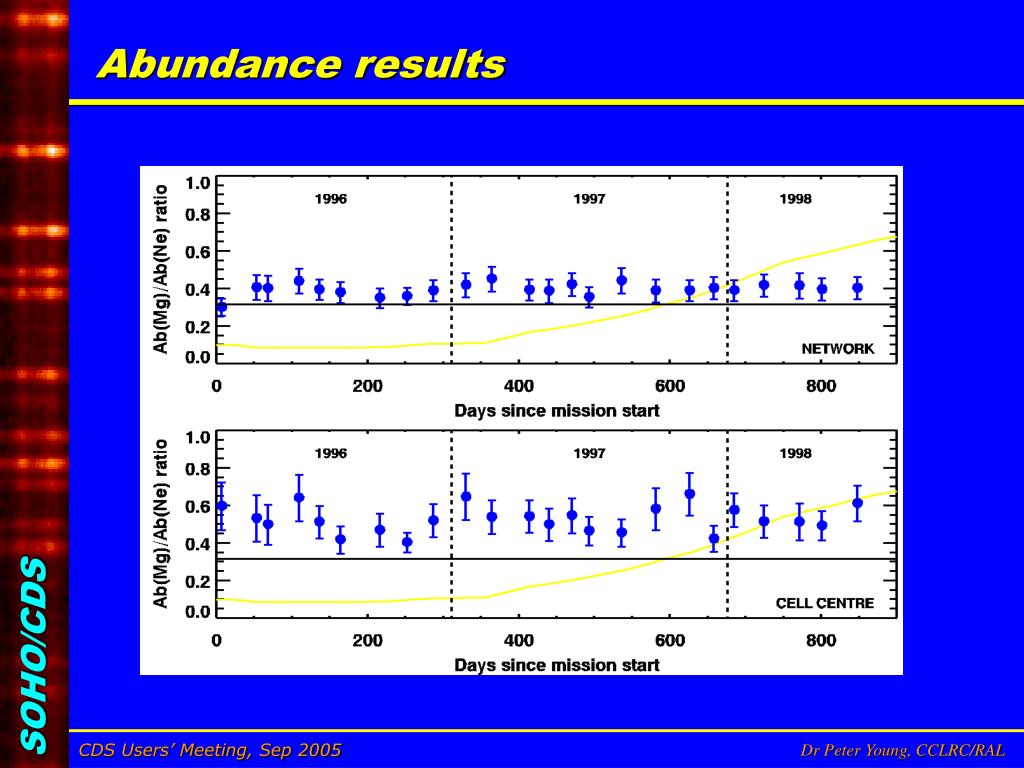

  10. Abundance results Dr Peter Young, CCLRC/RAL

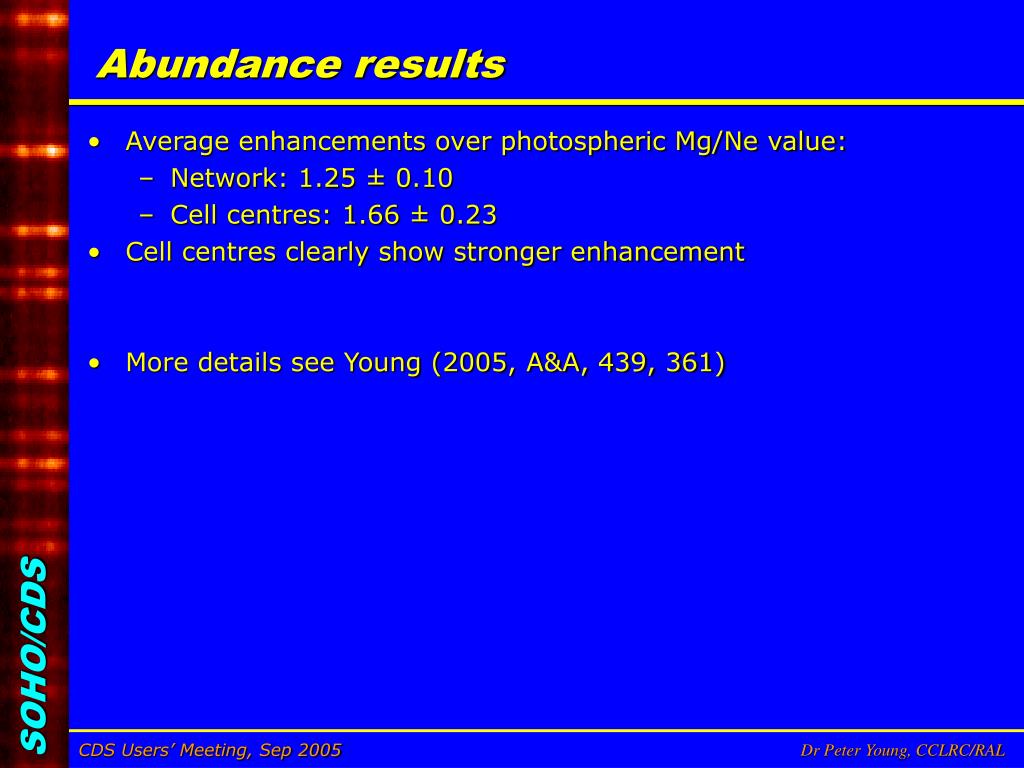

  11. Abundance results • Average enhancements over photospheric Mg/Ne value: • Network: 1.25 ± 0.10 • Cell centres: 1.66 ± 0.23 • Cell centres clearly show stronger enhancement • More details see Young (2005, A&A, 439, 361) Dr Peter Young, CCLRC/RAL

  12. Interpretation • Results consistent with cartoon of H. Peter (2001) • Small fraction of quiet Sun connects to solar wind • Closed quiet Sun loops show photospheric abundances Dr Peter Young, CCLRC/RAL

  13. Active regions • A striking feature of ARs are bright points with strongly enhanced transition region lines • One class of such brightenings have very strong Mg lines Dr Peter Young, CCLRC/RAL

  14. Emerging AR, June 1996 AR 7968 Dr Peter Young, CCLRC/RAL

  15. Emerging AR, June 1996 • Inner brightenings in region of flux emergence • Outer brightenings at base of large coronal loops Dr Peter Young, CCLRC/RAL

  16. Conclusions • Central brightenings show photospheric Mg/Ne ratio • Loop footpoints show factor 10 enhancement in Mg/Ne • More details see Young & Mason (1997, Sol. Phys., 175, 523) Dr Peter Young, CCLRC/RAL

  17. Future Work • General Mg/Ne results for ARs • Ne/O abundance • Minor elements: Ar, K, Ca Dr Peter Young, CCLRC/RAL

  18. General Mg/Ne results for ARs • Widing & Feldman (2001, ApJ) found magnitude of FIP effect related to age of active region using Skylab data • With CDS it should be possible to look at variation in individual AR structures Dr Peter Young, CCLRC/RAL

  19. General Mg/Ne results for ARs Dr Peter Young, CCLRC/RAL

  20. Ne/O relative abundance • Recent downward revisions of C, N, O & Ne abundances have caused problems for standard solar model • Drake & Testa (2005, Nature) suggested solar Ne/O ratio is in error Dr Peter Young, CCLRC/RAL

  21. Ne/O relative abundance • Including oxygen in the quiet Sun Mg/Ne analysis: QS network Drake & Testa photospheric Dr Peter Young, CCLRC/RAL

  22. Minor Elements: K, Ar, Ca • Potassium • K VIII λ519.4, K IX λ621.4 • Argon • Ar VII λ585.8 • Calcium • Ca VII λ551.4, Ca VIII λ596.9, Ca X λ557.7 Dr Peter Young, CCLRC/RAL

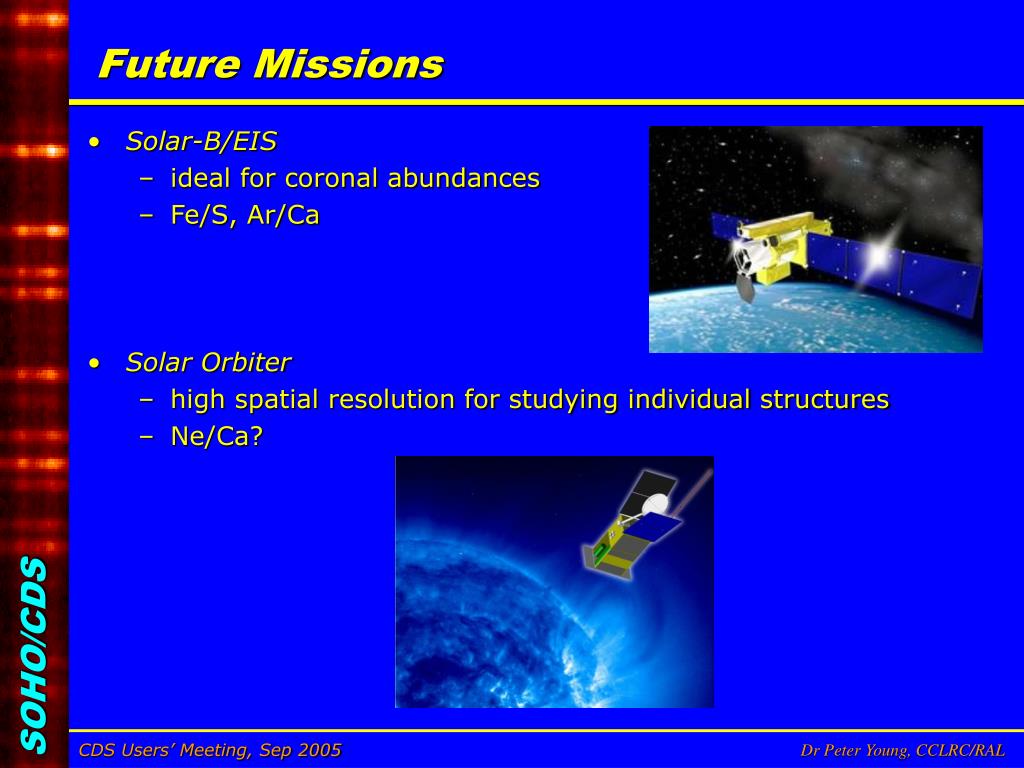

  23. Future Missions • Solar-B/EIS • ideal for coronal abundances • Fe/S, Ar/Ca • Solar Orbiter • high spatial resolution for studying individual structures • Ne/Ca? Dr Peter Young, CCLRC/RAL
