1. No Data Left Behind Modeling Colorful Compounds in Chemical Equilibria Mike DeVries D. Kwabena Bediako Prof. Douglas A. Vander Griend

2. Outline • What is chemical equilibrium? • What makes color data good or not-so-good? • How does matrix algebra work again? • What is Sivvu and how does it work?

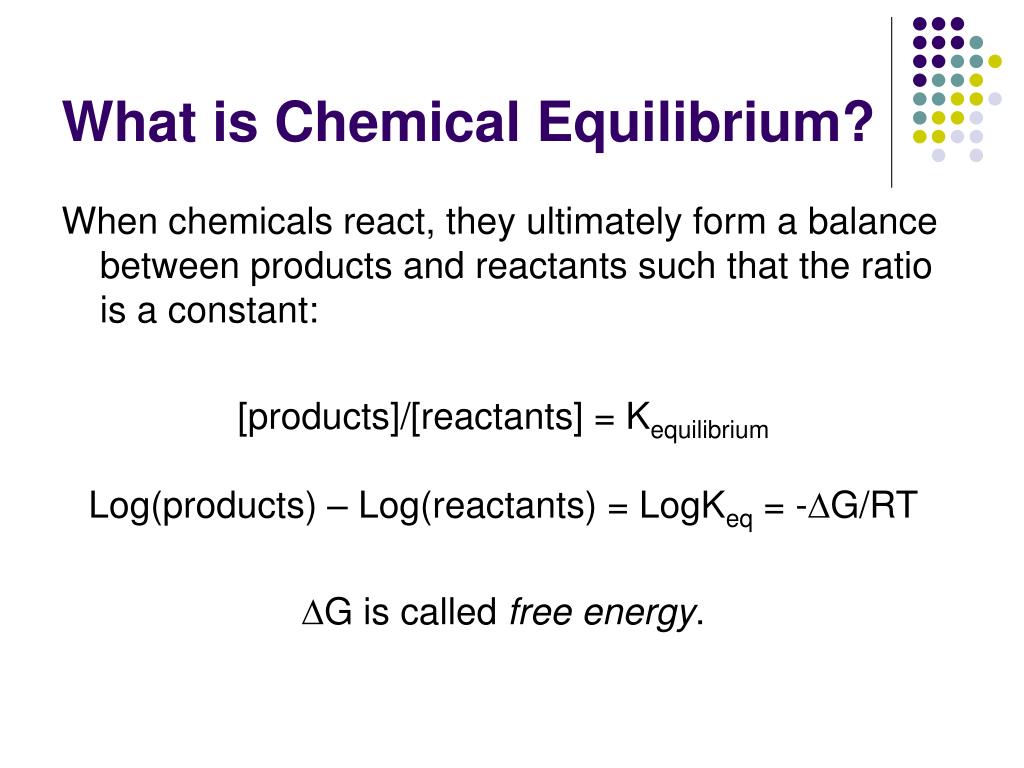

3. What is Chemical Equilibrium? When chemicals react, they ultimately form a balance between products and reactants such that the ratio is a constant: [products]/[reactants] = Kequilibrium Log(products) – Log(reactants) = LogKeq = -G/RT G is called free energy.

4. Example Seal .04 mole of NO2 in a 1 liter container. 2NO2 N2O4 G = -5.40 kJ/mol (@ 25°C) [N2O4]/[NO2]2 = Keq = exp(-G/RT) = 8.97 Let x  amount of NO2 that reacts. (0.5x)/(.04-x)2 = 8.97 x = .01304, or 32.6% reacts

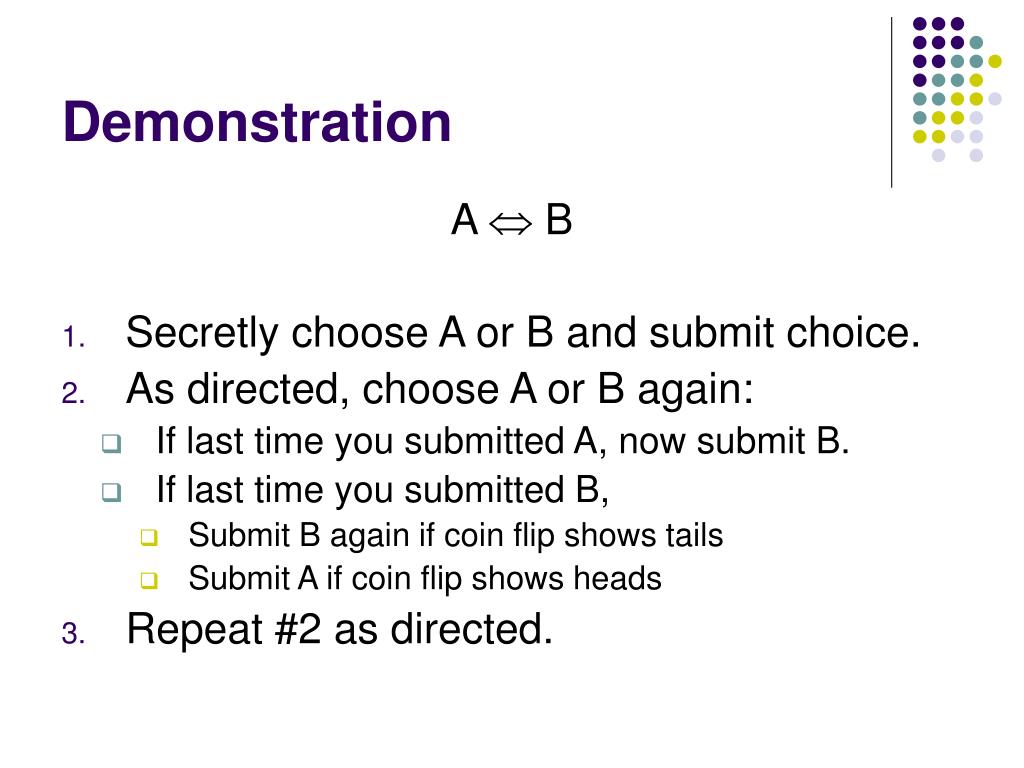

5. Demonstration A  B • Secretly choose A or B and submit choice. • As directed, choose A or B again: • If last time you submitted A, now submit B. • If last time you submitted B, • Submit B again if coin flip shows tails • Submit A if coin flip shows heads • Repeat #2 as directed.

6. Multiple Equilibria • Solving one equilibrium equation can be tricky. • Solving simultaneous equilibria requires a computer.

7. Exhaust Example Calculate the equilibrium amounts of CO2, N2, H2O, CO, O2, NO, and H2 after burning 1 mole of C3H8 in air. • 4 mass balance equations, 1 for each element: • Carbon = 3, Hydrogen = 8, Nitrogen = 40 and Oxygen = 10 • 3 equilibrium equations: • 2CO + O2 2CO2 G = -187.52 kJ/mol • N2 + O2  2NO G = 125.02 kJ/mol • 2H2 + O2  2H2O G = -247.86 kJ/mol

8. Exhaust Example • 4 mass balance equations: • Carbon = 3 • Hydrogen = 8 • Nitrogen = 40 • Oxygen = 10 • 3 equilibrium equations: • [CO2]2/[CO]2/[O2] = 41874 • [NO]2/[N2]/[O2] = 0.001075 • [H2O]2/[H2]2/[O2] = 1134096

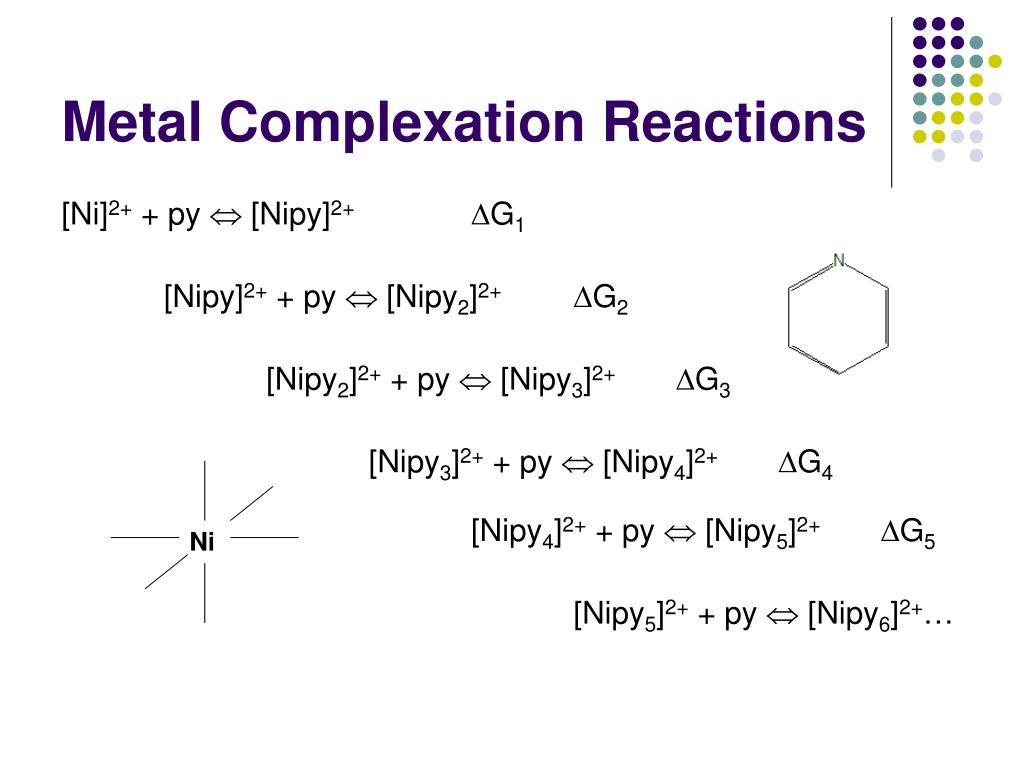

9. Ni Metal Complexation Reactions [Ni]2+ + py  [Nipy]2+ G1 [Nipy]2+ + py  [Nipy2]2+G2 [Nipy2]2+ + py  [Nipy3]2+ G3 [Nipy3]2+ + py  [Nipy4]2+ G4 [Nipy4]2+ + py  [Nipy5]2+ G5 [Nipy5]2+ + py  [Nipy6]2+…

10. Pyridine and Nickel Ni2+ and BF4- in methanol equivalents of pyridine added: 1 2 3 4 5

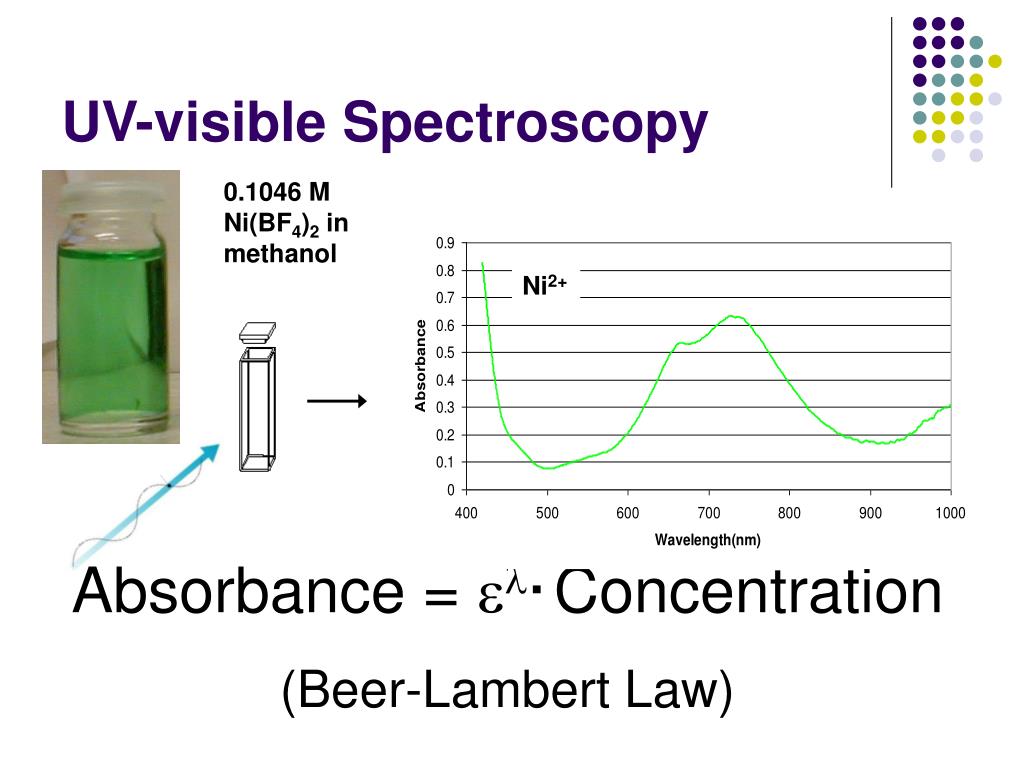

11. UV-visible Spectroscopy 0.1046 M Ni(BF4)2 in methanol Ni2+ Absorbance = ·Concentration (Beer-Lambert Law)

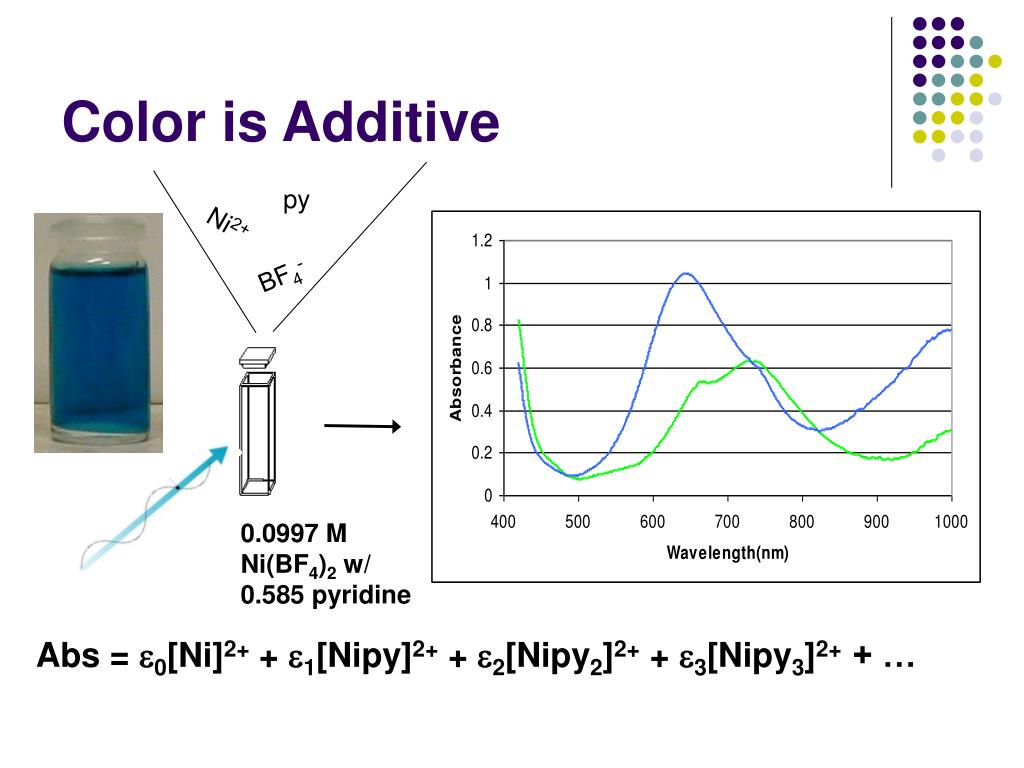

12. Color is Additive py Ni2+ BF4- 0.0997 M Ni(BF4)2 w/ 0.585 pyridine Abs = 0[Ni]2+ + 1[Nipy]2+ + 2[Nipy2]2+ + 3[Nipy3]2++ …

13. Ni What we know is not very much [Ni]2+ + py  [Nipy]2+ G1 [Nipy]2+ + py  [Nipy2]2+G2 [Nipy2]2+ + py  [Nipy3]2+ G3 [Nipy3]2+ + py  [Nipy4]2+ G4 [Nipy4]2+ + py  [Nipy5]2+ G5 [Nipy5]2+ + py  [Nipy6]2+…

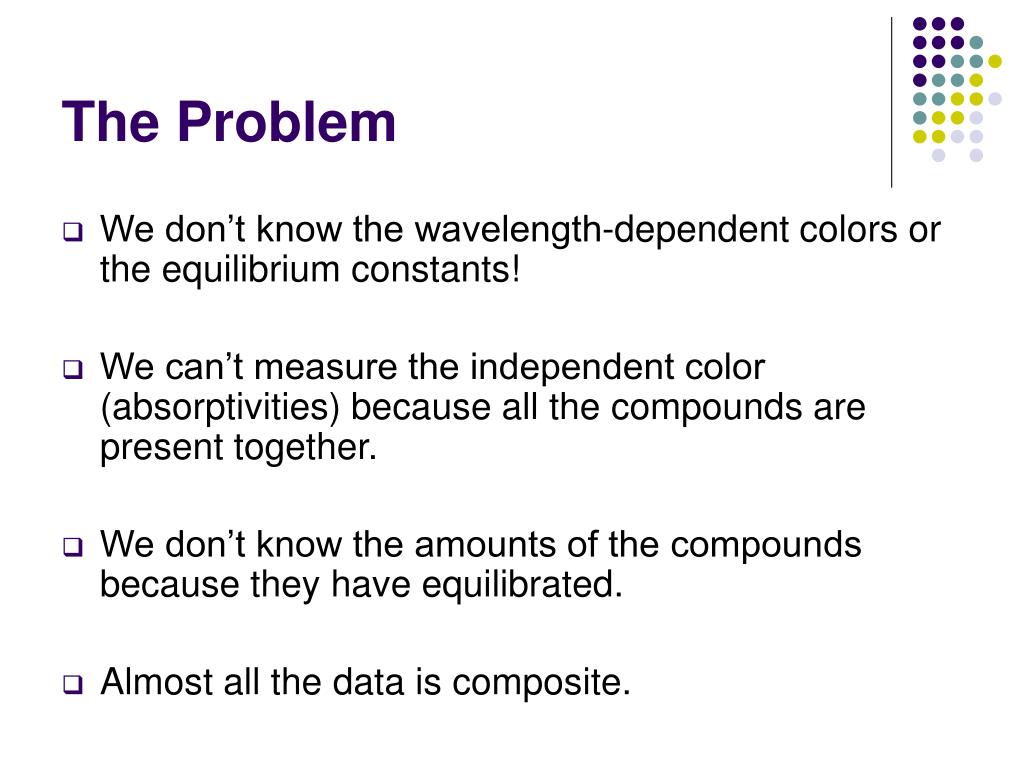

14. The Problem • We don’t know the wavelength-dependent colors or the equilibrium constants! • We can’t measure the independent color (absorptivities) because all the compounds are present together. • We don’t know the amounts of the compounds because they have equilibrated. • Almost all the data is composite.

15. The Solution • It is possible, using advanced mathematical computations, to isolate information about pure species without chemically isolating them. • How? Generate more composite data by making more mixtures with differing amounts of reactants. • Model all the data according to chemical equilibria and the Beer-Lambert law for combining absorbances.

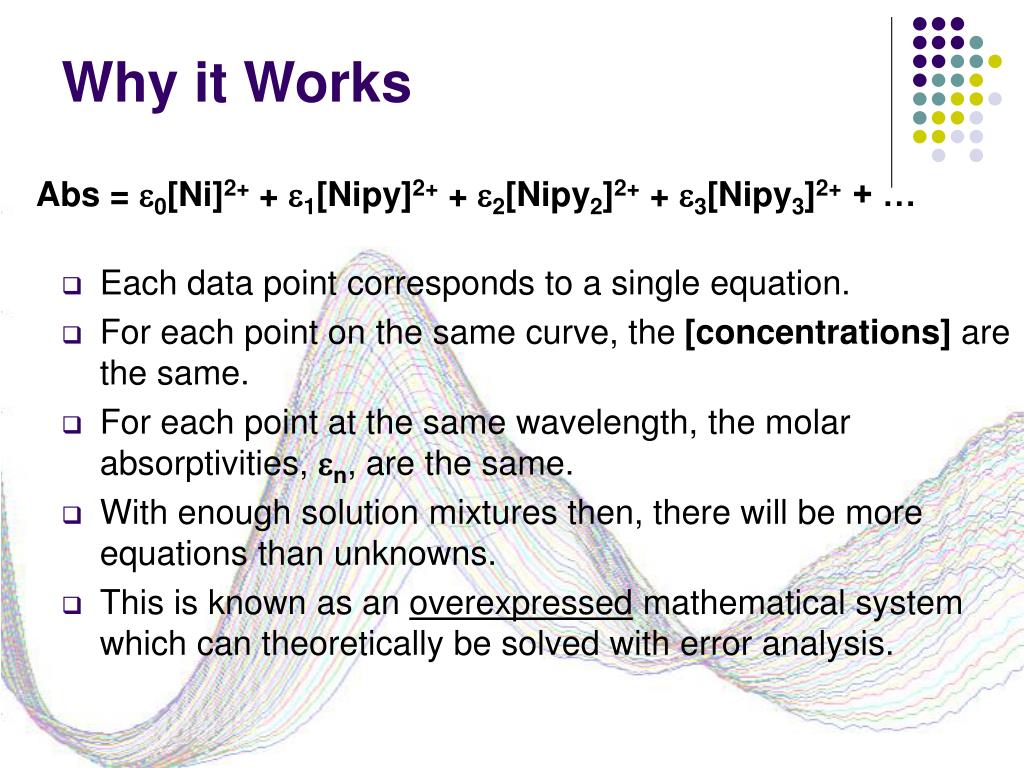

16. Why it Works Abs = 0[Ni]2+ + 1[Nipy]2+ + 2[Nipy2]2+ + 3[Nipy3]2++ … • Each data point corresponds to a single equation. • For each point on the same curve, the [concentrations] are the same. • For each point at the same wavelength, the molar absorptivities, n, are the same. • With enough solution mixtures then, there will be more equations than unknowns. • This is known as an overexpressed mathematical system which can theoretically be solved with error analysis.

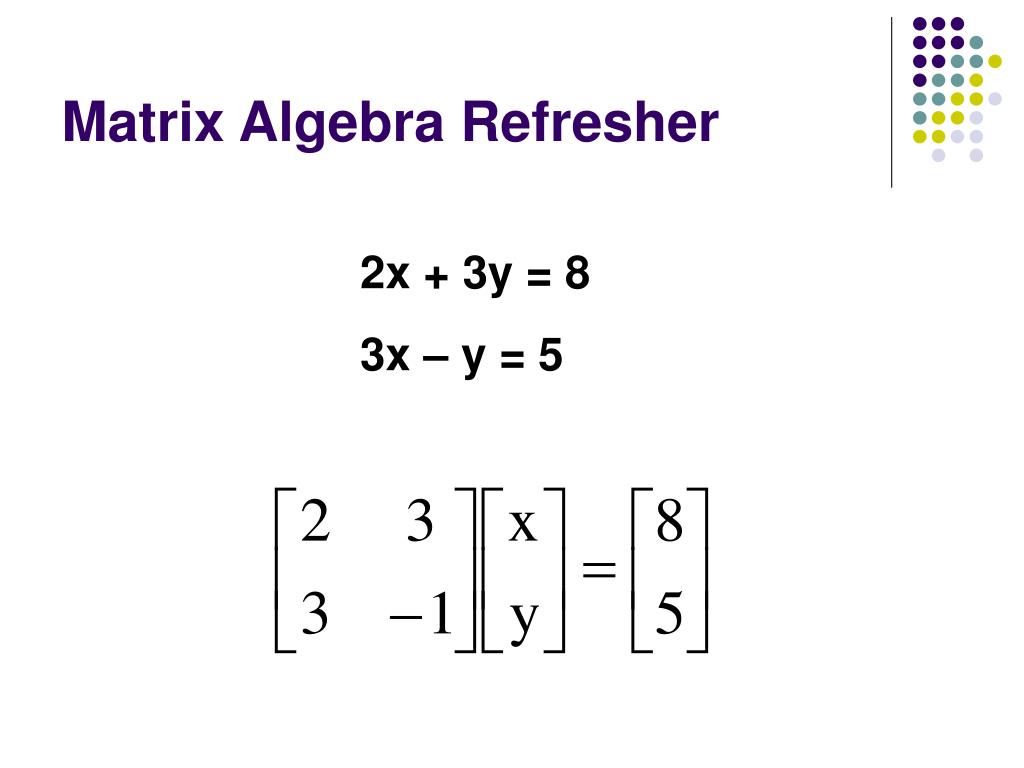

17. Matrix Algebra Refresher 2x + 3y = 8 3x – y = 5

18. Matrix Multiplication C = AB (n x p) (n x m) (m x p)

19. Matrix Algebra Abs = 0[Ni]2+ + 1[Nipy]2+ + 2[Nipy2]2+ + 3[Nipy3]2++ …

20. Matrix Form of Beer-Lambert Law Absorbances (n x p) (n x m) Concentration (m x p) Molar Absorbtivity n  # of wavelengths m  # of chemical species p  # of mixture solutions

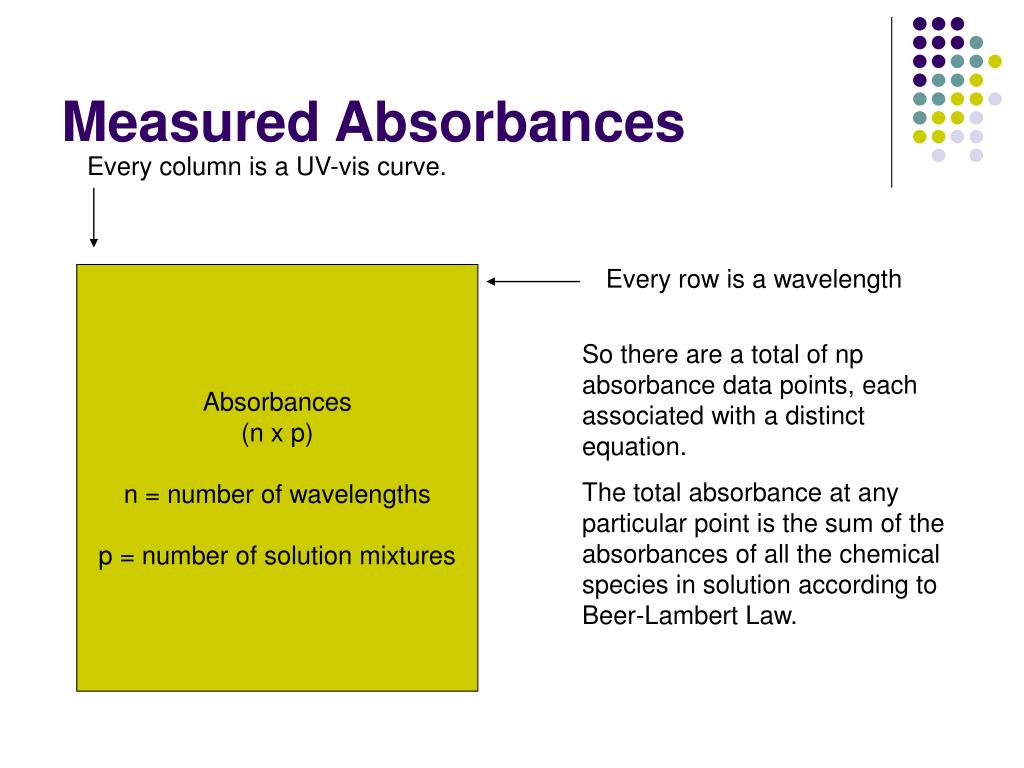

21. Measured Absorbances Every column is a UV-vis curve. Every row is a wavelength Absorbances (n x p) n = number of wavelengths p = number of solution mixtures So there are a total of np absorbance data points, each associated with a distinct equation. The total absorbance at any particular point is the sum of the absorbances of all the chemical species in solution according to Beer-Lambert Law.

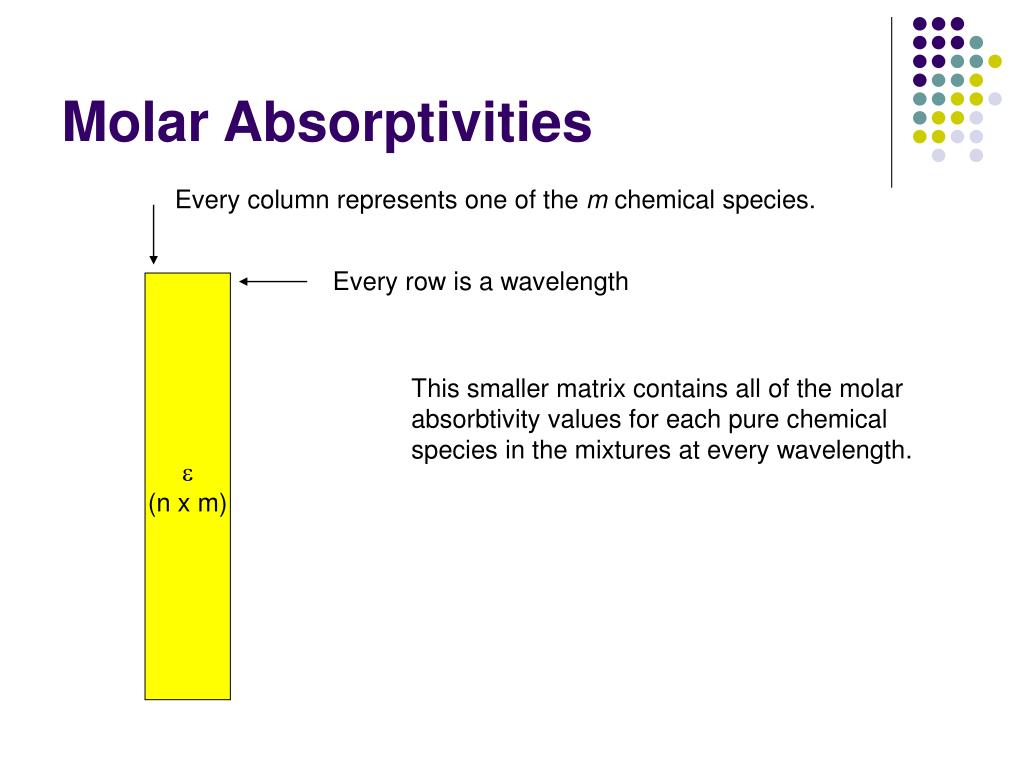

22. Molar Absorptivities Every column represents one of the m chemical species. Every row is a wavelength  (n x m) This smaller matrix contains all of the molar absorbtivity values for each pure chemical species in the mixtures at every wavelength.

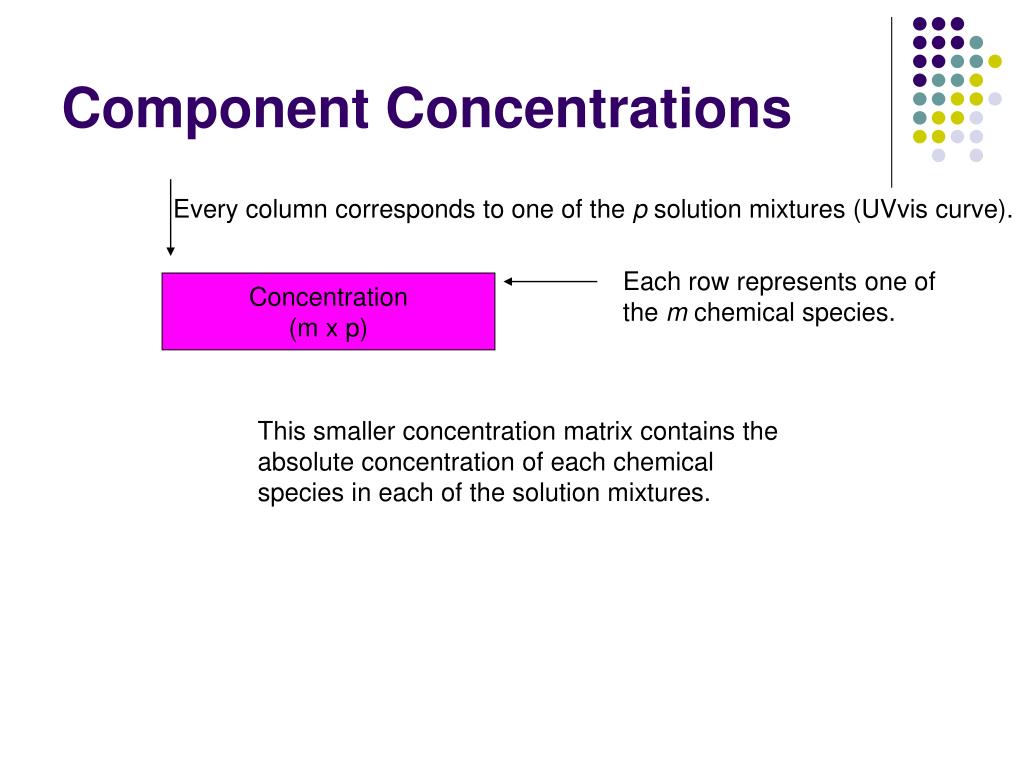

23. Component Concentrations Every column corresponds to one of the p solution mixtures (UVvis curve). Each row represents one of the m chemical species. Concentration (m x p) This smaller concentration matrix contains the absolute concentration of each chemical species in each of the solution mixtures.

24. Matrix Absorbance Equation Abs = C Absorbances (n x p)  (n x m) Concentration (m x p) So the problem is essentially factoring a matrix. …Or solving np equations for mn + mp unknowns.

25. Absorbances (n x p) e (n x m) Concentration (m x p) With Residual Error! Abs = eC + R Residual (n x p) Given data matrix of absorbances, find the absorptivity and concentration matrices that result in the smallest possible values in the residual matrix.

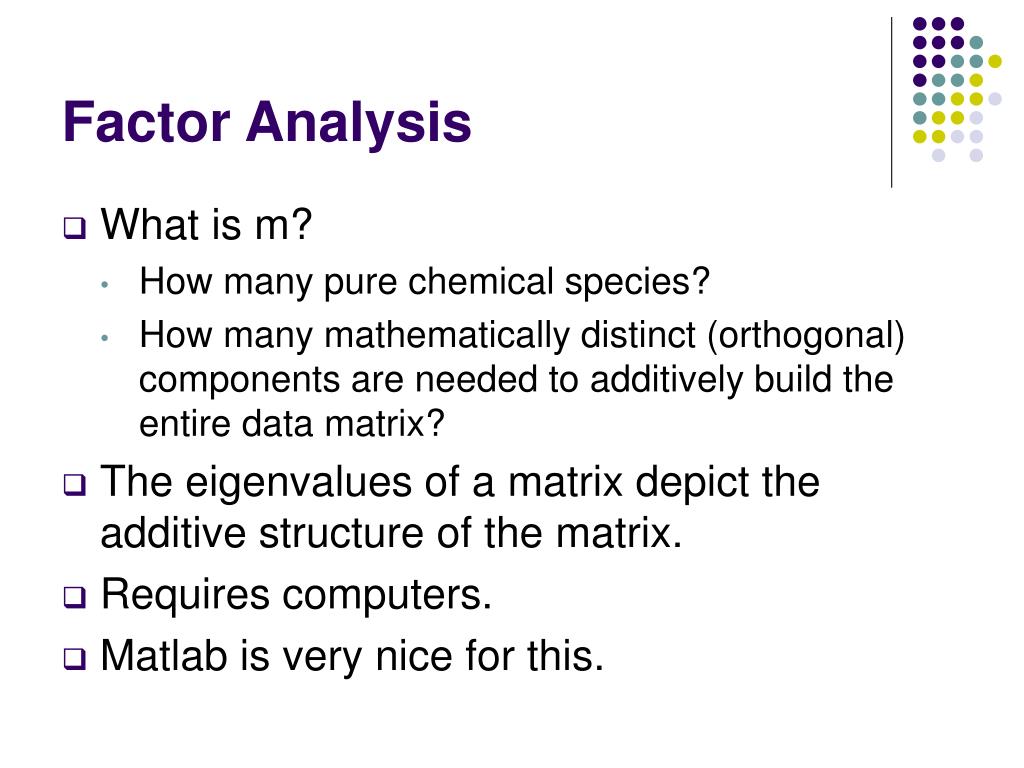

26. Factor Analysis • What is m? • How many pure chemical species? • How many mathematically distinct (orthogonal) components are needed to additively build the entire data matrix? • The eigenvalues of a matrix depict the additive structure of the matrix. • Requires computers. • Matlab is very nice for this.

27. Random Matrix Structure (16 x 461) matrix of random numbers All 16 eigenvalues contribute about the same to the structure of the matrix

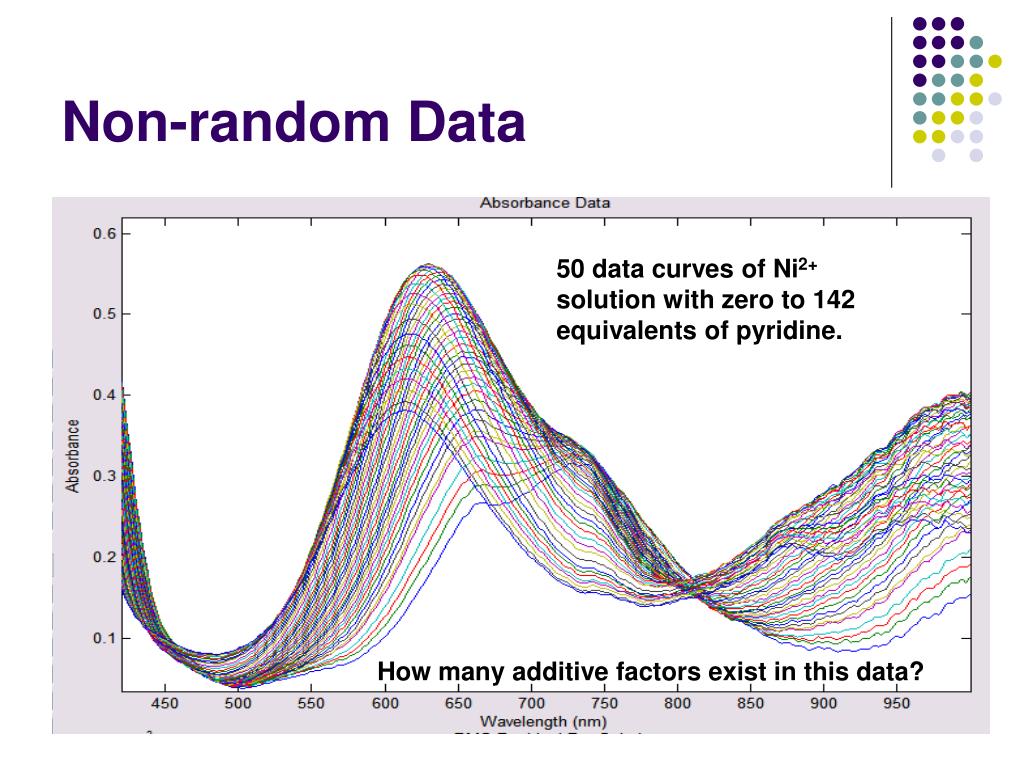

28. Non-random Data 50 data curves of Ni2+ solution with zero to 142 equivalents of pyridine. How many additive factors exist in this data?

29. Data Matrix Structure m = 6 6th eigenvalue is relatively small, but still possibly significant.

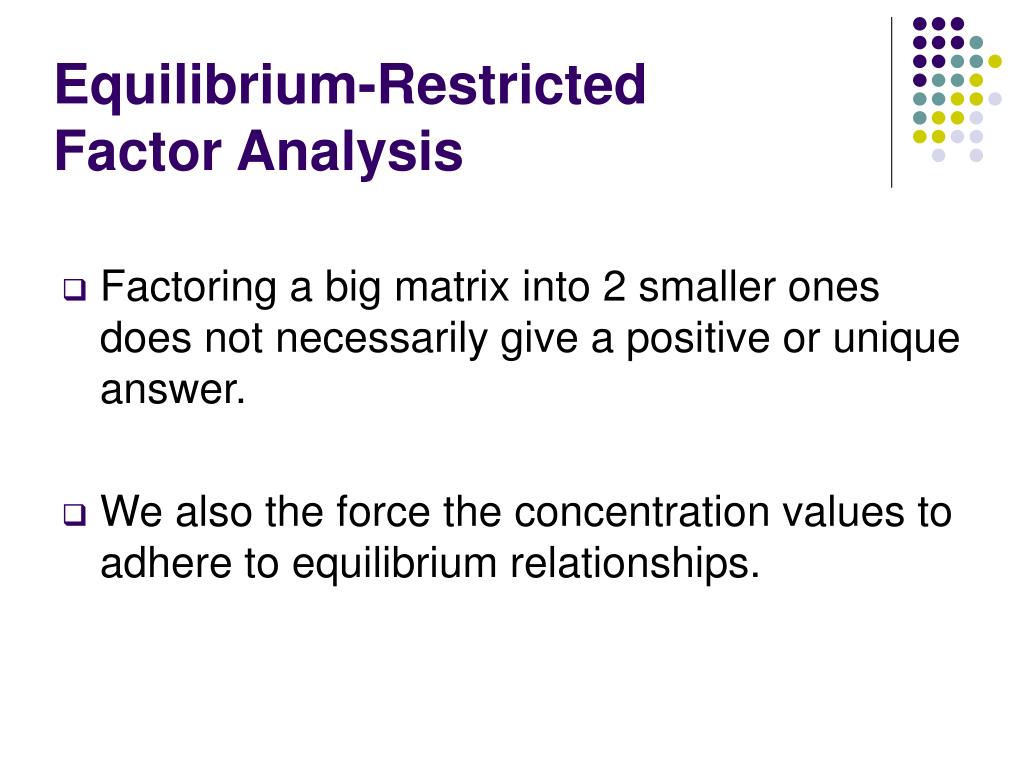

30. Equilibrium-Restricted Factor Analysis • Factoring a big matrix into 2 smaller ones does not necessarily give a positive or unique answer. • We also the force the concentration values to adhere to equilibrium relationships.

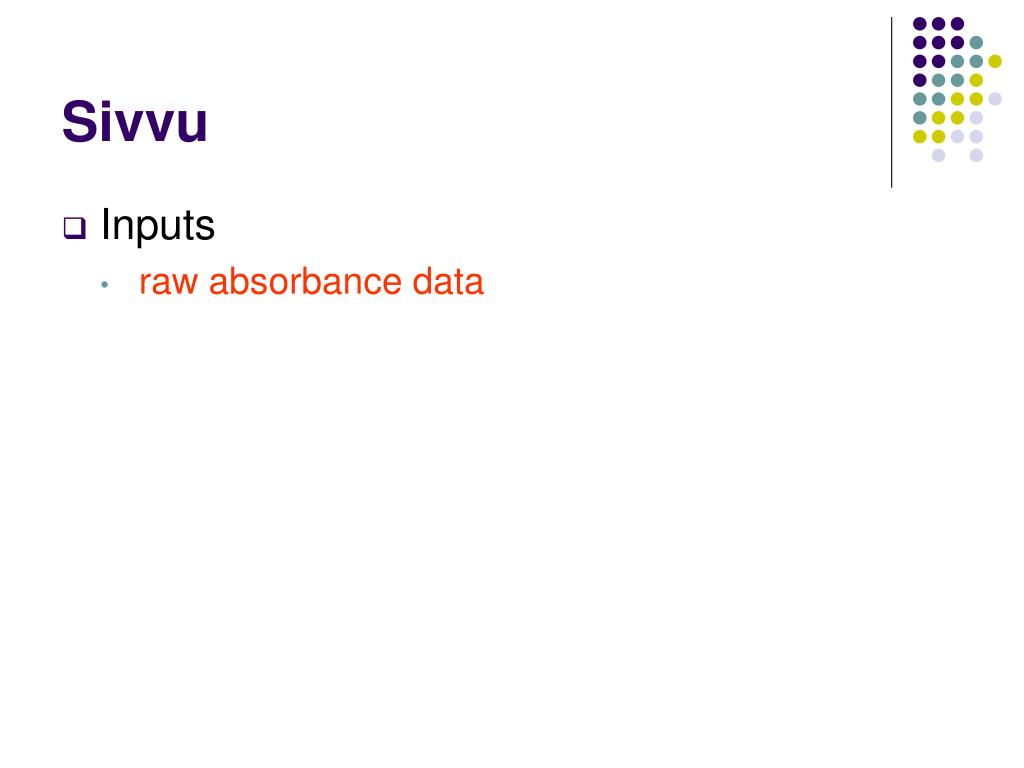

31. Sivvu • Inputs • raw absorbance data

32. Absorbance Data n = 305 wavelengths p = 50 solution mixtures

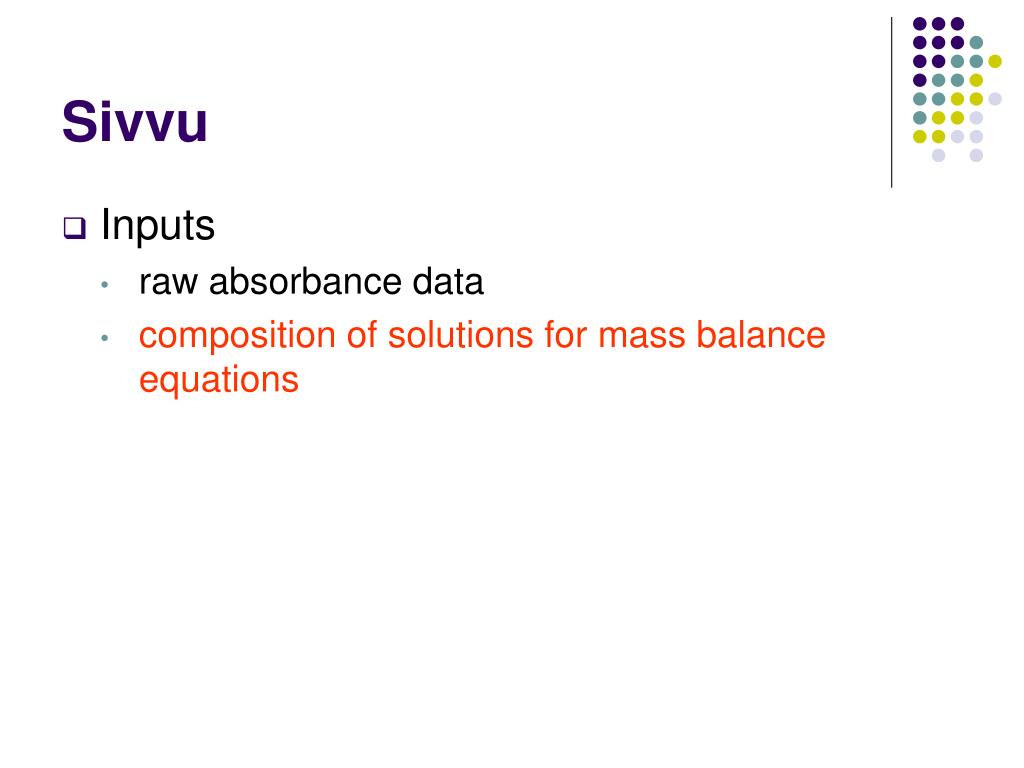

33. Sivvu • Inputs • raw absorbance data • composition of solutions for mass balance equations

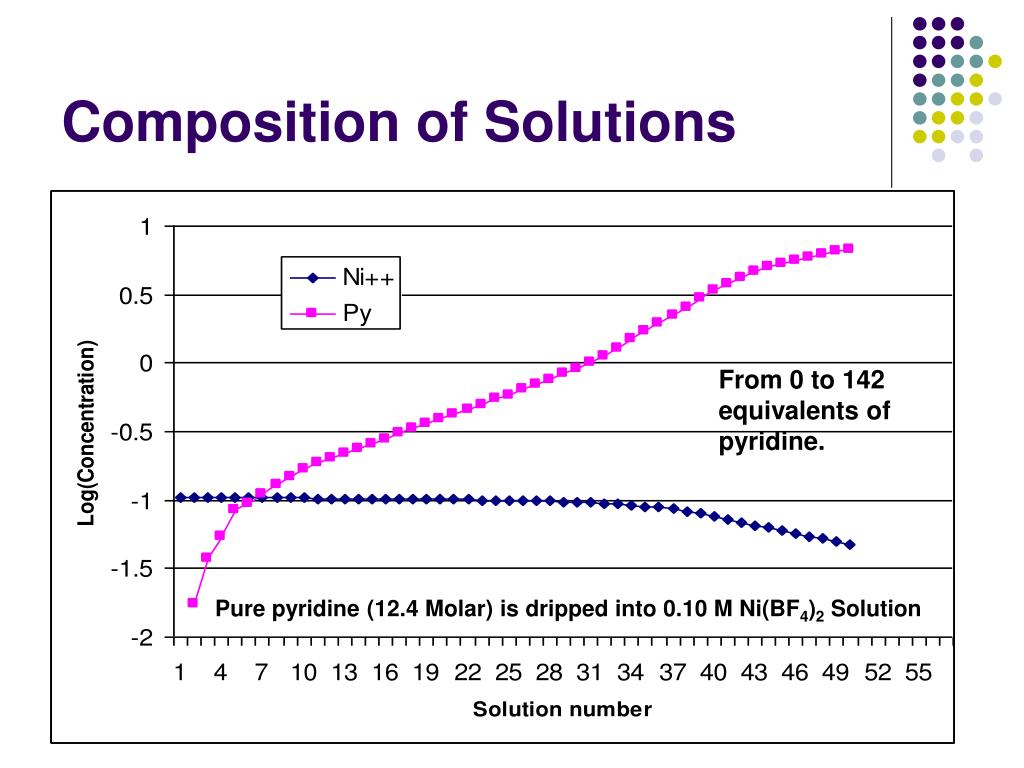

34. Composition of Solutions From 0 to 142 equivalents of pyridine. Pure pyridine (12.4 Molar) is dripped into 0.10 M Ni(BF4)2 Solution

35. Sivvu • Inputs • raw absorbance data • composition of solutions for mass balance equations • chemical reactions for equilibrium equations

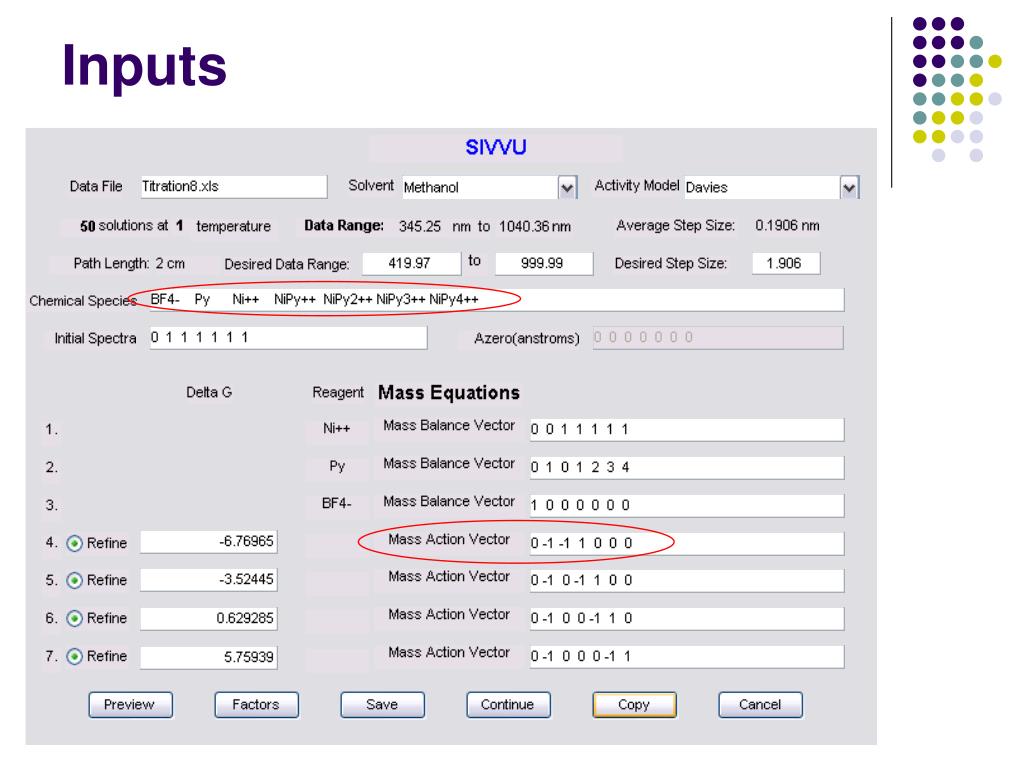

36. Inputs

37. Sivvu • Inputs • raw absorbance data • composition of solutions for mass balance equations • chemical reactions for equilibrium equations • guesses for G’s

38. Inputs

39. Sivvu • Inputs • raw absorbance data • composition of solutions for mass balance equations • chemical reactions for equilibrium equations • guesses for G’s • Process • Calculates concentrations from G’s

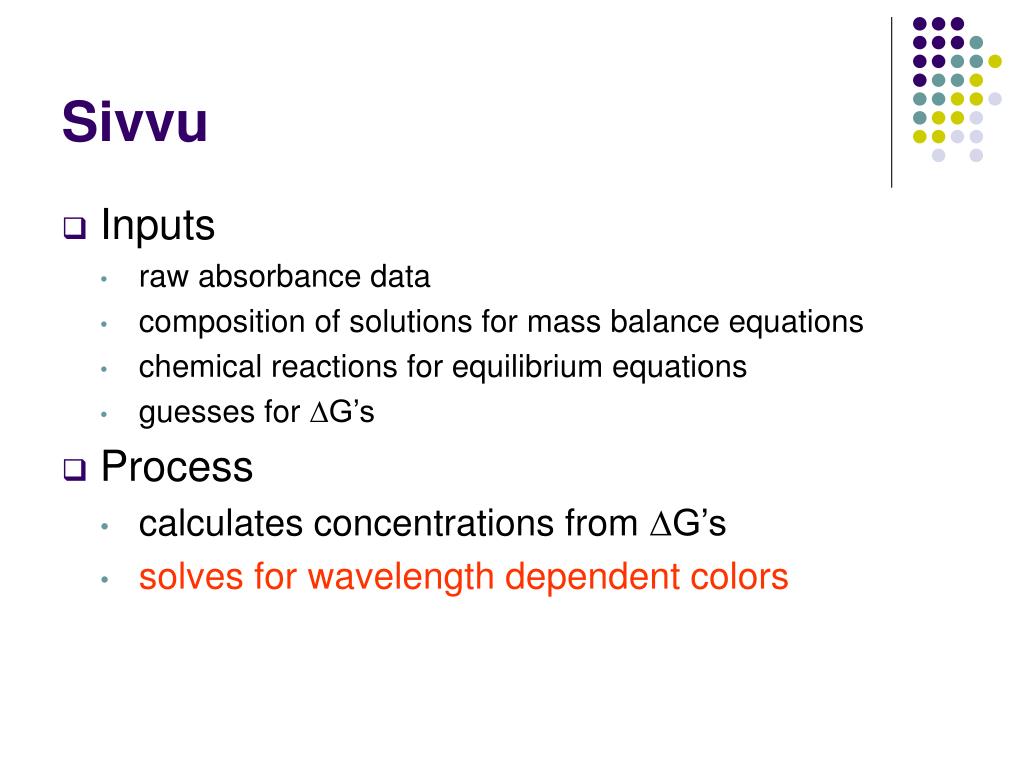

41. Sivvu • Inputs • raw absorbance data • composition of solutions for mass balance equations • chemical reactions for equilibrium equations • guesses for G’s • Process • calculates concentrations from G’s • solves for wavelength dependent colors

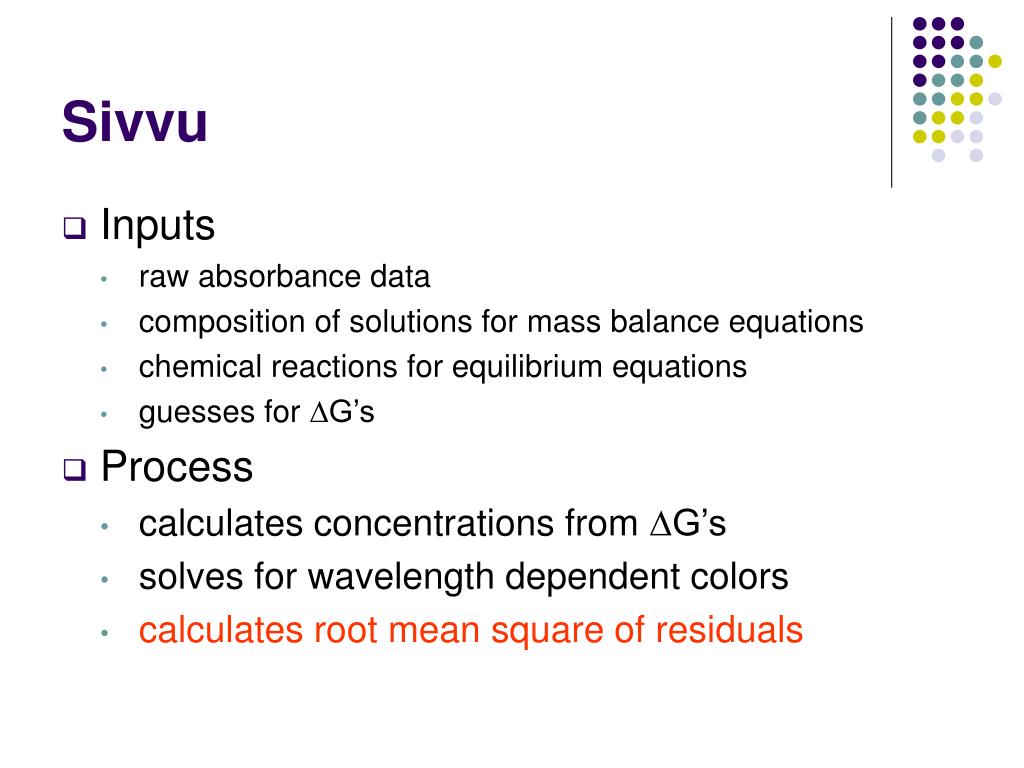

43. Sivvu • Inputs • raw absorbance data • composition of solutions for mass balance equations • chemical reactions for equilibrium equations • guesses for G’s • Process • calculates concentrations from G’s • solves for wavelength dependent colors • calculates root mean square of residuals

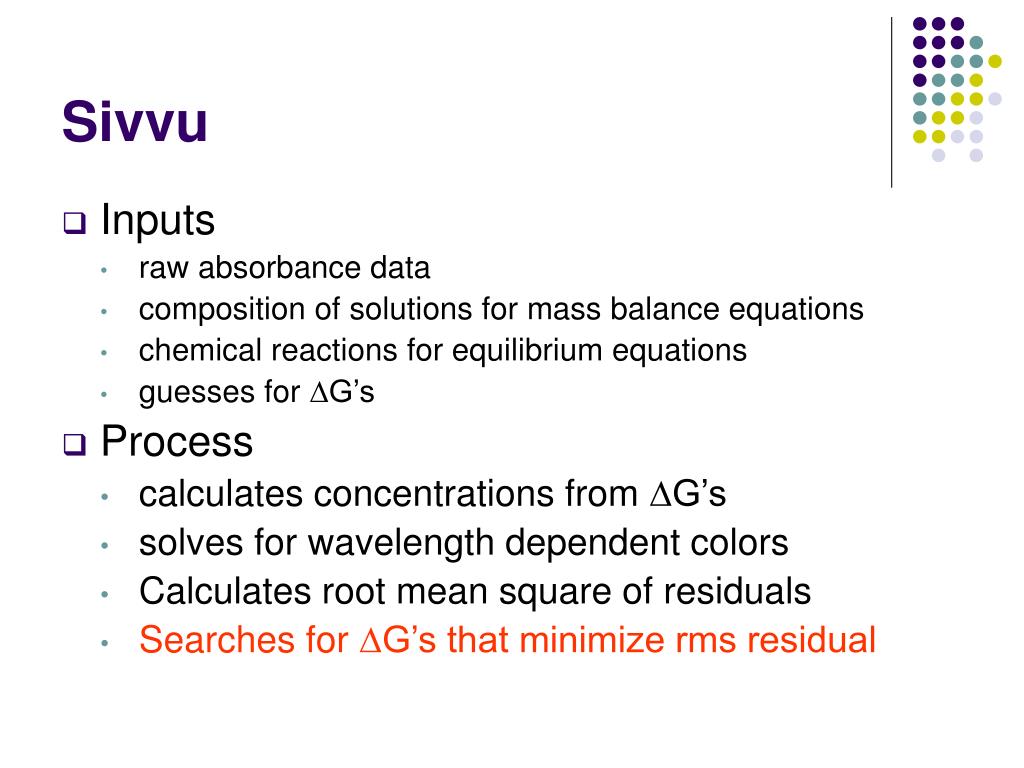

45. Sivvu • Inputs • raw absorbance data • composition of solutions for mass balance equations • chemical reactions for equilibrium equations • guesses for G’s • Process • calculates concentrations from G’s • solves for wavelength dependent colors • Calculates root mean square of residuals • Searches for G’s that minimize rms residual

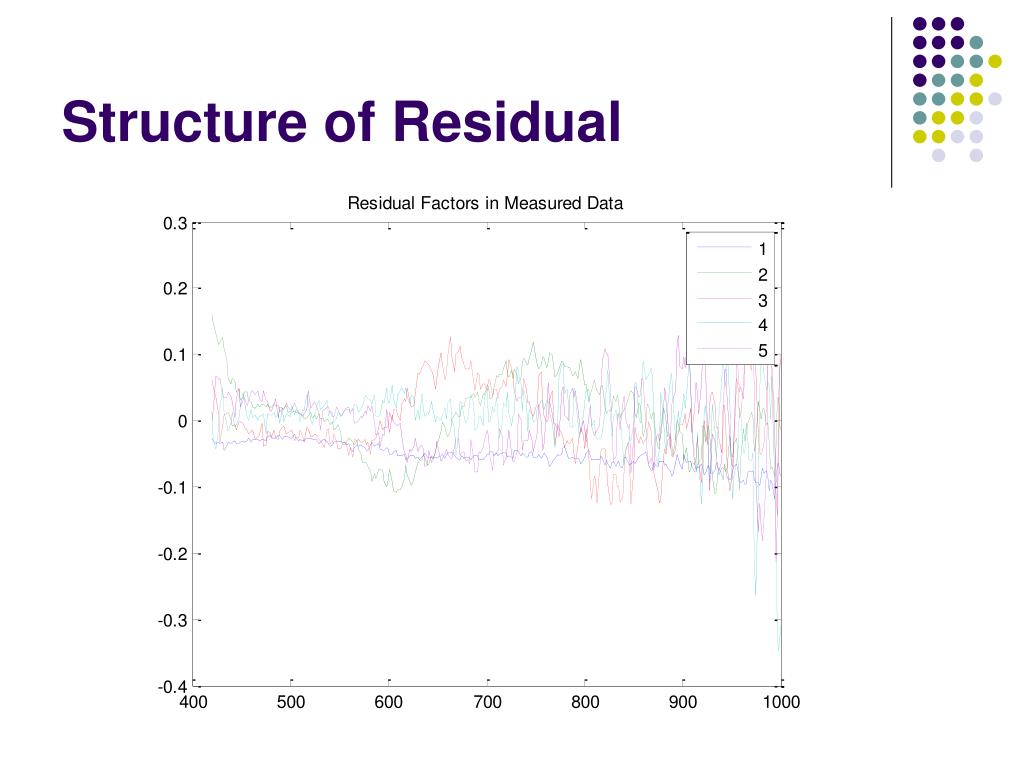

46. Structure of Residual

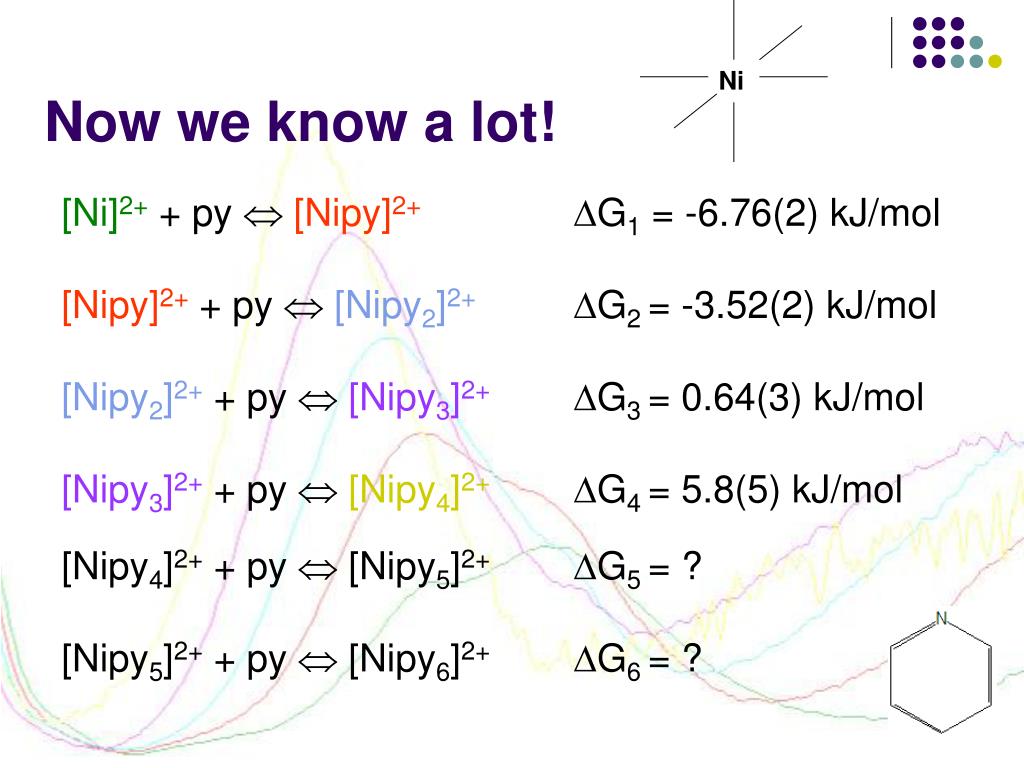

47. Ni Now we know a lot! [Ni]2+ + py  [Nipy]2+G1 = -6.76(2) kJ/mol [Nipy]2+ + py  [Nipy2]2+G2 = -3.52(2) kJ/mol [Nipy2]2+ + py  [Nipy3]2+G3 = 0.64(3) kJ/mol [Nipy3]2+ + py  [Nipy4]2+G4 = 5.8(5) kJ/mol [Nipy4]2+ + py  [Nipy5]2+ G5 = ? [Nipy5]2+ + py  [Nipy6]2+ G6 = ?

48. So what color is [Nipy]+2?

49. What’s going on in 25th solution? 0.0997 M Ni(BF4)2 w/ 0.585 pyridine
