  1. Parking Study

  2. Before anything else • Read the manual carefully. It is your homework • What is covered in the following slides is only general

  3. Importance

  4. General • Each group to handle approximately 200 parking spaces

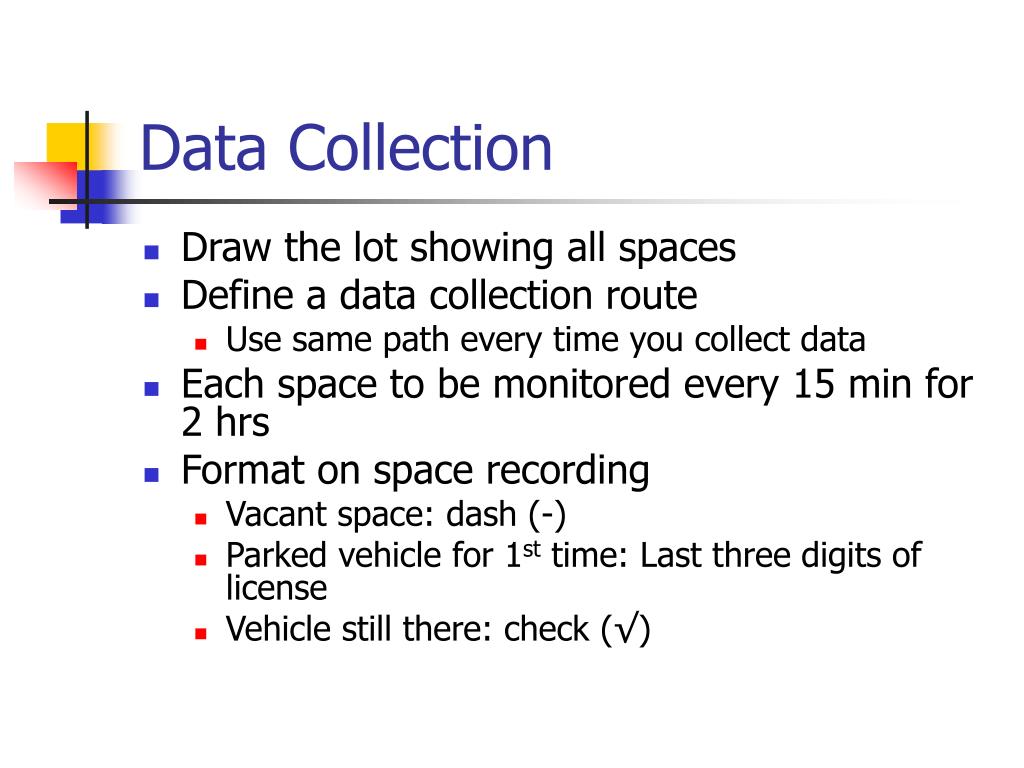

  5. Data Collection • Draw the lot showing all spaces • Define a data collection route • Use same path every time you collect data • Each space to be monitored every 15 min for 2 hrs • Format on space recording • Vacant space: dash (-) • Parked vehicle for 1st time: Last three digits of license • Vehicle still there: check (√)

  6. Data Collection

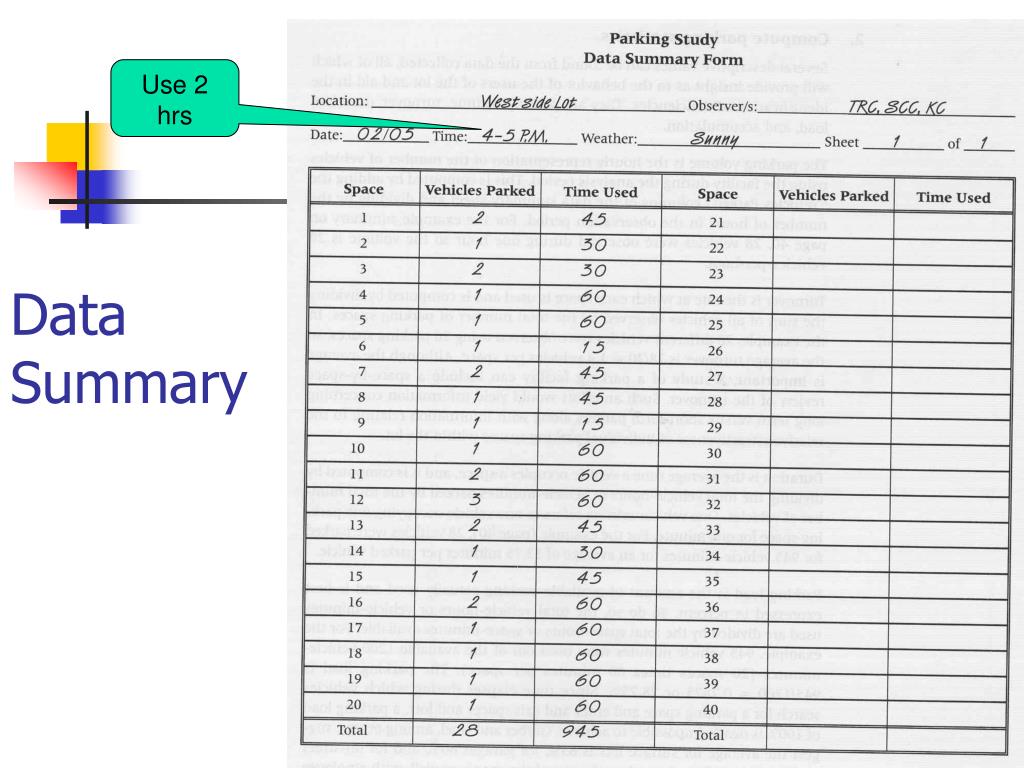

  7. Data Summary Use 2 hrs

  8. Parking Statistics • Parking Volume • Turnover • Duration Load • Parking Load • Accumulation

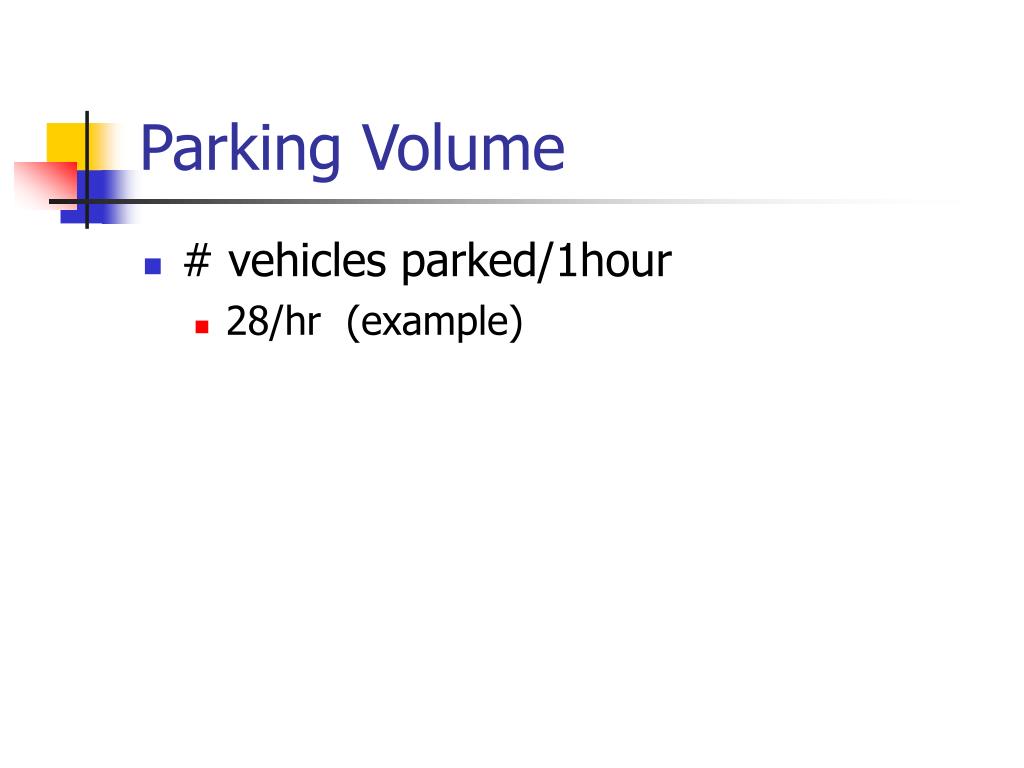

  9. Parking Volume • # vehicles parked/1hour • 28/hr (example)

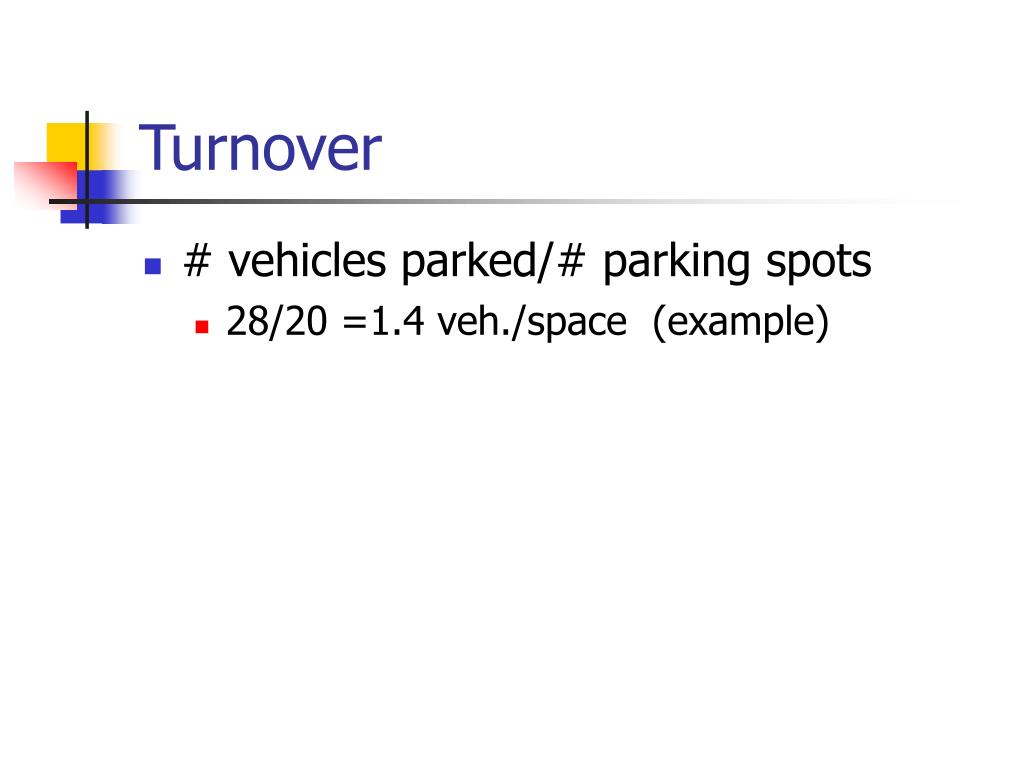

  10. Turnover • # vehicles parked/# parking spots • 28/20 =1.4 veh./space (example)

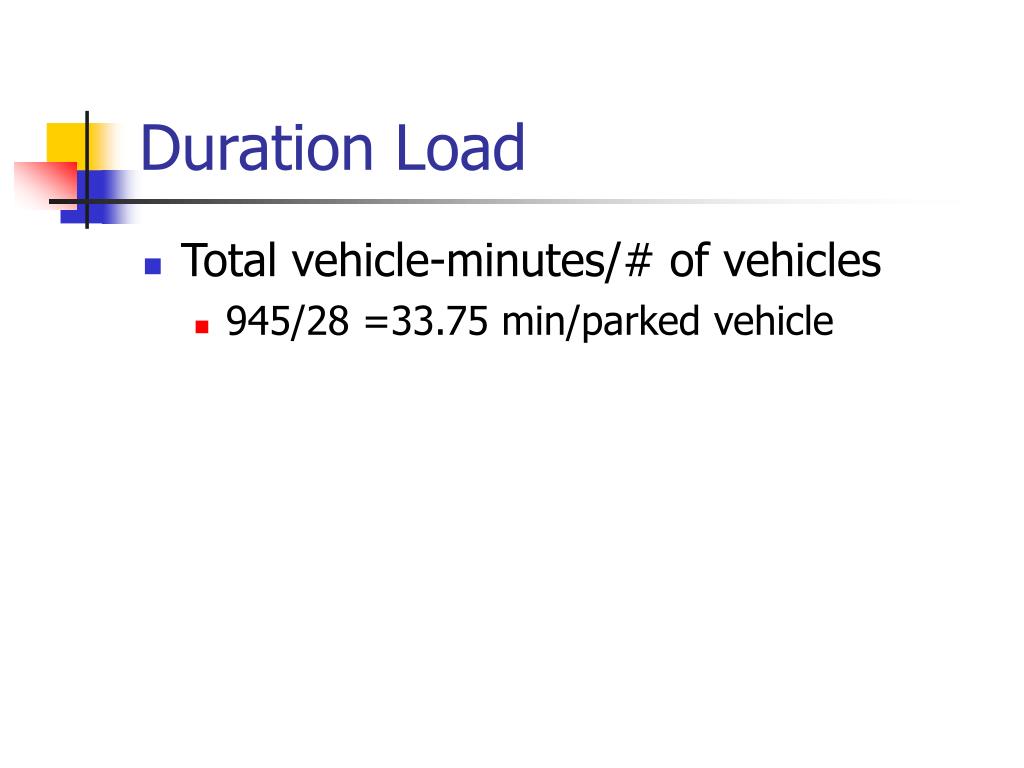

  11. Duration Load • Total vehicle-minutes/# of vehicles • 945/28 =33.75 min/parked vehicle

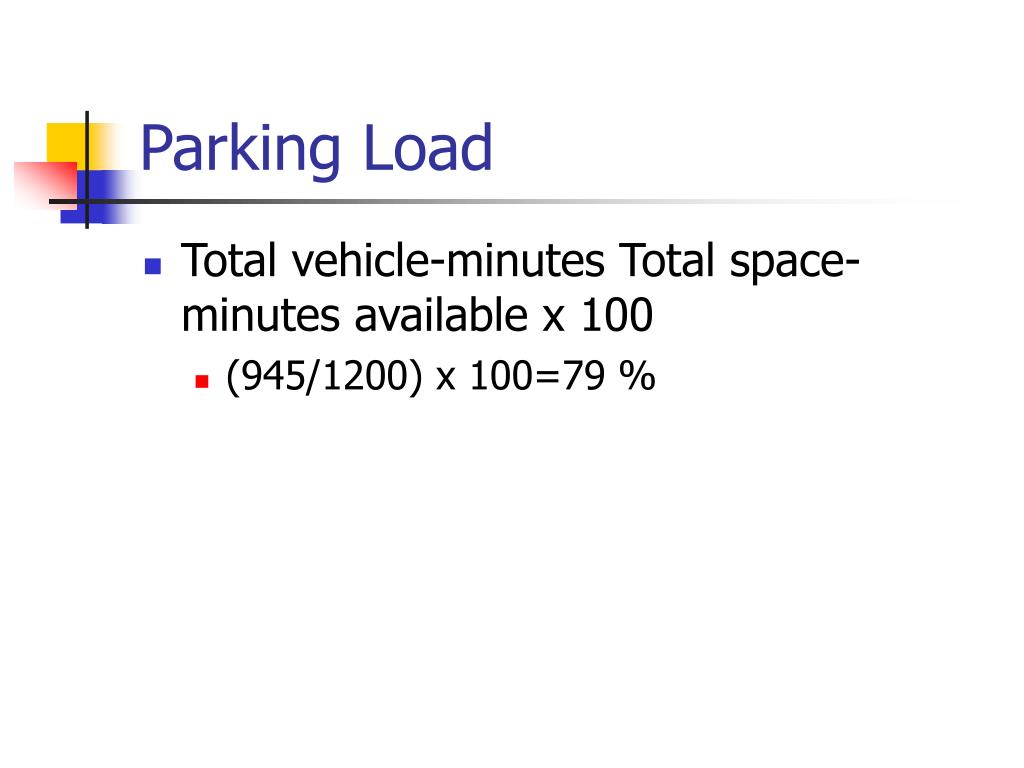

  12. Parking Load • Total vehicle-minutes Total space-minutes available x 100 • (945/1200) x 100=79 %

  13. Accumulation

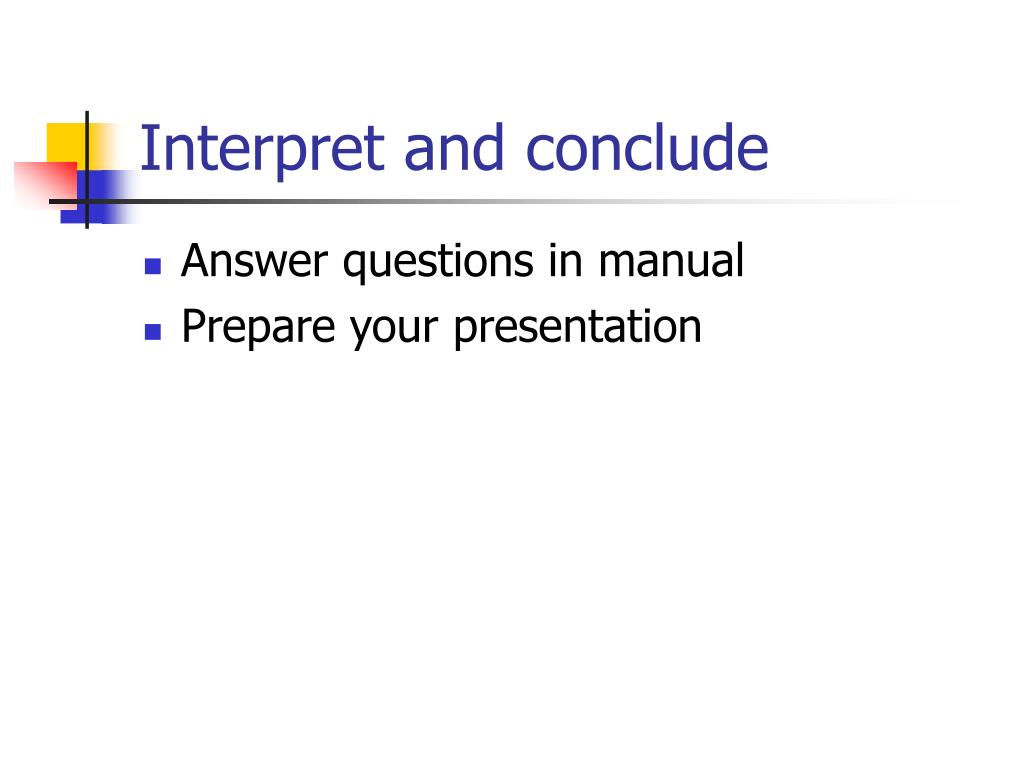

  14. Interpret and conclude • Answer questions in manual • Prepare your presentation
