Default Phonon Front End (No change in active components from Rev A). LNA. PGA. A v @ 100. A v =1..7. V zap. AD797. Squid. Phonon. LT6910. Squid Bias. 3. Gain Sel. A vdc @4. PGA. A v =1..7. LT6910. 3. Squid FB. Gain Sel. FB Synthesizer. AD8130. Option: Use LMP8100. LNA.

katina
Download Presentation

LNA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Default Phonon Front End (No change in active components from Rev A) LNA PGA Av@100 Av=1..7 Vzap AD797 Squid Phonon LT6910 Squid Bias 3 Gain Sel Avdc@4 PGA Av=1..7 LT6910 3 Squid FB Gain Sel FB Synthesizer AD8130

  2. Option: Use LMP8100 LNA PGA Av@100 Av=1..7 Vzap AD797 Squid Phonon LT6910 Squid Bias 3 Gain Sel Avdc@4 PGA Av=1..16 LMP8100 3 Squid FB SPI FB Synthesizer The good: Extended gain range, fewer control wires The bad: Requires ±2.5V Power AD8130

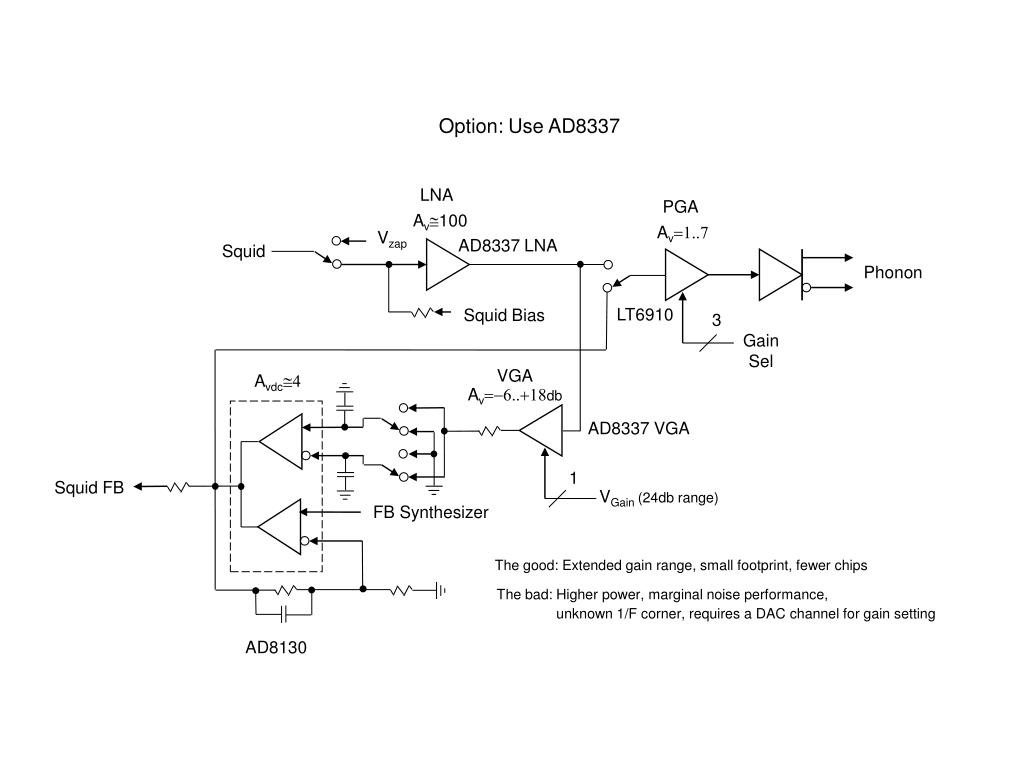

  3. Option: Use AD8337 LNA PGA Av@100 Av=1..7 Vzap AD8337 LNA Squid Phonon LT6910 Squid Bias 3 Gain Sel VGA Avdc@4 Av=-6..+18db AD8337 VGA 1 Squid FB VGain (24db range) FB Synthesizer The good: Extended gain range, small footprint, fewer chips The bad: Higher power, marginal noise performance, unknown 1/F corner, requires a DAC channel for gain setting AD8130
