Sliding Filament Model of Muscle Contraction

HOOK Muscle is only biological cell/tissue that can cause rapid, large-scale movement Role of filamentous proteins understood as great and early breakthrough in cell/molecular biology—lots of protein available, (like Hemoglobin). Sliding Filament Model of Muscle Contraction.

katina
Download Presentation

Sliding Filament Model of Muscle Contraction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. HOOK • Muscle is only biological cell/tissue that can cause rapid, large-scale movement • Role of filamentous proteins understood as great and early breakthrough in cell/molecular biology—lots of protein available, (like Hemoglobin) Sliding Filament Model of Muscle Contraction Larry M. Frolich, Ph.D. April 15, 2010 I normally cover neurons and muscle together as part of unit on movement—see website

  2. Sliding Filament Model of Muscle Contraction OUTLINE • Motor Unit • Muscle Cell Architecture and Function • Sliding Filamentous Proteins • Muscle Force Properties

  3. Muscle Cells and Neurons • are unique to animals • have “excitable” membranes that transmit action potentials • allow for rapid large-scale movements • Motor Unit is one motor neuron plus the muscle cells that it stimulates (or synapses with)--the minimal construct that allows for movement in our body

  4. Muscle cells • Muscle fibers are cells—visible to naked eye as fibers in meat, chicken, fish • Sarcolemma is muscle cell membrane—”excitable” so has action potentials just like neurons • Because cell is large, T-tubules carry action potential—ionic depolarization—into internal parts of cell • Sarcoplasmic reticulum releases calcium which triggers actin-myosin protein filaments to contract Sequence of events Motor Neuron to Muscle contraction at cellular level (from the Brain Top to Bottom) [link]

  5. Muscle cell or muscle “fiber” is composed of myofibrils which contain sarcomeres or contractile “units” Myo- Sarco- (= muscle)

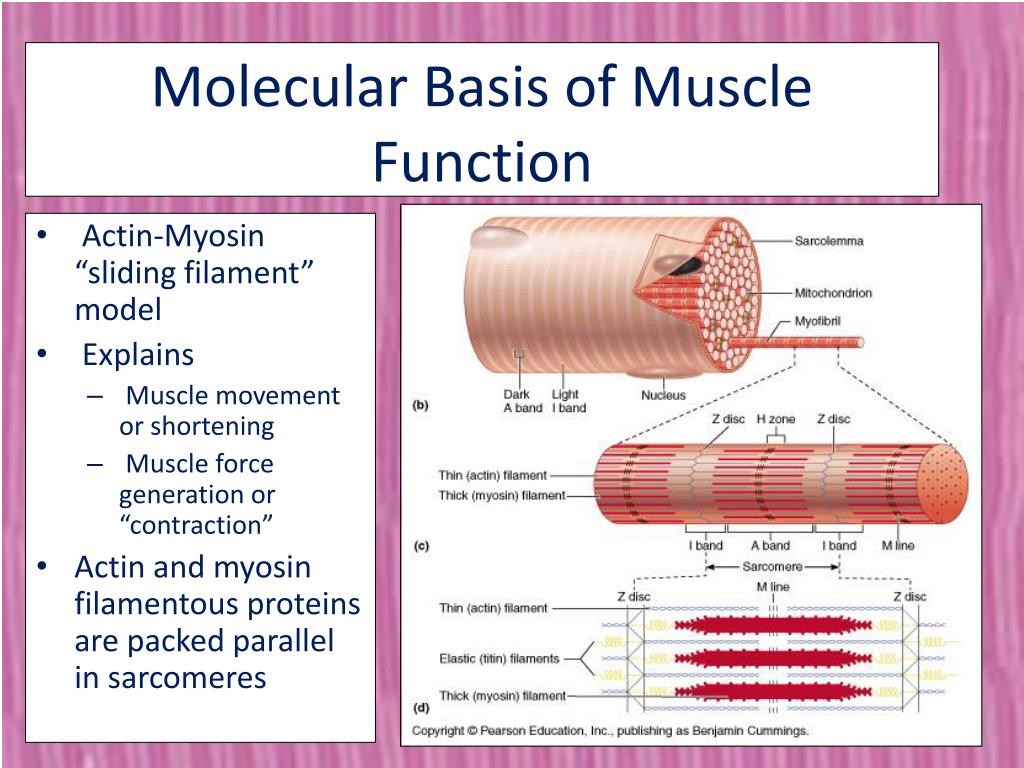

  6. Molecular Basis of Muscle Function • Actin-Myosin “sliding filament” model • Explains • Muscle movement or shortening • Muscle force generation or “contraction” • Actin and myosin filamentous proteins are packed parallel in sarcomeres

  7. How does the actin-myosin complex (sarcomere) shorten and contract the muscle? • Actin = thin filament “lattice-work” • Myosin = thick filament “core” • Ca release triggers the formation of molecular cross-bridges from myosin to actin • Cross-bridges “row” or “reach” for more adjacent binding site on actin.

  8. And the result is muscle movement Put the sliding filaments back into a whole muscle…

  9. Details, details, details… Tropomyosin and troponin create binding site on actin filament Presence of Ca++ exposes binding site “Cocked” cross-bridge on myosin (uses ATP) then attaches to binding site and pulls or “rows” actin filament Cross-bridge linkage is broken and re-cocks to link with next binding site Details Video

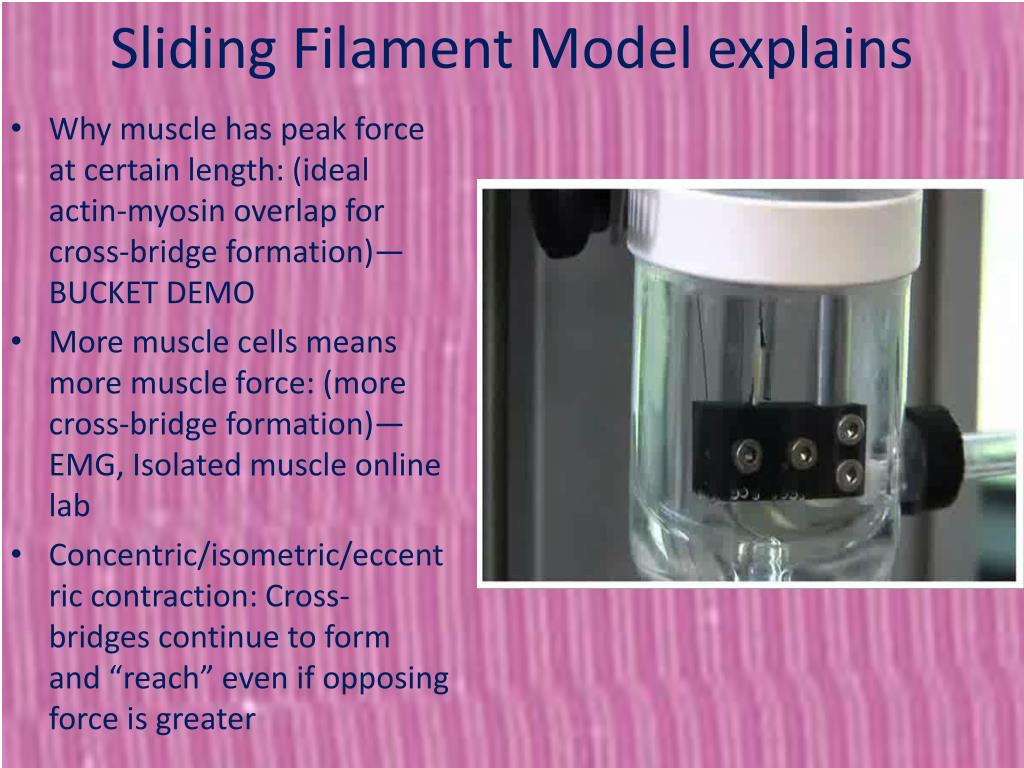

  10. Sliding Filament Model explains Why muscle has peak force at certain length: (ideal actin-myosin overlap for cross-bridge formation)—BUCKET DEMO More muscle cells means more muscle force: (more cross-bridge formation)—EMG, Isolated muscle online lab Concentric/isometric/eccentric contraction: Cross-bridges continue to form and “reach” even if opposing force is greater
