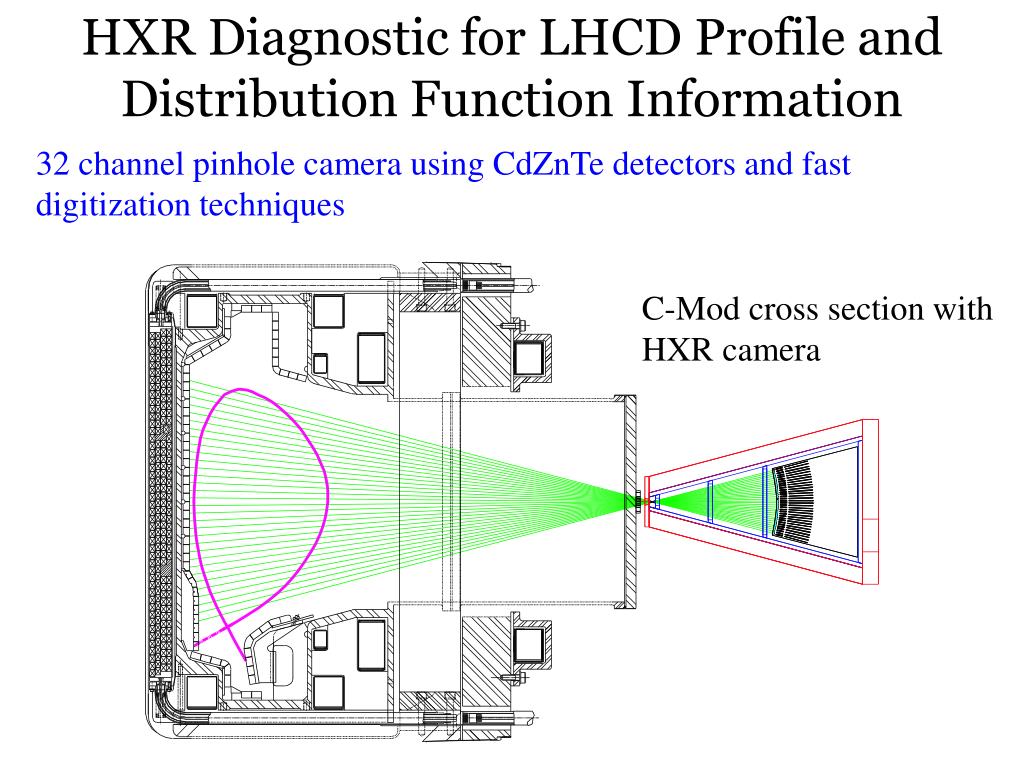

  1. HXR Diagnostic for LHCD Profile and Distribution Function Information 32 channel pinhole camera using CdZnTe detectors and fast digitization techniques C-Mod cross section with HXR camera

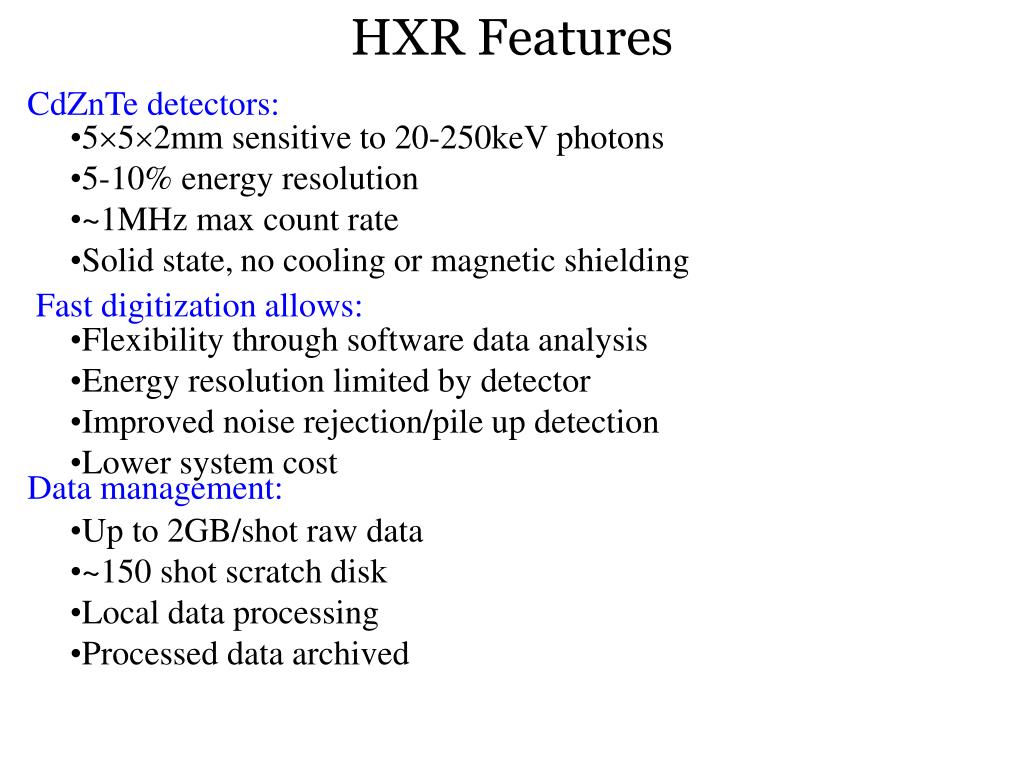

  2. HXR Features CdZnTe detectors: • 552mm sensitive to 20-250keV photons • 5-10% energy resolution • ~1MHz max count rate • Solid state,no cooling or magnetic shielding Fast digitization allows: • Flexibility through software data analysis • Energy resolution limited by detector • Improved noise rejection/pile up detection • Lower system cost Data management: • Up to 2GB/shot raw data • ~150 shot scratch disk • Local data processing • Processed data archived
