  1. Compliance Proposal byX-Change Technologies X-Change Technologies—Compliance proposal

  2. Goals • Small number of compliance points(order of ten) • Small number of rows • Small number of columns(e.g., two) • Blanks in matrix X-Change Technologies—Compliance proposal

  3. This proposal This proposal is for discussion and agreement in principle. It does not provide the full details that will be needed for the specification. These can be worked out once agreement is principle is reached. X-Change Technologies—Compliance proposal

  4. Partial Eliminate this column X-Change Technologies—Compliance proposal

  5. Interchange Eliminate Interchange as a column Agree on compliance points,independently of interchange Add this provision:To claim interchange compliance, a tool must both produce and import XMI for everything for which that tool claims compliance X-Change Technologies—Compliance proposal

  6. Diagram Interchange Add this provision:To claim diagram interchange compliance a tool must interchange all notation for all diagrams for everything for which that tool claims compliance. [This may belong in the diagram interchange specification, but should be agreed by both FTFs.] X-Change Technologies—Compliance proposal

  7. Basic To claim basic compliance, the tool must comply with all packages listed as Basic in the final adopted specification X-Change Technologies—Compliance proposal

  8. Intermediate To claim intermediate compliance, the tool must claim basic compliance and state which of the intermediate compliance points it claims compliance with. X-Change Technologies—Compliance proposal

  9. Intermediate The intermediate compliance points are: • Interaction • State Machine • Activity • Components and Composite Structure • Deployment • Action X-Change Technologies—Compliance proposal

  10. Complete To claim complete compliance, the tool must comply with all of the specification, and claim interchange and diagram interchange compliance. X-Change Technologies—Compliance proposal

  11. Evaluation Evaluation of proposal against its goals: • Small number of compliance points (1+63+1)*3 = 195 • Small number of rows 1+6+1 = 8 • Small number of columns 2 • Blanks in matrix none X-Change Technologies—Compliance proposal

  12. Opportunities for improvement • Add blanks to the matrix Here is, not a proposal, but a concrete example of restriction by adding blanks: To claim Intermediate—Action, the tool must also claim Intermediate—State Machine or claim Intermediate—Activity X-Change Technologies—Compliance proposal

  13. Request X-Change Technologies requests comments on this proposal that attempt to improve the proposal by making adjustments to it or by providing the necessary additional detail of which packages are included in each intermediate compliance point. X-Change Technologies—Compliance proposal

  14. Request X-Change Technologies requests, from folks who prefer not to attempt to improve this proposal, an alternate proposal that meets the same goals. X-Change Technologies—Compliance proposal

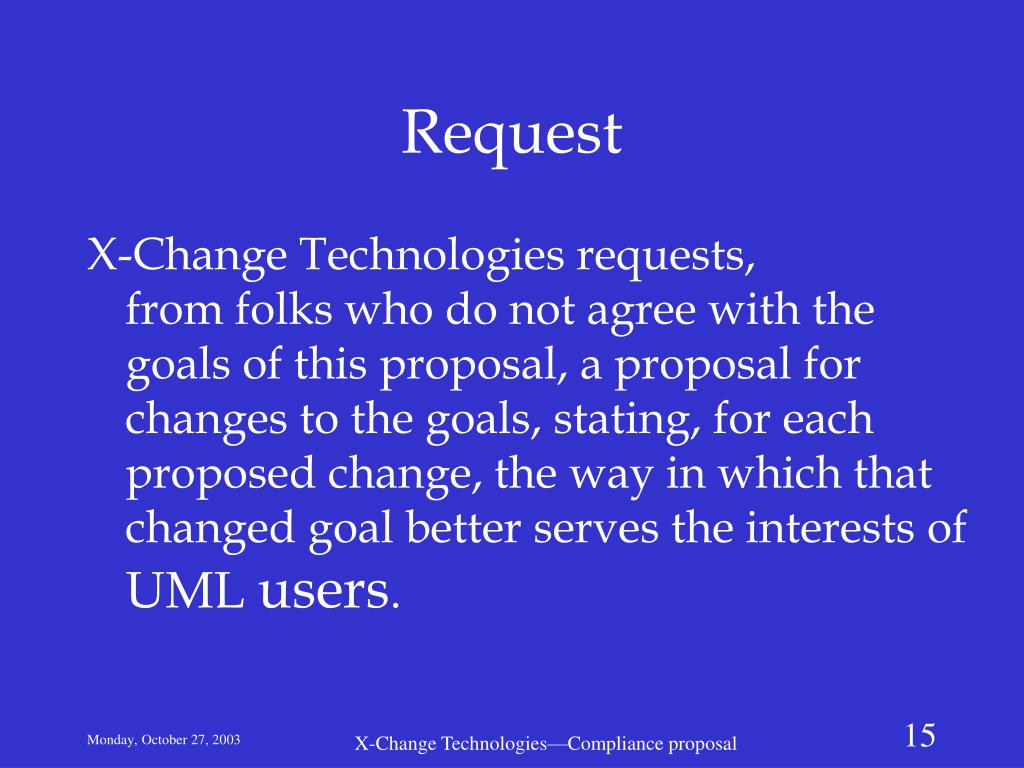

  15. Request X-Change Technologies requests, from folks who do not agree with the goals of this proposal, a proposal for changes to the goals, stating, for each proposed change, the way in which that changed goal better serves the interests of UML users. X-Change Technologies—Compliance proposal
