  1. Using SQL Server as a Data Integration Platform Allen Sparks Enterprise GIS Program Resource Information Management Division National Information Services Center Office of the Chief Information Officer 2008 GIS & Data Management Conference

  2. Overview • Islands of Data & Applications • SQL Server Integration Services • How the EGIS Program Currently Leverages SQL Server • Integration with GeoDatabases • Accessing SQL Server Data from Clients 2008 GIS & Data Management Conference

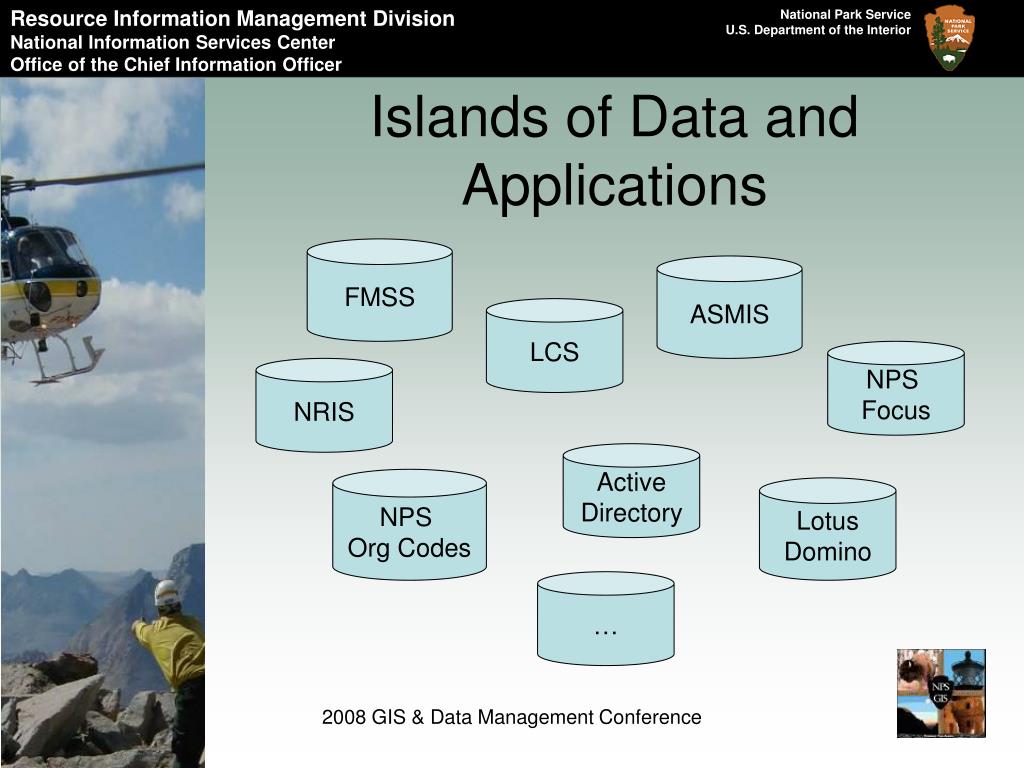

  3. Islands of Data and Applications FMSS ASMIS LCS NPS Focus NRIS Active Directory NPS Org Codes Lotus Domino … 2008 GIS & Data Management Conference

  4. We Need Bridges (or a boat) LCS Active Directory FMSS ASMIS NPS Focus NRIS NPS Org Codes … My Favorite Application 2008 GIS & Data Management Conference

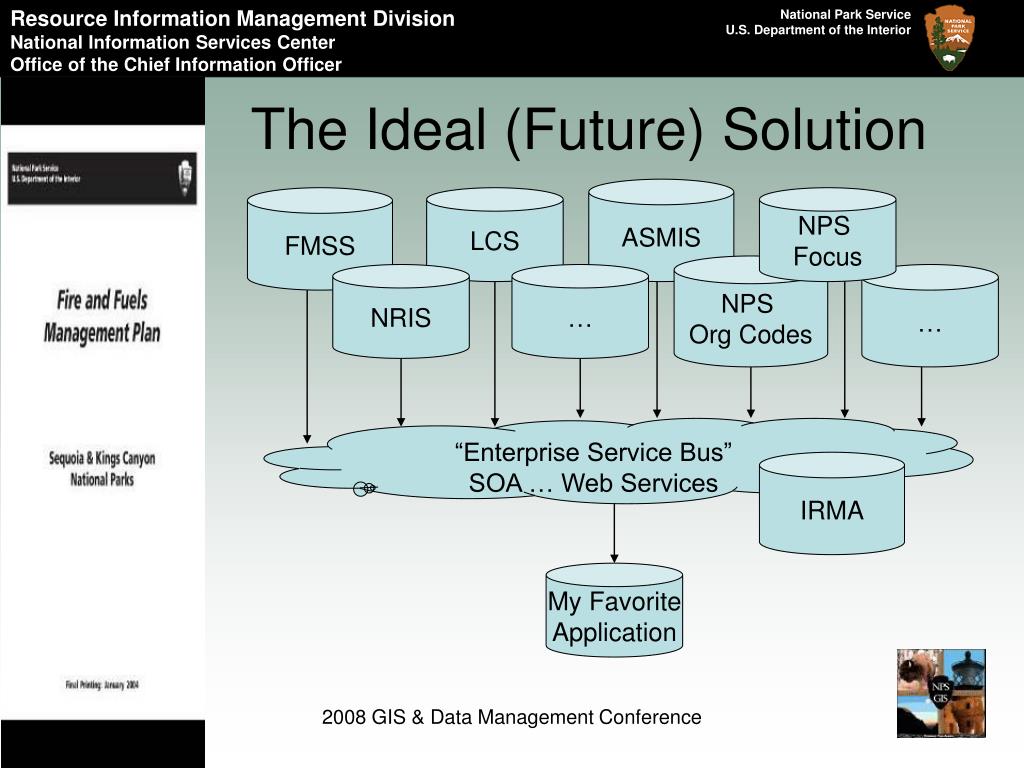

  5. The Ideal (Future) Solution ASMIS FMSS LCS NPS Focus NPS Org Codes NRIS … … “Enterprise Service Bus” SOA … Web Services IRMA My Favorite Application 2008 GIS & Data Management Conference

  6. An Interim “Bridge” Solution ASMIS FMSS LCS NPS Focus NPS Org Codes NRIS … … SQL Server Integration Services Web Services My Favorite Application 2008 GIS & Data Management Conference

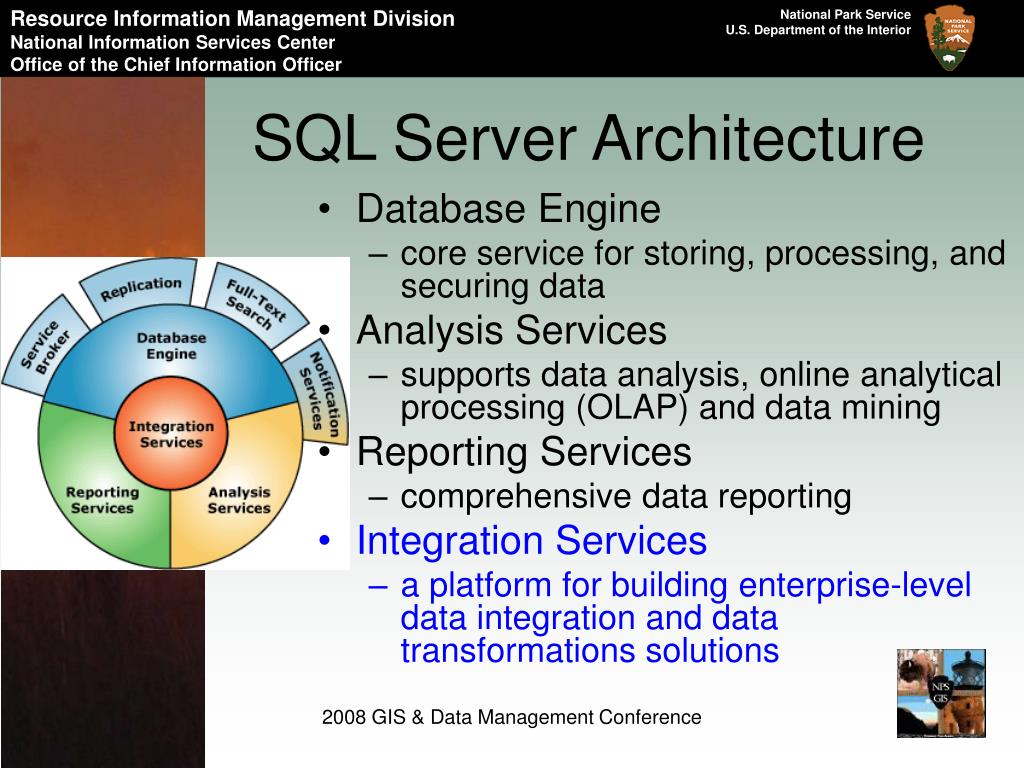

  7. SQL Server Architecture • Database Engine • core service for storing, processing, and securing data • Analysis Services • supports data analysis, online analytical processing (OLAP) and data mining • Reporting Services • comprehensive data reporting • Integration Services • a platform for building enterprise-level data integration and data transformations solutions 2008 GIS & Data Management Conference

  8. SQL Server Integration Services (SSIS) • a rich set of built-in tasks and transformations; • tools for constructing packages; • Integration Services service • running and managing packages. • Graphical tools & Wizards • No code writing required; • Object Model API • custom tasks & other package objects. 2008 GIS & Data Management Conference

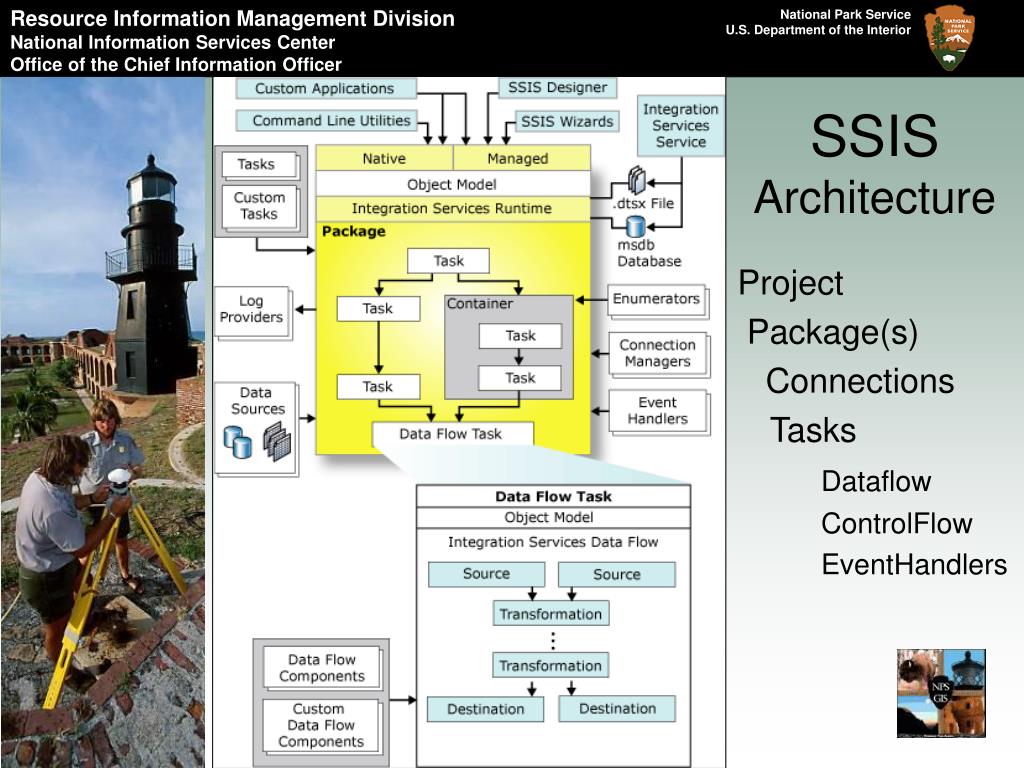

  9. SSIS Architecture • Project • Package(s) • Connections • Tasks • Dataflow • ControlFlow • EventHandlers 2008 GIS & Data Management Conference

  10. Visual Studio 2008 GIS & Data Management Conference

  11. Typical Uses of SSIS • Merging Data from Heterogeneous Data Stores • Populating Data Warehouses and Data Marts • Cleaning and Standardizing Data • Automating Administrative Functions and Data Loading 2008 GIS & Data Management Conference

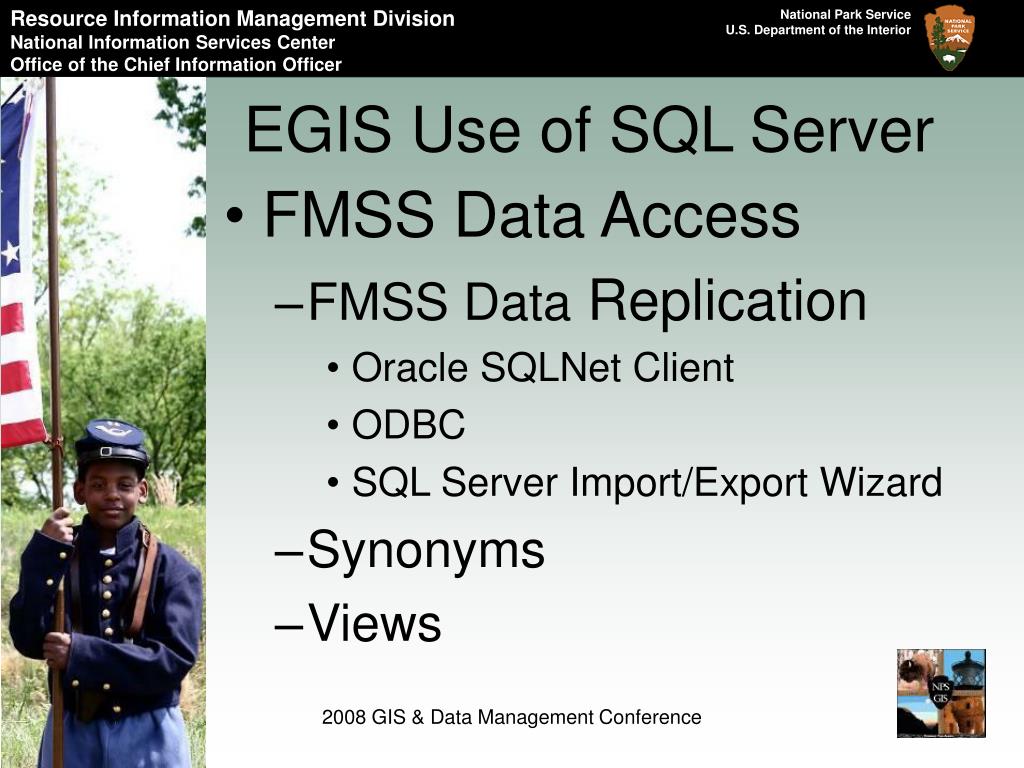

  12. EGIS Use of SQL Server • FMSS Data Access • FMSS Data Replication • Oracle SQLNet Client • ODBC • SQL Server Import/Export Wizard • Synonyms • Views 2008 GIS & Data Management Conference

  13. 2008 GIS & Data Management Conference

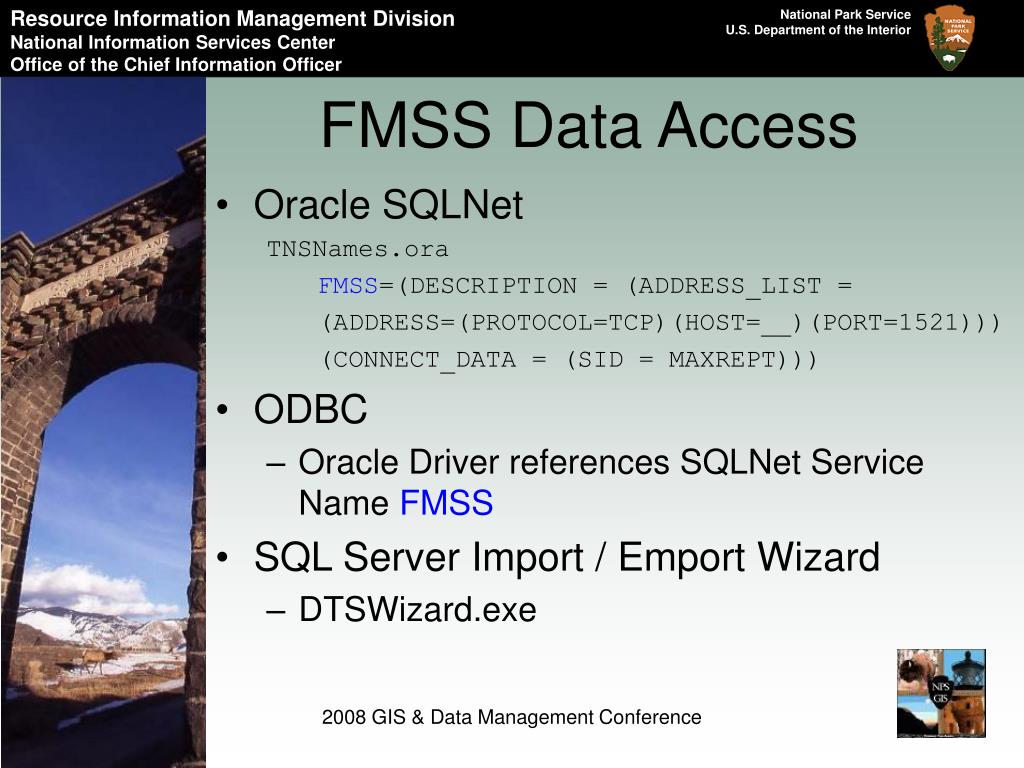

  14. FMSS Data Access • Oracle SQLNet TNSNames.ora FMSS=(DESCRIPTION = (ADDRESS_LIST = (ADDRESS=(PROTOCOL=TCP)(HOST=__)(PORT=1521))) (CONNECT_DATA = (SID = MAXREPT))) • ODBC • Oracle Driver references SQLNet Service Name FMSS • SQL Server Import / Emport Wizard • DTSWizard.exe 2008 GIS & Data Management Conference

  15. FMSS Data Access 2008 GIS & Data Management Conference

  16. FMSS Data Access 2008 GIS & Data Management Conference

  17. FMSS Data Access Define Query - select * from <table> 2008 GIS & Data Management Conference

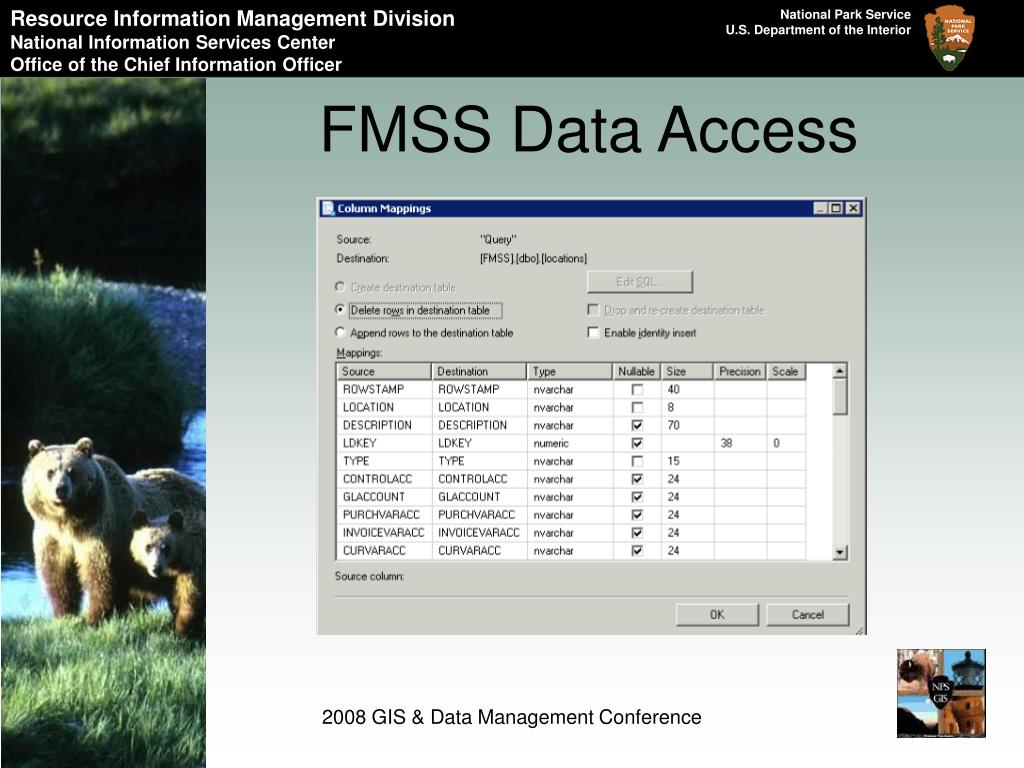

  18. FMSS Data Access 2008 GIS & Data Management Conference

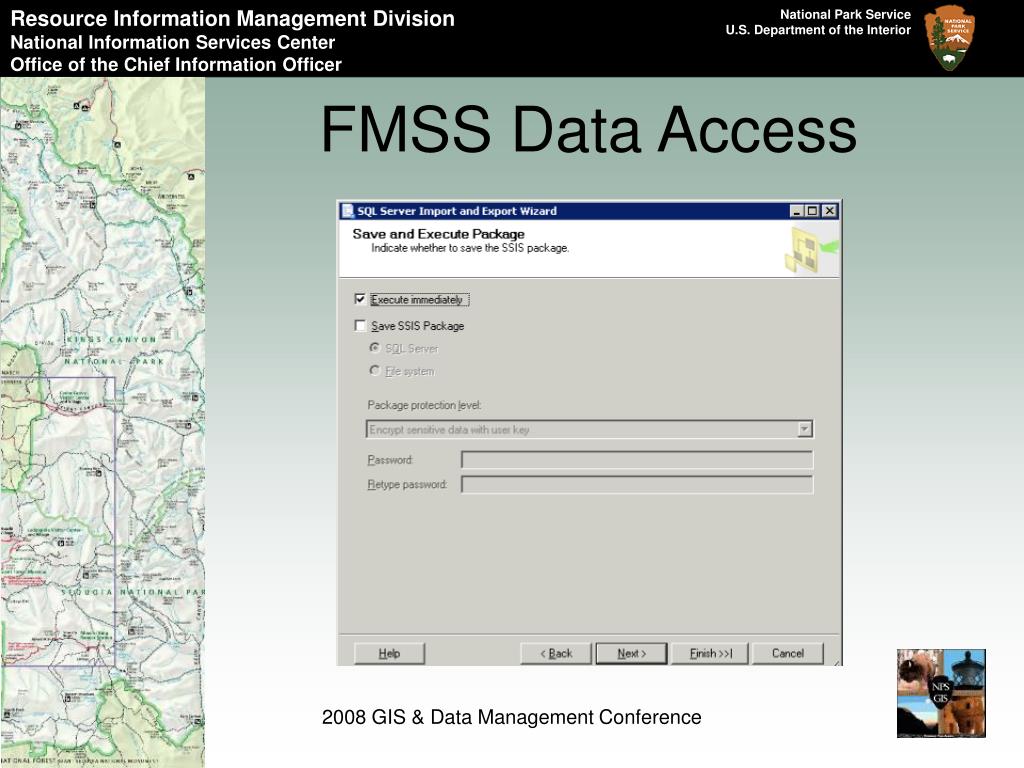

  19. FMSS Data Access 2008 GIS & Data Management Conference

  20. FMSS Data Access 2008 GIS & Data Management Conference

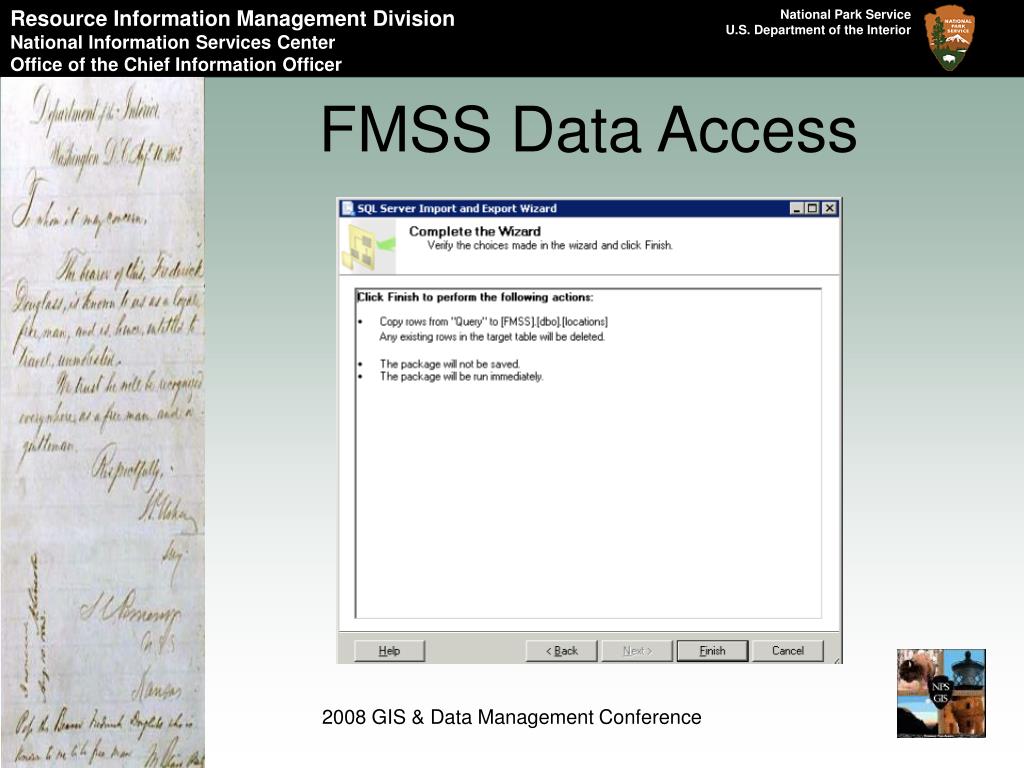

  21. FMSS Data Access 2008 GIS & Data Management Conference

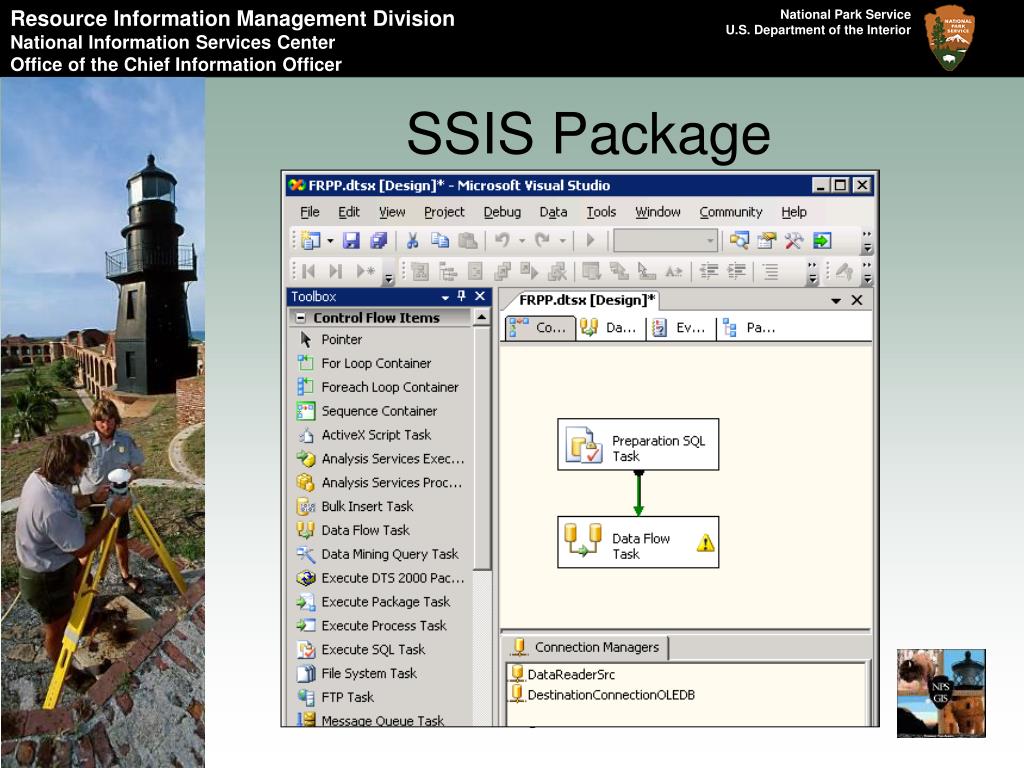

  22. SSIS Package 2008 GIS & Data Management Conference

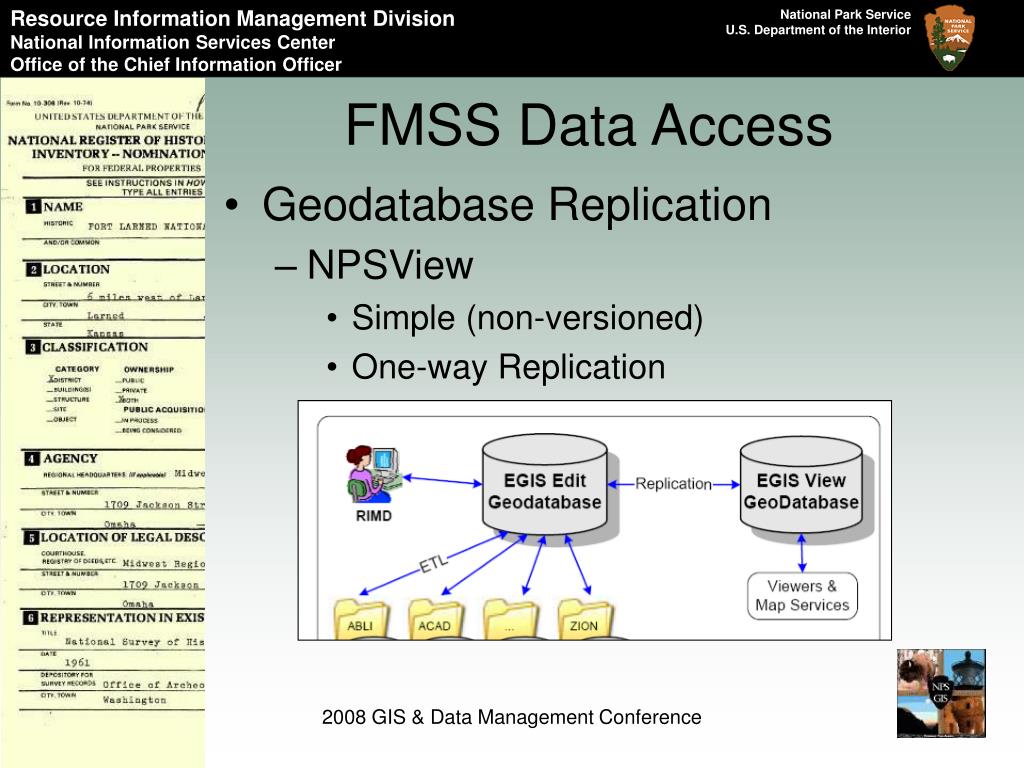

  23. FMSS Data Access • Geodatabase Replication • NPSView • Simple (non-versioned) • One-way Replication 2008 GIS & Data Management Conference

  24. FMSS Data Access • Theme Table 2008 GIS & Data Management Conference

  25. FMSS Data Access • Buildings View 2008 GIS & Data Management Conference

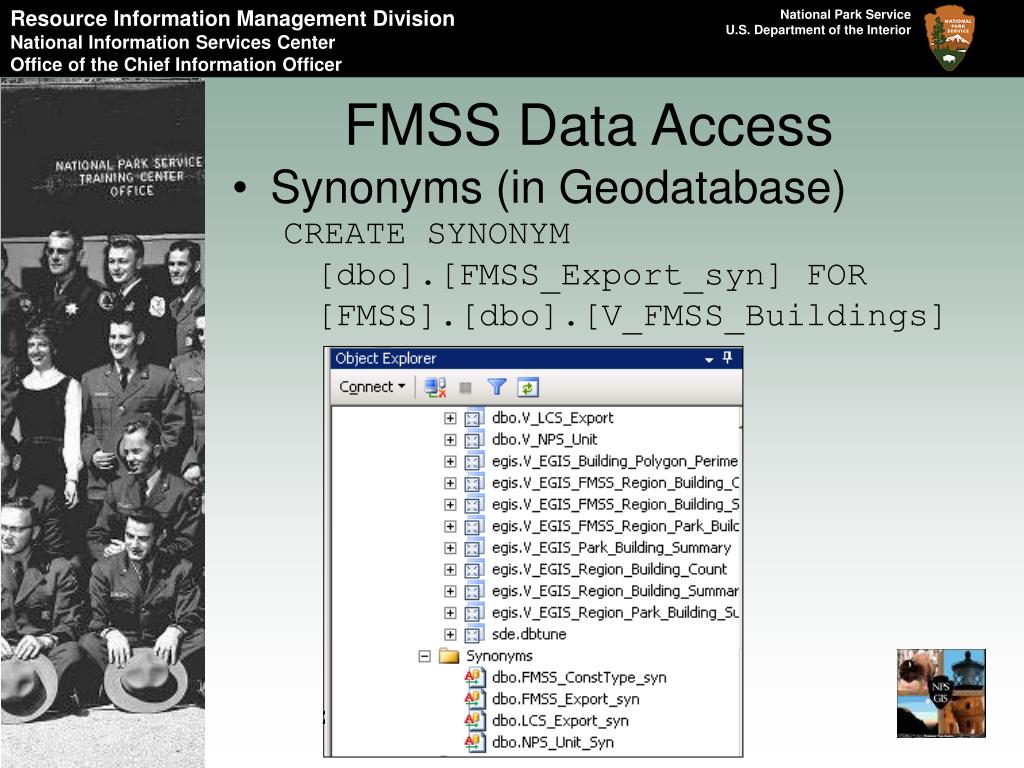

  26. FMSS Data Access • Synonyms (in Geodatabase) CREATE SYNONYM [dbo].[FMSS_Export_syn] FOR [FMSS].[dbo].[V_FMSS_Buildings] 2008 GIS & Data Management Conference

  27. FMSS Data Access • Views using Synonyms (in Geodatabase) 2008 GIS & Data Management Conference

  28. FMSS Data Access • View - Joined using Synonyms (in GDB) 2008 GIS & Data Management Conference

  29. NPS Buildings Statistics 2008 GIS & Data Management Conference

  30. Access to SQL Server Data from ArcGIS 2008 GIS & Data Management Conference

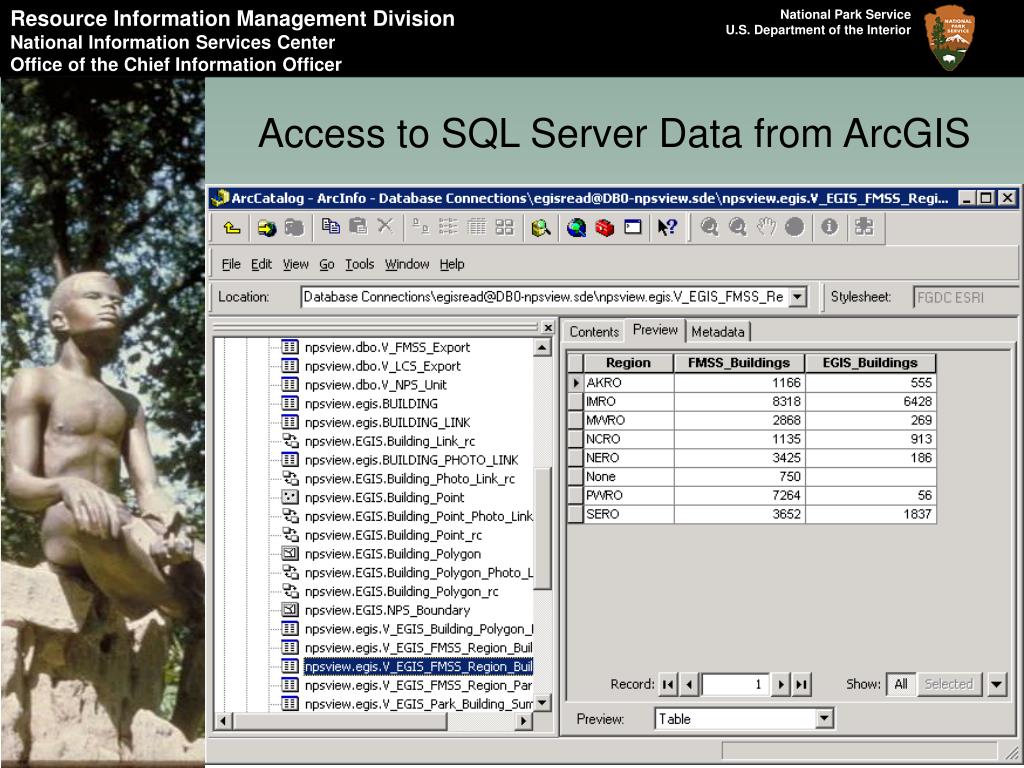

  31. Access to SQL Server Data from ArcGIS 2008 GIS & Data Management Conference

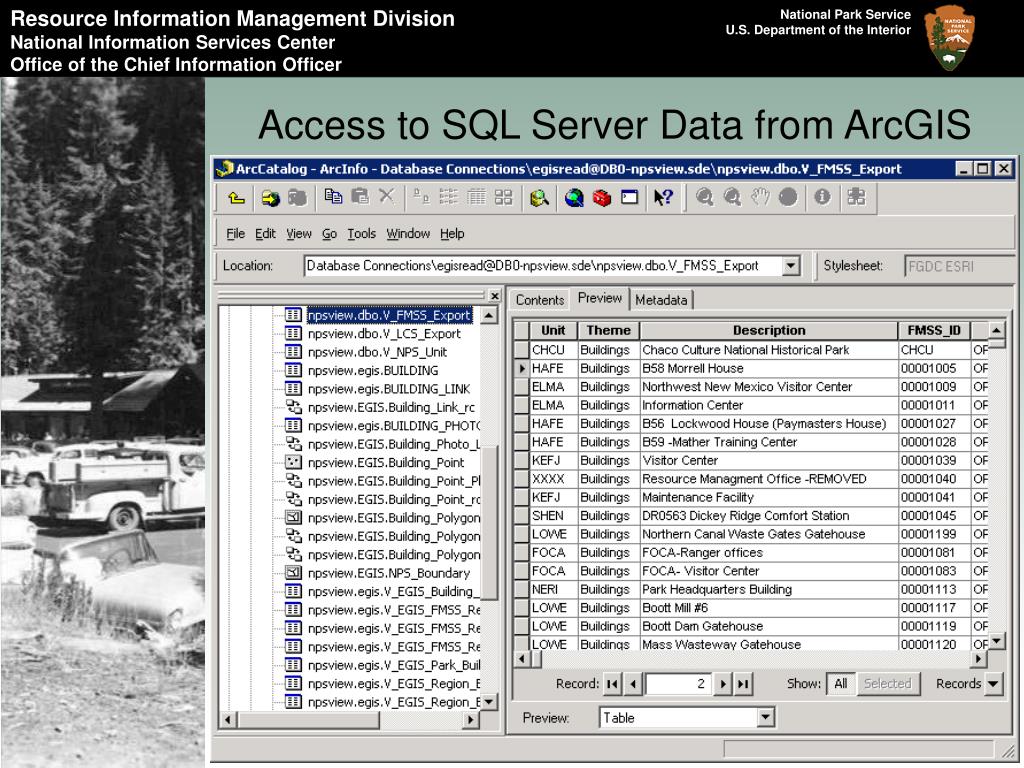

  32. Access to SQL Server Data from ArcGIS 2008 GIS & Data Management Conference

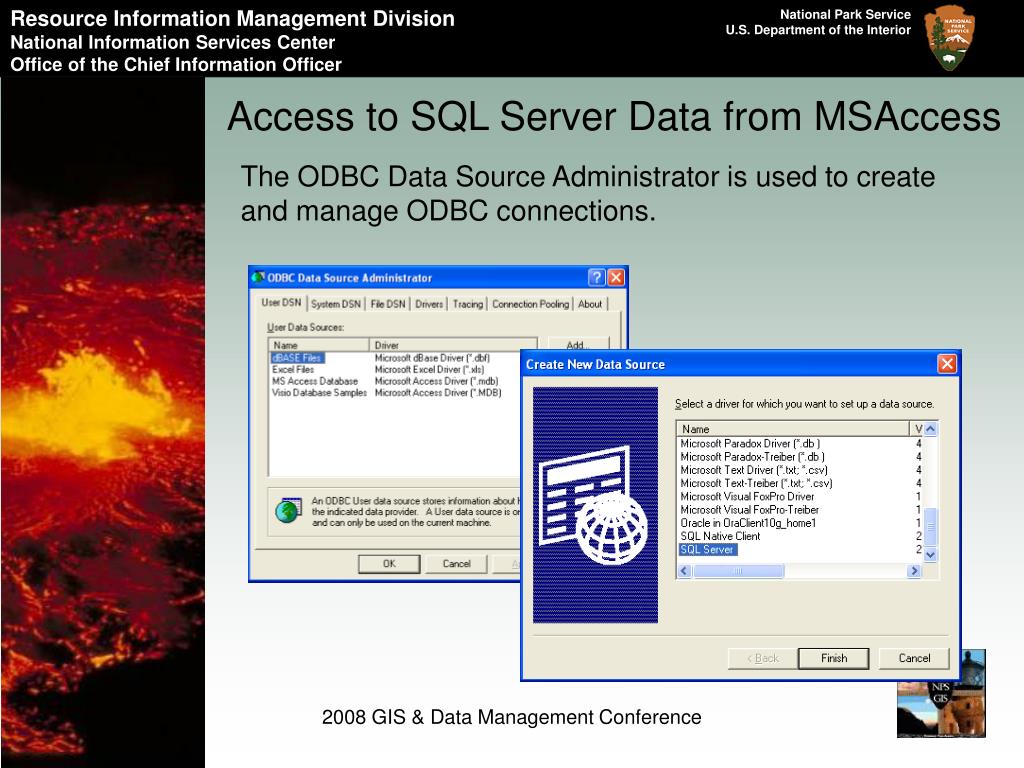

  33. Access to SQL Server Data from MSAccess The ODBC Data Source Administrator is used to create and manage ODBC connections. 2008 GIS & Data Management Conference

  34. Access to SQL Server Data from MSAccess 2008 GIS & Data Management Conference

  35. Access to SQL Server Data from MSAccess 2008 GIS & Data Management Conference

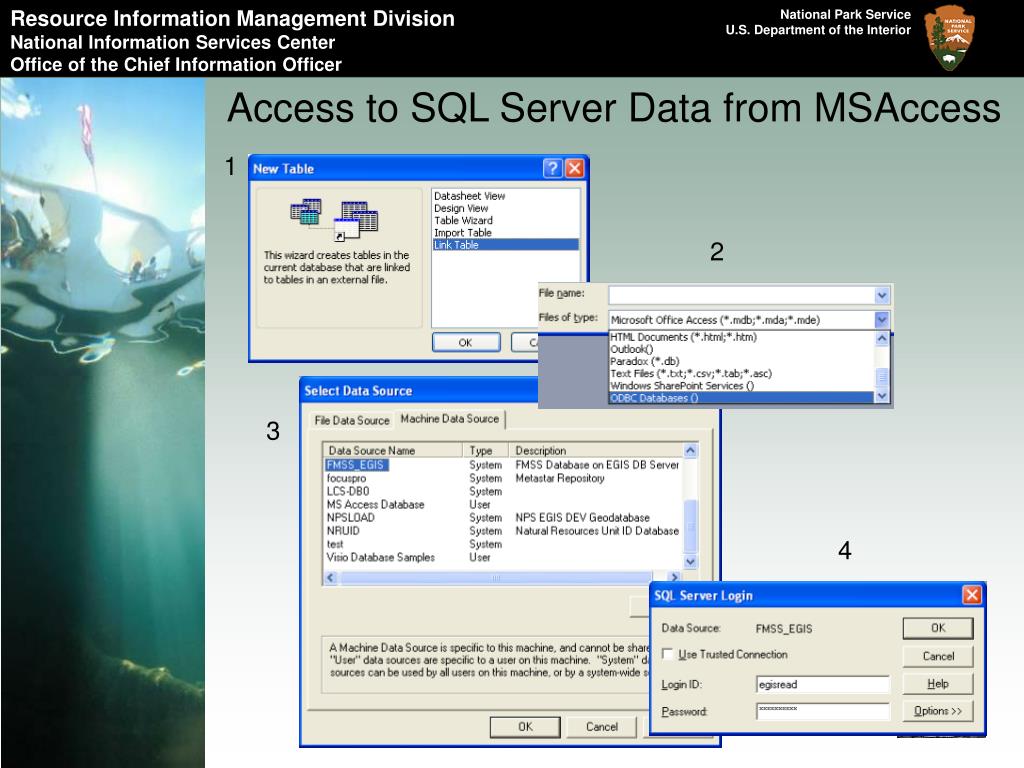

  36. Access to SQL Server Data from MSAccess 1 2 3 4 2008 GIS & Data Management Conference

  37. Access to SQL Server Data from MSAccess 5 6 7 2008 GIS & Data Management Conference

  38. Questions? 2008 GIS & Data Management Conference
