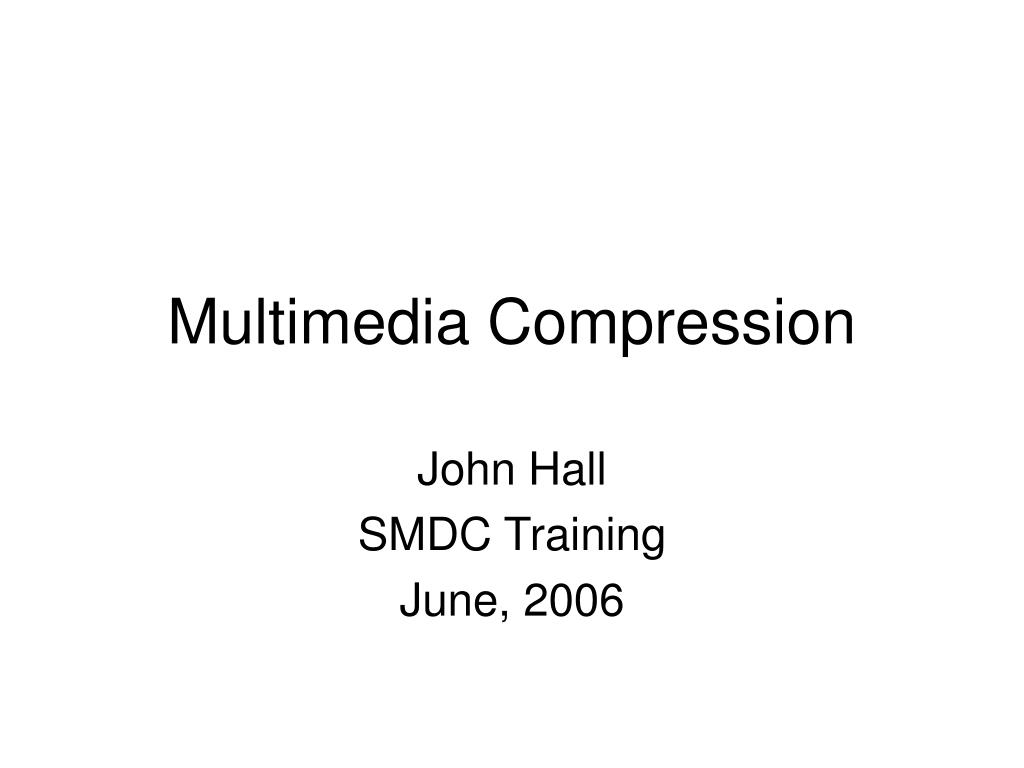

  1. Multimedia Compression John Hall SMDC Training June, 2006

  2. Concepts • Lossy vs. Lossless Compression • Container Format vs. Compression Format • Constant vs. Variable Bit Rate • Exposure to different compression and container formats

  3. Examples • JPEG Image Compression • MPEG-1 Video Compression • MPEG-2 Video Compression • MPEG-4 Video Compression • Containers: (MP4, MOV, AVI) • Audio Compression (AAC, MP3)

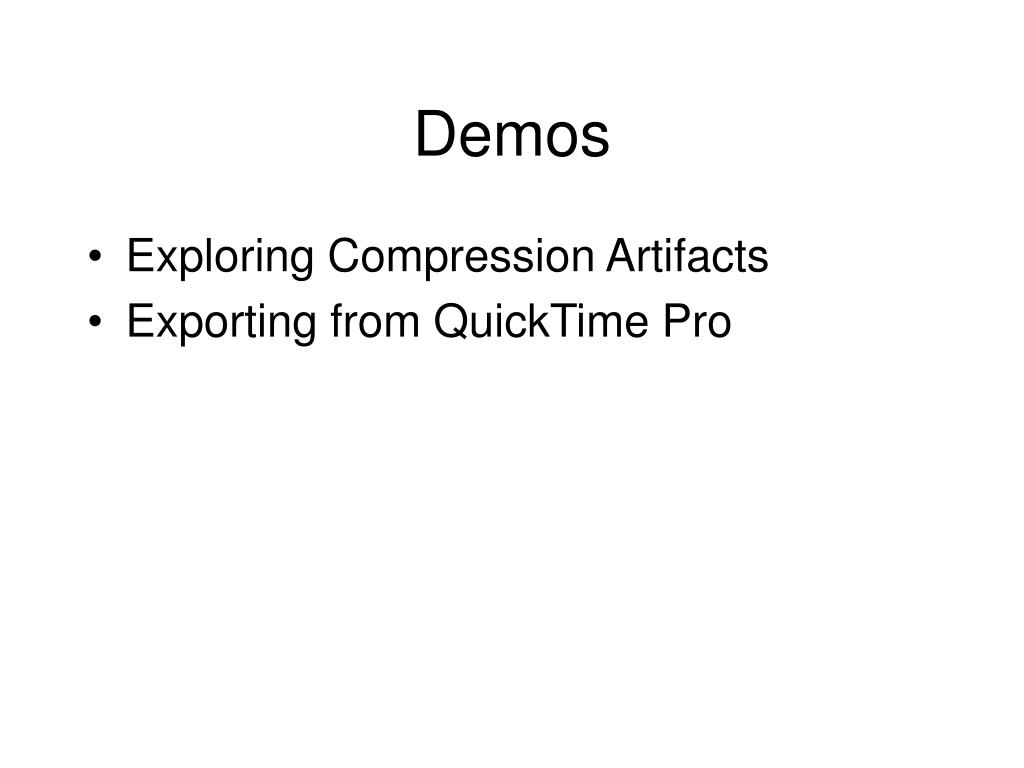

  4. Demos • Exploring Compression Artifacts • Exporting from QuickTime Pro

  5. Lossless Compression • Run Length Encoding (RLE): • aaaaaaabbbb • 7a4b • abababababa • 1a1b1a1b1a1b1a1b1a1b1a • Lossless compression relies on input being non-random to achieve compression.

  6. Lossy Compression • Removes information • Does so “intelligently” • For media files, remove what is least noticeable by the senses.

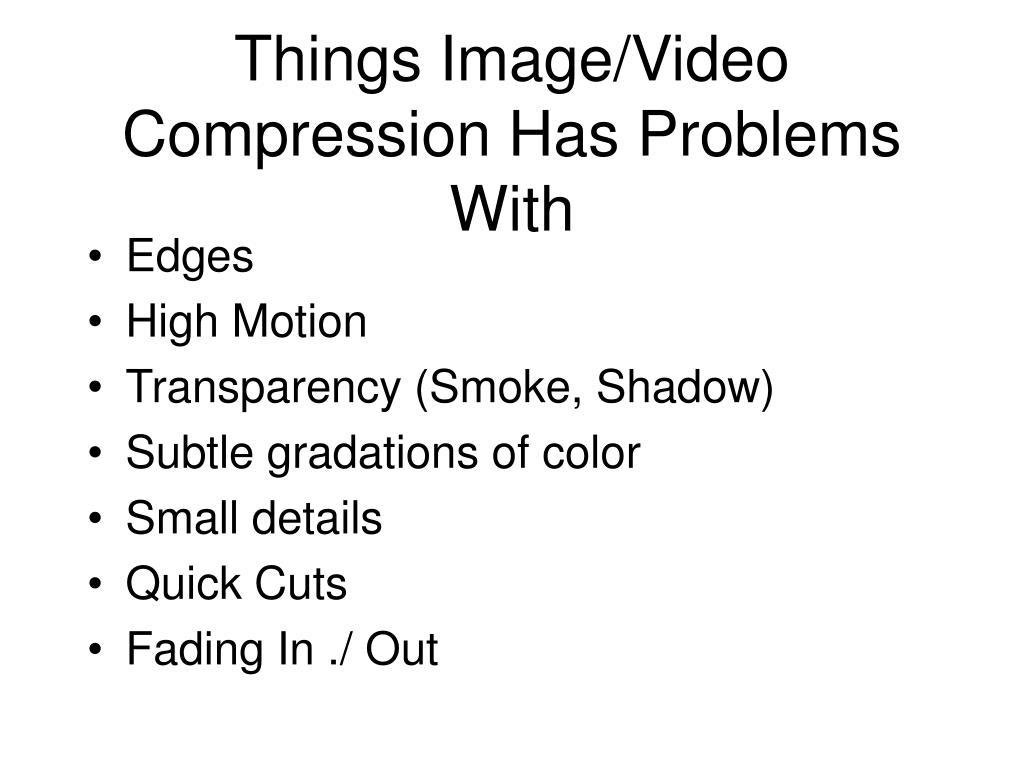

  7. Things Image/Video Compression Has Problems With • Edges • High Motion • Transparency (Smoke, Shadow) • Subtle gradations of color • Small details • Quick Cuts • Fading In ./ Out

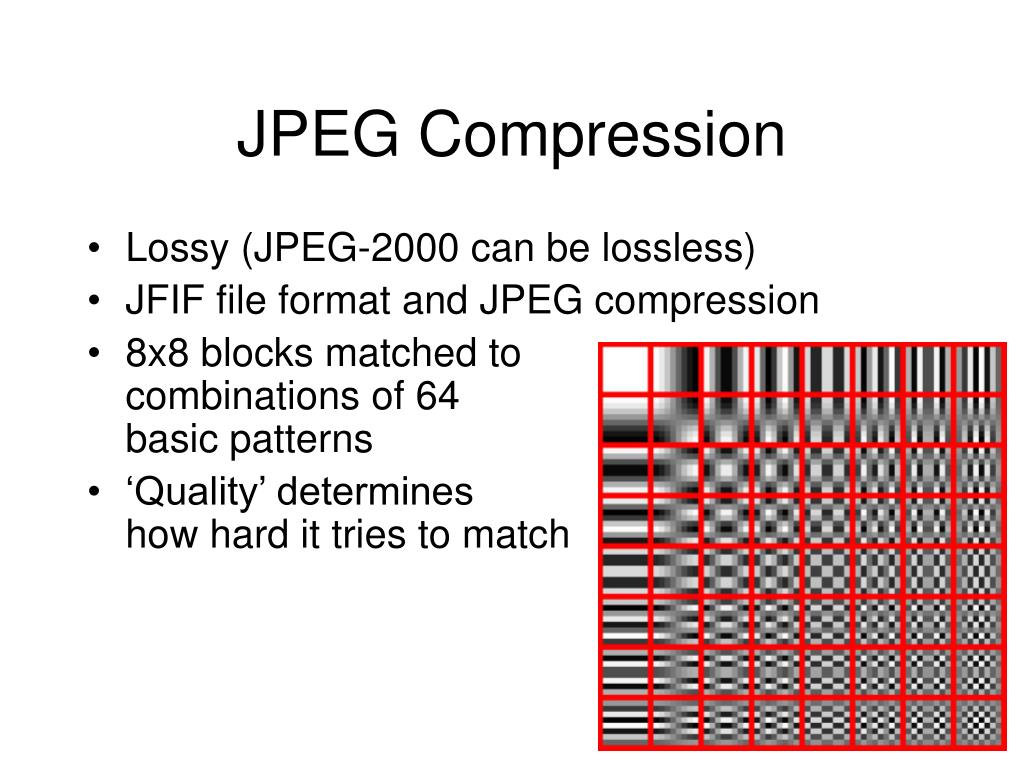

  8. JPEG Compression • Lossy (JPEG-2000 can be lossless) • JFIF file format and JPEG compression • 8x8 blocks matched tocombinations of 64 basic patterns • ‘Quality’ determineshow hard it tries to match

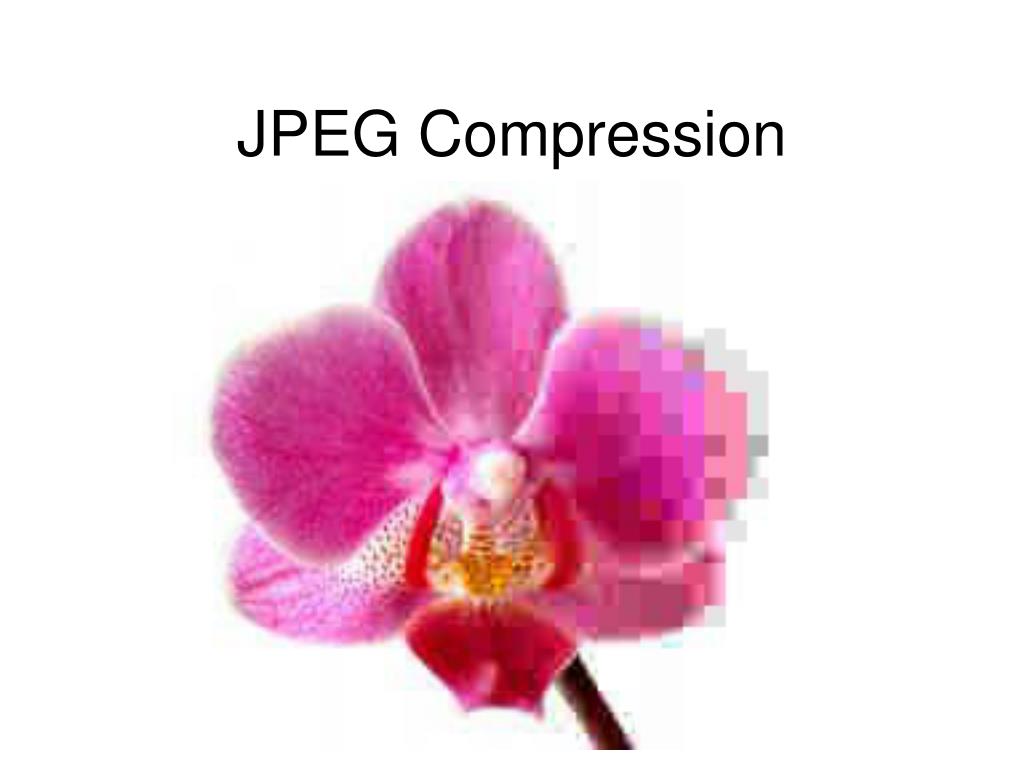

  9. JPEG Compression

  10. Video Compression • Series of compressed images (JPEG) • But can make smaller by compressing what’s common between frames • Only save the information that’s changed between frames • Match macroblocks to previous and possibly next frames

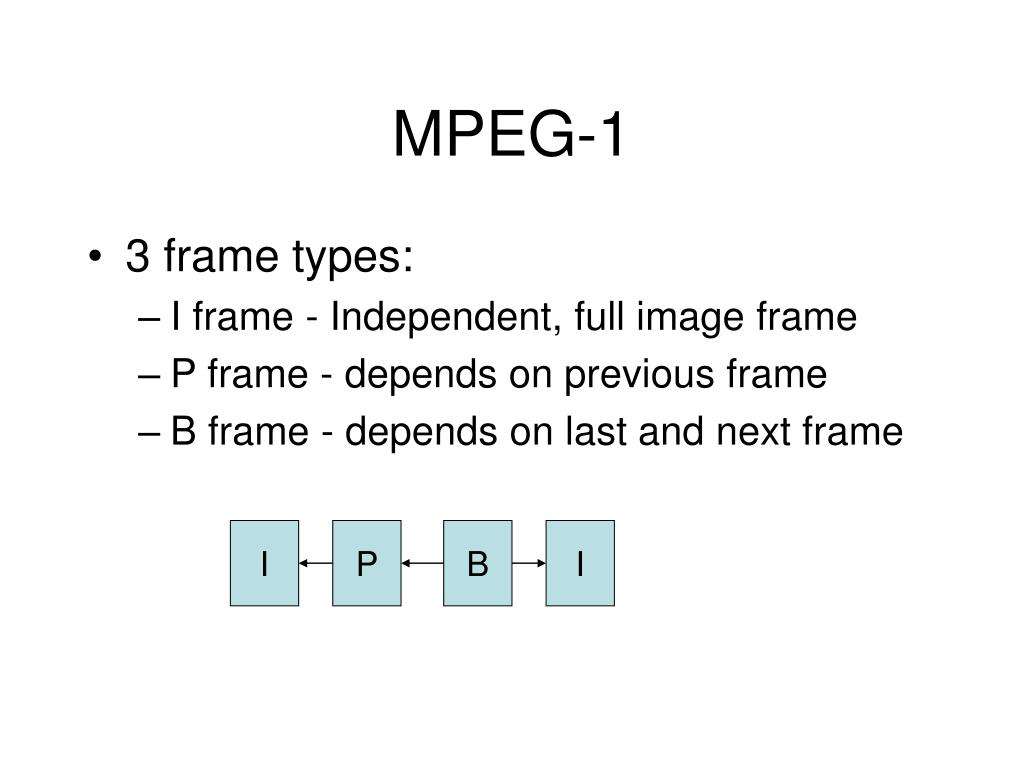

  11. MPEG-1 • 3 frame types: • I frame - Independent, full image frame • P frame - depends on previous frame • B frame - depends on last and next frame I P B I

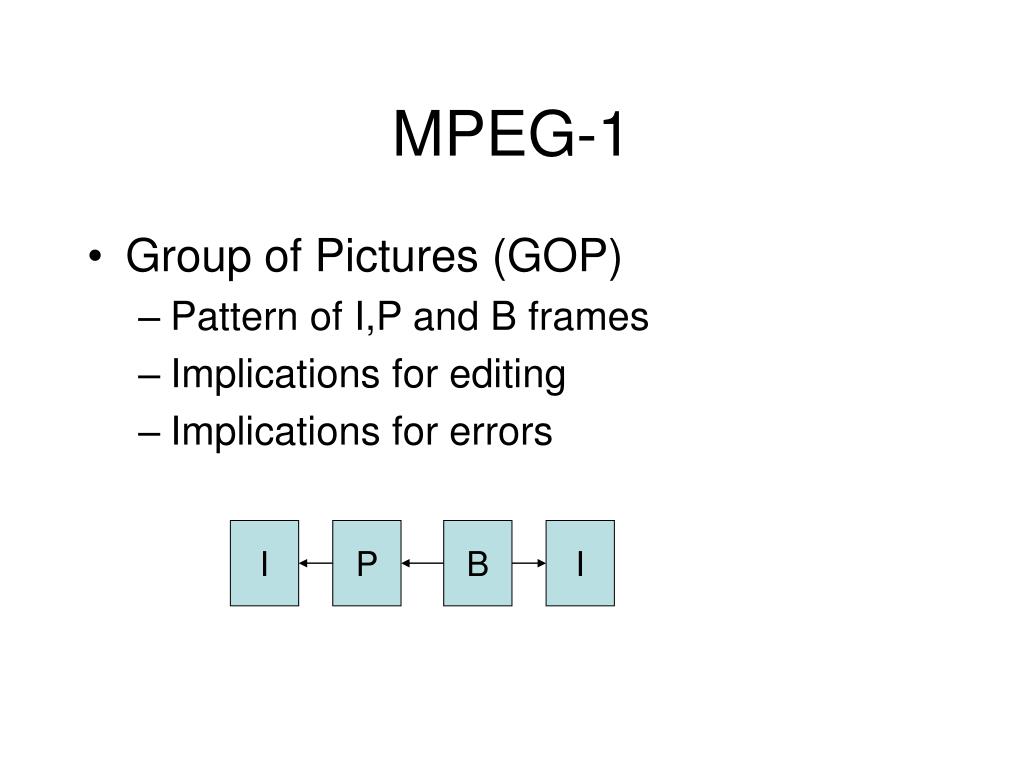

  12. MPEG-1 • Group of Pictures (GOP) • Pattern of I,P and B frames • Implications for editing • Implications for errors I P B I

  13. Things Image/Video Compression Has Problems With • Edges • High Motion • Transparency (Smoke, Shadow) • Subtle gradations of color • Small details • Quick Cuts • Fading In ./ Out

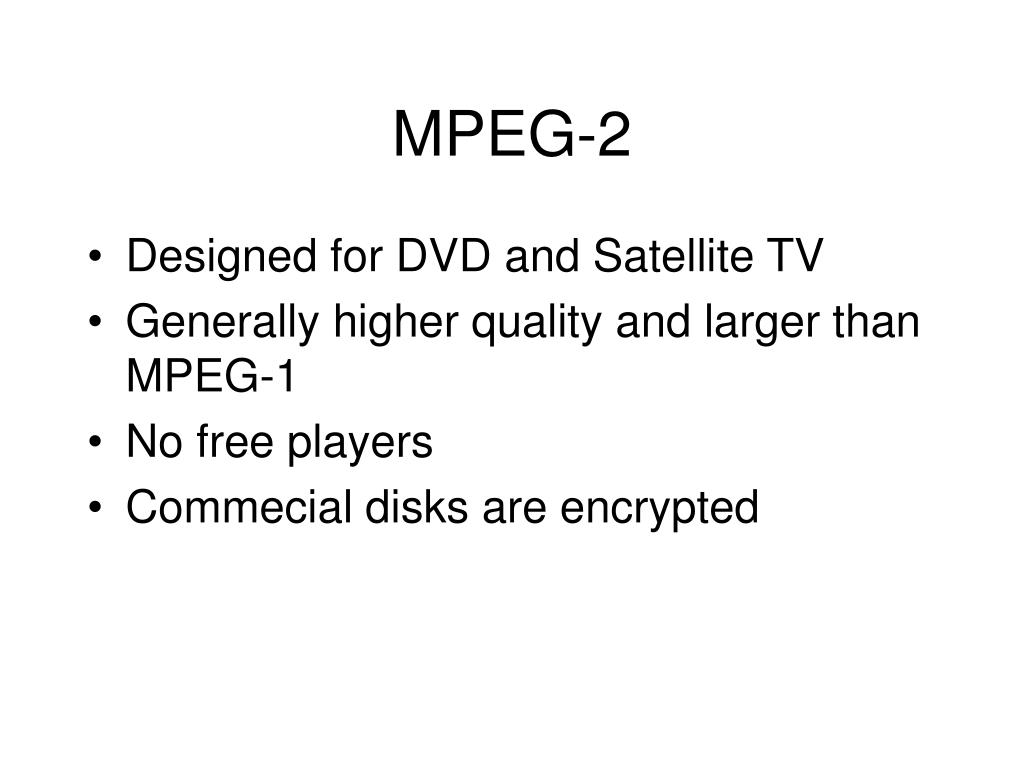

  14. MPEG-2 • Designed for DVD and Satellite TV • Generally higher quality and larger than MPEG-1 • No free players • Commecial disks are encrypted

  15. MPEG-4 • Video compression is Part 2 of standard • Used in podcasts • Scalable - great for web at low quality • Many parts to standard aren’t used • Container / File is Part 10 of standard

  16. When to use Which? • MPEG2 - Must use for Video-DVD • MPEG1 - If distributing on CD for older computers • MPEG4 - For web downloading • Real - For streaming (contact UMS)

  17. Containers / Files • MP4, AVI and MOV are container & file formats • They can contain a variety of audio and video and specify the codecs to decode them • For instance: • A MOV file can contain MPEG-4 video with AAC audio • OR • A MOV file can contain Sorenson video with MPEG-3 audio • OR… • MP4 (M4V) is MPEG-4 Part 14

  18. Container Formats • Comparison of Container Formats

  19. Example - Quicktime Pro

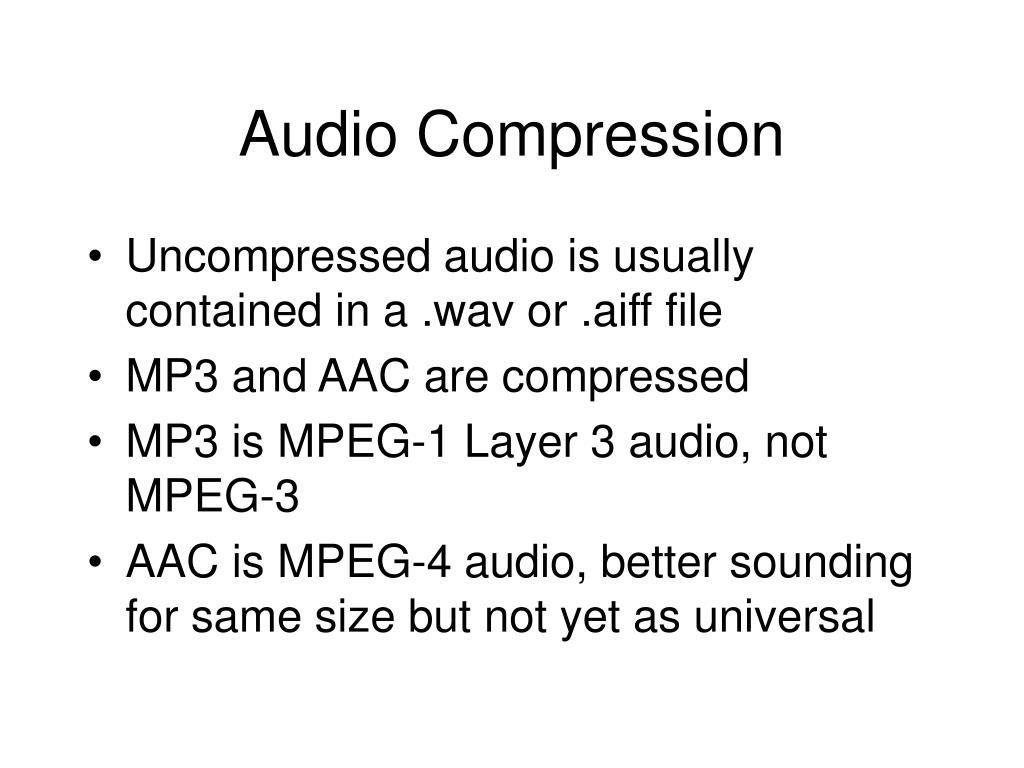

  20. Audio Compression • Uncompressed audio is usually contained in a .wav or .aiff file • MP3 and AAC are compressed • MP3 is MPEG-1 Layer 3 audio, not MPEG-3 • AAC is MPEG-4 audio, better sounding for same size but not yet as universal

  21. Bit Rate • How much information is decoded per second • MP3 typically 128Kbps - 192Kbps • MPEG-4 Video: 64Kbps, 256Kbps… • Quality depends on bit rate AND encoder quality • Variable bit rate

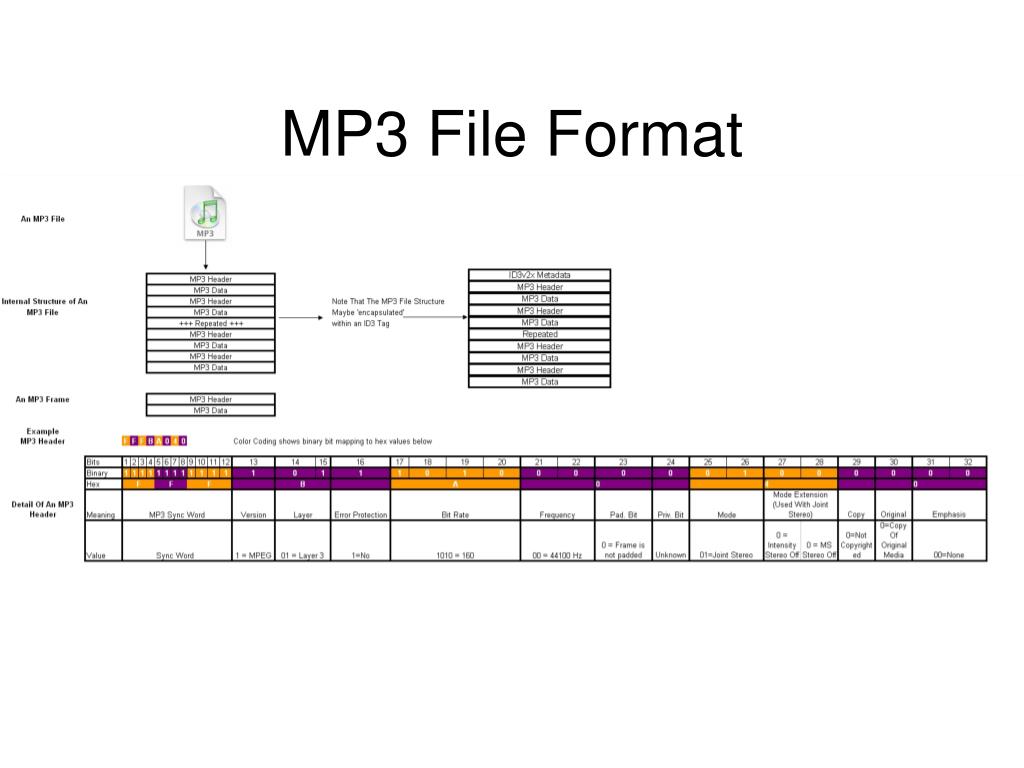

  22. MP3 File Format

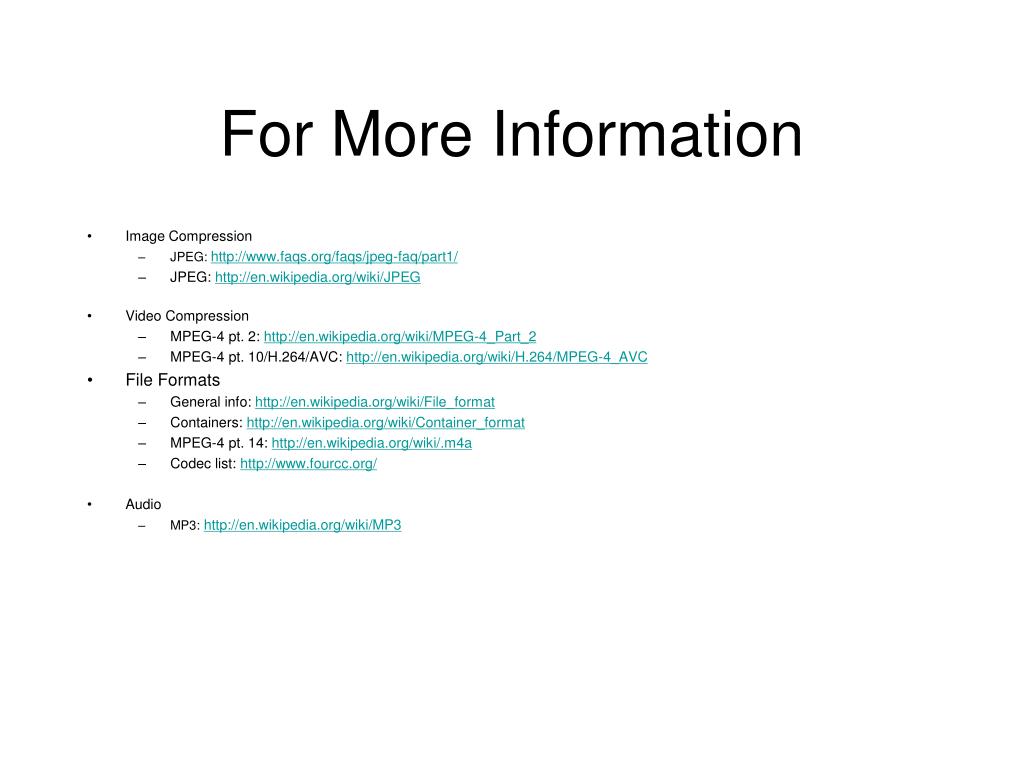

  23. For More Information • Image Compression • JPEG: http://www.faqs.org/faqs/jpeg-faq/part1/ • JPEG: http://en.wikipedia.org/wiki/JPEG • Video Compression • MPEG-4 pt. 2: http://en.wikipedia.org/wiki/MPEG-4_Part_2 • MPEG-4 pt. 10/H.264/AVC: http://en.wikipedia.org/wiki/H.264/MPEG-4_AVC • File Formats • General info: http://en.wikipedia.org/wiki/File_format • Containers: http://en.wikipedia.org/wiki/Container_format • MPEG-4 pt. 14: http://en.wikipedia.org/wiki/.m4a • Codec list: http://www.fourcc.org/ • Audio • MP3: http://en.wikipedia.org/wiki/MP3

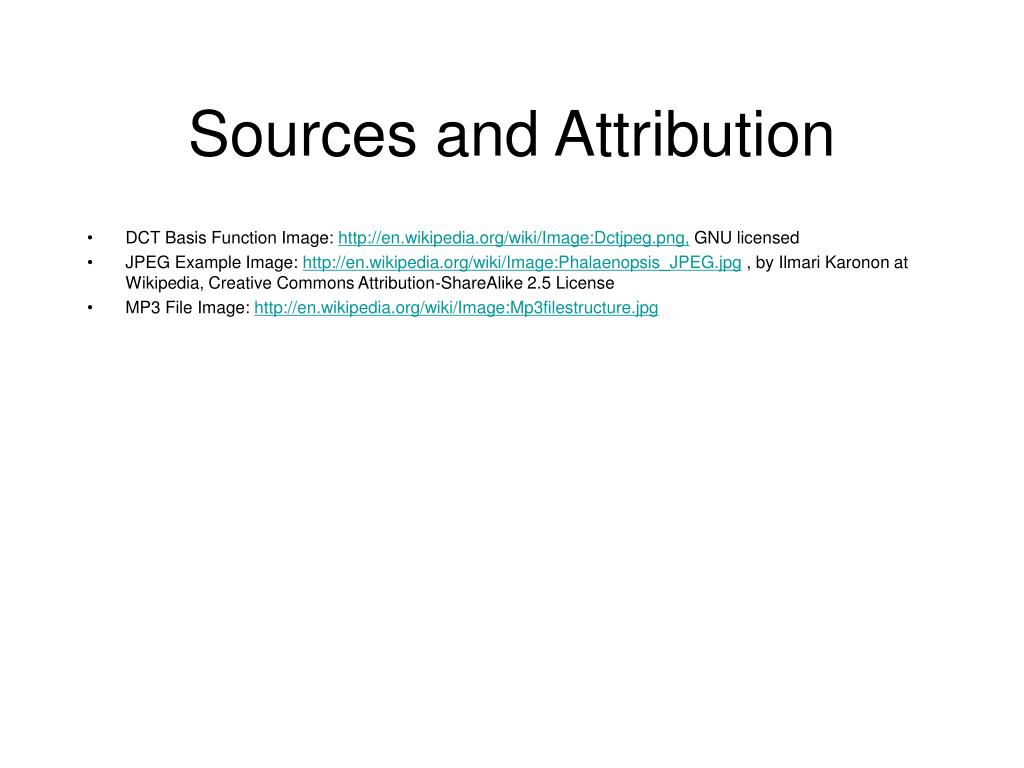

  24. Sources and Attribution • DCT Basis Function Image: http://en.wikipedia.org/wiki/Image:Dctjpeg.png, GNU licensed • JPEG Example Image: http://en.wikipedia.org/wiki/Image:Phalaenopsis_JPEG.jpg , by Ilmari Karonon at Wikipedia, Creative Commons Attribution-ShareAlike 2.5 License • MP3 File Image: http://en.wikipedia.org/wiki/Image:Mp3filestructure.jpg
