Design of a Diversified Router: Common Router Framework. John DeHart jdd@arl.wustl.edu http://www.arl.wustl.edu/arl. Revision History. 5/22/06 (JDD): Updates to data passing from Block to Block. Buffer descriptor stuff probably needs updating. 6/2/06 (JDD):

kermit-baxter
Download Presentation

Design of a Diversified Router: Common Router Framework

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Design of aDiversified Router:Common Router Framework John DeHartjdd@arl.wustl.edu http://www.arl.wustl.edu/arl

  2. Revision History • 5/22/06 (JDD): • Updates to data passing from Block to Block. • Buffer descriptor stuff probably needs updating. • 6/2/06 (JDD): • Needs to be brought up to date, especially with regard to data going between blocks.

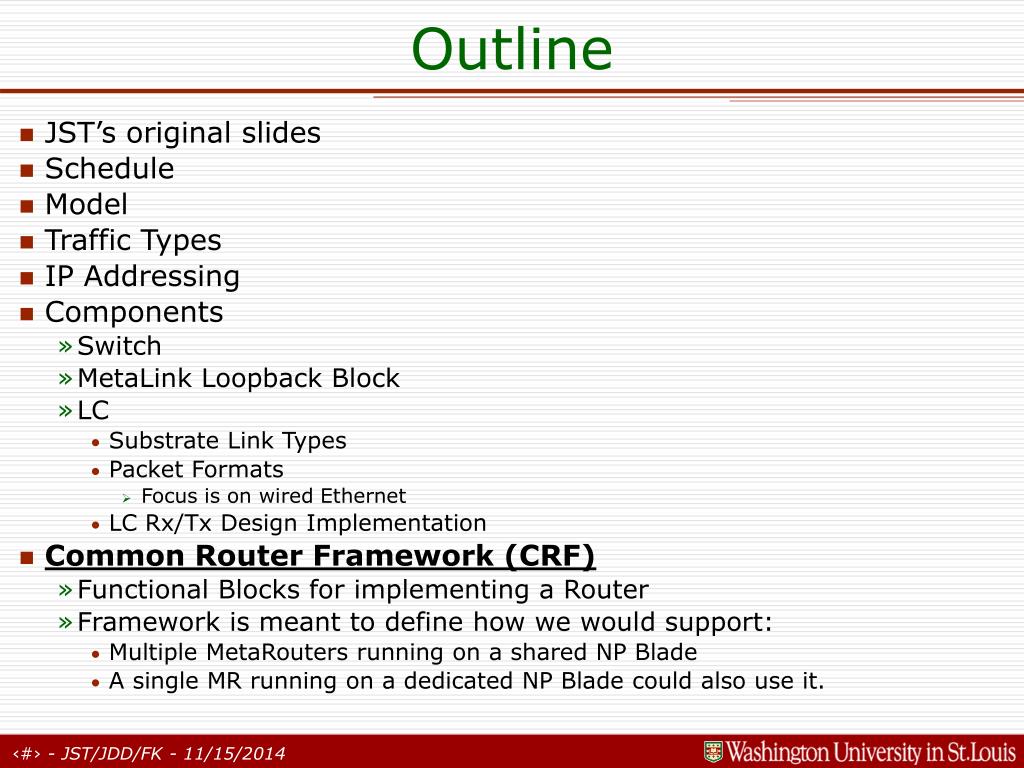

  3. Outline • JST’s original slides • Schedule • Model • Traffic Types • IP Addressing • Components • Switch • MetaLink Loopback Block • LC • Substrate Link Types • Packet Formats • Focus is on wired Ethernet • LC Rx/Tx Design Implementation • Common Router Framework (CRF) • Functional Blocks for implementing a Router • Framework is meant to define how we would support: • Multiple MetaRouters running on a shared NP Blade • A single MR running on a dedicated NP Blade could also use it.

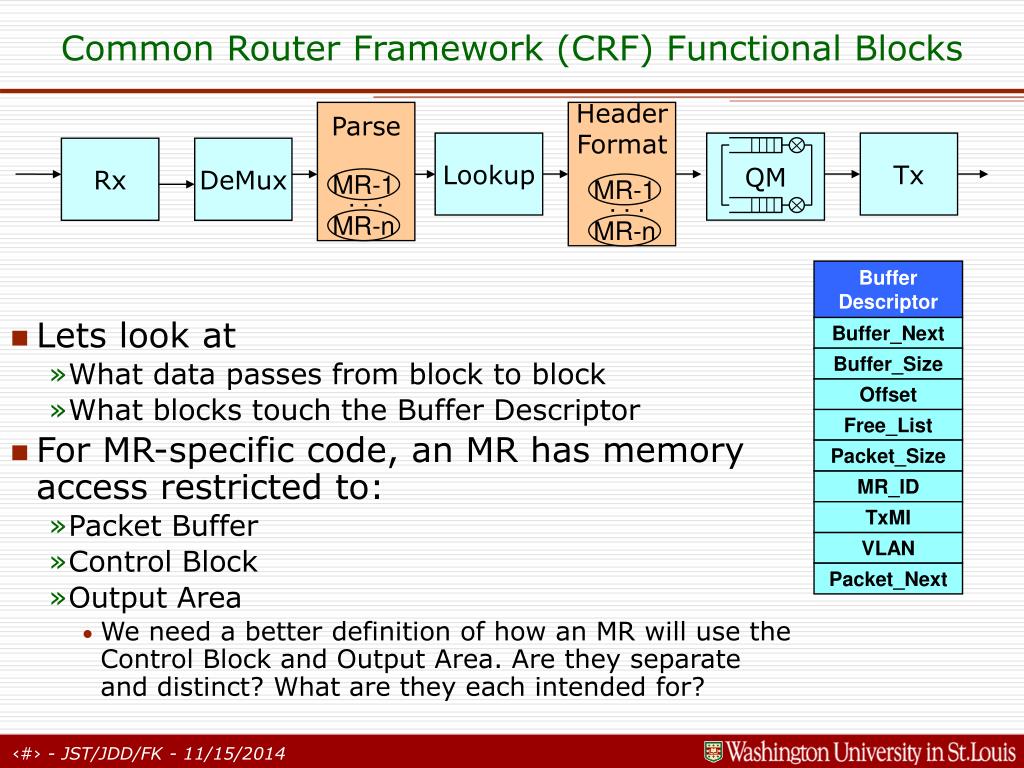

  4. Buffer Descriptor MR-1 . . . MR-n Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID TxMI QM VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n • Lets look at • What data passes from block to block • What blocks touch the Buffer Descriptor • For MR-specific code, an MR has memory access restricted to: • Packet Buffer • Control Block • Output Area • We need a better definition of how an MR will use the Control Block and Output Area. Are they separate and distinct? What are they each intended for?

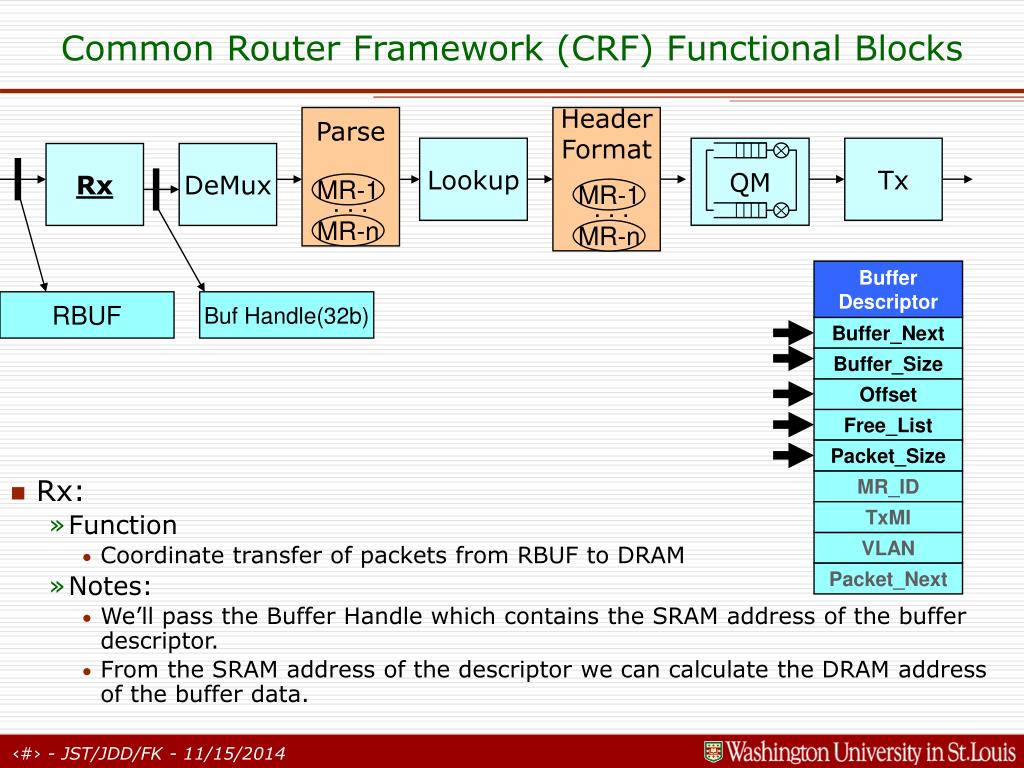

  5. Buffer Descriptor MR-1 . . . MR-n Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID TxMI QM VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n RBUF Buf Handle(32b) CRC (32b) • Rx: • Function • Coordinate transfer of packets from RBUF to DRAM • Notes: • We’ll pass the Buffer Handle which contains the SRAM address of the buffer descriptor. • From the SRAM address of the descriptor we can calculate the DRAM address of the buffer data.

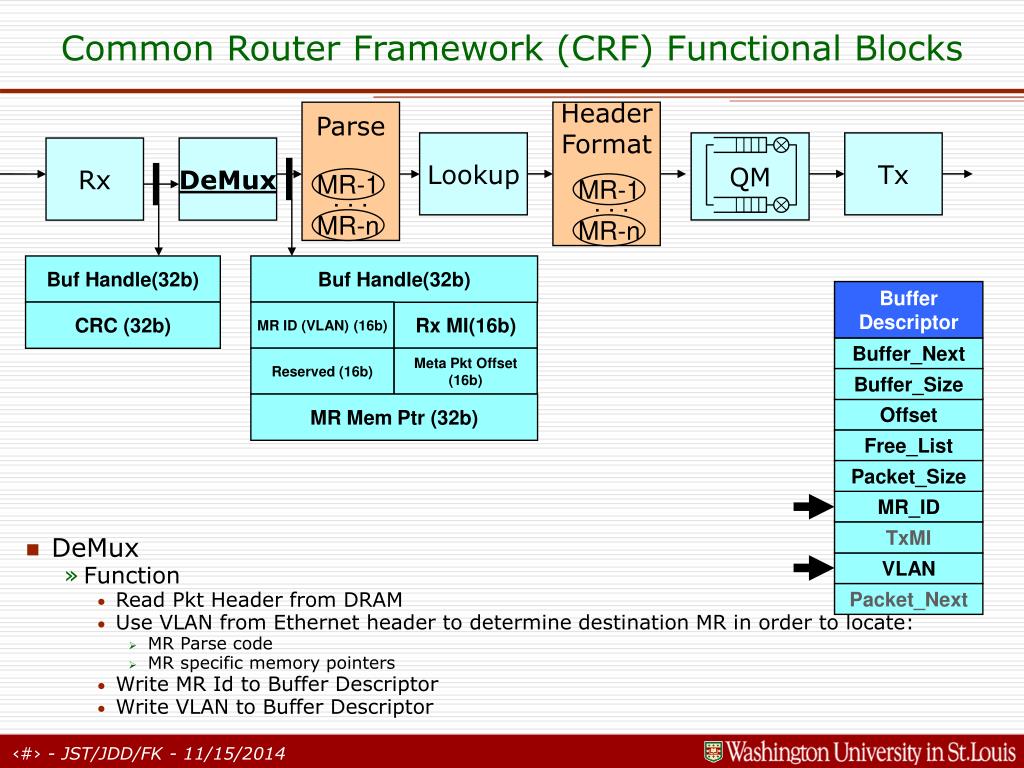

  6. Buf Handle(32b) MR-1 . . . Buffer Descriptor MR-n MR ID (VLAN) (16b) Rx MI(16b) Buffer_Next Reserved (16b) Meta Pkt Offset (16b) Buffer_Size Offset MR Mem Ptr (32b) Free_List Packet_Size MR_ID TxMI QM VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n Buf Handle(32b) CRC (32b) • DeMux • Function • Read Pkt Header from DRAM • Use VLAN from Ethernet header to determine destination MR in order to locate: • MR Parse code • MR specific memory pointers • Write MR Id to Buffer Descriptor • Write VLAN to Buffer Descriptor

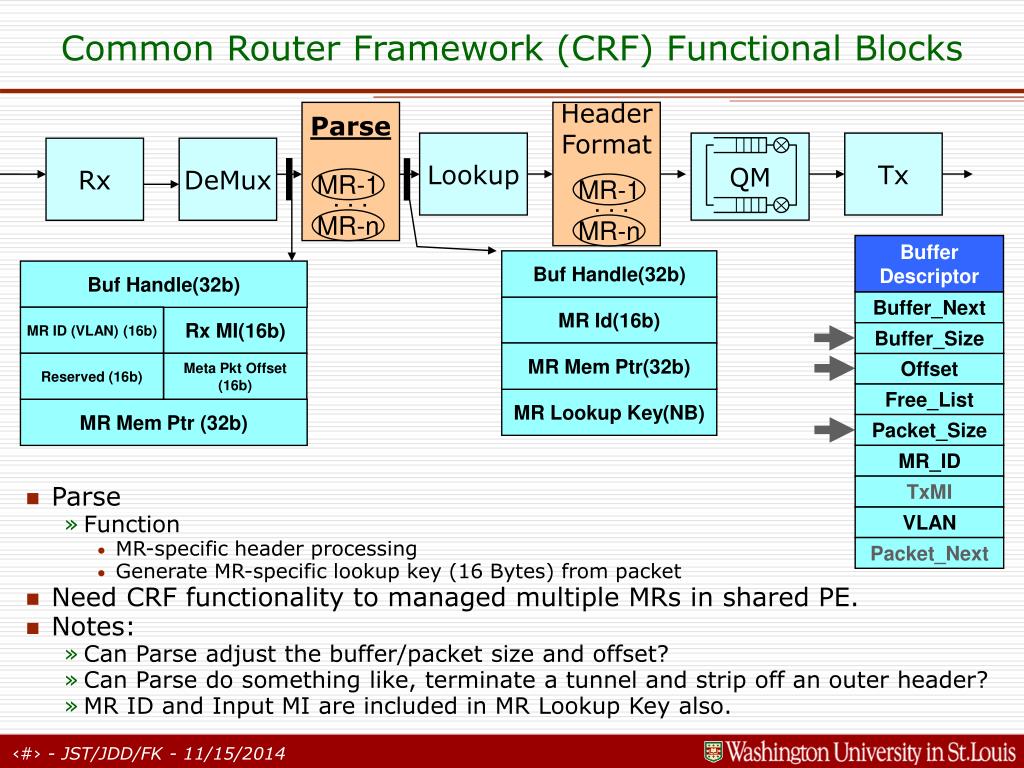

  7. Buf Handle(32b) MR-1 . . . Buffer Descriptor MR-n MR ID (VLAN) (16b) Rx MI(16b) Reserved (16b) Meta Pkt Offset (16b) Buffer_Next Buffer_Size MR Mem Ptr (32b) Offset Free_List Packet_Size MR_ID QM TxMI VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n Buf Handle(32b) MR Id(16b) MR Mem Ptr(32b) MR Lookup Key(NB) • Parse • Function • MR-specific header processing • Generate MR-specific lookup key (16 Bytes) from packet • Need CRF functionality to managed multiple MRs in shared PE. • Notes: • Can Parse adjust the buffer/packet size and offset? • Can Parse do something like, terminate a tunnel and strip off an outer header? • MR ID and Input MI are included in MR Lookup Key also.

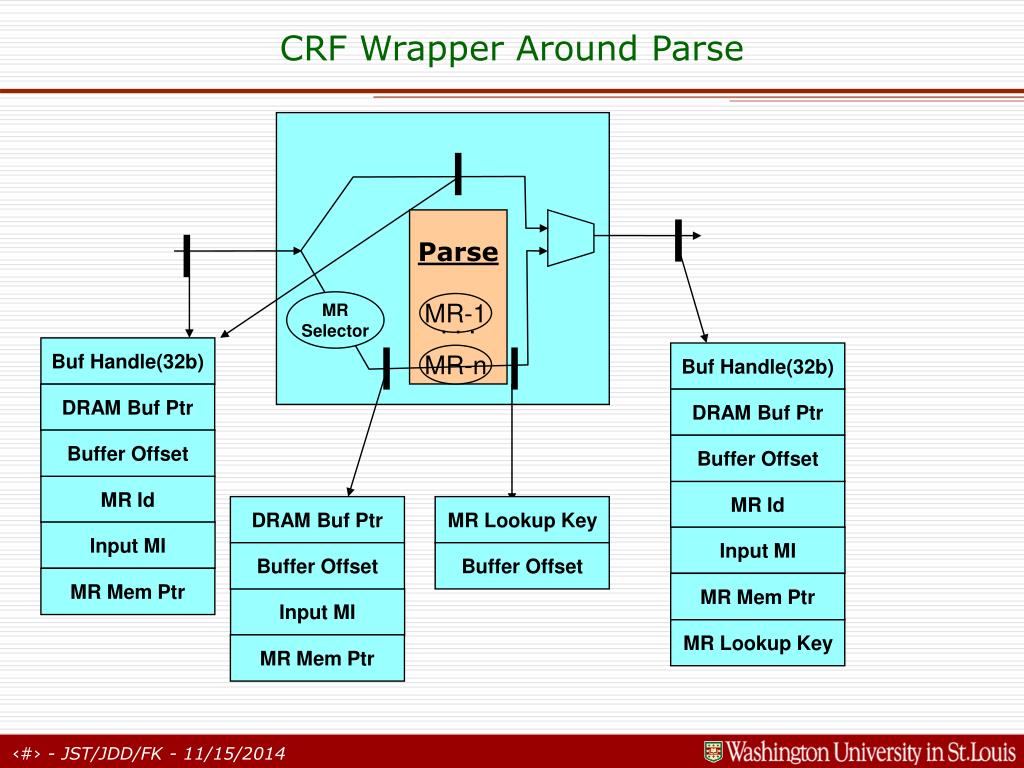

  8. Parse MR-1 . . . MR-n CRF Wrapper Around Parse MR Selector Buf Handle(32b) Buf Handle(32b) MR Id MR Id Input MI MR Mem Ptr MR Mem Ptr MR Lookup Key DRAM Buf Ptr MR Lookup Key Input MI MR Mem Ptr

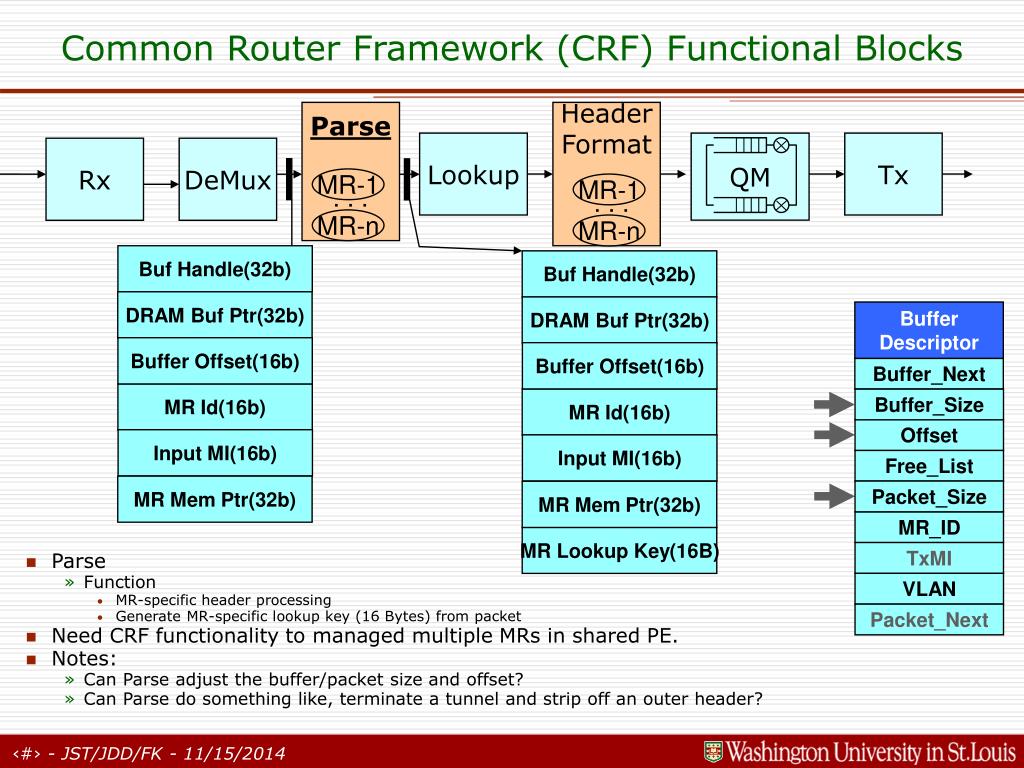

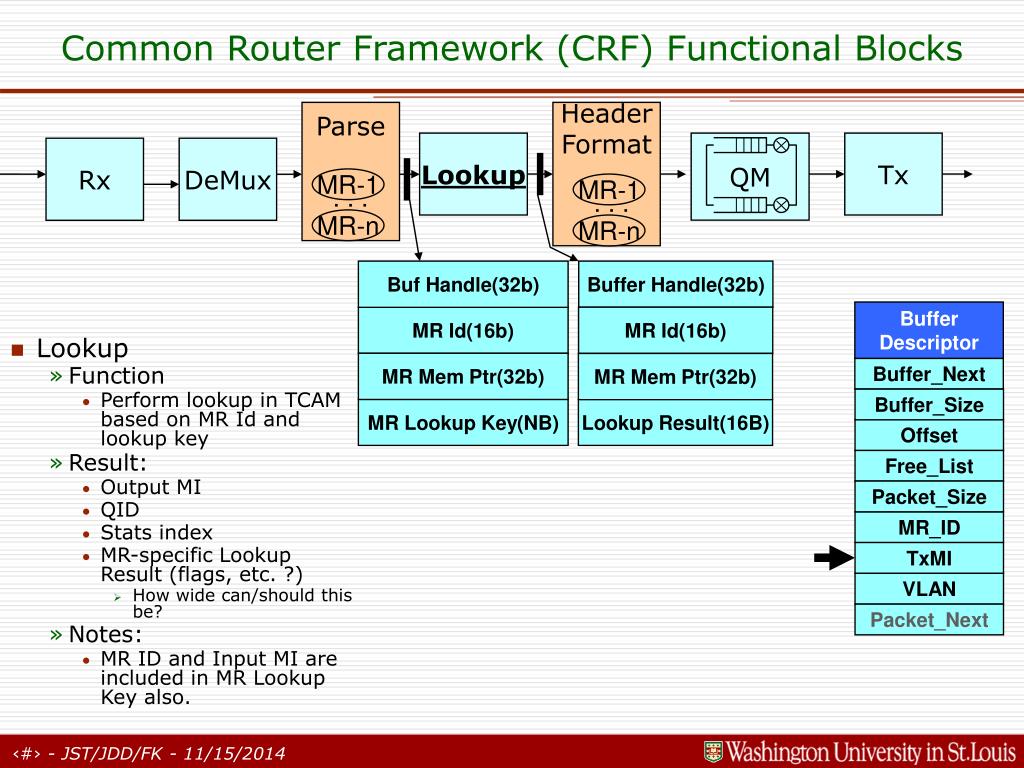

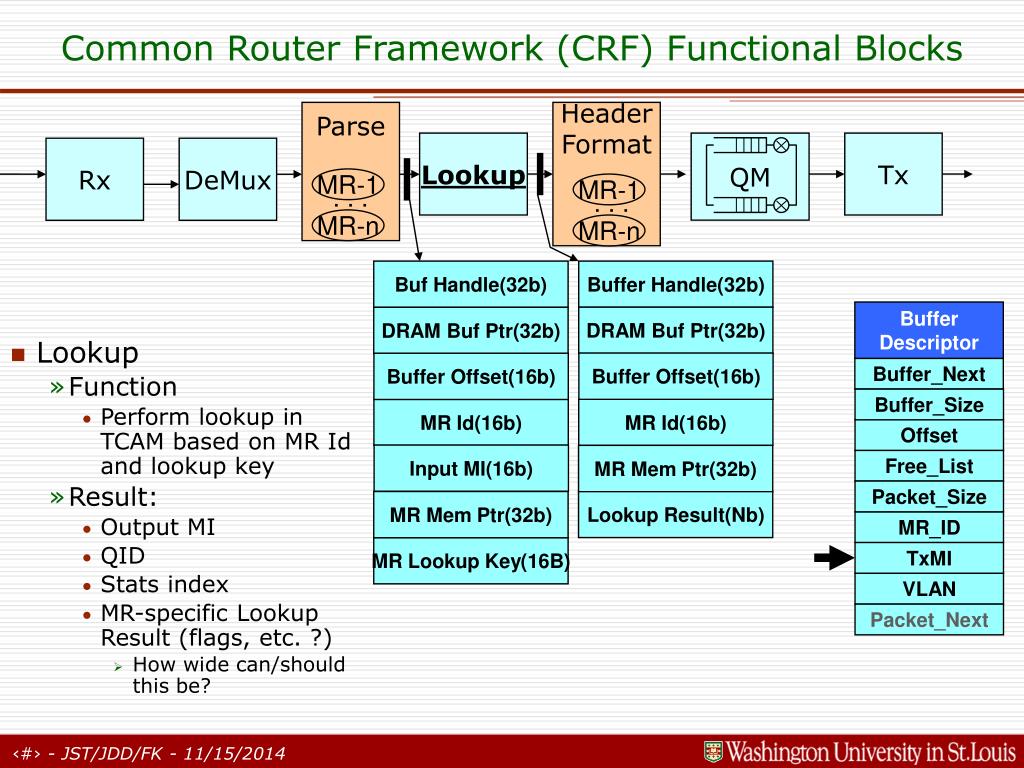

  9. MR-1 . . . Buffer Descriptor MR-n Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID QM TxMI VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n Buf Handle(32b) Buffer Handle(32b) MR Id(16b) MR Id(16b) MR Mem Ptr(32b) MR Mem Ptr(32b) MR Lookup Key(NB) Lookup Result(16B) • Lookup • Function • Perform lookup in TCAM based on MR Id and lookup key • Result: • Output MI • QID • Stats index • MR-specific Lookup Result (flags, etc. ?) • How wide can/should this be? • Notes: • MR ID and Input MI are included in MR Lookup Key also.

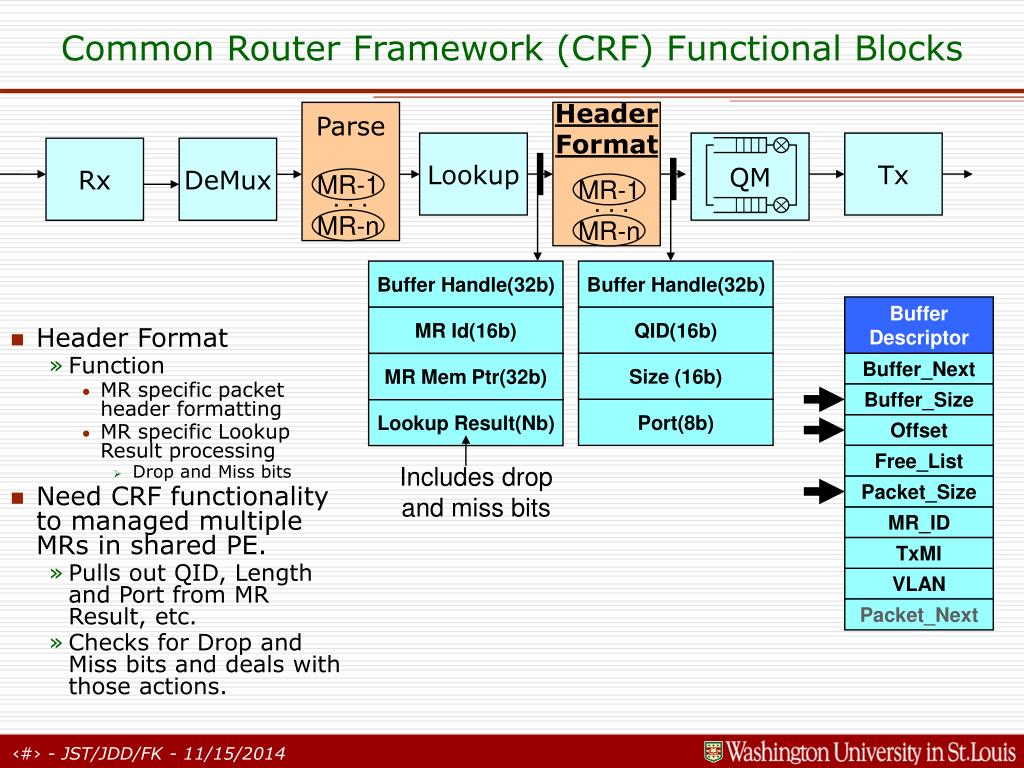

  10. MR-1 . . . Buffer Descriptor MR-n Size (16b) Buffer Handle(32b) Buffer_Next Port(8b) QID(16b) Buffer_Size Offset Free_List Packet_Size MR_ID QM TxMI VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n Buffer Handle(32b) MR Id(16b) MR Mem Ptr(32b) Lookup Result(Nb) • Header Format • Function • MR specific packet header formatting • MR specific Lookup Result processing • Drop and Miss bits • Need CRF functionality to managed multiple MRs in shared PE. • Pulls out QID, Length and Port from MR Result, etc. • Checks for Drop and Miss bits and deals with those actions. Includes drop and miss bits

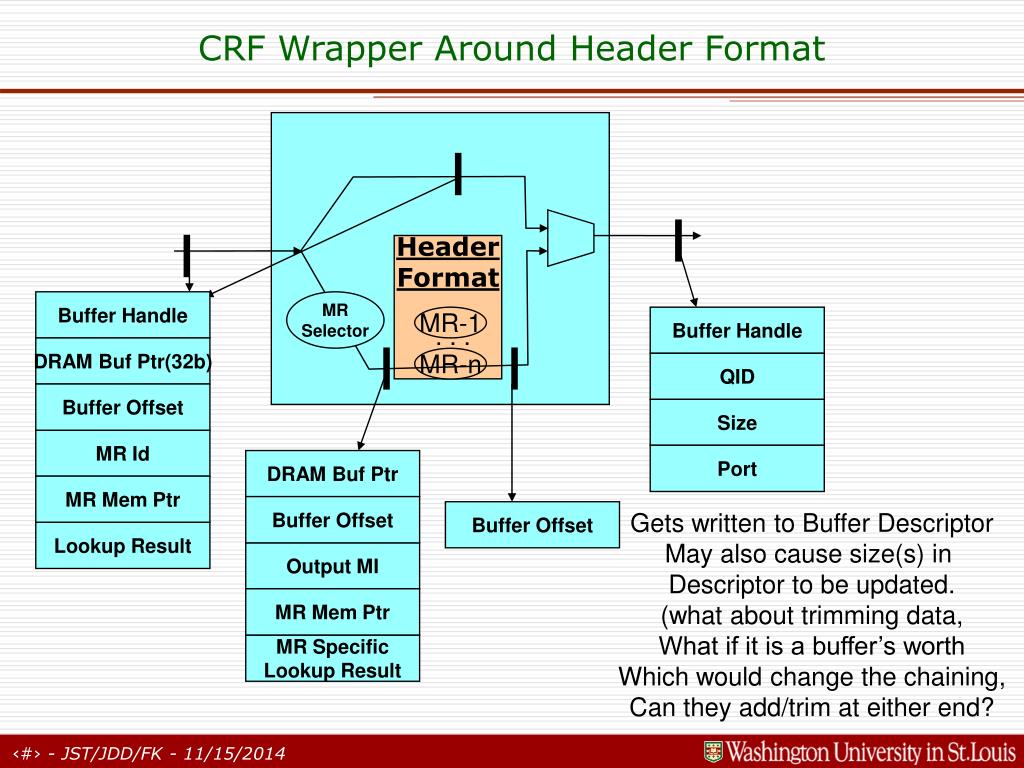

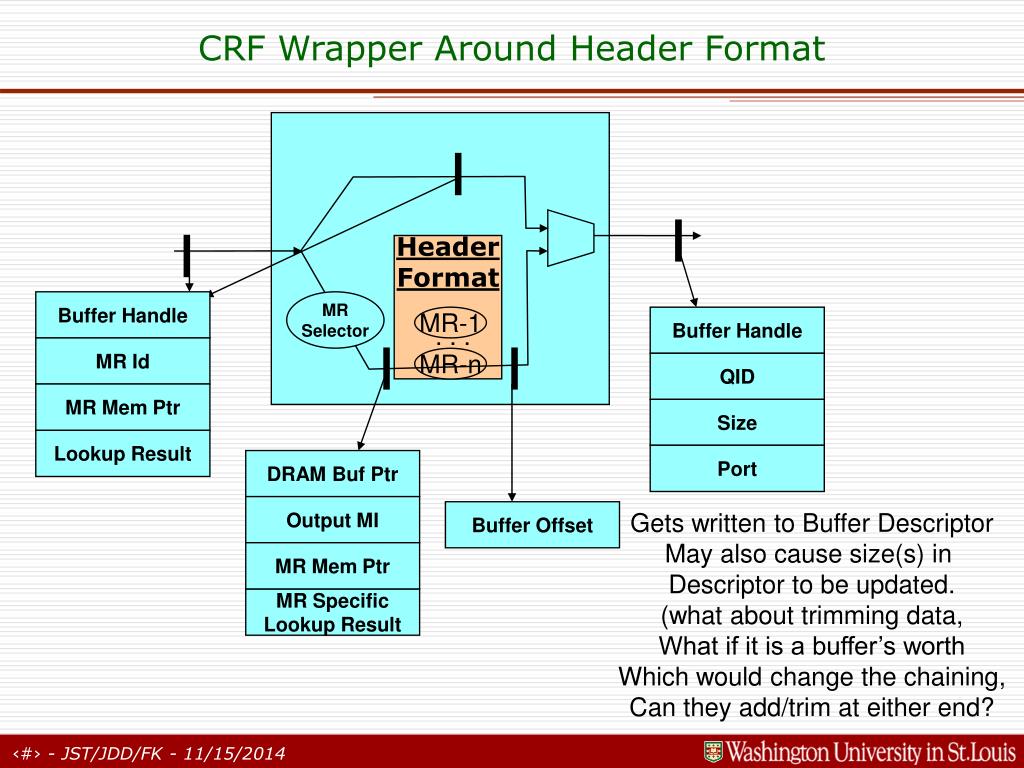

  11. HeaderFormat MR-1 . . . MR-n Buffer Handle QID Size Port CRF Wrapper Around Header Format Buffer Handle MR Selector MR Id MR Mem Ptr Lookup Result DRAM Buf Ptr Output MI Buffer Offset Gets written to Buffer Descriptor May also cause size(s) in Descriptor to be updated. (what about trimming data, What if it is a buffer’s worth Which would change the chaining, Can they add/trim at either end? MR Mem Ptr MR Specific Lookup Result

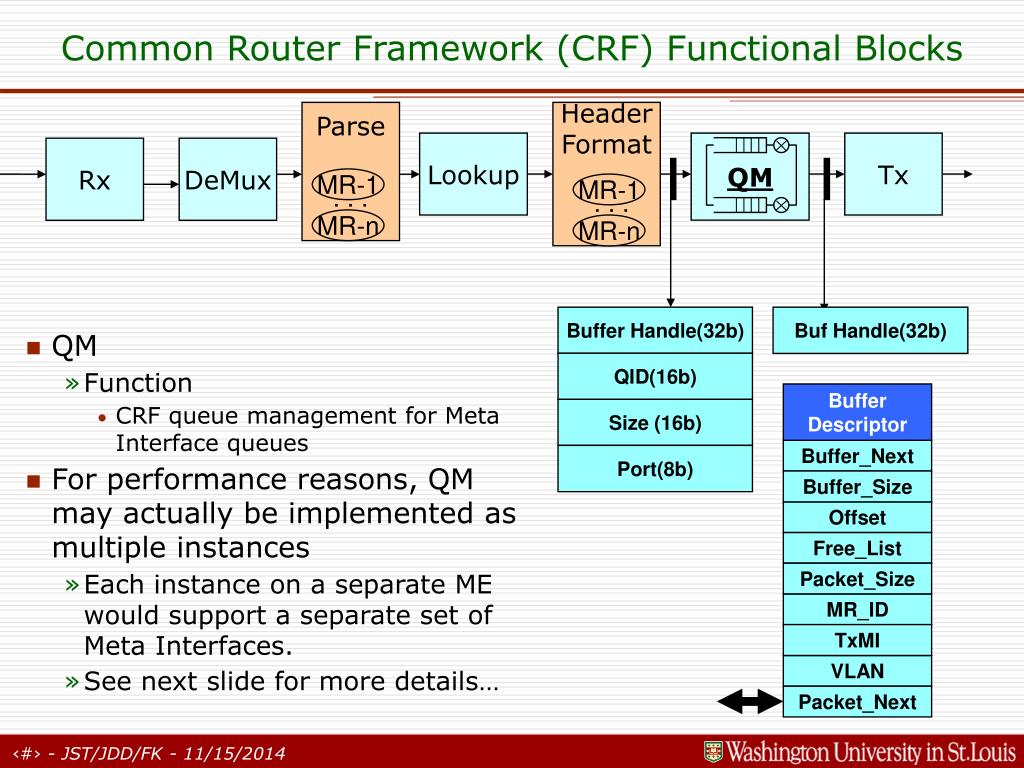

  12. MR-1 . . . Buffer Descriptor MR-n Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID QM TxMI VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n Buffer Handle(32b) Buf Handle(32b) QID(16b) Size (16b) • QM • Function • CRF queue management for Meta Interface queues • For performance reasons, QM may actually be implemented as multiple instances • Each instance on a separate ME would support a separate set of Meta Interfaces. • See next slide for more details… Port(8b)

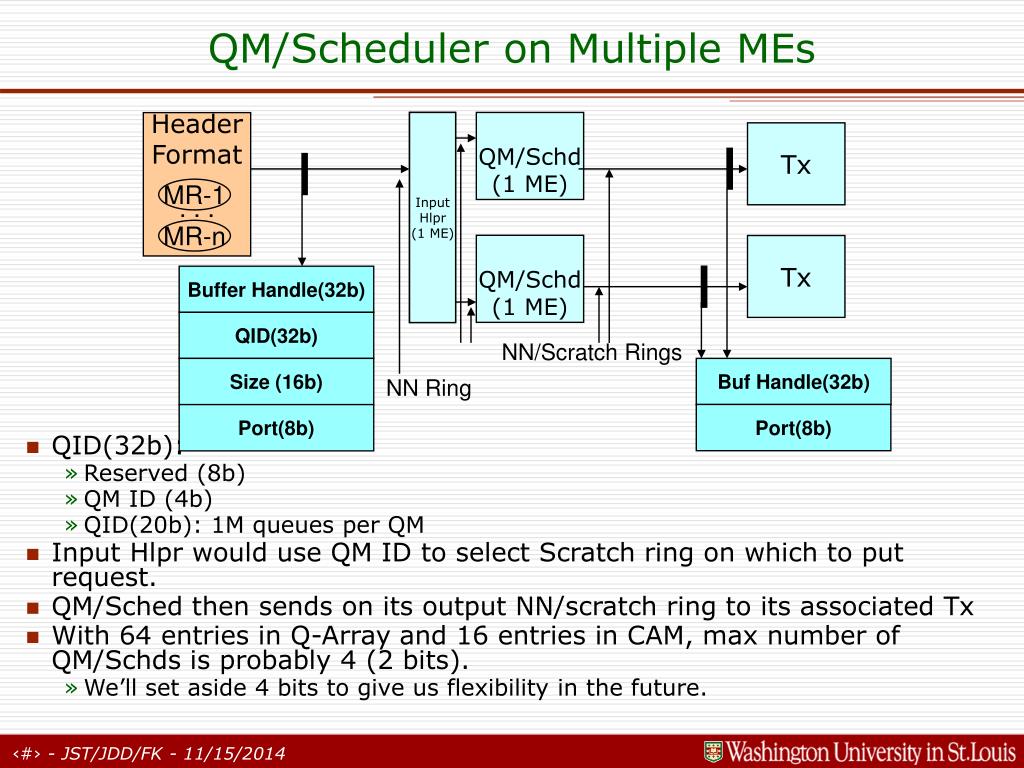

  13. MR-1 . . . MR-n Buffer Handle(32b) QID(32b) QM/Scheduler on Multiple MEs Input Hlpr (1 ME) QM/Schd (1 ME) Output Hlpr (1 ME) HeaderFormat Tx . . . QM/Schd (1 ME) Buf Handle(32b) Scratch Rings Size (16b) NN Ring NN Ring Port(8b) • QID(32b): • Reserved (8b) • QM ID (4b) • QID(20b): 1M queues per QM • Input Hlpr would use QM ID to select Scratch ring on which to put request. • Output Hlpr would process all Scratch rings coming from QM/Schd MEs and multiplex onto one NN ring to TX • With 64 entries in Q-Array and 16 entries in CAM, max number of QM/Schds is probably 4 (2 bits). • We’ll set aside 4 bits to give us flexibility in the future.

  14. MR-1 . . . MR-n Buffer Handle(32b) QID(32b) QM/Scheduler on Multiple MEs Input Hlpr (1 ME) QM/Schd (1 ME) HeaderFormat Tx QM/Schd (1 ME) Tx NN/Scratch Rings Size (16b) Buf Handle(32b) NN Ring Port(8b) Port(8b) • QID(32b): • Reserved (8b) • QM ID (4b) • QID(20b): 1M queues per QM • Input Hlpr would use QM ID to select Scratch ring on which to put request. • QM/Sched then sends on its output NN/scratch ring to its associated Tx • With 64 entries in Q-Array and 16 entries in CAM, max number of QM/Schds is probably 4 (2 bits). • We’ll set aside 4 bits to give us flexibility in the future.

  15. MR-1 . . . Buffer Descriptor MR-n Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID QM TxMI VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n Buffer Handle(32b) TBUF Port(8b) • Tx • Function • Coordinate transfer of packets from DRAM to TBUF

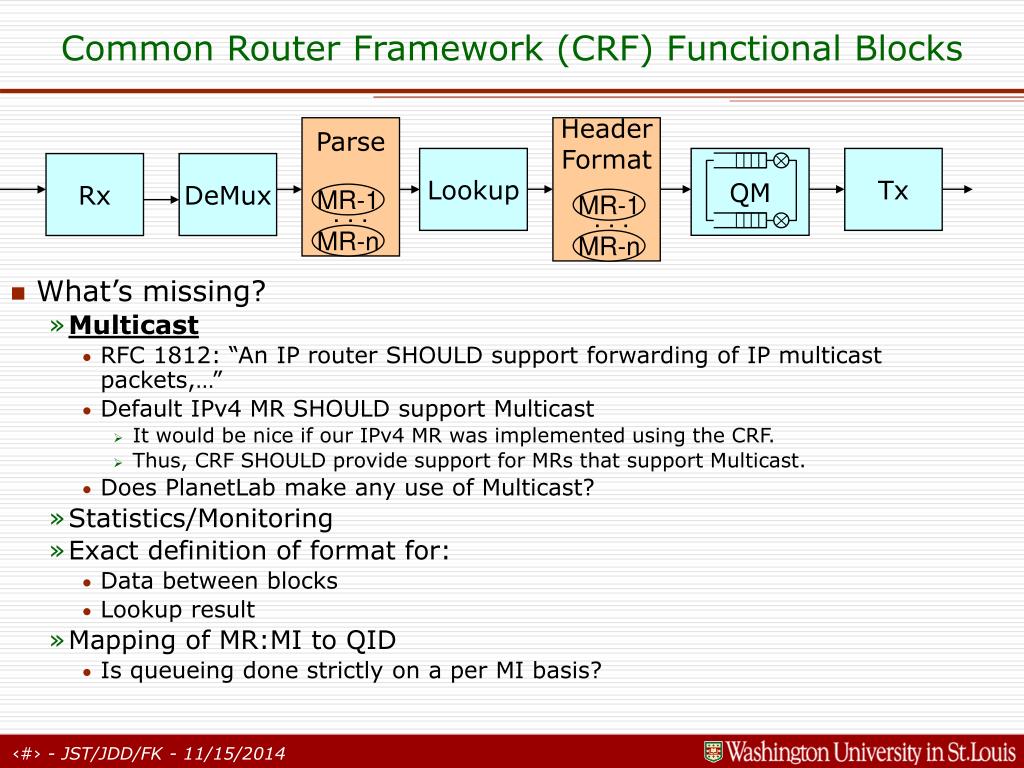

  16. MR-1 . . . MR-n QM Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n • What’s missing? • Multicast • RFC 1812: “An IP router SHOULD support forwarding of IP multicast packets,…” • Default IPv4 MR SHOULD support Multicast • It would be nice if our IPv4 MR was implemented using the CRF. • Thus, CRF SHOULD provide support for MRs that support Multicast. • Does PlanetLab make any use of Multicast? • Statistics/Monitoring • Exact definition of format for: • Data between blocks • Lookup result • Mapping of MR:MI to QID • Is queueing done strictly on a per MI basis?

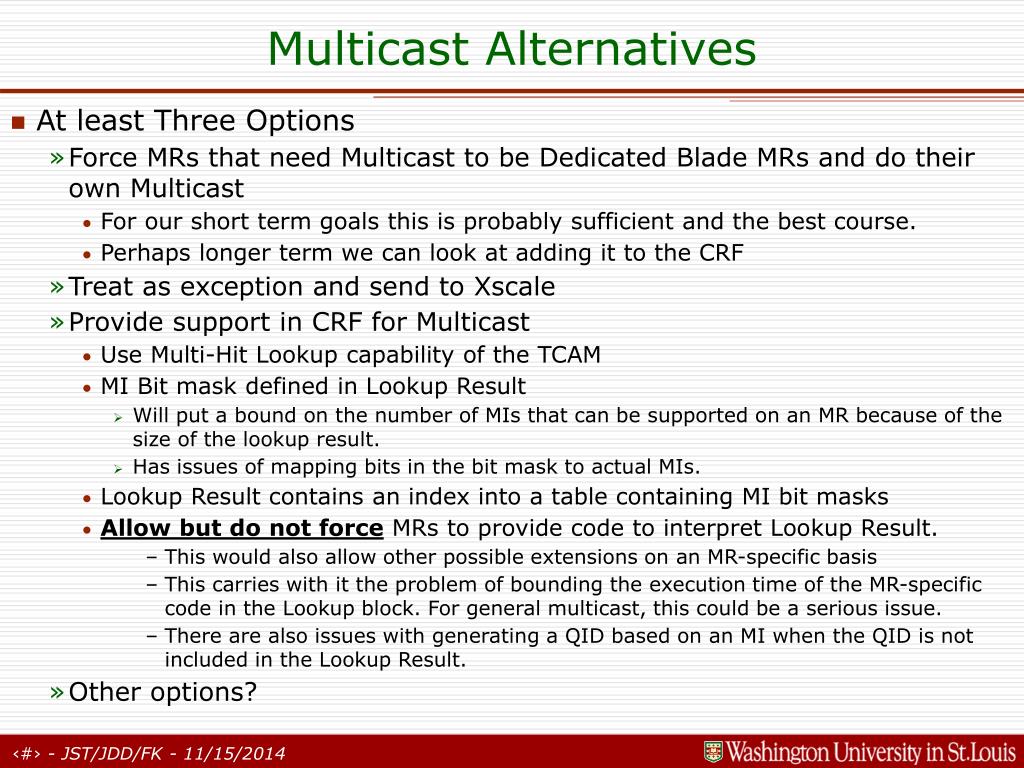

  17. Multicast Alternatives • At least Three Options • Force MRs that need Multicast to be Dedicated Blade MRs and do their own Multicast • For our short term goals this is probably sufficient and the best course. • Perhaps longer term we can look at adding it to the CRF • Treat as exception and send to Xscale • Provide support in CRF for Multicast • Use Multi-Hit Lookup capability of the TCAM • MI Bit mask defined in Lookup Result • Will put a bound on the number of MIs that can be supported on an MR because of the size of the lookup result. • Has issues of mapping bits in the bit mask to actual MIs. • Lookup Result contains an index into a table containing MI bit masks • Allow but do not force MRs to provide code to interpret Lookup Result. • This would also allow other possible extensions on an MR-specific basis • This carries with it the problem of bounding the execution time of the MR-specific code in the Lookup block. For general multicast, this could be a serious issue. • There are also issues with generating a QID based on an MI when the QID is not included in the Lookup Result. • Other options?

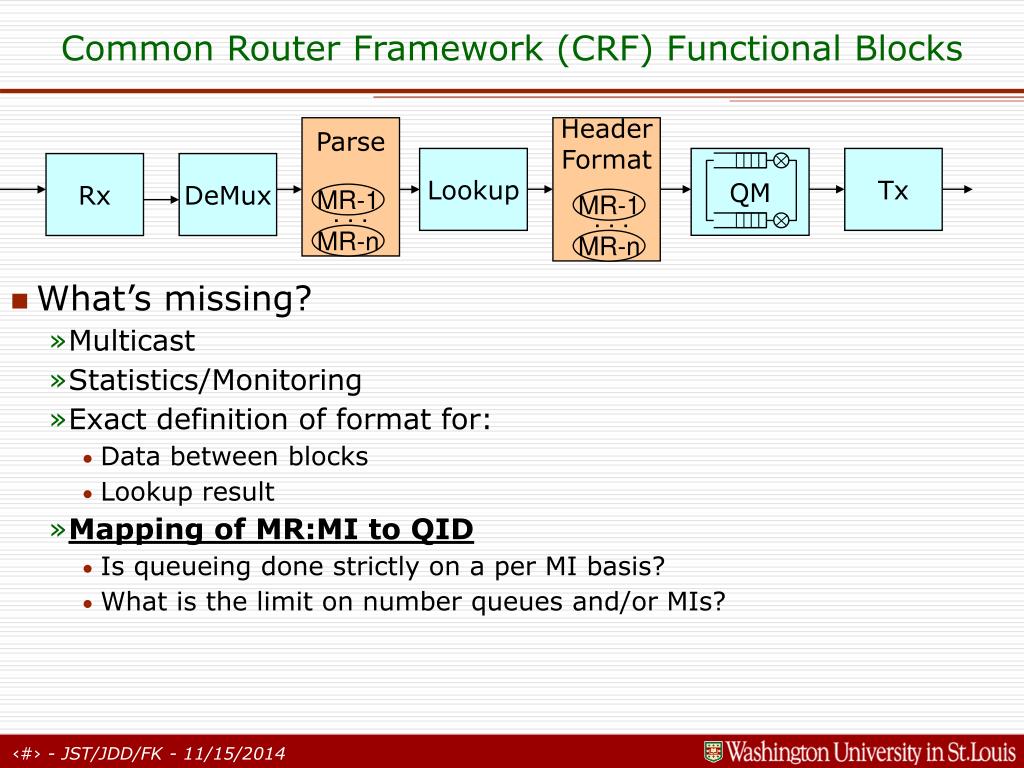

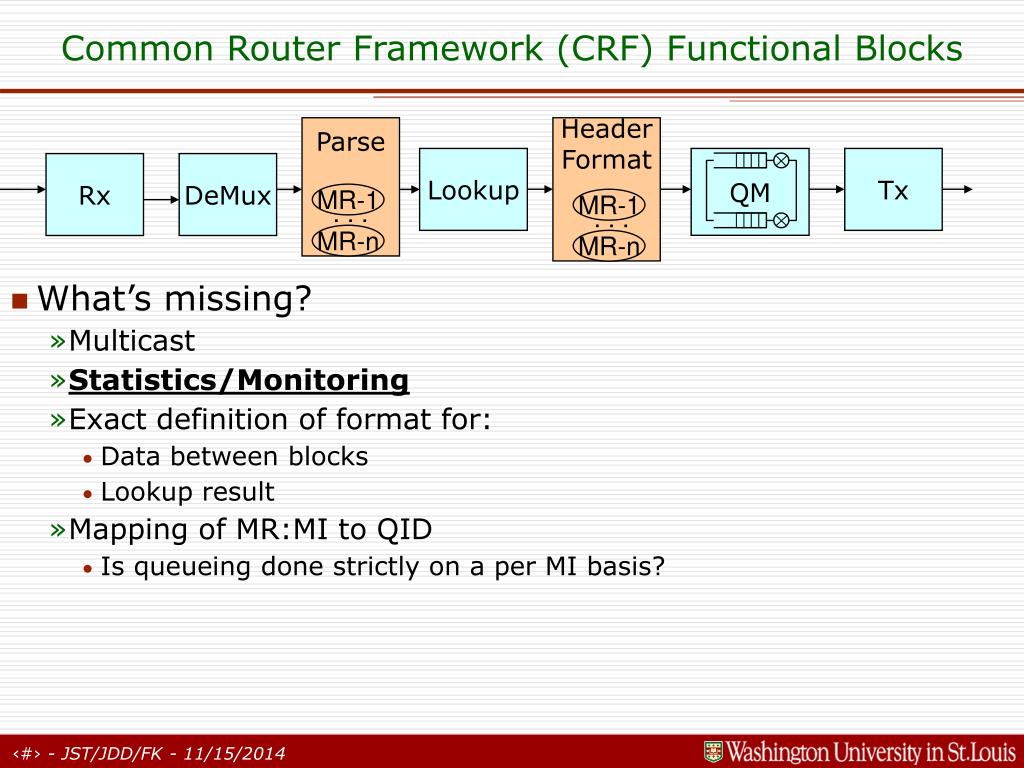

  18. MR-1 . . . MR-n QM Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n • What’s missing? • Multicast • Statistics/Monitoring • Exact definition of format for: • Data between blocks • Lookup result • Mapping of MR:MI to QID • Is queueing done strictly on a per MI basis?

  19. Statistics and Monitoring • MetaRouter Counters: • What support is needed to allow MetaNets access to counters at individual MRs? • Substrate Counters • Per Frame Counters • As part of design we have to enumerate these • They can probably be managed by the corresponding Micro Block, for example: • Number of Received Frames: • RX Block Counts each received frame, stores counter in SRAM • XScale can retrieve value from SRAM • Number of Transmitted Frames: • TX Block Counts each received frame, stores counter in SRAM • XScale can retrieve value from SRAM • Dropped Frame Counters • Drops will probably occur at multiple places • RX: Badly formed Frame • QM: Queue Overflow • Lookup: Result indicates frame is to be dropped • Etc. • Etc. • Per Lookup Counters (i.e. number of hits on a Lookup Key): • Managed by MR in Hdr Format block • MR-Specific Lookup Result could be used to include stats index if the MR wanted to support per lookup counters • Memory for counters would have to come from MR Memory block

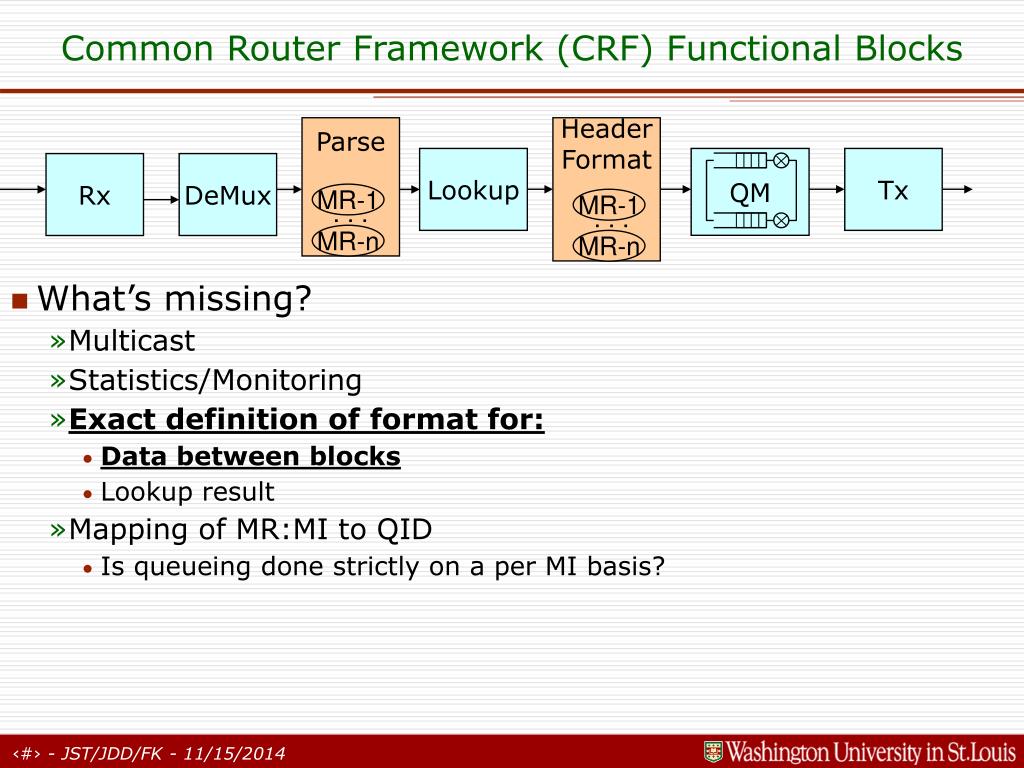

  20. MR-1 . . . MR-n QM Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n • What’s missing? • Multicast • Statistics/Monitoring • Exact definition of format for: • Data between blocks • Lookup result • Mapping of MR:MI to QID • Is queueing done strictly on a per MI basis?

  21. MR-1 . . . MR-n QM Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n • What’s missing? • Multicast • Statistics/Monitoring • Exact definition of format for: • Data between blocks • Lookup result • Mapping of MR:MI to QID • Is queueing done strictly on a per MI basis?

  22. MR-1 . . . MR-n QM Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n • What’s missing? • Multicast • Statistics/Monitoring • Exact definition of format for: • Data between blocks • Lookup result • Mapping of MR:MI to QID • Is queueing done strictly on a per MI basis? • What is the limit on number queues and/or MIs?

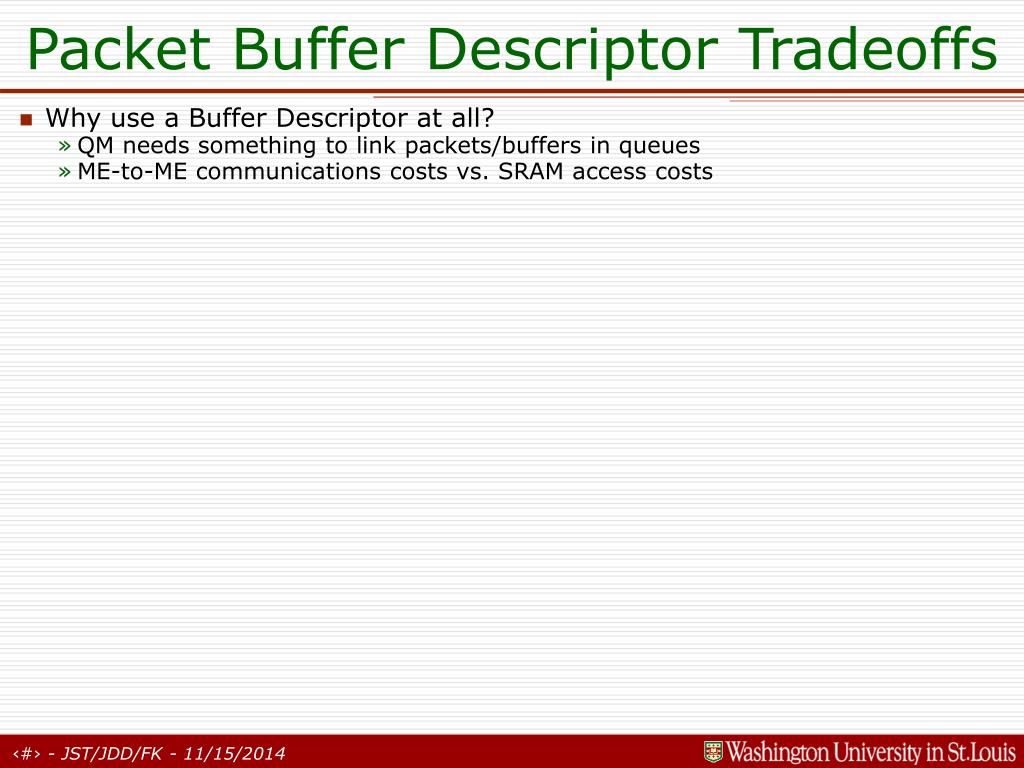

  23. Packet Buffer Descriptor Tradeoffs • Why use a Buffer Descriptor at all? • QM needs something to link packets/buffers in queues • ME-to-ME communications costs vs. SRAM access costs

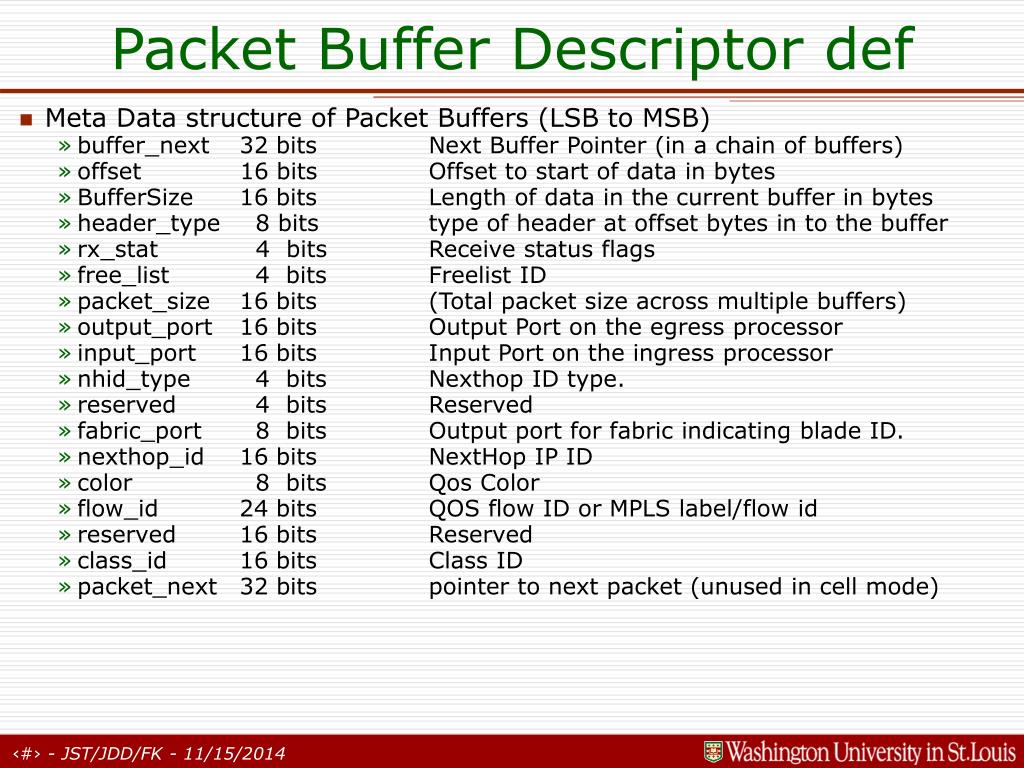

  24. Packet Buffer Descriptor def • Meta Data structure of Packet Buffers (LSB to MSB) • buffer_next 32 bits Next Buffer Pointer (in a chain of buffers) • offset 16 bits Offset to start of data in bytes • BufferSize 16 bits Length of data in the current buffer in bytes • header_type 8 bits type of header at offset bytes in to the buffer • rx_stat 4 bits Receive status flags • free_list 4 bits Freelist ID • packet_size 16 bits (Total packet size across multiple buffers) • output_port 16 bits Output Port on the egress processor • input_port 16 bits Input Port on the ingress processor • nhid_type 4 bits Nexthop ID type. • reserved 4 bits Reserved • fabric_port 8 bits Output port for fabric indicating blade ID. • nexthop_id 16 bits NextHop IP ID • color 8 bits Qos Color • flow_id 24 bits QOS flow ID or MPLS label/flow id • reserved 16 bits Reserved • class_id 16 bits Class ID • packet_next 32 bits pointer to next packet (unused in cell mode)

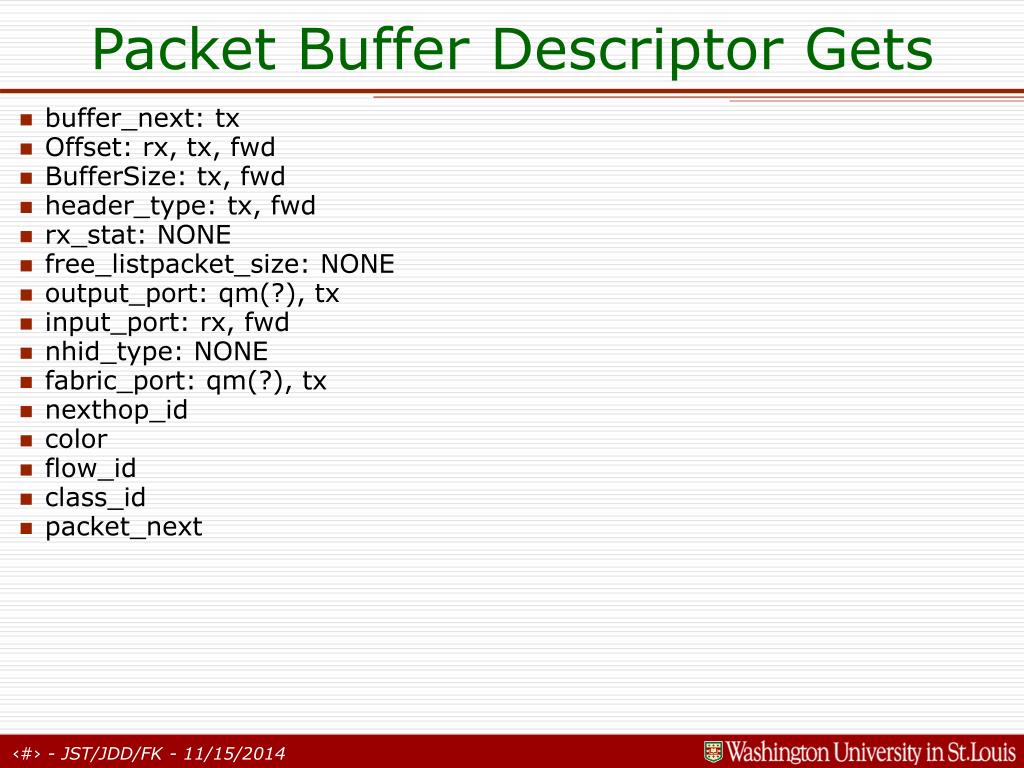

  25. Packet Buffer Descriptor Gets • buffer_next: tx • Offset: rx, tx, fwd • BufferSize: tx, fwd • header_type: tx, fwd • rx_stat: NONE • free_listpacket_size: NONE • output_port: qm(?), tx • input_port: rx, fwd • nhid_type: NONE • fabric_port: qm(?), tx • nexthop_id • color • flow_id • class_id • packet_next

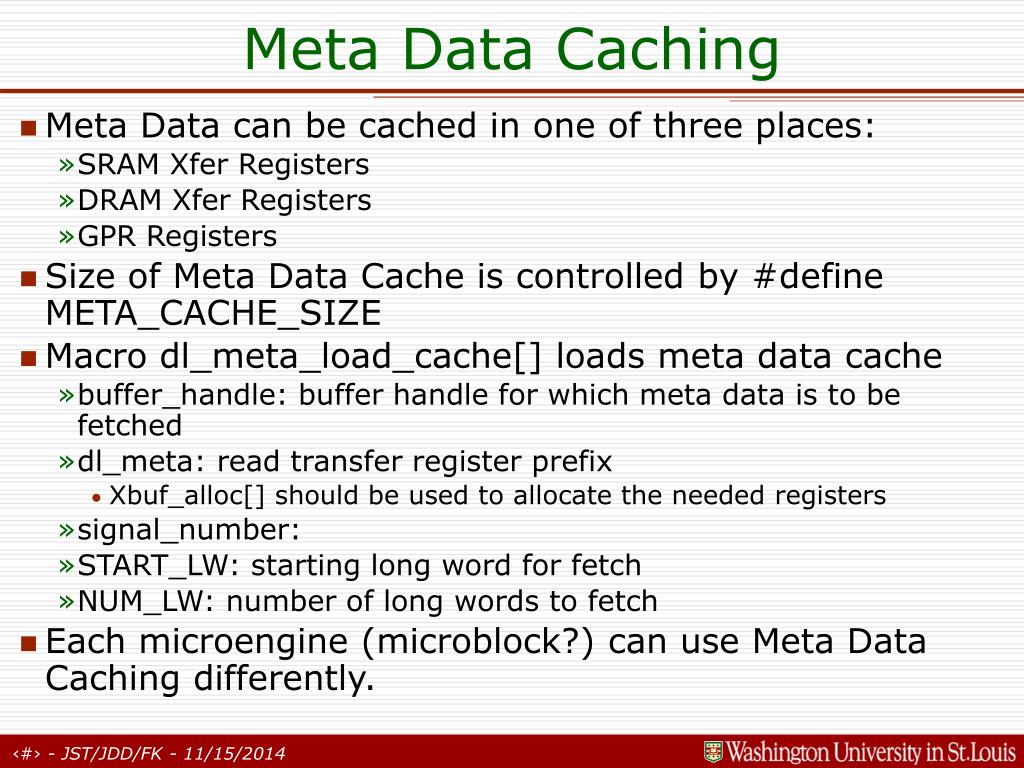

  26. Meta Data Caching • Meta Data can be cached in one of three places: • SRAM Xfer Registers • DRAM Xfer Registers • GPR Registers • Size of Meta Data Cache is controlled by #define META_CACHE_SIZE • Macro dl_meta_load_cache[] loads meta data cache • buffer_handle: buffer handle for which meta data is to be fetched • dl_meta: read transfer register prefix • Xbuf_alloc[] should be used to allocate the needed registers • signal_number: • START_LW: starting long word for fetch • NUM_LW: number of long words to fetch • Each microengine (microblock?) can use Meta Data Caching differently.

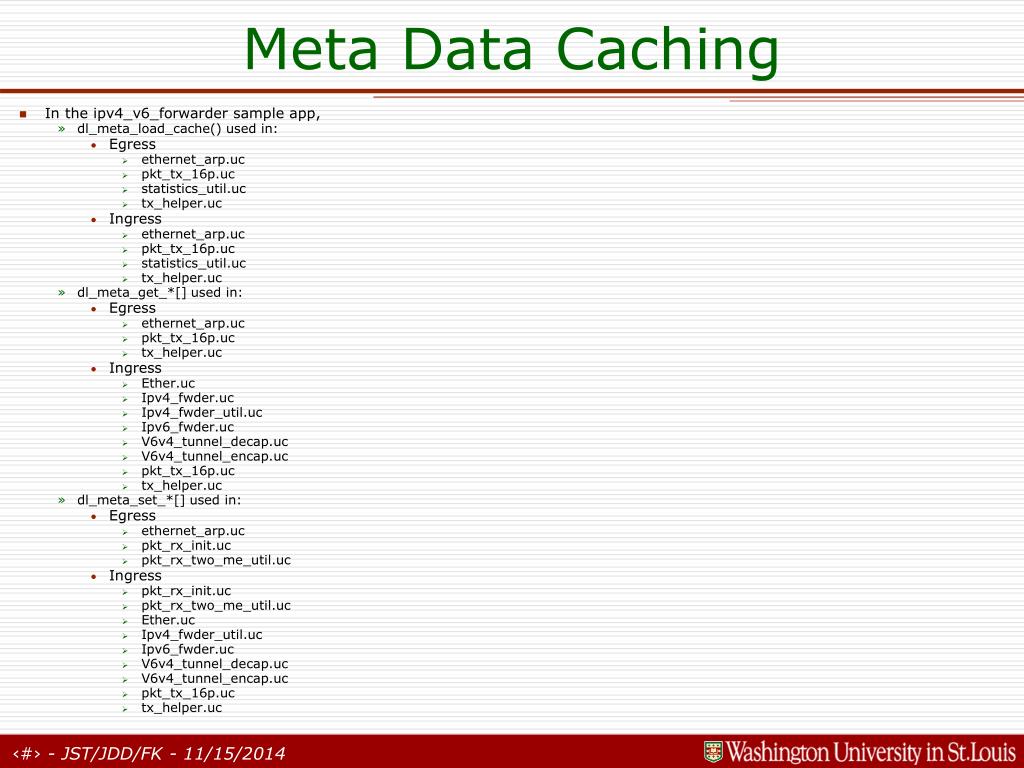

  27. Meta Data Caching • In the ipv4_v6_forwarder sample app, • dl_meta_load_cache() used in: • Egress • ethernet_arp.uc • pkt_tx_16p.uc • statistics_util.uc • tx_helper.uc • Ingress • ethernet_arp.uc • pkt_tx_16p.uc • statistics_util.uc • tx_helper.uc • dl_meta_get_*[] used in: • Egress • ethernet_arp.uc • pkt_tx_16p.uc • tx_helper.uc • Ingress • Ether.uc • Ipv4_fwder.uc • Ipv4_fwder_util.uc • Ipv6_fwder.uc • V6v4_tunnel_decap.uc • V6v4_tunnel_encap.uc • pkt_tx_16p.uc • tx_helper.uc • dl_meta_set_*[] used in: • Egress • ethernet_arp.uc • pkt_rx_init.uc • pkt_rx_two_me_util.uc • Ingress • pkt_rx_init.uc • pkt_rx_two_me_util.uc • Ether.uc • Ipv4_fwder_util.uc • Ipv6_fwder.uc • V6v4_tunnel_decap.uc • V6v4_tunnel_encap.uc • pkt_tx_16p.uc • tx_helper.uc

  28. Buffer Handle

  29. Buffer Descriptor Usage • Is there a different Buffer Descriptor defn for LC and PE? • Will we support Multi-Buffer Packets? • If not, we do not need buffer_next(32b) or buffer_size(16b) • QM uses packet_next for its packet chaining in qarray. • Output Port and Input Port probably translate to TxMI and RxMI • Next Hop fields (nhid_type(4b) and nexthop_id(16b)) probably can go away. • QOS fields (color(8b) and flow_id(24b)) probably can go away. • Two reserved fields 4b and 16b can go away. • class_id(16b) (virtual queue id?) can probably go away. • fabric_port can probably go away.

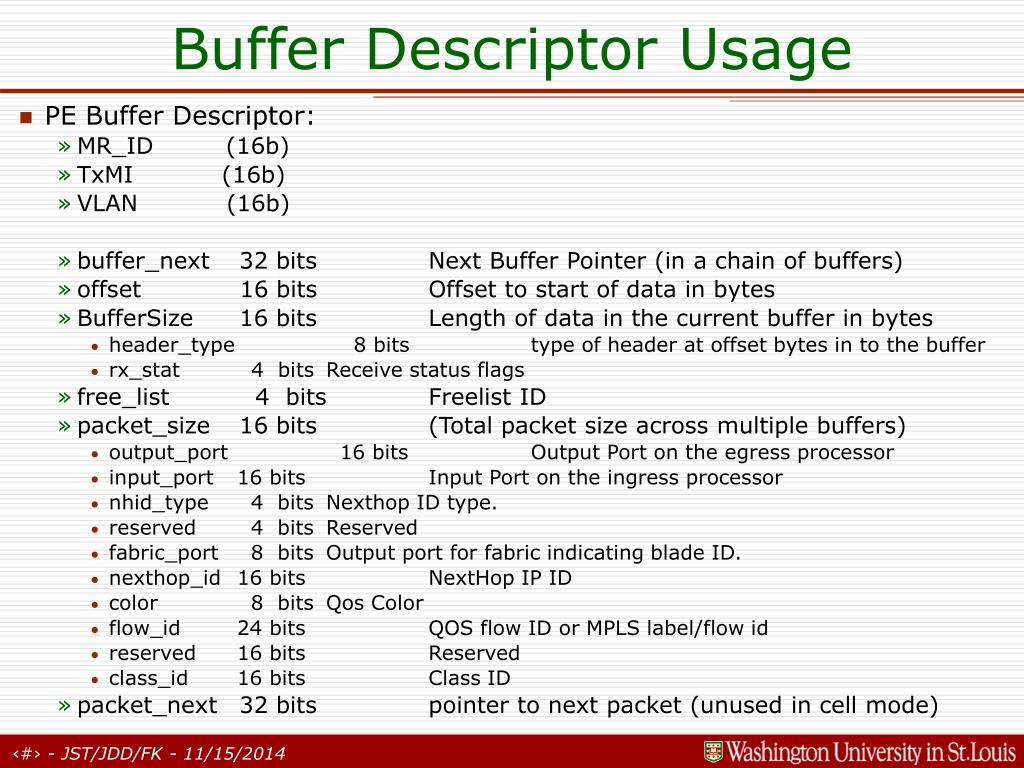

  30. Buffer Descriptor Usage • PE Buffer Descriptor: • MR_ID (16b) • TxMI (16b) • VLAN (16b) • buffer_next 32 bits Next Buffer Pointer (in a chain of buffers) • offset 16 bits Offset to start of data in bytes • BufferSize 16 bits Length of data in the current buffer in bytes • header_type 8 bits type of header at offset bytes in to the buffer • rx_stat 4 bits Receive status flags • free_list 4 bits Freelist ID • packet_size 16 bits (Total packet size across multiple buffers) • output_port 16 bits Output Port on the egress processor • input_port 16 bits Input Port on the ingress processor • nhid_type 4 bits Nexthop ID type. • reserved 4 bits Reserved • fabric_port 8 bits Output port for fabric indicating blade ID. • nexthop_id 16 bits NextHop IP ID • color 8 bits Qos Color • flow_id 24 bits QOS flow ID or MPLS label/flow id • reserved 16 bits Reserved • class_id 16 bits Class ID • packet_next 32 bits pointer to next packet (unused in cell mode)

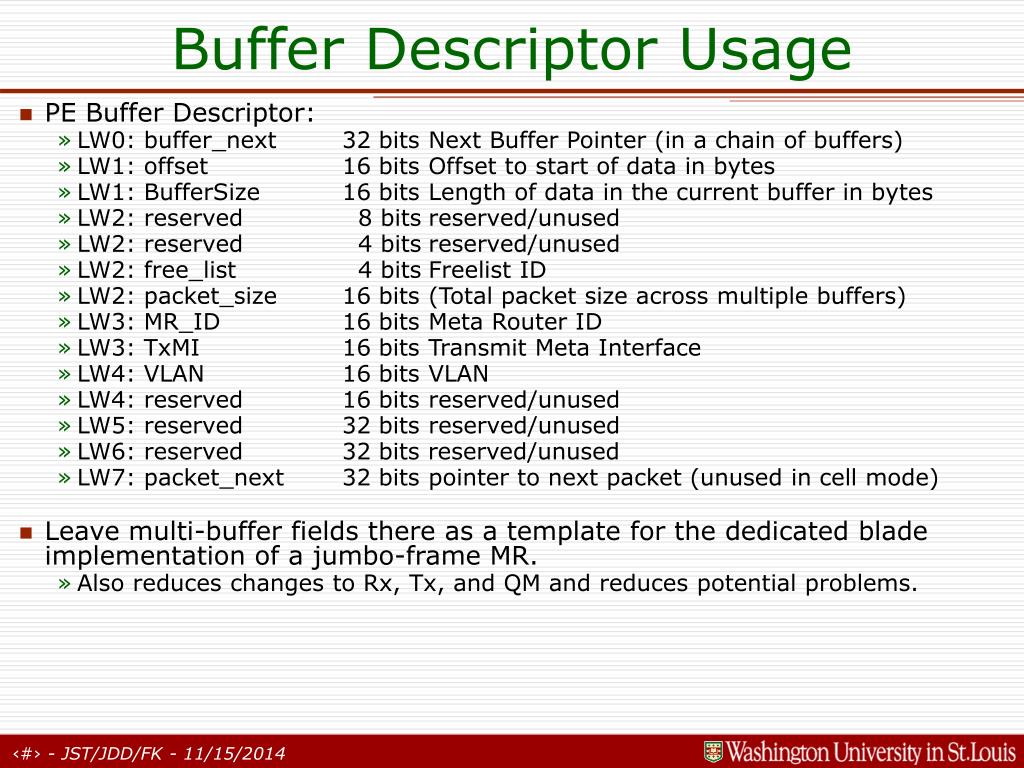

  31. Buffer Descriptor Usage • PE Buffer Descriptor: • LW0: buffer_next 32 bits Next Buffer Pointer (in a chain of buffers) • LW1: offset 16 bits Offset to start of data in bytes • LW1: BufferSize 16 bits Length of data in the current buffer in bytes • LW2: reserved 8 bits reserved/unused • LW2: reserved 4 bits reserved/unused • LW2: free_list 4 bits Freelist ID • LW2: packet_size 16 bits (Total packet size across multiple buffers) • LW3: MR_ID 16 bits Meta Router ID • LW3: TxMI 16 bits Transmit Meta Interface • LW4: VLAN 16 bits VLAN • LW4: reserved 16 bits reserved/unused • LW5: reserved 32 bits reserved/unused • LW6: reserved 32 bits reserved/unused • LW7: packet_next 32 bits pointer to next packet (unused in cell mode) • Leave multi-buffer fields there as a template for the dedicated blade implementation of a jumbo-frame MR. • Also reduces changes to Rx, Tx, and QM and reduces potential problems.

  32. Extra • The next set of slides are for templates or extra information if needed

  33. Text Slide Template

  34. Image Slide Template

  35. MR-1 . . . MR-n DRAM Buf Ptr DRAM Buf Ptr DRAM Buf Ptr MR Id DRAM Buf Ptr MR Id MR Id Output MI MR Id Input MI Output MI MR Lookup Key MR Ctrl Blk Ptr MR Ctrl Blk Ptr QID MR Ctrl Blk Ptr MR Mem Ptr MR Mem Ptr Buffer Offset QID MR Mem Ptr Stats Index MR Specific Lookup Result CRF Support for Multicast Default/Unicast path MR Interp HeaderFormat Parse MR-Specific Path Post Process Lookup MR-1 . . . MR-n

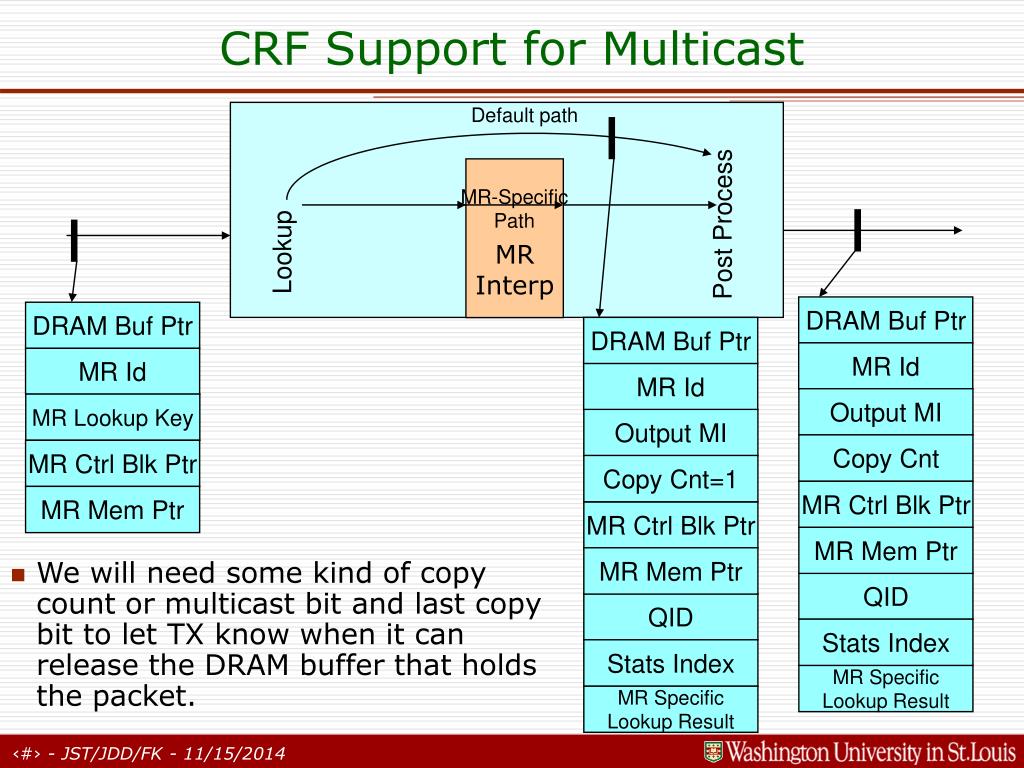

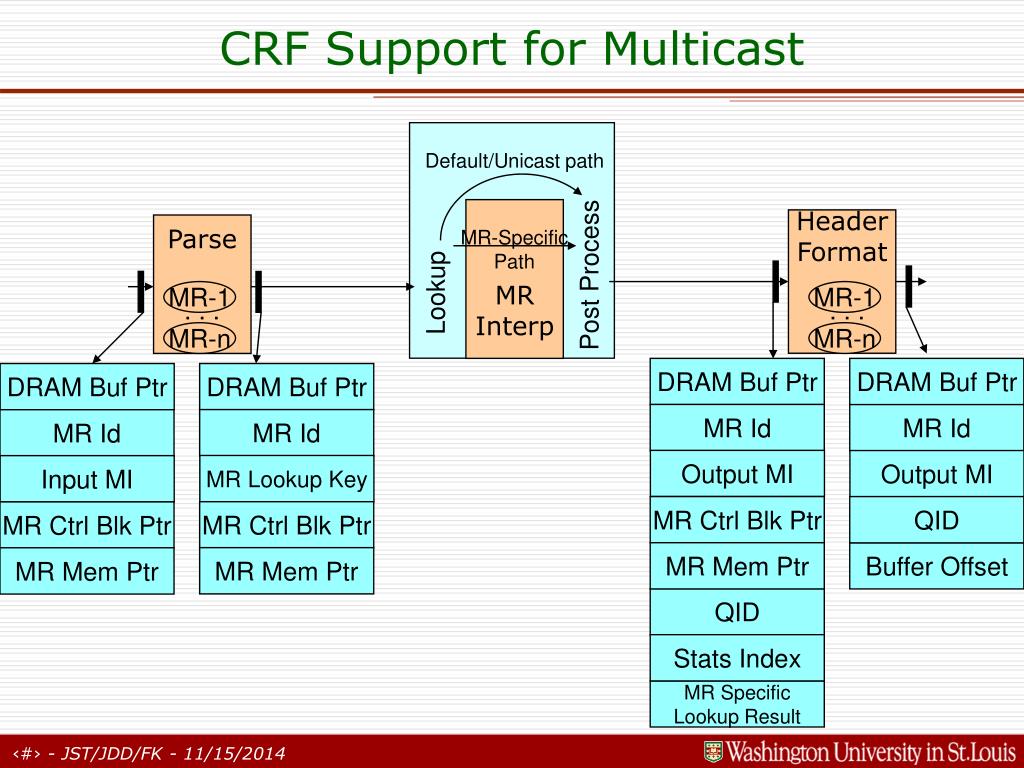

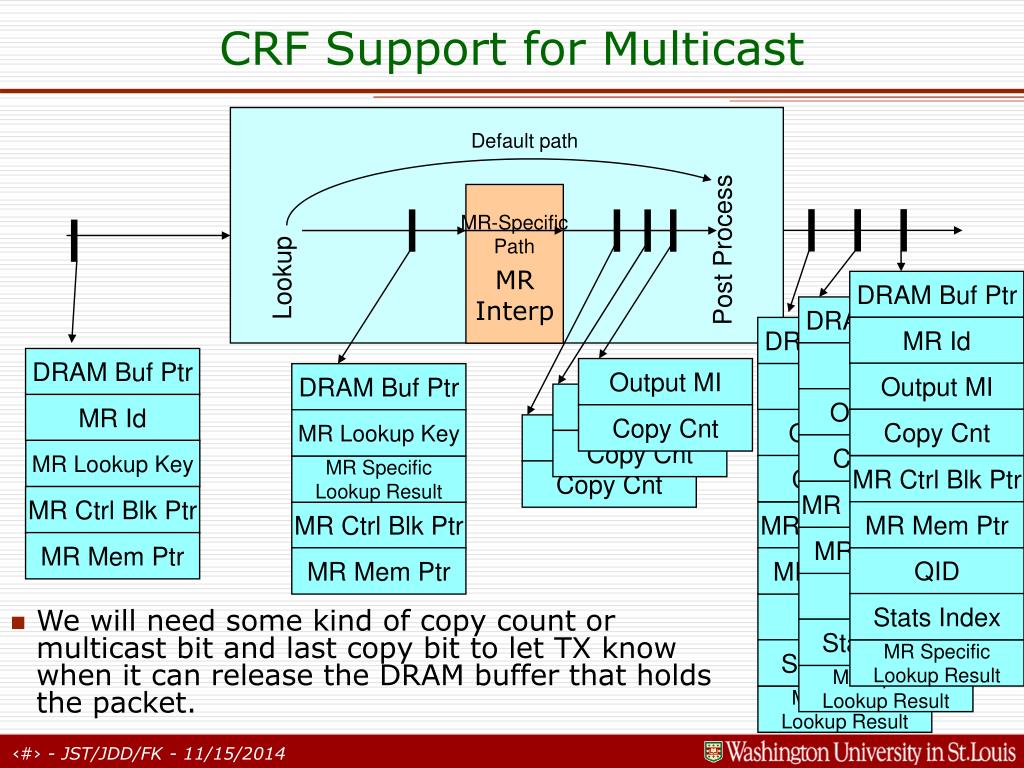

  36. DRAM Buf Ptr DRAM Buf Ptr MR Id MR Id Output MI Output MI Copy Cnt=1 Copy Cnt MR Ctrl Blk Ptr MR Ctrl Blk Ptr MR Mem Ptr MR Mem Ptr QID QID Stats Index Stats Index MR Specific Lookup Result MR Specific Lookup Result CRF Support for Multicast Default path MR Interp MR-Specific Path Post Process Lookup DRAM Buf Ptr MR Id MR Lookup Key • We will need some kind of copy count or multicast bit and last copy bit to let TX know when it can release the DRAM buffer that holds the packet. MR Ctrl Blk Ptr MR Mem Ptr
