  1. SeaLifeSimon Jupp

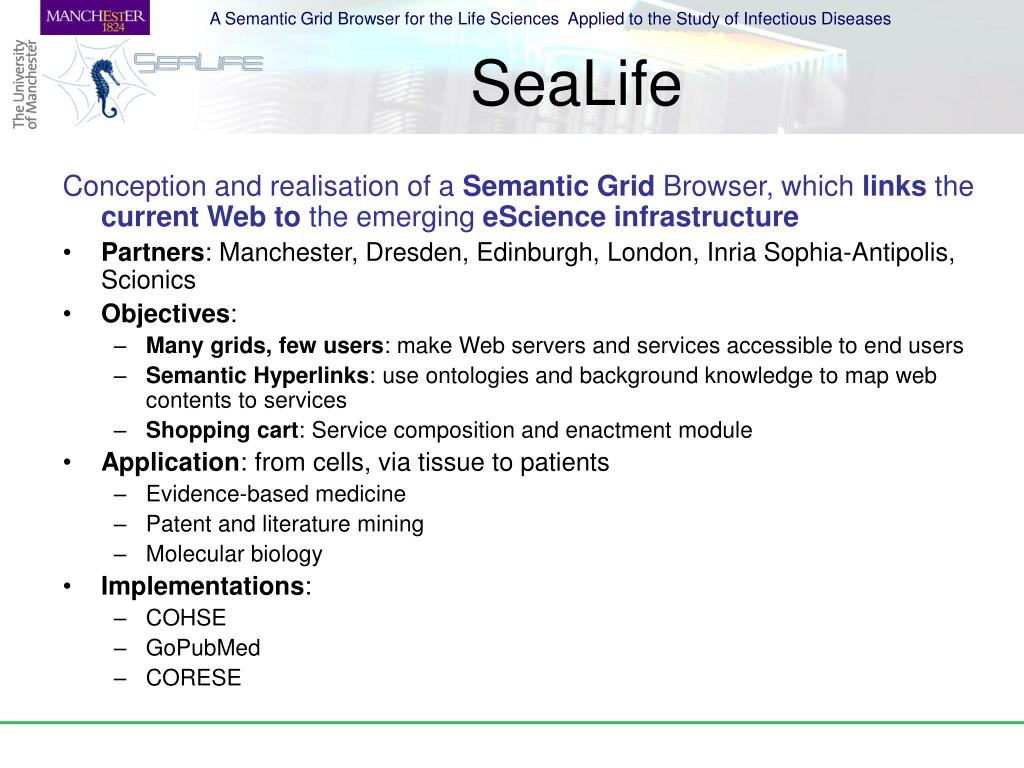

  2. SeaLife Conception and realisation of a Semantic Grid Browser, which links the current Web to the emerging eScience infrastructure • Partners: Manchester, Dresden, Edinburgh, London, Inria Sophia-Antipolis, Scionics • Objectives: • Many grids, few users: make Web servers and services accessible to end users • Semantic Hyperlinks: use ontologies and background knowledge to map web contents to services • Shopping cart: Service composition and enactment module • Application: from cells, via tissue to patients • Evidence-based medicine • Patent and literature mining • Molecular biology • Implementations: • COHSE • GoPubMed • CORESE

  3. Objective • We have a World Wide Web of data • We have e-science and a grid of bioinformatics services • We have text-mining tools, ontologies, web services and W3C standards

  4. Evidence based medicine "Ribavirin with or without alpha interferon for chronic hepatitis C" • Background Knowledge: MeSH, Disease Ontology, SNOMED… • UK based Resources: • National Institute for Health and Clinical Excellence (NICE) • National Electronic Library of Infection (NeLI) • Health protection Agency (HPA)

  5. Molecular Biology ‘’Rabaptin-5 interacts with the small GTPase Rab5 and is an essential component of the fusion machinery for targeting endocytic vesicles to early endosomes’’ • Background Knowledge: • Rabaptin-5 and Rab5 are proteins • endocytosis as GO biological process • early endosome as GO cellular component. • Resources: • Get sequences, execute alignment service • Add proteins to “shopping cart” Rab5 • PubMed query for relevant abstracts

  6. A Sealife browser • Definition: A SeaLife browser is any web browser that can identify domain concepts in web documents via text-mining or use of background knowledge, and provides context based links to related services/resources on the web/grid. • Several exists: COHSE, GoPubMed, Magpie, PiggyBank, KIM, Concept Web Linker….

  7. Implementations • COHSE - Conceptual Open Hypermedia Service • Dynamic linking system for WWW documents • Uses background knowledge (ontologies) to identify domain concepts • Service module for navigating to relevant documents on the Web • GoPubMed • Ontology based search engine: Query expansion and results filtering • Supports What, Who, Where, When.

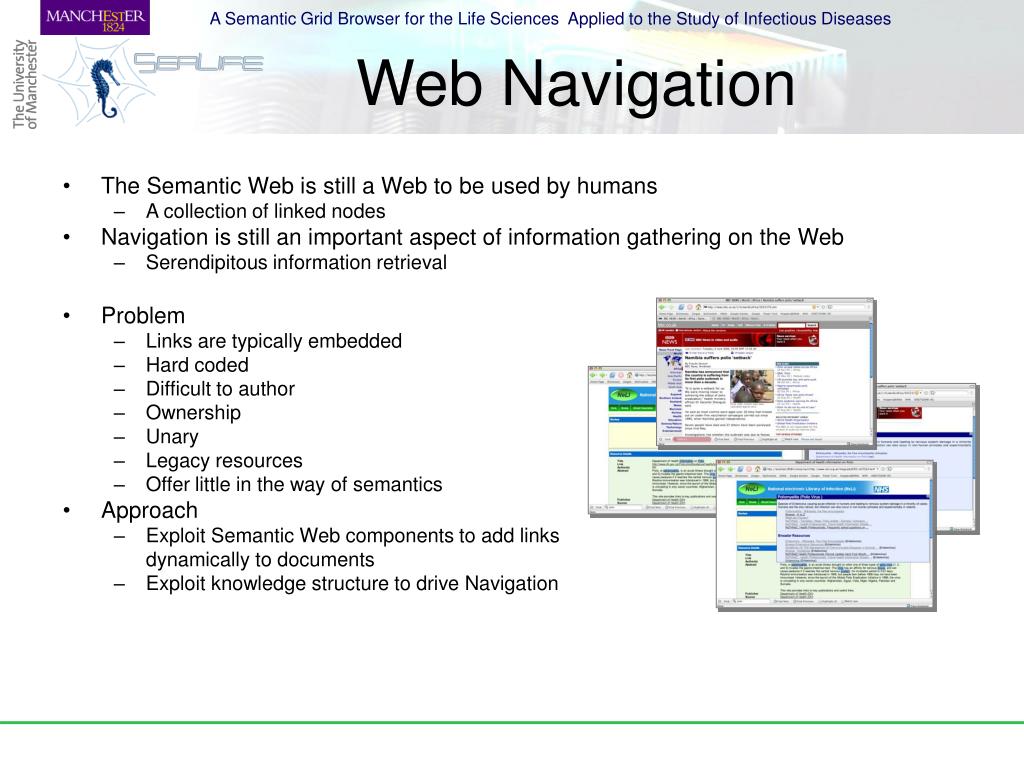

  8. Web Navigation • The Semantic Web is still a Web to be used by humans • A collection of linked nodes • Navigation is still an important aspect of information gathering on the Web • Serendipitous information retrieval • Problem • Links are typically embedded • Hard coded • Difficult to author • Ownership • Unary • Legacy resources • Offer little in the way of semantics • Approach • Exploit Semantic Web components to add links dynamically to documents • Exploit knowledge structure to drive Navigation

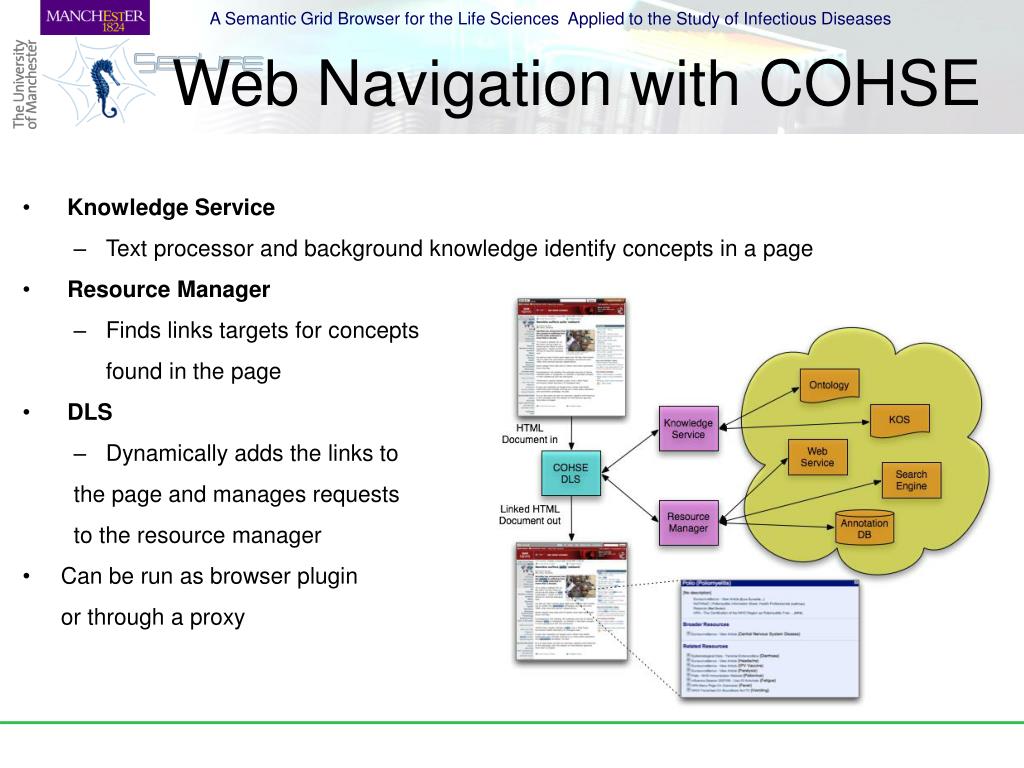

  9. Web Navigation with COHSE • Knowledge Service • Text processor and background knowledge identify concepts in a page • Resource Manager • Finds links targets for concepts found in the page • DLS • Dynamically adds the links to the page and manages requests to the resource manager • Can be run as browser plugin or through a proxy

  10. NeLI use case • National Electronic Library of Infection, London, UK. • Evidence based, quality tagged resource for public and clinical health records • Diverse set of users • GPs, Clinicians, Molecular biologists, General Public • Many documents, few hyperlinks • Can COHSE provide useful links to relevant external documents? • Evaluation is underway • Searching for guidelines on the use of "Ribavirin with or without alphainterferon for chronic hepatitis C" • Clinicians need up to date, authoritative information

  11. COHSE-NeLI Demo http://www.cs.man.ac.uk/~sjupp/downloads/COHSE-NELI-2009-demo.mov

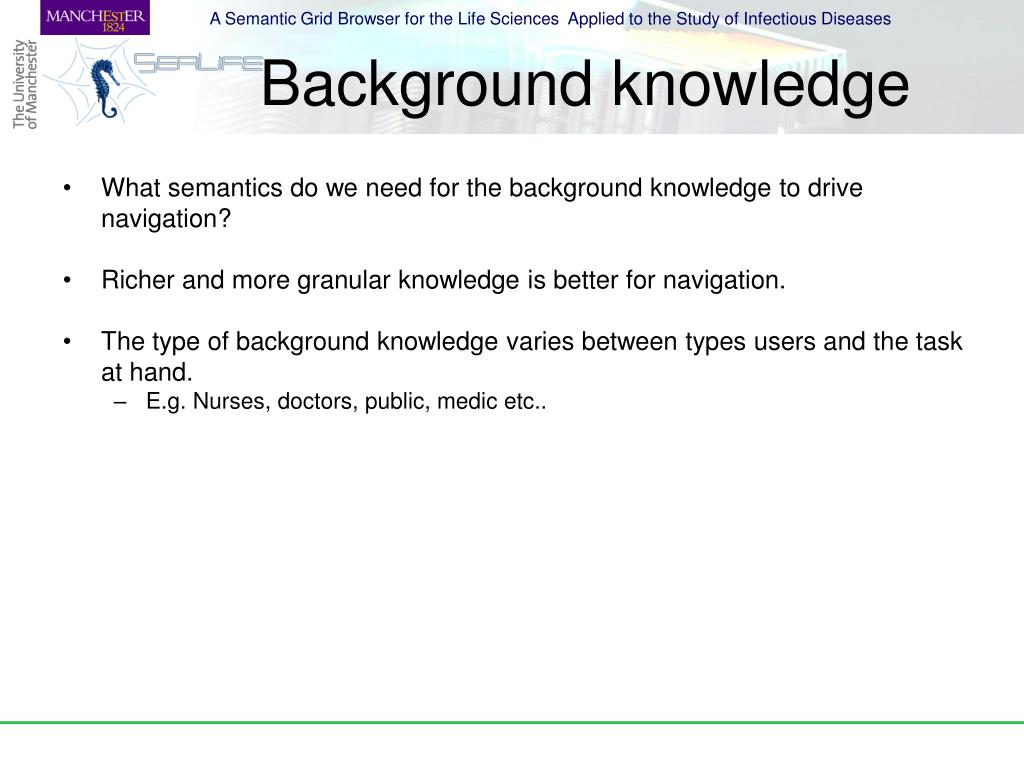

  12. Background knowledge • What semantics do we need for the background knowledge to drive navigation? • Richer and more granular knowledge is better for navigation. • The type of background knowledge varies between types users and the task at hand. • E.g. Nurses, doctors, public, medic etc..

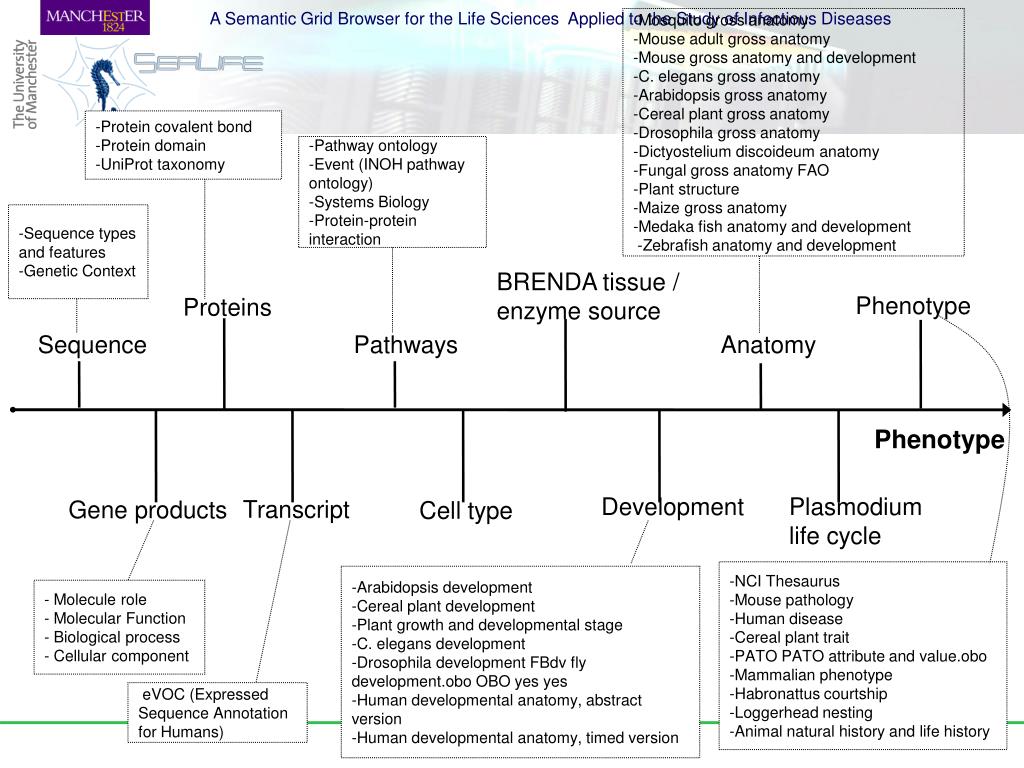

  13. -Mosquito gross anatomy -Mouse adult gross anatomy -Mouse gross anatomy and development -C. elegans gross anatomy -Arabidopsis gross anatomy -Cereal plant gross anatomy -Drosophila gross anatomy -Dictyostelium discoideum anatomy -Fungal gross anatomy FAO -Plant structure -Maize gross anatomy -Medaka fish anatomy and development -Zebrafish anatomy and development • Protein covalent bond • Protein domain • UniProt taxonomy -Pathway ontology -Event (INOH pathway ontology) -Systems Biology -Protein-protein interaction • Sequence types and features • Genetic Context BRENDA tissue / enzyme source Phenotype Proteins Sequence Pathways Anatomy Phenotype Development Plasmodium life cycle Transcript Gene products Cell type -NCI Thesaurus -Mouse pathology -Human disease -Cereal plant trait -PATO PATO attribute and value.obo -Mammalian phenotype -Habronattus courtship -Loggerhead nesting -Animal natural history and life history -Arabidopsis development -Cereal plant development -Plant growth and developmental stage -C. elegans development -Drosophila development FBdv fly development.obo OBO yes yes -Human developmental anatomy, abstract version -Human developmental anatomy, timed version - Molecule role - Molecular Function - Biological process - Cellular component eVOC (Expressed Sequence Annotation for Humans)

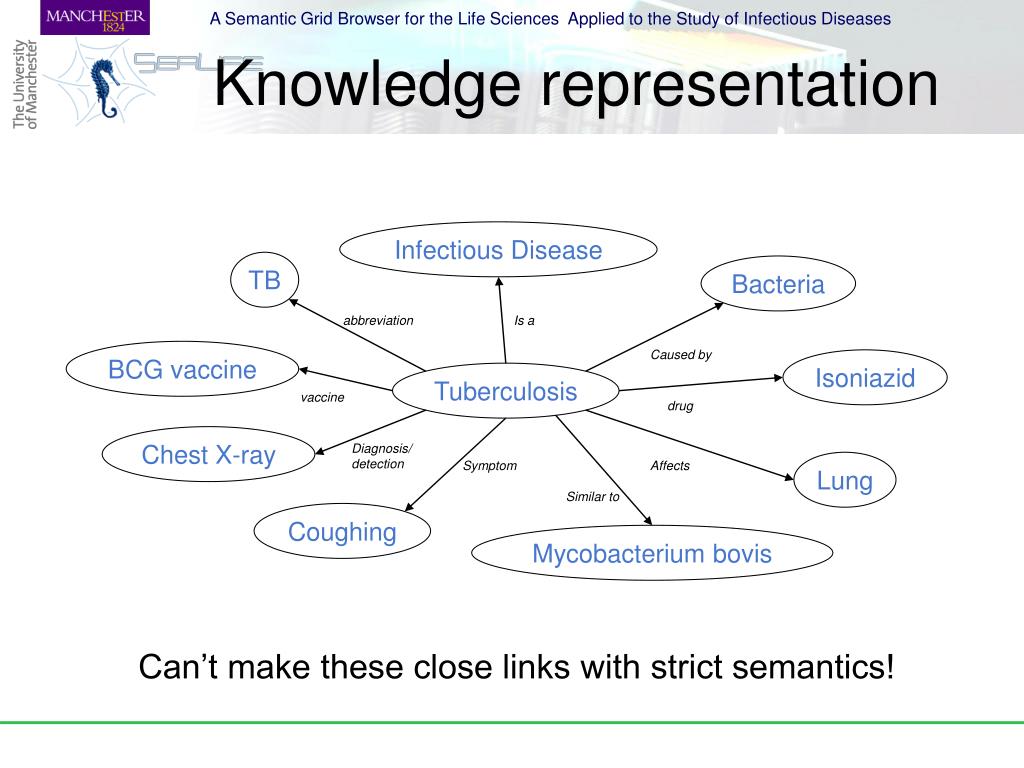

  14. Knowledge representation Infectious Disease TB Bacteria abbreviation Is a BCG vaccine Caused by Isoniazid Tuberculosis vaccine drug Chest X-ray Diagnosis/detection Symptom Affects Lung Similar to Coughing Mycobacterium bovis Can’t make these close links with strict semantics!

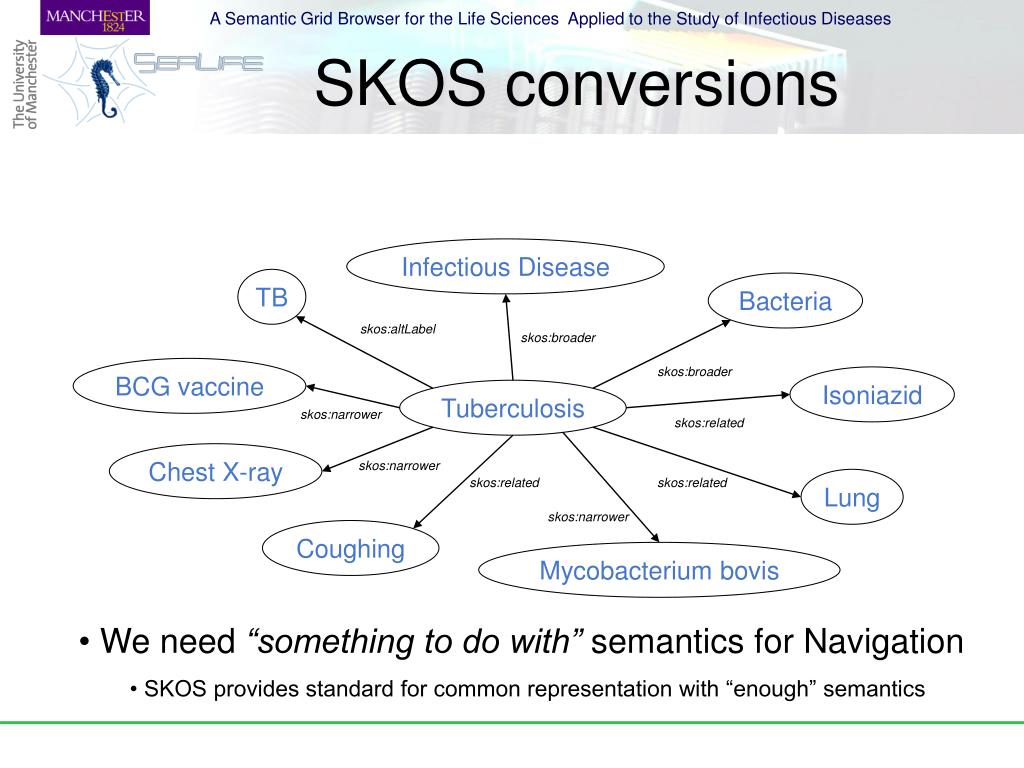

  15. SKOS conversions Infectious Disease TB Bacteria skos:altLabel skos:broader BCG vaccine skos:broader Isoniazid Tuberculosis skos:narrower skos:related Chest X-ray skos:narrower skos:related skos:related Lung skos:narrower Coughing Mycobacterium bovis • We need “something to do with” semantics for Navigation • SKOS provides standard for common representation with “enough” semantics

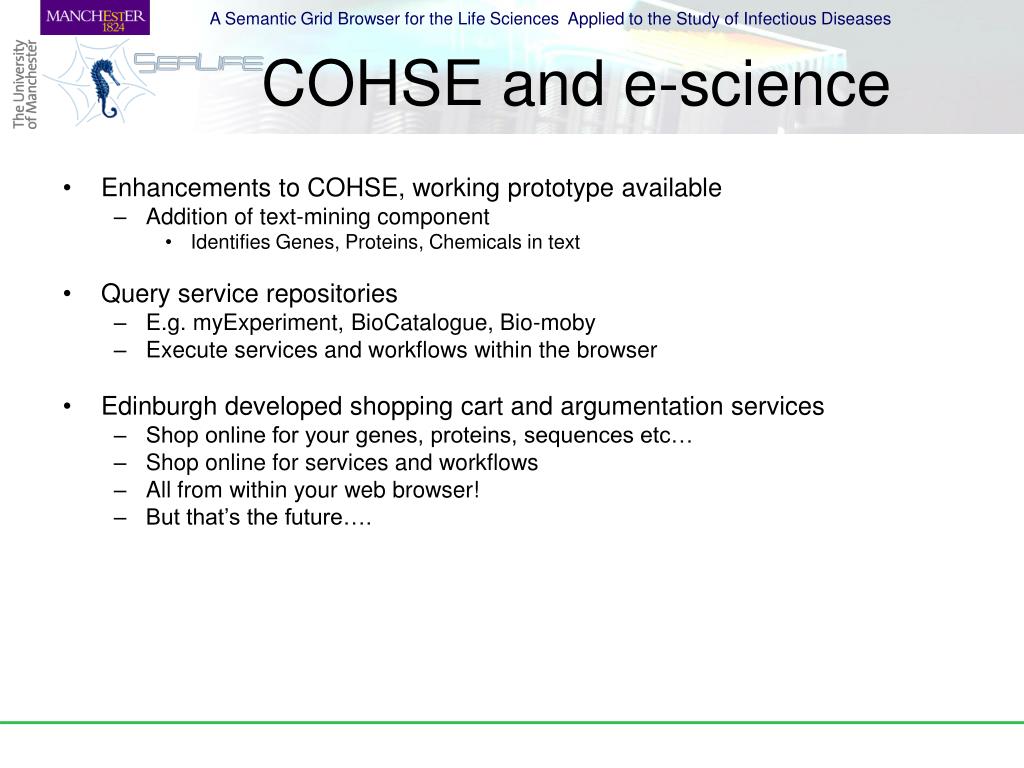

  16. COHSE and e-science • Enhancements to COHSE, working prototype available • Addition of text-mining component • Identifies Genes, Proteins, Chemicals in text • Query service repositories • E.g. myExperiment, BioCatalogue, Bio-moby • Execute services and workflows within the browser • Edinburgh developed shopping cart and argumentation services • Shop online for your genes, proteins, sequences etc… • Shop online for services and workflows • All from within your web browser! • But that’s the future….

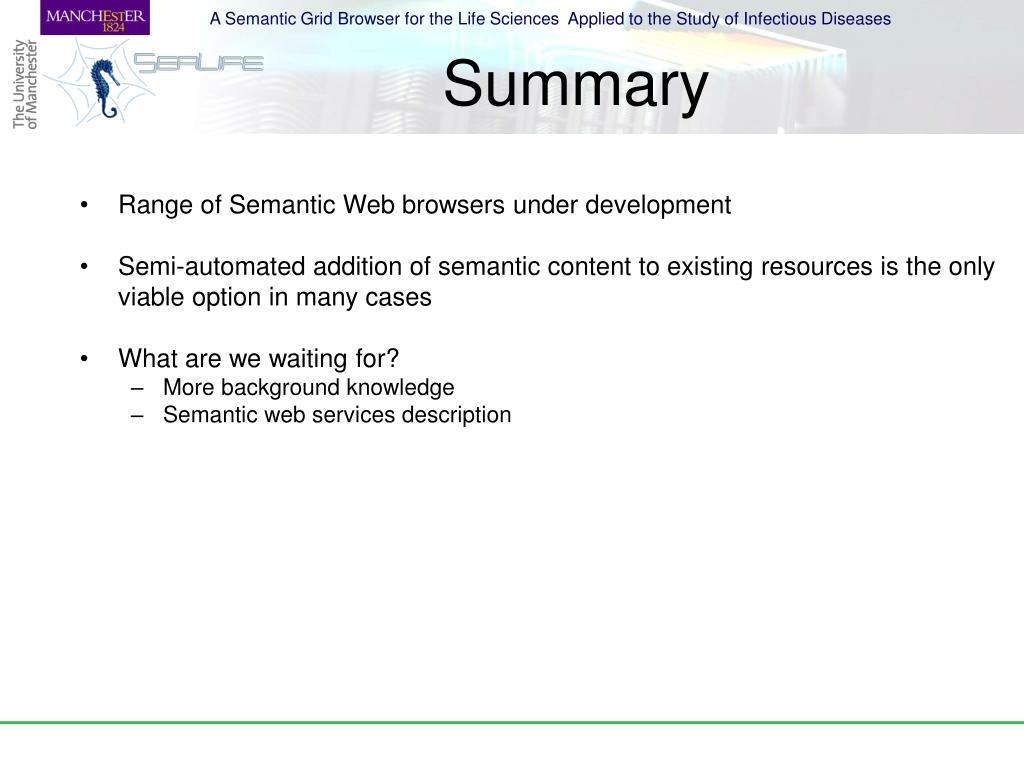

  17. Summary • Range of Semantic Web browsers under development • Semi-automated addition of semantic content to existing resources is the only viable option in many cases • What are we waiting for? • More background knowledge • Semantic web services description
