  1. INVENTIONS Parking Space Vacancy Detection Inventors: Hala Halaseh & Katy Blumer

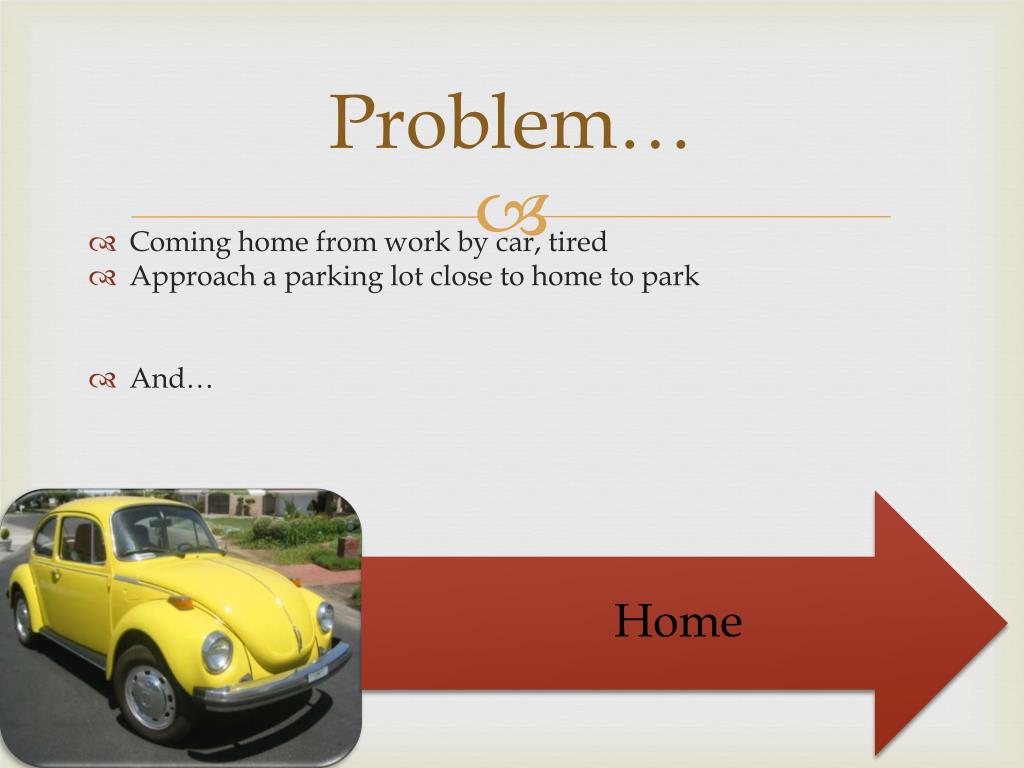

  2. Problem… • Coming home from work by car, tired • Approach a parking lot close to home to park • And…

  3. So, you end up.. Wasting time Prone to accidents Frustrated Wasting gasoline & diesel fuel

  4. Solution!!!

  5. Materials Needed • Video Camera & Tripod • MATLAB R2011 • Weka • George!

  6. Who is my consumer? • Any driver • Government • Building owners • Parking Lot owners

  7. Solution • Put a camera at a high vantage point. • Analyze the video to determine which parking spots are full and other that are empty. • Algorithms used Color Comparison Method - Color Comparison - Edge Counting - Foreground Estimation Foreground Estimation Method

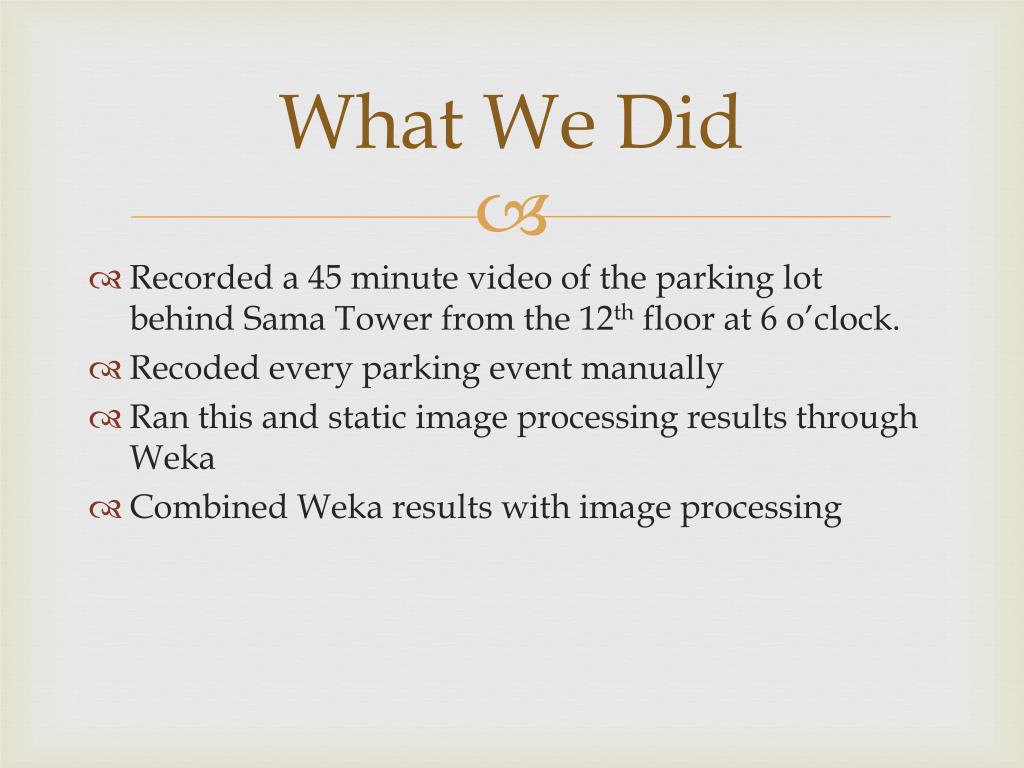

  8. What We Did • Recorded a 45 minute video of the parking lot behind Sama Tower from the 12th floor at 6 o’clock. • Recoded every parking event manually • Ran this and static image processing results through Weka • Combined Weka results with image processing

  9. Results • Algorithm not good at recognizing empty spaces Static Methods Accuracy 99.3%, Precision 65.4% Foreground Estimation Accuracy 93.4%, Precision 14.1% Combined Methods Accuracy 99.2%, Precision 63.6%

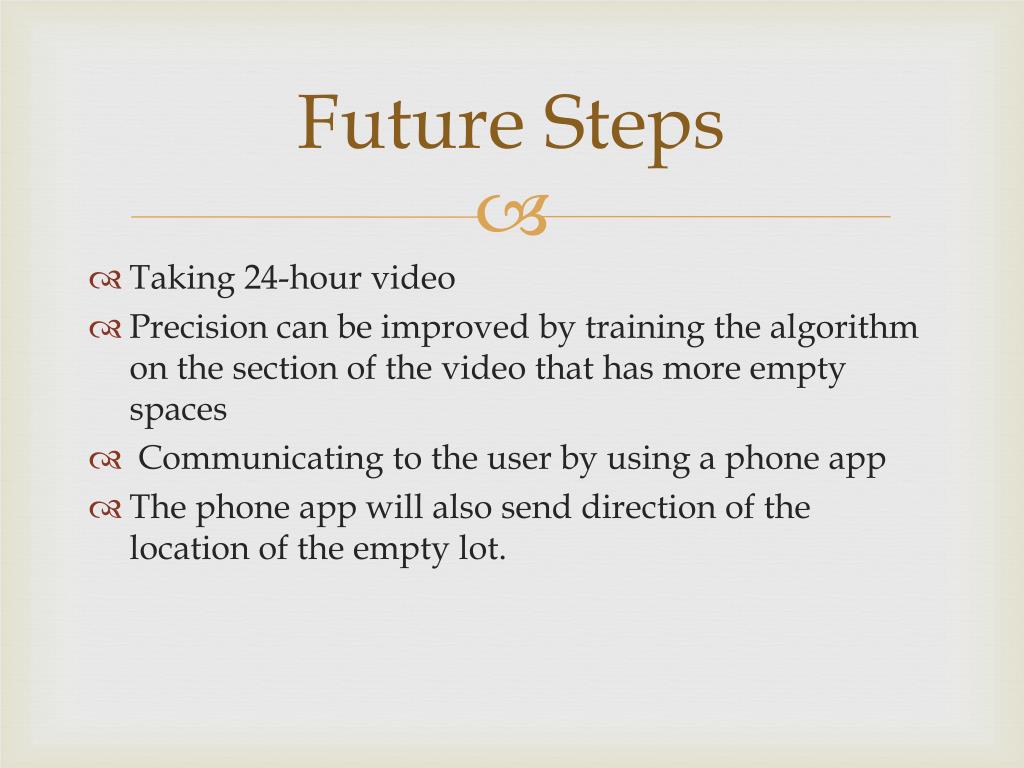

  10. Future Steps • Taking 24-hour video • Precision can be improved by training the algorithm on the section of the video that has more empty spaces • Communicating to the user by using a phone app • The phone app will also send direction of the location of the empty lot.

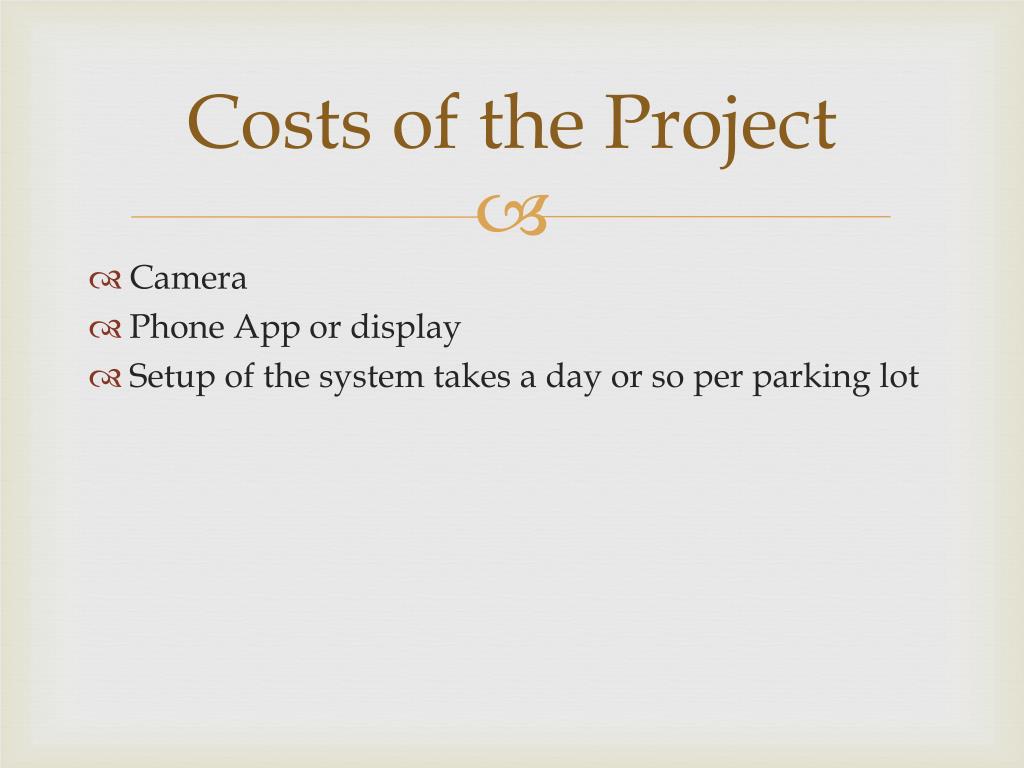

  11. Costs of the Project • Camera • Phone App or display • Setup of the system takes a day or so per parking lot

  12. Acknowledgment • We would like to thank George Chaidos who offered great help in writing the algorithms of the program. • We also would thank Professor NikolaosMavridis and Leonard RetelHelmrichfor giving us advice on the project throughout the working process.

  13. References • Hall, Mark, Eibe Frank, Geoffrey Holmes, Bernhard Pfahringer, Peter Reutemann, and Ian H. Witten. "The WEKA Data Mining Software: An Update." SIGKIDD Explorations 11.1 (2009). Web. • Ichihashi, H.; Notsu, A.; Honda, K.; Katada, T.; Fujiyoshi, M.; , "Vacant parking space detector for outdoor parking lot by using surveillance camera and FCM classifier," Fuzzy Systems, 2009. FUZZ-IEEE 2009. IEEE International Conference on , vol., no., pp.127-134, 20-24 Aug. 2009 • MATLAB. Natick, MA: MathWorks, 2006. Computer software. • Salem, Mooneer, and Daniel Watson. Person Tracking for Parking Space Vacancy Prediction. Tech. Web. • Wah, Catherine. Parking Space Vacancy Monitoring. Tech. Print.
