  1. voice procedures • Leadership Training « ATTACK » • Internet Distributed Learning • in Advance

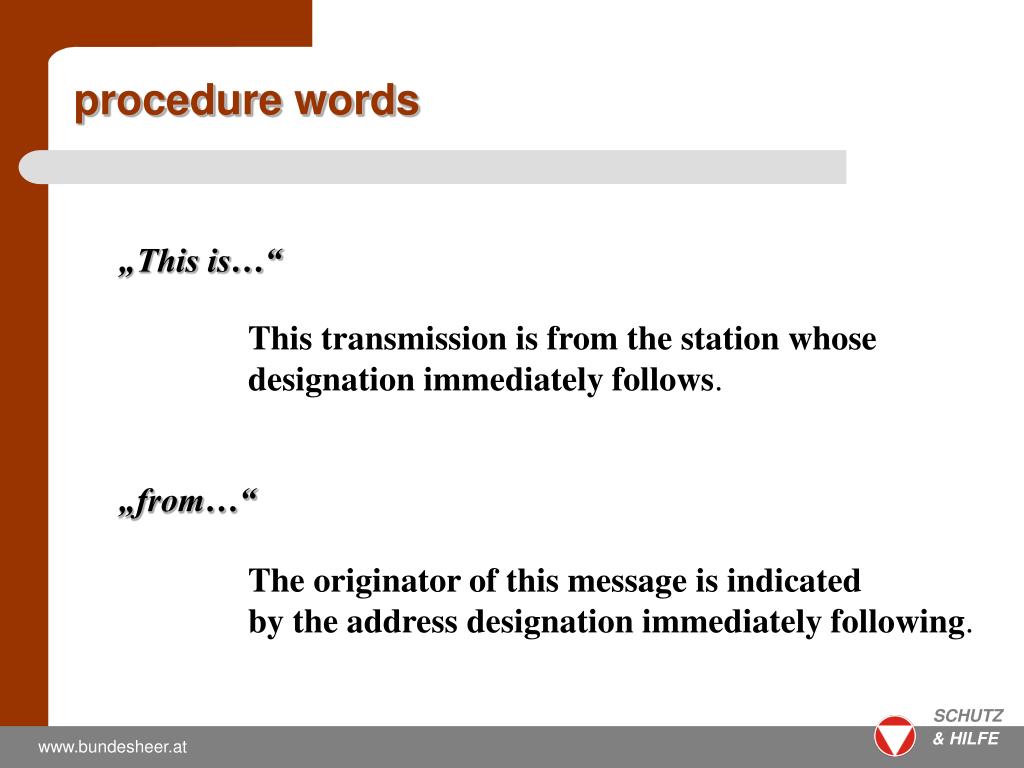

  2. procedure words „This is…“ This transmission is from the station whose designation immediately follows. „from…“ The originator of this message is indicated by the address designation immediately following.

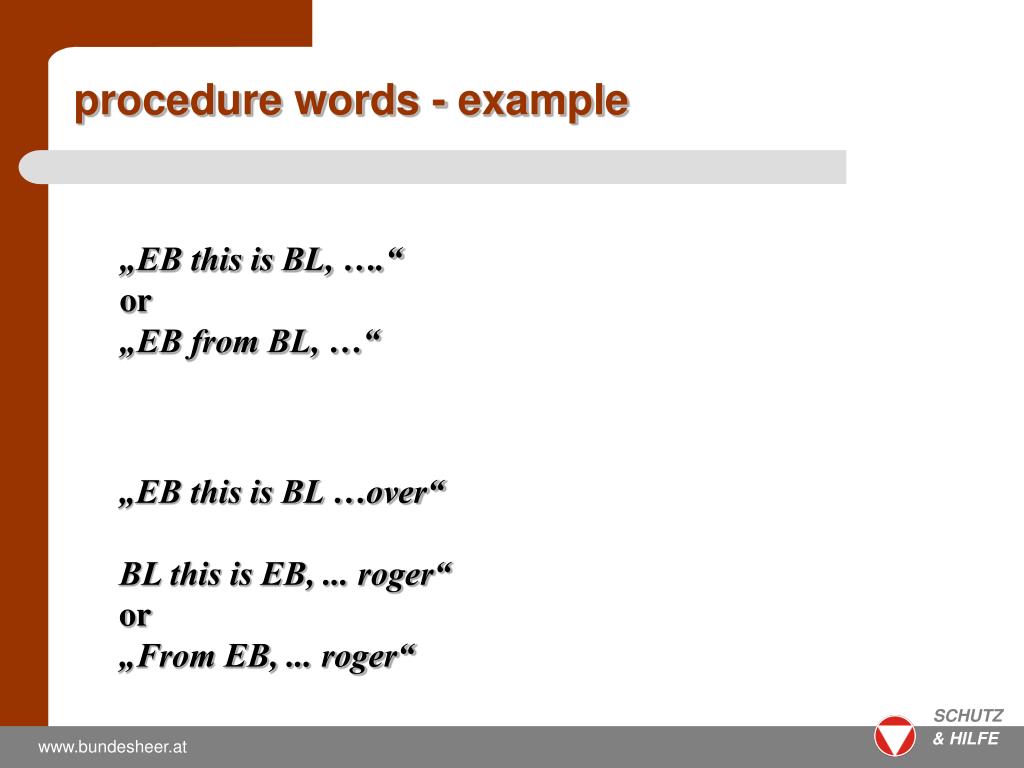

  3. procedure words - example „EB this is BL, ….“ or „EB from BL, …“ „EB this is BL …over“ BL this is EB, ... roger“ or „From EB, ... roger“

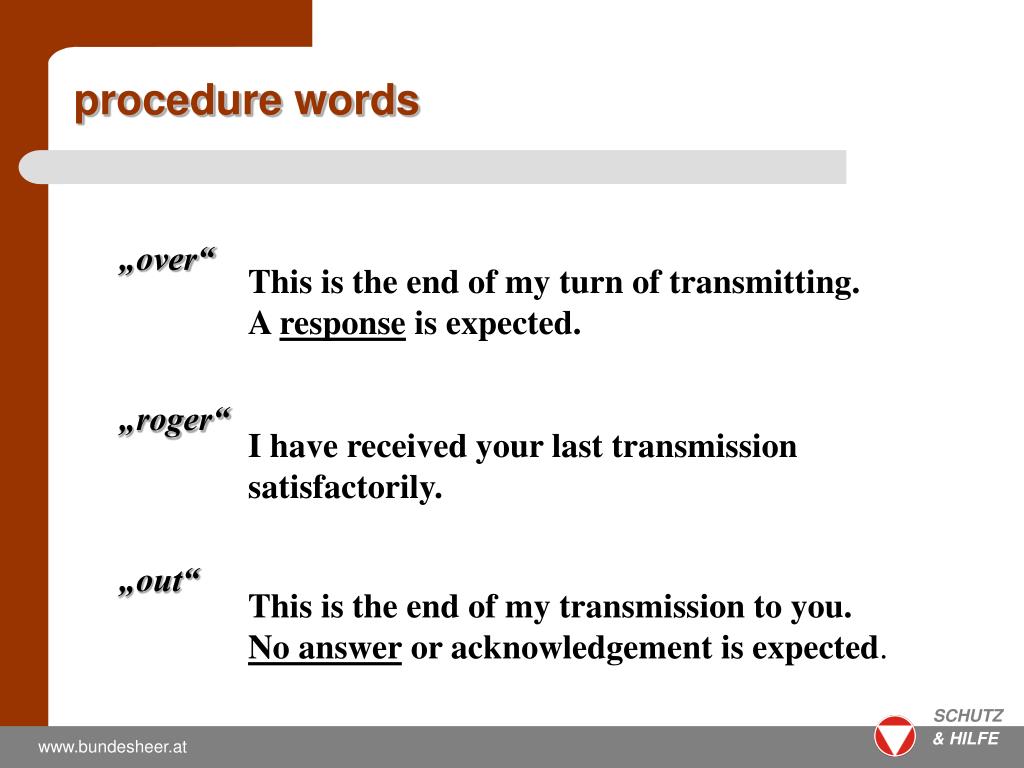

  4. procedure words „over“ This is the end of my turn of transmitting. A response is expected. „roger“ I have received your last transmission satisfactorily. „out“ This is the end of my transmission to you. No answer or acknowledgement is expected.

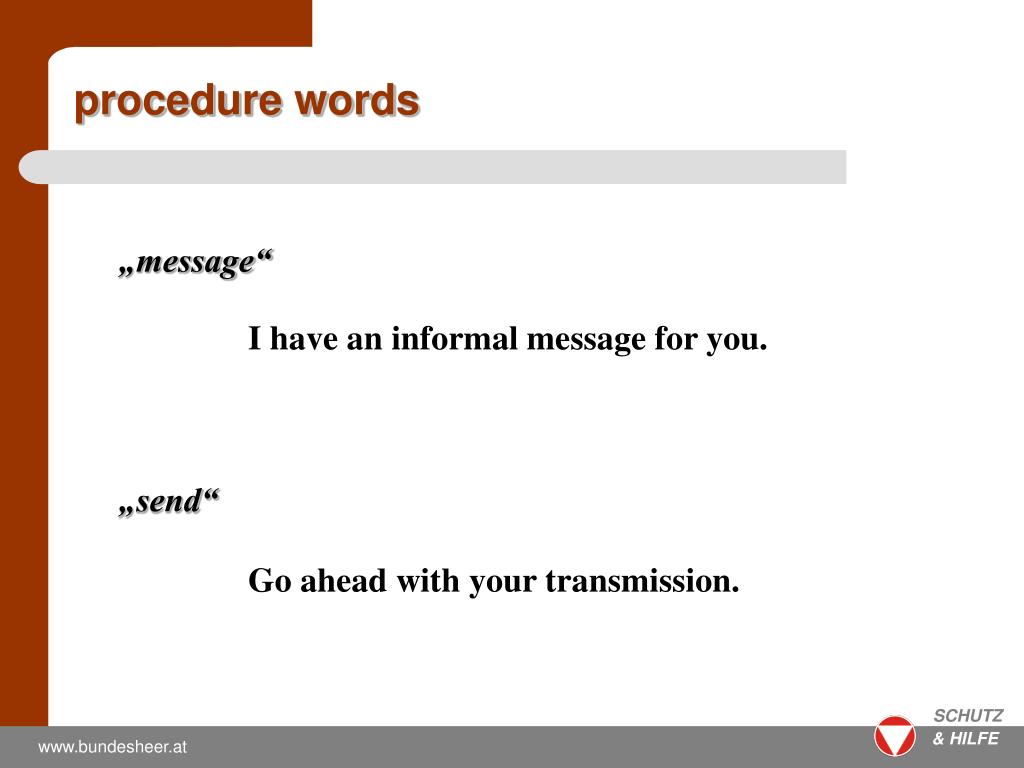

  5. procedure words „message“ I have an informal message for you. „send“ Go ahead with your transmission.

  6. procedure words „message follows“ a formal message which requires recording is about to follow „send your message“ go ahead,transmit, I´m ready to copy

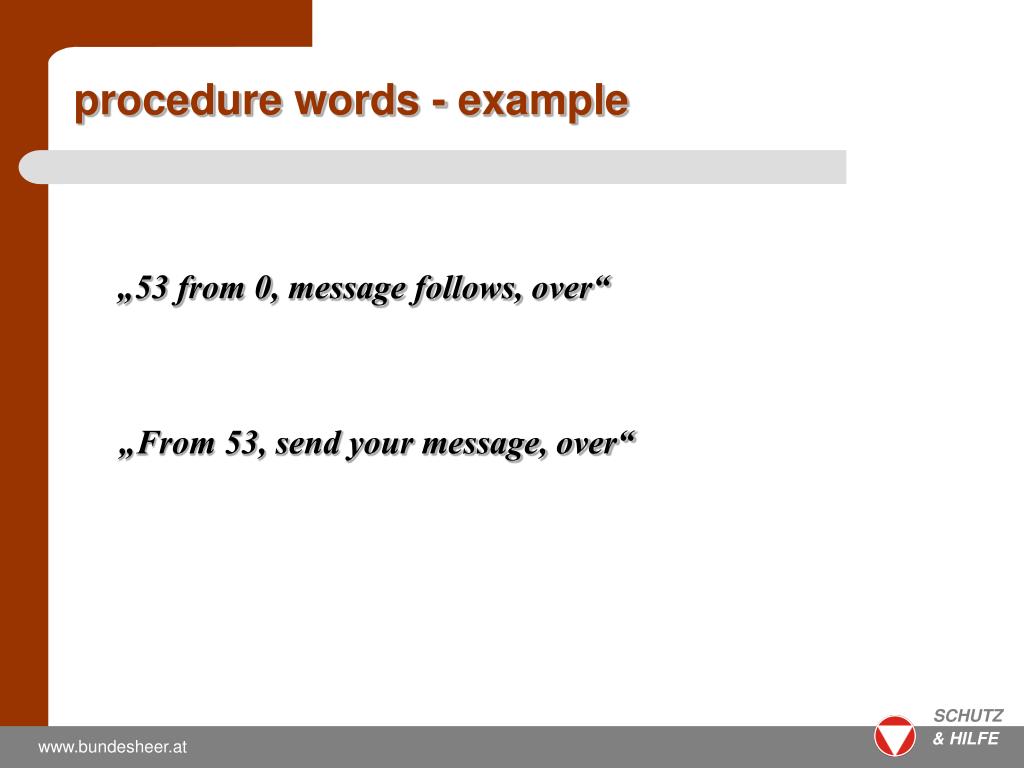

  7. procedure words - example „53 from 0, message follows, over“ „From 53, send your message, over“

  8. procedure words „wait“ a short delay. „wait - out“ I must pause longer than some seconds, and will call you again when ready.

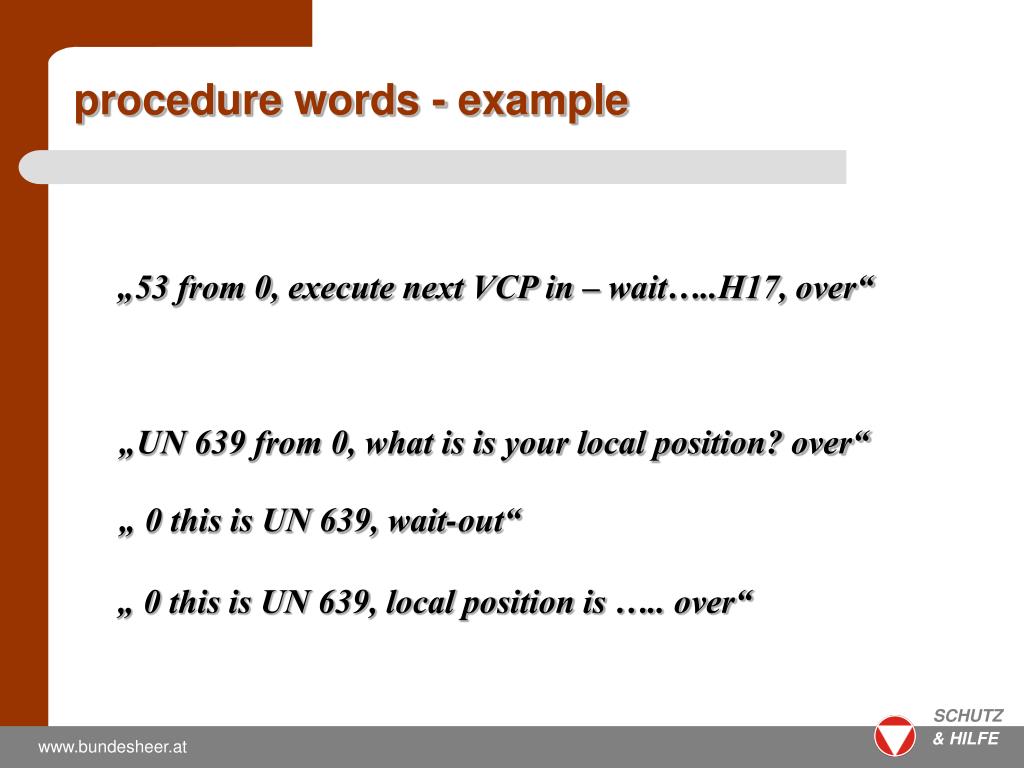

  9. procedure words - example „53 from 0, execute next VCP in – wait…..H17, over“ „UN 639 from 0, what is is your local position? over“ „ 0 this is UN 639, wait-out“ „ 0 this is UN 639, local position is ….. over“

  10. procedure words „say again“ Repeat all of your last transmission. „say again all after/before…“ Repeat all of your last transmission after/before….. „I say again“ I am repeating my transmission.

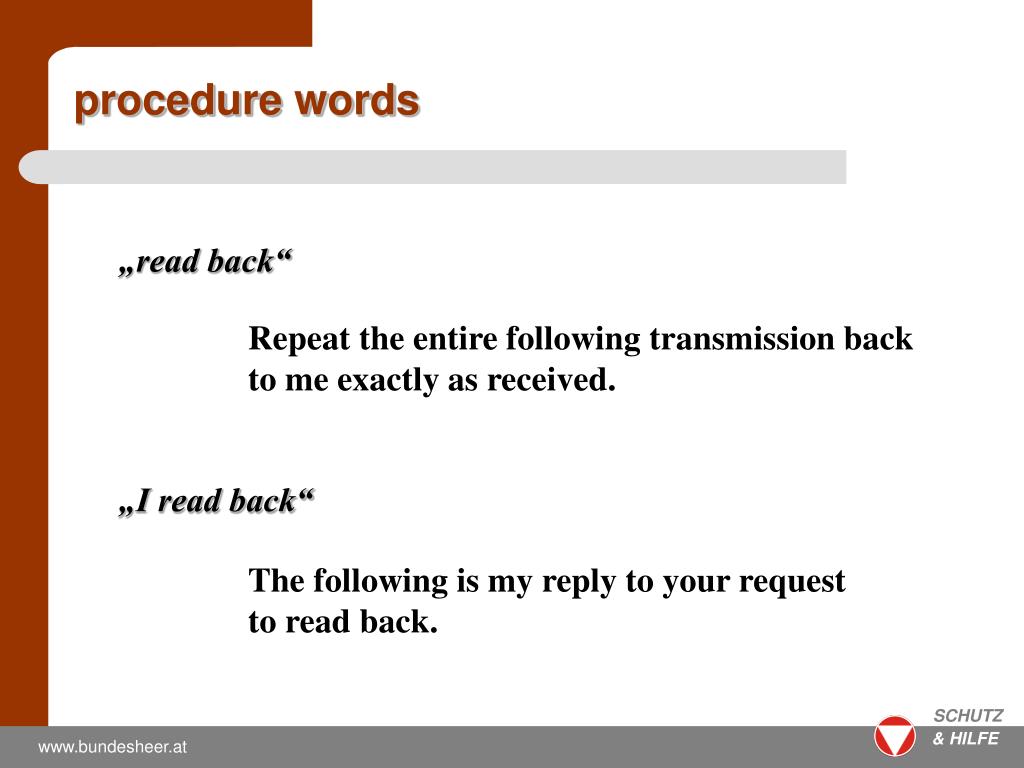

  11. procedure words „read back“ Repeat the entire following transmission back to me exactly as received. „I read back“ The following is my reply to your request to read back.

  12. procedure words „speak slower“ Reduce the speed of your transmission. „I read back“ The following is my reply to your request to read back.

  13. procedure words „wrong“ Your last transmission was incorrect. „correct“ What you have transmitted is correct, you are correct

  14. procedure words „correction“ An error has been made in this transmission. „UN 639 from 0, proceed to checkpoint 2 – correction Checkpoint 3, acknowledge, over“

  15. procedure words „acknowledge“ confirm that you have received my messsage and will comply. „WILCO“ I have received your message, understand it, and will comply

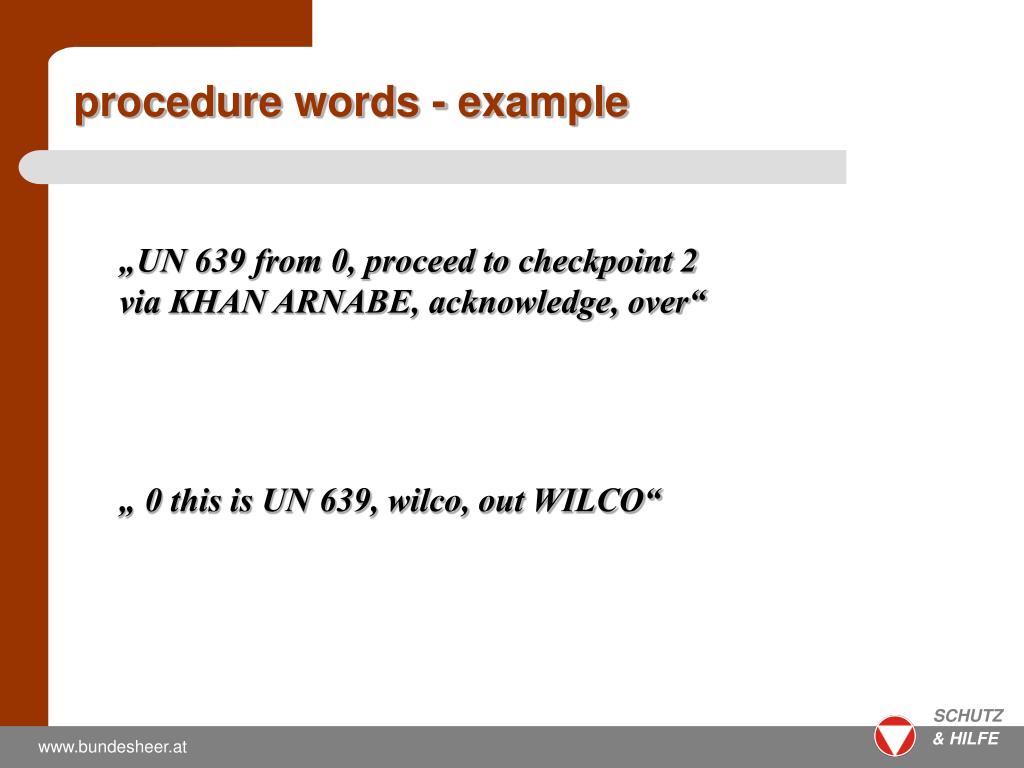

  16. procedure words - example „UN 639 from 0, proceed to checkpoint 2 via KHAN ARNABE, acknowledge, over“ „ 0 this is UN 639, wilco, out WILCO“

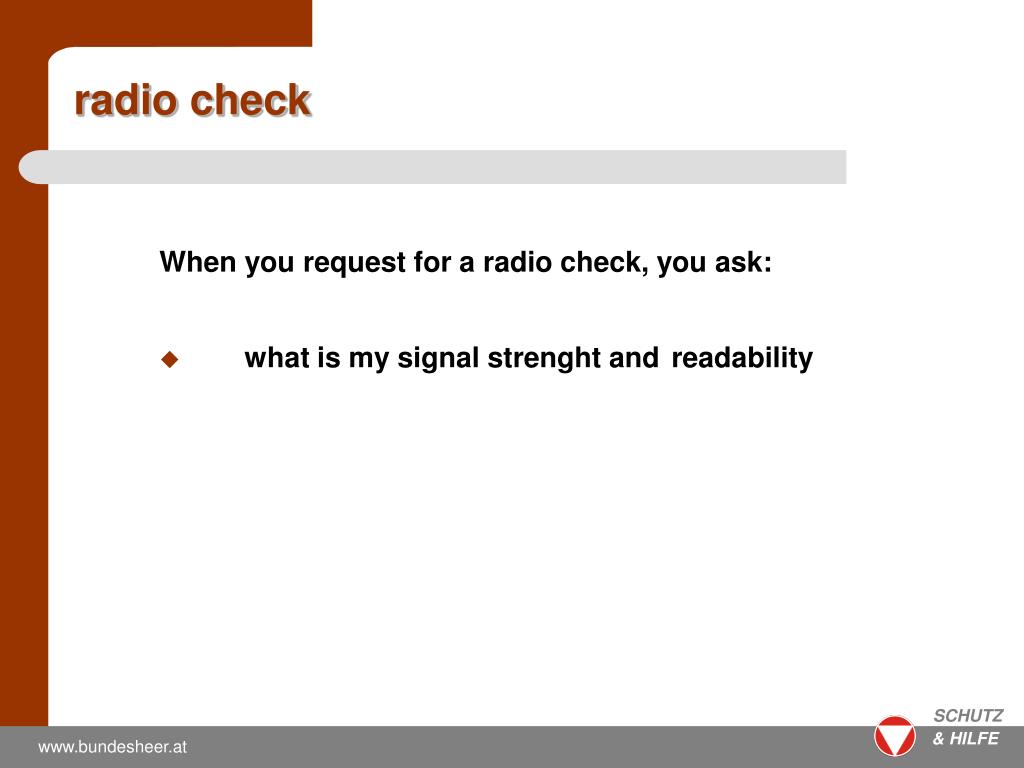

  17. When you request for a radio check, you ask: what is my signal strenght and readability radio check

  18. loud strong good good weak with difficulty very weak with great difficulty nothing heard cannot hear radio check report of signal strength

  19. clear excellent quality readable good quality distorted troubles in reading due to distortions with interference troubles in reading due to interferences not readable I can hear your transmit, but I cannot read you at all radio check report of readability

  20. "all stations this is 0, radio check, over" "0 this is 51, you are loud and clear, over" "0 this is 53, you are good and clear, over" "0 this is 54, you are weak but readable, over“ „0 this is 55, you are very weak and not readable, over“ "all stations this is 0, you are all loud and clear, out" radio check - example

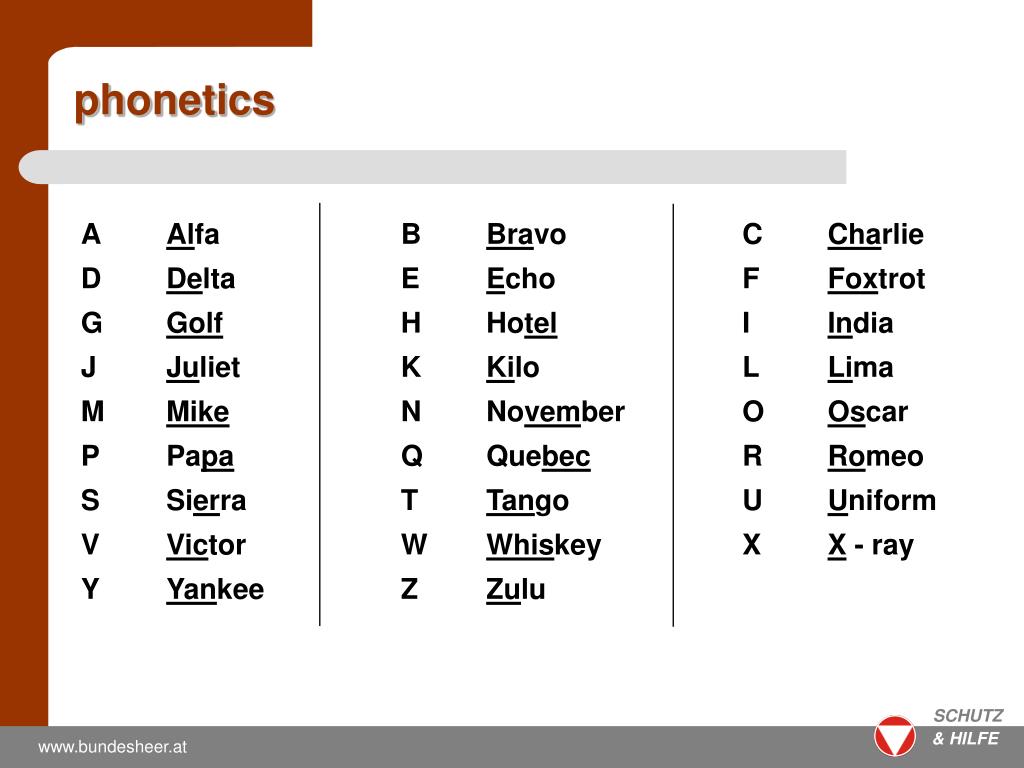

  21. A Alfa B Bravo C Charlie D Delta E Echo F Foxtrot G Golf H Hotel I India J Juliet K Kilo L Lima M Mike N November O Oscar P Papa Q Quebec R Romeo S Sierra T Tango U Uniform V Victor W Whiskey X X - ray Y Yankee Z Zulu phonetics

  22. 0 Zero 1 Wun 2 Too 3 Three 4 Fo-wer 5 Fife 6 Six 7 Seven 8 Ate 9 Niner 10 Wun-Zero 136 Wun-Three-Six 500 Fi-yiv Hundred 1400 Wun-Fo-wer Hundred 7000 Seven-Thowsand 12.4 Wun-Too-Point-Fo-wer phonetics
