UNIX’s “grand illusion”

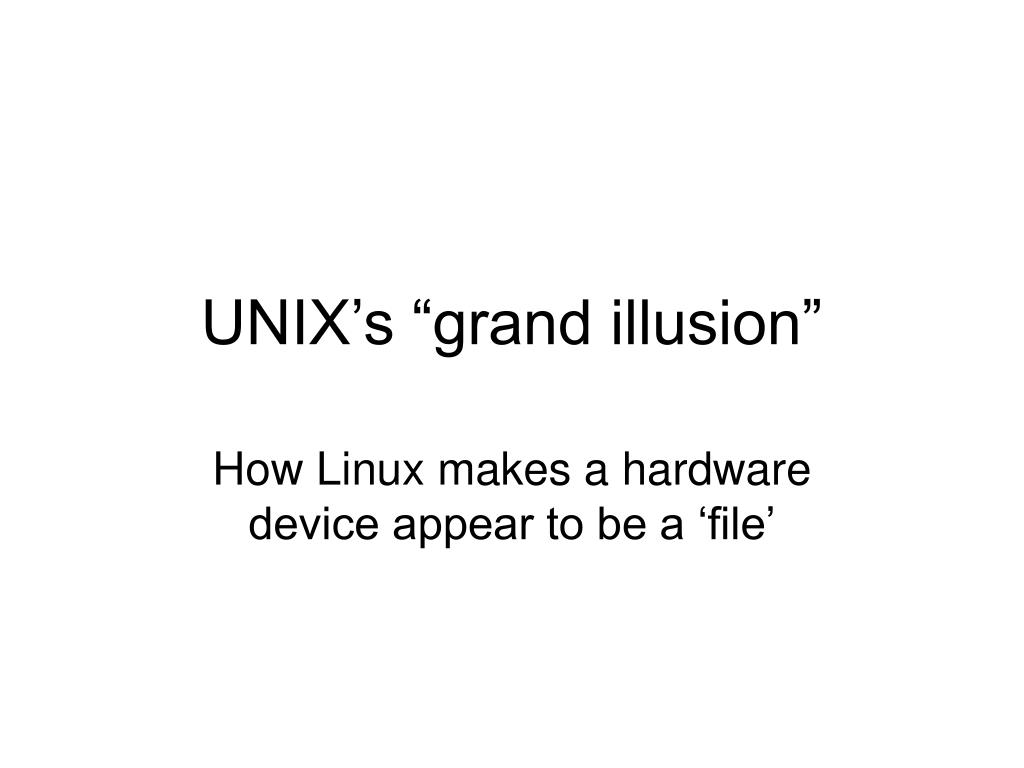

1. UNIX’s “grand illusion” How Linux makes a hardware device appear to be a ‘file’

2. Basic char-driver components Device-driver LKM layout module’s ‘payload’ is a collection of callback-functions having prescribed prototypes function function function AND a ‘package’ of function-pointers fops . . . the usual pair of module-administration functions init registers the ‘fops’ exit unregisters the ‘fops’

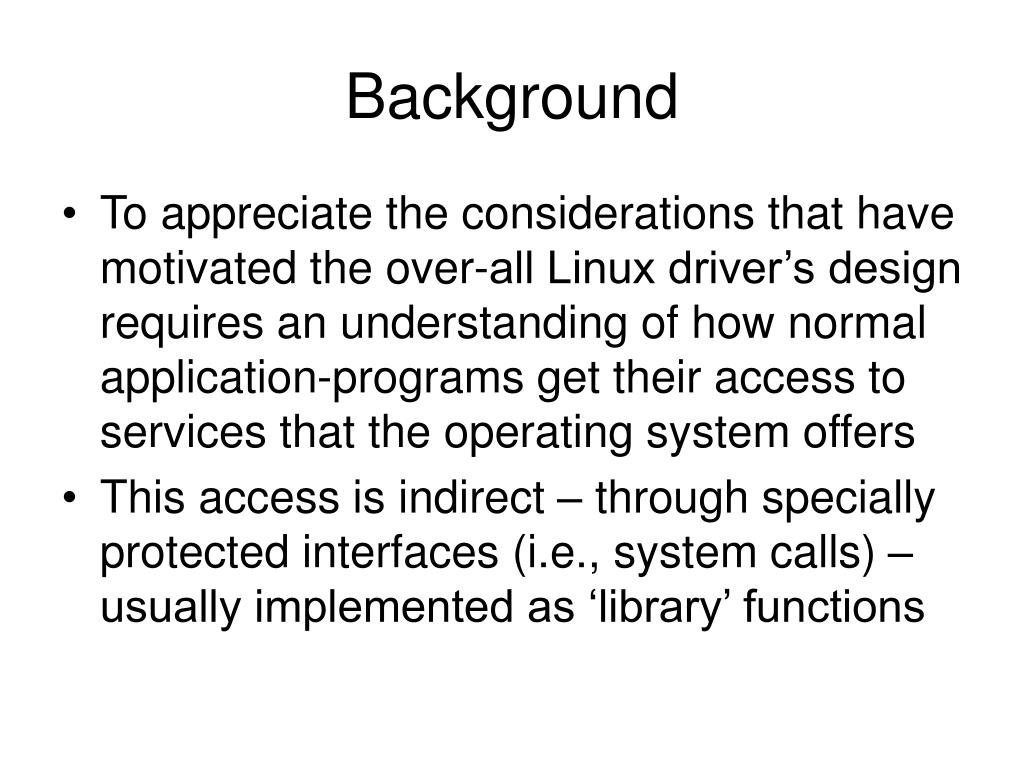

3. Background • To appreciate the considerations that have motivated the over-all Linux driver’s design requires an understanding of how normal application-programs get their access to services that the operating system offers • This access is indirect – through specially protected interfaces (i.e., system calls) – usually implemented as ‘library’ functions

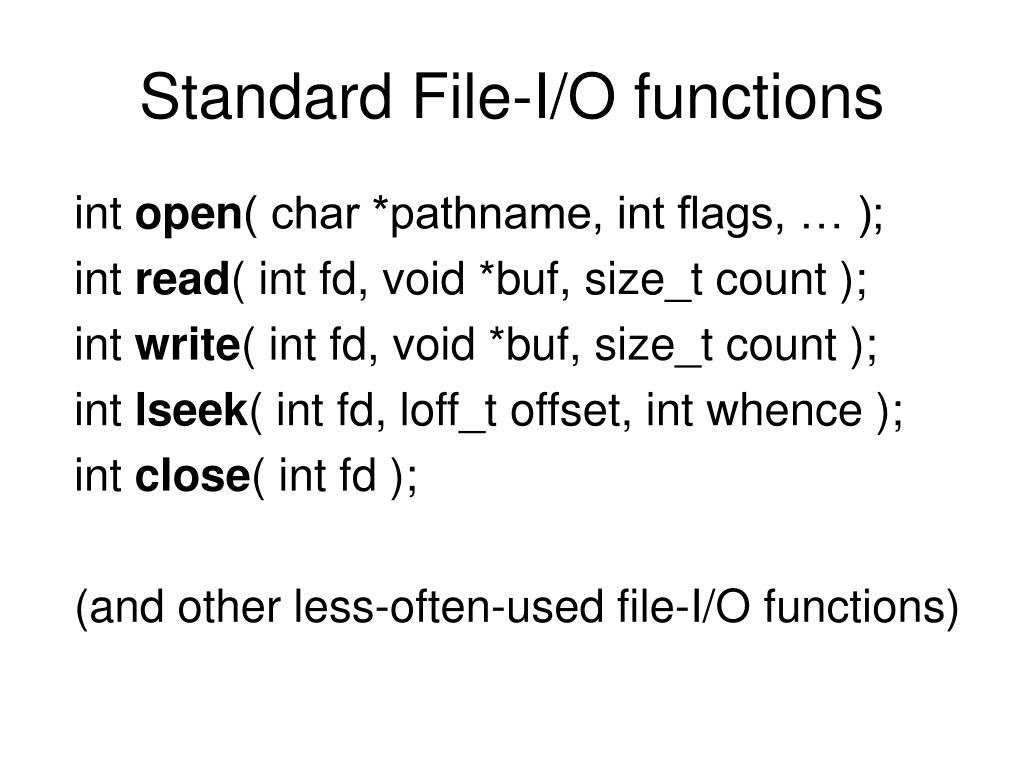

4. Standard File-I/O functions int open( char *pathname, int flags, … ); int read( int fd, void *buf, size_t count ); int write( int fd, void *buf, size_t count ); int lseek( int fd, loff_t offset, int whence ); int close( int fd ); (and other less-often-used file-I/O functions)

5. Our ‘elfcheck.cpp’ example #include <fcntl.h> # for open() #include <stdio.h> # for perror(), printf() #include <unistd.h> # for read(), close() #include <string.h> # for strncpy() char buf[4]; int main( int argc, char *argv[] ) { if ( argc == 1 ) return -1; // command-line argument is required int fd = open( argv[1], O_RDONLY ); // open specified file if ( fd < 0 ) { perror( argv[1] ); return -1; // quit if open failed int nbytes = read( fd, buf, 4 ); // read first 4 bytes if ( nbytes < 0 ) { perror( argv[1] ); return -1; // quit if read failed if ( strncmp( buf, “\177ELF”, 4 ) == 0 ) // check for ELF id printf( “File \’%s\’ has ELF signature \n”, argv[1] ); else printf( “File \’%s\’ is not an ELF file \n”, argv[1] ); close( fd ); // close the file }

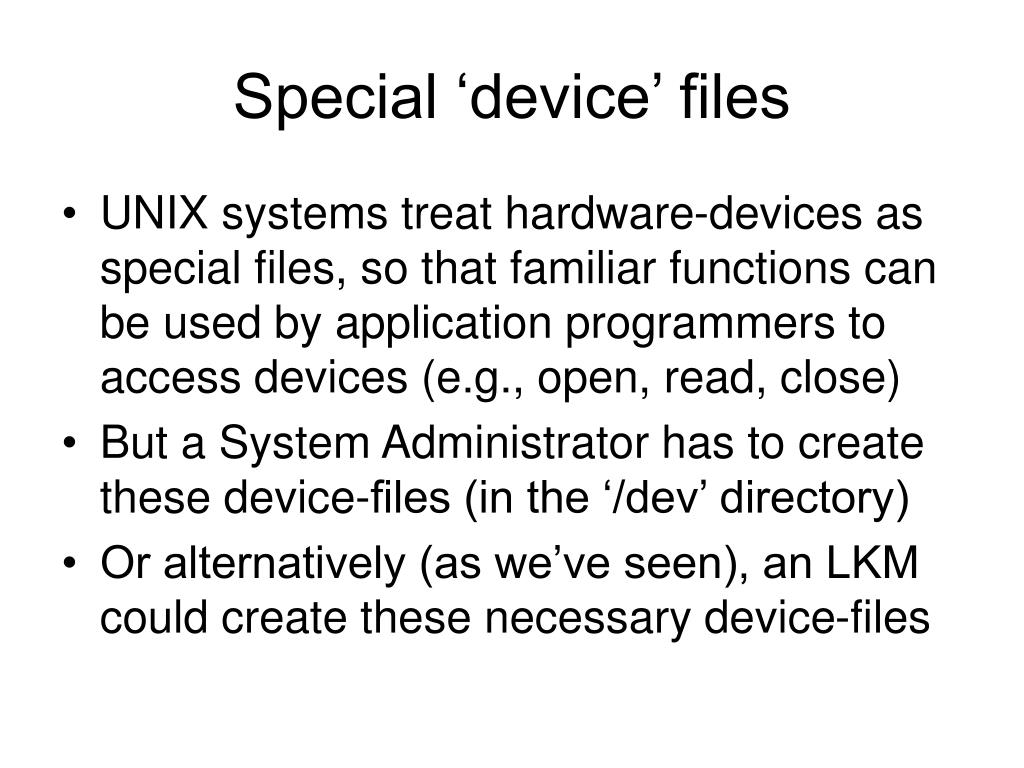

6. Special ‘device’ files • UNIX systems treat hardware-devices as special files, so that familiar functions can be used by application programmers to access devices (e.g., open, read, close) • But a System Administrator has to create these device-files (in the ‘/dev’ directory) • Or alternatively (as we’ve seen), an LKM could create these necessary device-files

7. UNIX ‘man’ pages • A convenient online guide to prototypes and semantics of the C library functions • Example of usage: $ man 2 open

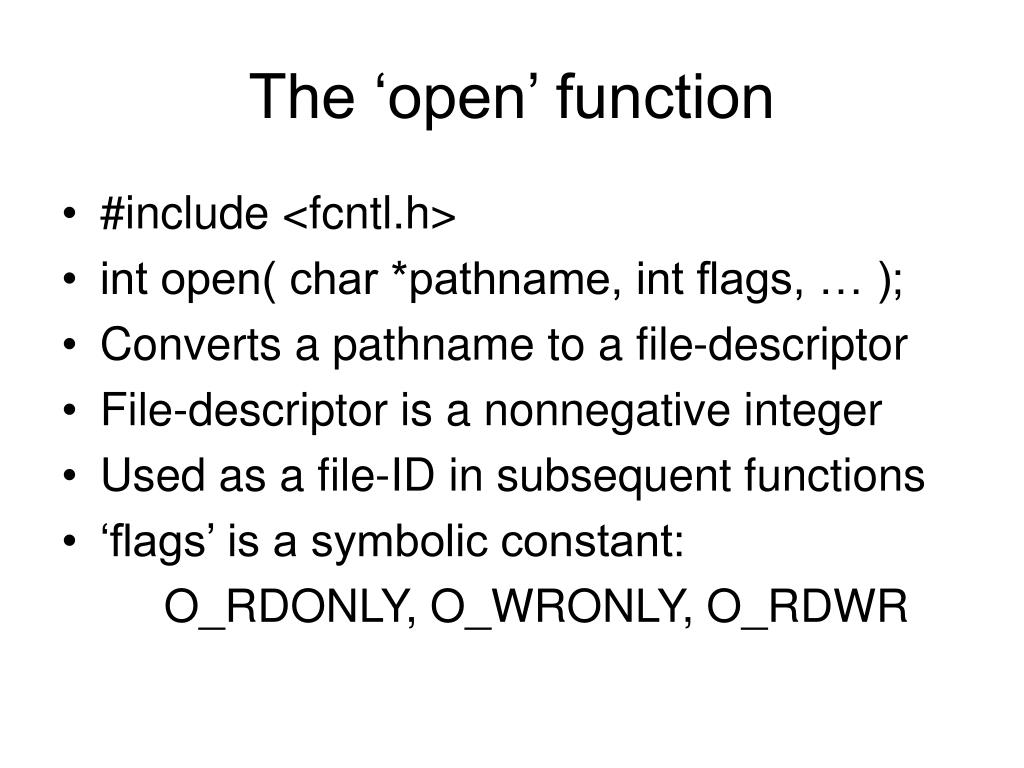

8. The ‘open’ function • #include <fcntl.h> • int open( char *pathname, int flags, … ); • Converts a pathname to a file-descriptor • File-descriptor is a nonnegative integer • Used as a file-ID in subsequent functions • ‘flags’ is a symbolic constant: O_RDONLY, O_WRONLY, O_RDWR

9. The ‘close’ function • #include <unistd.h> • int close( int fd ); • Breaks link between file and file-descriptor • Returns 0 on success, or -1 if an error

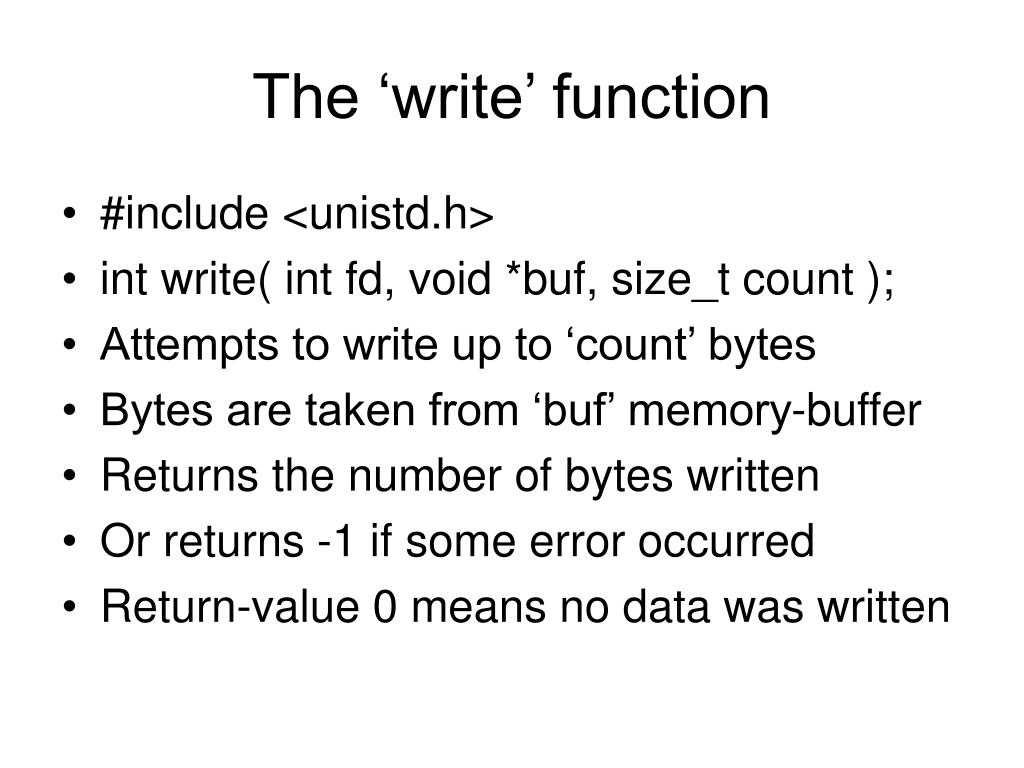

10. The ‘write’ function • #include <unistd.h> • int write( int fd, void *buf, size_t count ); • Attempts to write up to ‘count’ bytes • Bytes are taken from ‘buf’ memory-buffer • Returns the number of bytes written • Or returns -1 if some error occurred • Return-value 0 means no data was written

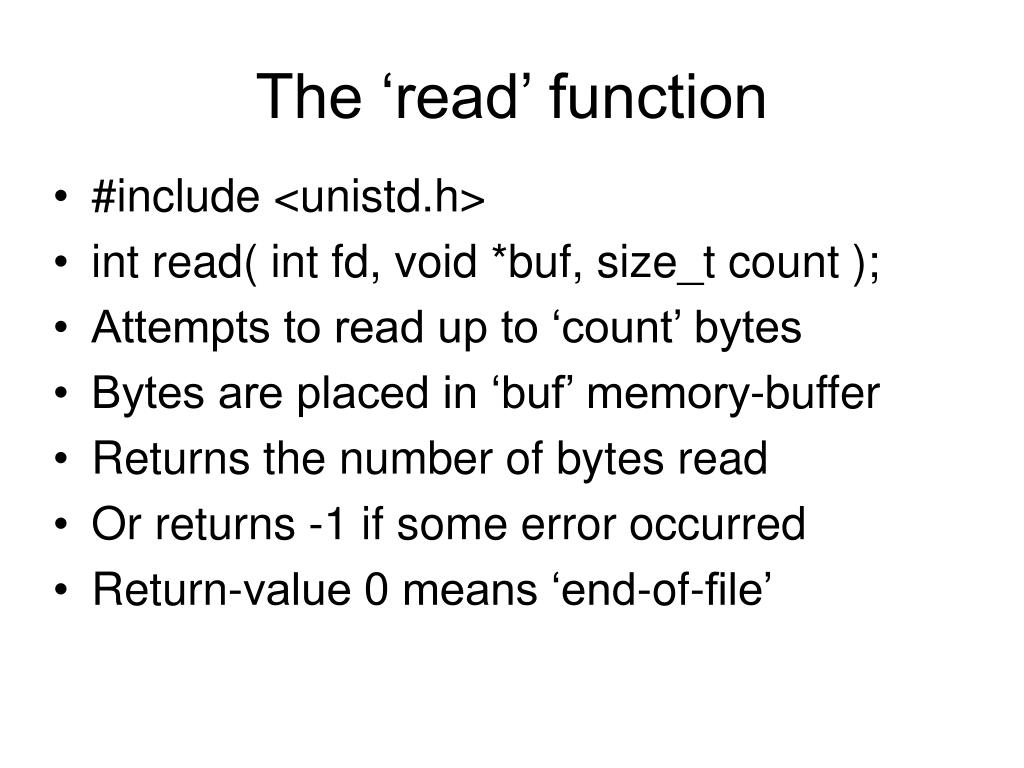

11. The ‘read’ function • #include <unistd.h> • int read( int fd, void *buf, size_t count ); • Attempts to read up to ‘count’ bytes • Bytes are placed in ‘buf’ memory-buffer • Returns the number of bytes read • Or returns -1 if some error occurred • Return-value 0 means ‘end-of-file’

12. Notes on ‘read()’ and ‘write()’ • These functions have (as a “side-effect”) the advancement of a file-pointer variable • They return a negative function-value of -1 if an error occurs, indicating that no actual data could be transferred; otherwise, they return the number of bytes read or written • The ‘read()’ function normally does not return 0, unless ‘end-of-file’ is reached

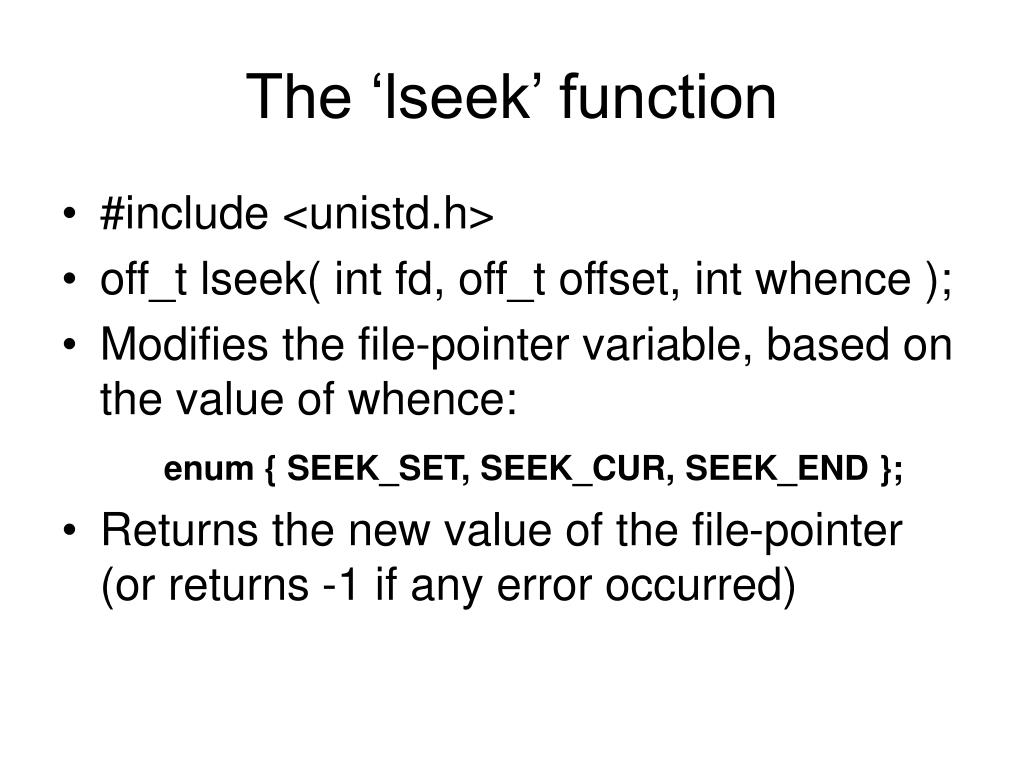

13. The ‘lseek’ function • #include <unistd.h> • off_t lseek( int fd, off_t offset, int whence ); • Modifies the file-pointer variable, based on the value of whence: enum { SEEK_SET, SEEK_CUR, SEEK_END }; • Returns the new value of the file-pointer (or returns -1 if any error occurred)

14. Getting the size of a file • For normal files, your application can find out how many bytes belong to a file using the ‘lseek()’ function: int filesize = lseek( fd, 0, SEEK_END ); • But afterward you need to ‘rewind’ the file if you want to read its data: lseek( fd, 0, SEEK_SET );

15. Device knowledge • Before you can write a device-driver, you must understand how the hardware works • Usually this means you need to obtain the programmer manual (from manufacturer) • Nowdays this can often be an obstacle • But some equipment is standardized, or is well understood (because of its simplicity)

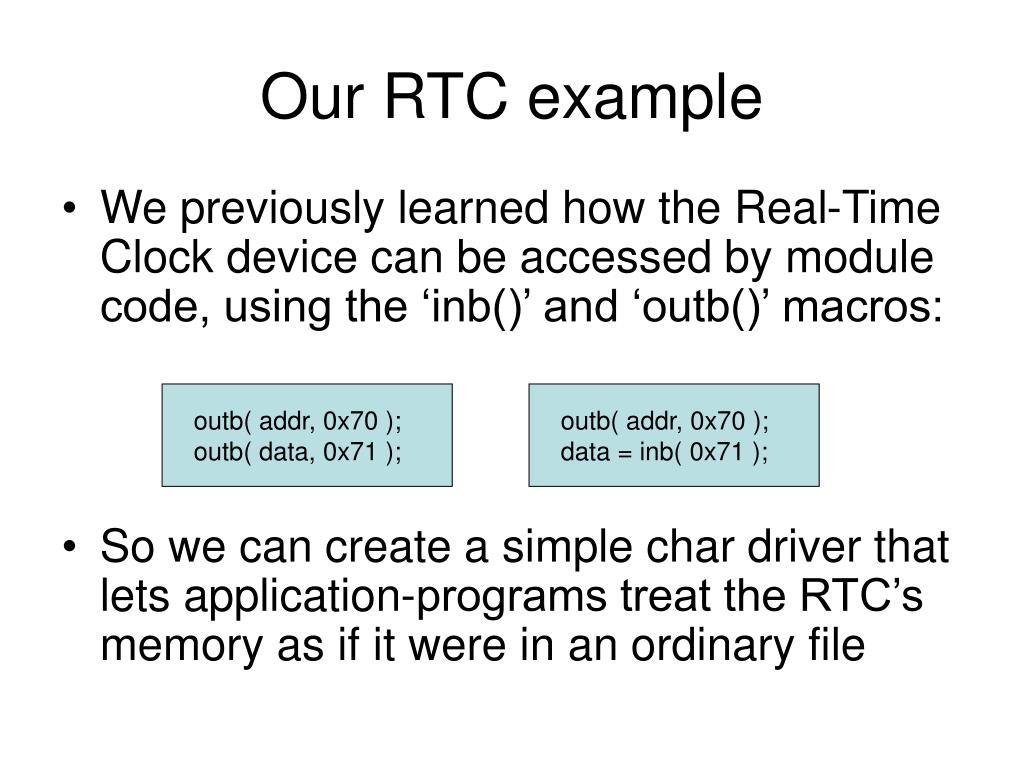

16. Our RTC example • We previously learned how the Real-Time Clock device can be accessed by module code, using the ‘inb()’ and ‘outb()’ macros: • So we can create a simple char driver that lets application-programs treat the RTC’s memory as if it were in an ordinary file outb( addr, 0x70 ); outb( data, 0x71 ); outb( addr, 0x70 ); data = inb( 0x71 );

17. How device-access works Application program user space (unprivileged) call int $0x80 ret Standard runtime library int $0x80 iret iret Operating system (software) call supervisor space (privileged) ret Device-driver module (software) out in Physical peripheral device (hardware)

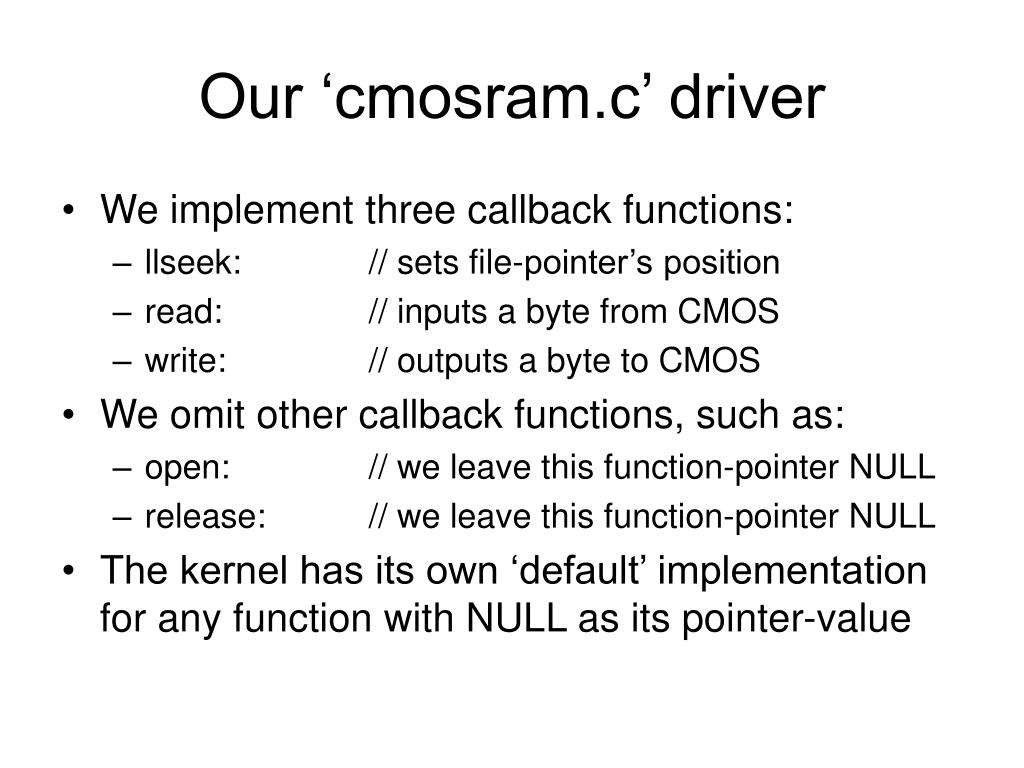

18. Our ‘cmosram.c’ driver • We implement three callback functions: • llseek: // sets file-pointer’s position • read: // inputs a byte from CMOS • write: // outputs a byte to CMOS • We omit other callback functions, such as: • open: // we leave this function-pointer NULL • release: // we leave this function-pointer NULL • The kernel has its own ‘default’ implementation for any function with NULL as its pointer-value

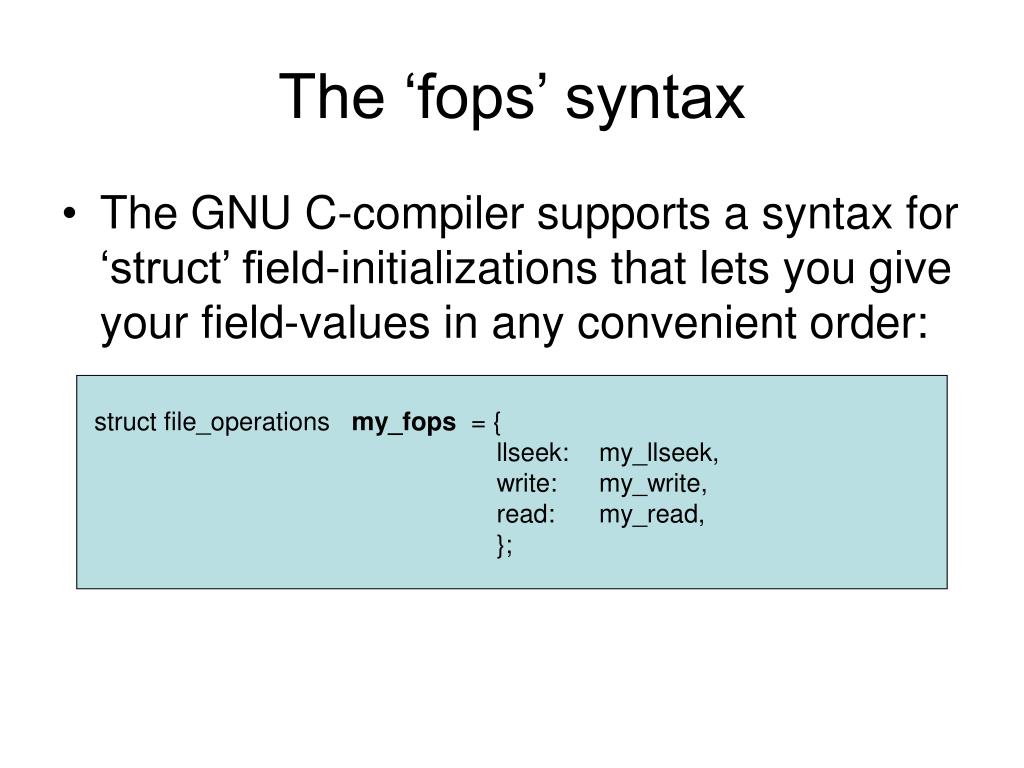

19. The ‘fops’ syntax • The GNU C-compiler supports a syntax for ‘struct’ field-initializations that lets you give your field-values in any convenient order: struct file_operations my_fops = { llseek: my_llseek, write: my_write, read: my_read, };

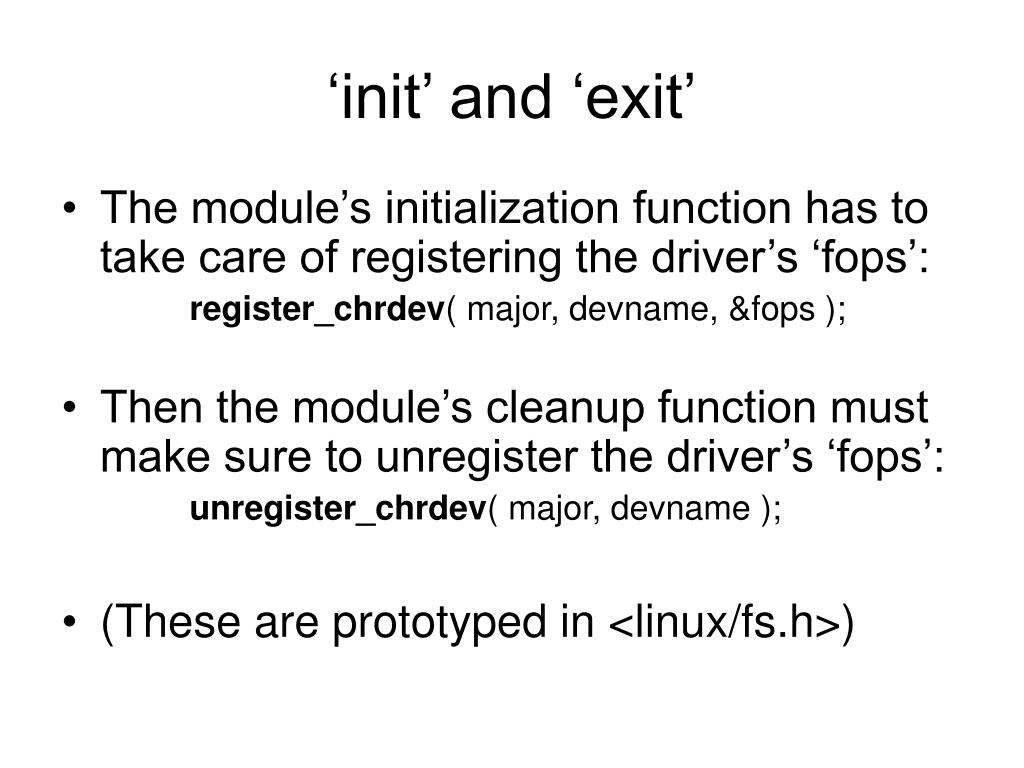

20. ‘init’ and ‘exit’ • The module’s initialization function has to take care of registering the driver’s ‘fops’: register_chrdev( major, devname, &fops ); • Then the module’s cleanup function must make sure to unregister the driver’s ‘fops’: unregister_chrdev( major, devname ); • (These are prototyped in <linux/fs.h>)

21. Our ‘dump.cpp’ utility • We have written an application that lets users display the contents of any file in both hexadecimal and ascii formats • It also works on ‘device’ files! • With our driver-module installed, you can use it to view the CMOS memory-values: $ ./dump /dev/cmos

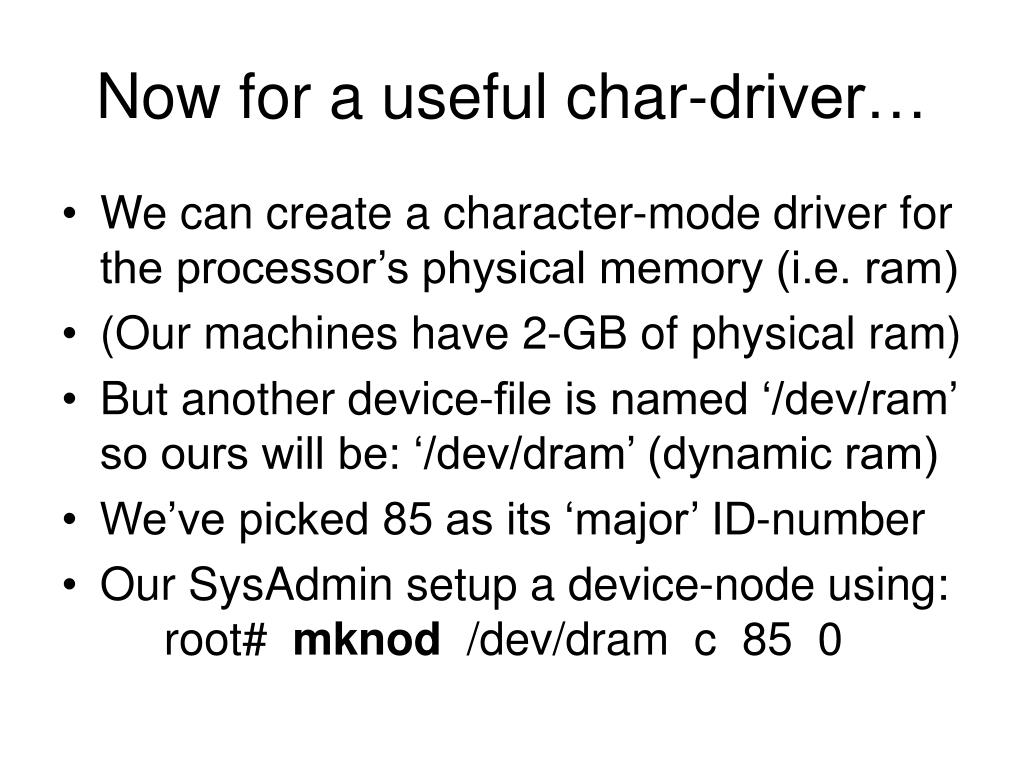

22. Now for a useful char-driver… • We can create a character-mode driver for the processor’s physical memory (i.e. ram) • (Our machines have 2-GB of physical ram) • But another device-file is named ‘/dev/ram’ so ours will be: ‘/dev/dram’ (dynamic ram) • We’ve picked 85 as its ‘major’ ID-number • Our SysAdmin setup a device-node using: root# mknod /dev/dram c 85 0

23. 2-GB RAM has ‘zones’ ZONE_HIGH 1024+128-MB 2048-MB (= 2GB) ZONE_NORMAL 896-MB 16-MB ZONE_LOW Installed physical memory

24. Legacy DMA • Various older devices rely on the PC/AT’s DMA controller to perform data-transfers • This chip could only use 24-bit addresses • Only the lowest 16-megabytes of physical memory are ‘visible’ to these devices: 224 = 0x01000000 (16-megabytes) • Linux tries to conserve its use of memory from this ZONE_LOW region (so devices will find free DMA memory if it’s needed)

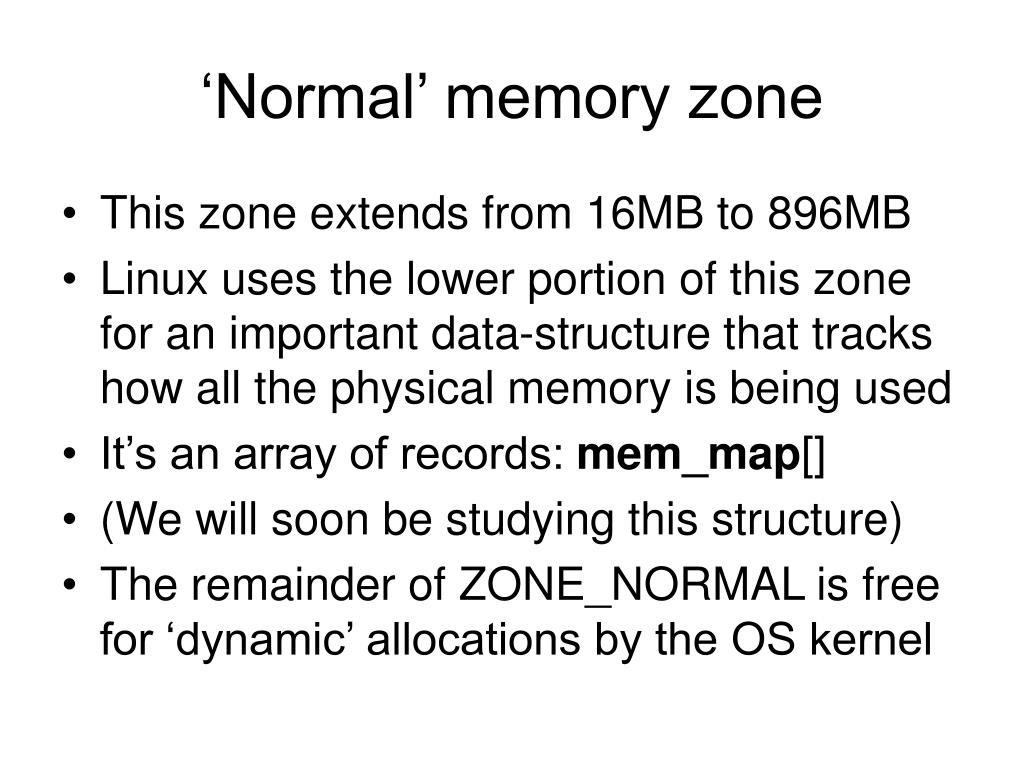

25. ‘Normal’ memory zone • This zone extends from 16MB to 896MB • Linux uses the lower portion of this zone for an important data-structure that tracks how all the physical memory is being used • It’s an array of records: mem_map[] • (We will soon be studying this structure) • The remainder of ZONE_NORMAL is free for ‘dynamic’ allocations by the OS kernel

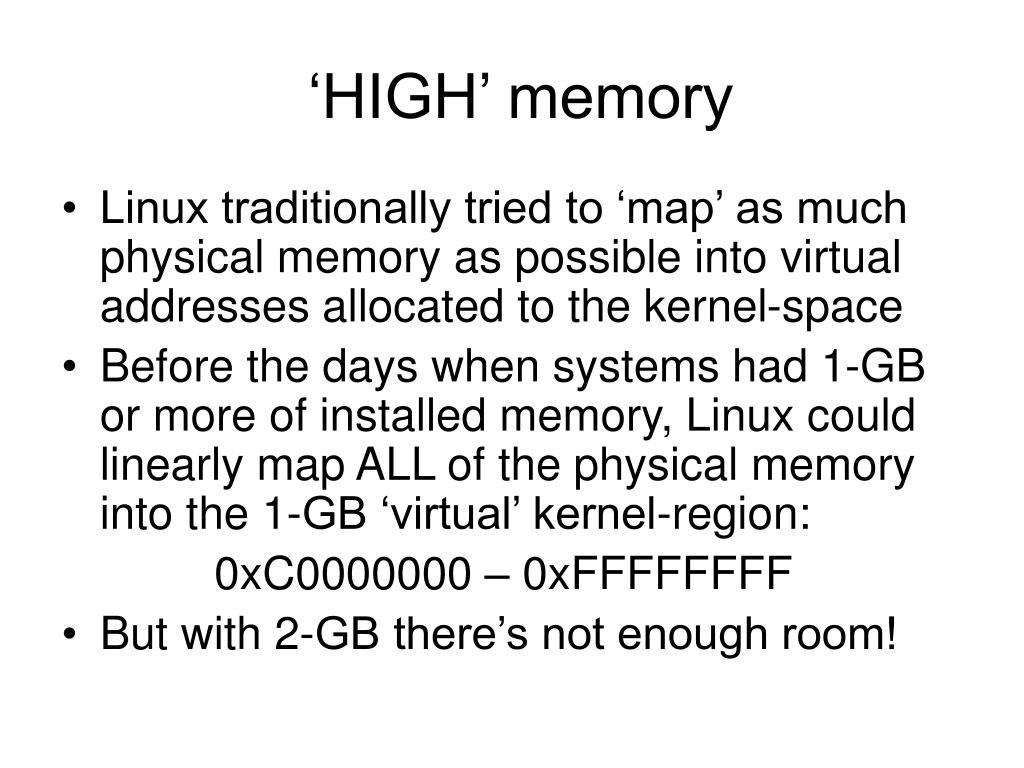

26. ‘HIGH’ memory • Linux traditionally tried to ‘map’ as much physical memory as possible into virtual addresses allocated to the kernel-space • Before the days when systems had 1-GB or more of installed memory, Linux could linearly map ALL of the physical memory into the 1-GB ‘virtual’ kernel-region: 0xC0000000 – 0xFFFFFFFF • But with 2-GB there’s not enough room!

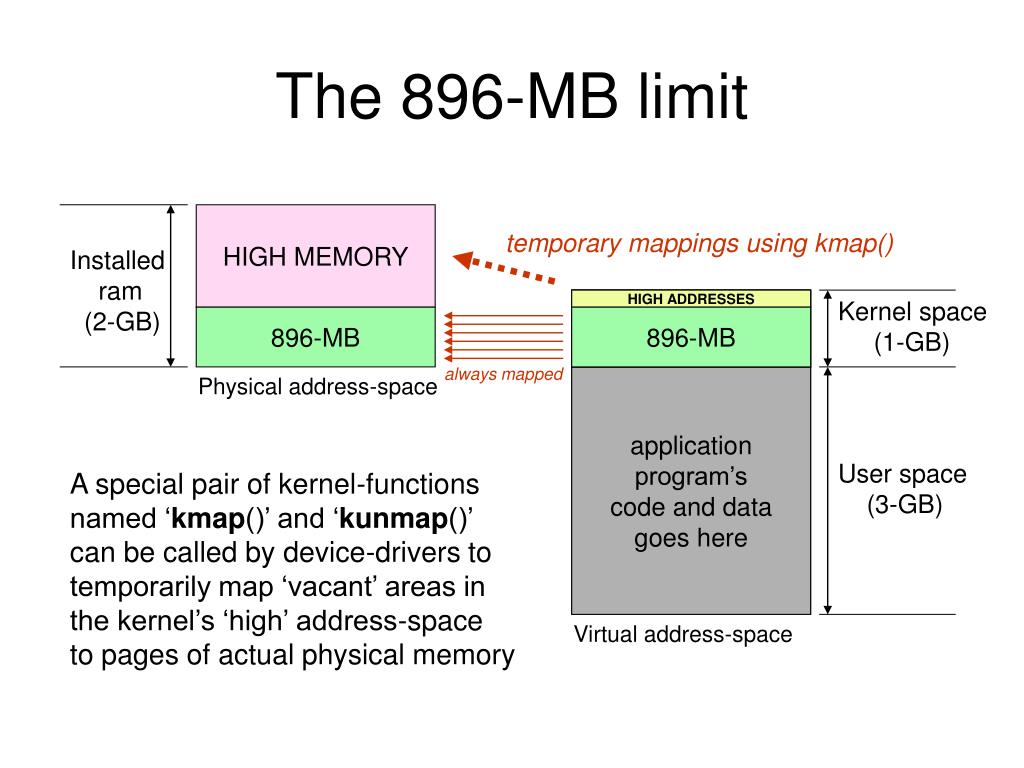

27. The 896-MB limit HIGH MEMORY temporary mappings using kmap() Installed ram (2-GB) HIGH ADDRESSES Kernel space (1-GB) 896-MB 896-MB always mapped Physical address-space application program’s code and data goes here User space (3-GB) A special pair of kernel-functions named ‘kmap()’ and ‘kunmap()’ can be called by device-drivers to temporarily map ‘vacant’ areas in the kernel’s ‘high’ address-space to pages of actual physical memory Virtual address-space

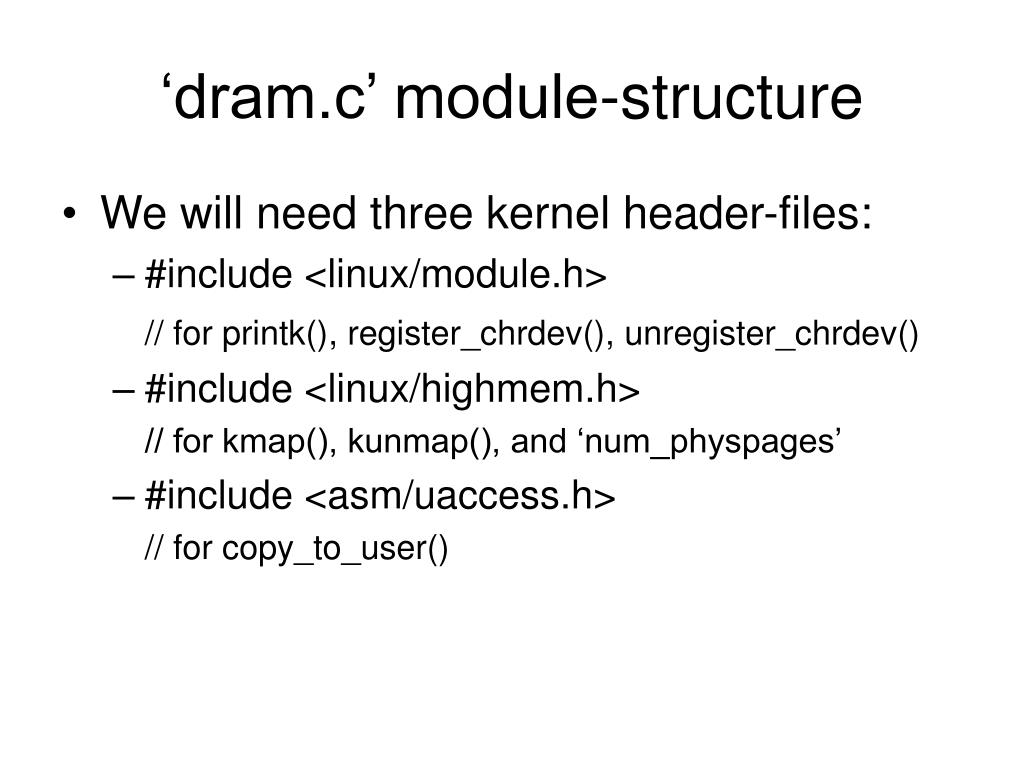

28. ‘dram.c’ module-structure • We will need three kernel header-files: • #include <linux/module.h> // for printk(), register_chrdev(), unregister_chrdev() • #include <linux/highmem.h> // for kmap(), kunmap(), and ‘num_physpages’ • #include <asm/uaccess.h> // for copy_to_user()

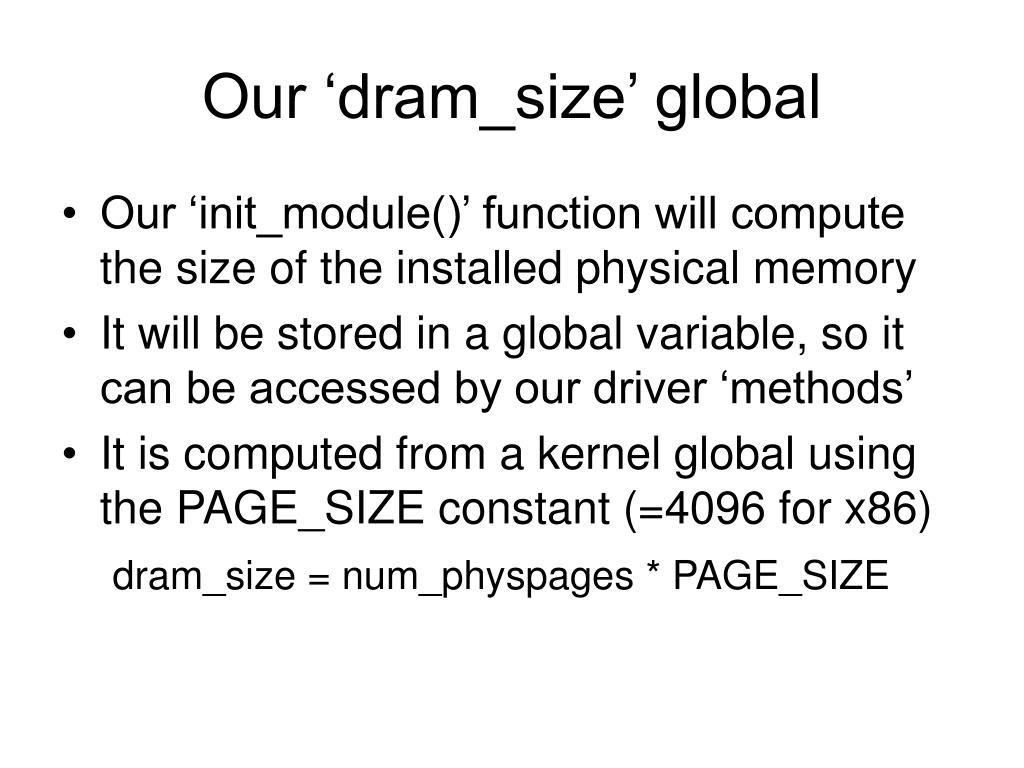

29. Our ‘dram_size’ global • Our ‘init_module()’ function will compute the size of the installed physical memory • It will be stored in a global variable, so it can be accessed by our driver ‘methods’ • It is computed from a kernel global using the PAGE_SIZE constant (=4096 for x86) dram_size = num_physpages * PAGE_SIZE

30. ‘major’ ID-number • Our ‘major’ device ID-number is needed when we ‘register’ our device-driver with the kernel (during initialization) and later when we ‘unregister’ our device-driver (during the cleanup procedure): int my_major = 85; // static ID-assignment

31. Our ‘file_operations’ • Our ‘dram’ device-driver does not need to implement special ‘methods’ for doing the ‘open()’, ‘write()’, or ‘release()’ operations (the kernel ‘default’ operations will suffice) • But we DO need to implement ‘read()’ and ‘llseek()’ methods • Our ‘llseek()’ code here is very standard • But ‘read()’ is specially crafted for DRAM

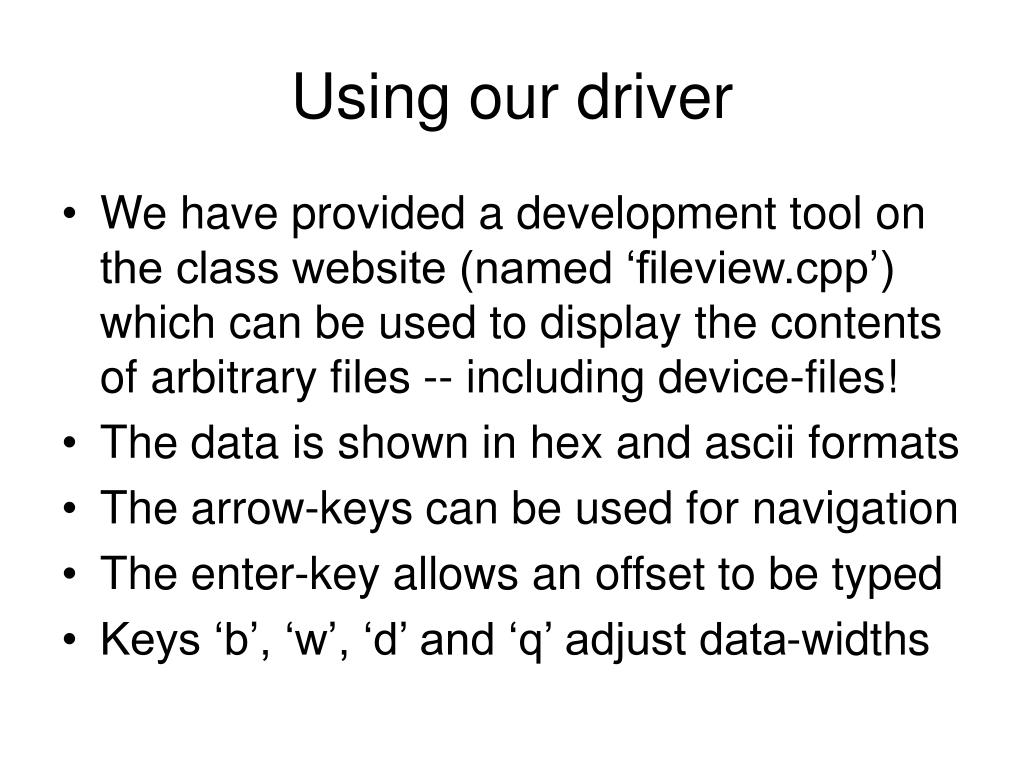

32. Using our driver • We have provided a development tool on the class website (named ‘fileview.cpp’) which can be used to display the contents of arbitrary files -- including device-files! • The data is shown in hex and ascii formats • The arrow-keys can be used for navigation • The enter-key allows an offset to be typed • Keys ‘b’, ‘w’, ‘d’ and ‘q’ adjust data-widths

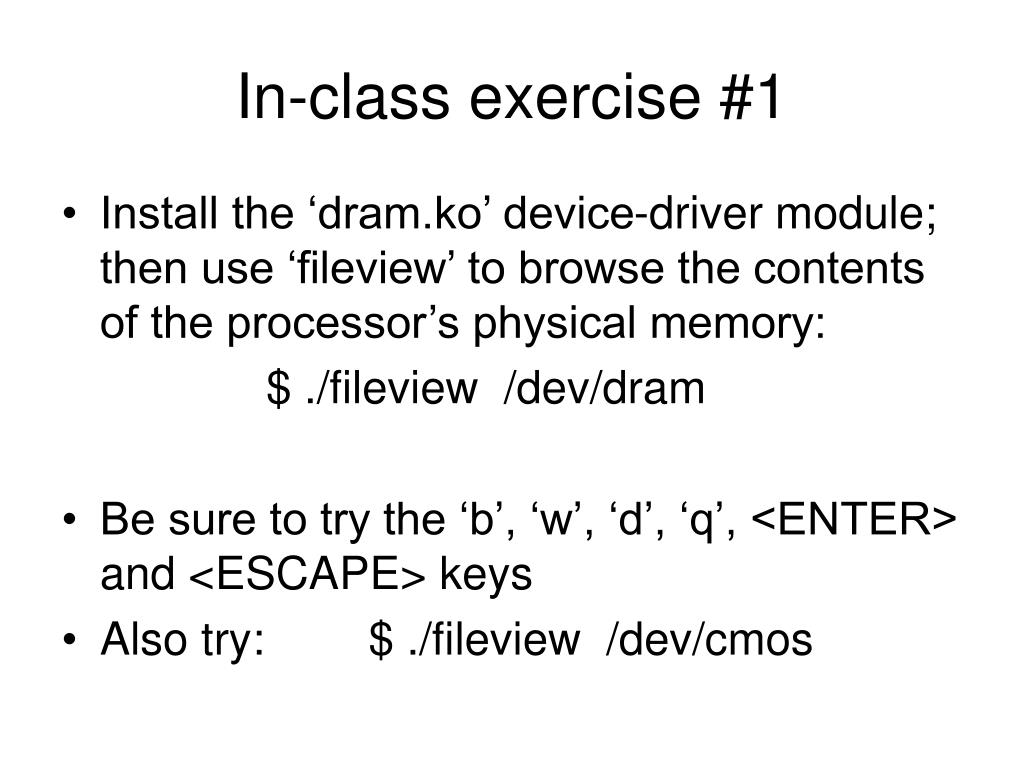

33. In-class exercise #1 • Install the ‘dram.ko’ device-driver module; then use ‘fileview’ to browse the contents of the processor’s physical memory: $ ./fileview /dev/dram • Be sure to try the ‘b’, ‘w’, ‘d’, ‘q’, <ENTER> and <ESCAPE> keys • Also try: $ ./fileview /dev/cmos

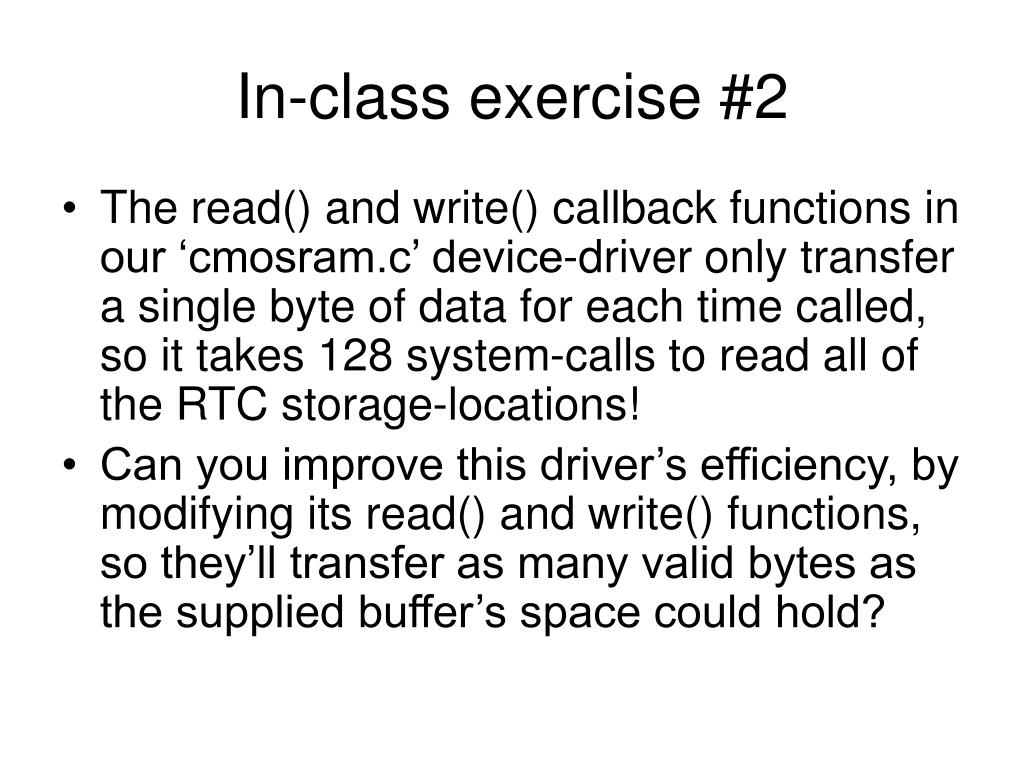

34. In-class exercise #2 • The read() and write() callback functions in our ‘cmosram.c’ device-driver only transfer a single byte of data for each time called, so it takes 128 system-calls to read all of the RTC storage-locations! • Can you improve this driver’s efficiency, by modifying its read() and write() functions, so they’ll transfer as many valid bytes as the supplied buffer’s space could hold?
