  1. Languages and Compilers(SProg og Oversættere) Bent Thomsen Department of Computer Science Aalborg University With acknowledgement to Elsa Gunter who’s slides this lecture is based on.

  2. Type Checking • When is op(arg1,…,argn) allowed? • Type checking assures that operations are applied to the right number of arguments of the right types • Right type may mean same type as was specified, or may mean that there is a predefined implicit coercion that will be applied • Used to resolve overloaded operations

  3. Type Checking • Type checking may be done statically at compile timeor dynamically at run time • Untyped languages (eg LISP, Prolog) do only dynamic type checking • Typed languages can do most type checking statically

  4. Dynamic Type Checking • Performed at run-time before each operation is applied • Types of variables and operations left unspecified until run-time • Same variable may be used at different types

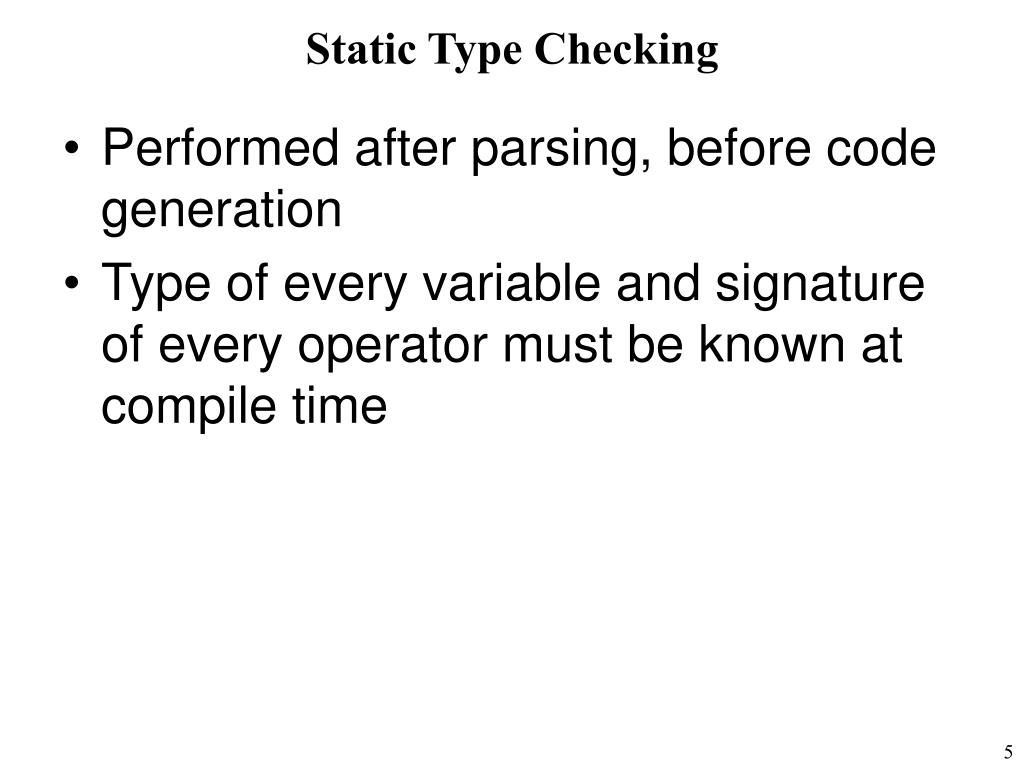

  5. Static Type Checking • Performed after parsing, before code generation • Type of every variable and signature of every operator must be known at compile time

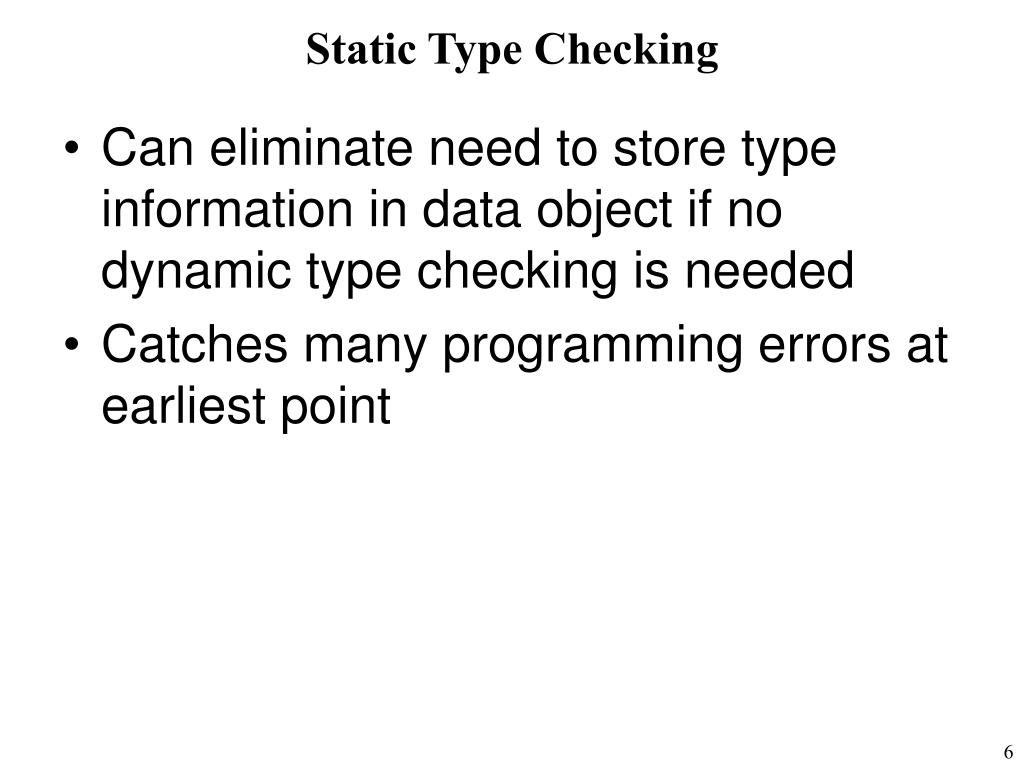

  6. Static Type Checking • Can eliminate need to store type information in data object if no dynamic type checking is needed • Catches many programming errors at earliest point

  7. Strongly Typed Language • When no application of an operator to arguments can lead to a run-time type error, language is strongly typed • Depends on definition of “type”

  8. Strongly Typed Language • C is “strongly typed” but type coercions may cause unexpected (undesirable) effects; no array bounds check (in fact, no runtime checks at all) • SML “strongly typed” but still must do dynamic array bounds checks, arithmetic overflow checks

  9. How to Handle Type Mismatches • Type checking to refuse them • Apply implicit function to change type of data • Coerce int into real • Coerce char into int

  10. Conversion Between Types: • Explicit: all conversions between different types must be specified • Implicit: some conversions between different types implied by language definition • Implicit conversions called coercions

  11. Coercion Examples Example in Pascal: var A: real; B: integer; A := B • Implicit coercion - an automatic conversion from one type to another

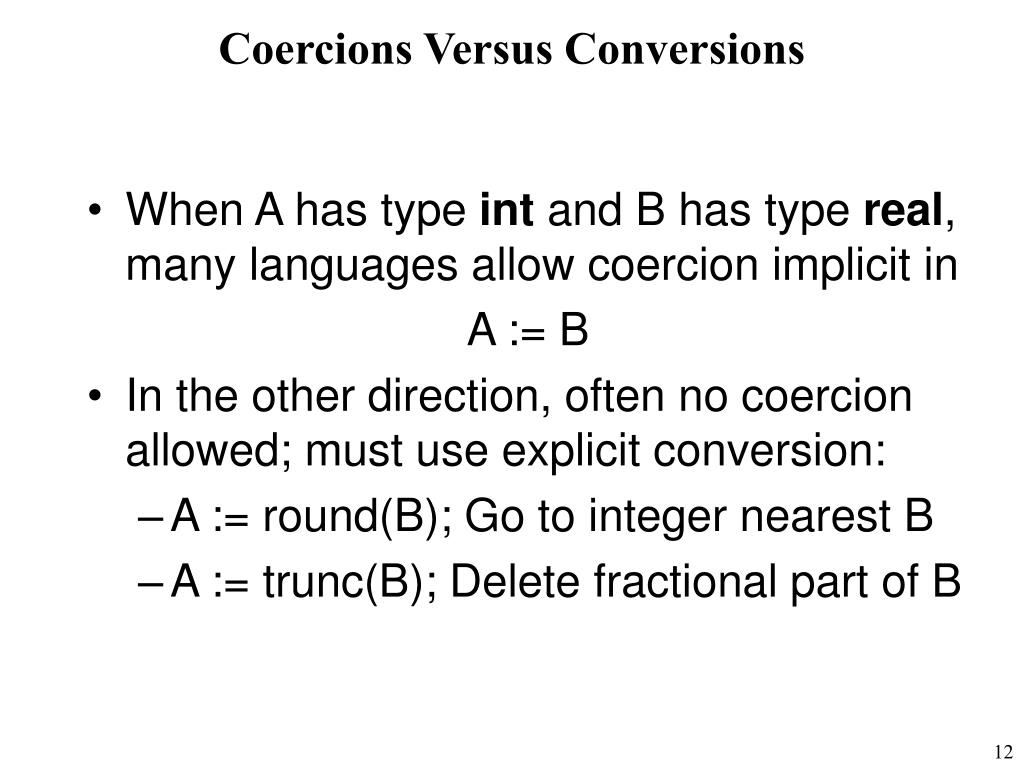

  12. Coercions Versus Conversions • When A has type int and B has type real, many languages allow coercion implicit in A := B • In the other direction, often no coercion allowed; must use explicit conversion: • A := round(B); Go to integer nearest B • A := trunc(B); Delete fractional part of B

  13. Type Equality (aka Type Compatibility) • When are two types “the same”? • Name equivalence: two types equal only if they have the same name • Simple but restrictive • Usually loosened to allow two types to be equal when one is defined with the name of the other (declaration equivalence)

  14. Type Equality • Structure equivalence: Two types are equivalent if the underlying data structures for each type are the same • Problem: how far to go – are two records with the same number of fields of same type, but different labels equivalent?

  15. Elementary Data Types • Data objects contain single data value with no components • Standard elementary types include: integers, reals, characters, booleans, enumerations, pointers (references in SML)

  16. Specification of Elementary Data Types • Basic attributes of type usually used by compiler and then discarded • Some partial type information may occur in data object • Values usually match with hardware types: 8 bits, 16 bits, 32 bits, 64 bits • Operations: primitive operations with hardware support, and user-defined operations built from primitive ones

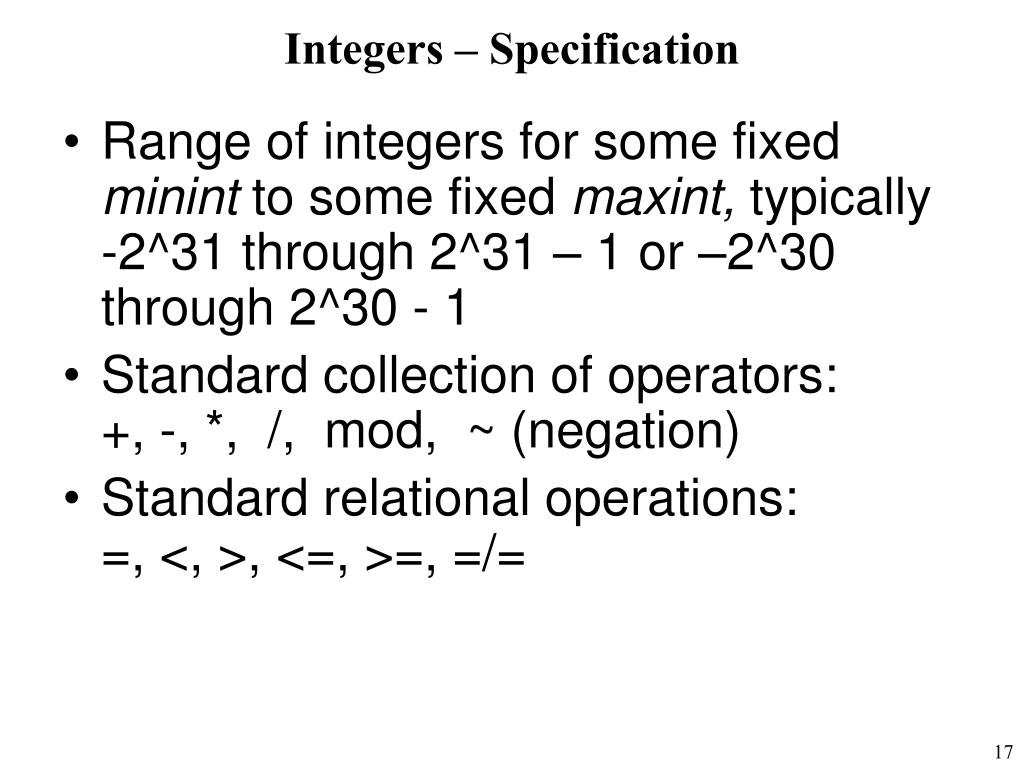

  17. Integers – Specification • Range of integers for some fixed minint to some fixed maxint, typically -2^31 through 2^31 – 1 or –2^30 through 2^30 - 1 • Standard collection of operators: +, -, *, /, mod, ~ (negation) • Standard relational operations: =, <, >, <=, >=, =/=

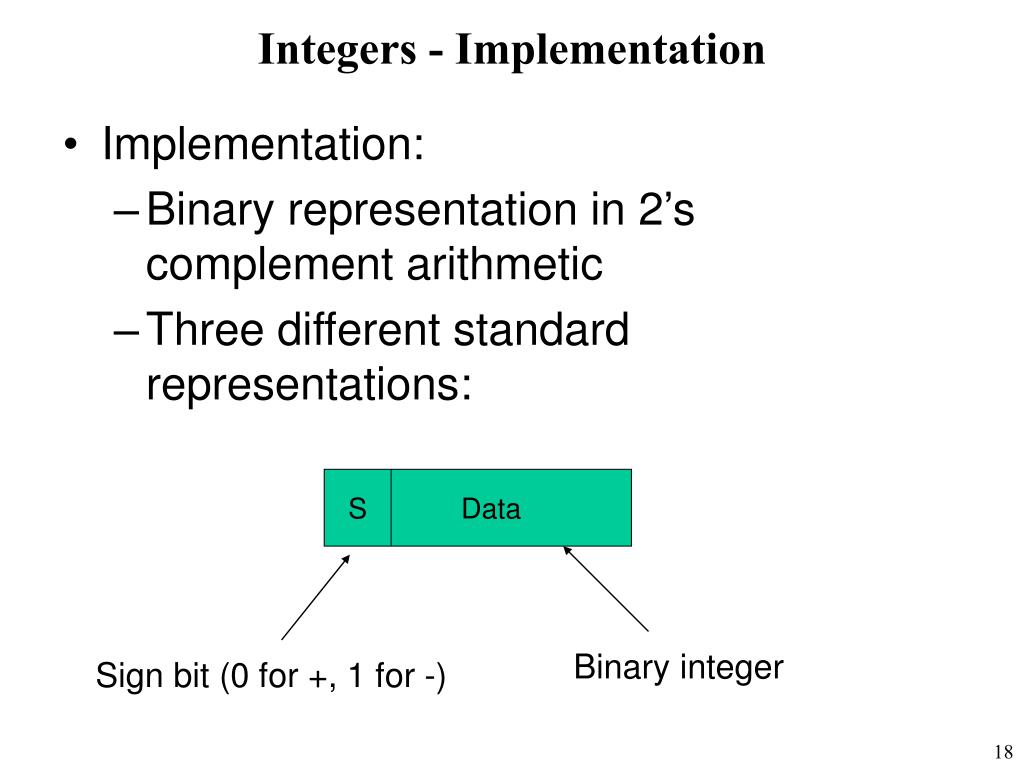

  18. S Data Binary integer Sign bit (0 for +, 1 for -) Integers - Implementation • Implementation: • Binary representation in 2’s complement arithmetic • Three different standard representations:

  19. S Data Integers - Implementation • First kind: Binary integer Sign bit (0 for +, 1 for -)

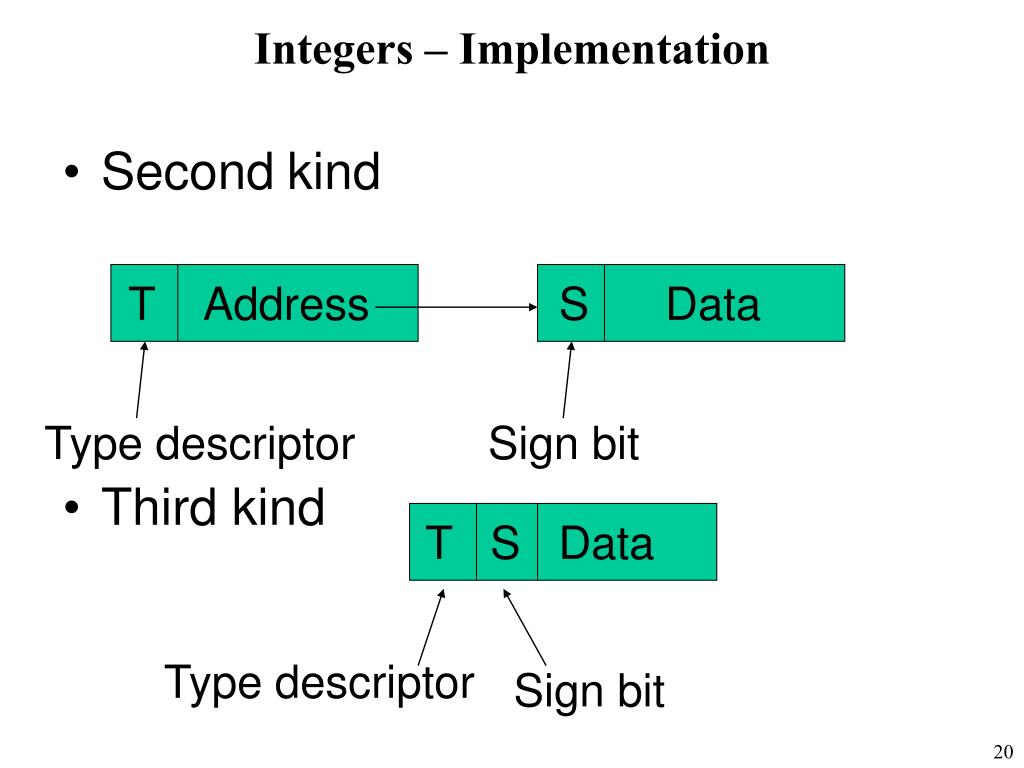

  20. T Address S Data T S Data Integers – Implementation • Secondkind • Third kind Type descriptor Sign bit Type descriptor Sign bit

  21. 0 1 0 0 1 1 0 0 Integer Numeric Data • Positive values 64 + 8 + 4 = 76 sign bit

  22. Subranges • Example (Ada): A:integer range 10..20 • Subtype of integers (implicit coercion into integer)

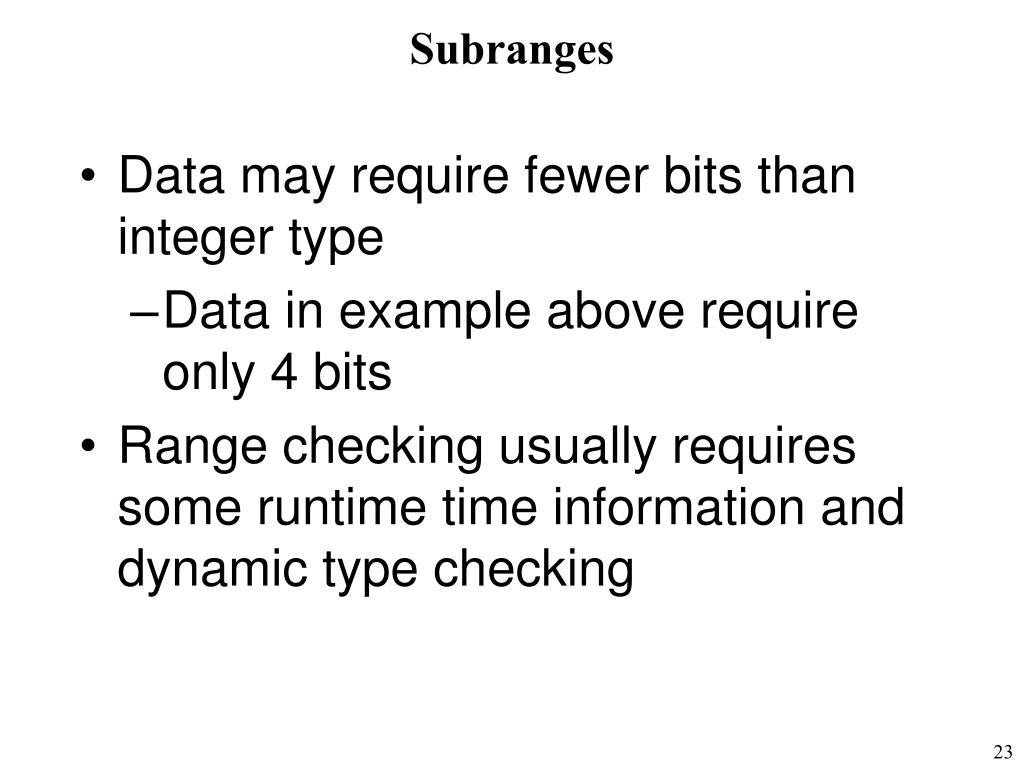

  23. Subranges • Data may require fewer bits than integer type • Data in example above require only 4 bits • Range checking usually requires some runtime time information and dynamic type checking

  24. S E M IEEE Floating Point Format • IEEE standard 754 specifies both a 32- and 64-bit standard • At least one supported by most hardware • Numbers consist of three fields: • S (sign), E (exponent), M (mantissa)

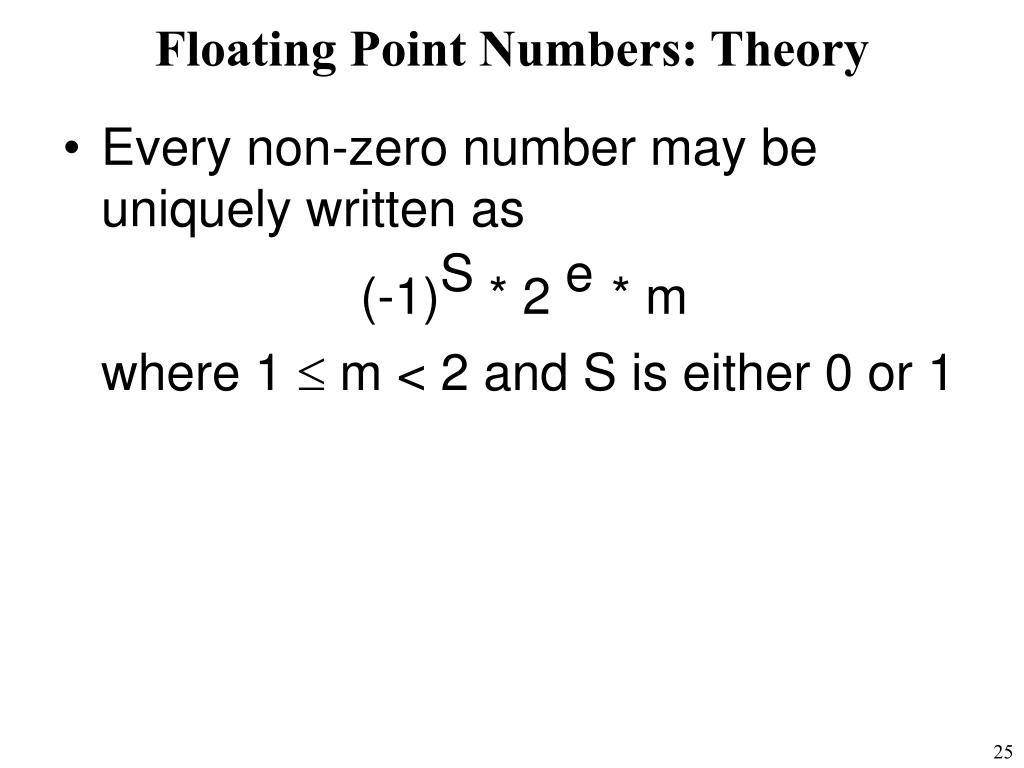

  25. Floating Point Numbers: Theory • Every non-zero number may be uniquely written as (-1)S * 2 e* m where 1  m < 2 and S is either 0 or 1

  26. Floating Point Numbers: Theory • Every non-zero number may be uniquely written as (-1)S * 2 (E – bias) * (1 + (M/2N)) where 0  M < 1 • N is number of bits for M (23 or 52) • Bias is 127 of 32-bit ints • Bias is 1023 for 64-bit ints

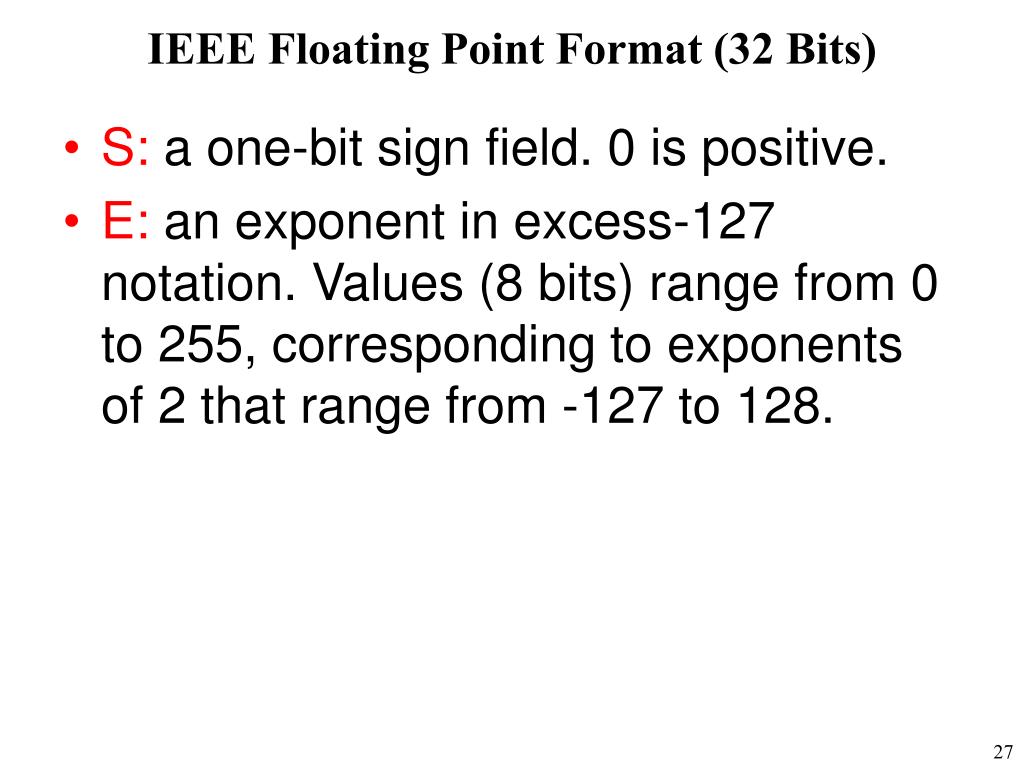

  27. IEEE Floating Point Format (32 Bits) • S: a one-bit sign field. 0 is positive. • E: an exponent in excess-127 notation. Values (8 bits) range from 0 to 255, corresponding to exponents of 2 that range from -127 to 128.

  28. IEEE Floating Point Format (32 Bits) • M: a mantissa of 23 bits. Since the first bit of the mantissa in a normalized number is always 1, it can be omitted and inserted automatically by the hardware, yielding an extra 24th bit of precision.

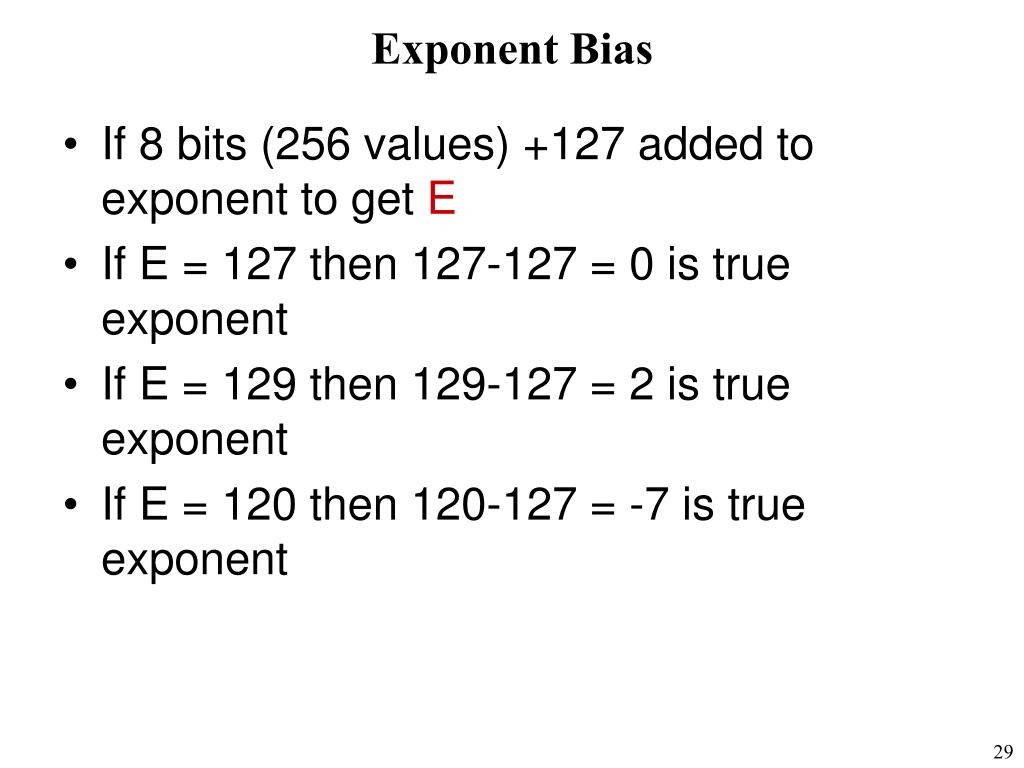

  29. Exponent Bias • If 8 bits (256 values) +127 added to exponent to get E • If E = 127 then 127-127 = 0 is true exponent • If E = 129 then 129-127 = 2 is true exponent • If E = 120 then 120-127 = -7 is true exponent

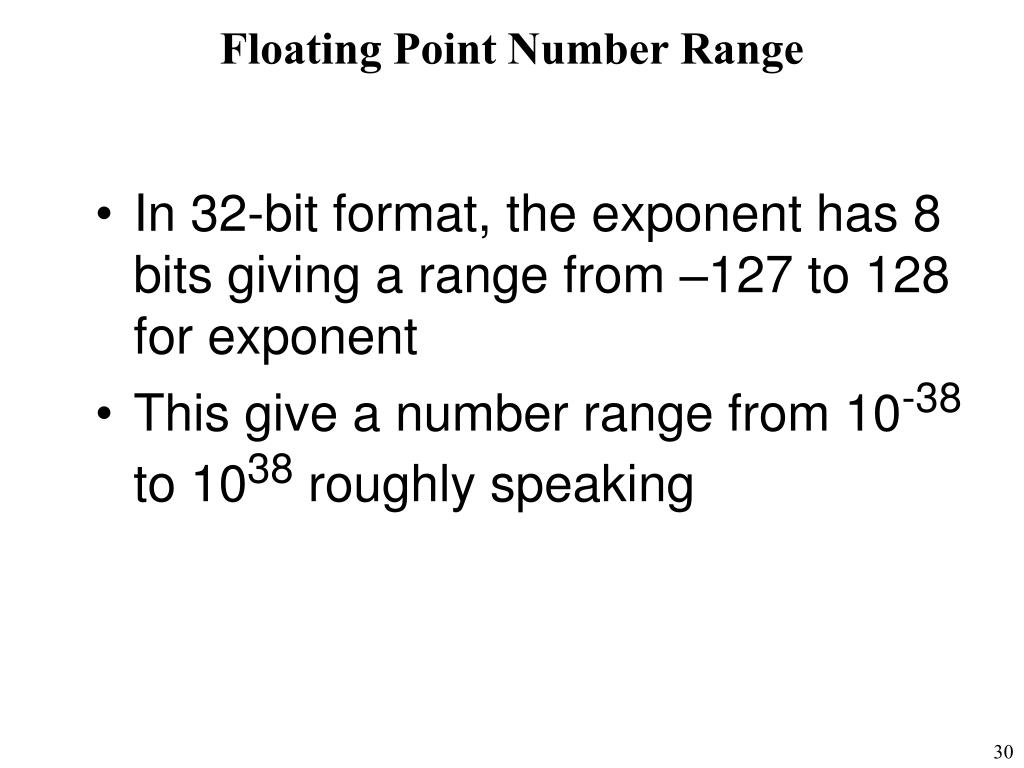

  30. Floating Point Number Range • In 32-bit format, the exponent has 8 bits giving a range from –127 to 128 for exponent • This give a number range from 10-38 to 1038 roughly speaking

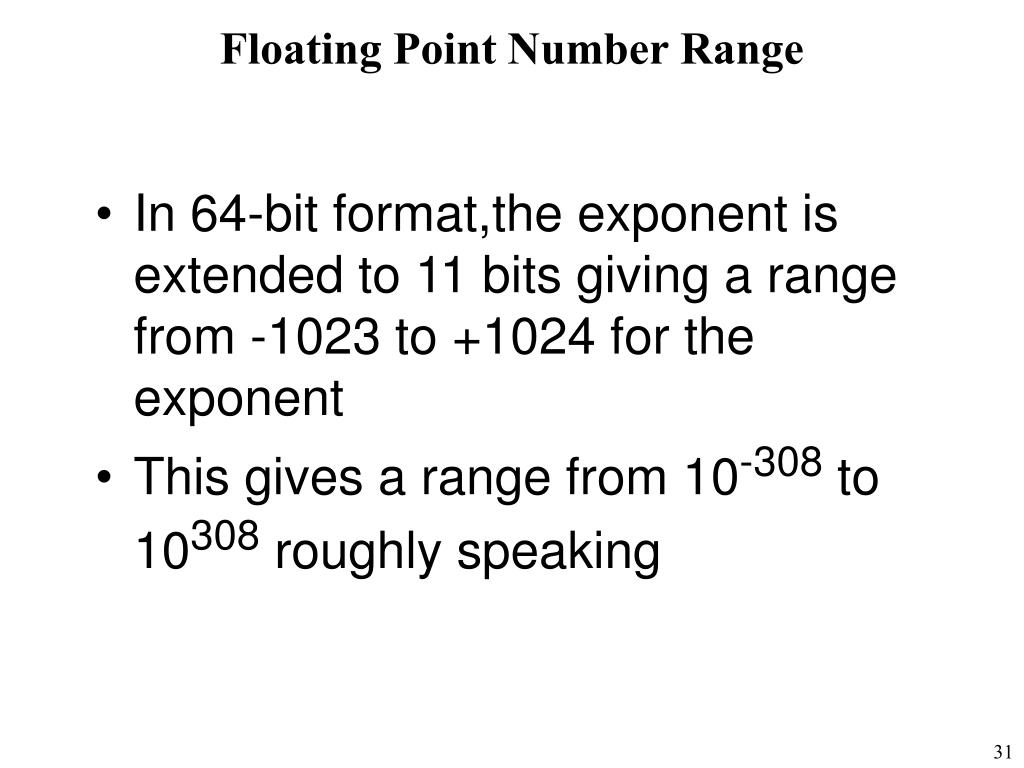

  31. Floating Point Number Range • In 64-bit format,the exponent is extended to 11 bits giving a range from -1023 to +1024 for the exponent • This gives a range from 10-308 to 10308 roughly speaking

  32. Decoding IEEE format • Given E, and M, the value of the representation is: Parameters Value • E=255 and M  0 An invalid number • E=255 and M = 0  • 0<E<255 2{E-127}(1+(M/ 223)) • E=0 and M  0 2 -126 (M / 223) • E=0 and M=0 0

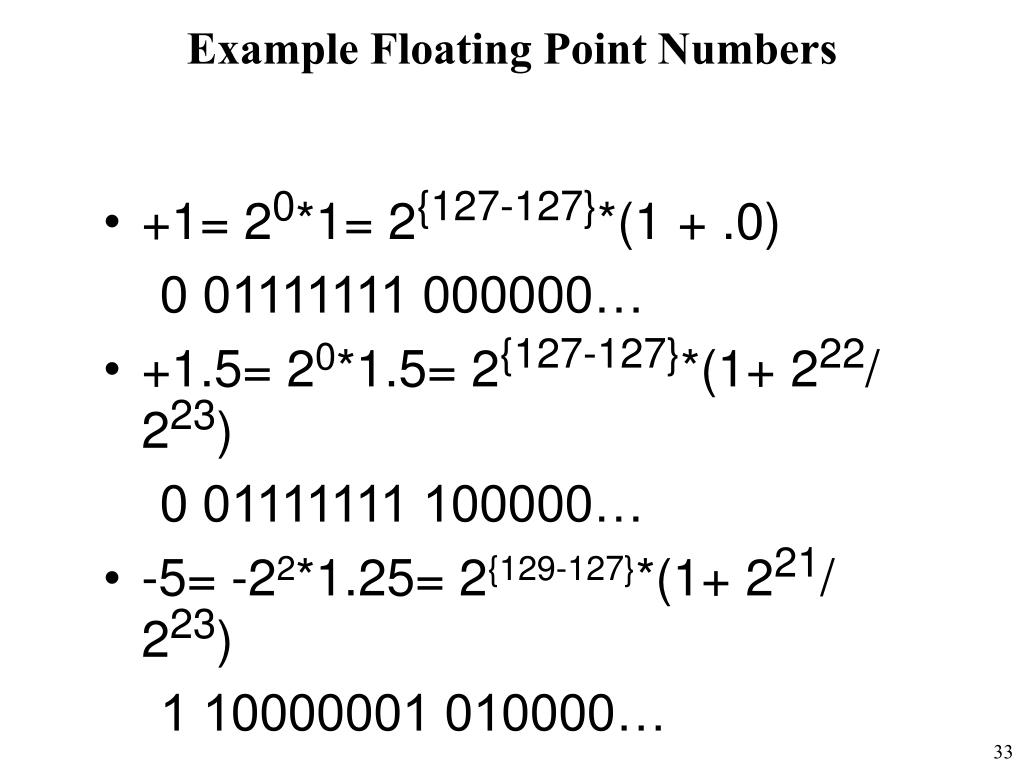

  33. Example Floating Point Numbers • +1= 20*1= 2{127-127}*(1 + .0) 0 01111111 000000… • +1.5= 20*1.5= 2{127-127}*(1+ 222/ 223) 0 01111111 100000… • -5= -22*1.25= 2{129-127}*(1+ 221/ 223) 1 10000001 010000…

  34. Other Numeric Data • Short integers (C) - 16 bit, 8 bit • Long integers (C) - 64 bit • Boolean or logical - 1 bit with value true or false (often stored as bytes) • Byte - 8 bits

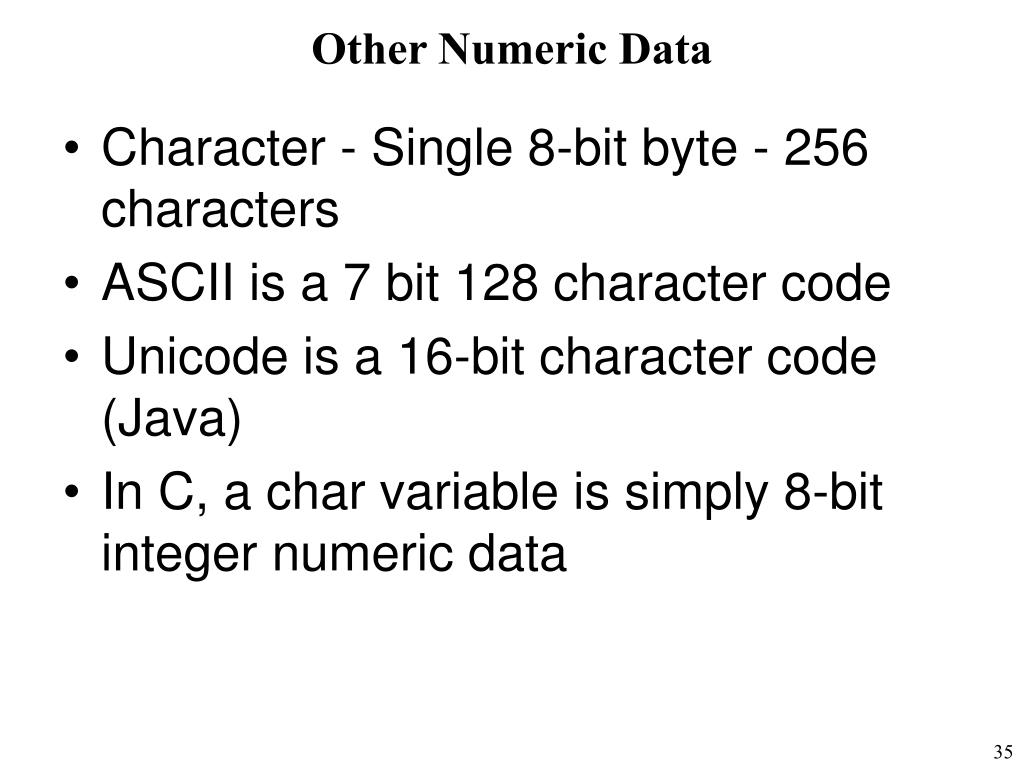

  35. Other Numeric Data • Character - Single 8-bit byte - 256 characters • ASCII is a 7 bit 128 character code • Unicode is a 16-bit character code (Java) • In C, a char variable is simply 8-bit integer numeric data

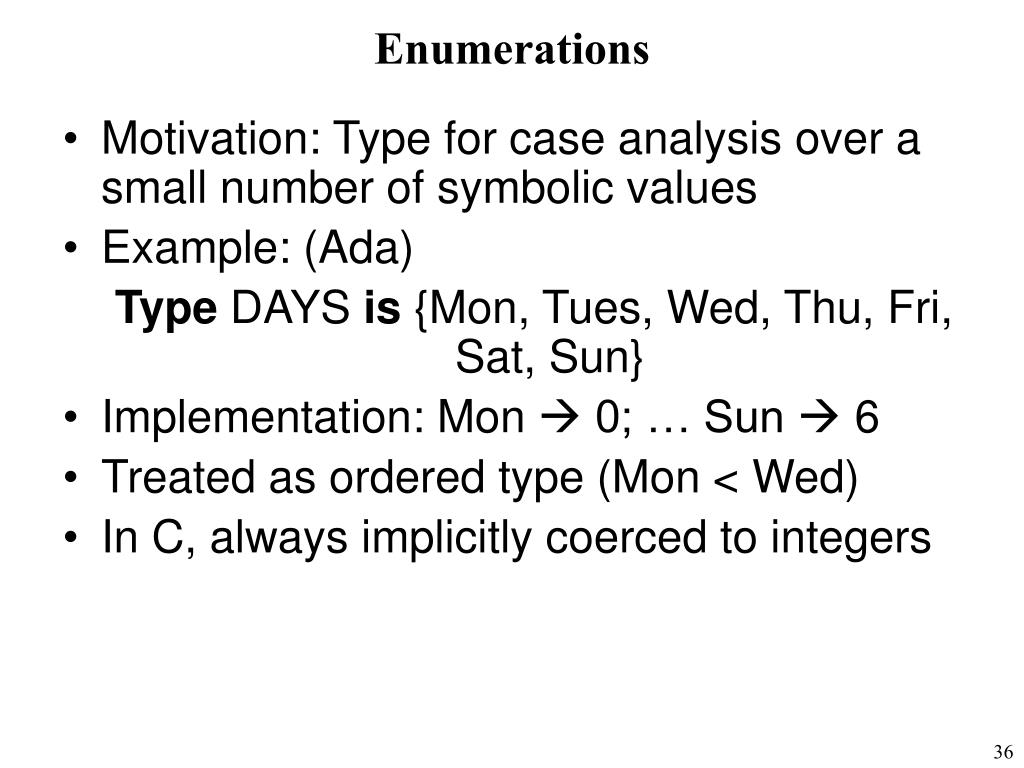

  36. Enumerations • Motivation: Type for case analysis over a small number of symbolic values • Example: (Ada) Type DAYS is {Mon, Tues, Wed, Thu, Fri, Sat, Sun} • Implementation: Mon  0; … Sun  6 • Treated as ordered type (Mon < Wed) • In C, always implicitly coerced to integers

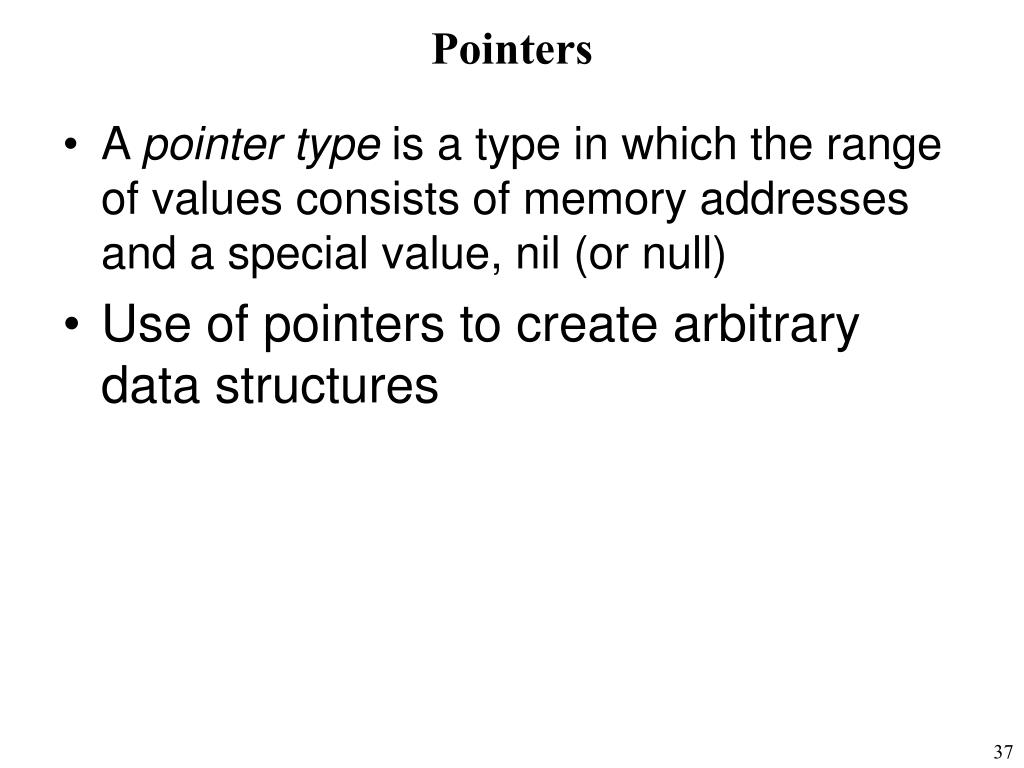

  37. Pointers • A pointer type is a type in which the range of values consists of memory addresses and a special value, nil (or null) • Use of pointers to create arbitrary data structures

  38. Pointer Data • Each pointer can point to an object of another data structure • Its l-value is its address; its r-value is the address of another object • Accessing r-value of r-value of pointer called dereferencing

  39. Pointer Aliasing • A:= B • Numeric assignment A: A: B: B: • Pointer assignment A: A: B: B: 7.2 0.4 0.4 0.4 7.2 0.4 0.4

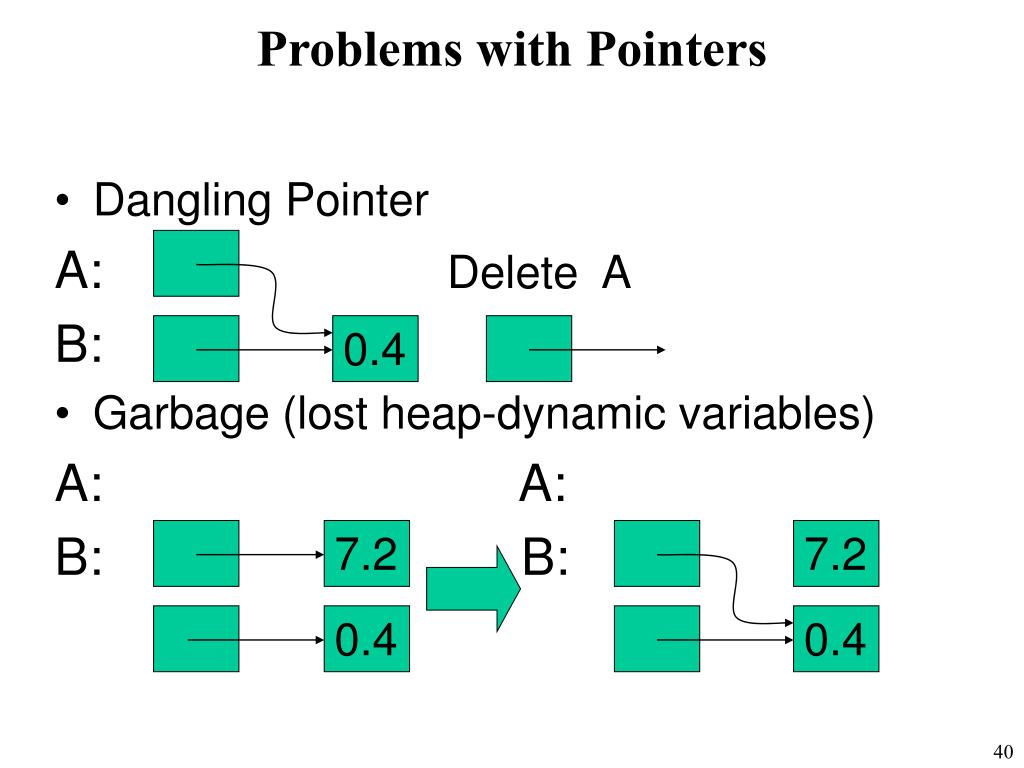

  40. 0.4 7.2 7.2 0.4 0.4 Problems with Pointers • Dangling Pointer A: Delete A B: • Garbage (lost heap-dynamic variables) A: A: B: B:

  41. Ways to Create Dangling Pointers int * A, B; A = new int; A = 5; B = A; delete A; /* B is still pointing to the address of object A returned to stack */

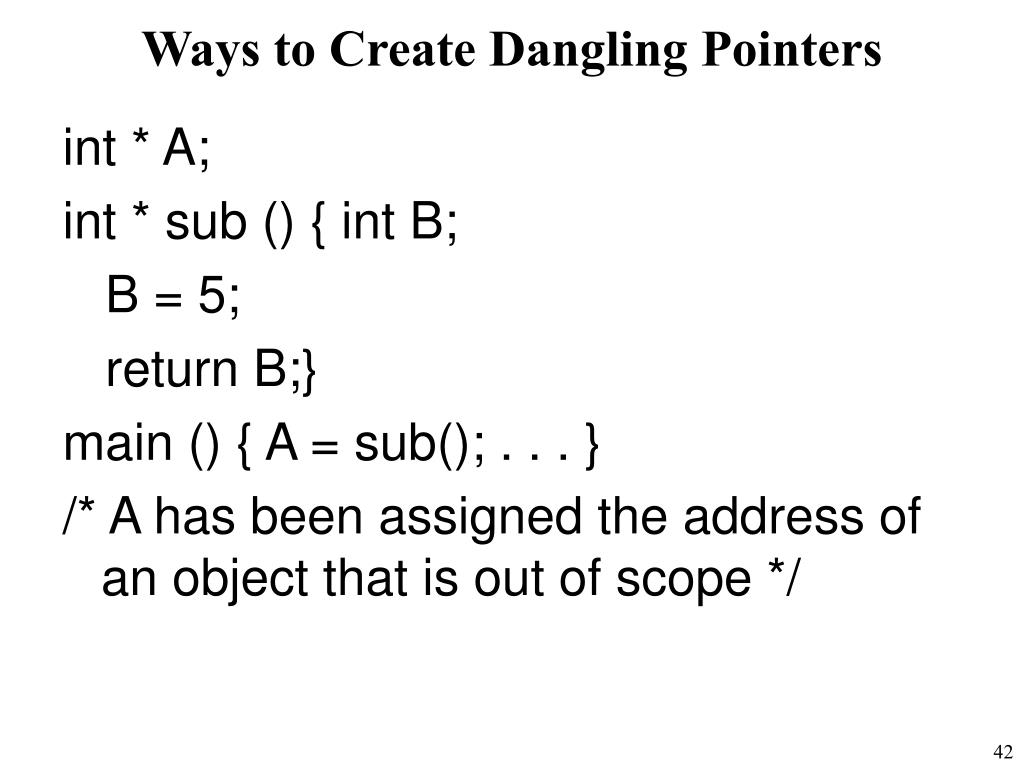

  42. Ways to Create Dangling Pointers int * A; int * sub () { int B; B = 5; return B;} main () { A = sub(); . . . } /* A has been assigned the address of an object that is out of scope */

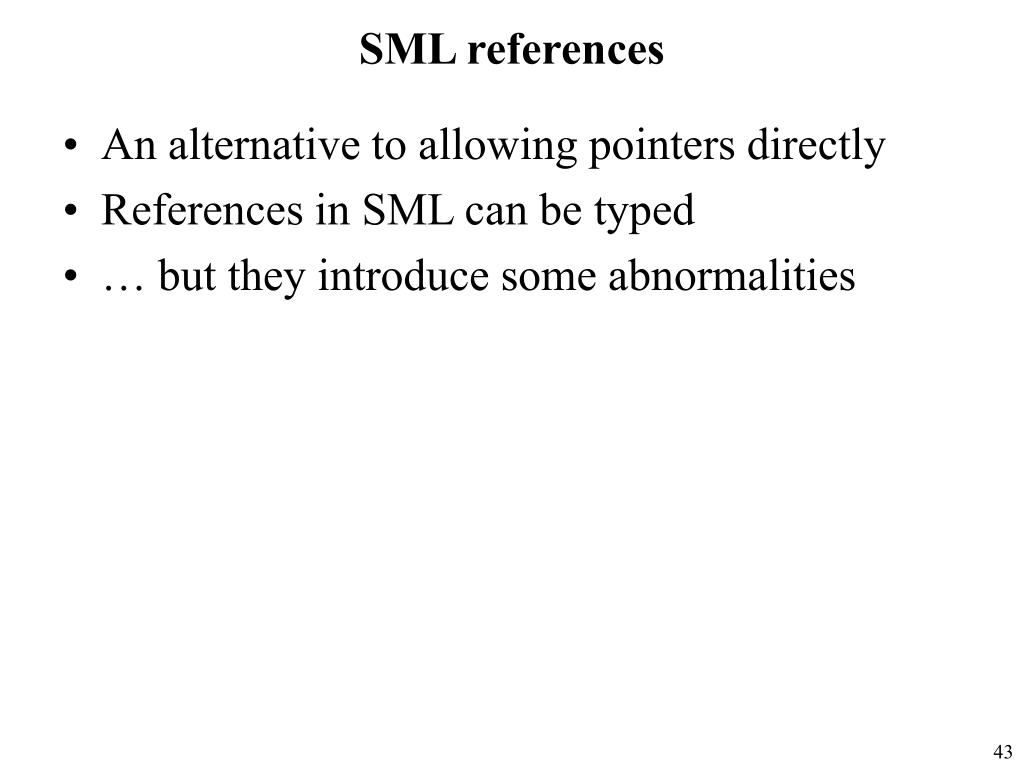

  43. SML references • An alternative to allowing pointers directly • References in SML can be typed • … but they introduce some abnormalities

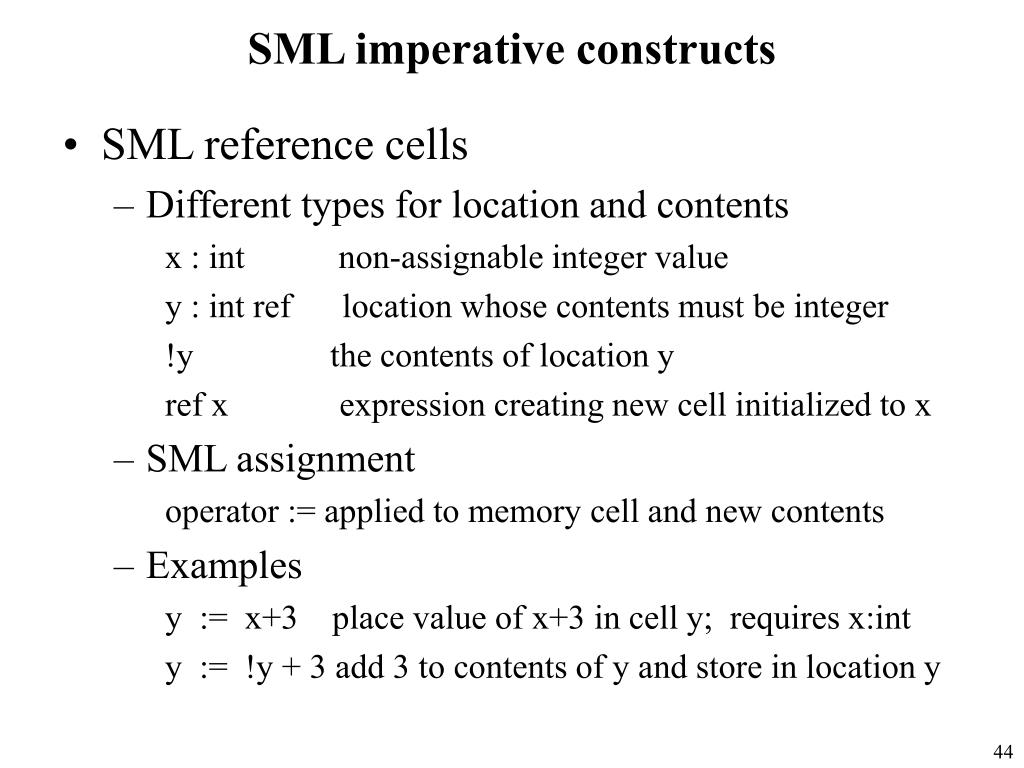

  44. SML imperative constructs • SML reference cells • Different types for location and contents x : int non-assignable integer value y : int ref location whose contents must be integer !y the contents of location y ref x expression creating new cell initialized to x • SML assignment operator := applied to memory cell and new contents • Examples y := x+3 place value of x+3 in cell y; requires x:int y := !y + 3 add 3 to contents of y and store in location y

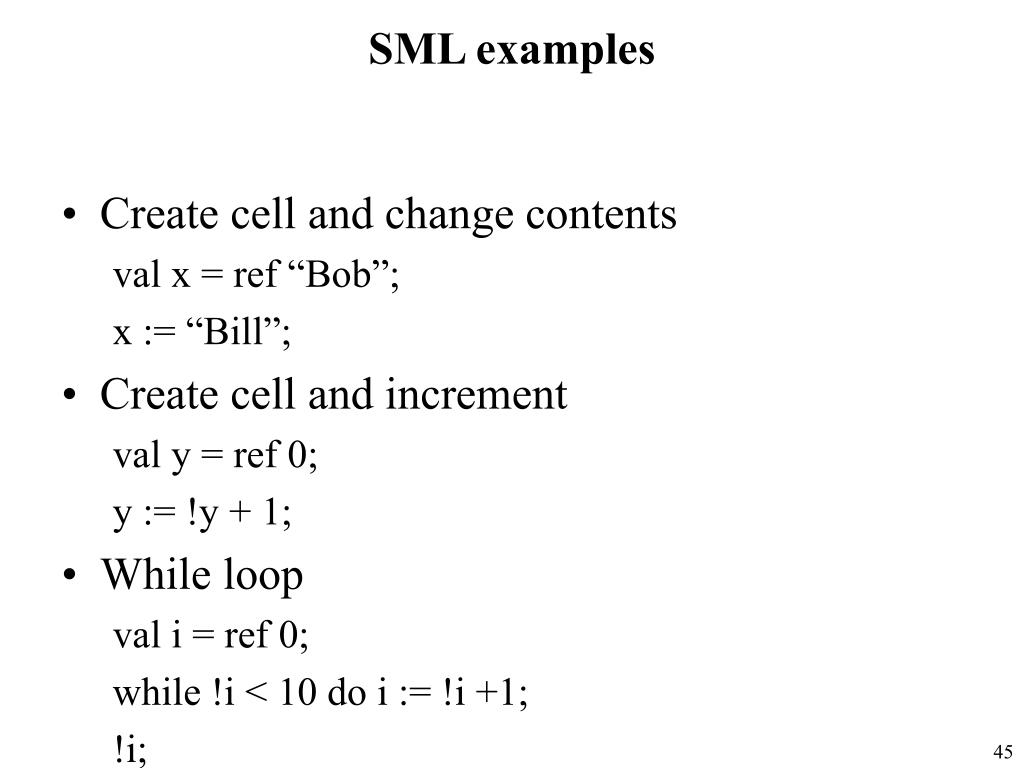

  45. SML examples • Create cell and change contents val x = ref “Bob”; x := “Bill”; • Create cell and increment val y = ref 0; y := !y + 1; • While loop val i = ref 0; while !i < 10 do i := !i +1; !i;

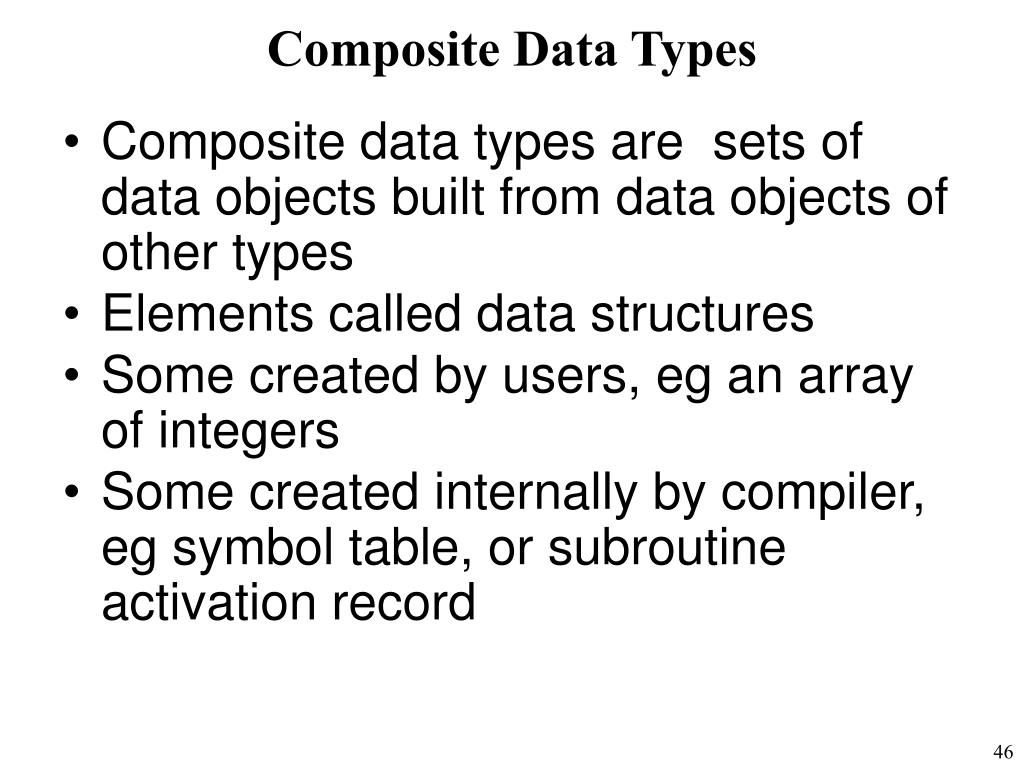

  46. Composite Data Types • Composite data types are sets of data objects built from data objects of other types • Elements called data structures • Some created by users, eg an array of integers • Some created internally by compiler, eg symbol table, or subroutine activation record

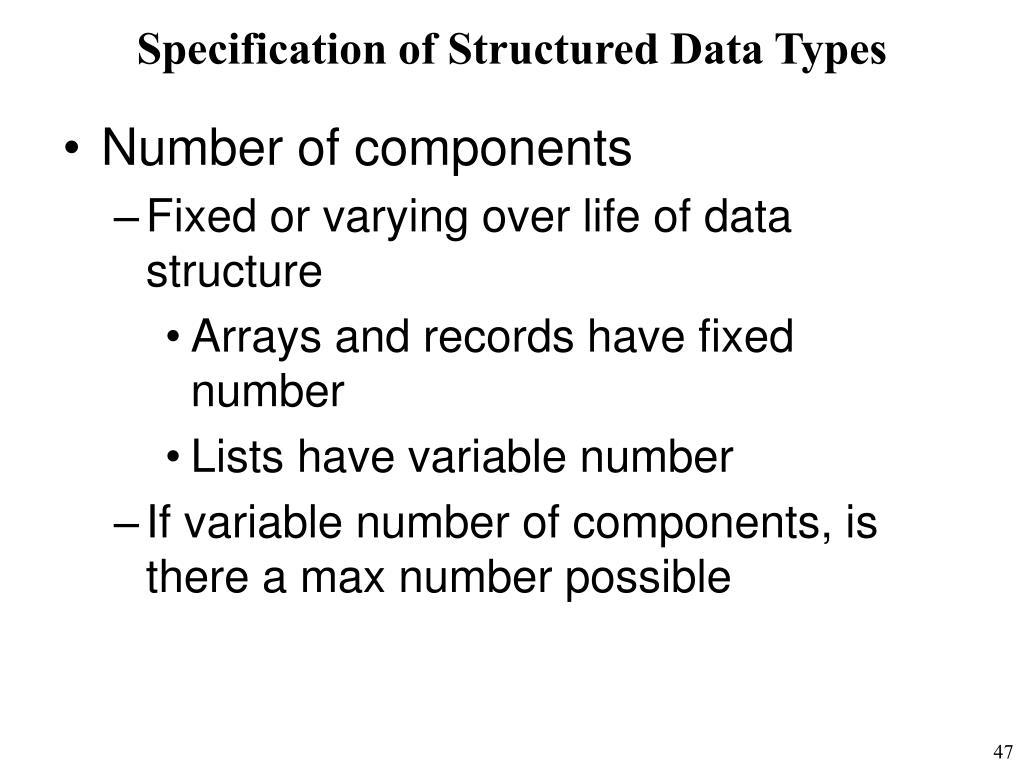

  47. Specification of Structured Data Types • Number of components • Fixed or varying over life of data structure • Arrays and records have fixed number • Lists have variable number • If variable number of components, is there a max number possible

  48. Specification of Structured Data Types • Type of each component • Homogeneous: all components have same type • Arrays • Heterogeneous: components have varying types • Records (also lists in some languages, but not SML)

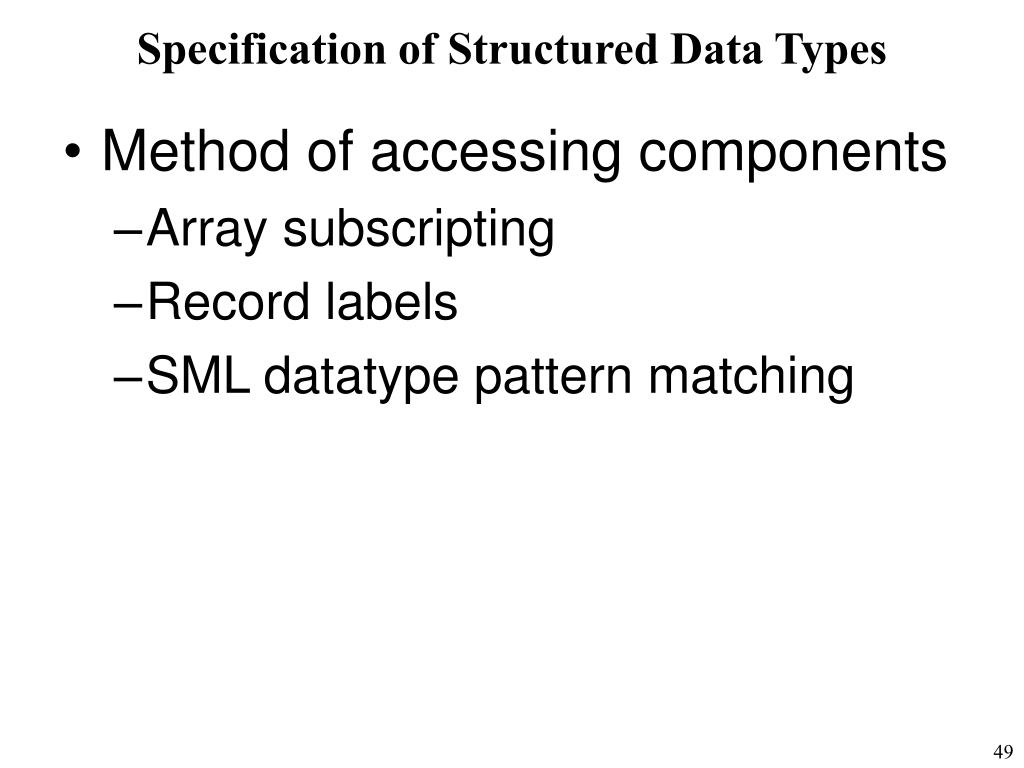

  49. Specification of Structured Data Types • Method of accessing components • Array subscripting • Record labels • SML datatype pattern matching

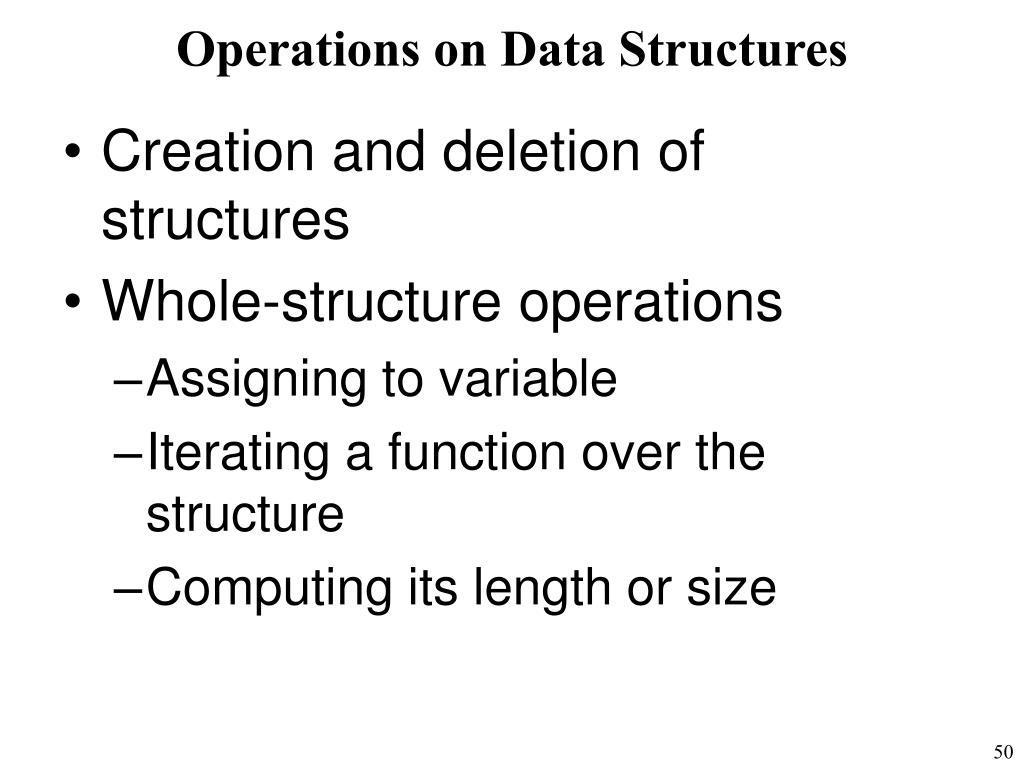

  50. Operations on Data Structures • Creation and deletion of structures • Whole-structure operations • Assigning to variable • Iterating a function over the structure • Computing its length or size
