Bin Packing First fit decreasing algorithm

Bin Packing First fit decreasing algorithm. A B C D E F. With the first fit decreasing algorithm we sort the blocks into descending order first. 6. 5. 4. 3. 3. 3. 2. 2. 1. Bin Packing First fit decreasing algorithm.

kira
Download Presentation

Bin Packing First fit decreasing algorithm

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Bin PackingFirst fit decreasing algorithm A B C D E F With the first fit decreasing algorithm we sort the blocks into descending order first. 6 5 4 3 3 3 2 2 1

  2. Bin PackingFirst fit decreasing algorithm A B C D E F With the first fit decreasing algorithm we sort the blocks into descending order first. 6 5 4 3 3 3 2 2 1

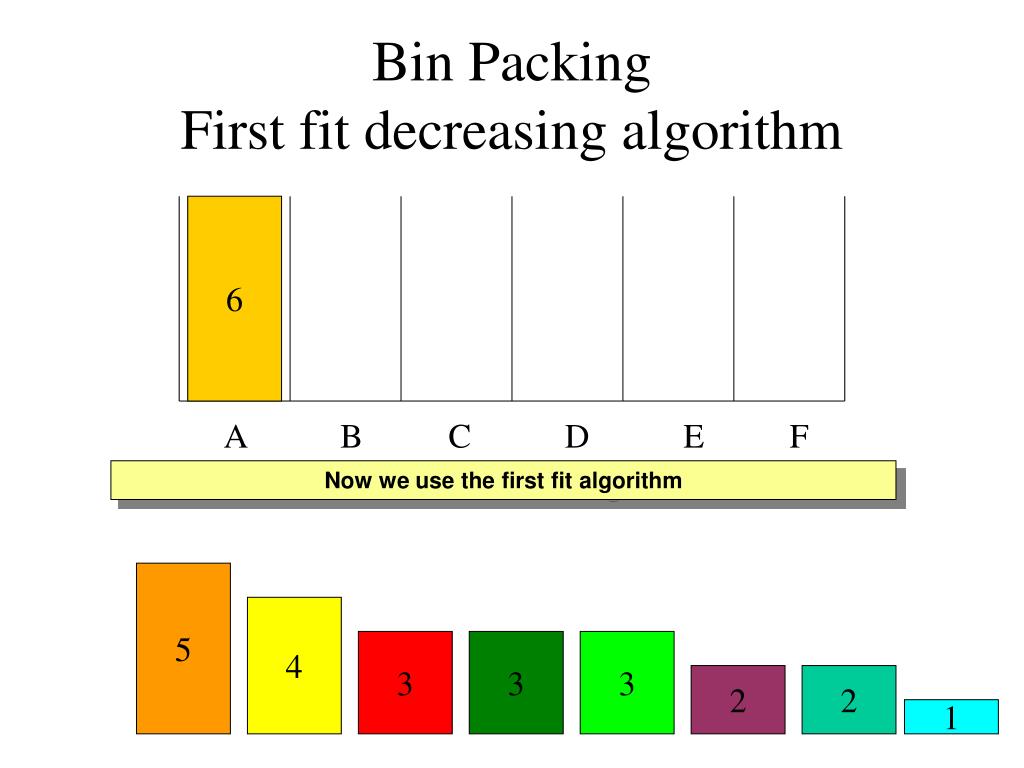

  3. Bin PackingFirst fit decreasing algorithm 6 A B C D E F Now we use the first fit algorithm 5 4 3 3 3 2 2 1

  4. 5 Bin PackingFirst fit decreasing algorithm 6 5 A B C D E F Now we use the first fit algorithm 4 3 3 3 2 2 1

  5. 4 Bin PackingFirst fit decreasing algorithm 4 6 5 4 A B C D E F Now we use the first fit algorithm 3 3 3 2 2 1

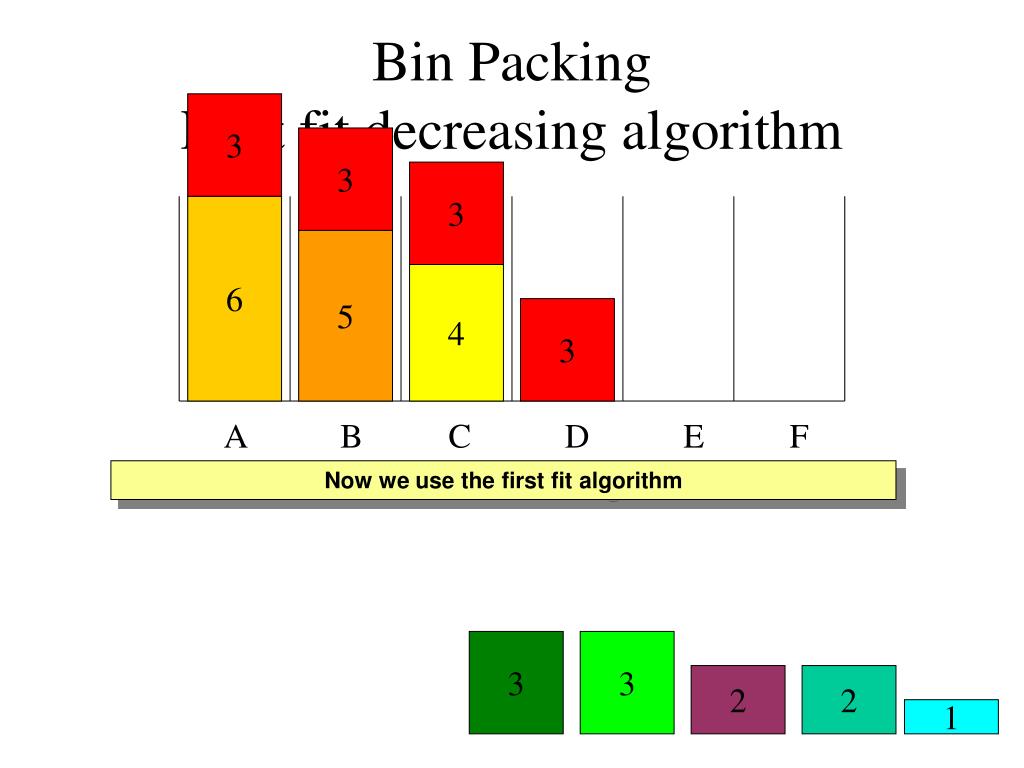

  6. Bin PackingFirst fit decreasing algorithm 3 3 3 6 5 4 3 A B C D E F Now we use the first fit algorithm 3 3 2 2 1

  7. Bin PackingFirst fit decreasing algorithm 3 3 3 6 3 5 4 3 A B C D E F Now we use the first fit algorithm 3 2 2 1

  8. Bin PackingFirst fit decreasing algorithm 3 3 3 3 6 3 5 4 3 3 A B C D E F Now we use the first fit algorithm 2 2 1

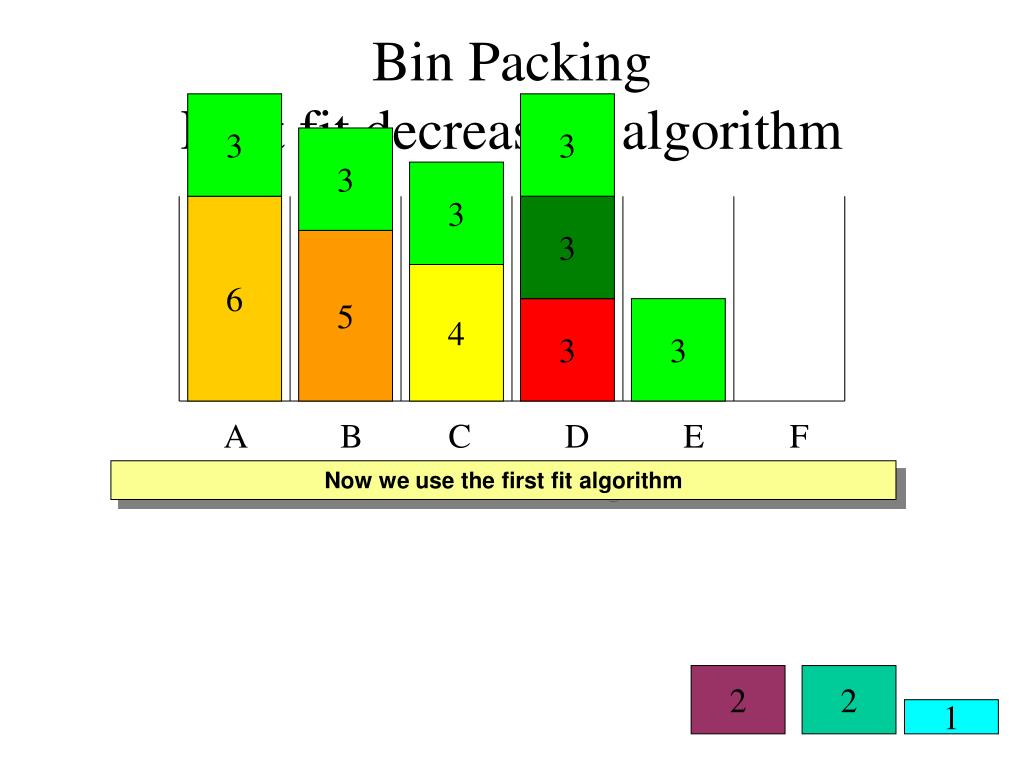

  9. Bin PackingFirst fit decreasing algorithm 2 2 6 2 3 5 4 3 3 A B C D E F Now we use the first fit algorithm 2 1

  10. Bin PackingFirst fit decreasing algorithm 2 2 2 2 6 2 3 5 2 4 3 3 A B C D E F Now we use the first fit algorithm 1

  11. Bin PackingFirst fit decreasing algorithm 1 6 1 2 3 5 2 4 3 3 A B C D E F Now we use the first fit algorithm We have packed them into 5 bins.
