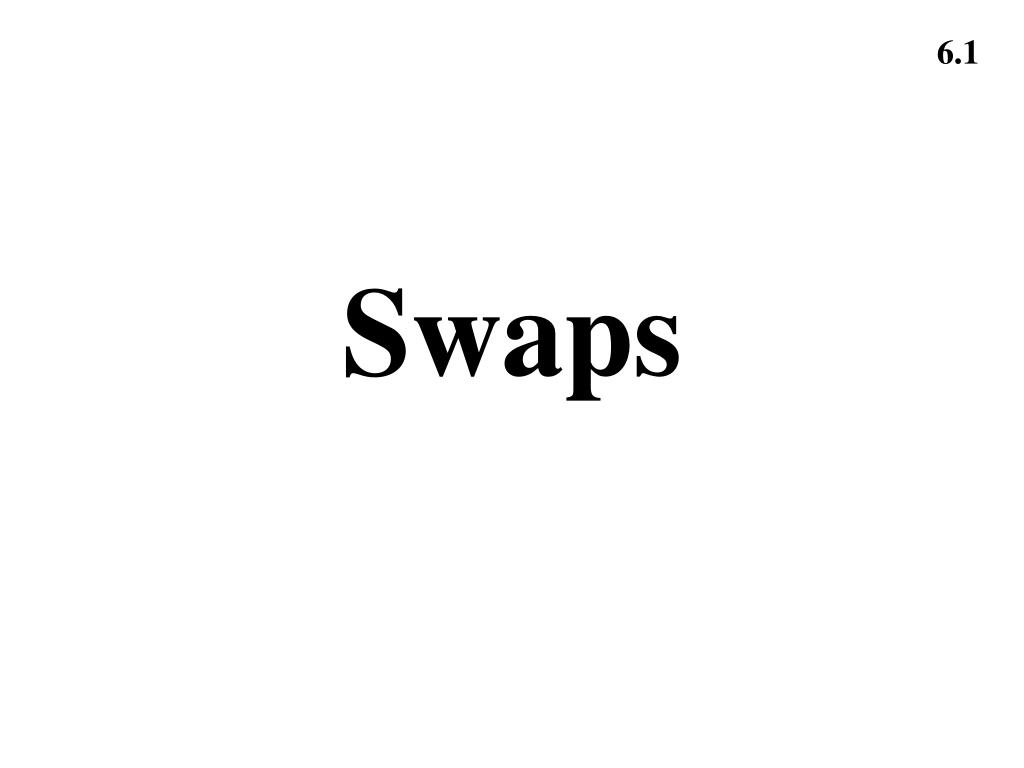

  1. Swaps

  2. Nature of Swaps A swap is an agreement to exchange cash flows at specified future times according to certain specified rules

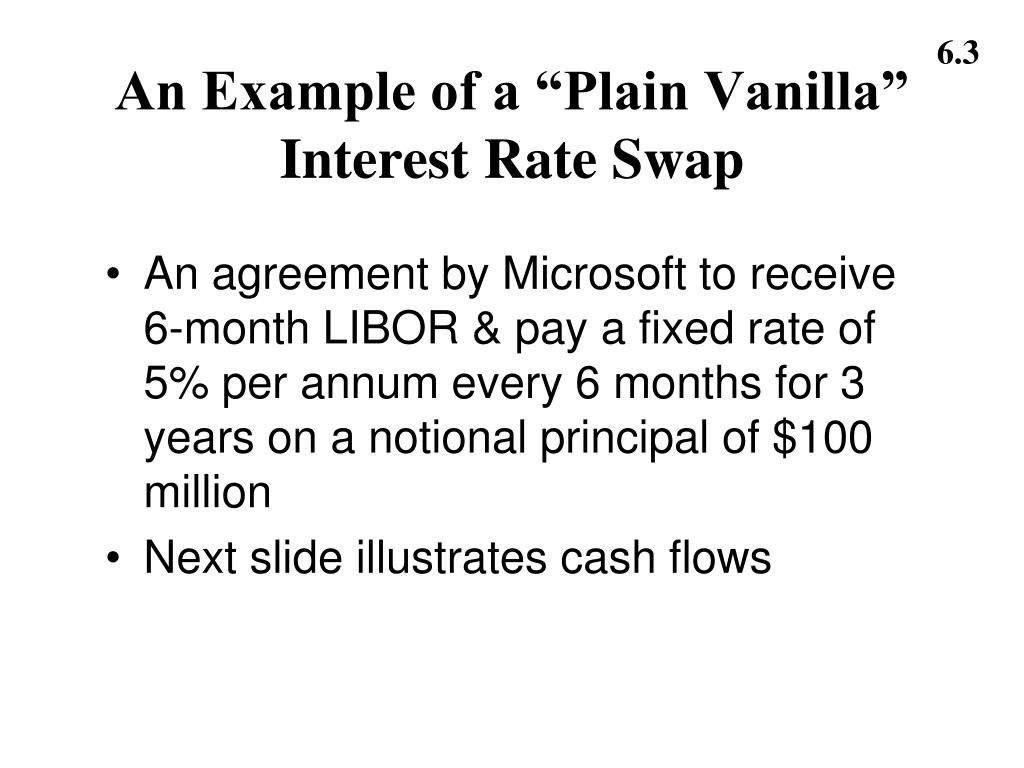

  3. An Example of a “Plain Vanilla” Interest Rate Swap • An agreement by Microsoft to receive 6-month LIBOR & pay a fixed rate of 5% per annum every 6 months for 3 years on a notional principal of $100 million • Next slide illustrates cash flows

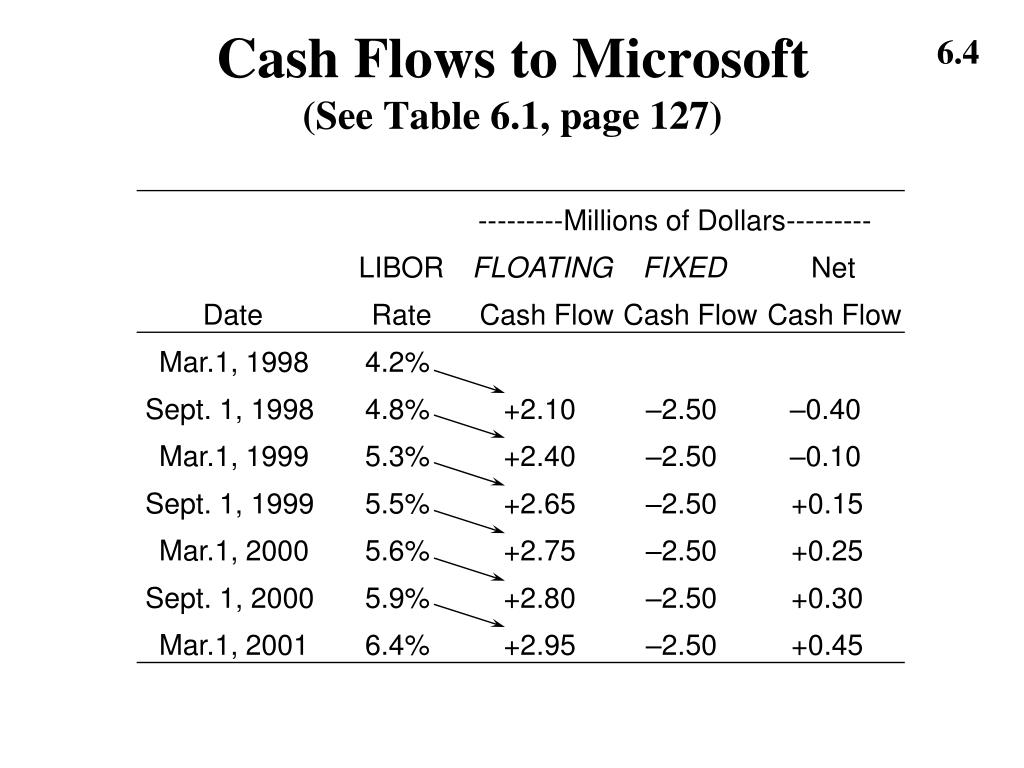

  4. ---------Millions of Dollars--------- LIBOR FLOATING FIXED Net Date Rate Cash Flow Cash Flow Cash Flow Mar.1, 1998 4.2% Sept. 1, 1998 4.8% +2.10 –2.50 –0.40 Mar.1, 1999 5.3% +2.40 –2.50 –0.10 Sept. 1, 1999 5.5% +2.65 –2.50 +0.15 Mar.1, 2000 5.6% +2.75 –2.50 +0.25 Sept. 1, 2000 5.9% +2.80 –2.50 +0.30 Mar.1, 2001 6.4% +2.95 –2.50 +0.45 Cash Flows to Microsoft(See Table 6.1, page 127)

  5. Converting a liability from fixed rate to floating rate floating rate to fixed rate Converting an investment from fixed rate to floating rate floating rate to fixed rate Typical Uses of anInterest Rate Swap

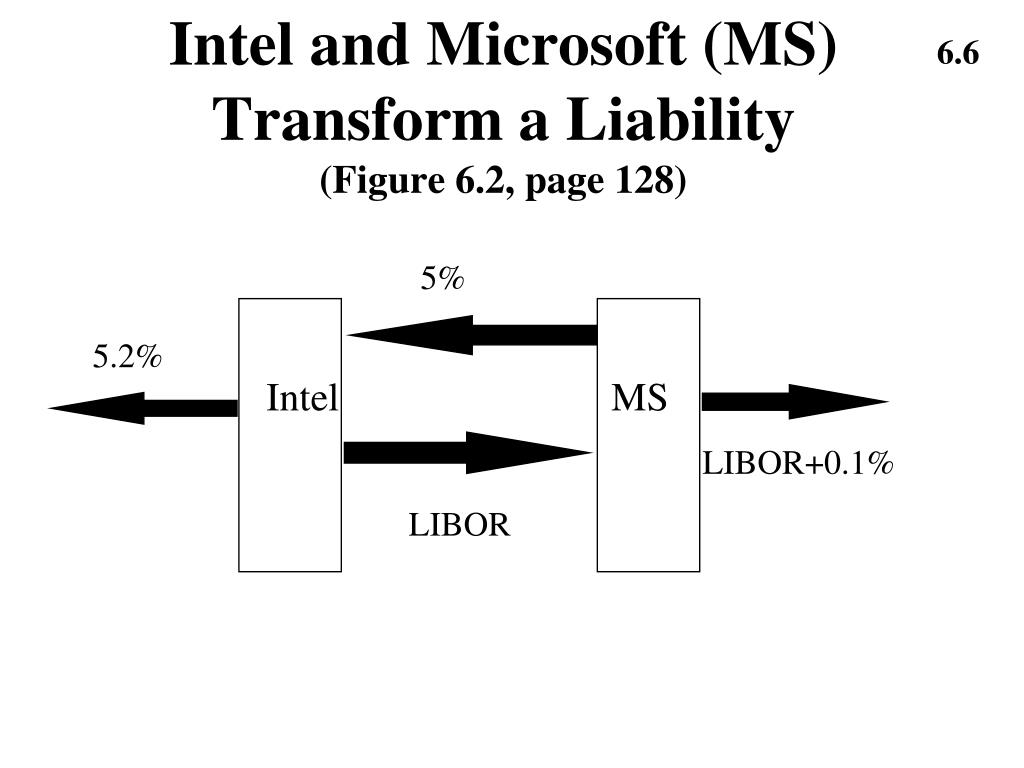

  6. Intel and Microsoft (MS) Transform a Liability(Figure 6.2, page 128) 5% 5.2% Intel MS LIBOR+0.1% LIBOR

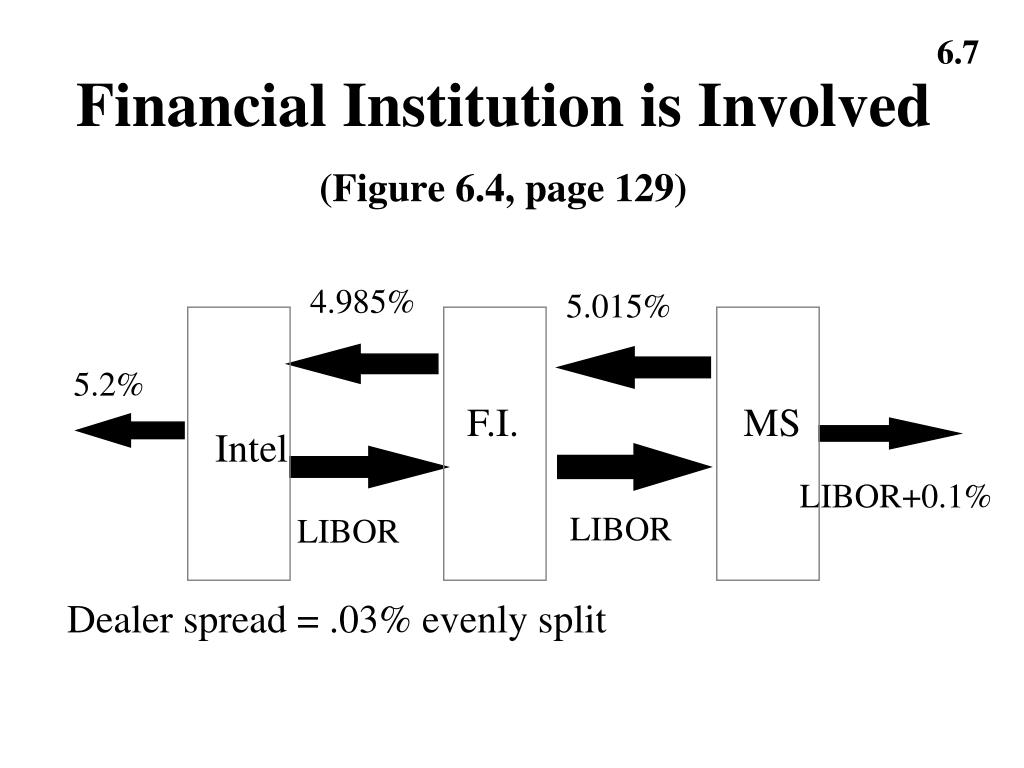

  7. Financial Institution is Involved(Figure 6.4, page 129) 4.985% 5.015% 5.2% F.I. MS Intel LIBOR+0.1% LIBOR LIBOR Dealer spread = .03% evenly split

  8. Intel and Microsoft (MS) Transform an Asset(Figure 6.3, page 128) 5% 4.7% Intel MS LIBOR-0.25% LIBOR

  9. Financial Institution is Involved(See Figure 6.5, page 129) 4.985% 5.015% 4.7% F.I. MS Intel LIBOR-0.25% LIBOR LIBOR Dealer spread = .03 %

  10. Fixed Floating AAACorp 10.00% 6-month LIBOR + 0.30% BBBCorp 11.20% 6-month LIBOR + 1.00% The Comparative Advantage Argument (Table 6.4, page 132) • AAACorp wants to borrow floating • BBBCorp wants to borrow fixed

  11. The Comparative Advantage Argument • AAACorp has absolute advantage in both markets • But a comparative advantage in fixed • BBBCorp has comparative advantage in floating • If AAA borrows fixed, the gain is 1.2% • If BBB borrows floating, the gain is reduced by .7% • Therefore, we have a net gain of 1.2 - .7 = .5% • If the gain is split evenly, we have a gain per party of: G = (1.2 - .7)/2 = .25%

  12. Swap Design • Design the swap so AAA’s borrowing rate equals the comparative disadvantage (CD) rate minus the gain: • LIBOR + .3 - .25 • Do the same thing for BBB • BBB’s rate with swap: • 11.2 - .25 • Now, draw the diagram

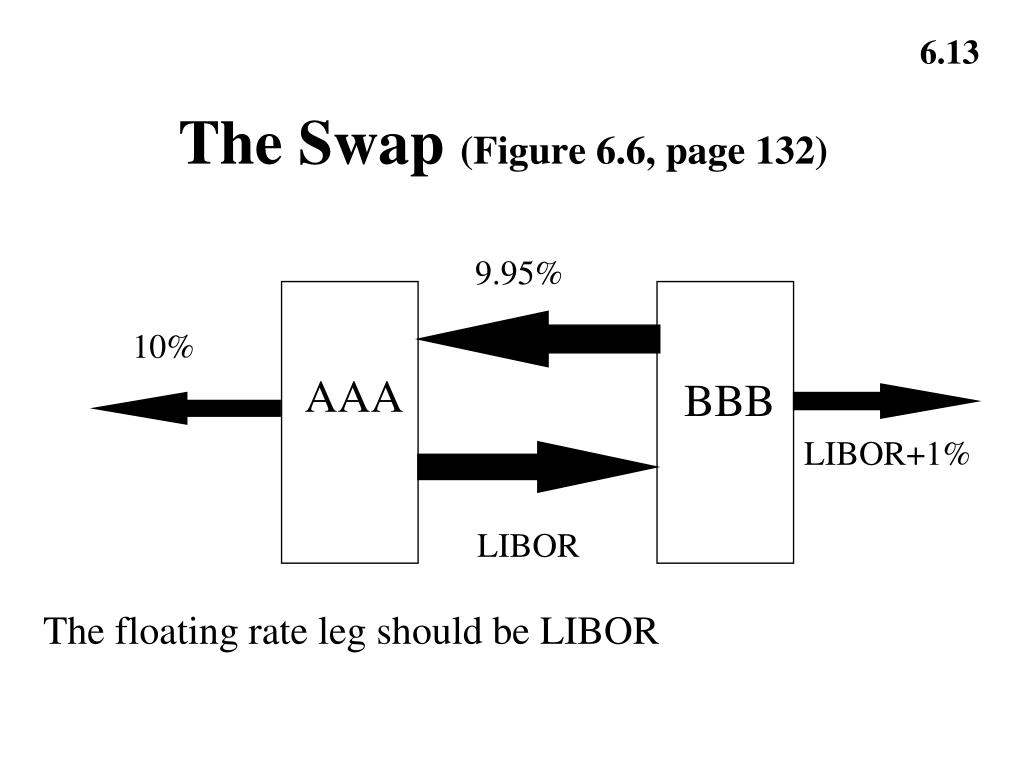

  13. The Swap (Figure 6.6, page 132) 9.95% 10% AAA BBB LIBOR+1% LIBOR The floating rate leg should be LIBOR

  14. Swap Design with FI • Adjust swap gain for dealer spread • Suppose dealer spread = .04% • Then gain: • G = (1.2 - .7 - .04)/2 = .23% • AAA’s rate with swap: • LIBOR + .3 - .23 = LIBOR + .07 • BBB’s rate with swap: • 11.2 - .23 = 10.97% • Draw swap diagram

  15. The Swap when a Financial Institution is Involved (Figure 6.7, page 133) 9.93% 9.97% 10% AAA F.I. BBB LIBOR+1% LIBOR LIBOR Check that dealer spread = .04%

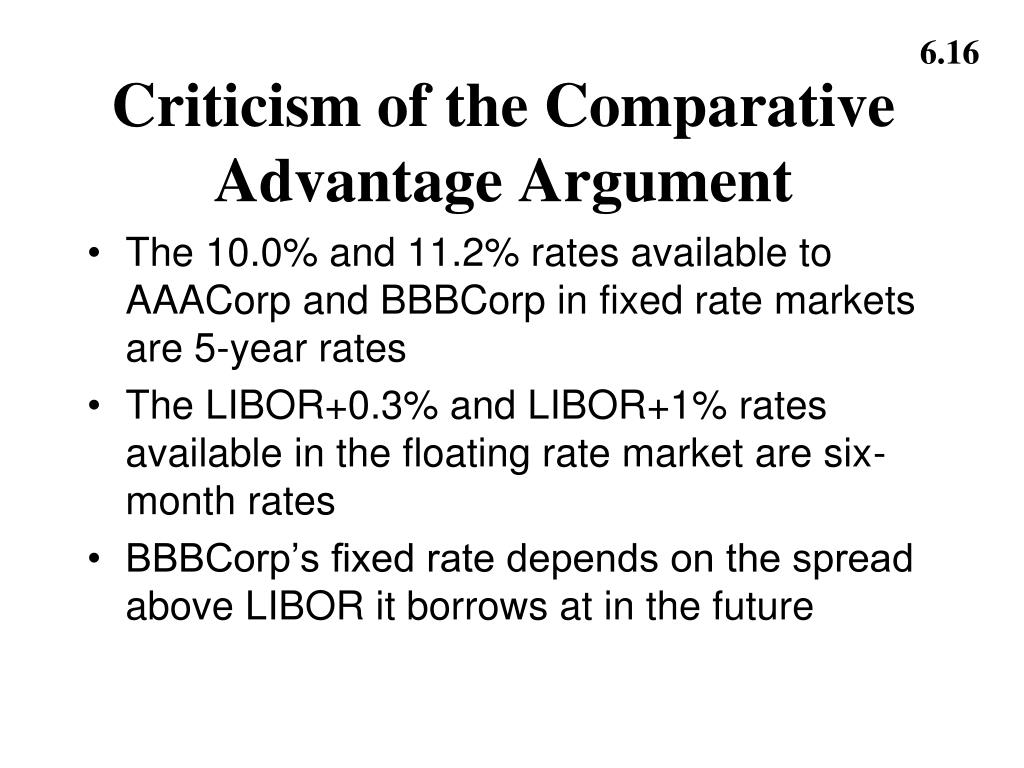

  16. Criticism of the Comparative Advantage Argument • The 10.0% and 11.2% rates available to AAACorp and BBBCorp in fixed rate markets are 5-year rates • The LIBOR+0.3% and LIBOR+1% rates available in the floating rate market are six-month rates • BBBCorp’s fixed rate depends on the spread above LIBOR it borrows at in the future

  17. Valuation of an Interest Rate Swap • Interest rate swaps can be valued as the difference between the value of a fixed-rate bond and the value of a floating-rate bond with the same par value • Par values will cancel at maturity

  18. Swap Valuation • Fixed Receive: Vswap = Vfixed – Vfloating • Fixed Pay: Vswap = Vfloating - Vfixed • The fixed rate bond is valued using the term structure of interest rates • The floating rate stream is valued by noting that it is worth par immediately after the next payment date

  19. Floating Rate Bond • To create a floating rate bond, invest principal value in 6-month LIBOR • At the end of 6-months, pay the interest and reinvest the principal value at the new 6-month LIBOR • At maturity pay last interest payment and principal value • Therefore, the cost of a floating rate bond is the principal value • It always sells for its par value immediately after interest payment

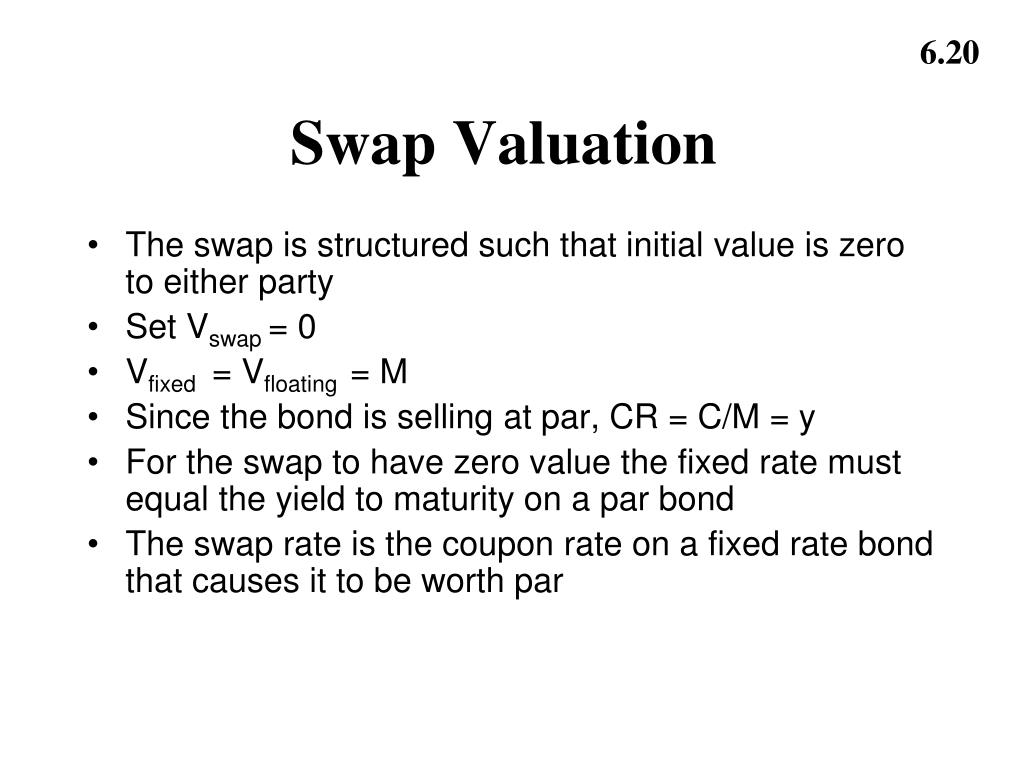

  20. Swap Valuation • The swap is structured such that initial value is zero to either party • Set Vswap = 0 • Vfixed = Vfloating = M • Since the bond is selling at par, CR = C/M = y • For the swap to have zero value the fixed rate must equal the yield to maturity on a par bond • The swap rate is the coupon rate on a fixed rate bond that causes it to be worth par

  21. Example • Zero coupon LIBOR curve is 5%, 6%, and 7% for one, two, and three years • What is the swap rate on a three year interest rate swap? • Assume payments are annual and yields are compounded annually • Solve for LIBOR par yield • M = CRxM(d1 + d2 + d3) + Md3

  22. Example Continued • Solution:

  23. Interest Rate Risk • Receive Fixed: Vswap = Vfixed – Vfloating • Pay Fixed: Vswap = Vfloating – Vfixed

  24. An Example of a Currency Swap An agreement to pay 11% on a sterling principal of £10,000,000 & receive 8% on a US$ principal of $15,000,000 every year for 5 years

  25. Exchange of Principal • In an interest rate swap the principal is not exchanged • In a currency swap the principal is exchanged at the beginning and the end of the swap

  26. Three Cash Flow Components • t = 0: exchange principal based upon current exchange rates Pay: $15 M Rcv: £ 10 M • t = 1, 2, 3, 4, 5: Pay: .11x10 = £1.1 M Rcv: .08x15 = $1.2 M • t = 5: Pay: £ 10 M Rcv: $ 15 M

  27. The Cash Flows (Table 6.6, page 140) Dollars Pounds $ £ Years ------millions------ 0 –15.00 +10.00 +1.20 1 –1.10 2 +1.20 –1.10 3 +1.20 –1.10 4 +1.20 –1.10 5 +16.20 -11.10

  28. Conversion from a liability in one currency to a liability in another currency Conversion from an investment in one currency to an investment in another currency Typical Uses of a Currency Swap

  29. USD AUD General Motors 5.0% 12.6% Qantas 7.0% 13.0% Comparative Advantage Arguments for Currency Swaps (Table 6.7, page 141) General Motors wants to borrow AUD Qantas wants to borrow USD

  30. Comparative Advantage • GM has absolute advantage in both markets • But GM has comparative advantage in dollars • Qantas has comparative advantage in Australian dollars • So GM should borrow dollars and Qantas Australian dollars • Then swap cash flows to earn gain from comparative advantage

  31. Comparative Advantage • Gain per party: G = (2 - .4)/2 = .8% • GM’s rate with swap: 12. 6 - .8 = AUD 11.8% • Qantas’ rate with swap: 7 - .8 = USD 6.2%

  32. Qantas Assumes Exchange Rate Risk USD 5% USD 5% AUD 13% GM Qantas AUD 11.8%

  33. GM Assumes Exchange Rate Risk USD 6.2% USD 5% AUD 13% GM Qantas AUD 13.0%

  34. FI Assumes Exchange Rate Risk • Adjust swap gain for dealer spread • Suppose dealer spread = .2% • Then gain: • Gain per party: G = (2 - .4 - .2)/2 = .7% • GM’s rate with swap: 12. 6 - .7 = AUD 11.9% • Qantas’ rate with swap: 7 - .7 = USD 6.3%

  35. FI Assumes Exchange Rate Risk USD 5% USD 6.3% USD 5% GM F.I. Q AUD 13% AUD11.9% AUD 13% Check that dealer spread = .2% Pay: 13.0 – 11.9 = AUD 1.1% Rcv: 6.3 – 5.0 = USD 1.3%

  36. Valuationof Currency Swaps Like interest rate swaps, currency swaps can be valued either as the difference between 2 bonds or as a portfolio of forward contracts

  37. Swaps & Forwards • A swap can be regarded as a convenient way of packaging forward contracts • The “plain vanilla” interest rate swap in our example consisted of 6 Fraps • The “fixed for fixed” currency swap in our example consisted of a cash transaction & 5 forward contracts

  38. Swaps & Forwards(continued) • The value of the swap is the sum of the values of the forward contracts underlying the swap • Swaps are normally “at the money” initially • This means that it costs nothing to enter into a swap • It does not mean that each forward contract underlying a swap is “at the money” initially

  39. Credit Risk • A swap is worth zero to a company initially • At a future time its value is liable to be either positive or negative • The company has credit risk exposure only when its value is positive
