  1. Generation and Distribution of electrical energy Grade 8

  2. Energy generation

  3. Electric generation • The electricity generation sequence involves taking charge from the Earth, doing work on it to give it energy (expressed in terms of voltage), transporting the energy via a distribution system, using the energy, and dumping the spent charge back to the Earth. The Earth acts as a charge reservoir and reference potential for the energy transfer process.

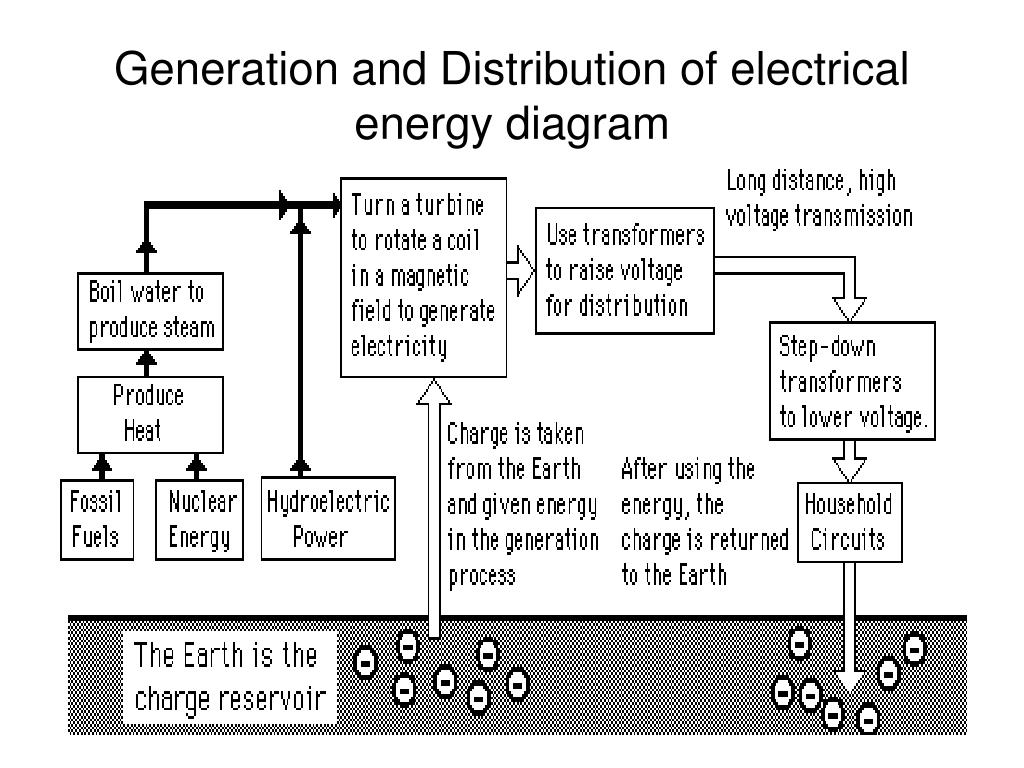

  4. Generation and Distribution of electrical energy diagram

  5. Electric generation • While this picture of the Earth as the reservoir of charge from which charge is taken and to which charge is returned after the energy is used is the "big picture" of the large generation and distribution system, it may not be applied too literally in the local situation. You cannot depend on a "ground" connection to the Earth to be sufficient as the path by which charge returns to the Earth.

  6. Coal used to proproduce electrical energy

  7. Electric generation • In particular, just a connection to a grounding rod is not a sufficiently low resistance path to provide shock protection by quickly carrying charge to the Earth in the case of a short circuit to ground. For electrical safety, the ground wire must be "bonded" back to the neutral of the supply transformer to force the tripping of the breaker in a ground fault situation.

  8. Distribution of electrical energy

  9. Electric distribution • The electric energy obtained in the electric generation process must be transported to the end user by electric conductors without large resistive power losses in the distribution process. A key part of the strategy for doing so involves using transformers to increase the voltage to hundreds of thousands of volts to minimize loss to heat in the transmission wires.

  10. Electric distribution • The three high voltage conductors shown on the utility pole at right indicate that the power distribution is "three-phase", with each conductor 120 degrees in phase away from each of the others. If each section of the large insulators can withstand a working voltage of 10,000 volts, these conductors may be operating at something like 150,000 volts.

  11. How electrical energy get to our homes

  12. Video web site • http://www.youtube.com/watch?v=fQNQKkvGQL0- (Anatomy of a Distribution System) • http://www.youtube.com/watch?v=pXasvq1ivnw (How Power Gets to Your Home ) • http://www.youtube.com/watch?v=-ZBNNcczmDM (The Journey of Electrical Energy ) • http://www.youtube.com/watch?v=gggqvitMDuY (Electrical Power Generation ) • http://www.youtube.com/results?search_query=how+is+electricity+generated+animation&oq=how+is+electricity++&gs_l=youtube.1.2.0l10.2364.47320.0.53031.24.19.1.4.5.0.1561.9733.2j1j2j5j2j3j1j2j1.19.0...0.0...1ac.1.cFN0WgSFxVw ( how is electricity generated animation) • http://www.youtube.com/watch?v=20Vb6hlLQSg (Energy 101: Electricity Generation ) • http://www.youtube.com/watch?v=e_CcrgKLyzc (How do you make electricity from coal - animated video)
