  1. OTTV of Penthouse 801434 integration with Design Project 1/2554 B.E. semester

  2. Requirement • Penthouse wall on any orientation • Plan and elevation • Wall section, Roof section of Penthouse • Layer of Materials • Other design characteristics

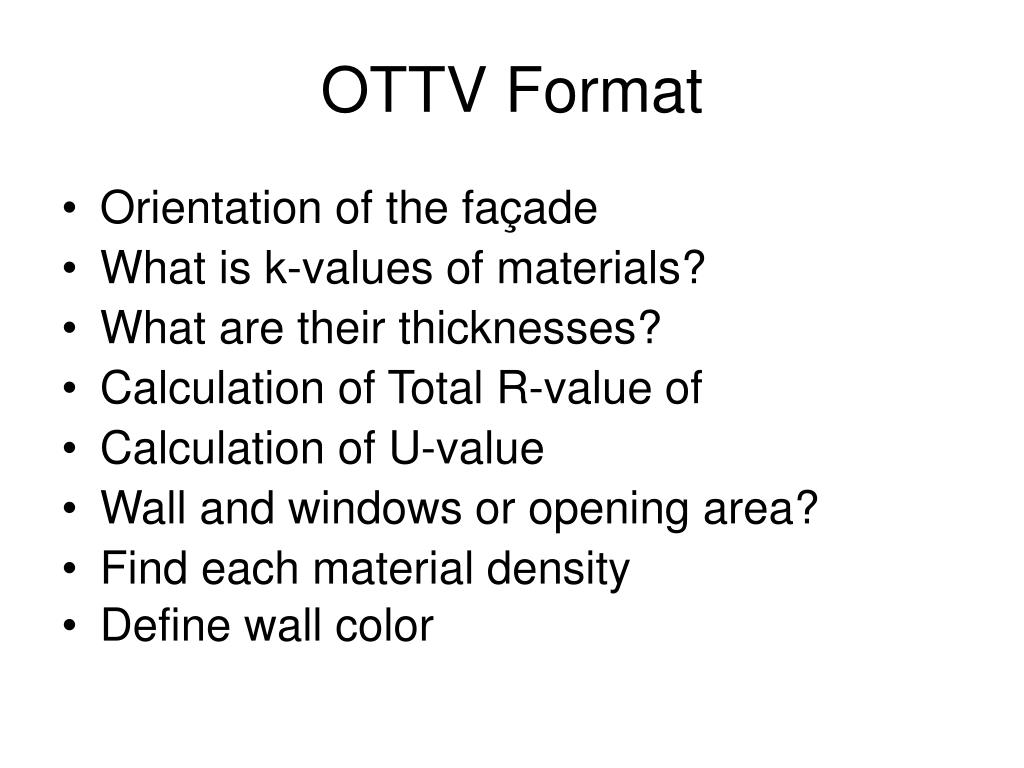

  3. OTTV Format • Orientation of the façade • What is k-values of materials? • What are their thicknesses? • Calculation of Total R-value of • Calculation of U-value • Wall and windows or opening area? • Find each material density • Define wall color

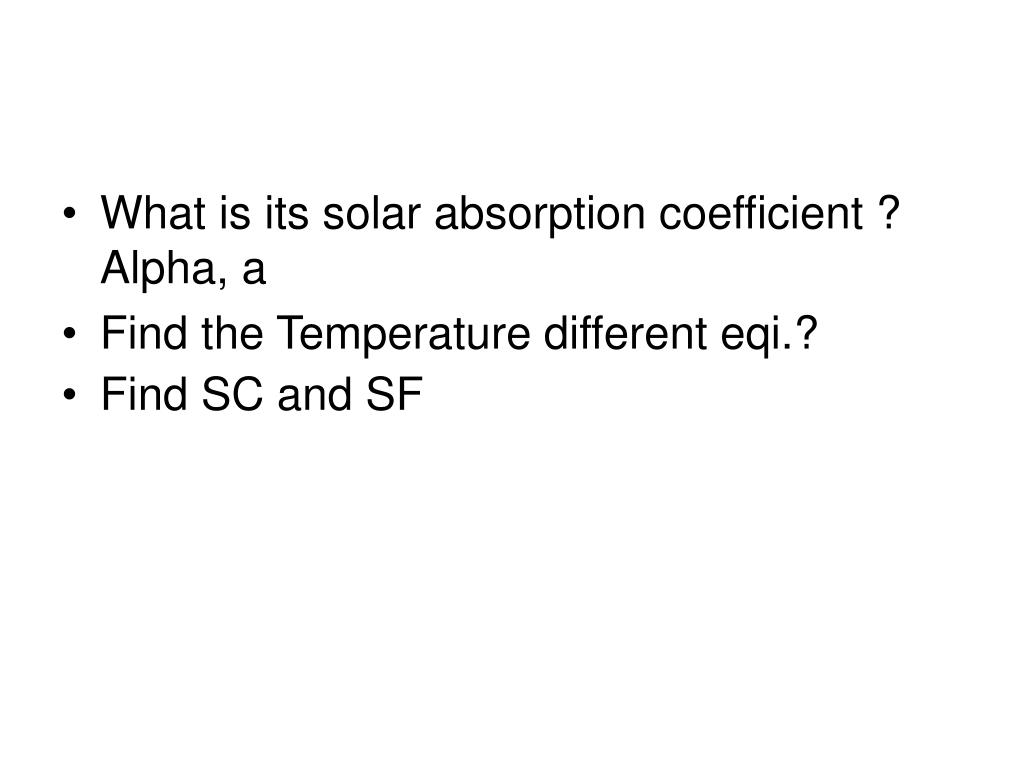

  4. What is its solar absorption coefficient ? Alpha, a • Find the Temperature different eqi.? • Find SC and SF

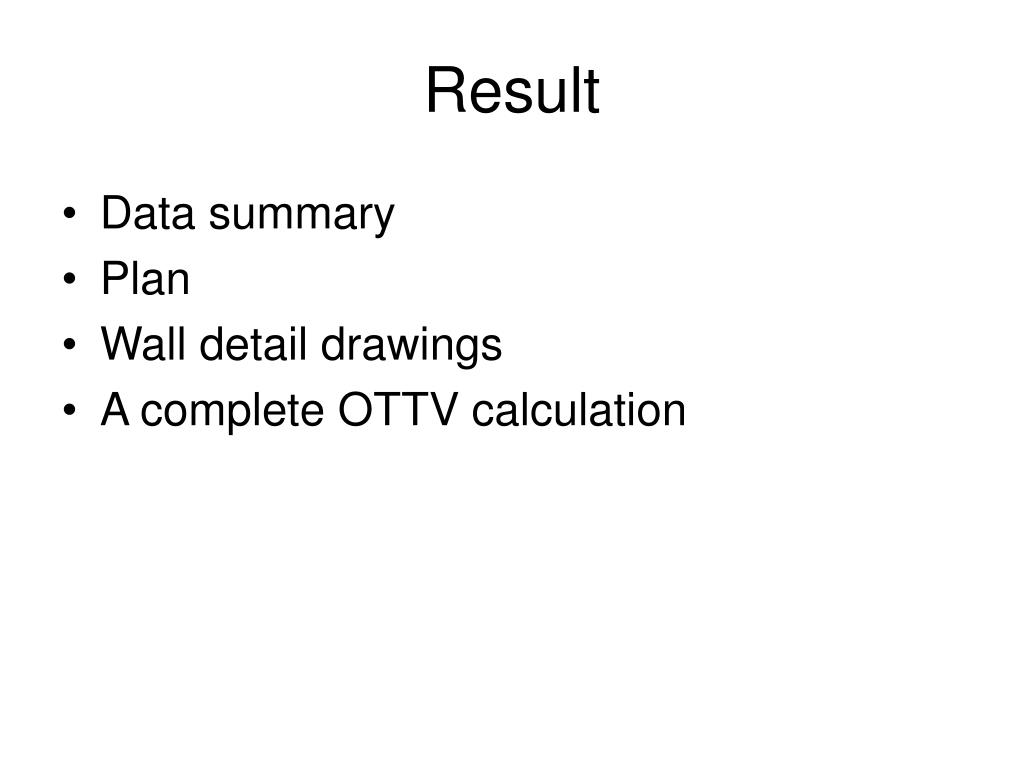

  5. Result • Data summary • Plan • Wall detail drawings • A complete OTTV calculation
