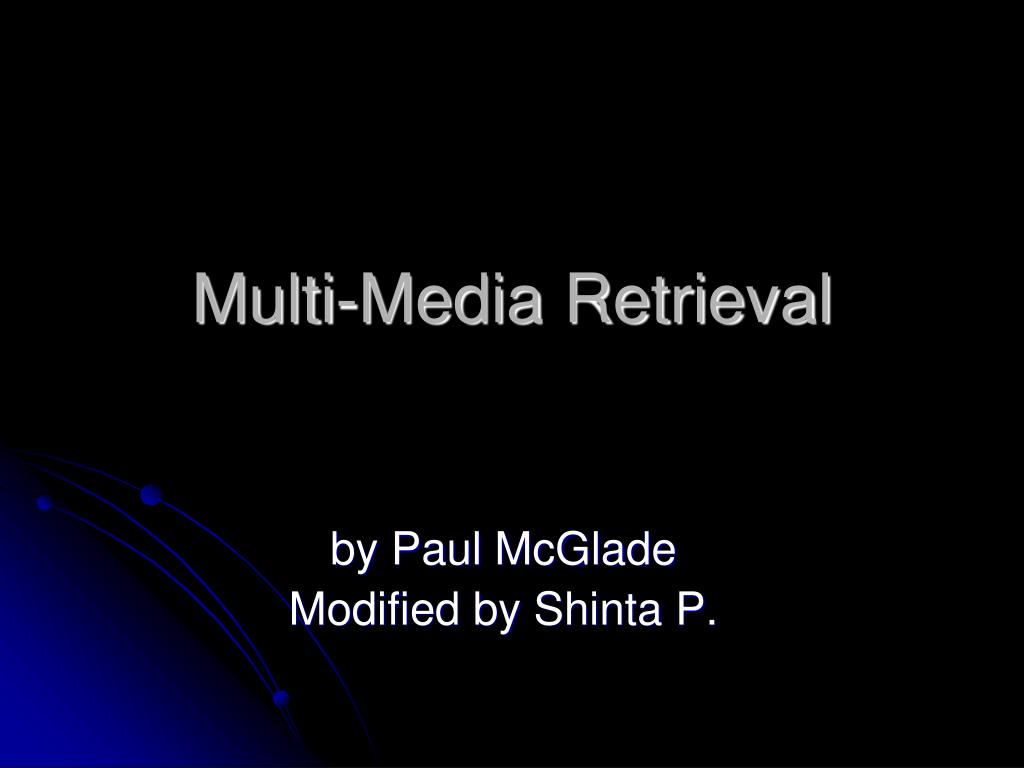

  1. Multi-Media Retrieval by Paul McGlade Modified by Shinta P.

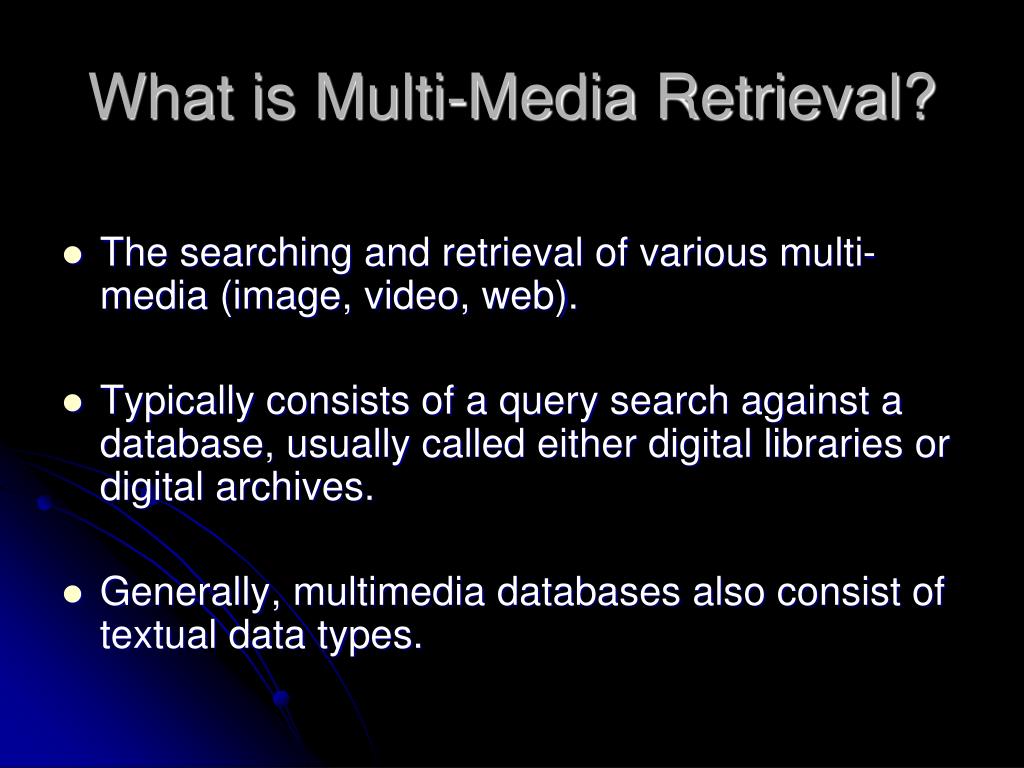

  2. What is Multi-Media Retrieval? • The searching and retrieval of various multi-media (image, video, web). • Typically consists of a query search against a database, usually called either digital libraries or digital archives. • Generally, multimedia databases also consist of textual data types.

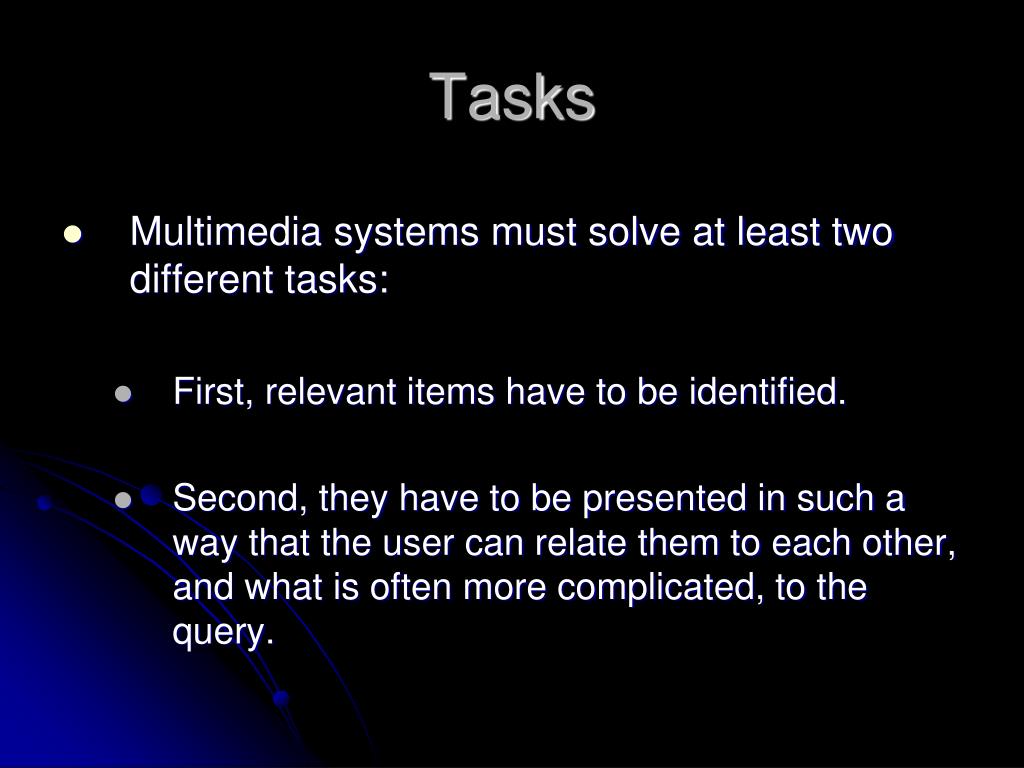

  3. Tasks • Multimedia systems must solve at least two different tasks: • First, relevant items have to be identified. • Second, they have to be presented in such a way that the user can relate them to each other, and what is often more complicated, to the query.

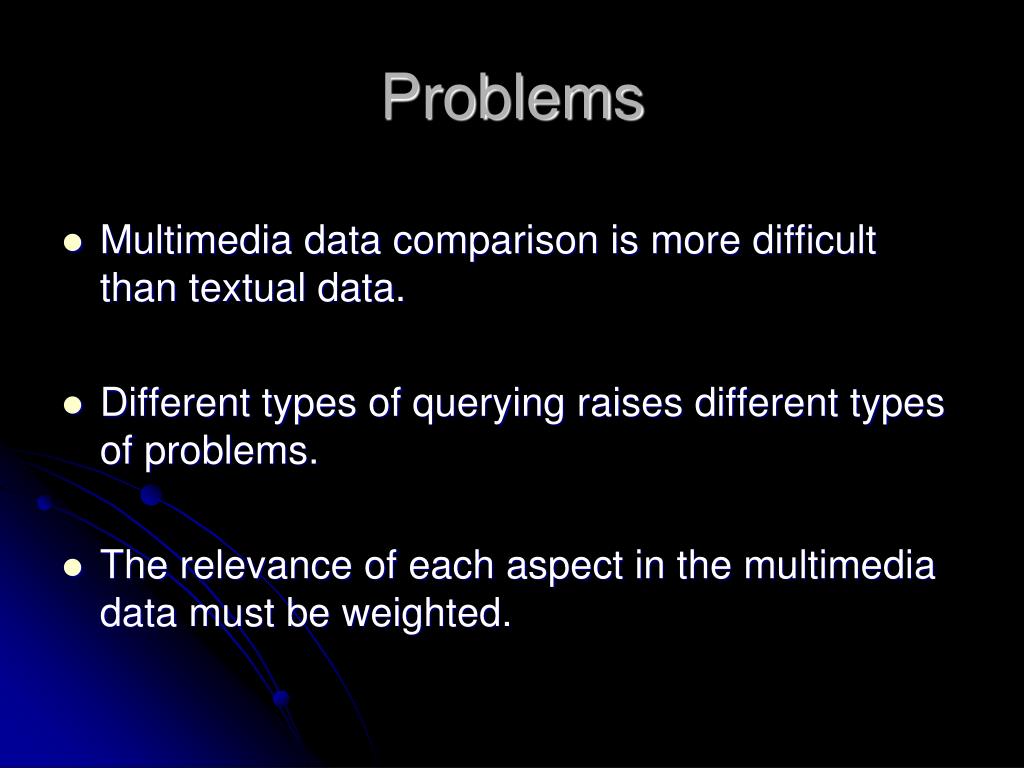

  4. Problems • Multimedia data comparison is more difficult than textual data. • Different types of querying raises different types of problems. • The relevance of each aspect in the multimedia data must be weighted.

  5. Approaches / Solutions • Different approaches are explored for the comparison process: • Text-based • Region-based • Object-based • Various solutions have been created: • Query formulation • MRML • Image indexing

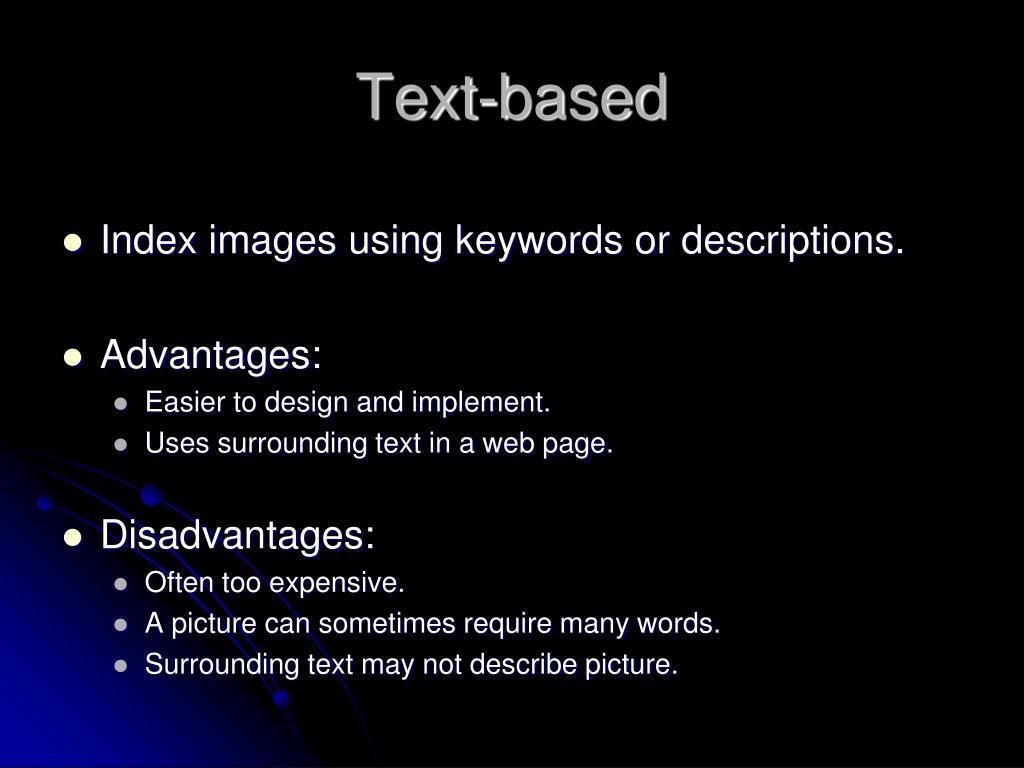

  6. Text-based • Index images using keywords or descriptions. • Advantages: • Easier to design and implement. • Uses surrounding text in a web page. • Disadvantages: • Often too expensive. • A picture can sometimes require many words. • Surrounding text may not describe picture.

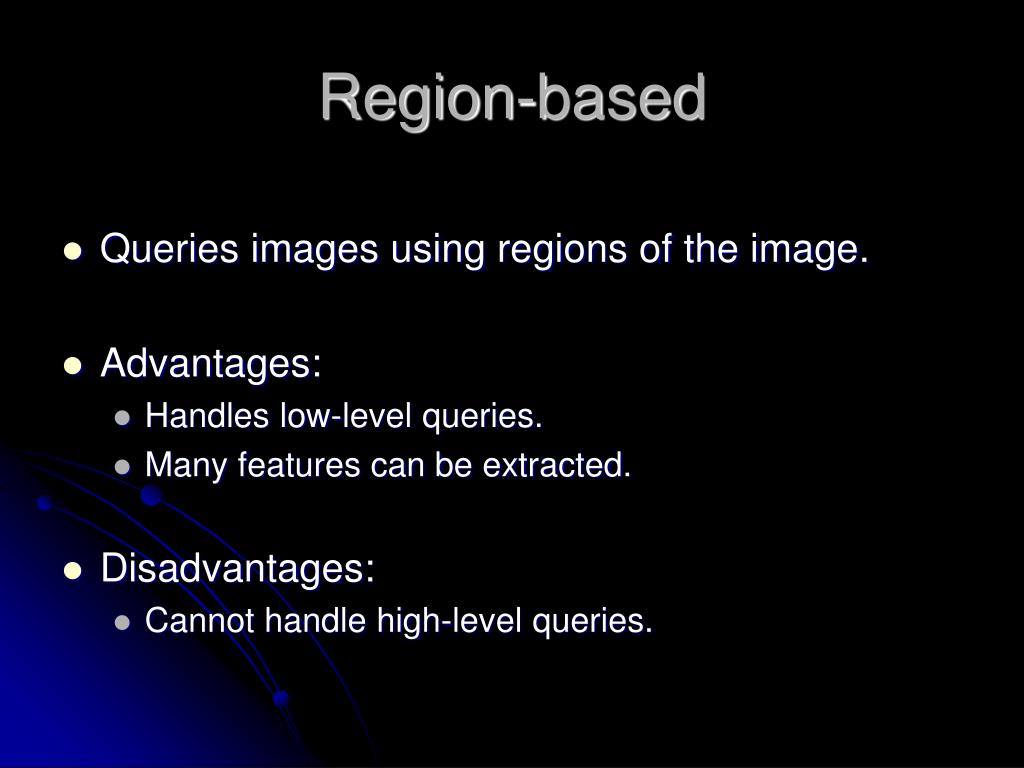

  7. Region-based • Queries images using regions of the image. • Advantages: • Handles low-level queries. • Many features can be extracted. • Disadvantages: • Cannot handle high-level queries.

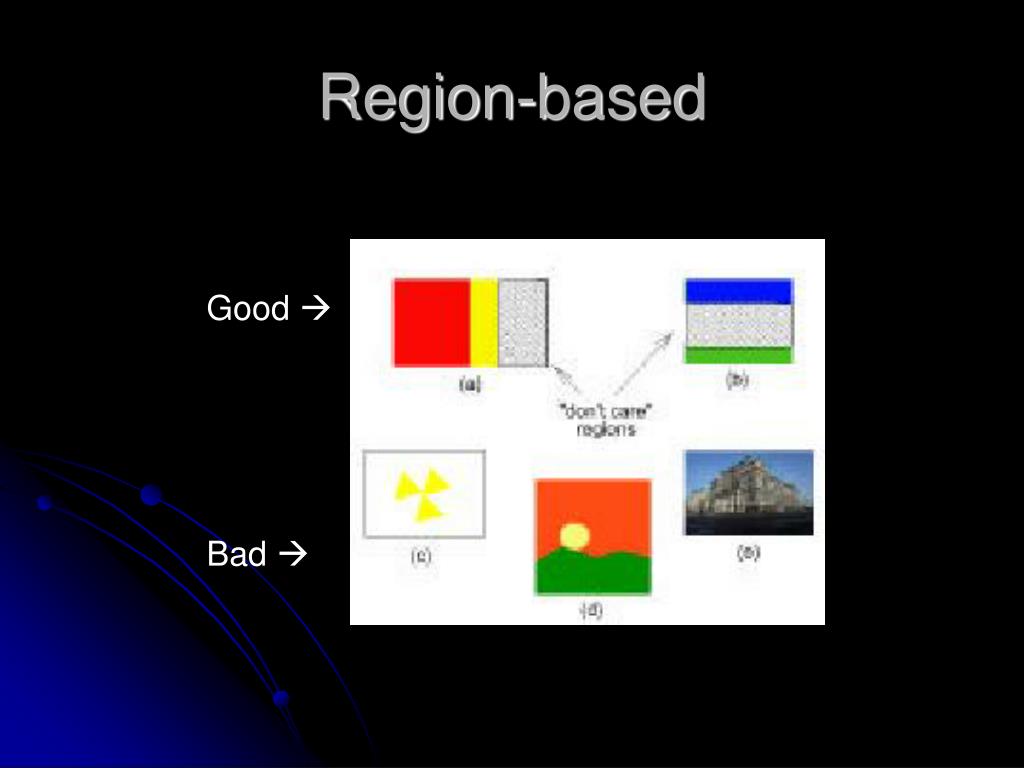

  8. Region-based Good  Bad 

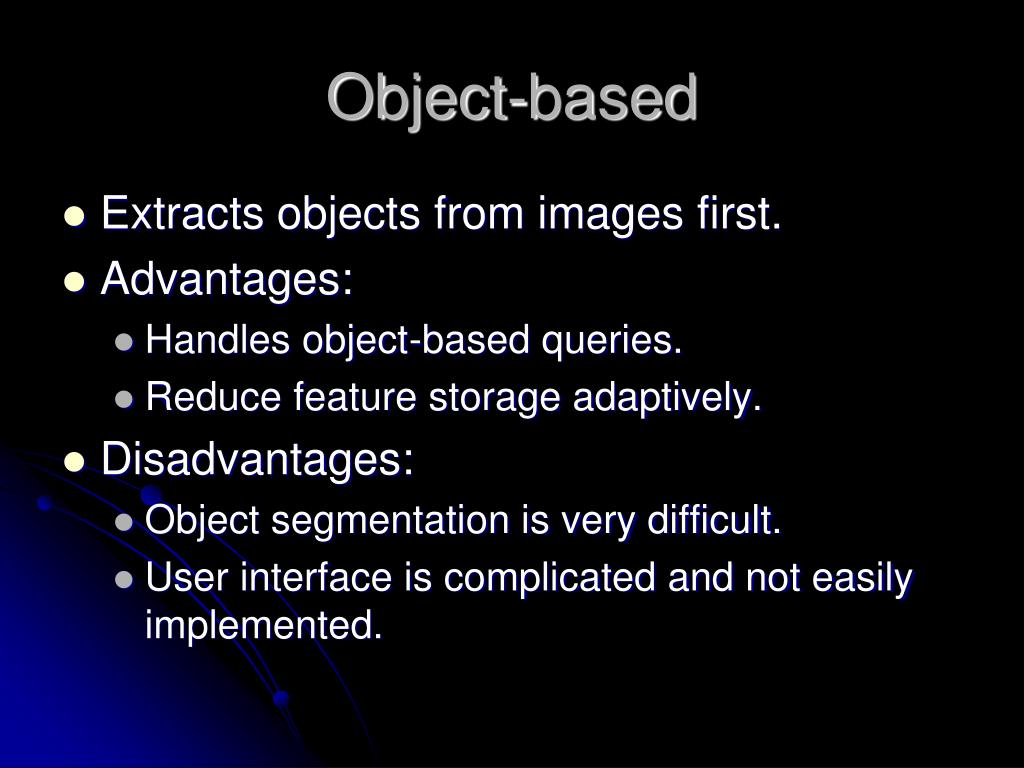

  9. Object-based • Extracts objects from images first. • Advantages: • Handles object-based queries. • Reduce feature storage adaptively. • Disadvantages: • Object segmentation is very difficult. • User interface is complicated and not easily implemented.

  10. Object-based (cont’d)

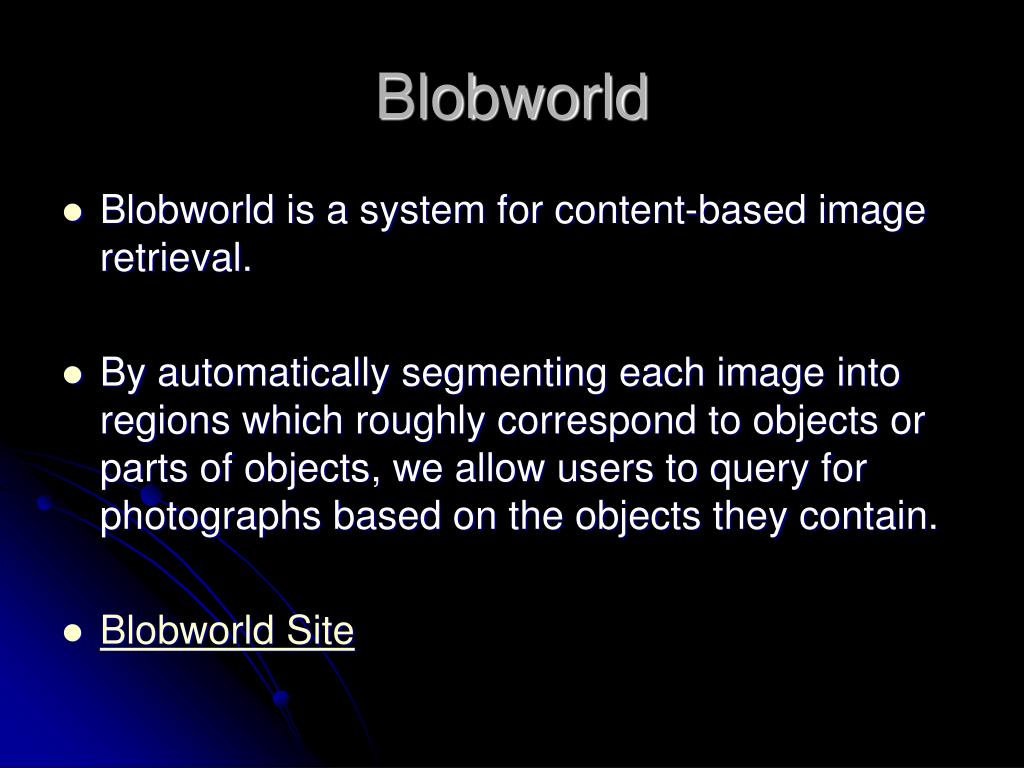

  11. Blobworld • Blobworld is a system for content-based image retrieval. • By automatically segmenting each image into regions which roughly correspond to objects or parts of objects, we allow users to query for photographs based on the objects they contain. • Blobworld Site

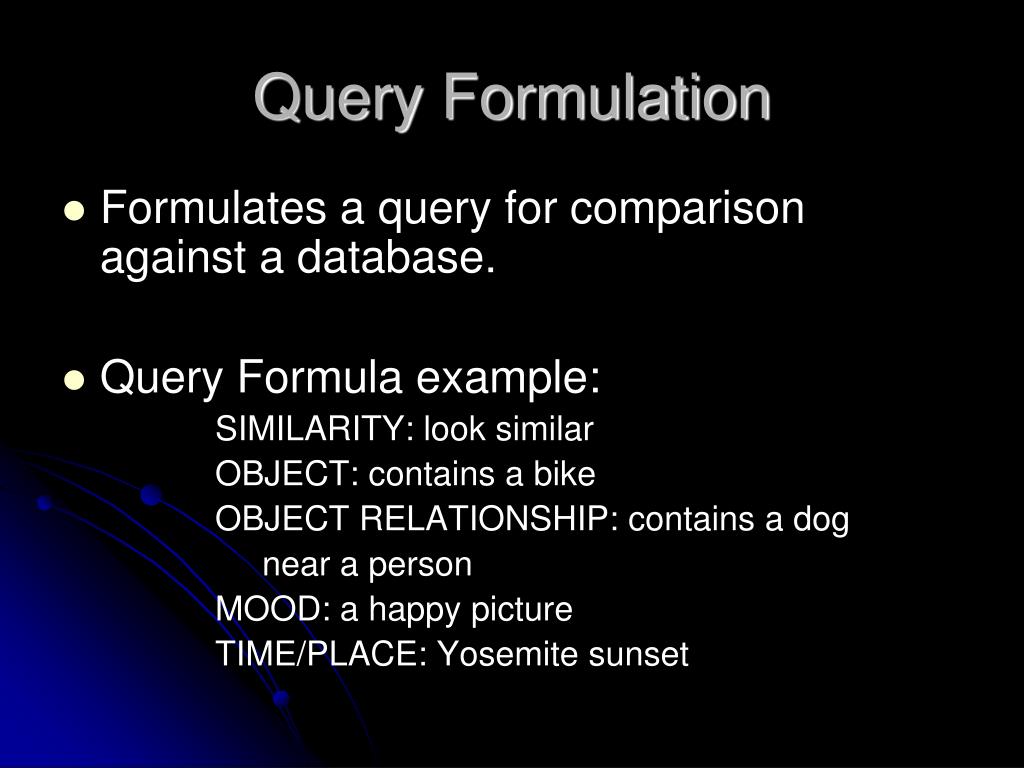

  12. Query Formulation • Formulates a query for comparison against a database. • Query Formula example: SIMILARITY: look similar OBJECT: contains a bike OBJECT RELATIONSHIP: contains a dog near a person MOOD: a happy picture TIME/PLACE: Yosemite sunset

  13. MRML • Multimedia Retrieval Markup Language • MRML’s goal is to unify access to multimedia retrieval. • XML-based communication protocol. • Specified to standardize access to Multimedia Retrieval software components.

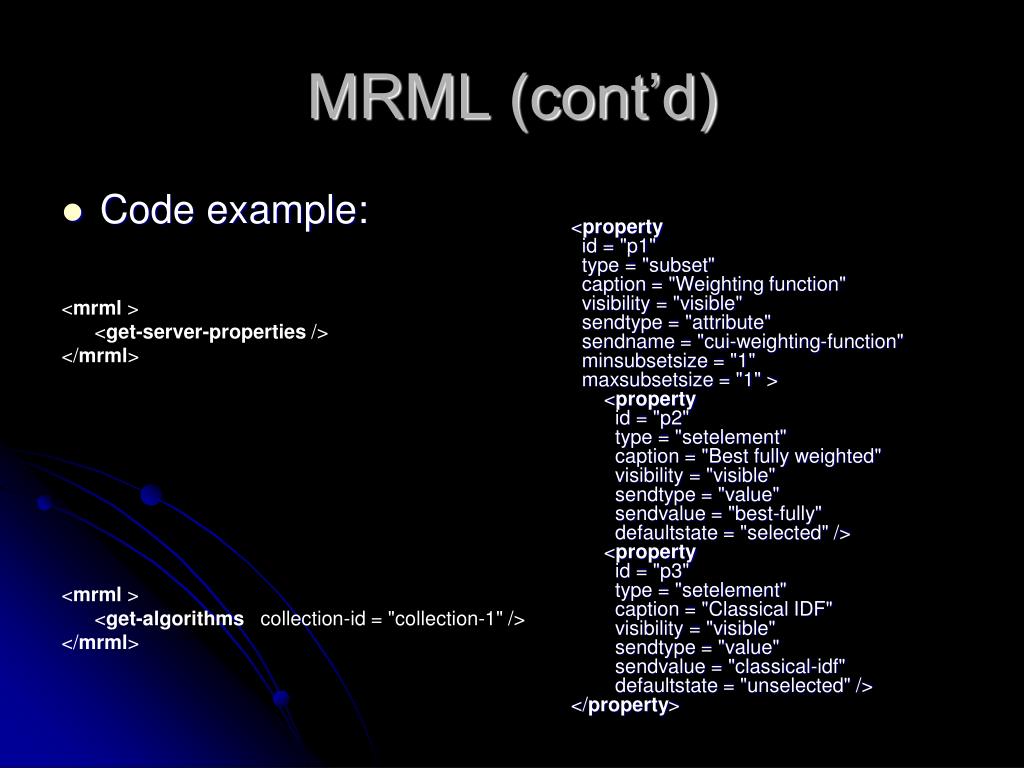

  14. MRML (cont’d) • Code example: <property  id = "p1"     type = "subset"     caption = "Weighting function"     visibility = "visible"     sendtype = "attribute"     sendname = "cui-weighting-function"     minsubsetsize = "1"     maxsubsetsize = "1" >       <property        id = "p2"           type = "setelement"           caption = "Best fully weighted"           visibility = "visible"           sendtype = "value"           sendvalue = "best-fully"           defaultstate = "selected" />       <property        id = "p3"           type = "setelement"           caption = "Classical IDF"           visibility = "visible"           sendtype = "value"           sendvalue = "classical-idf"           defaultstate = "unselected" /> </property> <mrml >       <get-server-properties /> </mrml> <mrml >       <get-algorithms   collection-id = "collection-1" /> </mrml>

  15. GIFT • GNU Image-Finding Tool is a Content Based Image Retrieval System (CBIRS). • Uses MRML. • Enables the user to query by example on images. • Relies purely on the content of the image. • GIFT Site

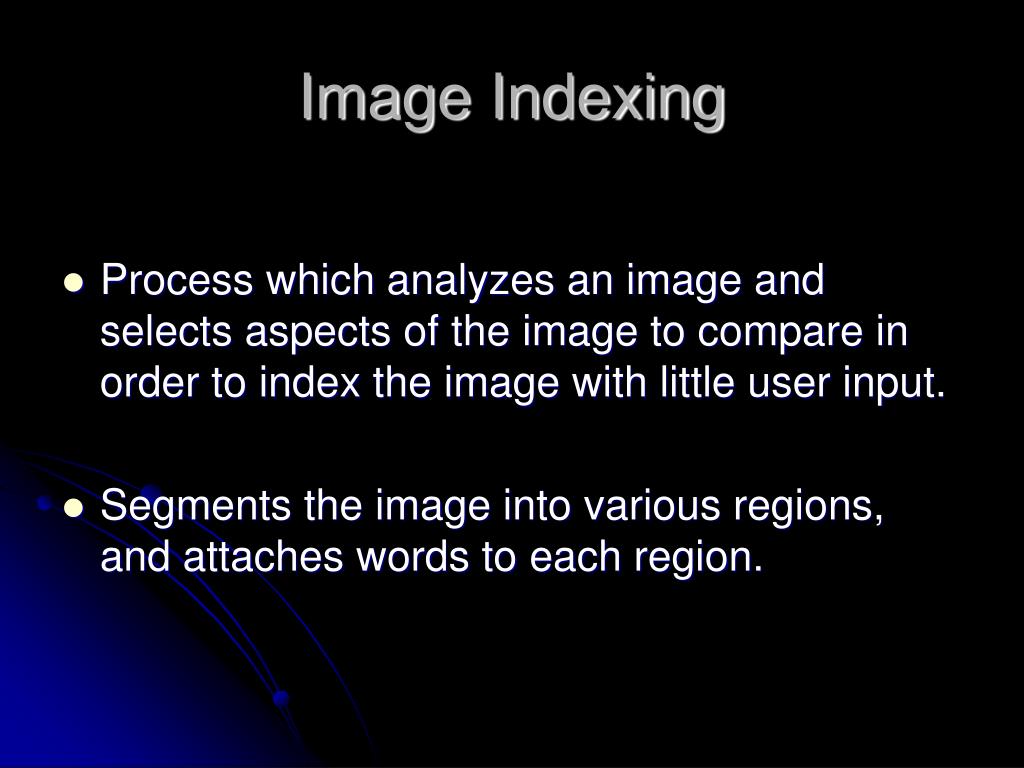

  16. Image Indexing • Process which analyzes an image and selects aspects of the image to compare in order to index the image with little user input. • Segments the image into various regions, and attaches words to each region.

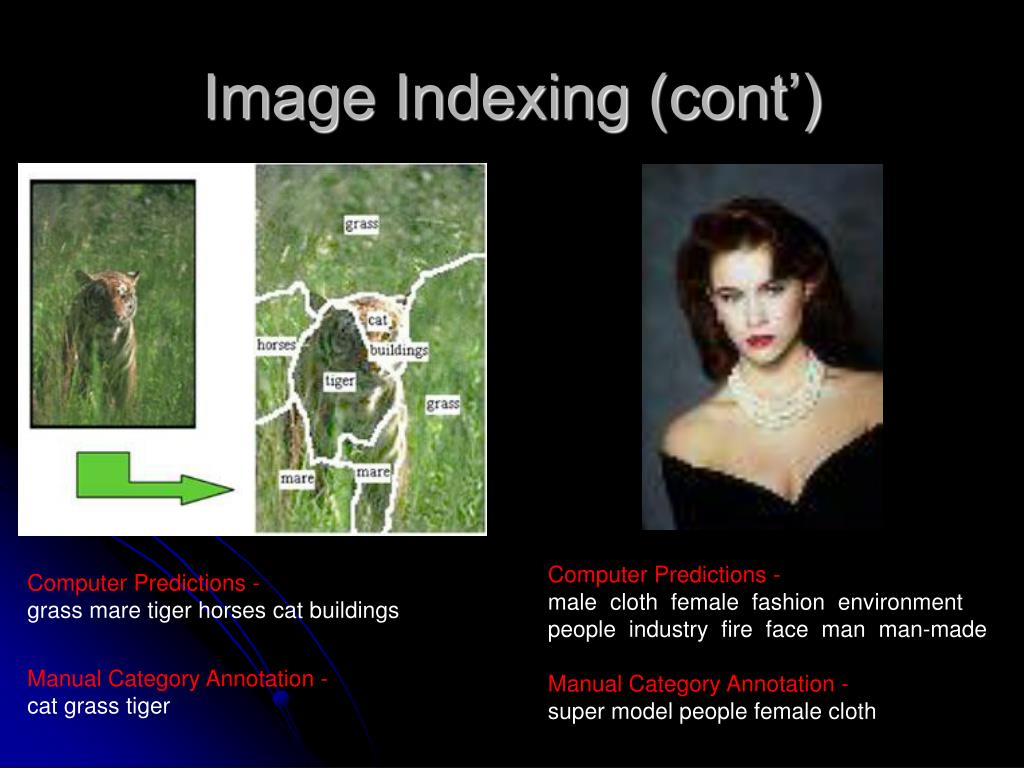

  17. Image Indexing (cont’) Computer Predictions - male  cloth  female  fashion  environment   people  industry  fire  face  man  man-made Manual Category Annotation - super model people female cloth Computer Predictions - grass mare tiger horses cat buildings Manual Category Annotation - cat grass tiger

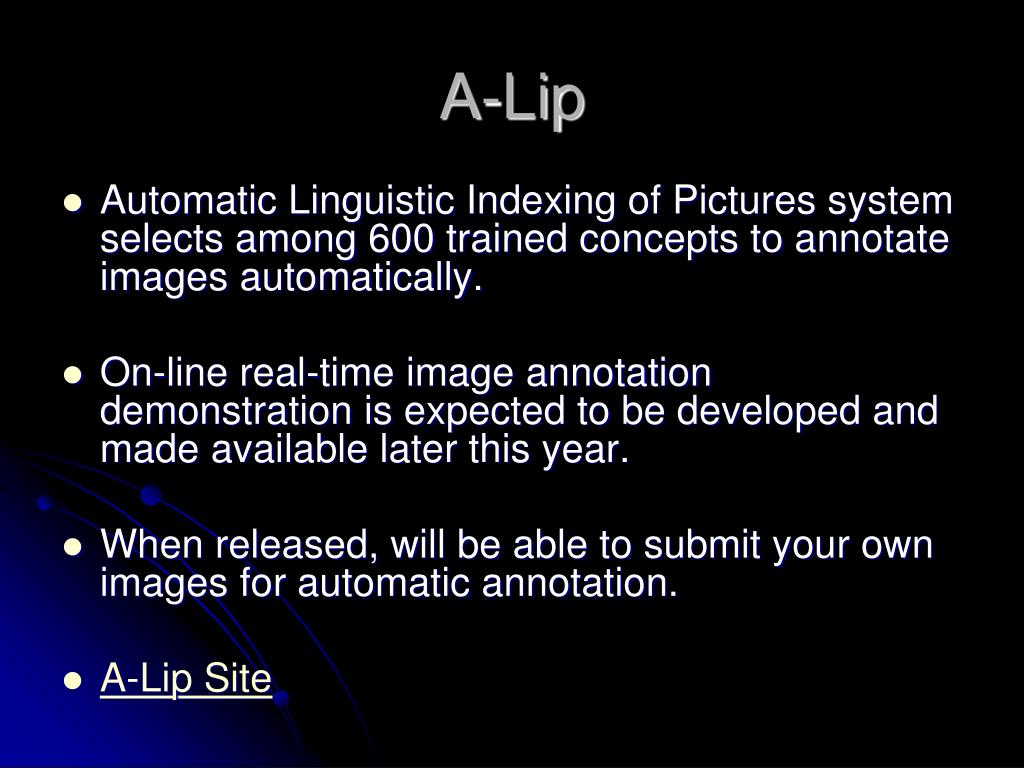

  18. A-Lip • Automatic Linguistic Indexing of Pictures system selects among 600 trained concepts to annotate images automatically. • On-line real-time image annotation demonstration is expected to be developed and made available later this year. • When released, will be able to submit your own images for automatic annotation. • A-Lip Site

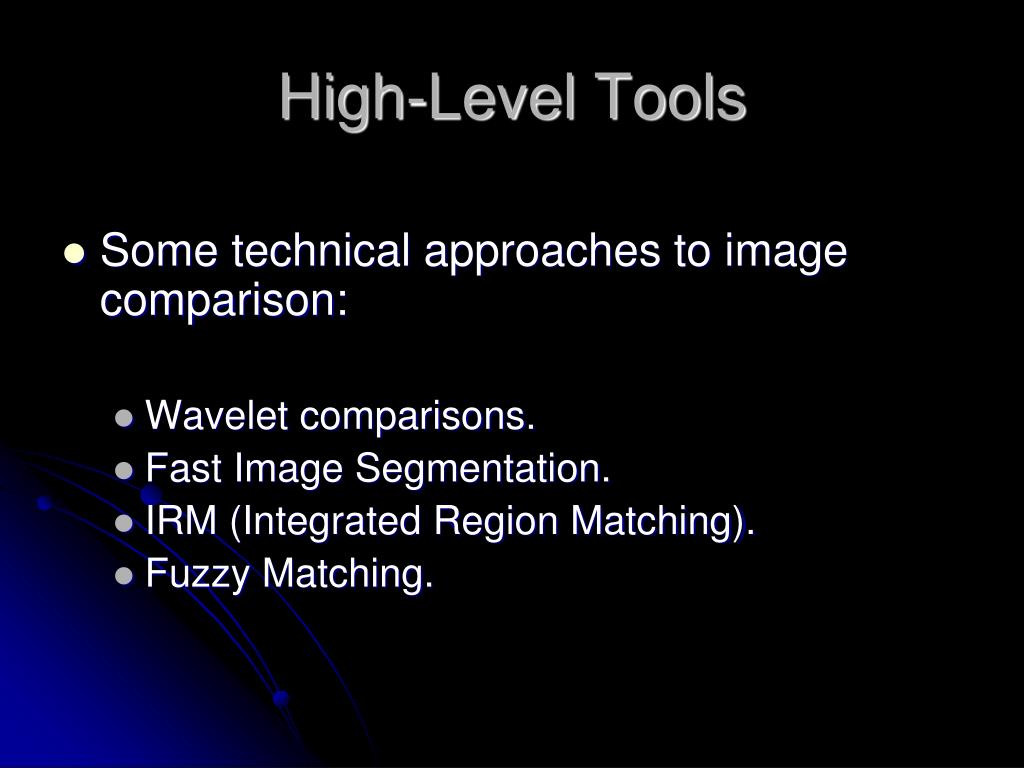

  19. High-Level Tools • Some technical approaches to image comparison: • Wavelet comparisons. • Fast Image Segmentation. • IRM (Integrated Region Matching). • Fuzzy Matching.

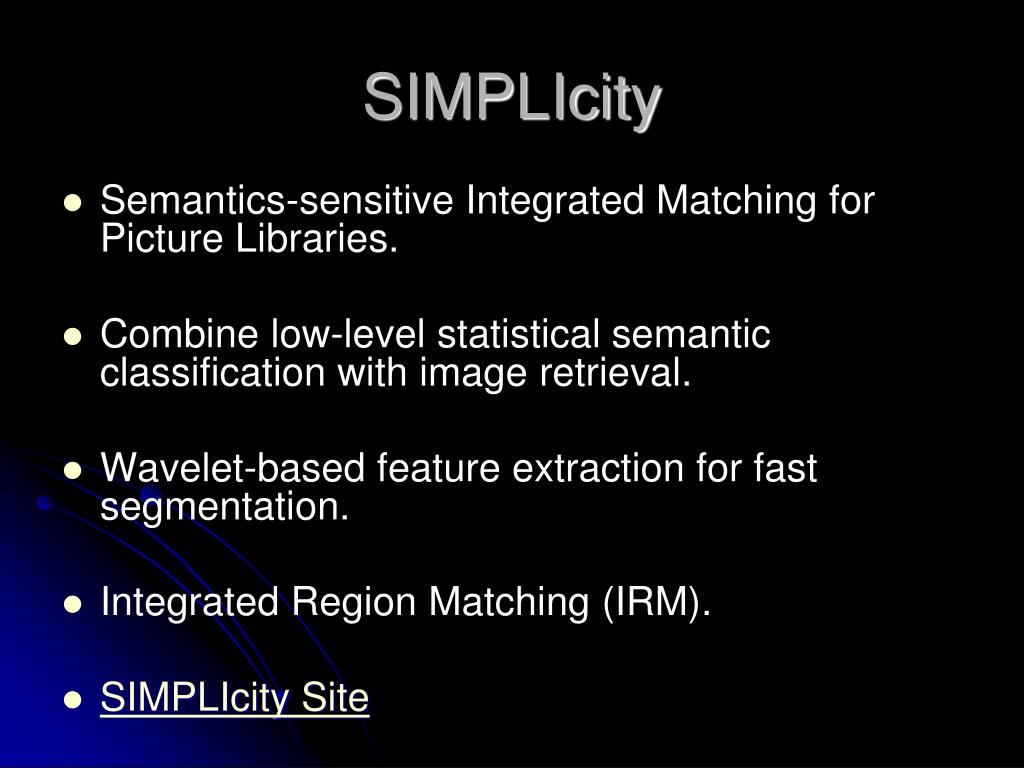

  20. SIMPLIcity • Semantics-sensitive Integrated Matching for Picture Libraries. • Combine low-level statistical semantic classification with image retrieval. • Wavelet-based feature extraction for fast segmentation. • Integrated Region Matching (IRM). • SIMPLIcity Site

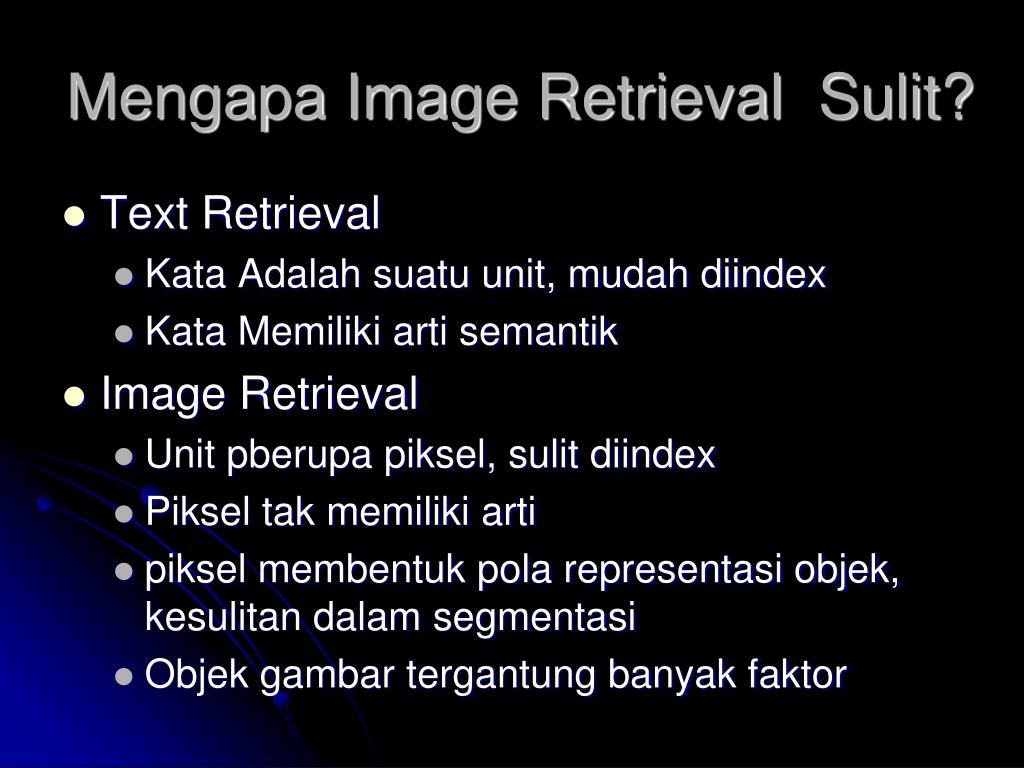

  21. Mengapa Image Retrieval Sulit? • Text Retrieval • Kata Adalah suatu unit, mudah diindex • Kata Memiliki arti semantik • Image Retrieval • Unit pberupa piksel, sulit diindex • Piksel tak memiliki arti • piksel membentuk pola representasi objek, kesulitan dalam segmentasi • Objek gambar tergantung banyak faktor

  22. Mengapa Image Retrieval Sulit? (Cont’) • Image Retrieval • Objek gambar tergantung banyak faktor • Sudut Pandang • Iluminasi • Bayangan • Dan komplikasi lainya (latar belakang, variasi warna, dll)

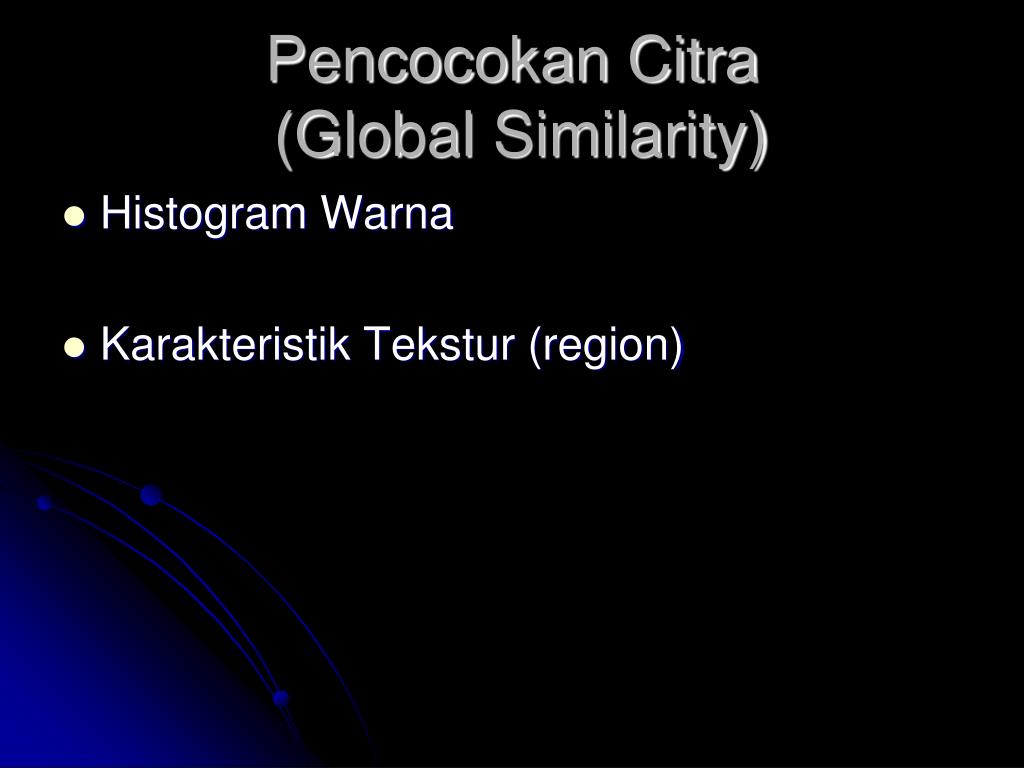

  23. Pencocokan Citra (Global Similarity) • Histogram Warna • Karakteristik Tekstur (region)

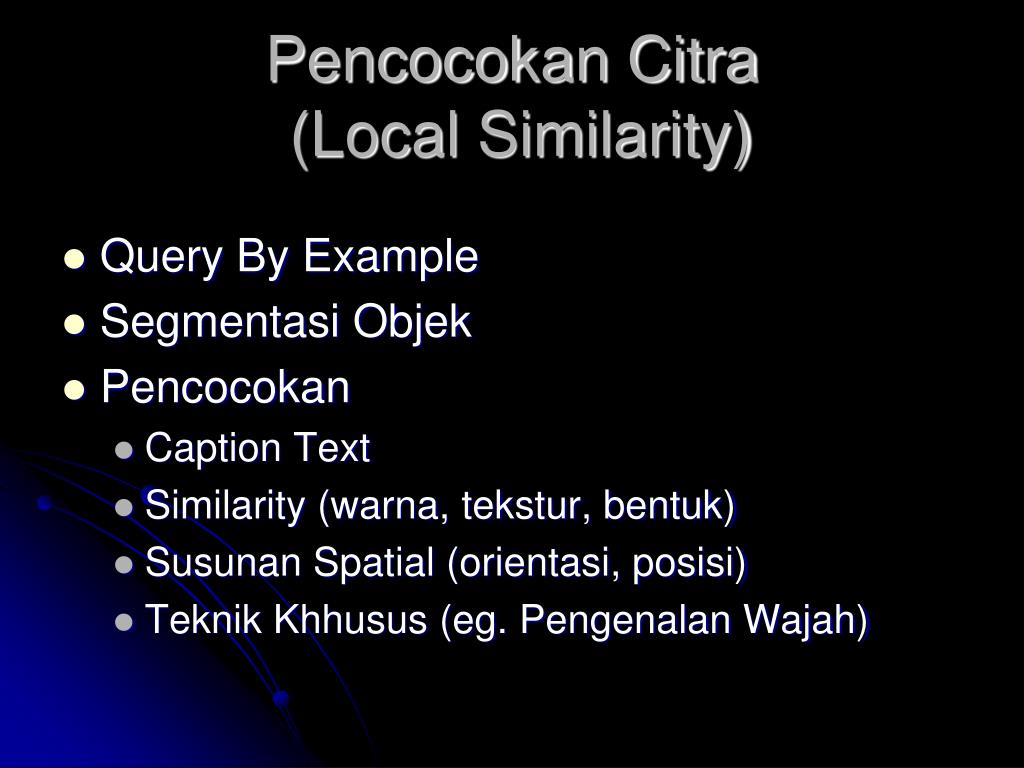

  24. Pencocokan Citra (Local Similarity) • Query By Example • Segmentasi Objek • Pencocokan • Caption Text • Similarity (warna, tekstur, bentuk) • Susunan Spatial (orientasi, posisi) • Teknik Khhusus (eg. Pengenalan Wajah)

  25. Conclusion • Since one query will return many false results, I believe more emphasis should be placed on the weighting of certain aspects of each image. • Some ideas: • Artistic tendencies could be taken into account when determining the relevance of an object in an image. • A textual comparison of an images indexed words, could help in determining how common certain objects are found together.
