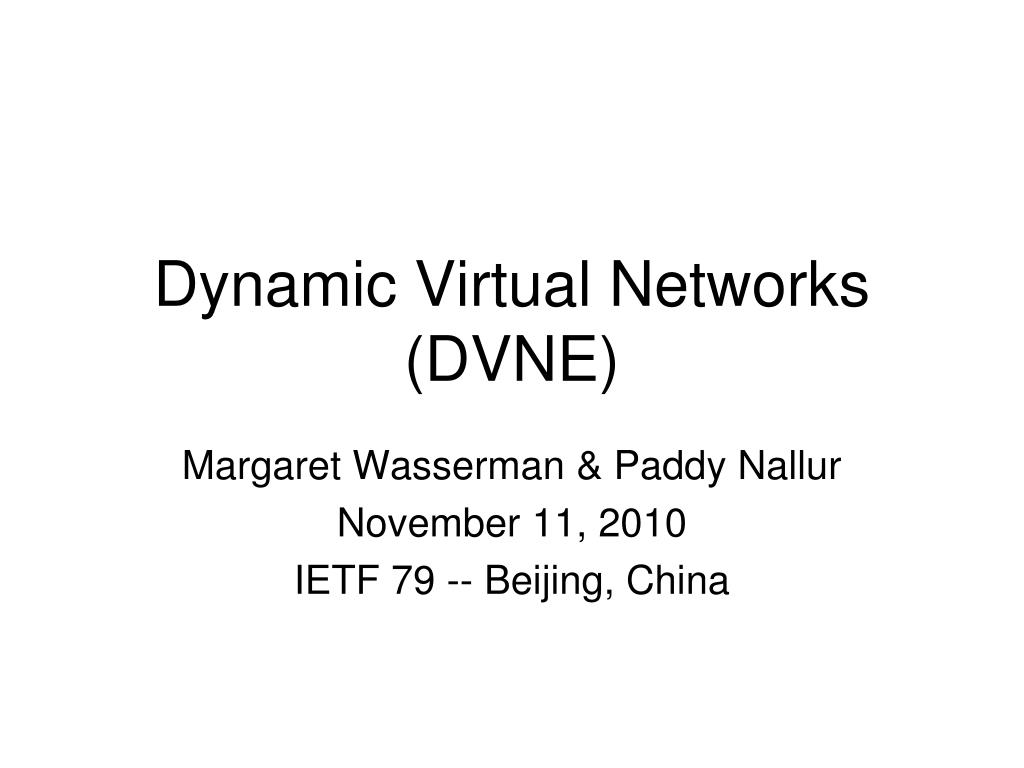

1. Dynamic Virtual Networks (DVNE) Margaret Wasserman & Paddy Nallur November 11, 2010 IETF 79 -- Beijing, China

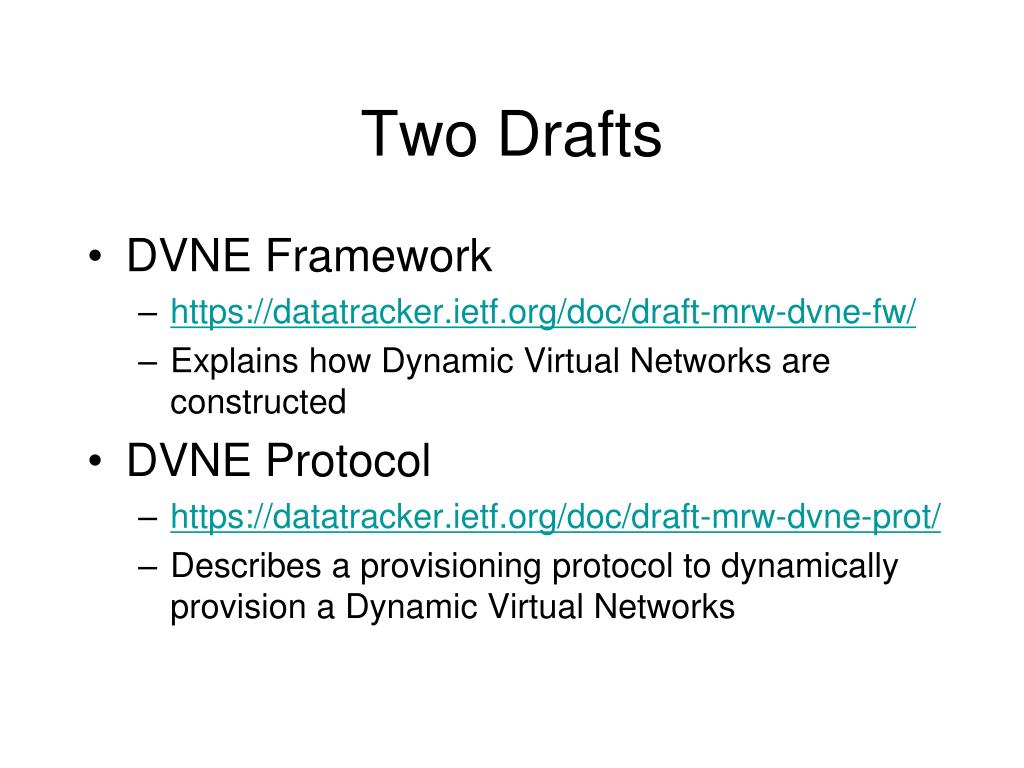

2. Two Drafts • DVNE Framework • https://datatracker.ietf.org/doc/draft-mrw-dvne-fw/ • Explains how Dynamic Virtual Networks are constructed • DVNE Protocol • https://datatracker.ietf.org/doc/draft-mrw-dvne-prot/ • Describes a provisioning protocol to dynamically provision a Dynamic Virtual Networks

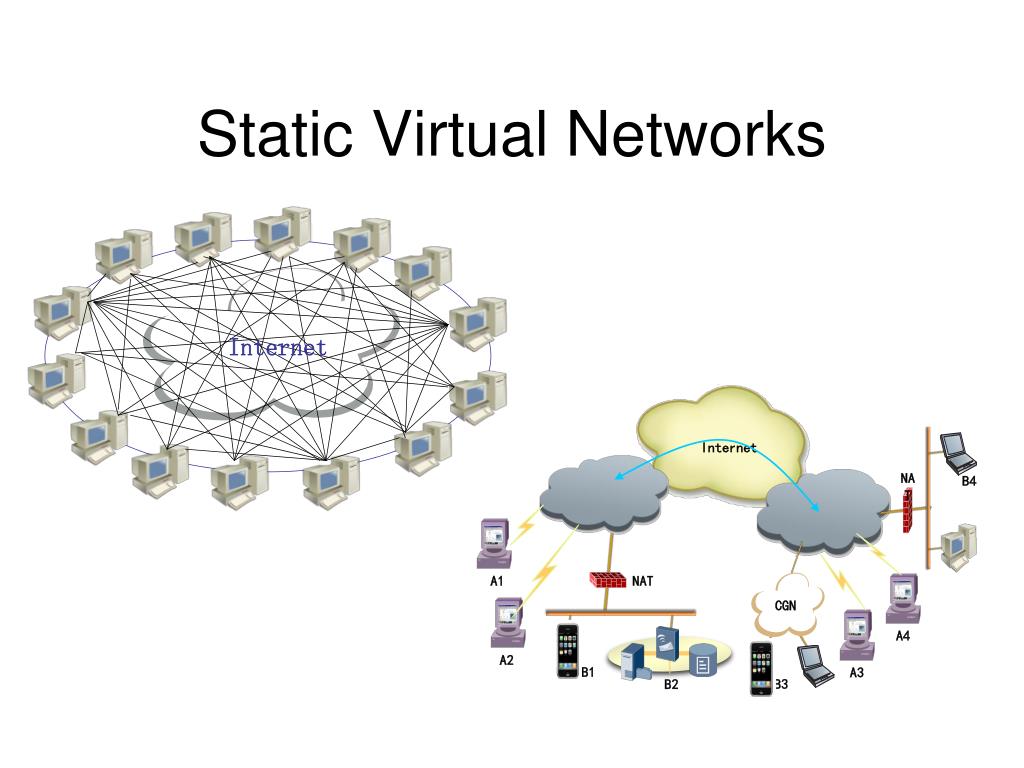

3. Static Virtual Networks Internet NAT B4 A1 NAT CGN A4 A2 B1 A3 B3 B2

4. Issues to Address • Node-to-Node Virtual Networks • Connectivity can be hard to establish due to NATs, IPv4-to-IPv6 coexistence technologies, firewalls, etc. • Large Virtual Networks are unmanageable due to need to configure virtual network parameters on every node. • Remote endpoint addresses, credentials, etc. • Each node maintains state for every other node in the network, even if they never communicate • Site-to-Site Virtual Networks • No consistent end-to-end security • Security depends on physical topology • No support for flexible, centralized administration and provisioning

5. B2 Functional Elements DVNE Mediator VN Node VN Node VN Node Edge Network

6. Basic Operation of Mediator • Client desires DVNE connection to another host in the VN, asks mediator • Mediator authenticates client • Mediator provisions both end of the connection • Local IP addrss, address list for peer, STUN server address, credentials for secure tunnel, etc. • VPN connection is established by endpoints • Using IPsec tunnel or DTLS • May use ICE, STUN or other mechanisms as needed to establish connectivity

7. B2 Dynamic, On-Demand Connection DVNE Mediator VN Node Node B Node A Edge Network • - Node A requests connection to Node B • Mediator provisions Node A & Node B • Secure connection from Node A to Node B

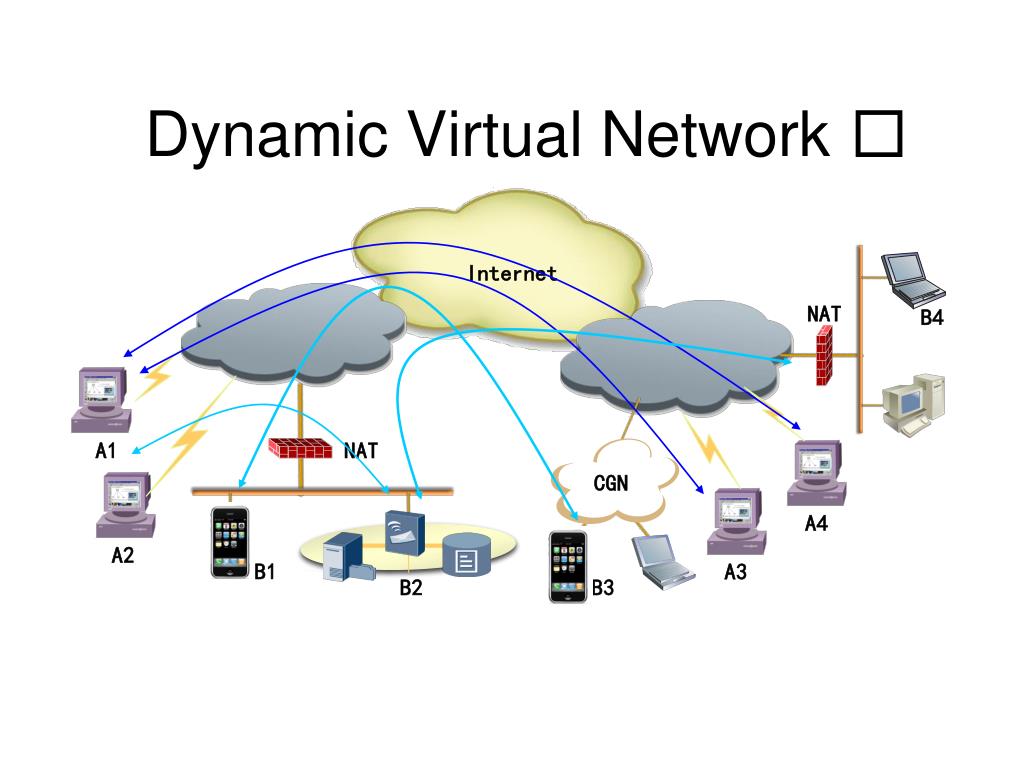

8. B2 Dynamic Virtual Network Internet NAT B4 A1 NAT CGN A4 A2 B1 A3 B3

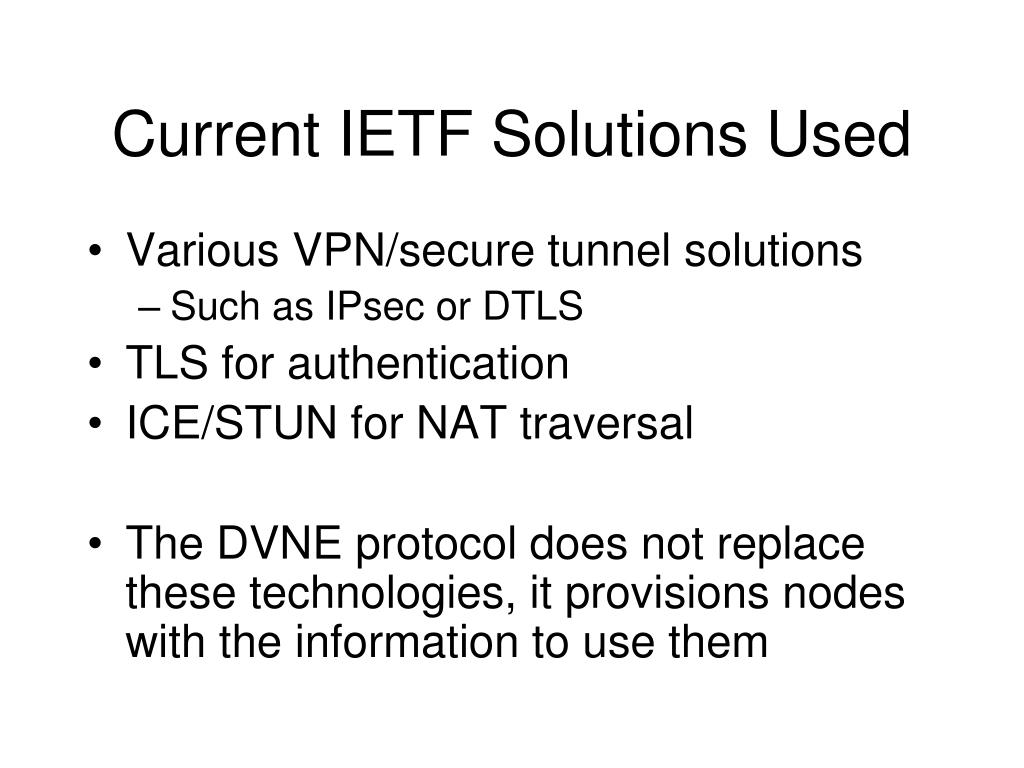

9. Current IETF Solutions Used • Various VPN/secure tunnel solutions • Such as IPsec or DTLS • TLS for authentication • ICE/STUN for NAT traversal • The DVNE protocol does not replace these technologies, it provisions nodes with the information to use them

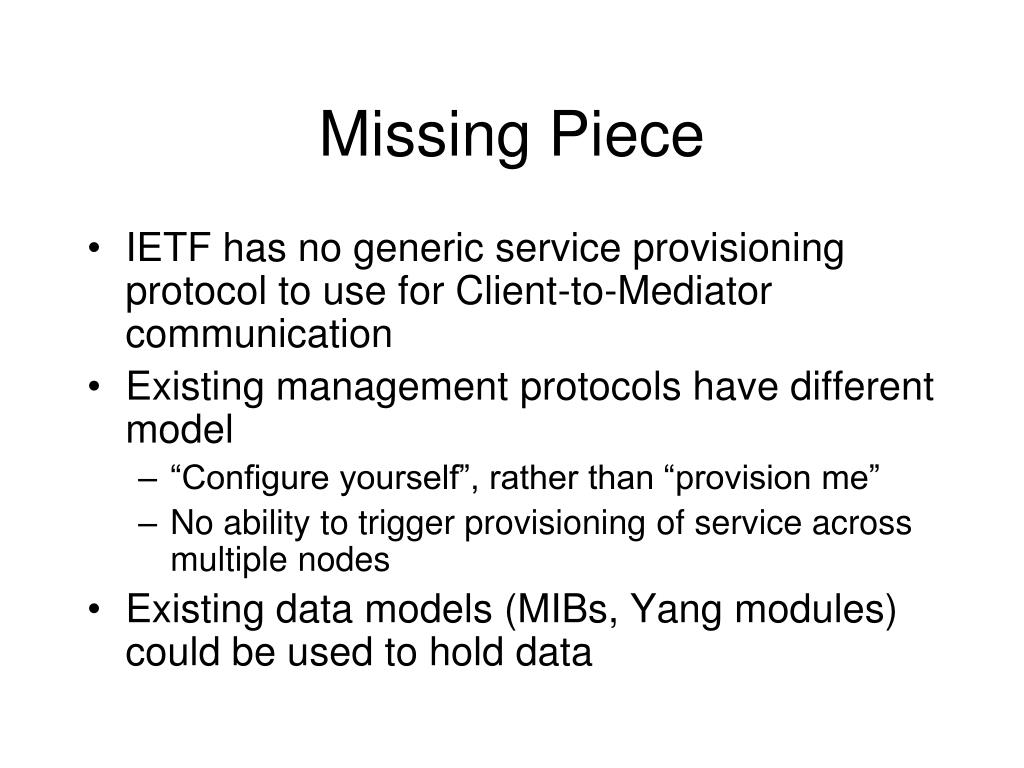

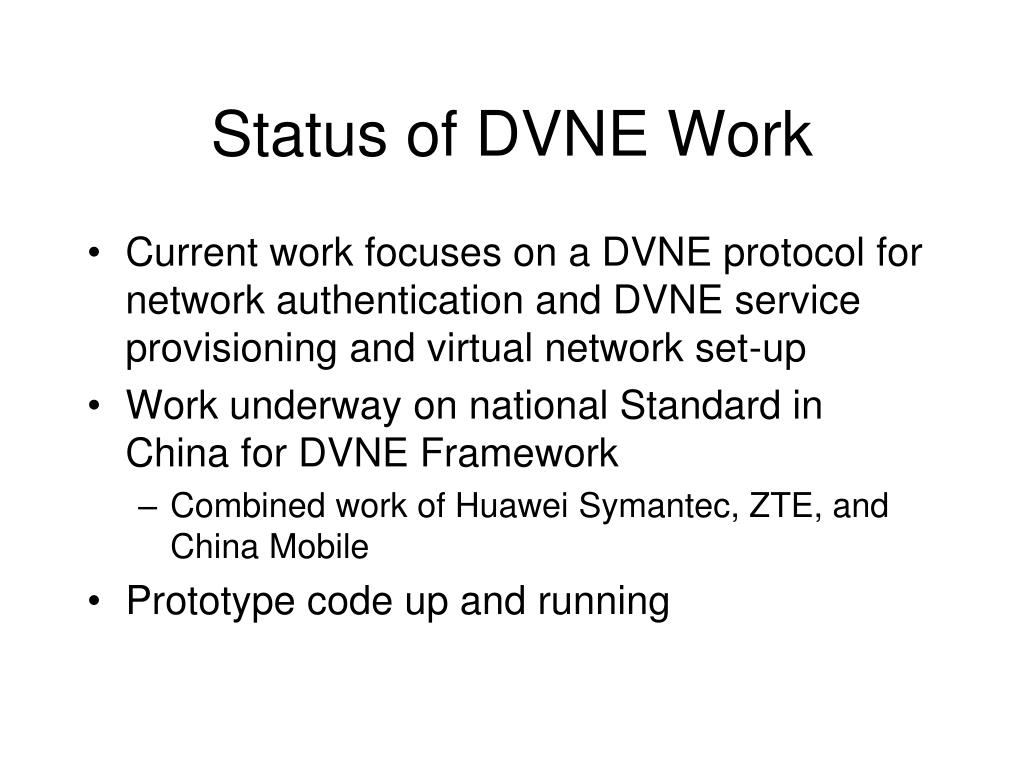

10. Missing Piece • IETF has no generic service provisioning protocol to use for Client-to-Mediator communication • Existing management protocols have different model • “Configure yourself”, rather than “provision me” • No ability to trigger provisioning of service across multiple nodes • Existing data models (MIBs, Yang modules) could be used to hold data

11. Status of DVNE Work • Current work focuses on a DVNE protocol for network authentication and DVNE service provisioning and virtual network set-up • Work underway on national Standard in China for DVNE Framework • Combined work of Huawei Symantec, ZTE, and China Mobile • Prototype code up and running

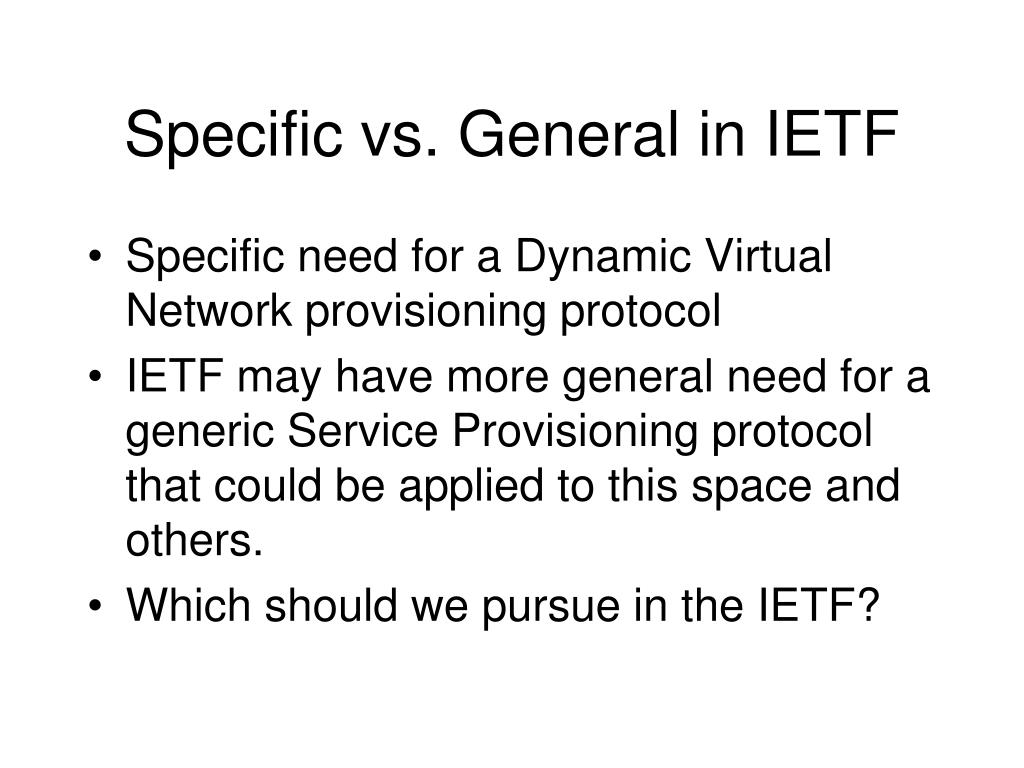

12. Specific vs. General in IETF • Specific need for a Dynamic Virtual Network provisioning protocol • IETF may have more general need for a generic Service Provisioning protocol that could be applied to this space and others. • Which should we pursue in the IETF?

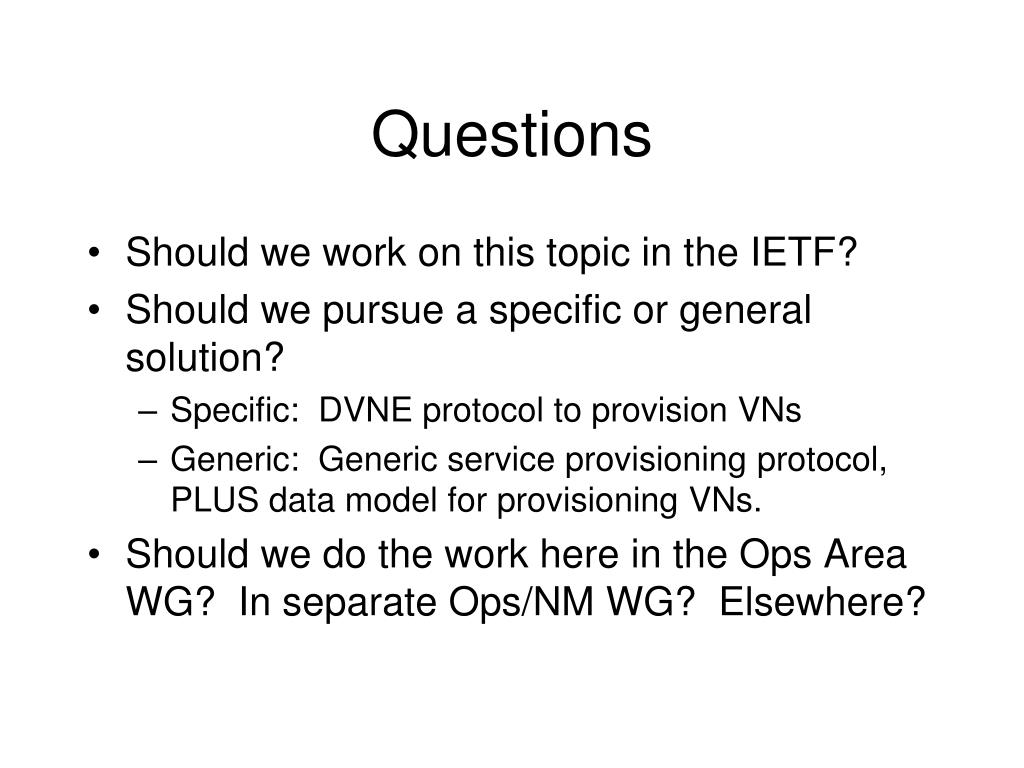

13. Questions • Should we work on this topic in the IETF? • Should we pursue a specific or general solution? • Specific: DVNE protocol to provision VNs • Generic: Generic service provisioning protocol, PLUS data model for provisioning VNs. • Should we do the work here in the Ops Area WG? In separate Ops/NM WG? Elsewhere?
