  1. EMZA Making Sense Of your Asset protection

  2. EmzaVisual Sense WiseEye™ New Outdoor Intrusion Detection System 2009

  3. EmzaVisual Sense • Emza Introduces new concept, low budget, new outdoor solution for Real Time • Perimeters protection • Intrusion detection • Visual verification • With Lowest False Alarm rate

  4. Outdoor Applications Gas loading Fences Gates Clicking pictures should link to diagram page Campus Electricity Comm Sites

  5. WiseEyeTM All-In-One Intrusion Detection Sensor World’s First • WiseEyeTM • Video Sensor • Autonomous • Real Time alerts • Real Plug N’ Play

  6. The WiseEyeTM Autonomous optical sensor for outdoor perimeters protection, Intruder detection & visual notification (pictures)

  7. Optimized for outdoor operation Automatically discount environmental changes such as day/night, winds, rain, snow, trees movement, falling leaves, sun rising, clouds shadows etc.

  8. The WiseEyeTM WiseEye smart miniature and autonomous device performs the entire surveillance task in a single unit: Image Acquisition (built in CMOS sensor) >> Monitoring (built in ARM processor) <> Analysis & Detection (Built in video intelligence) << Intruder Identification (built in detection rules) >> Report (built In wired/wireless communication)

  9. Visual email alerts Detection + Visual Verification + Real Time Responding = Real Time Damage Prevention!

  10. Trigger Line / Virtual Fence Trigger alert while “touching”/ crossing the line

  11. Web GUI

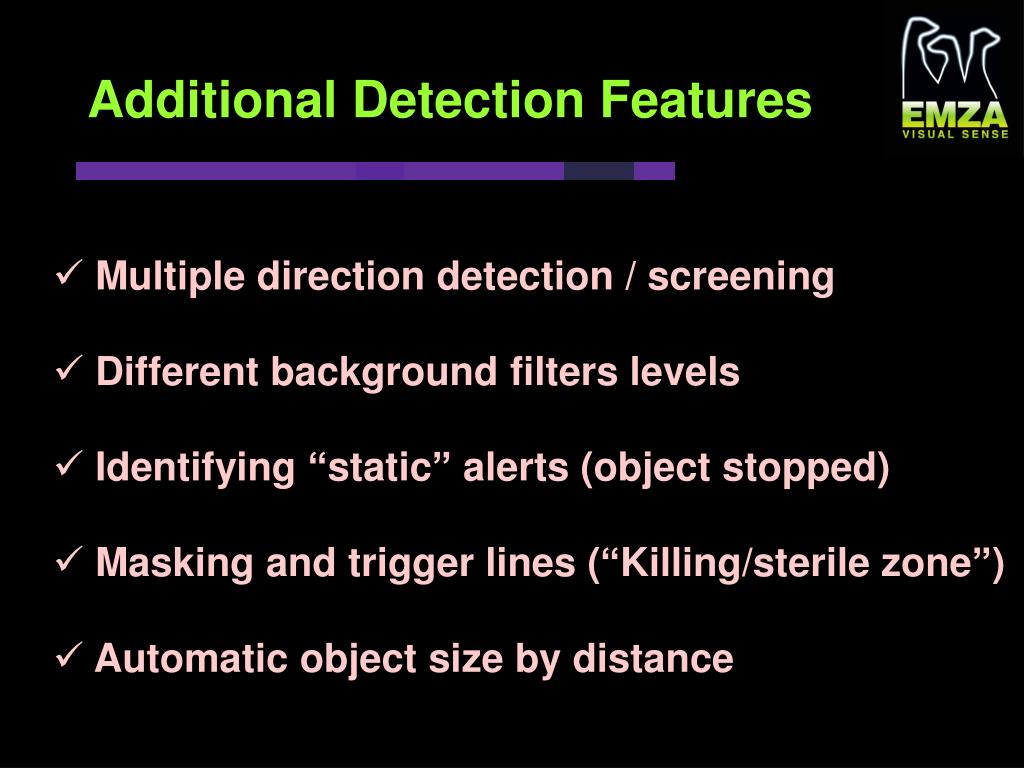

  12. Additional Detection Features • Multiple direction detection / screening • Different background filters levels • Identifying “static” alerts (object stopped) • Masking and trigger lines (“Killing/sterile zone”) • Automatic object size by distance

  13. Intrusion Detection Range People - 330 feet (80-100 meter) Vehicles - 450+ feet (150 meter) Full VGA (640x480) 300+ ft

  14. WiseEye Specifications • Imager: CMOS 1/3.8” • Image Format: VGA (640x480) • Output: JPEG / MJPEG • F2.8 • FOV: 600 • IP device: (dynamic/static) • Auto scene learning - 30 seconds • Ethernet / WIFI 802.11B/G • Low Power: 2 Watt wired, 4Watt wireless • IP66 weather proof full outdoor unit • Standard web GUI • Remote setup and configuration

  15. System Architecture

  16. Multiple Sites

  17. Web Access Control

  18. ECU Feature • Network recording and control unit • Linux based platform • Web based GUI for multiple WiseEye units • Multiple alerts in the same screen • Supports 32 WiseEye units • Record and display alerts video clips • Months of alert history • Weekly scheduler • SQL database for alerts history • Search and reporting tools • Email notification with alert picture • Audible alarm + popup window • Complete interface with any 3’d party application • Interface with alarm panels

  19. Event Management Over Secured Internet

  20. Select Specific Event

  21. Other video Solutions Lower Budget

  22. Emza Cost Saving

  23. WiseEyeTM Typical Customer Story “…We had another success because of Emza … we had a very brief alert …. that caused the monitoring station to dispatch our officer.  When we arrived at the site, we found an intruder inside a building next to our outdoor yard, and the police proceeded to arrive and complete the arrest.  The police had to use the K-9 unit, and after a couple of bites, the suspect gave up…”

  24. Typical Applications • Infrastructure facilities: Electrical, Gas, Oil, Water, Petrochemical, Pipes etc. • Solar energy farms • Hydroelectric plant • Wind turbine • Warehouses & Storage areas • Communication Towers • Train Stations • Constructions sites • Buildings security • Shopping centers • Car dealers • Parking yards • County airports

  25. WiseEye™ Making Sense Of Your Security Tasks ! Thank You www.emza-vs.com yossig@emza-vs.com
