1. Estimating Growth when Content Specifications Change: A Multidimensional IRT Approach Mark D. Reckase Tianli Li Michigan State University

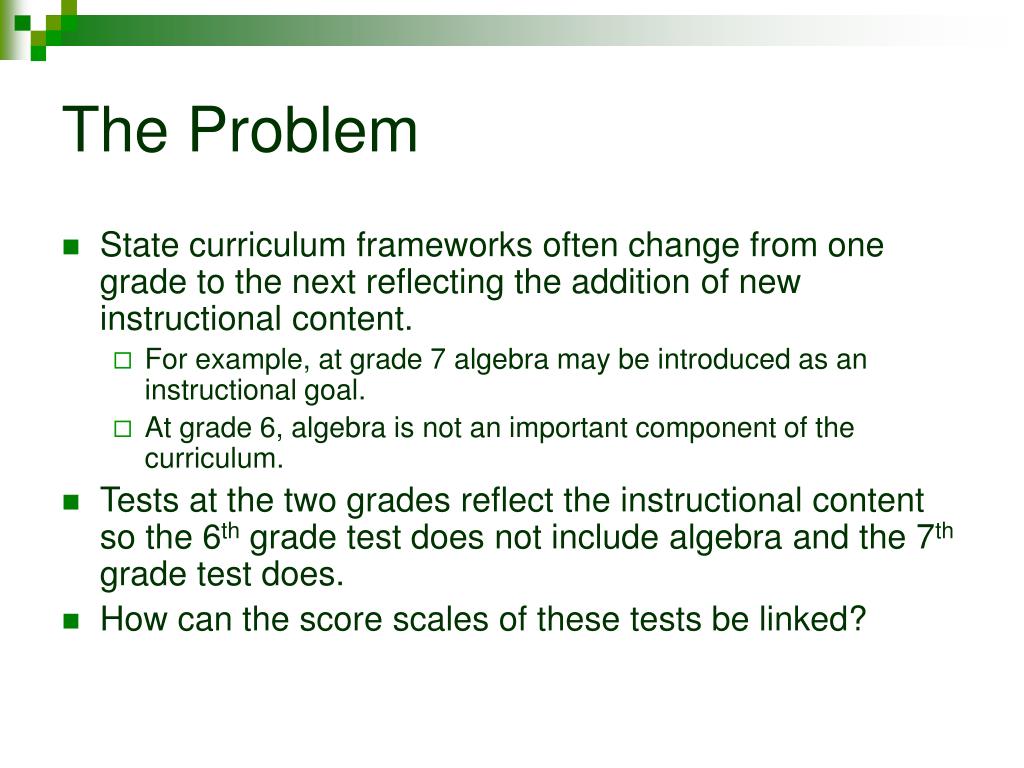

2. The Problem • State curriculum frameworks often change from one grade to the next reflecting the addition of new instructional content. • For example, at grade 7 algebra may be introduced as an instructional goal. • At grade 6, algebra is not an important component of the curriculum. • Tests at the two grades reflect the instructional content so the 6th grade test does not include algebra and the 7th grade test does. • How can the score scales of these tests be linked?

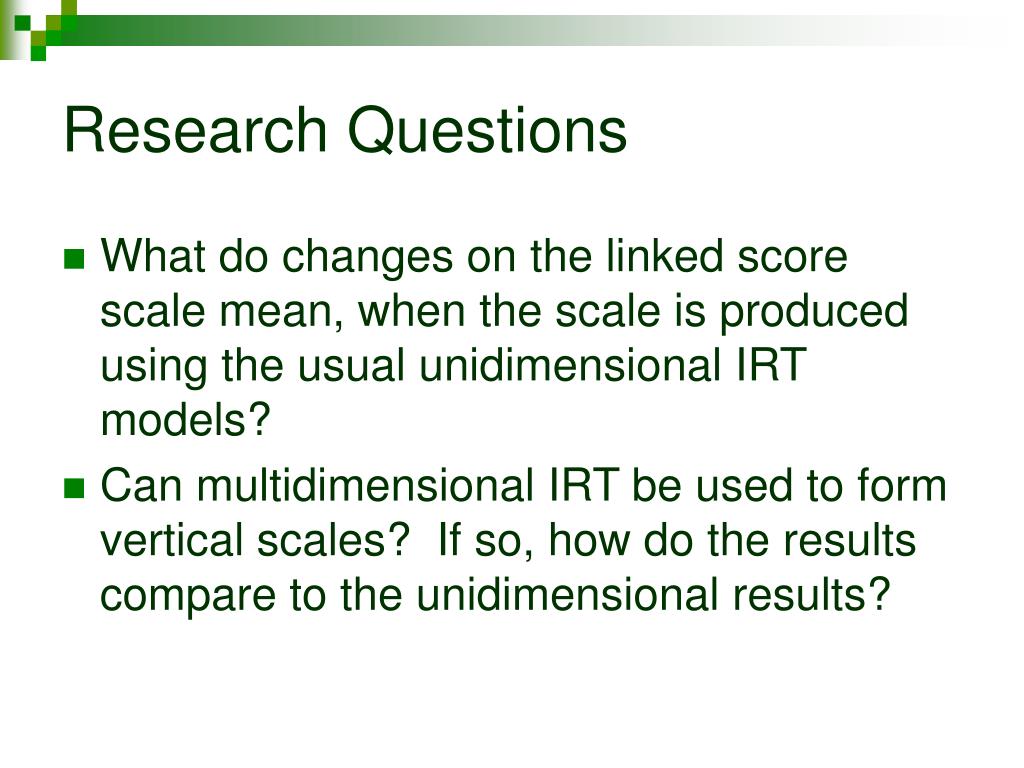

3. Research Questions • What do changes on the linked score scale mean, when the scale is produced using the usual unidimensional IRT models? • Can multidimensional IRT be used to form vertical scales? If so, how do the results compare to the unidimensional results?

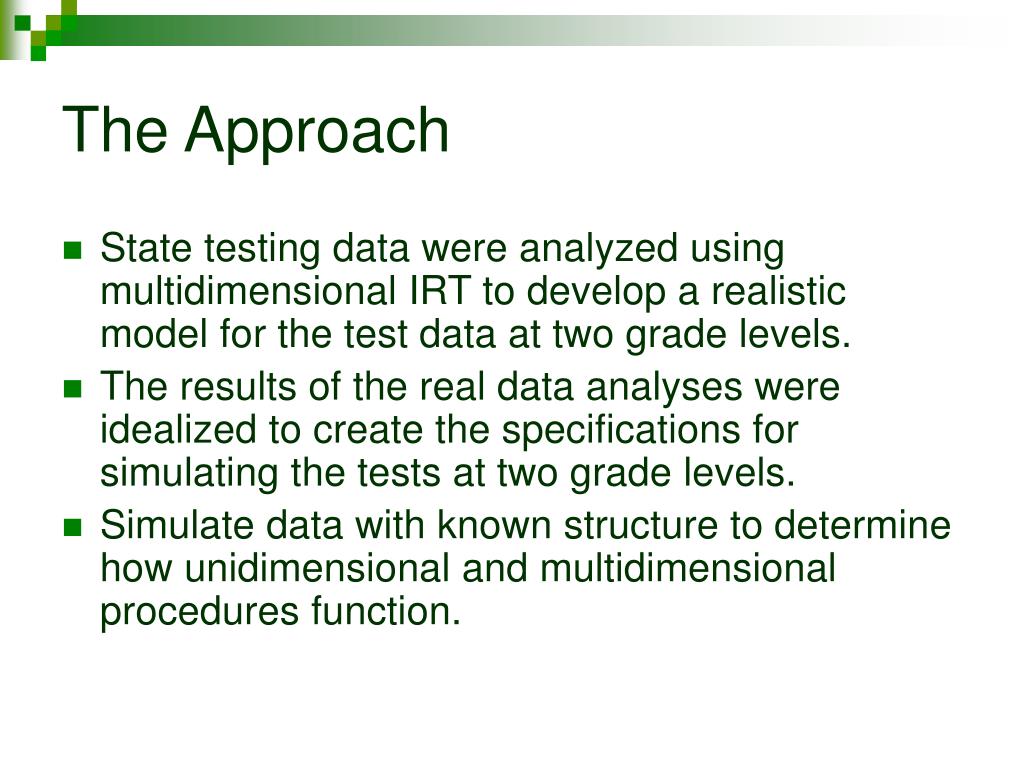

4. The Approach • State testing data were analyzed using multidimensional IRT to develop a realistic model for the test data at two grade levels. • The results of the real data analyses were idealized to create the specifications for simulating the tests at two grade levels. • Simulate data with known structure to determine how unidimensional and multidimensional procedures function.

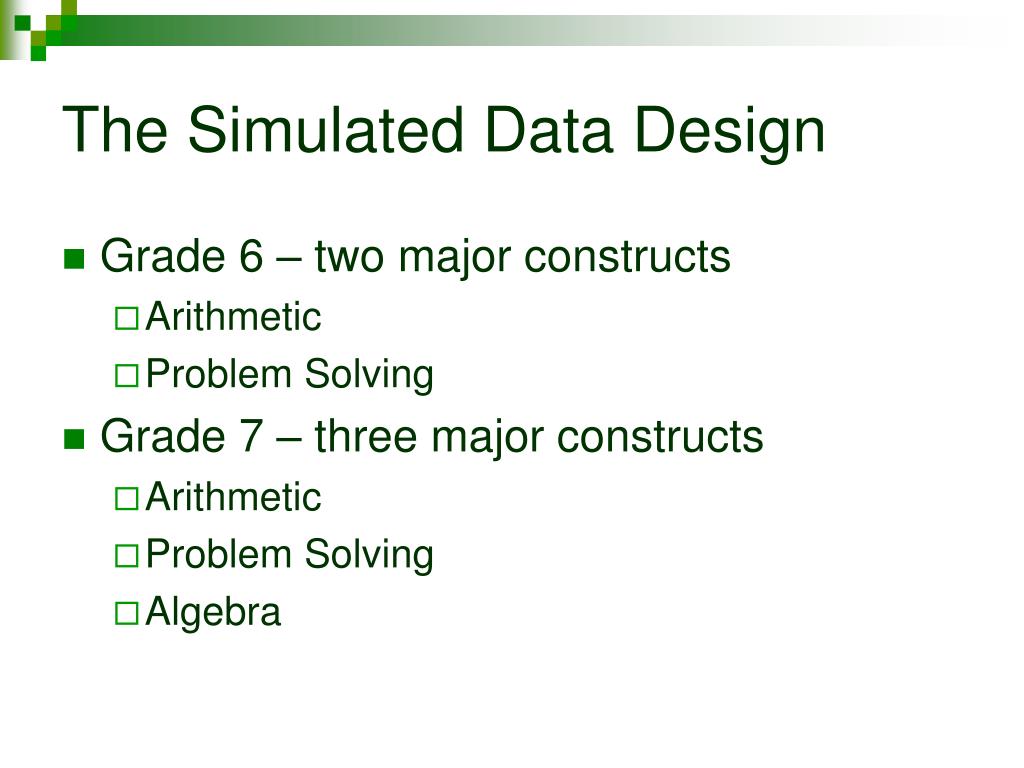

5. The Simulated Data Design • Grade 6 – two major constructs • Arithmetic • Problem Solving • Grade 7 – three major constructs • Arithmetic • Problem Solving • Algebra

6. Simulated Test Structure Note: The numbers in parentheses are the common items between the two forms of the tests.

7. Mean Vectors at each Grade Level Note: Values in parentheses are the observed means from the simulated data

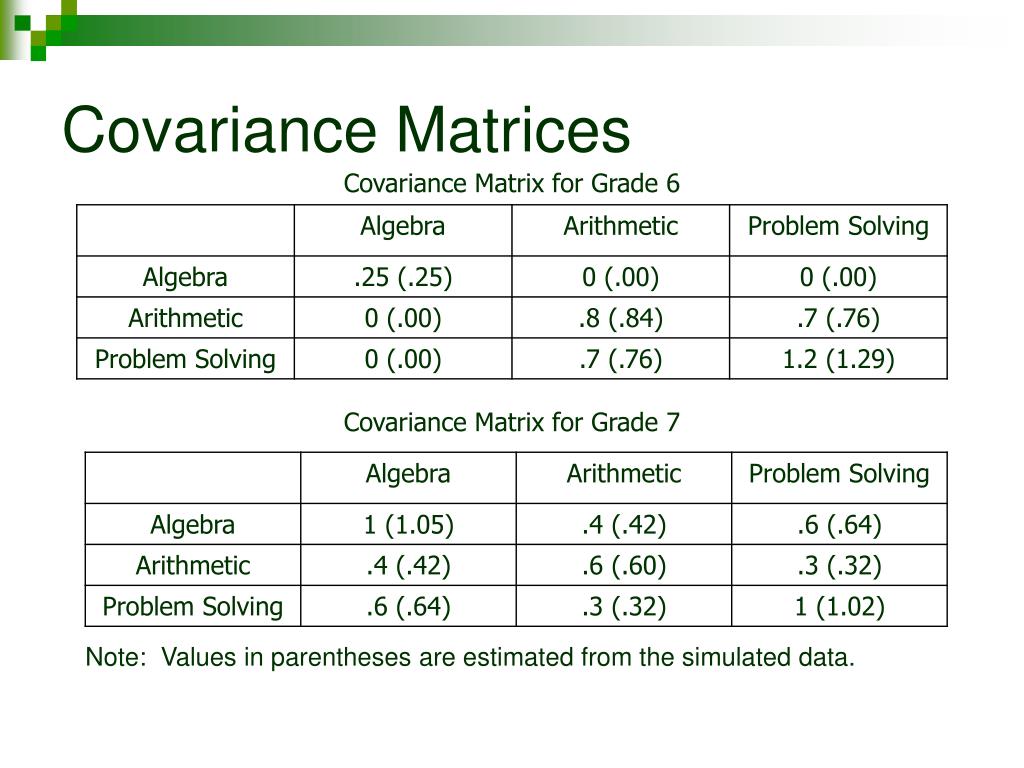

8. Covariance Matrices Covariance Matrix for Grade 6 Covariance Matrix for Grade 7 Note: Values in parentheses are estimated from the simulated data.

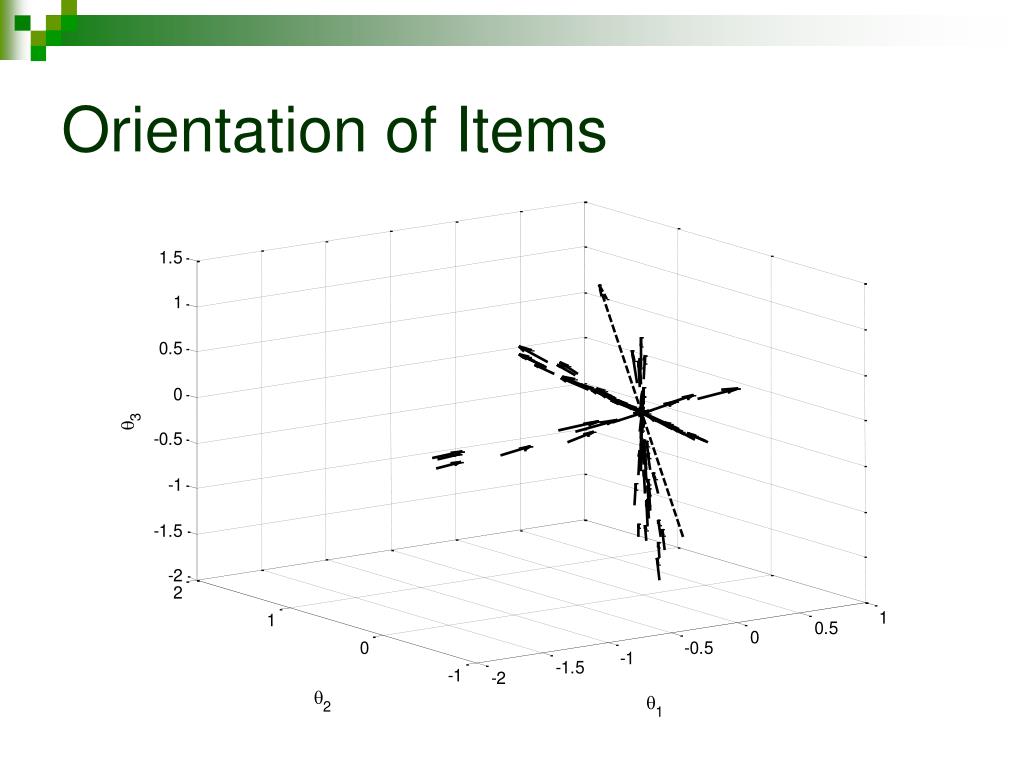

9. Orientation of Items

10. Effect Size Built into Data

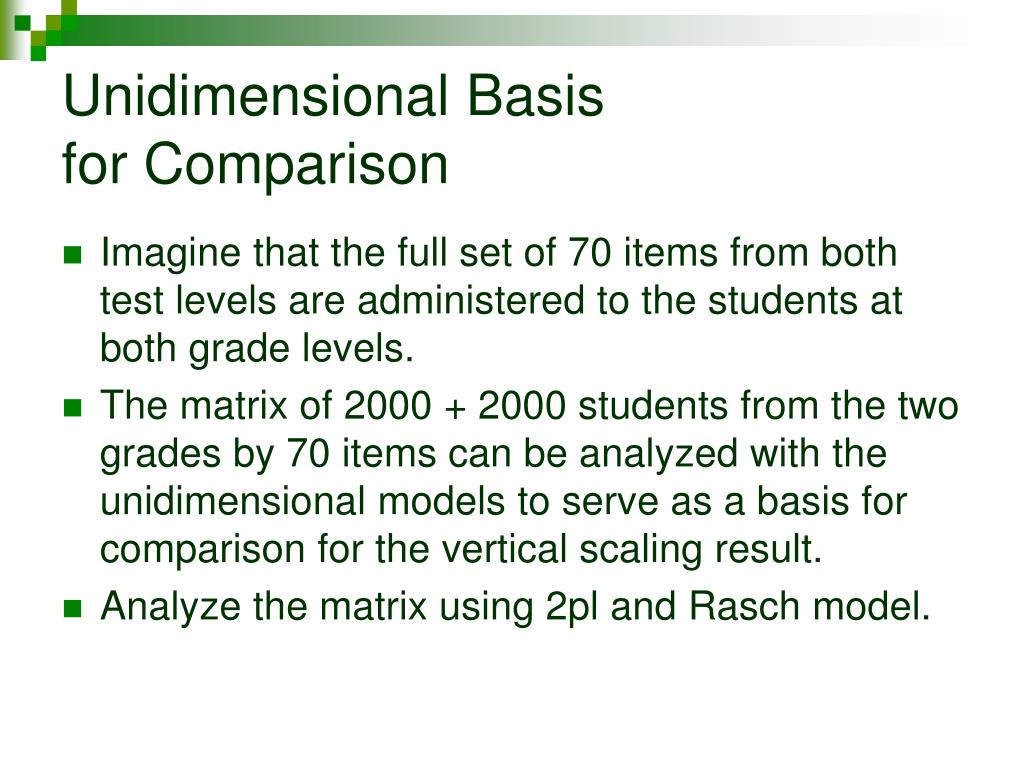

11. Unidimensional Basisfor Comparison • Imagine that the full set of 70 items from both test levels are administered to the students at both grade levels. • The matrix of 2000 + 2000 students from the two grades by 70 items can be analyzed with the unidimensional models to serve as a basis for comparison for the vertical scaling result. • Analyze the matrix using 2pl and Rasch model.

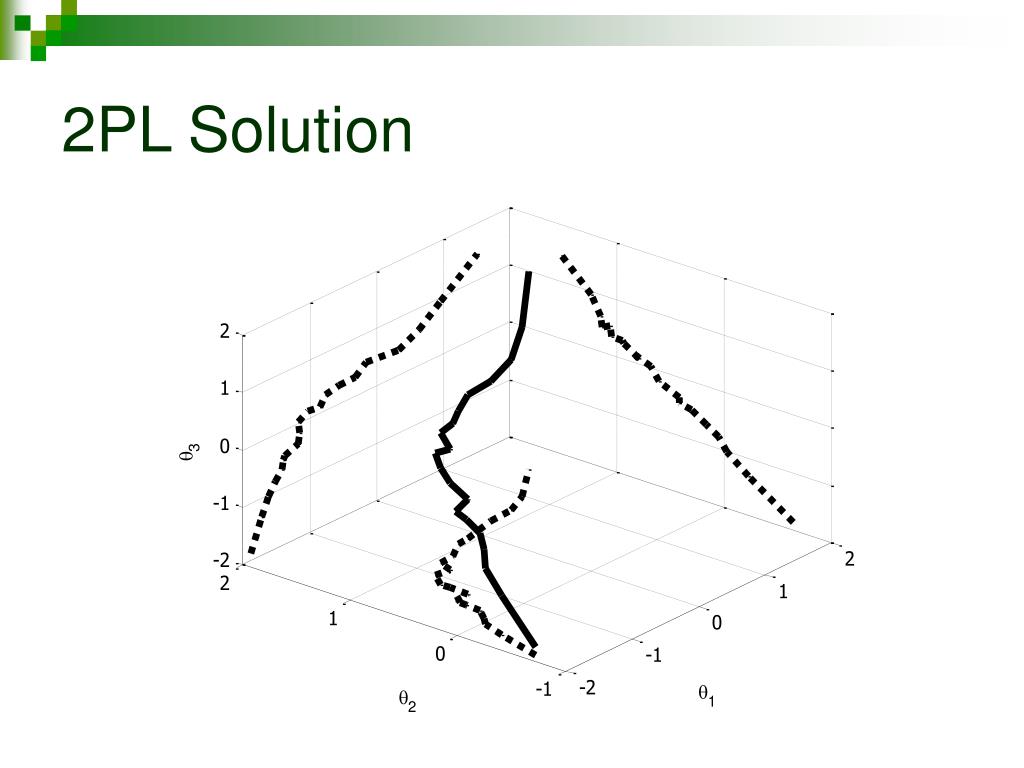

12. 2PL Solution

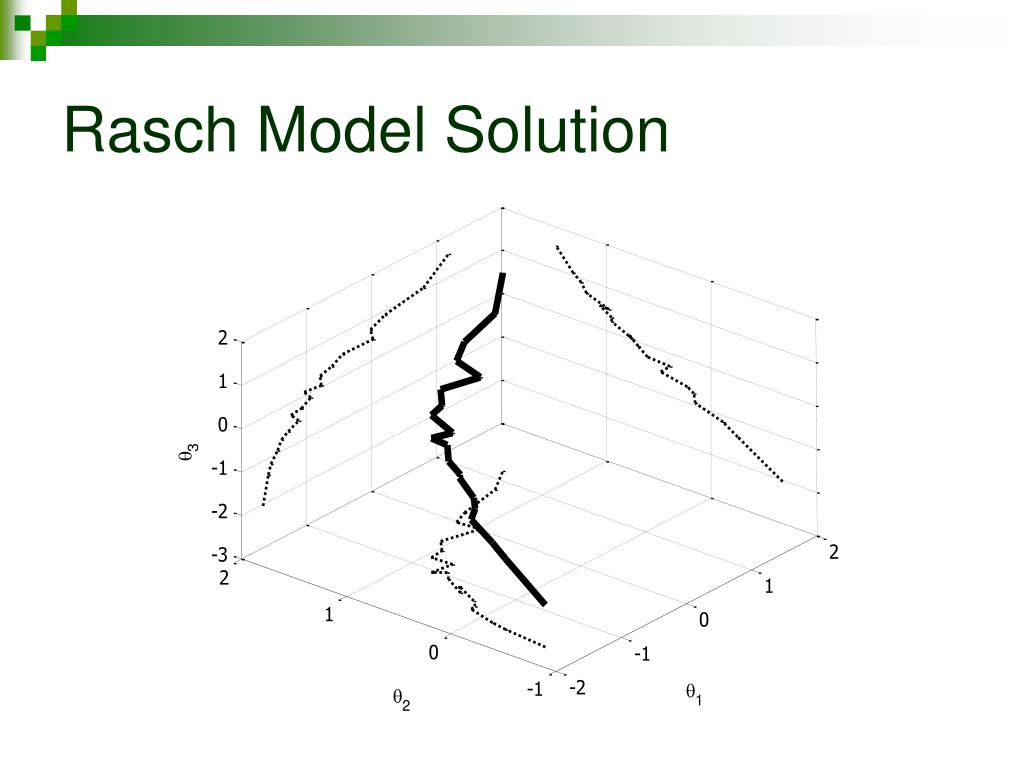

13. Rasch Model Solution

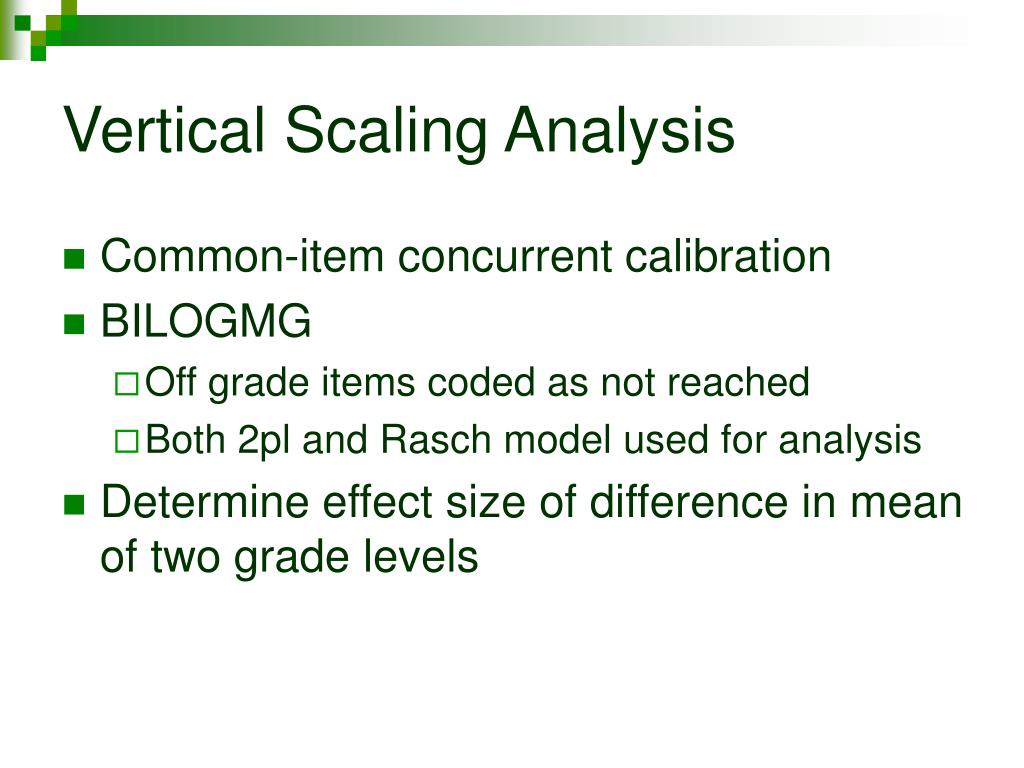

14. Vertical Scaling Analysis • Common-item concurrent calibration • BILOGMG • Off grade items coded as not reached • Both 2pl and Rasch model used for analysis • Determine effect size of difference in mean of two grade levels

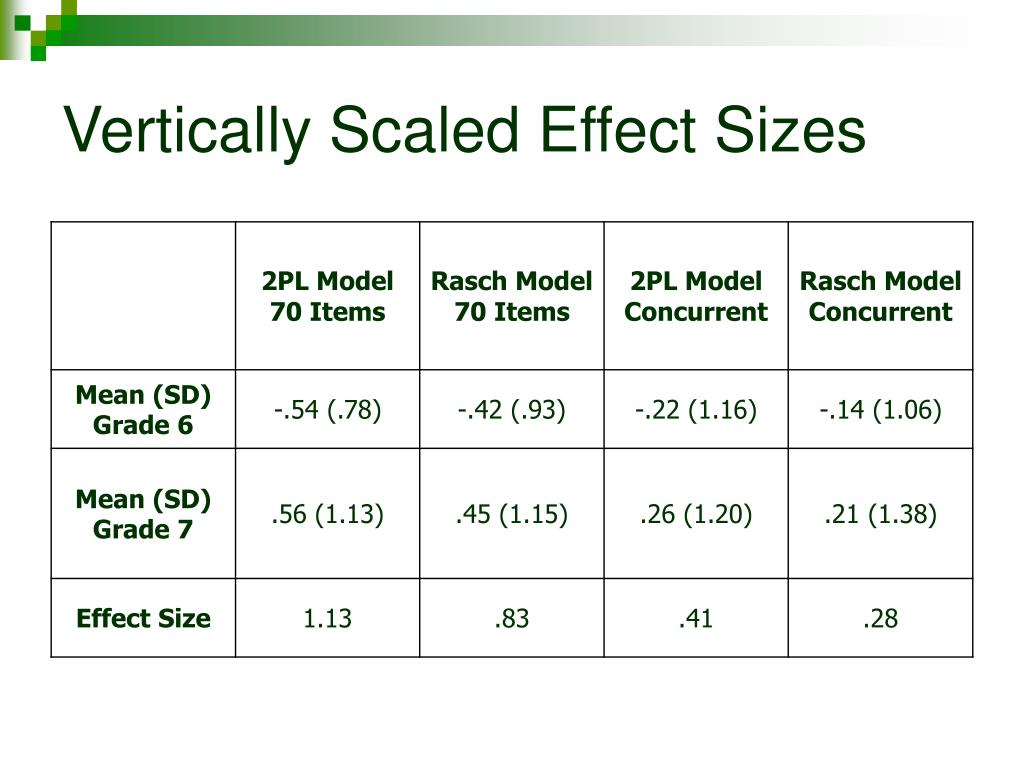

15. Vertically Scaled Effect Sizes

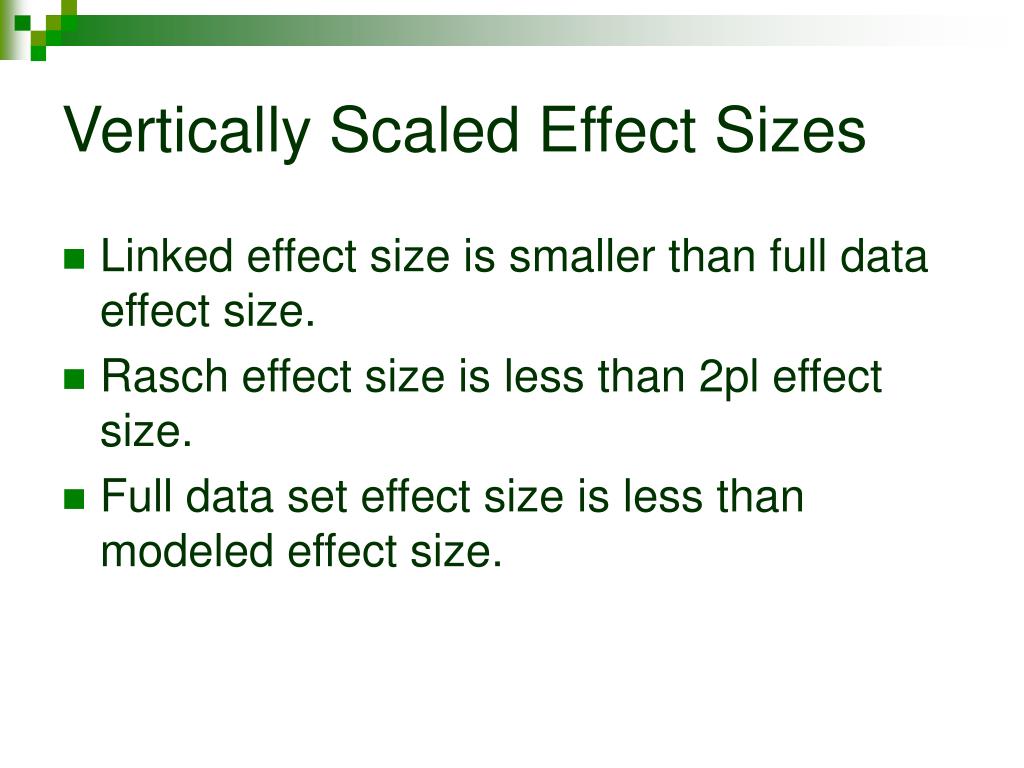

16. Vertically Scaled Effect Sizes • Linked effect size is smaller than full data effect size. • Rasch effect size is less than 2pl effect size. • Full data set effect size is less than modeled effect size.

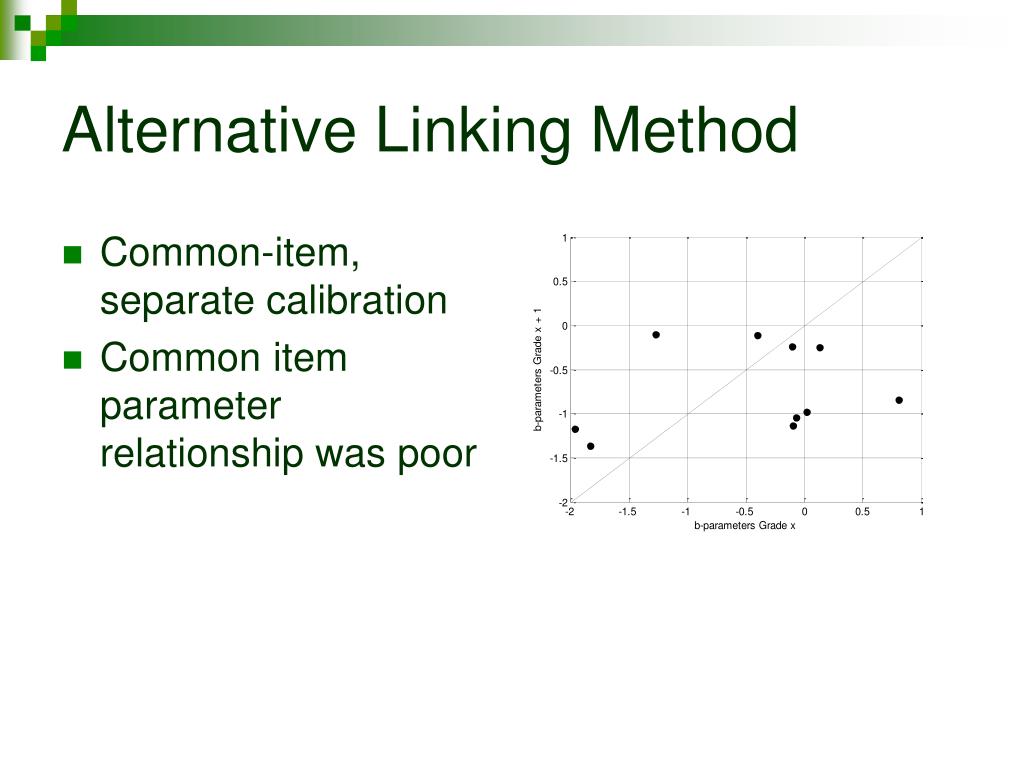

17. Alternative Linking Method • Common-item, separate calibration • Common item parameter relationship was poor

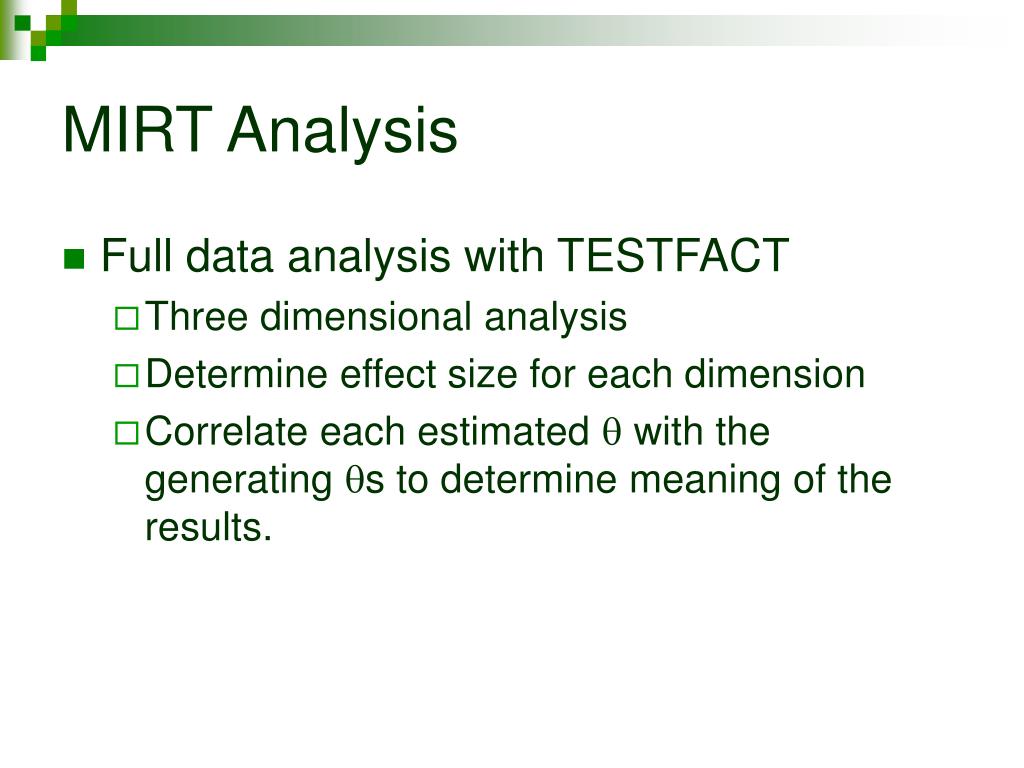

18. MIRT Analysis • Full data analysis with TESTFACT • Three dimensional analysis • Determine effect size for each dimension • Correlate each estimated q with the generating qs to determine meaning of the results.

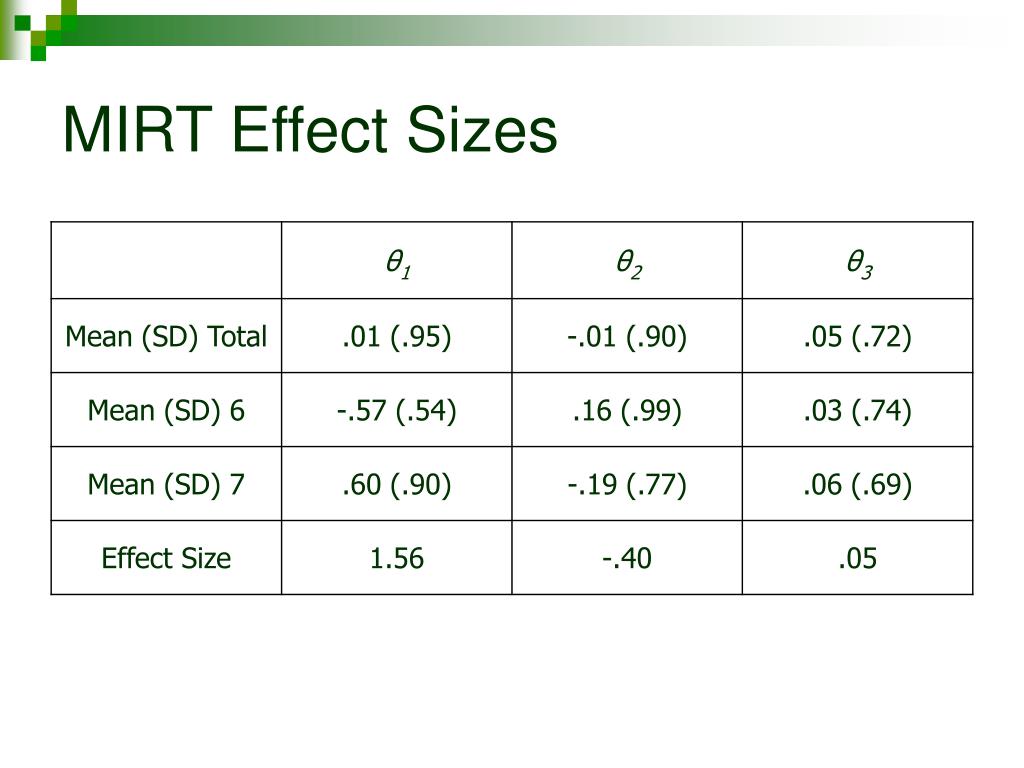

19. MIRT Effect Sizes

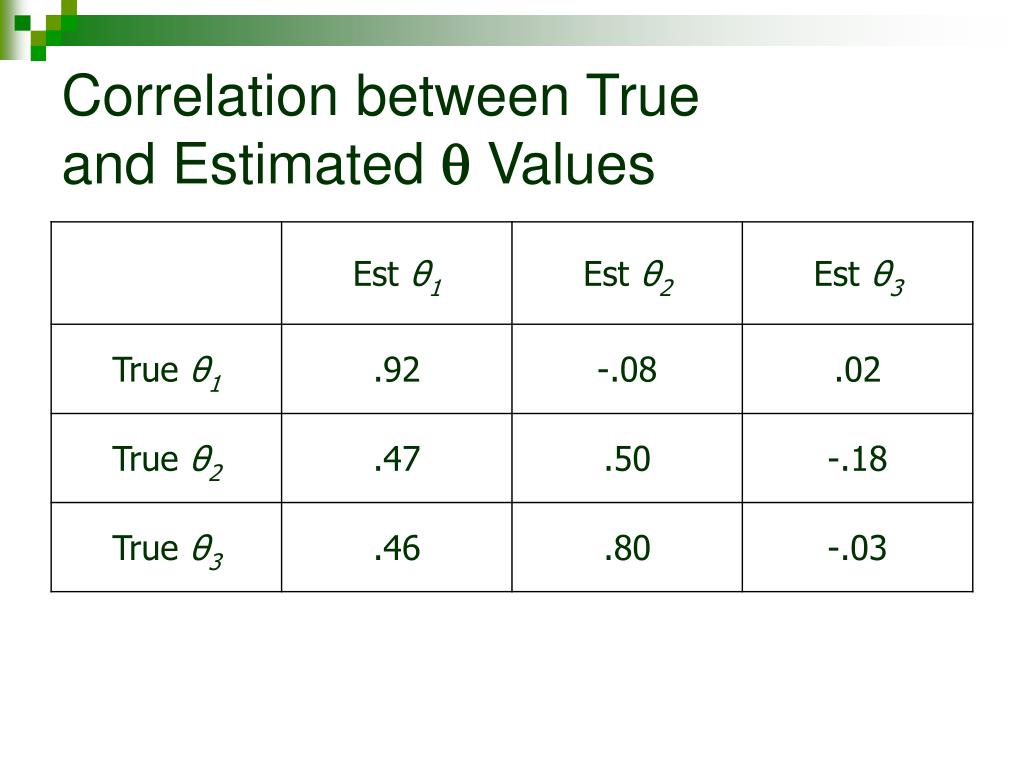

20. Correlation between Trueand Estimated qValues

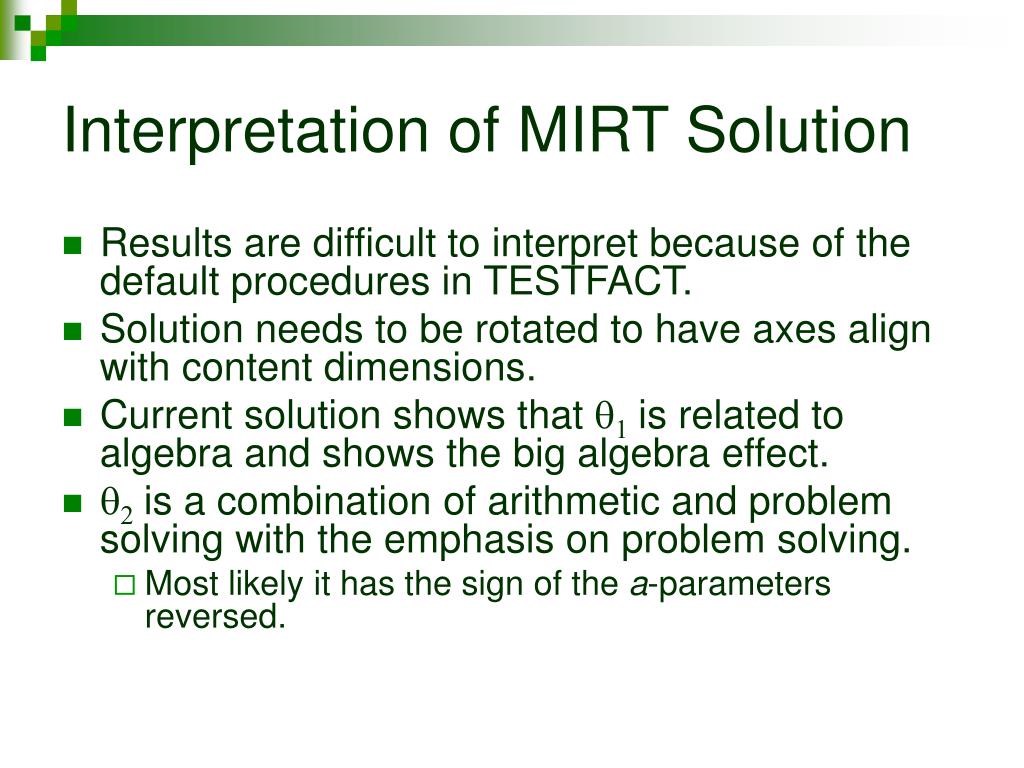

21. Interpretation of MIRT Solution • Results are difficult to interpret because of the default procedures in TESTFACT. • Solution needs to be rotated to have axes align with content dimensions. • Current solution shows that q1is related to algebra and shows the big algebra effect. • q2is a combination of arithmetic and problem solving with the emphasis on problem solving. • Most likely it has the sign of the a-parameters reversed.

22. Concurrent MIRT Analysis • Use concurrent calibration of data from the two grade levels. • Three dimensional solution • No rotation • Determine effect sizes and correlations with true q values.

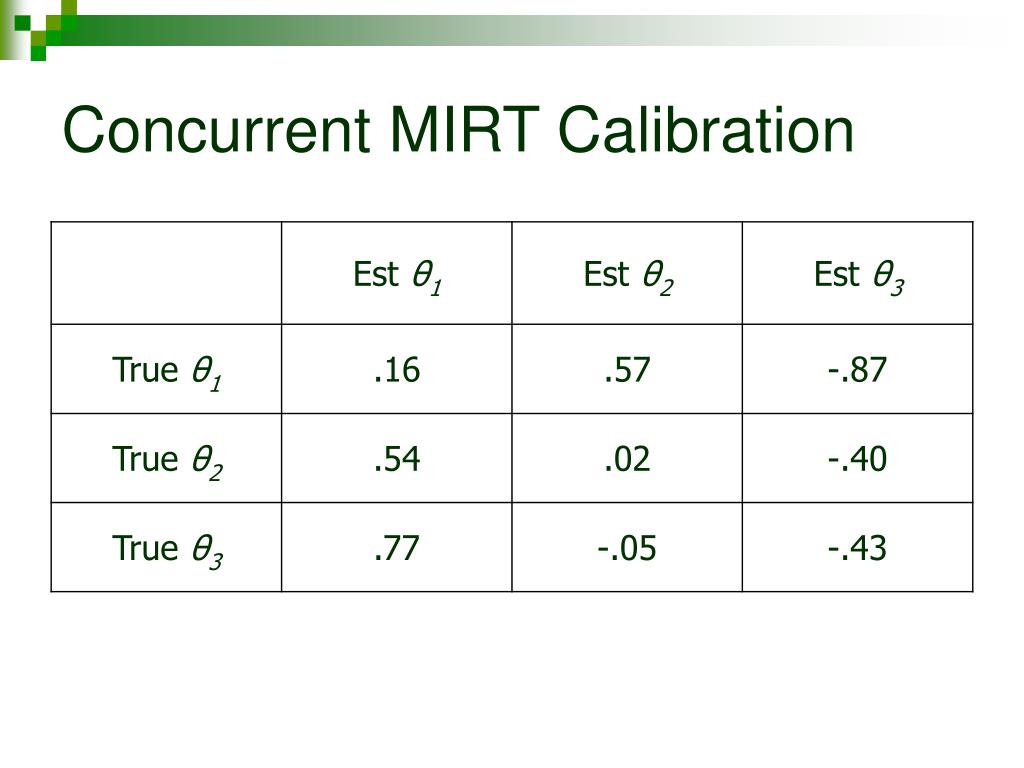

23. Concurrent MIRT Calibration

24. Concurrent MIRT Calibration

25. Concurrent MIRT Calibration • Scale on Dimension 3 is reversed and it has a large effect size (algebra). • Dimension 1 is most related to arithmetic and problem solving with a moderate effect size. • Dimension 2 is moderately related to algebra and has a large effect size. • The overall result gives a reasonable estimate of effects, but the dimensions need to be rotated to match the constructs.

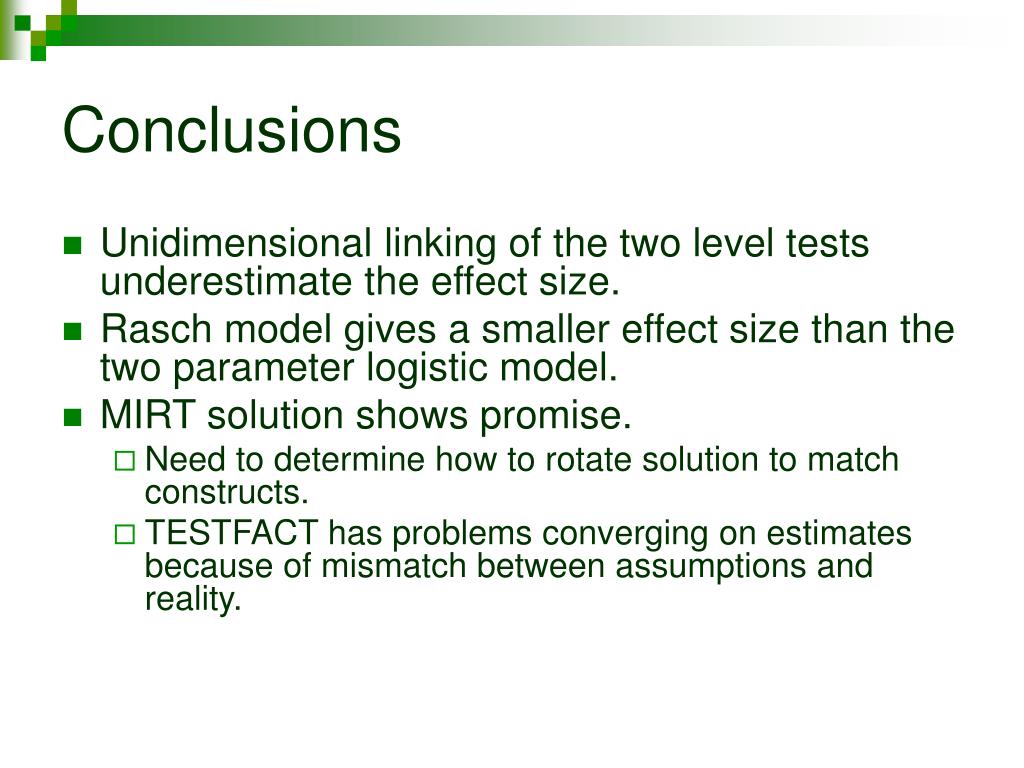

26. Conclusions • Unidimensional linking of the two level tests underestimate the effect size. • Rasch model gives a smaller effect size than the two parameter logistic model. • MIRT solution shows promise. • Need to determine how to rotate solution to match constructs. • TESTFACT has problems converging on estimates because of mismatch between assumptions and reality.
